2022 CUBE Cargo Sport Hybrid 500 Review

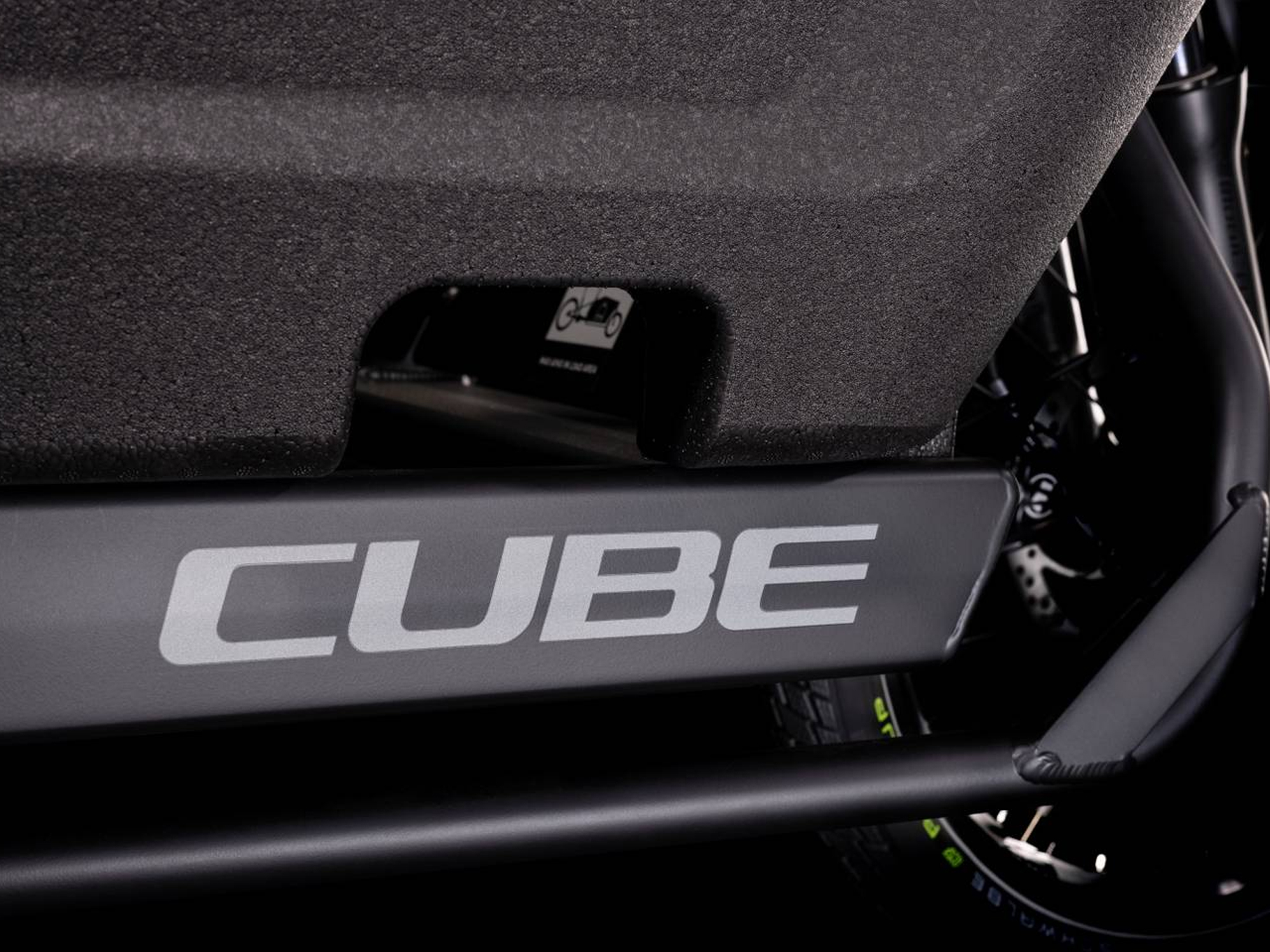

2022-cube-cargo-sport-hybrid-500-cargo-foot-step

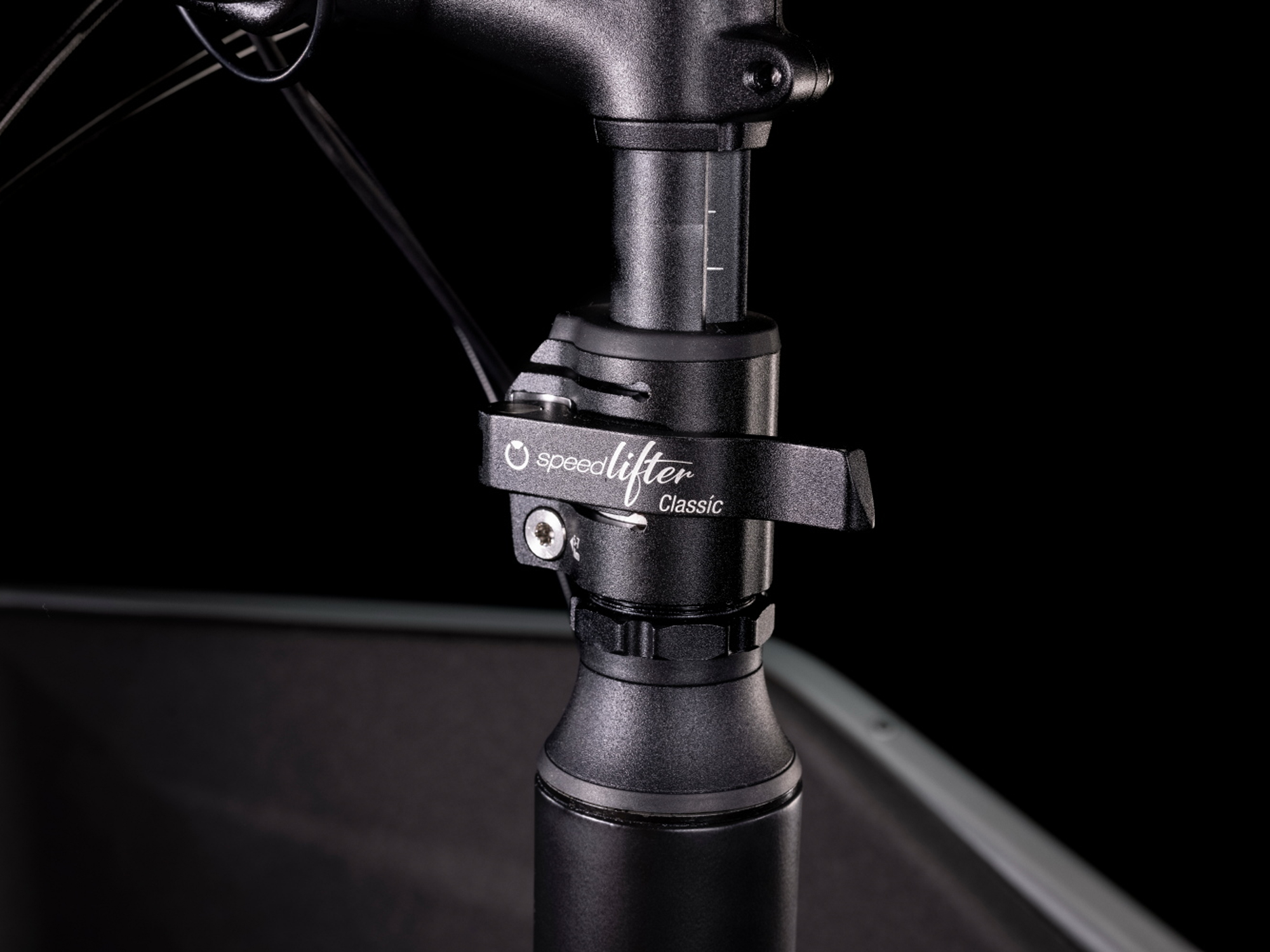

2022-cube-cargo-sport-hybrid-500-byschulz-speedlifter-classic-stem

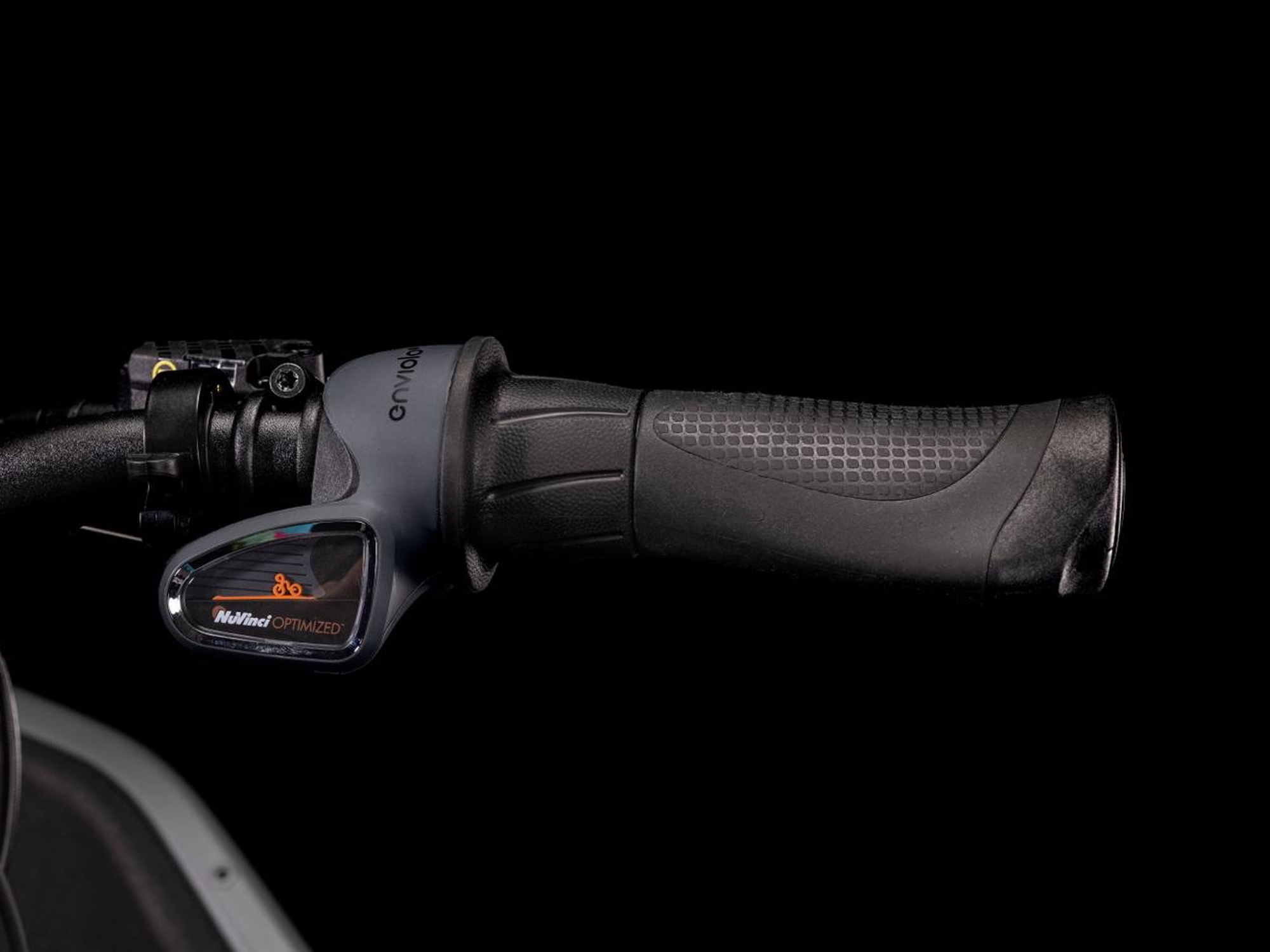

2022-cube-cargo-sport-hybrid-500-shimano-deore-sl-m4100-shifter

2022-cube-cargo-sport-hybrid-500-bosch-intuvia-display

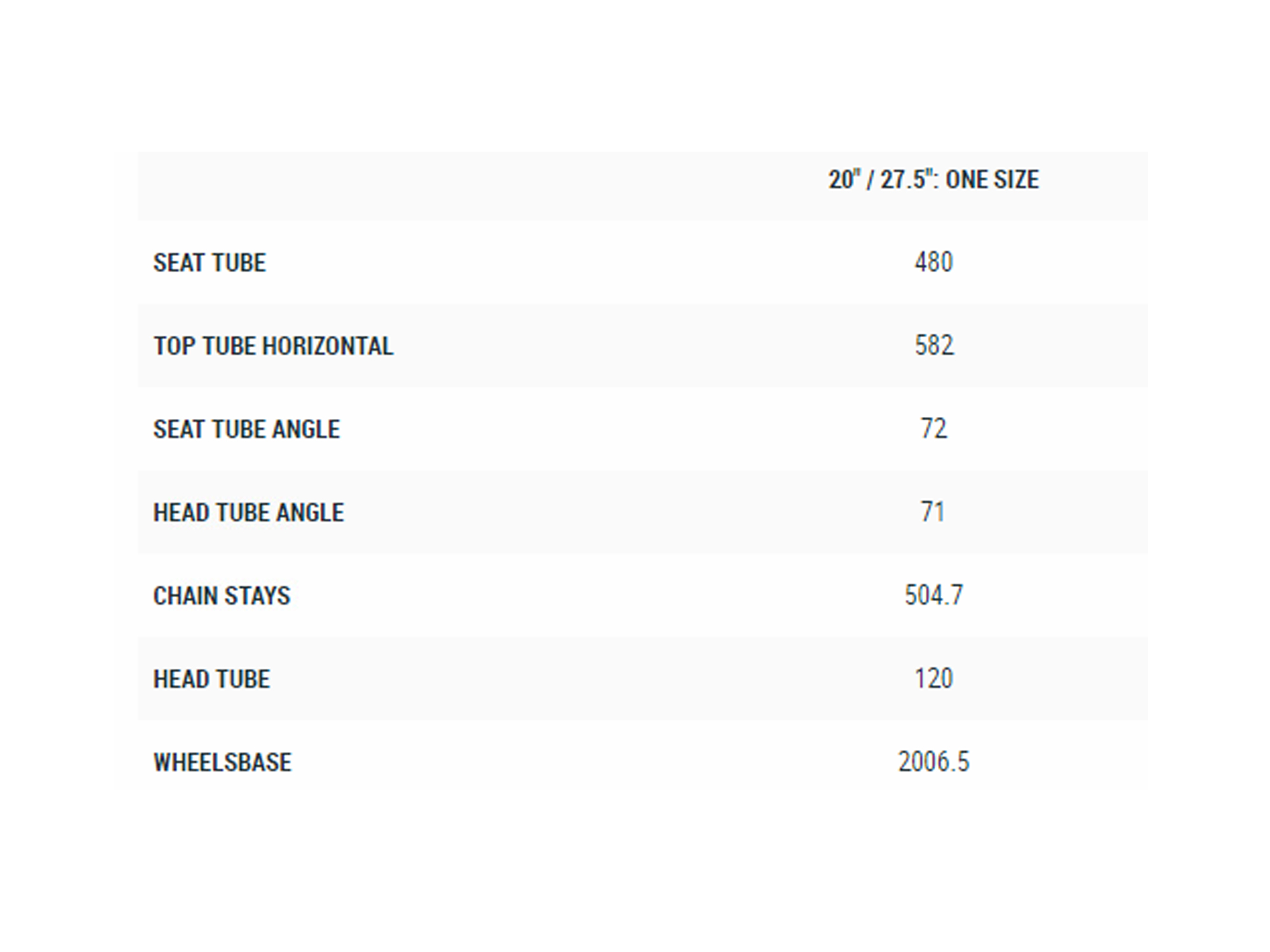

2022-cube-cargo-sport-hybrid-500-step-thru-frame-geometry-sizing-chart-1

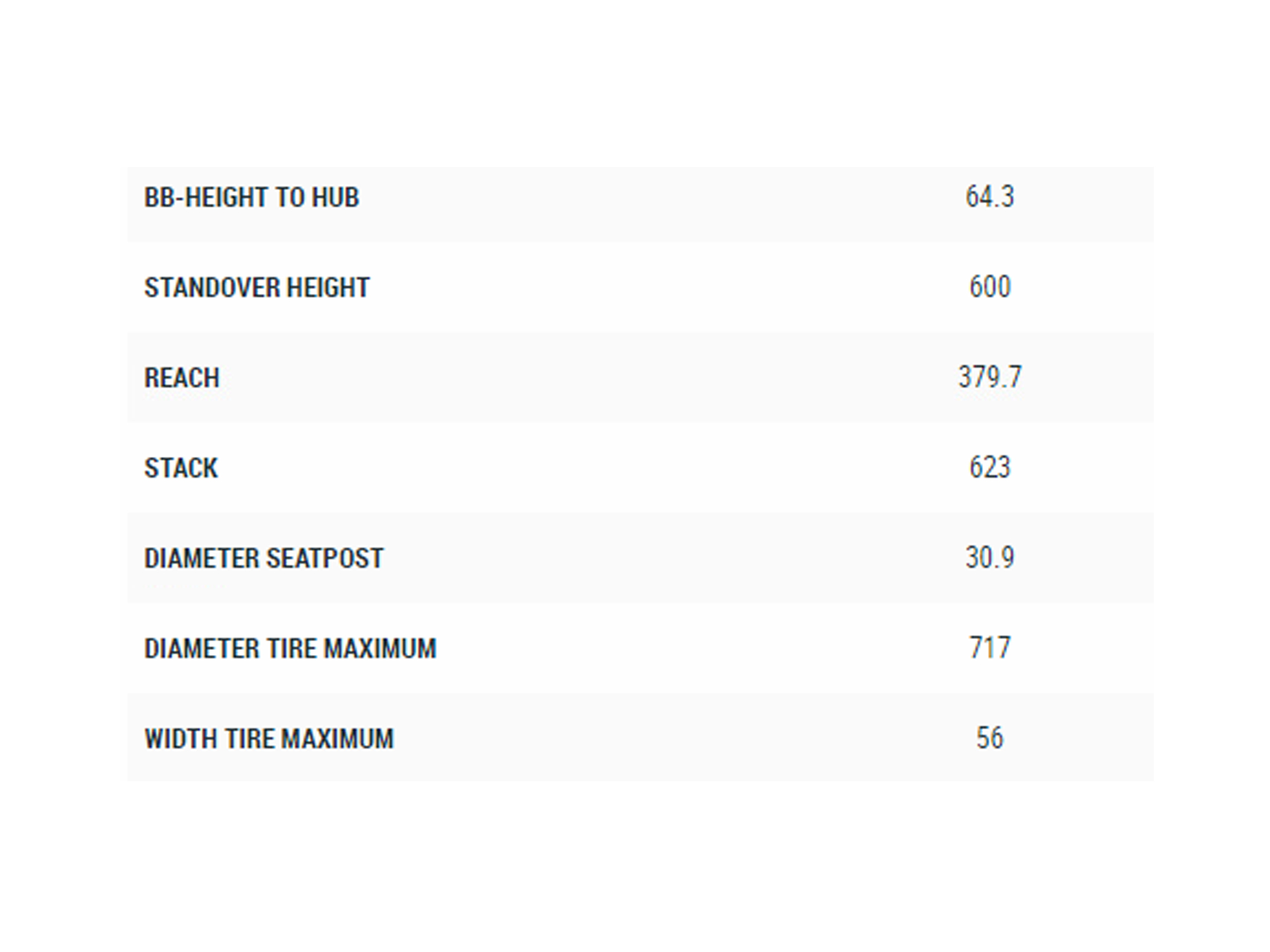

2022-cube-cargo-sport-hybrid-500-step-thru-frame-geometry-sizing-chart-2

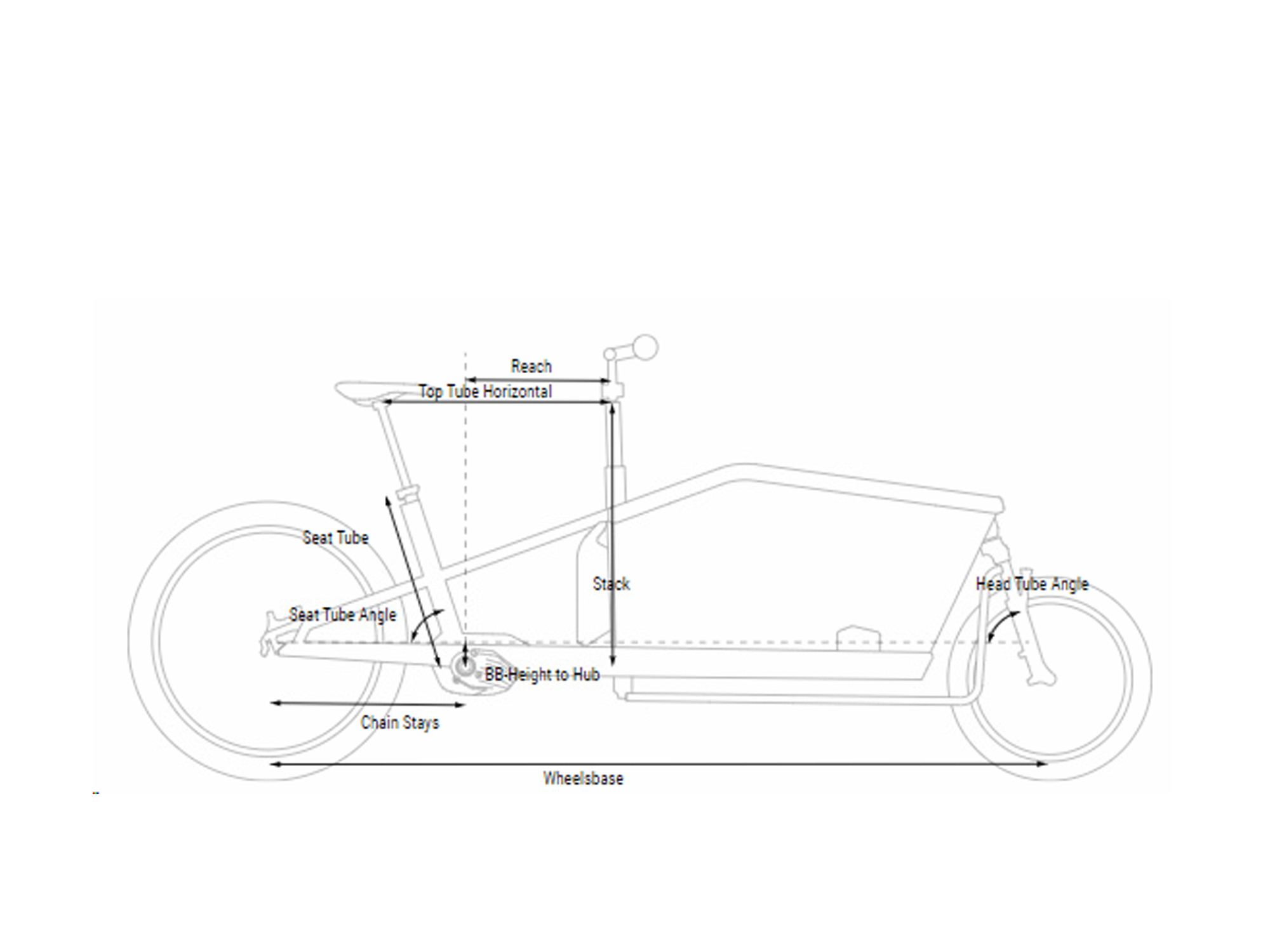

2022-cube-cargo-sport-hybrid-500-step-thru-frame-geometry-sizing-legend

2022-cube-cargo-sport-hybrid-500-step-thru-flash-grey-black

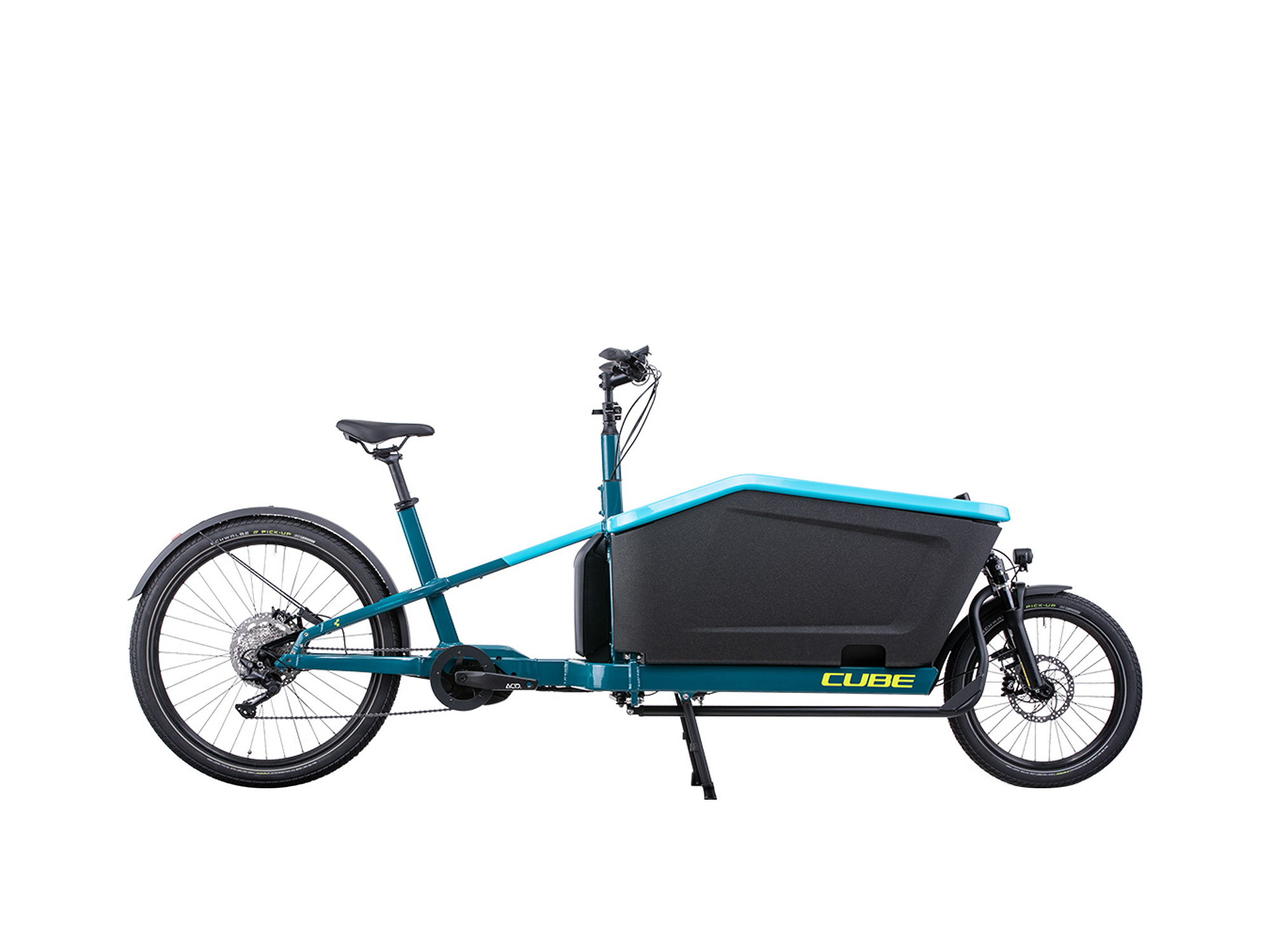

2022-cube-cargo-sport-hybrid-500-step-thru-blue-lime

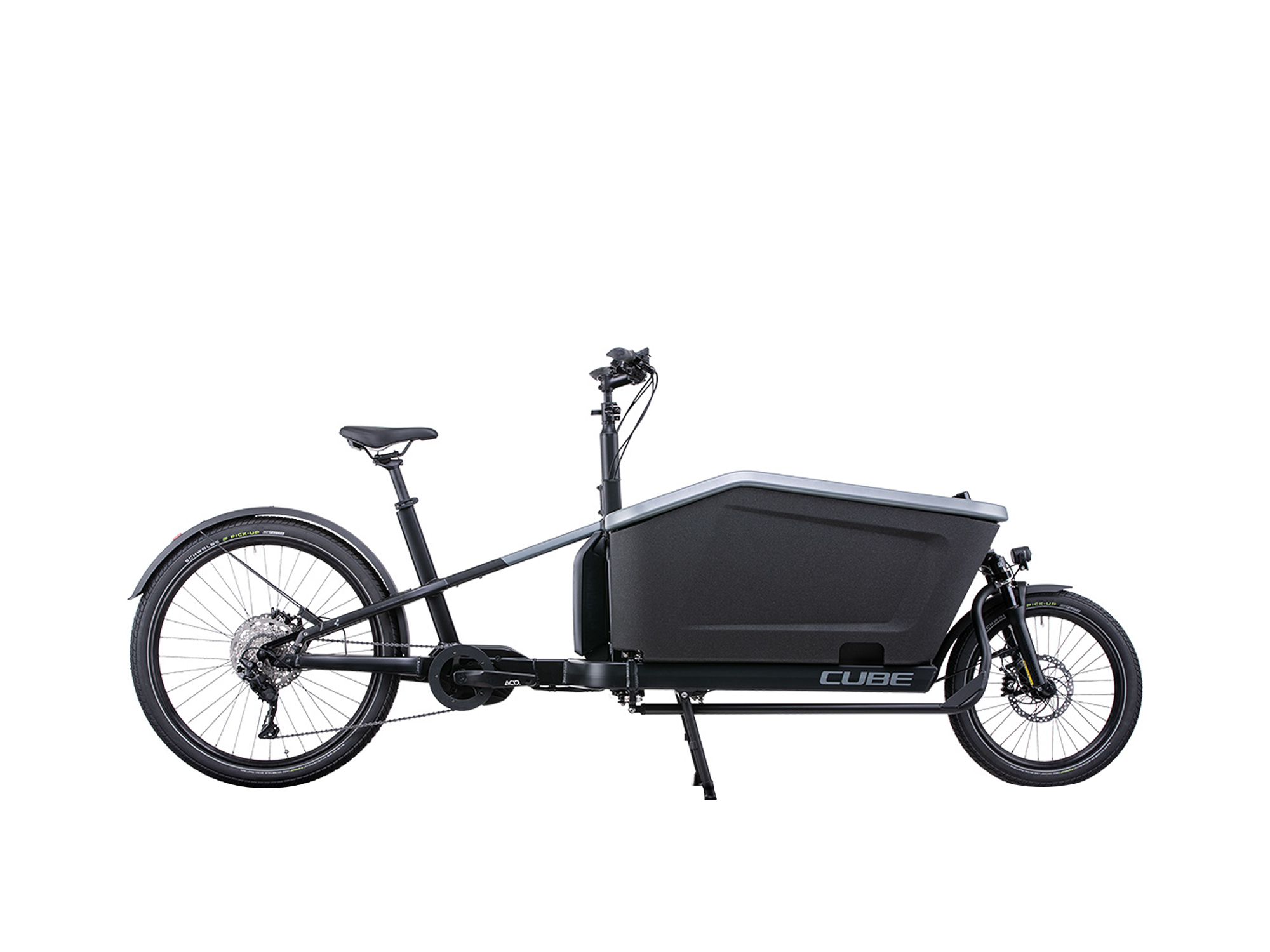

2022-cube-cargo-sport-hybrid-500-2022-cube-cargo-sport-hybrid-500-electric-bike-review-white-background

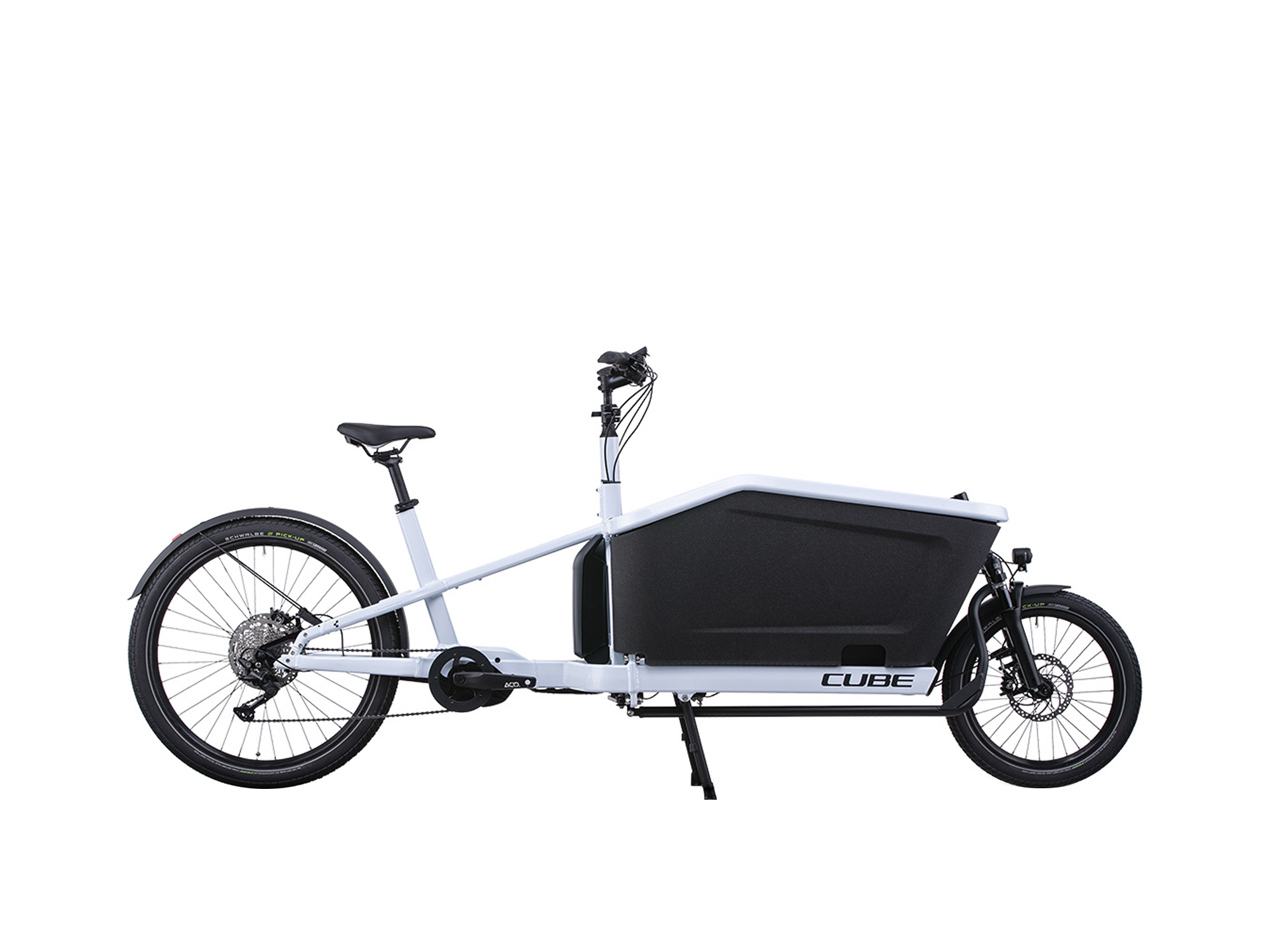

2022-cube-cargo-sport-hybrid-500-step-thru-flash-white-black

Photos (12)

Videos

Shops

Highlights

Technical Specs & Ratings

General

Year When this particular ebike model configuration was released	2022
Brand The company that produces this particular electric bicycle	CUBE
Model The specific product or family of products from a brand	Cargo Sport Hybrid 500
MSRP The Manufacturer’s Suggested Retail Price listed in US Dollars	$6,899
Category A grouping of products with similar features and uses	Electric Cargo Bike Reviews , Commuting Electric Bike Reviews , Electric Box Bike Reviews
Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Mid-Step
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Wheel Size The diameter of wheels used on the bike, may be listed in inches or millimeters, may include multiple wheel sizes	20.0,27.5
Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	10
Brake Type The mechanism used to slow and stop the ebike, may include multiple brake types	Hydraulic Disc
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Output The measure of continuous power being produced by the motor, measured in watts	250
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Weight The total heaviness of the ebike: the force acting on it due to gravity	100.1 lbs / 45.45 kgs

Frameset

Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Mid-Step
Weight The total heaviness of the ebike: the force acting on it due to gravity	100.1
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Suspension Travel The distance a suspension system can flex or move under load, usually measured in millimeters	80
Fork Details The part of an electric bike that holds the front wheel, steers it, and may include suspension	SR Suntour MOBIE CARGO, 80mm
Wheel Details A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim	CUBE EX30, 32H, Disc, Tubeless Ready
Tire Details A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike	Front: Schwalbe Pick-Up, Super Defense, 60-406 \| Rear: Schwalbe Pick-Up, Super Defense, 65-584

Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	10
Shift Levers The interface that a rider interacts with to change gears, they may be levers, twist mechanisms, or electronic buttons	Shimano Deore SL-M4100
Crankset A group of components that convert reciprocating motion of a rider's legs into rotational motion used to drive a chain, belt, or shaft, which in turn drives the rear wheel, usually consisting of a bottom bracket, crank arms, and chainrings	ACID E-Crank, 170mm, 38T
Rear Derailleur A mechanism that moves the chain in different directions to fit different sized freewheel or cassette cogs, effectively changing pedal ratio and speed	Shimano Deore RD-M5120-SGS, 10-speed
Cassette The cluster of sprockets mounted on the rear hub of an ebike, they may be grouped together as a freewheel that threads onto a hub or slotted individually onto a freehub body which is referred to as a cassette and is stronger	Shimano Deore CS-M4100, 11-46T

Headset The set of components that provide a rotatable interface between the fork and the head tube of the frame	Cube H835D3, semi-integrated with sealed bearings and Cane Creek Viscoset
Stem The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort	BySchulz Speedlifter Classic
Handlebar The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork	CUBE Comfort Trail Bar, 680mm
Grips The component that a rider holds to direct the handlebar, often made of rubber or cork, may consiste of grip tape	Natural Fit Comfort
Seatpost A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension	Natural Fit Comfort
Seatpost Diameter The diameter measurement of a seat post, usually in millimeters, this may be important if you wish to replace a rigid post with a suspension seatpost, consider using shims to match a smaller seatpost with a larger seat tube.	30.9
Saddle A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics	Natural Fit Sequence+ Comfort
Pedals The part of a bicycle that the rider pushes with their foot to create motion in the drivetrain, they are usually easy to replace with different designs for greater traction and surface area or reduced weight	CUBE PP MTB
Brake Type The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently	Hydraulic Disc
Brake Details The component that applies friction to the front wheel to provide stopping force	Magura CMe, Hydr. Disc Brake (180/203)

Bike Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Details Details about the primary motor system propelling the electric bike	Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt)
Motor Output The measure of continuous power being produced by the motor, measured in watts	250

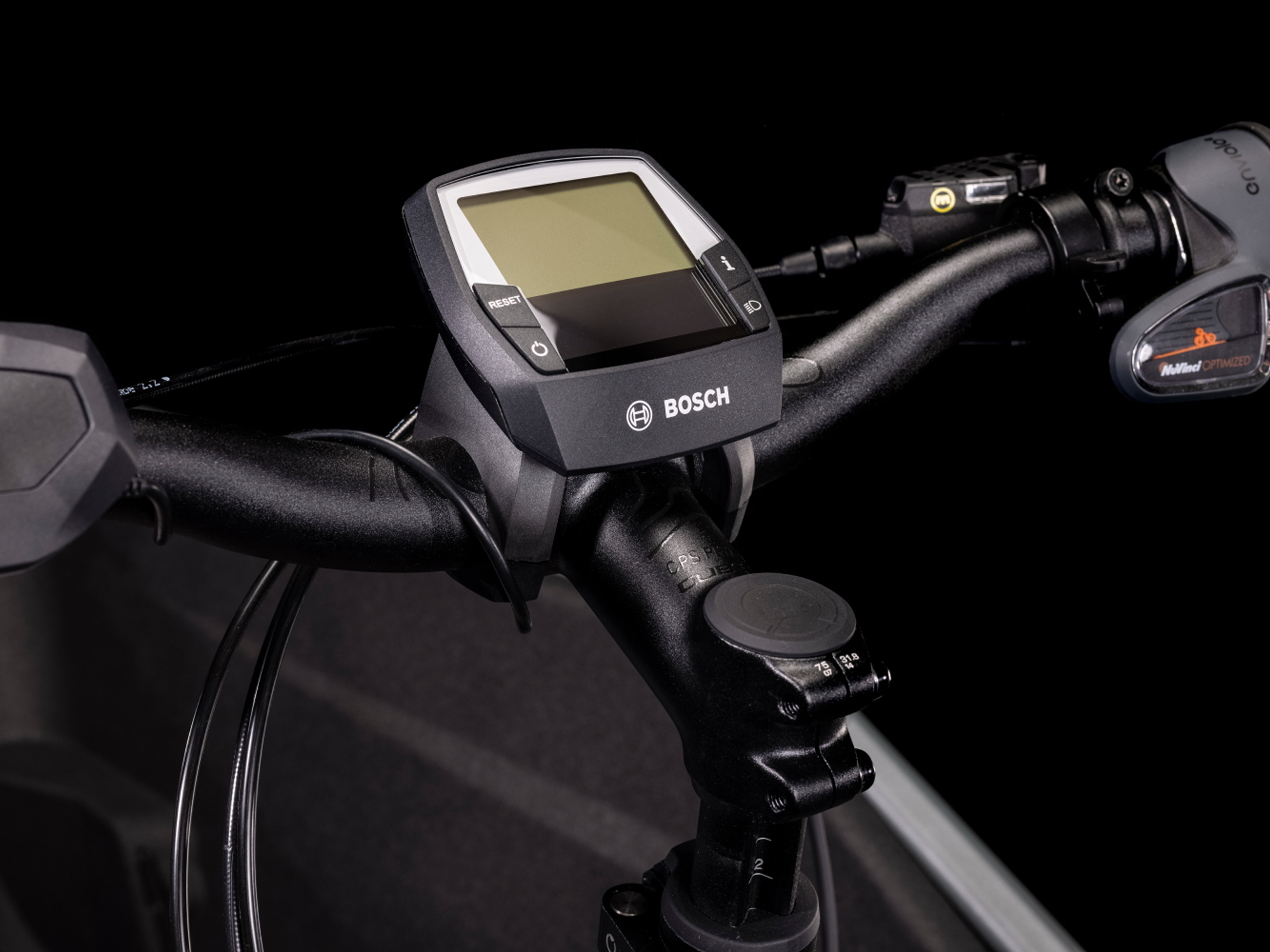

Display A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more	Bosch Intuvia
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Battery Details Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer	Bosch PowerPack 500
Charger A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery	Bosch 2A

Lights Components that illuminate the surroundings and help make the ebike more visible during low light conditions	Front: ACID Front Light PRO-E 110, 5-16V, DC \| Rear: ACID Mudguard Rear Light PRO-E, 12V, DC
Fenders Components that partially surround the tires, deflecting mud, water, and other debris from splashing up onto the rider and their surroundings	ACID 75
Front Rack A component that can store and transport cargo on the front portion of an ebike, usually offering lower capacity than rear racks, some are removeable	Yes

Availability Additional details about the electric bike that did not fit into other categories	United States, Canada, Europe
Warranty Additional details about the electric bike that did not fit into other categories	2 Years Motor and Battery, 5 Years Frame
Frame Sizes Additional details about the electric bike that did not fit into other categories	20" / 27.5": ONE SIZE
Frame Colors Additional details about the electric bike that did not fit into other categories	Flashgrey’n’Black
Chain Additional details about the electric bike that did not fit into other categories	KMC X10
Front Hub Additional details about the electric bike that did not fit into other categories	Shimano HB-MT400, 15x100mm , Centerlock
Rear Hub Additional details about the electric bike that did not fit into other categories	Shimano Deore FH-M6000, QR, Centerlock
Kickstand Additional details about the electric bike that did not fit into other categories	Cargo Kickstand
Bell Additional details about the electric bike that did not fit into other categories	Humpert

Video Reviews

Written Reviews

The Cargo Sport Hybrid 500 Urban eBike from Cube Bikes is a versatile and powerful electric cargo bike designed to make commuting and carrying cargo more manageable and enjoyable. With its clever design and the smooth power of Bosch's fourth-generation Cargo Line drive system, this bike is a serious contender in electric cargo bikes.

The key feature of the Cargo Sport Hybrid 500 is its ability to carry cargo and passengers safely and comfortably. The bike has an optional child seat with integrated seat belts, making it easy to transport kids around town. An optional rain cover can also be clipped on to help keep cargo or passengers dry in inclement weather.

The bike is also equipped with bright LED lights front and rear, ensuring that riders can see and be seen in low-light conditions. Mudguards and grippy tires make it easy to navigate wet streets, while powerful Magura hydraulic disc brakes ensure that riders are always in control, no matter the weather.

The Cargo Sport Hybrid 500 is also designed for comfort and reliability. Its suspension fork absorbs shocks and vibrations, making for a smoother ride. The bike's Shimano 10-speed Deore gears provide riders a wide range of options, while the Bosch Cargo Line drive system delivers smooth and consistent power.
