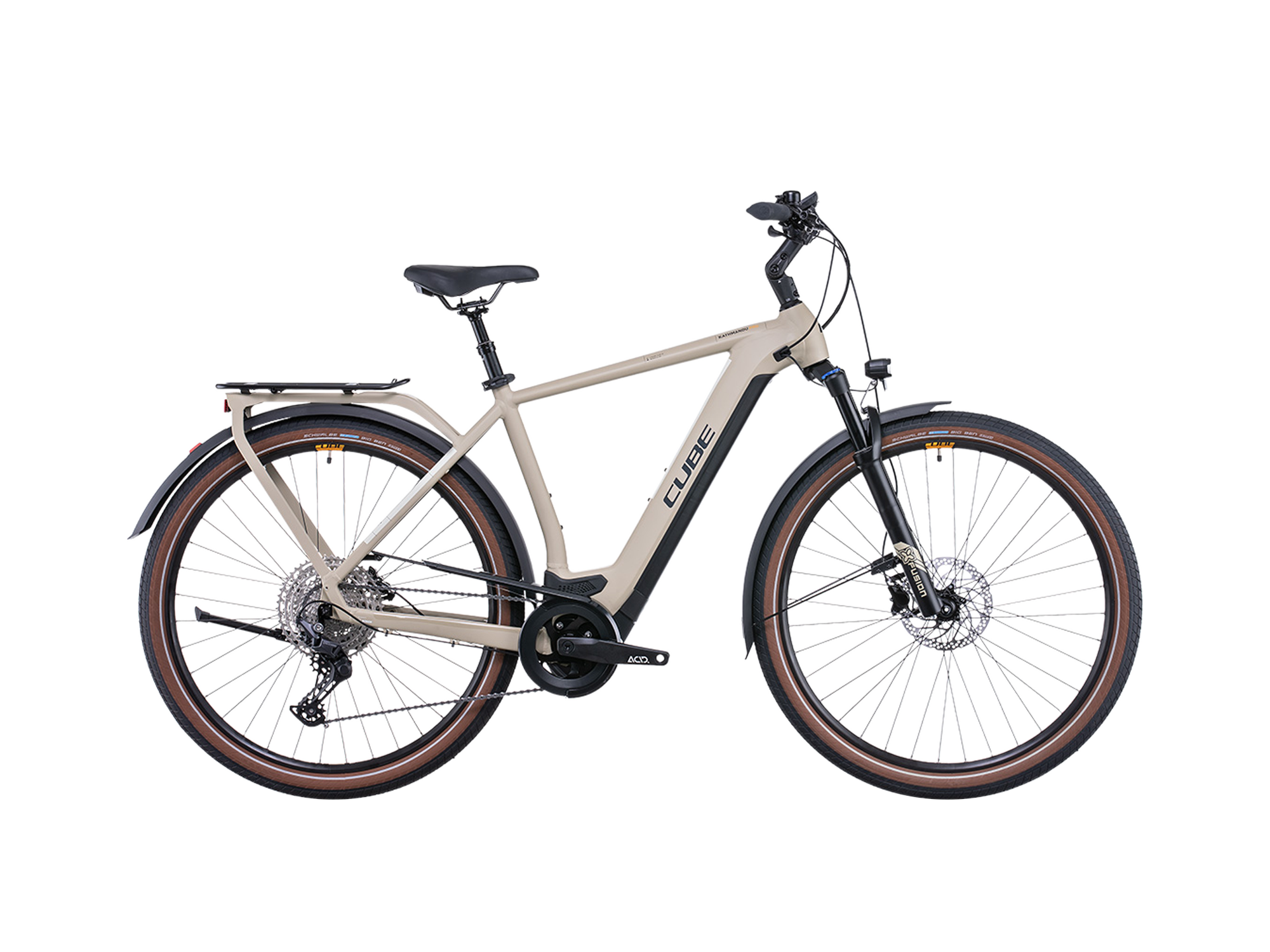

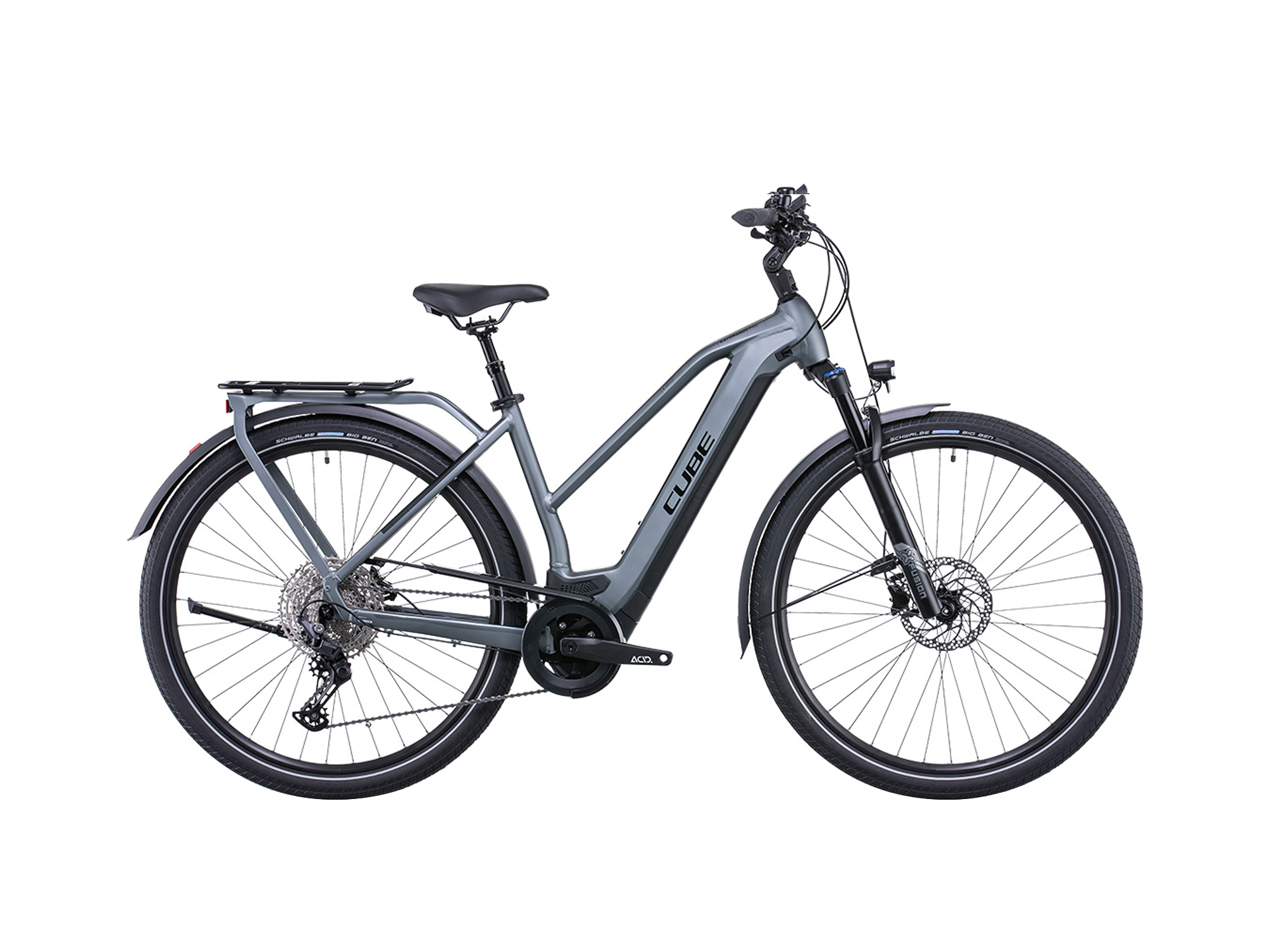

2022 CUBE Kathmandu Hybrid Pro 625 Review

MOUNTAIN

CROSS COUNTRY

COMMUTING

CITY

2022 CUBE Kathmandu Hybrid Pro 625 Review camera.png Photos (21)
electric-bike-review-videos youtube.png Videos
electric-bike-shops map-pin.png Shops

Highlights

Technical Specs & Ratings

General

Year

When this particular ebike model configuration was released

2022
Brand

The company that produces this particular electric bicycle

CUBE

Model

The specific product or family of products from a brand

Kathmandu Hybrid Pro 625
MSRP

The Manufacturer’s Suggested Retail Price listed in US Dollars

$4,199
Category

A grouping of products with similar features and uses

Electric Mountain Bike Reviews , Cross Country Electric Bike Reviews , Commuting Electric Bike Reviews , City Electric Bike Reviews

Class

Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other

Class 1
Frame Type

The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more

High-Step,Mid-Step,Step-Thru
Suspension Type

Hardware designed to reduce vibration and impacts

Front Suspension
Wheel Size

The diameter of wheels used on the bike, may be listed in inches or millimeters, may include multiple wheel sizes

28.0
Gears

The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions

11

Brake Type

The mechanism used to slow and stop the ebike, may include multiple brake types

Hydraulic Disc
Motor Type

Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency

Mid-Drive
Motor Output

The measure of continuous power being produced by the motor, measured in watts

250
Battery Watt Hours

The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh

625 Wh
Max Watt Hours

Some ebikes have multiple battery size options, this is the maximum capacity offered

625 Wh
Weight

The total heaviness of the ebike: the force acting on it due to gravity

58.08 lbs / 26.37 kgs

Frameset

Frame Type

The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more

High-Step,Mid-Step,Step-Thru
Weight

The total heaviness of the ebike: the force acting on it due to gravity

58.08
Suspension Type

Hardware designed to reduce vibration and impacts

Front Suspension
Suspension Travel

The distance a suspension system can flex or move under load, usually measured in millimeters

100
Fork Details

The part of an electric bike that holds the front wheel, steers it, and may include suspension

X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
Wheel Details

A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim

CUBE EX23, 36H, Disc, Tubeless Ready
Tire Details

A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike

Schwalbe Big Ben, Performance, 55-622

Drivetrain

Gears

The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions

11
Shift Levers

The interface that a rider interacts with to change gears, they may be levers, twist mechanisms, or electronic buttons

Shimano Deore SL-M5100, Rapidfire-Plus
Crankset

A group of components that convert reciprocating motion of a rider's legs into rotational motion used to drive a chain, belt, or shaft, which in turn drives the rear wheel, usually consisting of a bottom bracket, crank arms, and chainrings

ACID E-Crank, 38T, 175mm (EE: 170mm)
Rear Derailleur

A mechanism that moves the chain in different directions to fit different sized freewheel or cassette cogs, effectively changing pedal ratio and speed

Shimano Deore RD-M5100-SGS, 11-Speed
Cassette

The cluster of sprockets mounted on the rear hub of an ebike, they may be grouped together as a freewheel that threads onto a hub or slotted individually onto a freehub body which is referred to as a cassette and is stronger

Shimano Deore CS-M5100, 11-51T

Components

Headset

The set of components that provide a rotatable interface between the fork and the head tube of the frame

M/Z: ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem

The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort

CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar

The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork

CUBE Comfort Trail Bar, 700mm
Grips

The component that a rider holds to direct the handlebar, often made of rubber or cork, may consiste of grip tape

Natural Fit Comfort

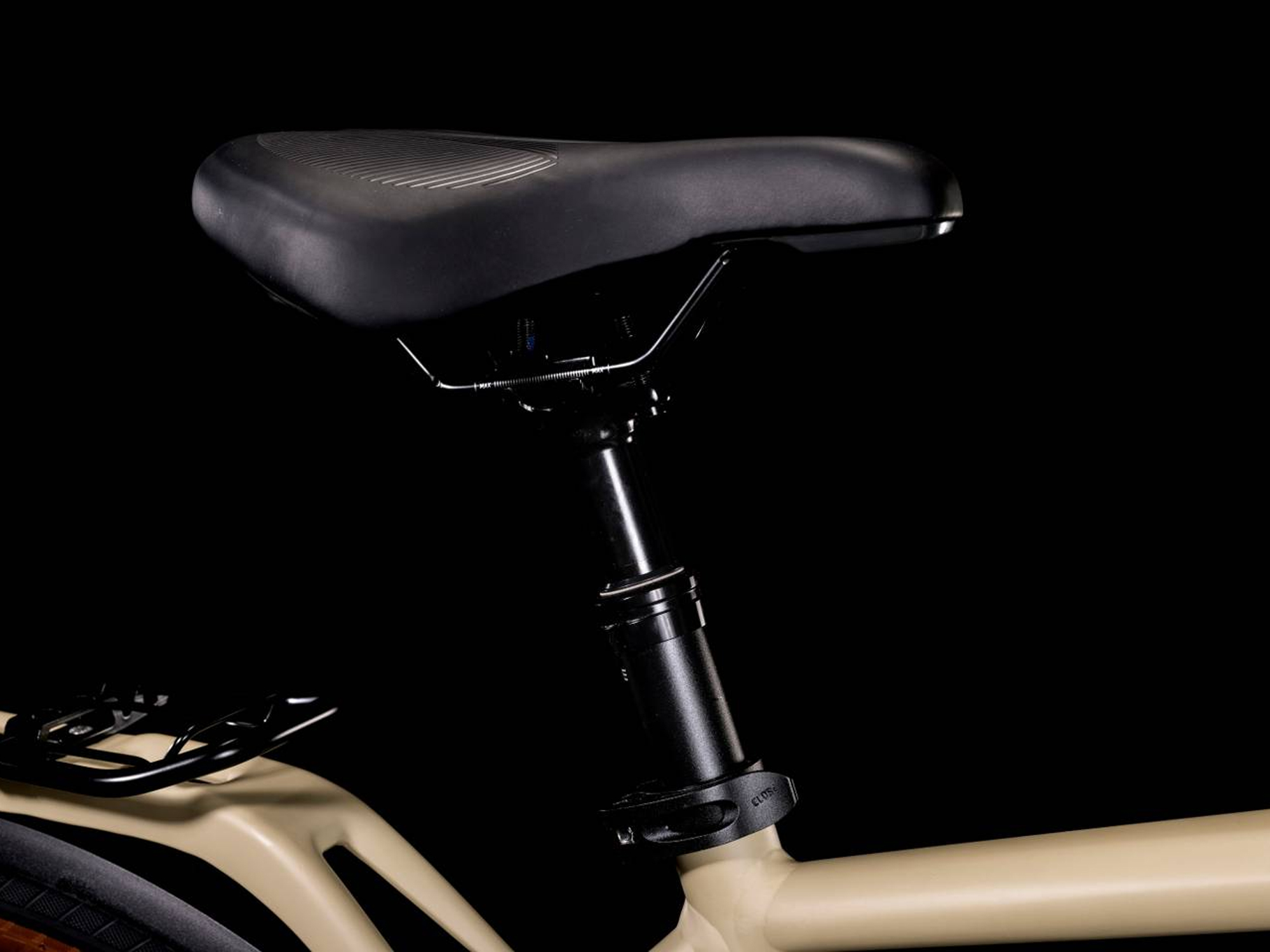

Seatpost

A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension

CUBE Suspension Seatpost HD, 30.9mm
Seatpost Diameter

The diameter measurement of a seat post, usually in millimeters, this may be important if you wish to replace a rigid post with a suspension seatpost, consider using shims to match a smaller seatpost with a larger seat tube.

30.9
Saddle

A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics

Natural Fit Sequence Comfort
Pedals

The part of a bicycle that the rider pushes with their foot to create motion in the drivetrain, they are usually easy to replace with different designs for greater traction and surface area or reduced weight

ACID PP Trekking
Brake Type

The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently

Hydraulic Disc
Brake Details

The component that applies friction to the front wheel to provide stopping force

Shimano BR-MT200, Hydr. Disc Brake (180/180)

Ebike Systems

Bike Class

Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other

Class 1
Motor Type

Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency

Mid-Drive
Motor Details

Details about the primary motor system propelling the electric bike

Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Motor Output

The measure of continuous power being produced by the motor, measured in watts

250

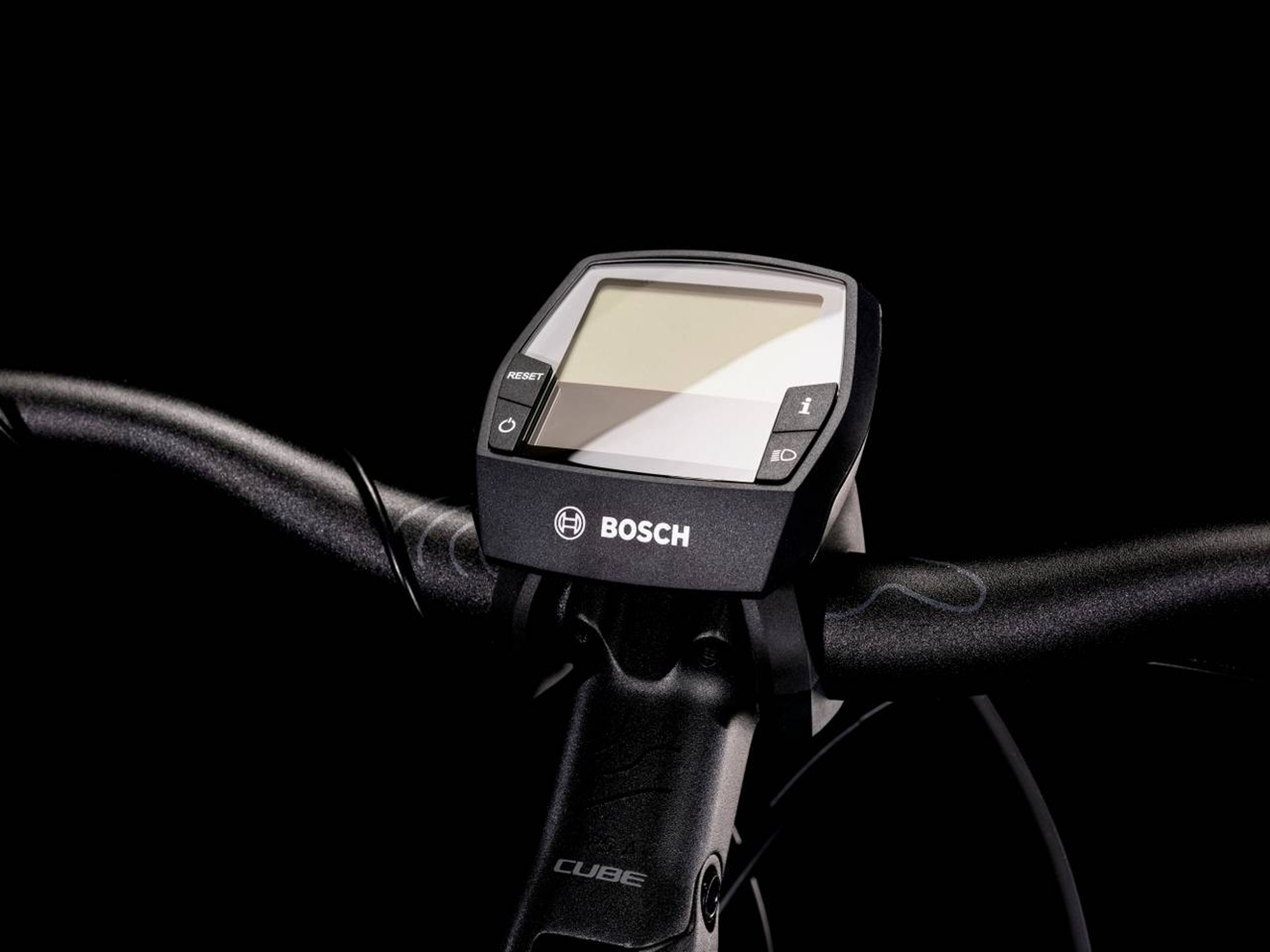

Display

A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more

Bosch Intuvia
Battery Watt Hours

The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh

625 Wh
Max Watt Hours

Some ebikes have multiple battery size options, this is the maximum capacity offered

625 Wh
Battery Details

Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer

Bosch PowerTube 625
Charger

A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery

Bosch 2A

Accessories

Lights

Components that illuminate the surroundings and help make the ebike more visible during low light conditions

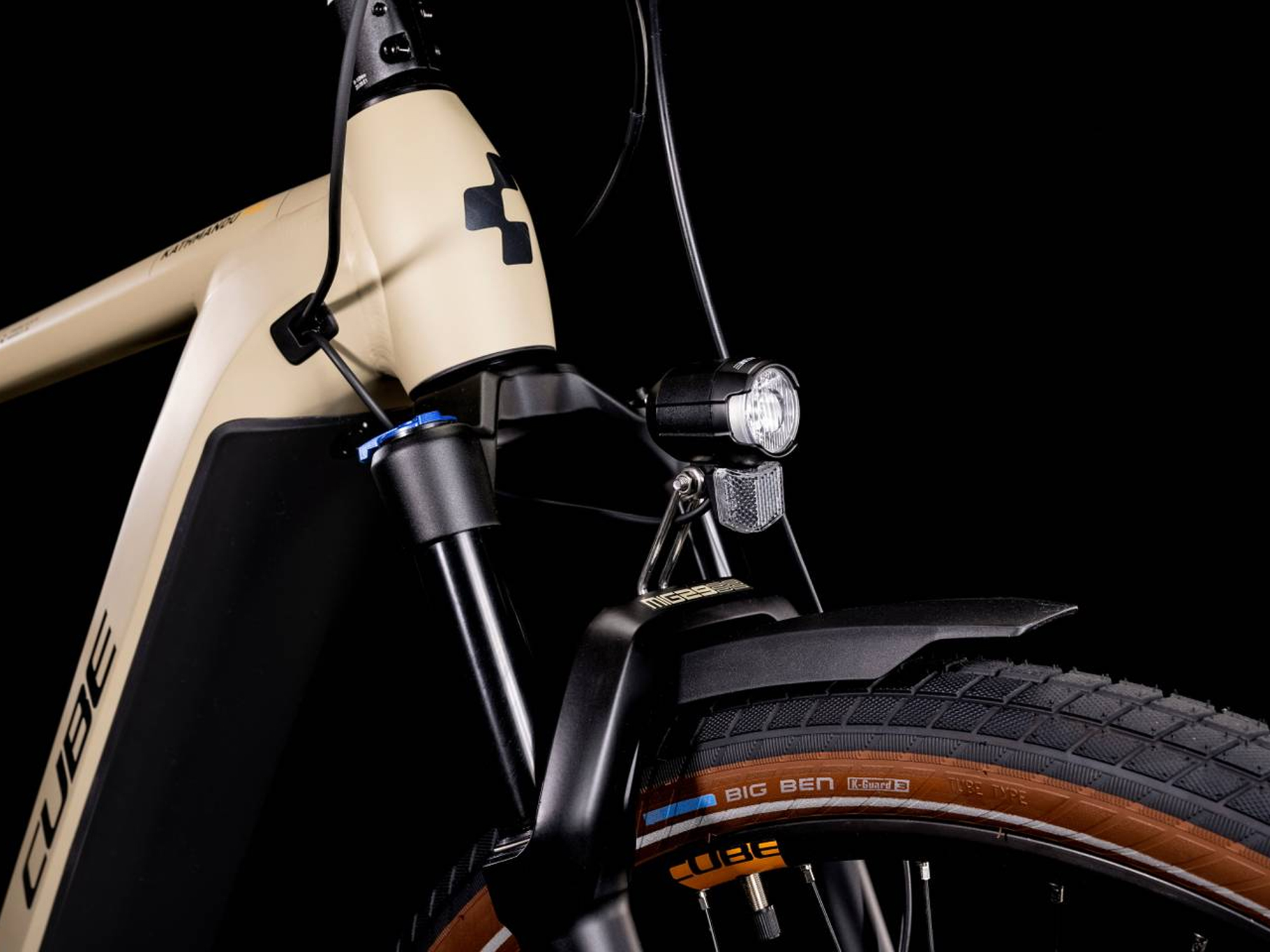

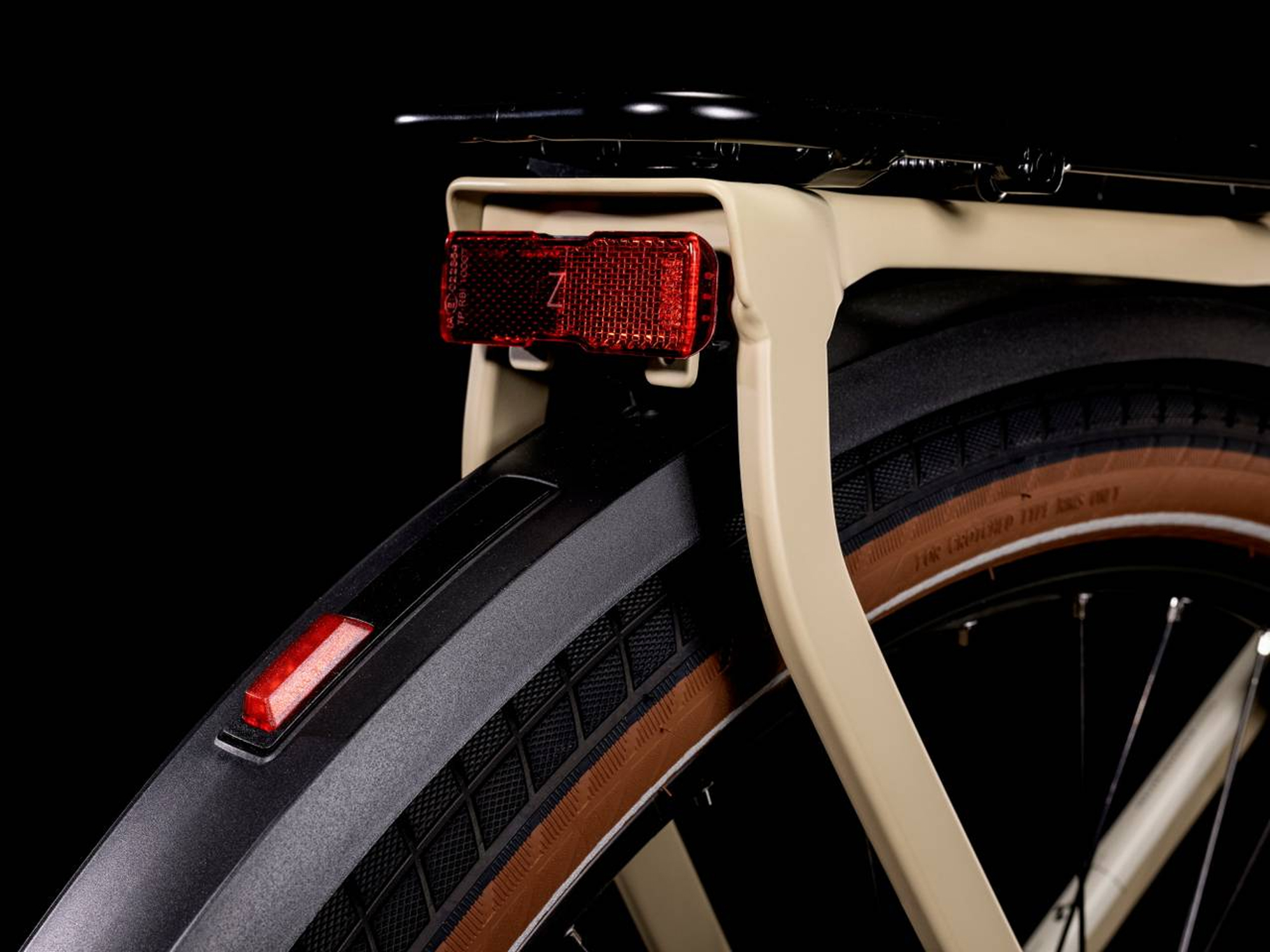

Front: CUBE Shiny 50 Lux, 12V, DC | Rear: ACID Mudguard Rear Light PRO-E, 12V, DC

Fenders

Components that partially surround the tires, deflecting mud, water, and other debris from splashing up onto the rider and their surroundings

ACID 65 BB-Mount
Rear Rack

A component that can store and transport cargo on the rear portion of an ebike, good capacity is 25kg or 55lbs, it may include a top platform, pannier hangers on the sides, bungee loops, and proprietary accessory interfaces such as RackTime or MIK, some racks are removeable

CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible

More Details

Availability

Additional details about the electric bike that did not fit into other categories

United States, Canada, Europe
Warranty

Additional details about the electric bike that did not fit into other categories

2 Years Motor and Battery, 5 Years Frame

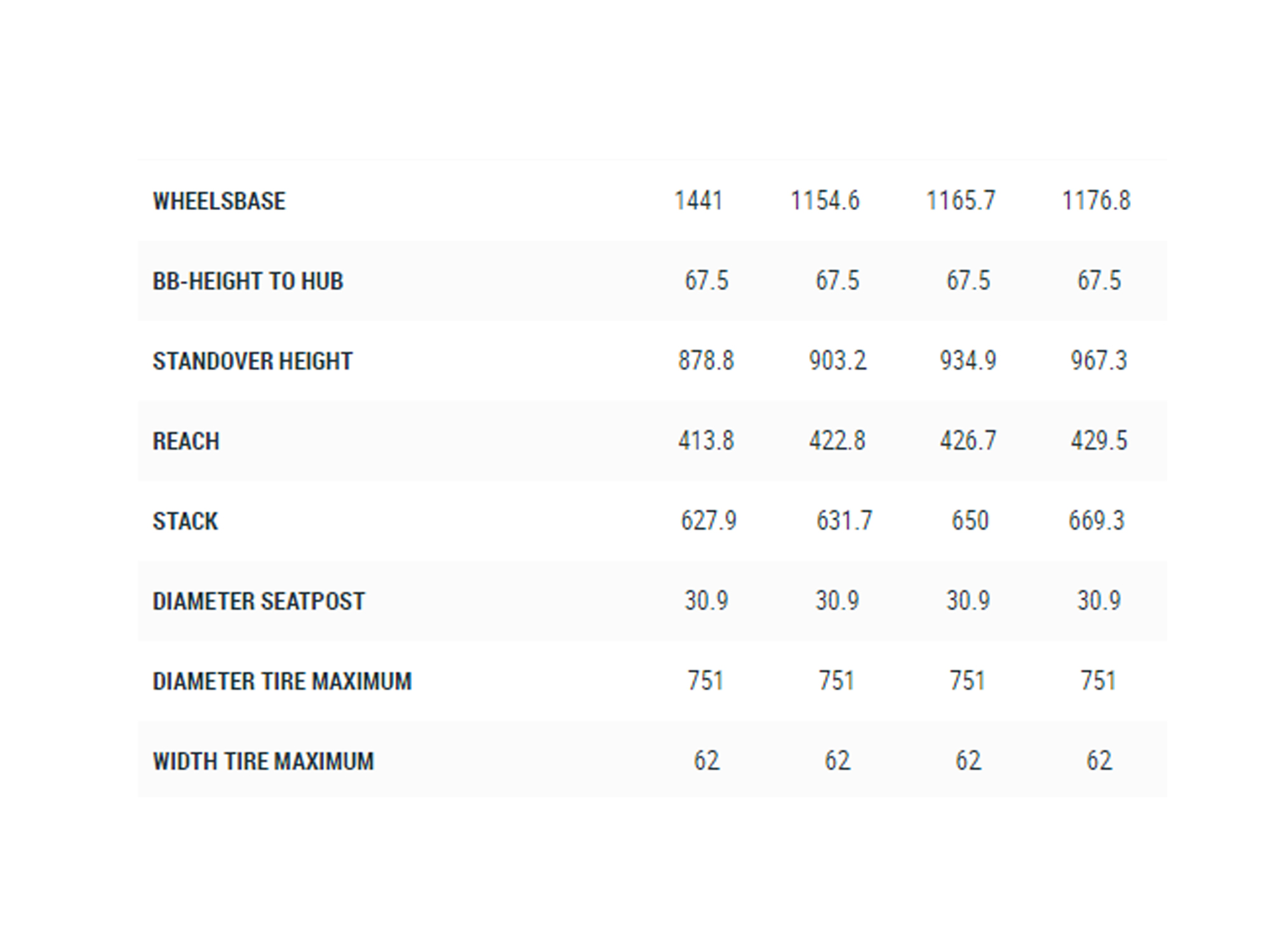

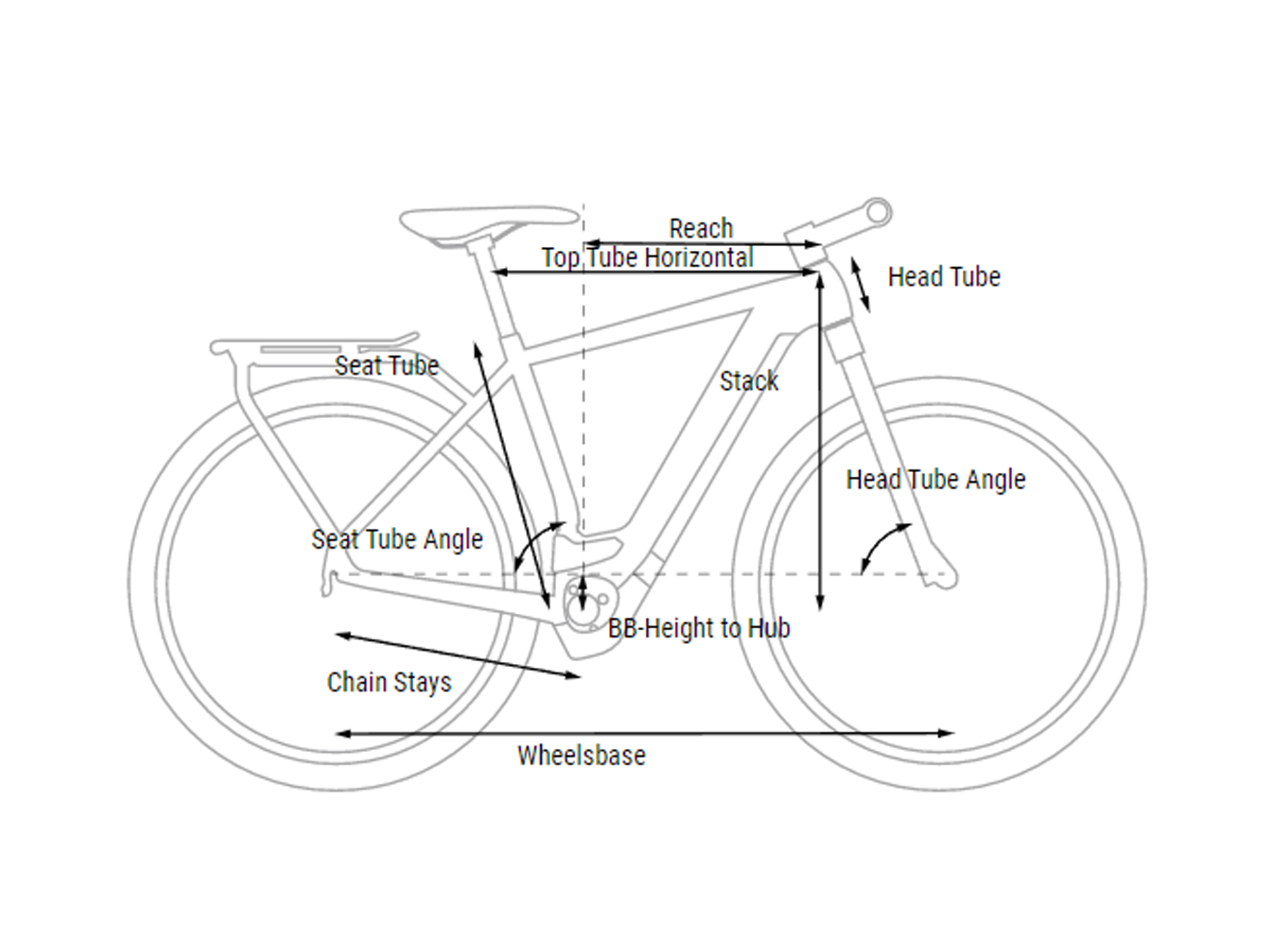

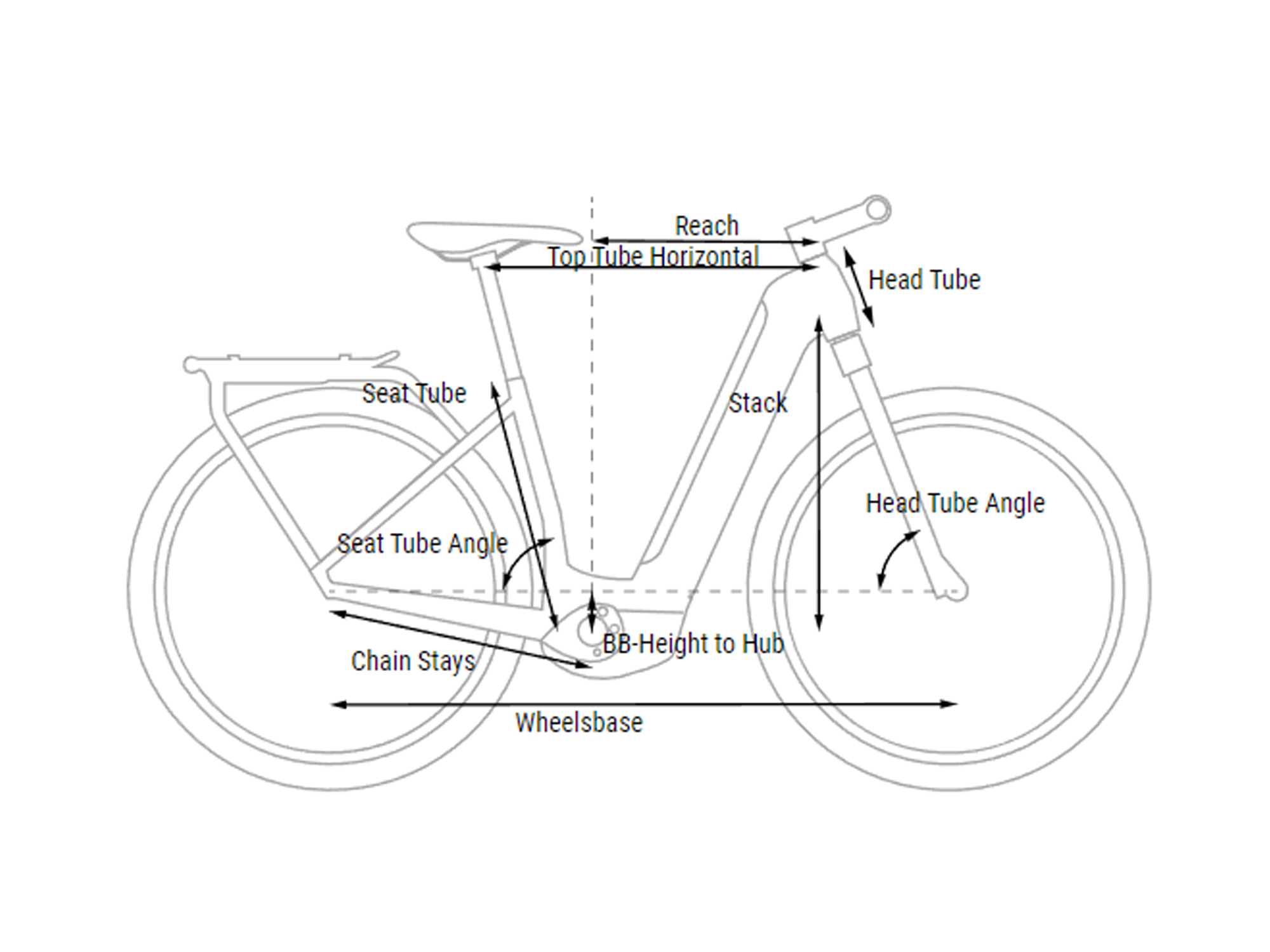

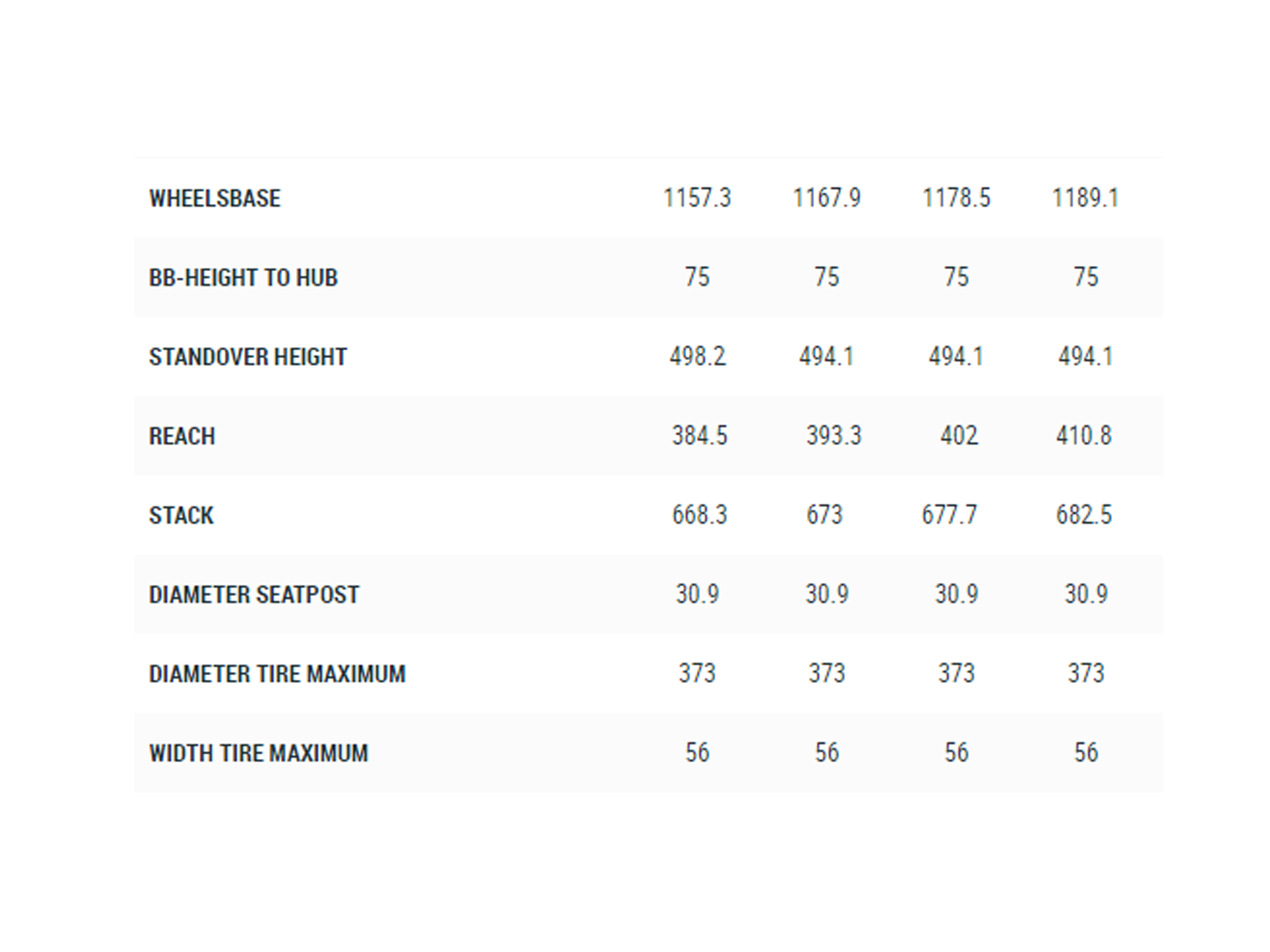

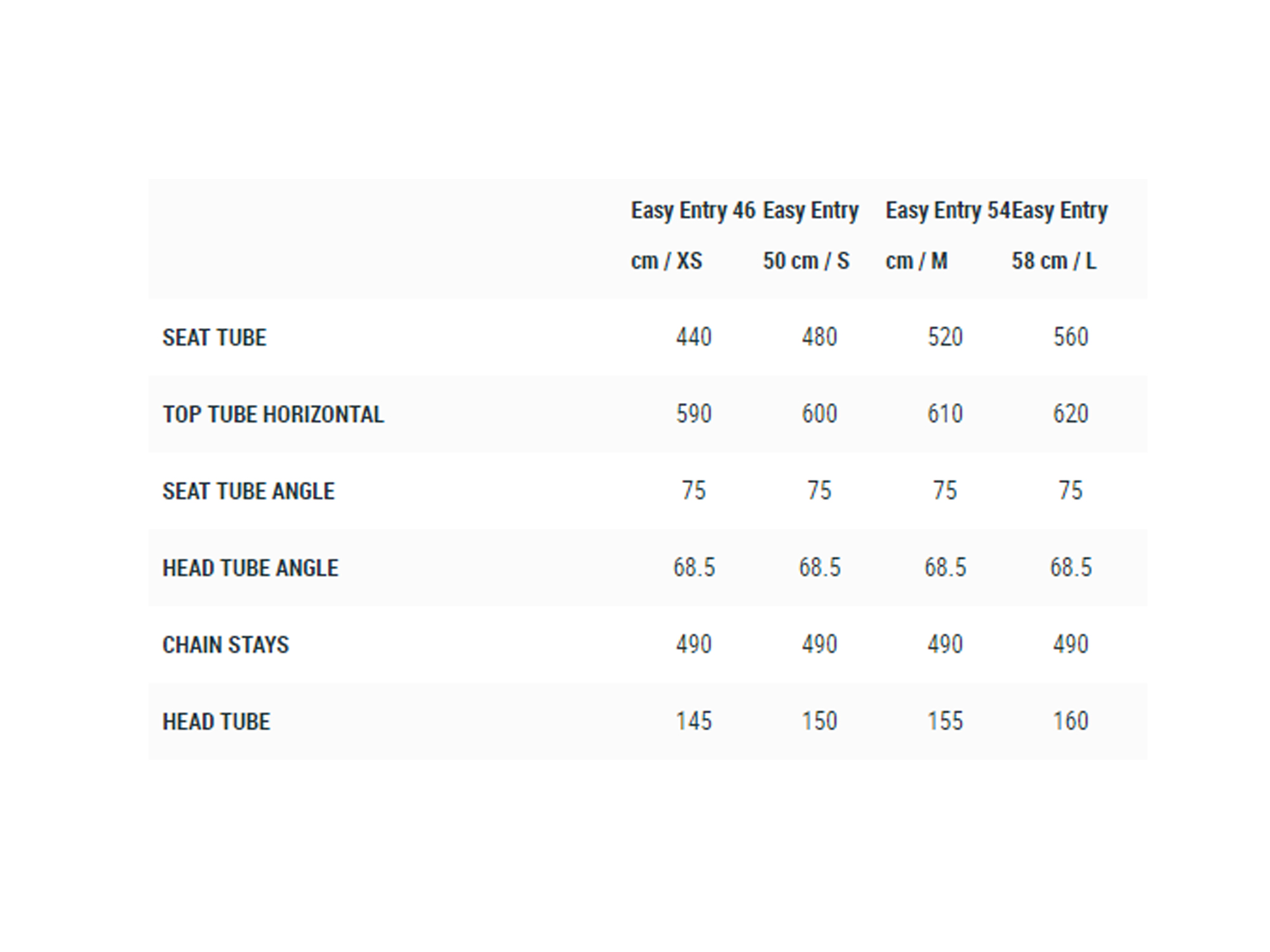

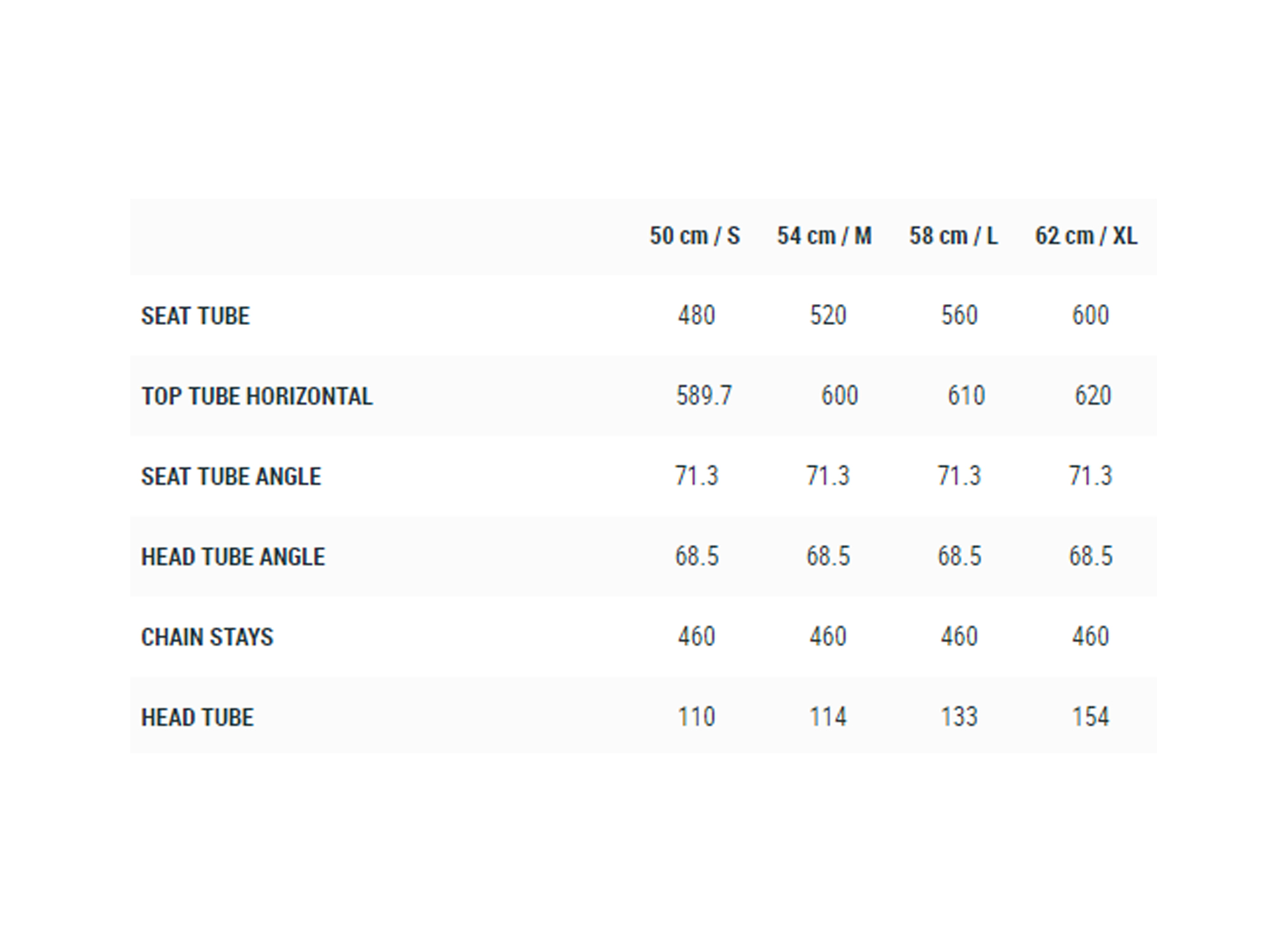

Frame Sizes

Additional details about the electric bike that did not fit into other categories

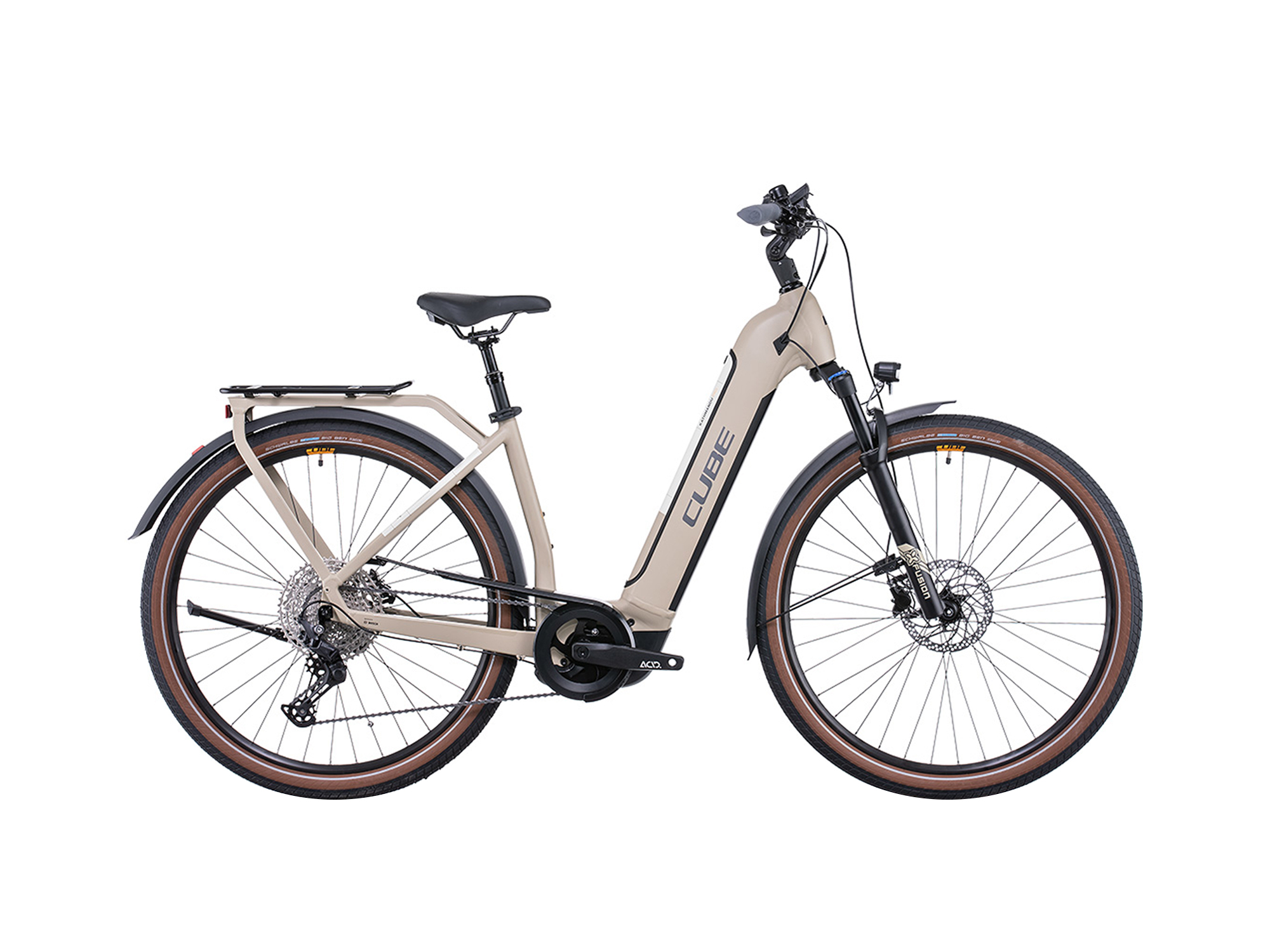

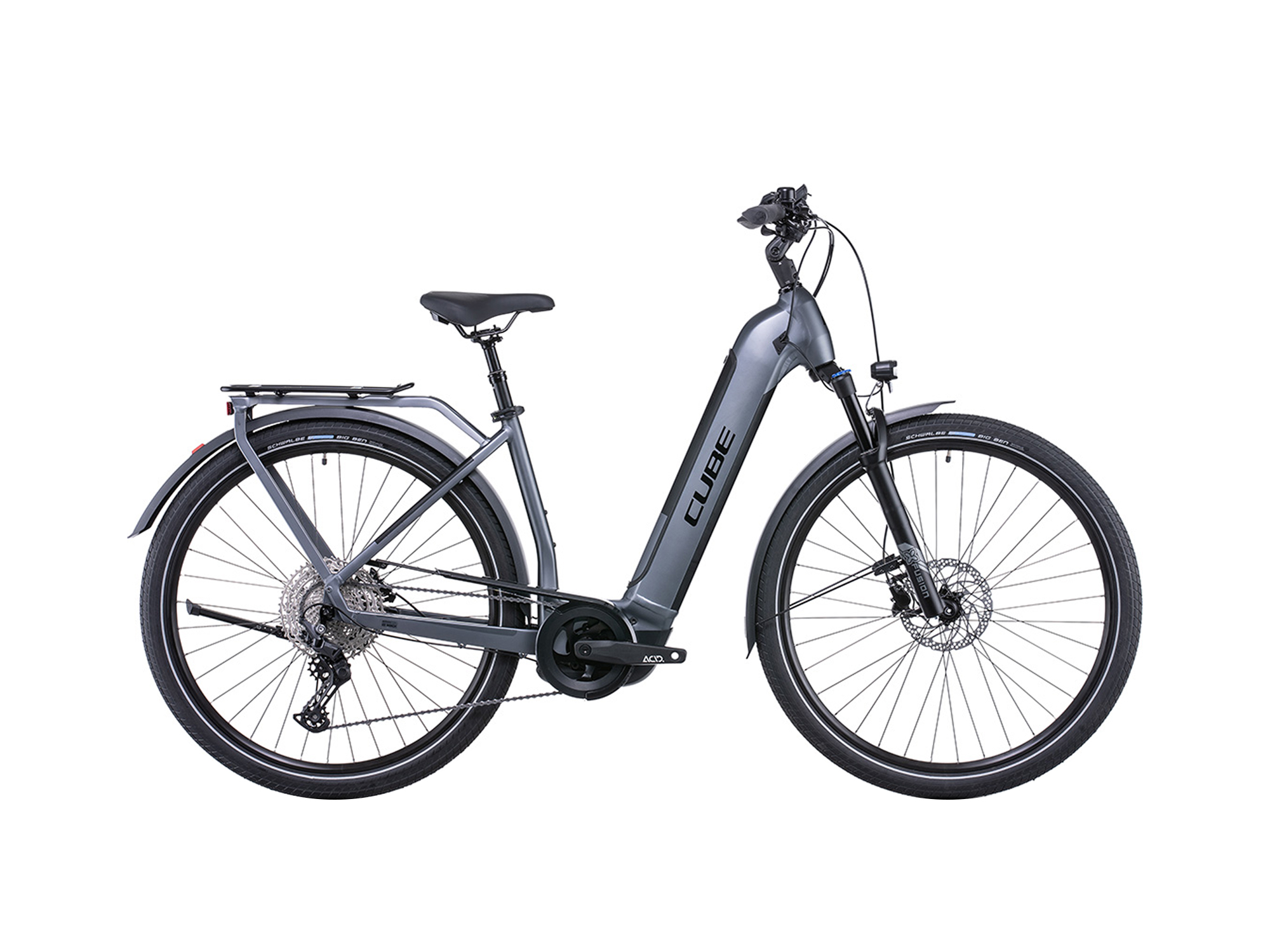

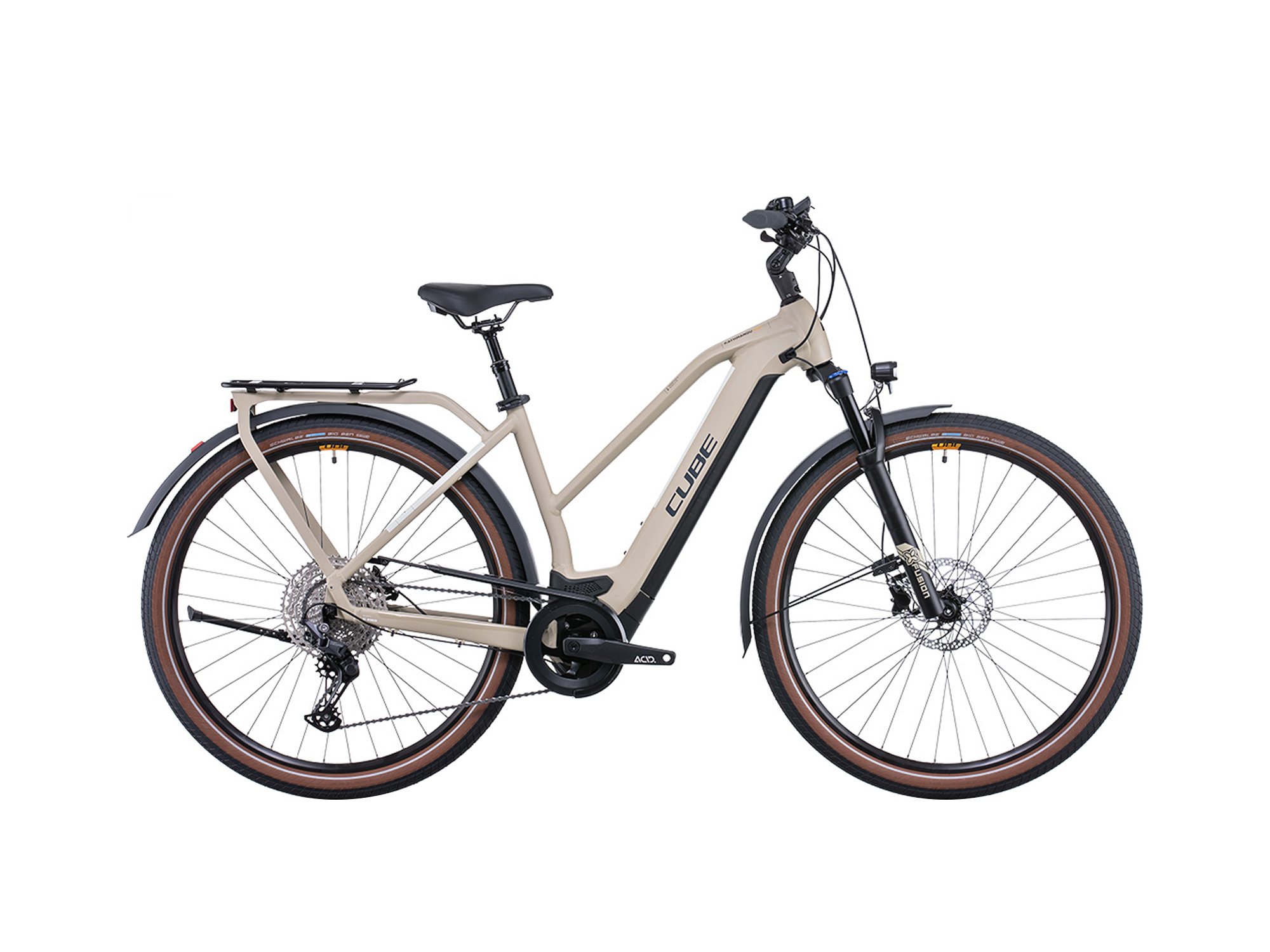

Diamond: S (50cm), M (54cm), L (58cm), XL (62cm); Trapeze: XS (46cm), S (50cm), M (54cm); Easy Entry: XS (46cm), S (50cm), M (54cm), L (58cm)
Frame Colors

Additional details about the electric bike that did not fit into other categories

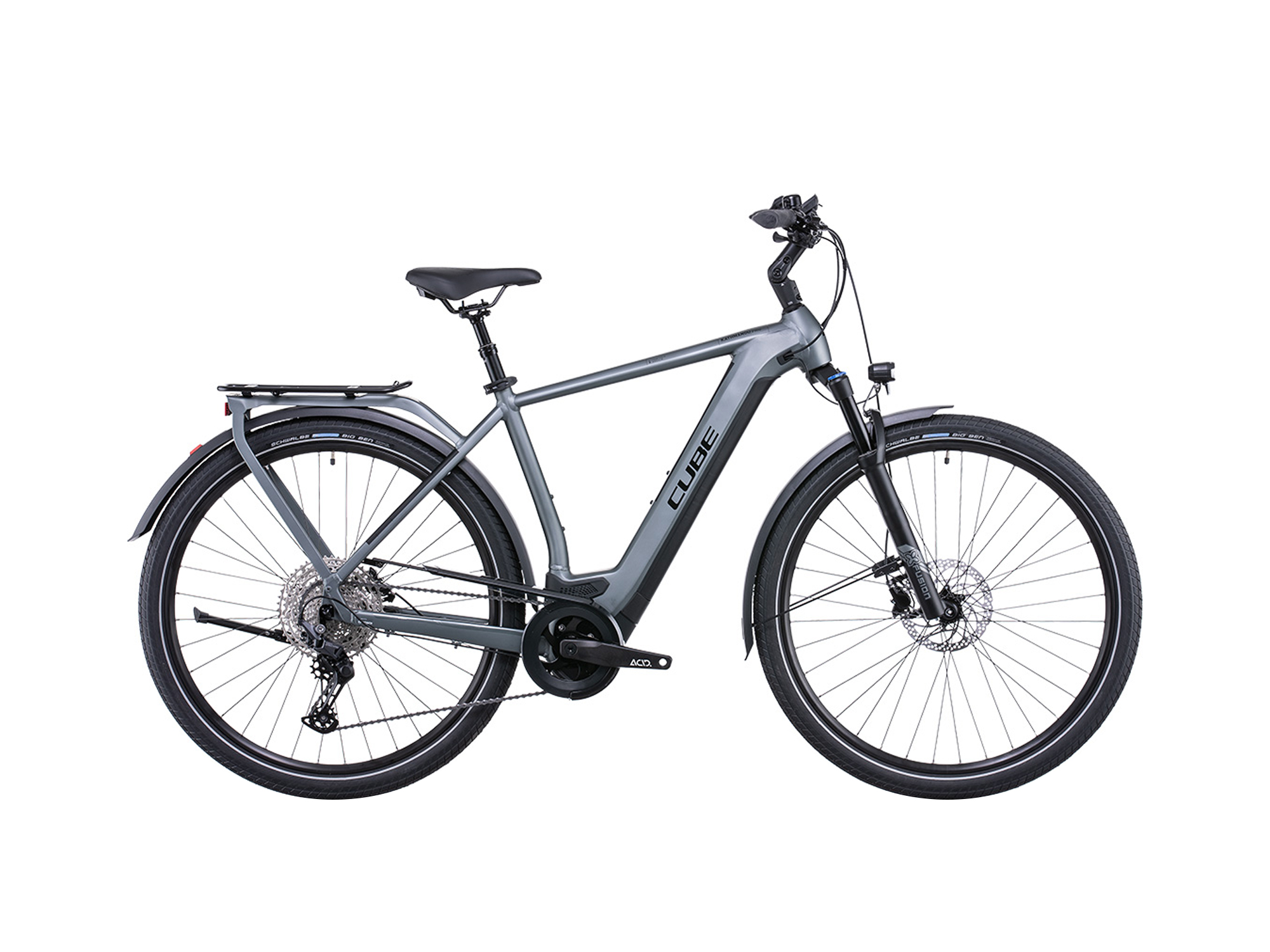

Flashgrey’n’Black
Chain

Additional details about the electric bike that did not fit into other categories

KMC X11
Front Hub

Additional details about the electric bike that did not fit into other categories

Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub

Additional details about the electric bike that did not fit into other categories

Shimano FH-TX505, QR, Centerlock
Kickstand

Additional details about the electric bike that did not fit into other categories

CUBEstand Cmpt
Bell

Additional details about the electric bike that did not fit into other categories

Easy Bell

Shops pay to appear on this list, learn more

Video Reviews

Written Reviews

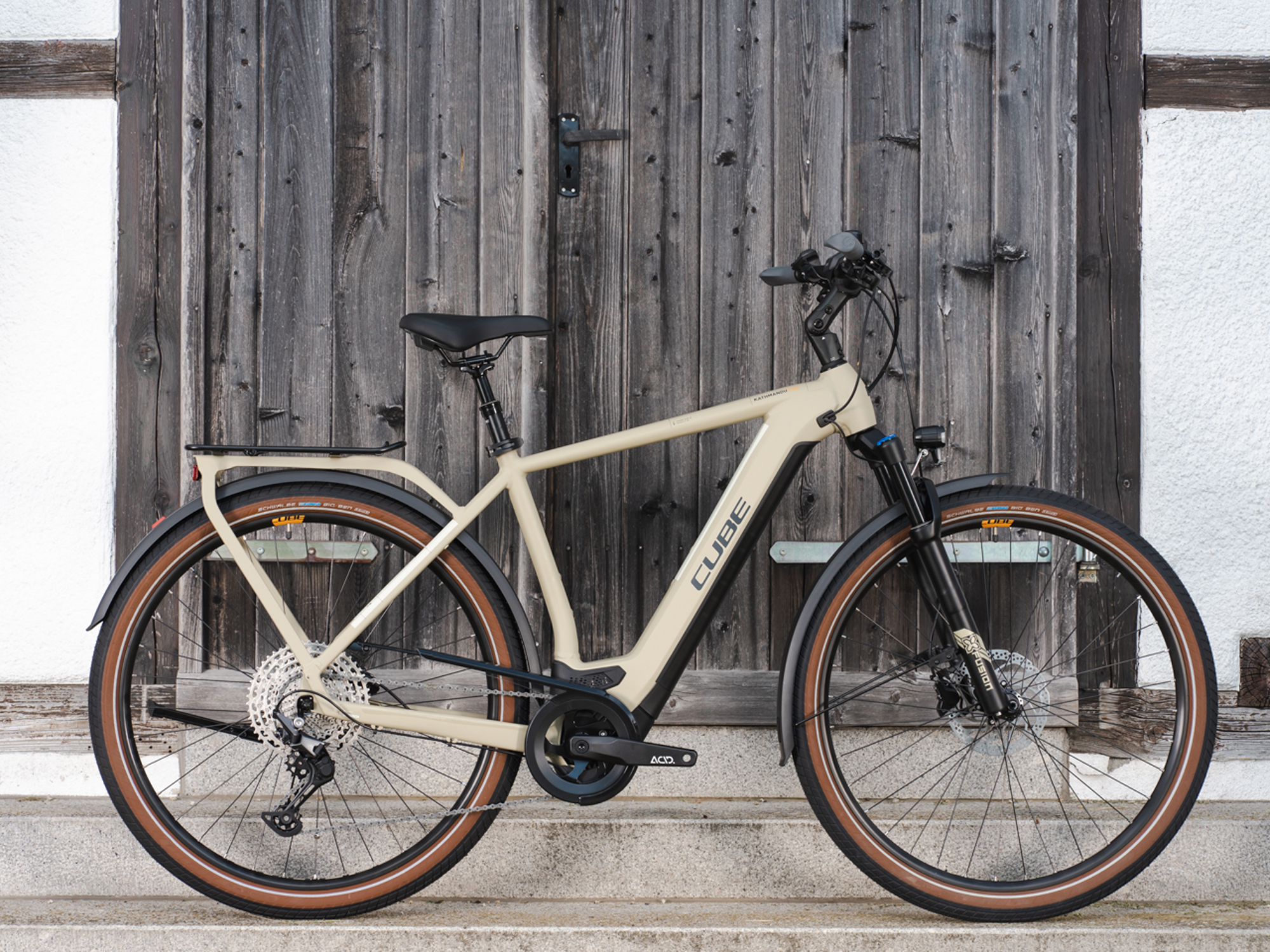

The CUBE Kathmandu Hybrid Pro 625 eBike is a versatile, comfortable electric bike.

The Kathmandu Hybrid Pro 625 features a fourth-generation Bosch drive system and a 625Wh battery, providing a power boost to your ride. The X-Fusion air suspension fork with lockout allows for easy adjustability, while the suspension seatpost and adjustable stem provide added comfort, even on rougher roads.

The Shimano Deore derailleur provides 1x11 gears, giving it a vast range. Fingertip shifting makes it easy to find the right gear for any terrain.

The bike also comes with a full complement of accessories and a sturdy Integrated Carrier, making it easy to take any trip in your stride.
