2022 CUBE Touring Hybrid Pro 500 Review

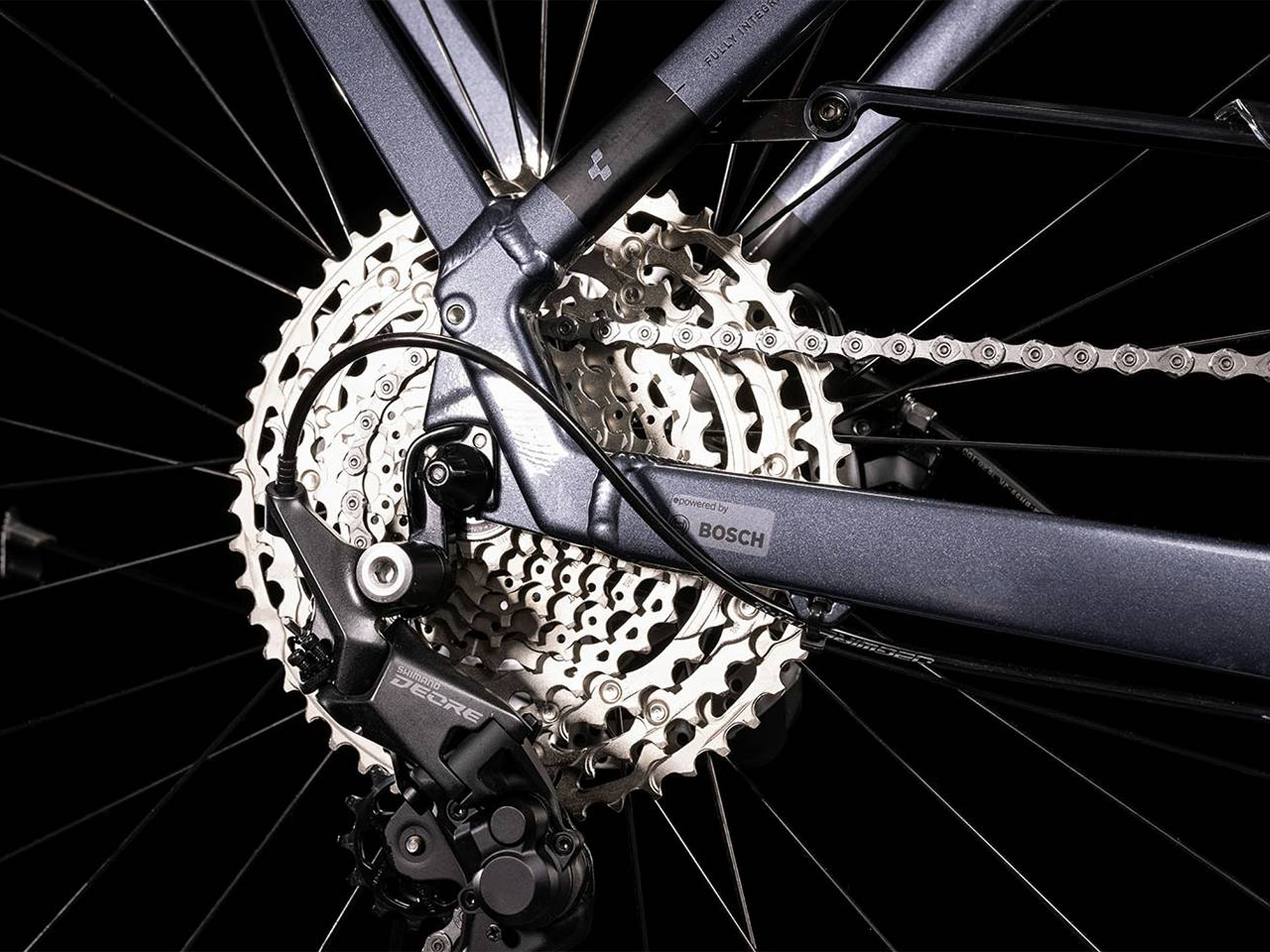

2022-cube-touring-hybrid-pro-500-shimano-deore-cs-m5100-11-51t-cassette

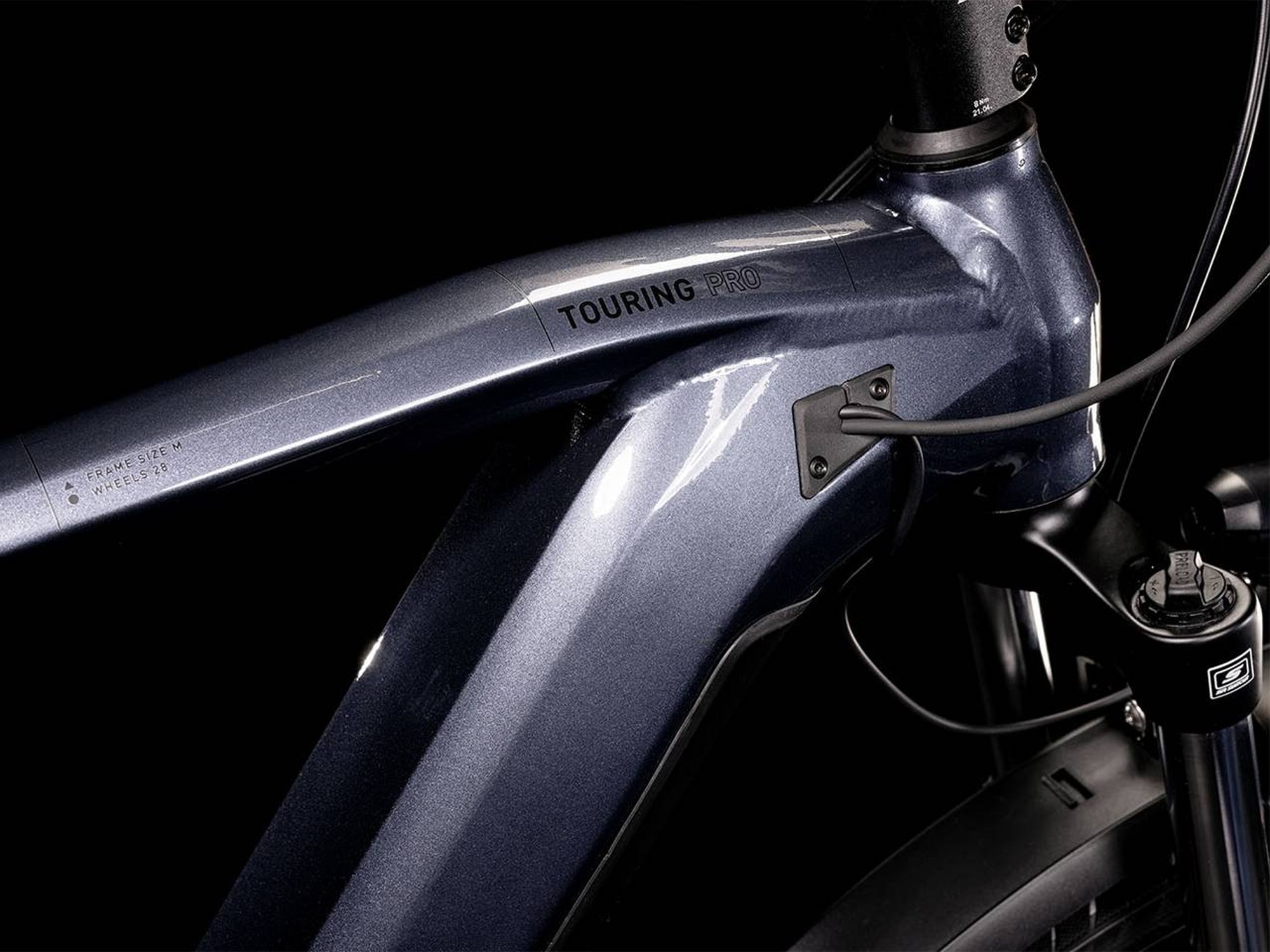

2022-cube-touring-hybrid-pro-500-top-tube

2022-cube-touring-hybrid-pro-500-bosch-intuvia-display

2022-cube-touring-hybrid-pro-500-cube-suspension-hd-seatpost

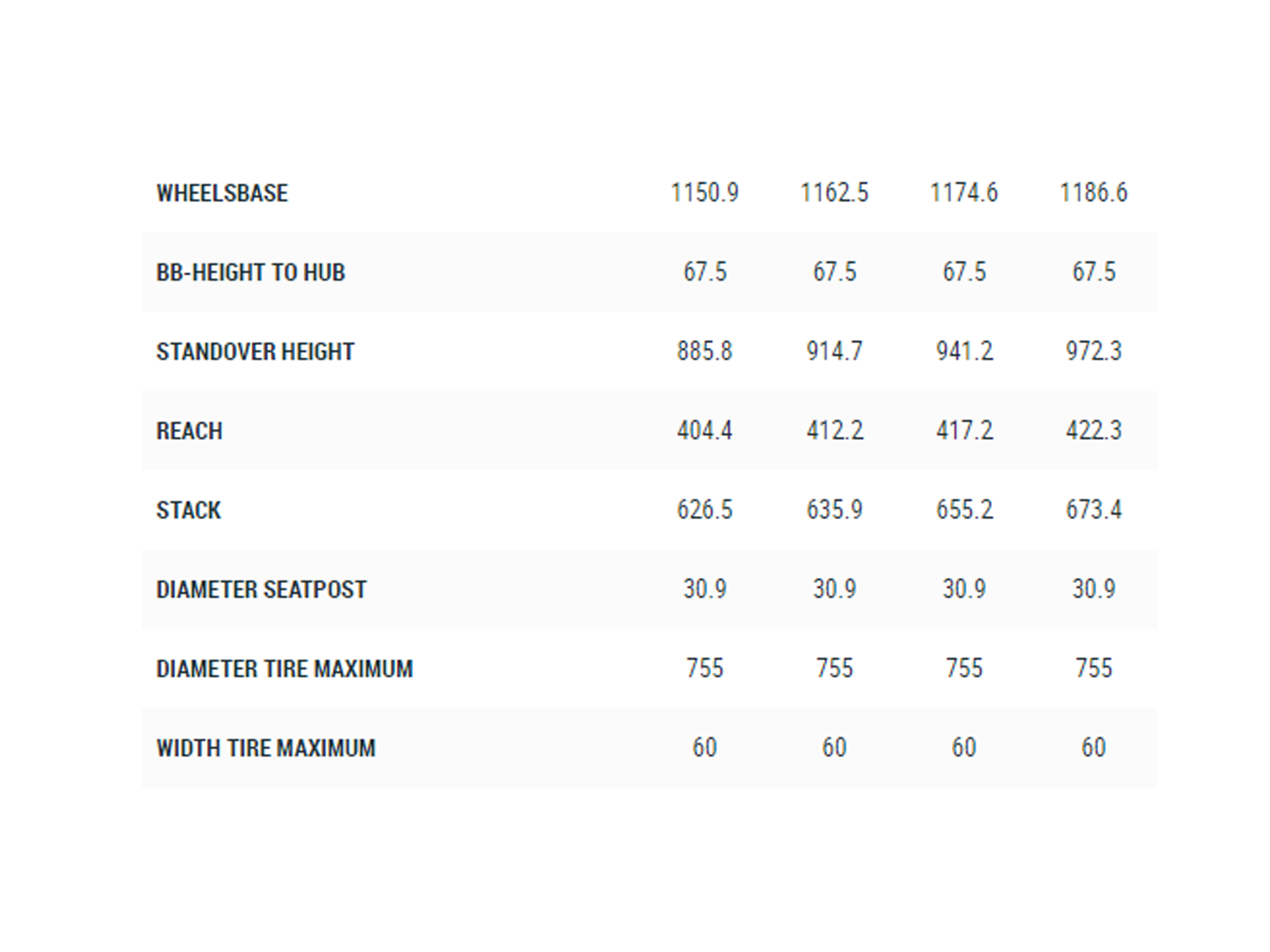

2022-cube-touring-hybrid-pro-500-high-step-frame-geometry-sizing-chart-2

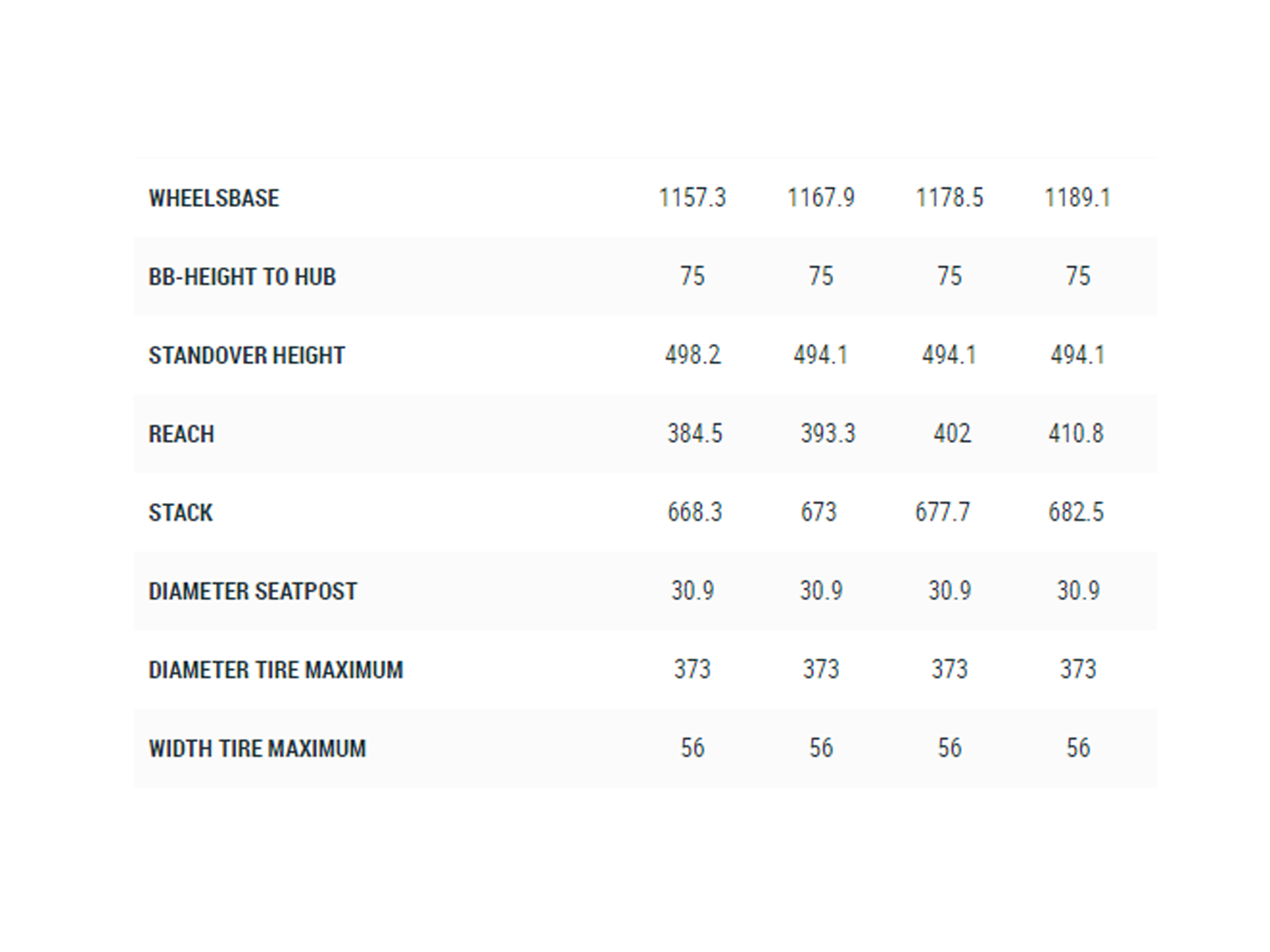

2022-cube-touring-hybrid-pro-500-step-thru-frame-geometry-sizing-chart-2

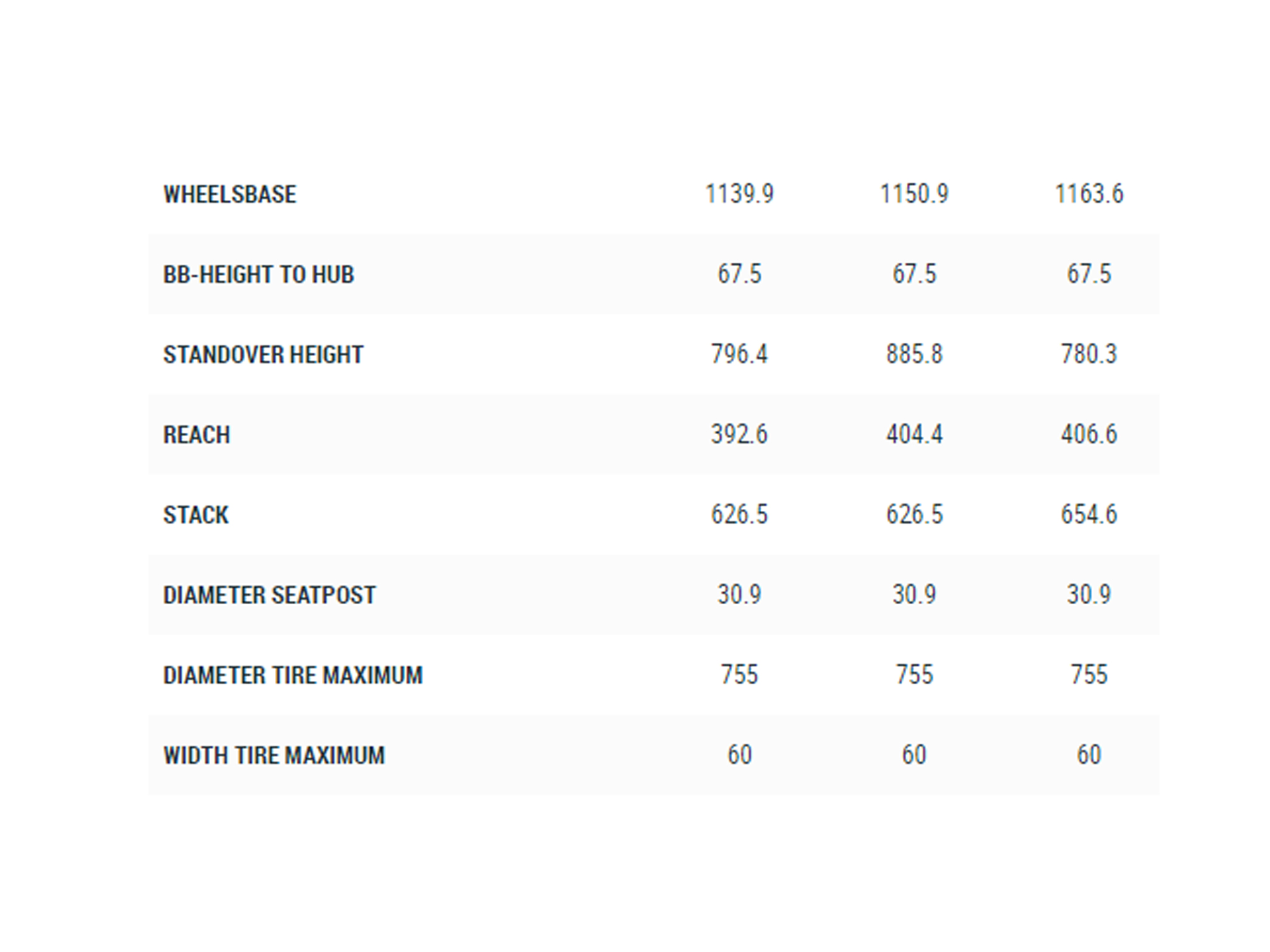

2022-cube-touring-hybrid-pro-500-mid-step-frame-geometry-sizing-chart-2

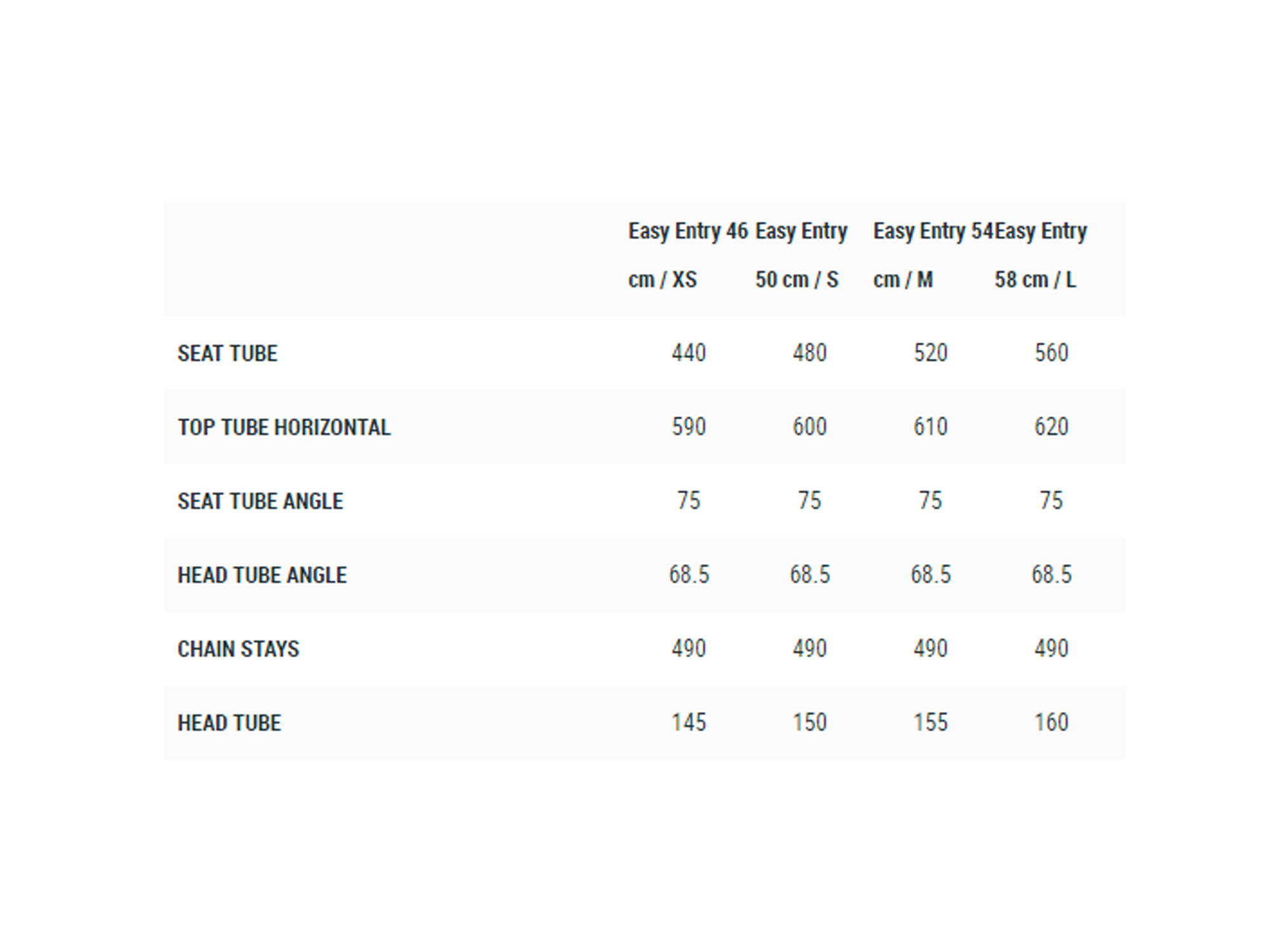

2022-cube-touring-hybrid-pro-500-step-thru-frame-geometry-sizing-chart-1

2022-cube-touring-hybrid-pro-500-mid-step-frame-geometry-sizing-chart-1

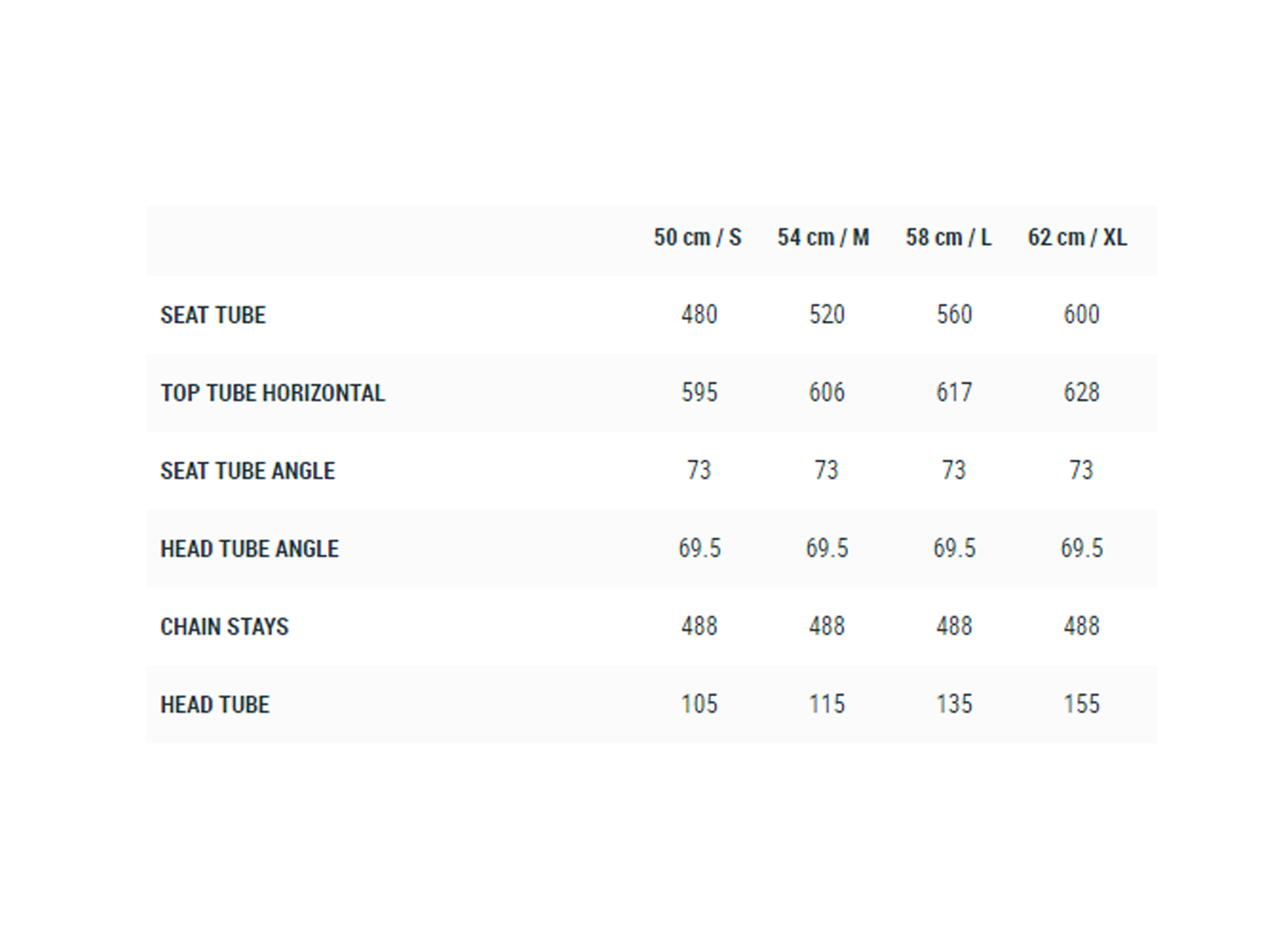

2022-cube-touring-hybrid-pro-500-high-step-frame-geometry-sizing-chart-1

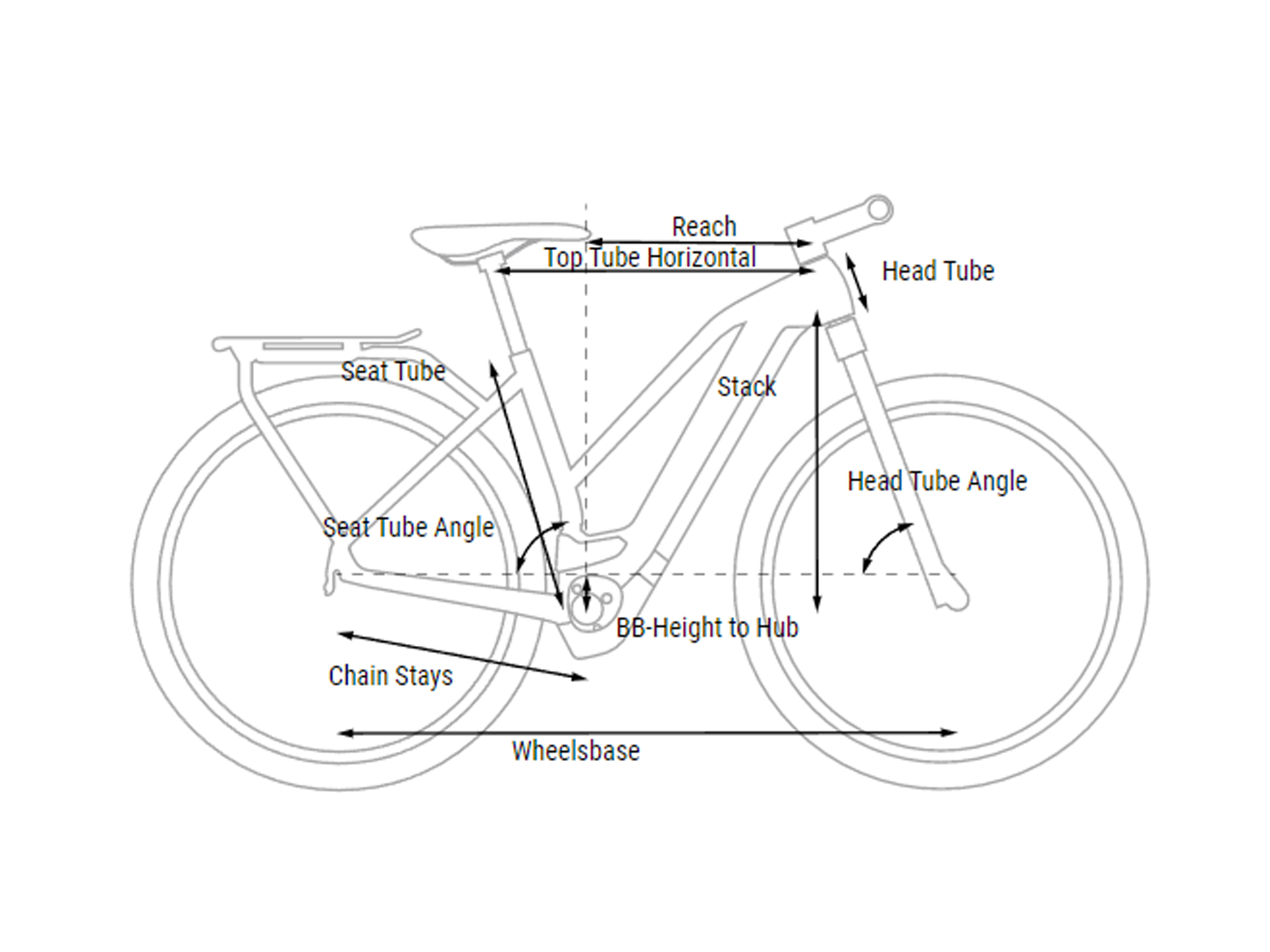

2022-cube-touring-hybrid-pro-500-mid-step-frame-geometry-sizing-legend

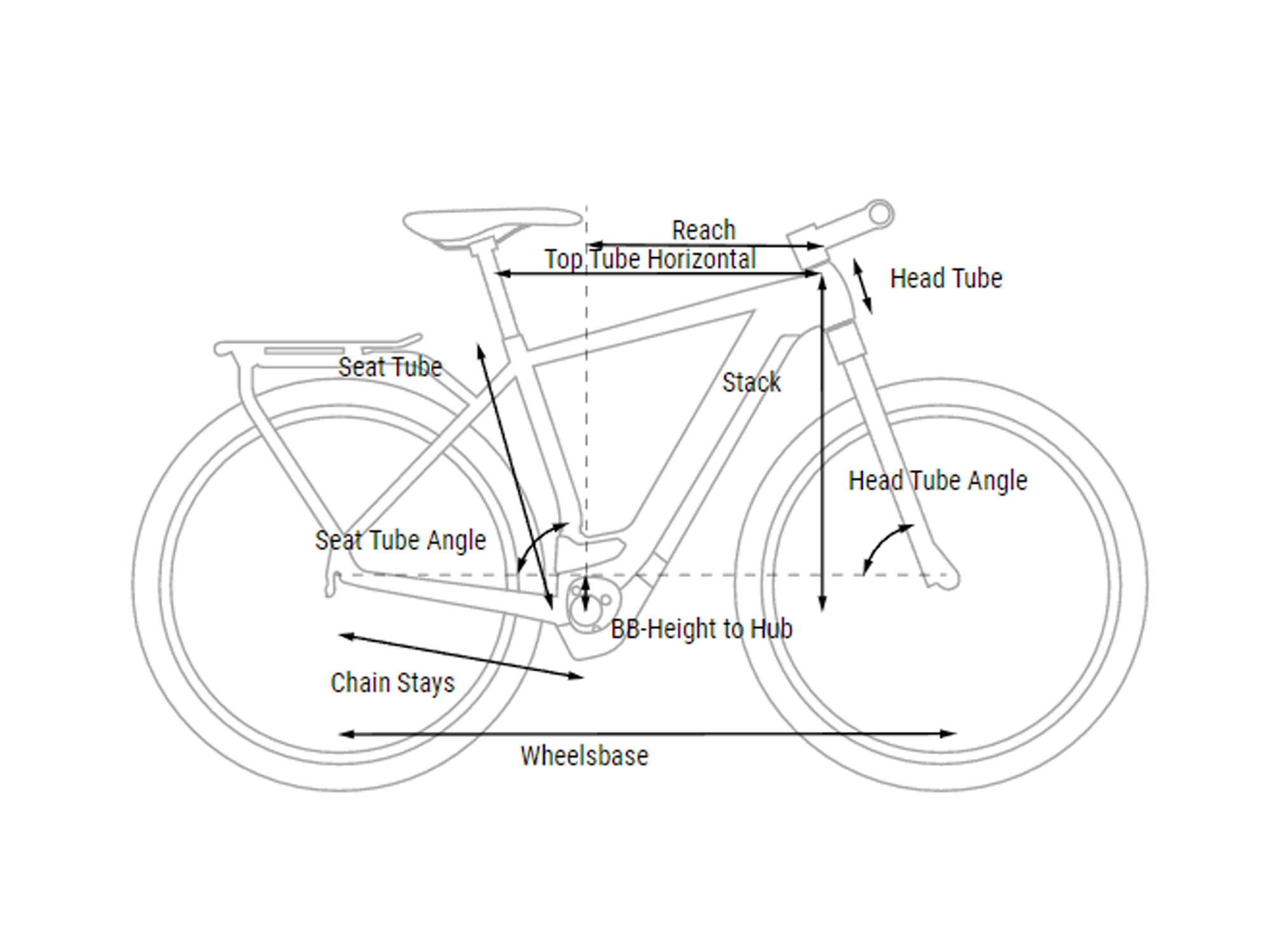

2022-cube-touring-hybrid-pro-500-high-step-frame-geometry-sizing-legend

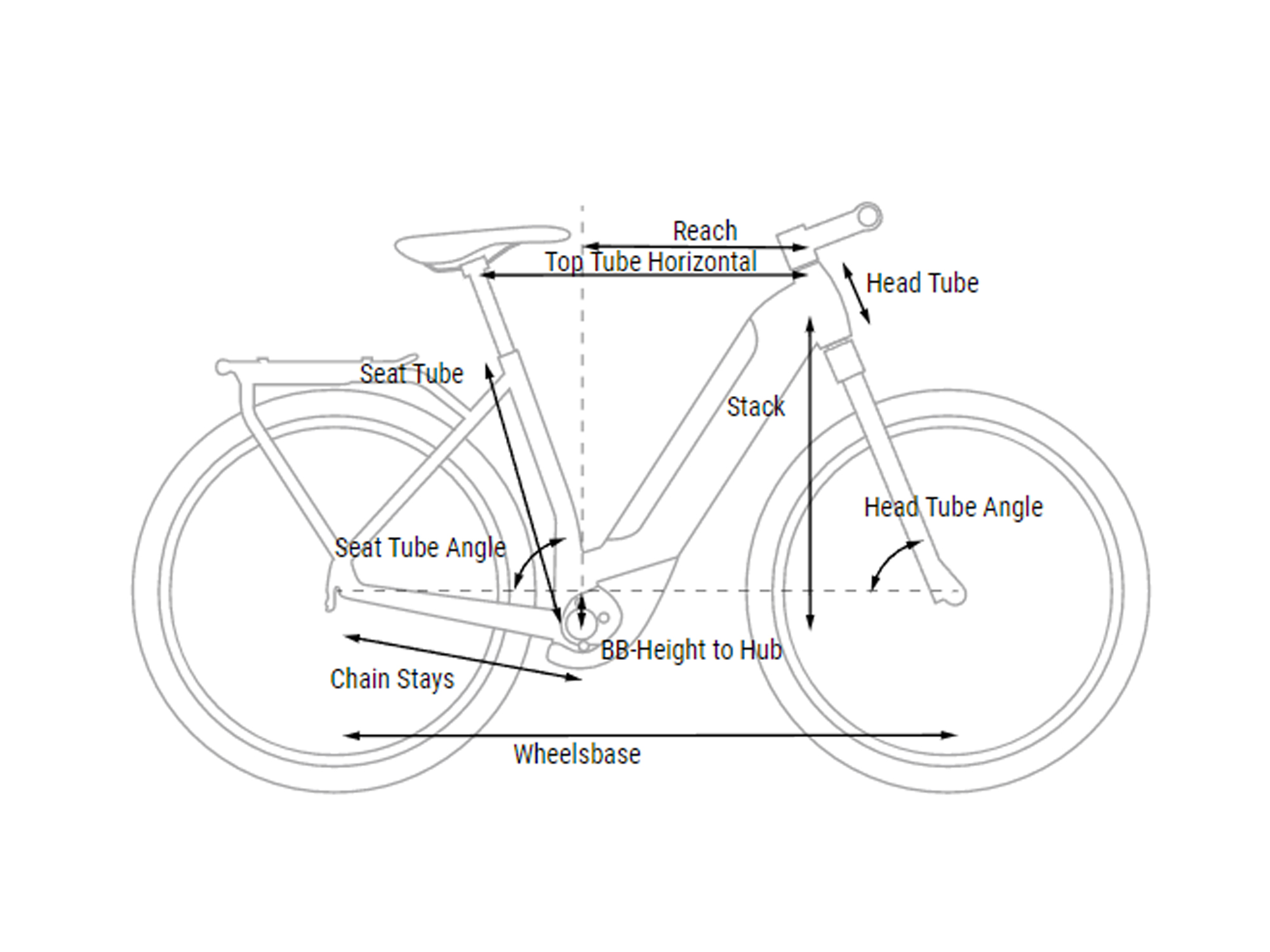

2022-cube-touring-hybrid-pro-500-step-thru-frame-geometry-sizing-legend

2022-cube-touring-hybrid-pro-500-electric-bike-review

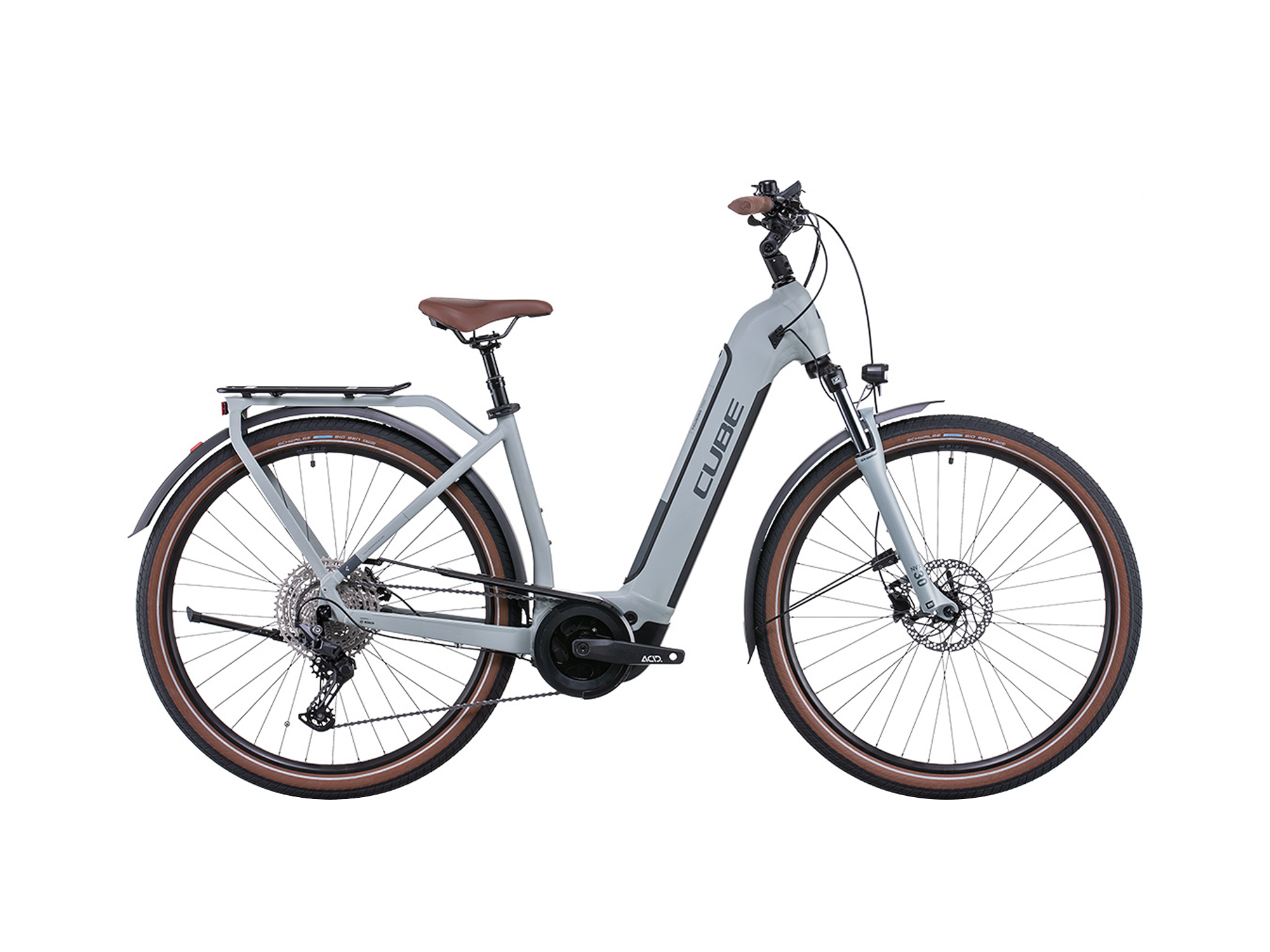

2022-cube-touring-hybrid-pro-500-step-thru-lunar-grey

2022-cube-touring-hybrid-pro-500-mid-step-metallic-grey-black

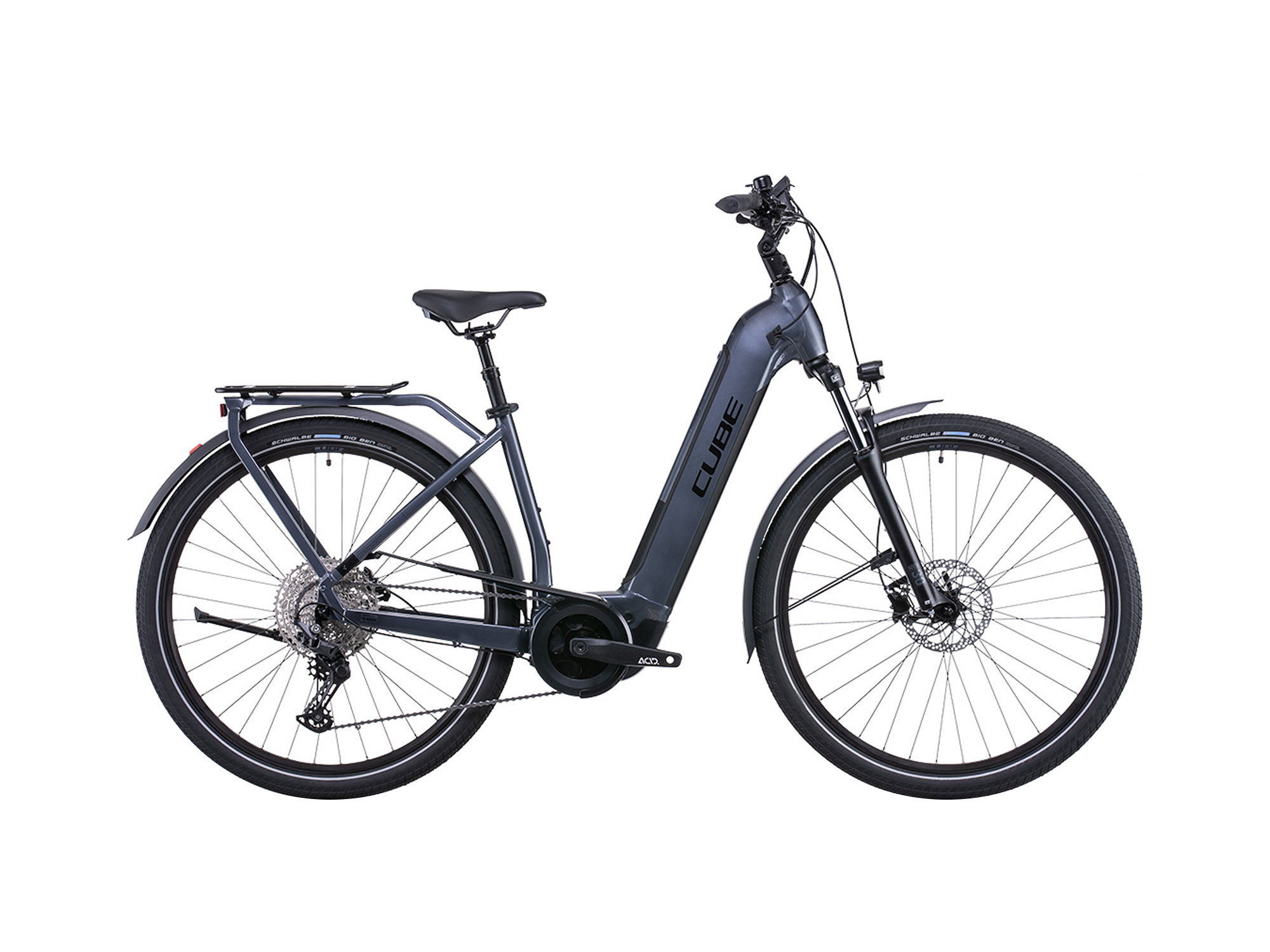

2022-cube-touring-hybrid-pro-500-step-thru-metallic-grey-black

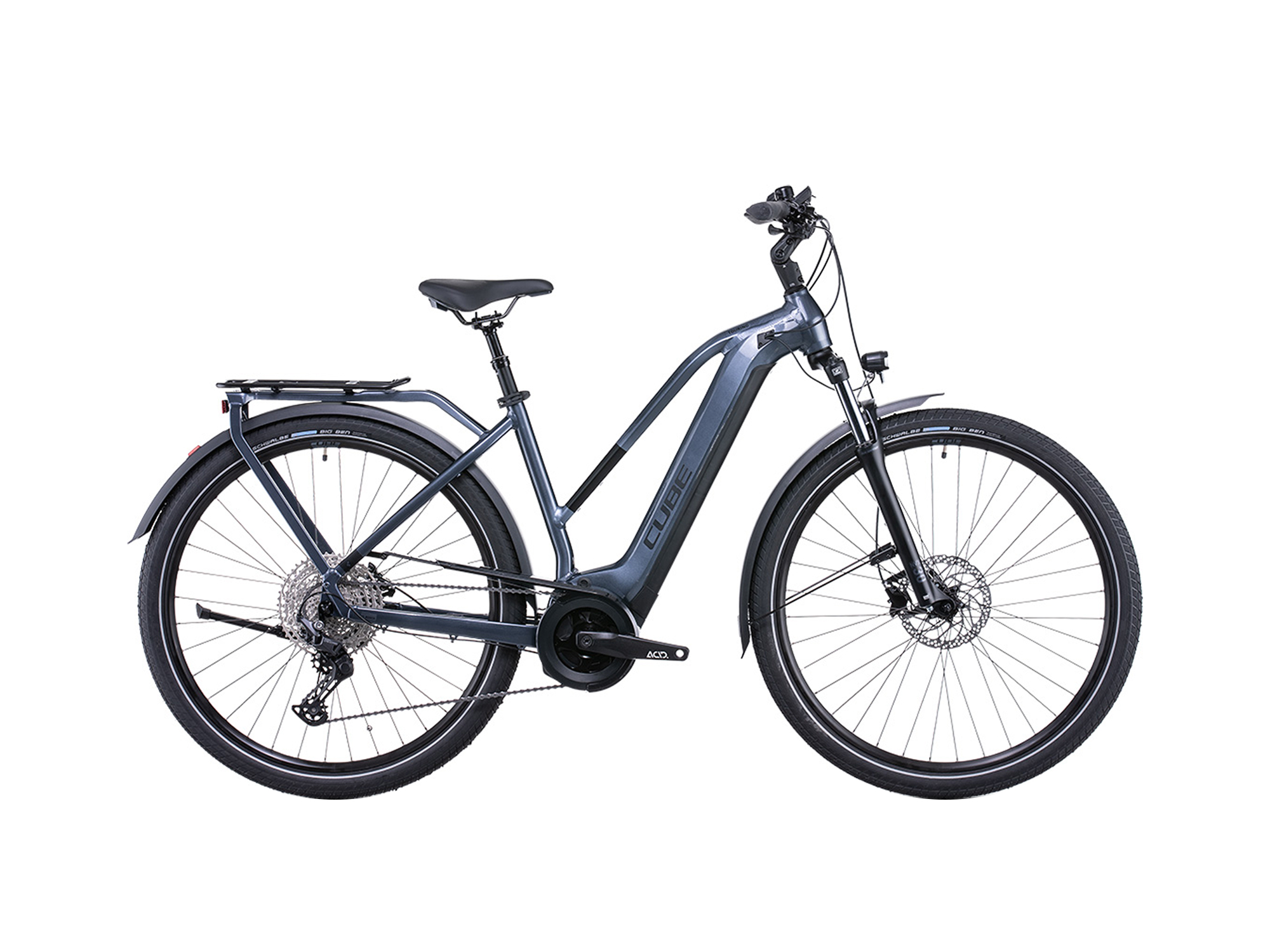

2022-cube-touring-hybrid-pro-500-electric-bike-review-white-background

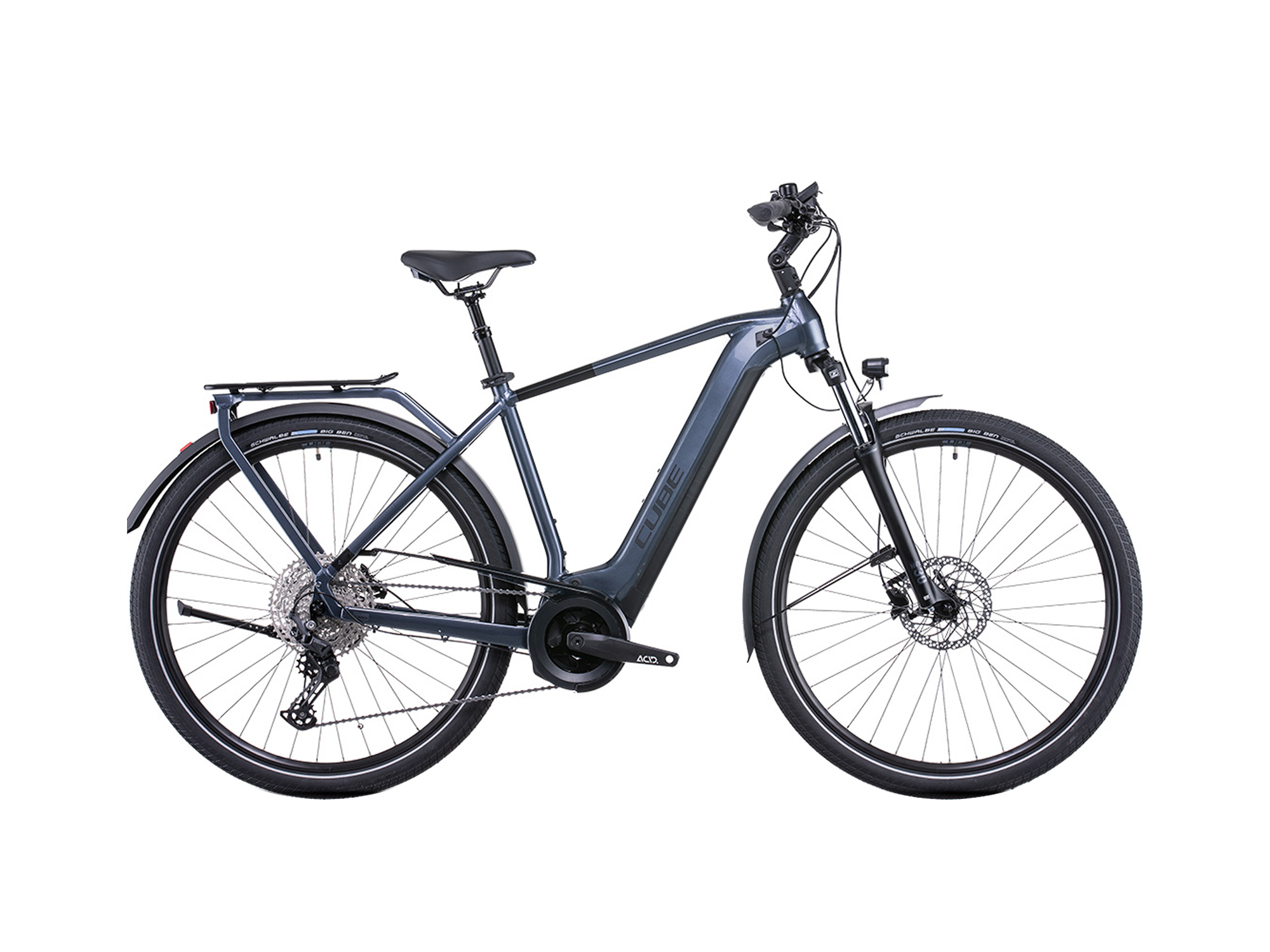

2022-cube-touring-hybrid-pro-500-high-step-metallic-grey-black

2022-cube-touring-hybrid-pro-500-mid-step-lunar-grey

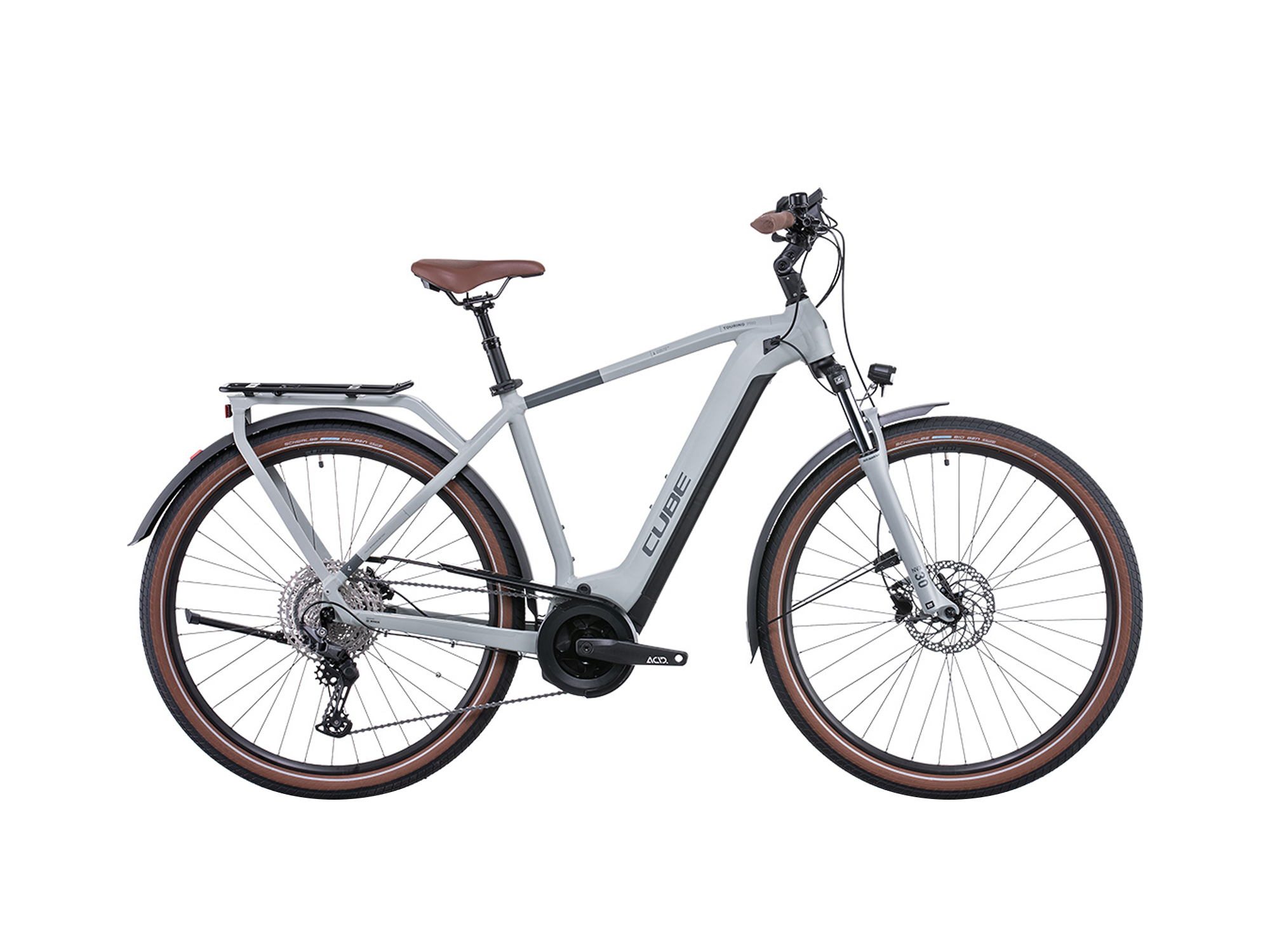

2022-cube-touring-hybrid-pro-500-high-step-lunar-grey

Photos (22)

Videos

Shops

Highlights

Technical Specs & Ratings

General

Year When this particular ebike model configuration was released	2022
Brand The company that produces this particular electric bicycle	CUBE
Model The specific product or family of products from a brand	Touring Hybrid Pro 500
MSRP The Manufacturer’s Suggested Retail Price listed in US Dollars	$3,399
Category A grouping of products with similar features and uses	Electric Mountain Bike Reviews , Cross Country Electric Bike Reviews , Commuting Electric Bike Reviews , Hybrid Electric Bike Reviews , City Electric Bike Reviews
Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	High-Step,Step-Thru
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Wheel Size The diameter of wheels used on the bike, may be listed in inches or millimeters, may include multiple wheel sizes	28.0
Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	11
Brake Type The mechanism used to slow and stop the ebike, may include multiple brake types	Hydraulic Disc
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Output The measure of continuous power being produced by the motor, measured in watts	250
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Weight The total heaviness of the ebike: the force acting on it due to gravity	58.52 lbs / 26.57 kgs

Frameset

Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	High-Step,Step-Thru
Weight The total heaviness of the ebike: the force acting on it due to gravity	58.52
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Suspension Travel The distance a suspension system can flex or move under load, usually measured in millimeters	100
Fork Details The part of an electric bike that holds the front wheel, steers it, and may include suspension	SR Suntour NVX30 Coil, 100mm
Wheel Details A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim	CUBE EX23, 36H, Disc, Tubeless Ready
Tire Details A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike	Schwalbe Big Ben, Performance, 55-622

Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	11
Shift Levers The interface that a rider interacts with to change gears, they may be levers, twist mechanisms, or electronic buttons	Shimano Deore SL-M5100, Rapidfire-Plus
Crankset A group of components that convert reciprocating motion of a rider's legs into rotational motion used to drive a chain, belt, or shaft, which in turn drives the rear wheel, usually consisting of a bottom bracket, crank arms, and chainrings	ACID E-Crank, 40T, 175mm (EE: 170mm)
Rear Derailleur A mechanism that moves the chain in different directions to fit different sized freewheel or cassette cogs, effectively changing pedal ratio and speed	Shimano Deore RD-M5100-SGS, 11-Speed
Cassette The cluster of sprockets mounted on the rear hub of an ebike, they may be grouped together as a freewheel that threads onto a hub or slotted individually onto a freehub body which is referred to as a cassette and is stronger	Shimano Deore CS-M5100, 11-51T

Headset The set of components that provide a rotatable interface between the fork and the head tube of the frame	M/Z: ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1041, BlockLock 135°, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort	CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork	CUBE Comfort Trail Bar, 700mm
Grips The component that a rider holds to direct the handlebar, often made of rubber or cork, may consiste of grip tape	Natural Fit Comfort

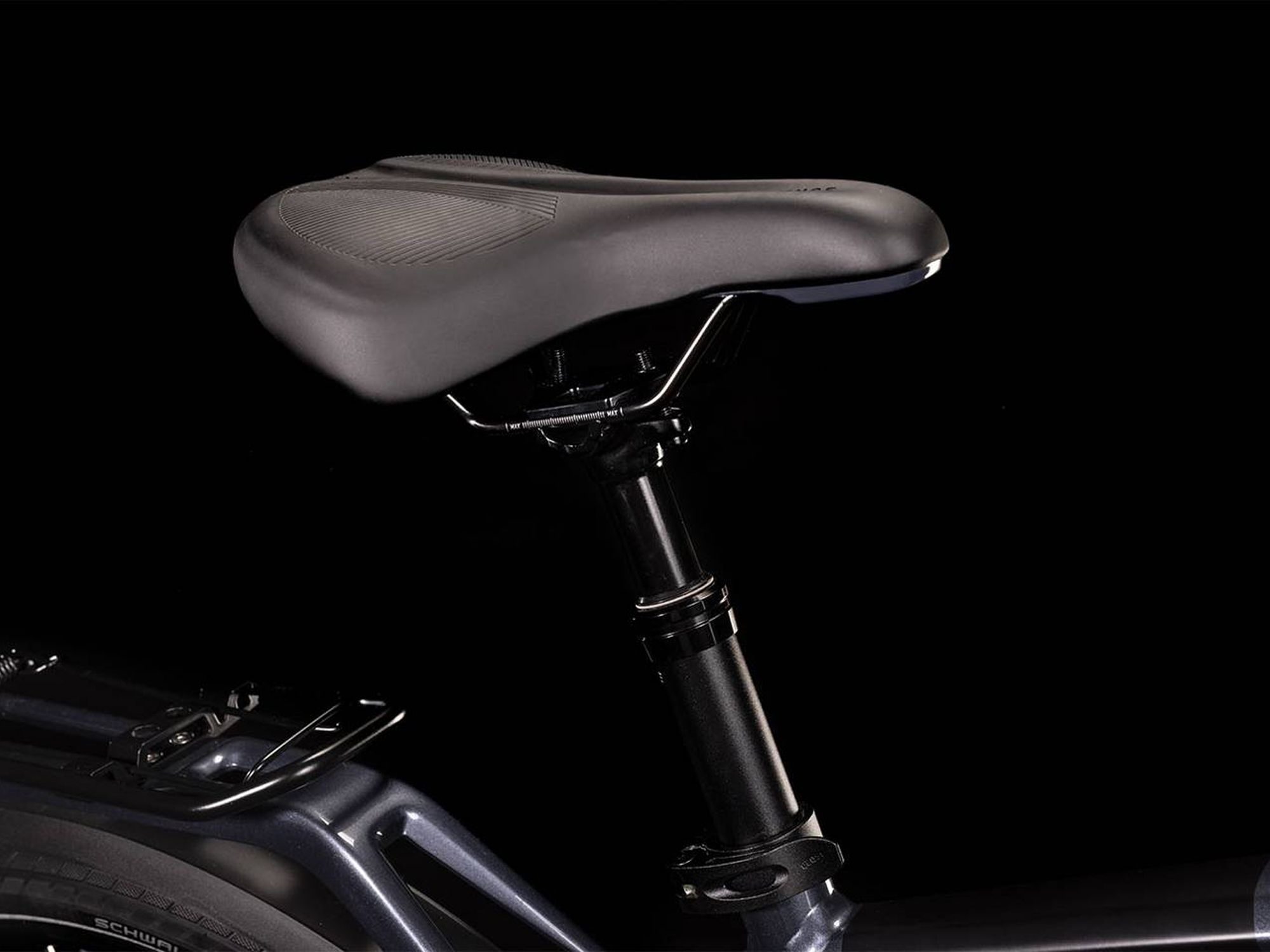

Seatpost A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension	CUBE Suspension Seatpost HD, 30.9mm
Seatpost Diameter The diameter measurement of a seat post, usually in millimeters, this may be important if you wish to replace a rigid post with a suspension seatpost, consider using shims to match a smaller seatpost with a larger seat tube.	30.9
Saddle A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics	Natural Fit Sequence Comfort
Pedals The part of a bicycle that the rider pushes with their foot to create motion in the drivetrain, they are usually easy to replace with different designs for greater traction and surface area or reduced weight	ACID PP Trekking
Brake Type The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently	Hydraulic Disc
Brake Details The component that applies friction to the front wheel to provide stopping force	Shimano BR-MT200, Hydr. Disc Brake (180/180)

Bike Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Details Details about the primary motor system propelling the electric bike	Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)
Motor Output The measure of continuous power being produced by the motor, measured in watts	250

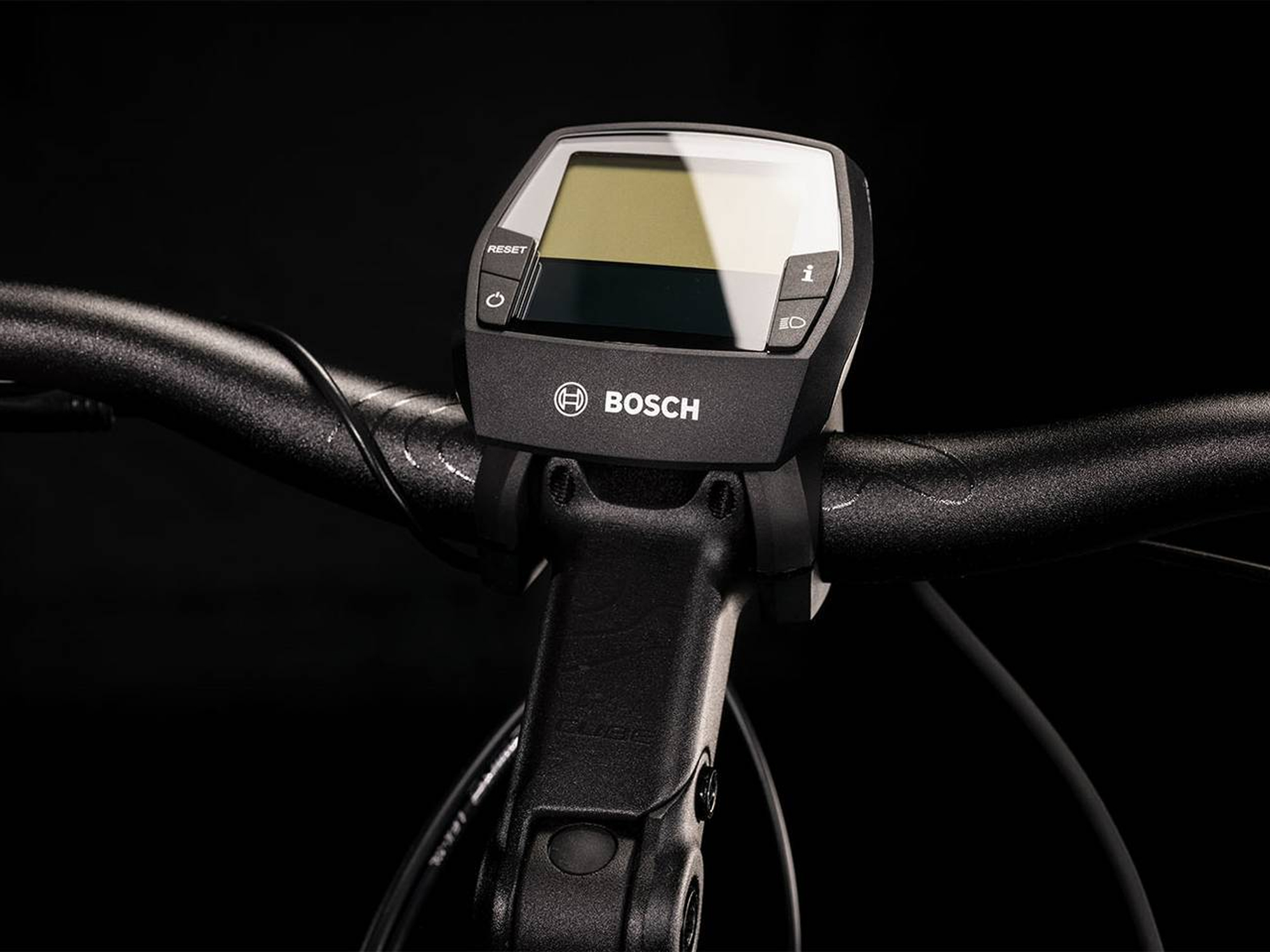

Display A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more	Bosch Intuvia
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Battery Details Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer	Bosch PowerTube 500
Charger A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery	Bosch 2A

Lights Components that illuminate the surroundings and help make the ebike more visible during low light conditions	Front: CUBE Shiny 50 Lux, 12V, DC \| Rear: ACID Mudguard Rear Light PRO-E, 12V, DC
Fenders Components that partially surround the tires, deflecting mud, water, and other debris from splashing up onto the rider and their surroundings	ACID 65 BB-Mount
Rear Rack A component that can store and transport cargo on the rear portion of an ebike, good capacity is 25kg or 55lbs, it may include a top platform, pannier hangers on the sides, bungee loops, and proprietary accessory interfaces such as RackTime or MIK, some racks are removeable	CUBE Integrated Carrier 2.0, ACID RILink Adapter Compatible, SnapIt Compatible

Availability Additional details about the electric bike that did not fit into other categories	United States, Canada, Europe
Warranty Additional details about the electric bike that did not fit into other categories	2 Years Motor and Battery, 5 Years Frame
Frame Sizes Additional details about the electric bike that did not fit into other categories	Size Split: 27.5: XS (15"), S (17") // 29: M (18"), L (20"), XL (22")
Frame Colors Additional details about the electric bike that did not fit into other categories	Lunar´n´Grey
Chain Additional details about the electric bike that did not fit into other categories	KMC X11
Front Hub Additional details about the electric bike that did not fit into other categories	Shimano HB-TX505, QR, Centerlock
Rear Hub Additional details about the electric bike that did not fit into other categories	Shimano FH-TX505, QR, Centerlock
Kickstand Additional details about the electric bike that did not fit into other categories	CUBEstand Cmpt
Bell Additional details about the electric bike that did not fit into other categories	Easy Bell

Video Reviews

Written Reviews

The Touring Hybrid Pro 500 eBike by Cube Bikes is a quality electric bike with upgraded touring features.

The reliable Shimano 11-speed drive train is well suited for a touring bike and offers an extended range of gears.

The Hybrid Pro 500 comes equipped with a powerful third-generation Bosch drive that provides 65Nm of torque and pedal assistance up to 20mph, making it easy to tackle long distances and hills.

The PowerTube 500 battery is well-matched to the Bosch mid-drive motor and is also integrated into the frame for extra protection and a streamlined look.

The Touring Hybrid Pro 500 has powerful Shimano hydraulic disc brakes, a 100mm suspension fork, and wider tires for a stable ride. It also has integrated lights and a luggage rack.
