2023 Electra Navigator Go! 5i Review

CRUISER

CITY

2023-electra-navigator-go-5i-ebike-model-1

2023-electra-navigator-go-5i-ebike-model-2

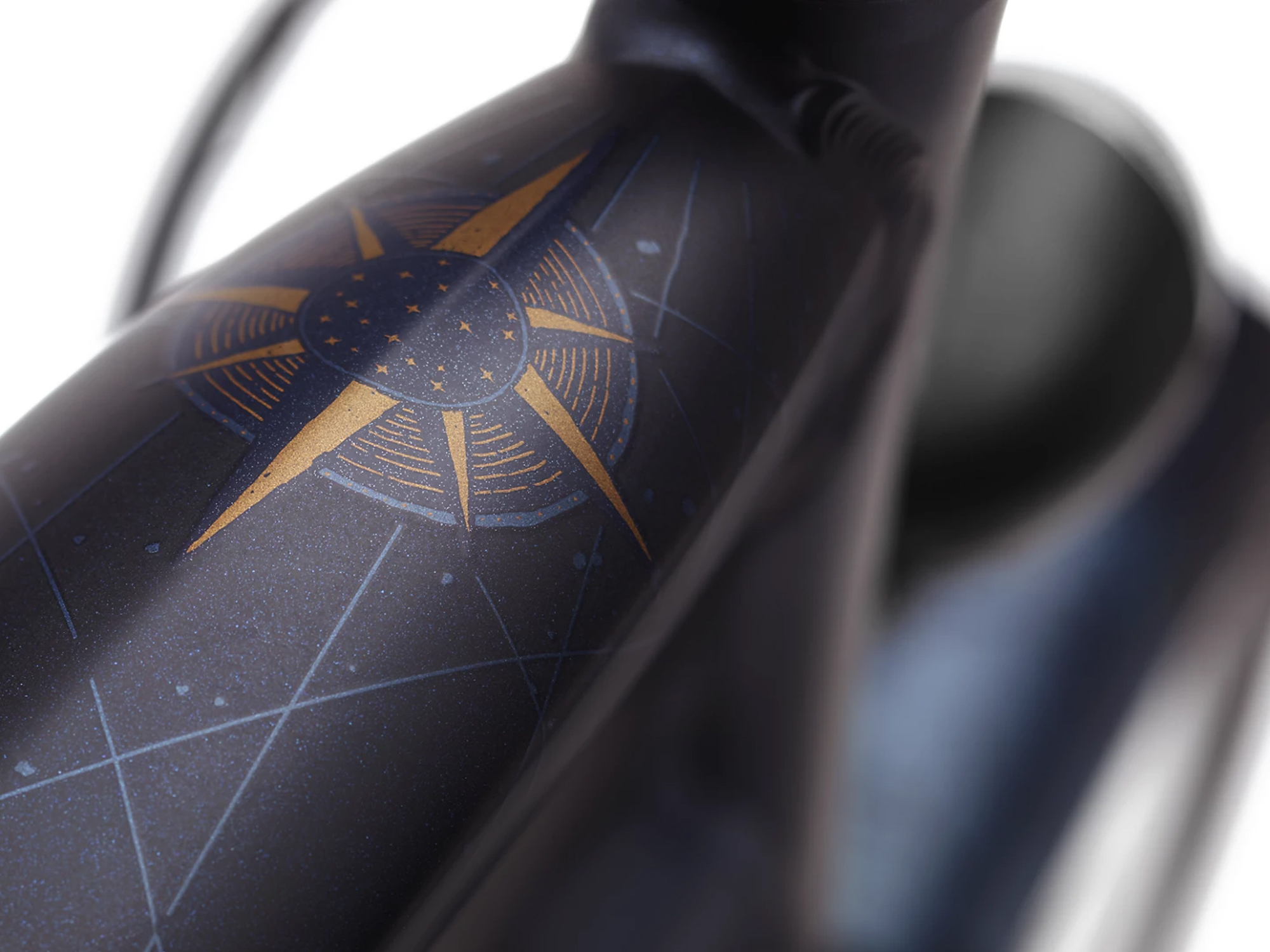

2023-electra-navigator-go-5i-compass-design-details

2023-electra-navigator-go-5i-painted-chainguard

2023-electra-navigator-go-5i-spanninga-led-rear-light

2023-electra-navigator-go-5i-retro-leatherette-dual-spring-saddle

2023-electra-navigator-go-5i-bosch-purion-controller

2023-electra-navigator-go-5i-alloy-low-flange-with-center-lock-disc-brake-36h-front-hub

2023-electra-navigator-go-5i-bosch-powerpack-400-battery

2023-electra-navigator-go-5i-spanninga-led-front-light

2023-electra-navigator-go-5i--bosch-performance-line-250-watt-motor

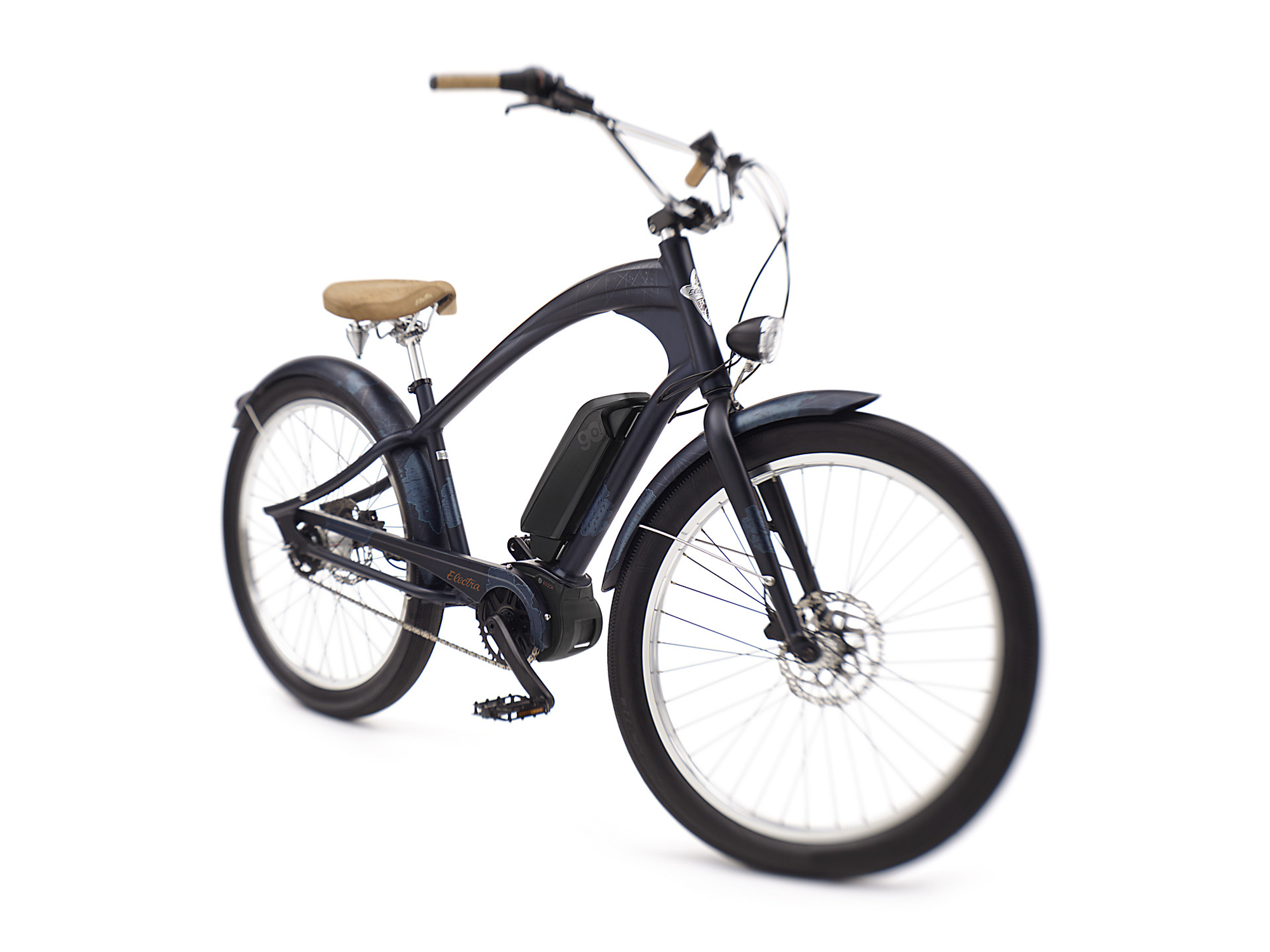

2023-electra-navigator-go-5i-front-right-side-view

2023-electra-navigator-go-5i-high-step-matte-nautilus-blue

2023-electra-navigator-go-5i-electric-bike-review-white-background

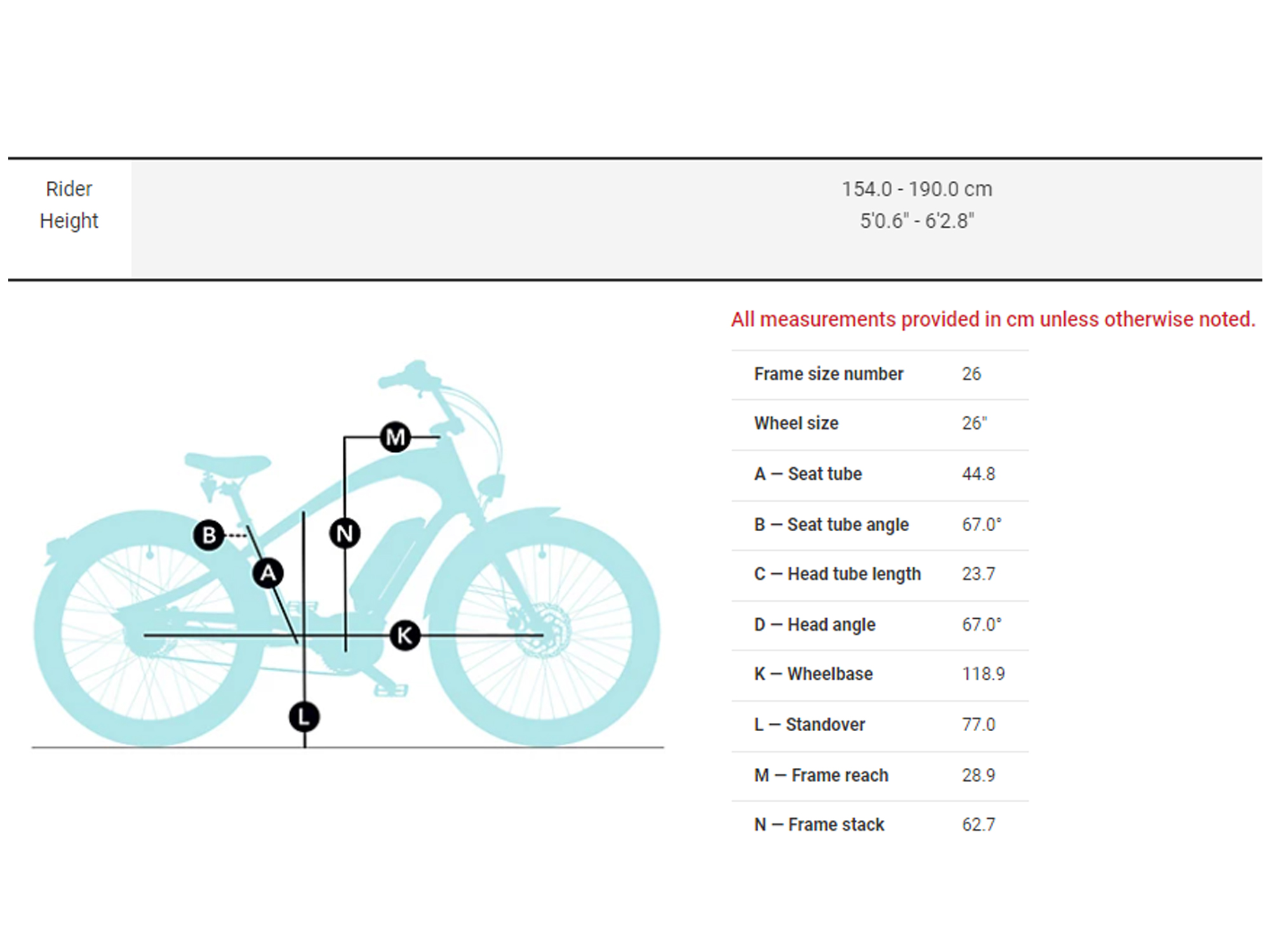

2023-electra-navigator-go-5i-frame-geometry-sizing-chart

Photos (16)

Videos

Shops

Highlights

Technical Specs & Ratings

General

Year When this particular ebike model configuration was released	2023
Brand The company that produces this particular electric bicycle	Electra
Model The specific product or family of products from a brand	Navigator Go! 5i
MSRP The Manufacturer’s Suggested Retail Price listed in US Dollars	$3,049.99
Category A grouping of products with similar features and uses	Cruiser Electric Bike Reviews , City Electric Bike Reviews
Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	High-Step
Wheel Size The diameter of wheels used on the bike, may be listed in inches or millimeters, may include multiple wheel sizes	26.0
Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	5
Brake Type The mechanism used to slow and stop the ebike, may include multiple brake types	Hydraulic Disc
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Output The measure of continuous power being produced by the motor, measured in watts	250
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	400 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	400 Wh
Weight The total heaviness of the ebike: the force acting on it due to gravity	60 lbs / 27.24 kgs

Frameset

Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	High-Step
Weight The total heaviness of the ebike: the force acting on it due to gravity	60
Load Capacity The maximum weight that an electric bike can safely handle, according to the manufacturer	300
Fork Details The part of an electric bike that holds the front wheel, steers it, and may include suspension	Hi-ten steel unicrown
Wheel Details A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim	Anodized alloy 26"—36h
Tire Details A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike	Vee Rubber Speedster 26"—2.8"

Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	5
Shift Levers The interface that a rider interacts with to change gears, they may be levers, twist mechanisms, or electronic buttons	Shimano Nexus 5-speed twist w/optical display
Crankset A group of components that convert reciprocating motion of a rider's legs into rotational motion used to drive a chain, belt, or shaft, which in turn drives the rear wheel, usually consisting of a bottom bracket, crank arms, and chainrings	Forged alloy 170mm, Bosch type, 38t chainring
Internally Geared Hub A gear ratio changing system that is implemented with planetary or epicyclic gears, sealed within the shell of a hub, they tend to require less maintenance and can be shifted at standstill, but introduce more weight than a traditional cassette	Shimano Nexus Inter-5E 5-speed internal
Cassette The cluster of sprockets mounted on the rear hub of an ebike, they may be grouped together as a freewheel that threads onto a hub or slotted individually onto a freehub body which is referred to as a cassette and is stronger	30t

Headset The set of components that provide a rotatable interface between the fork and the head tube of the frame	1 1/8" steel threadless
Stem The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort	Threadless 4-bolt
Handlebar The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork	Electra attitude
Grips The component that a rider holds to direct the handlebar, often made of rubber or cork, may consiste of grip tape	Custom
Seatpost A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension	Alloy micro-adjust 27.2x400mm
Seatpost Diameter The diameter measurement of a seat post, usually in millimeters, this may be important if you wish to replace a rigid post with a suspension seatpost, consider using shims to match a smaller seatpost with a larger seat tube.	27.2

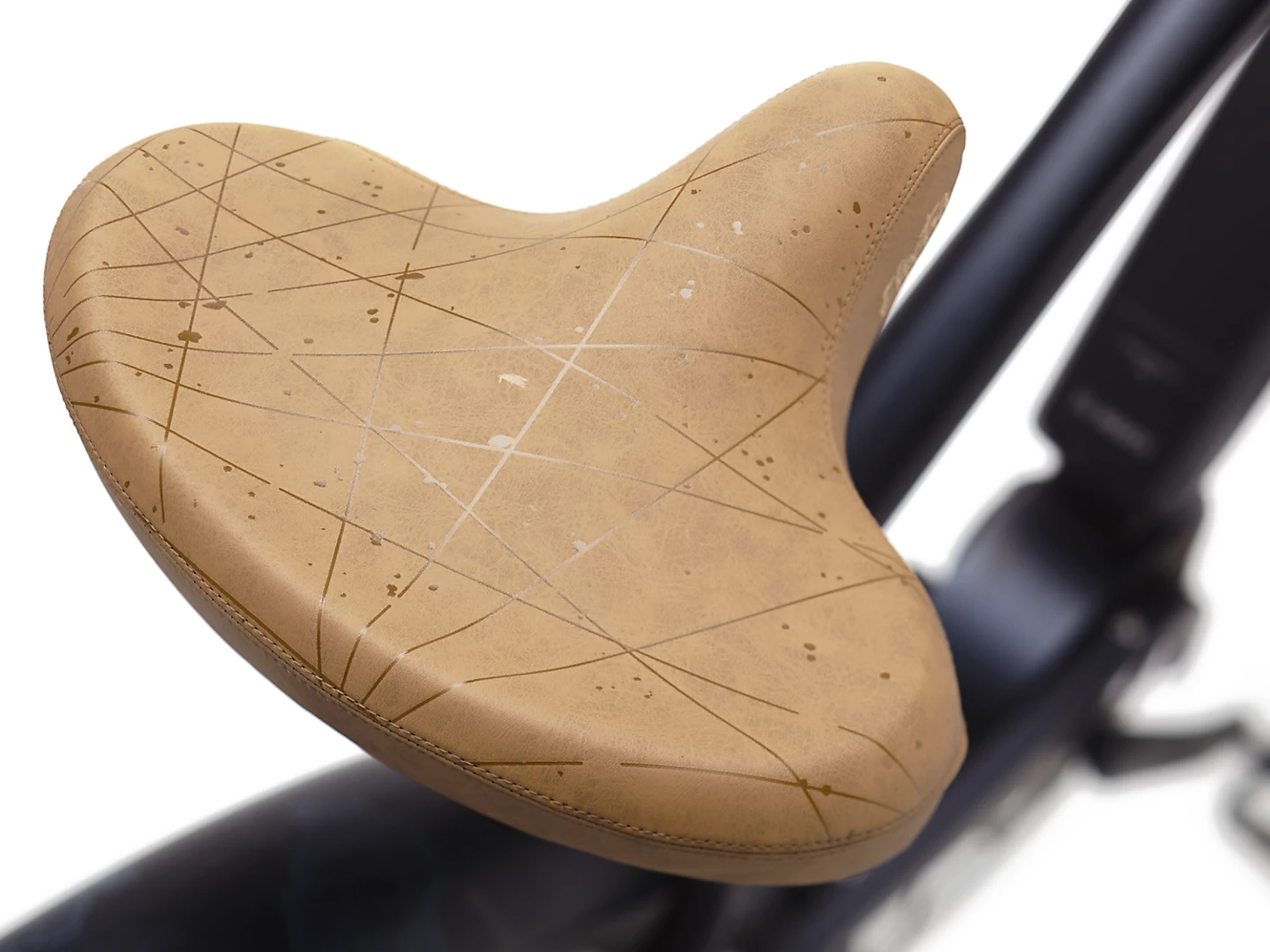

Saddle A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics	Retro leatherette dual spring
Pedals The part of a bicycle that the rider pushes with their foot to create motion in the drivetrain, they are usually easy to replace with different designs for greater traction and surface area or reduced weight	BMX alloy platform
Brake Type The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently	Hydraulic Disc
Brake Details The component that applies friction to the front wheel to provide stopping force	Front/rear: Tektro hydraulic disc brakes\| Rotor: Front/rear: 180mm

Bike Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive

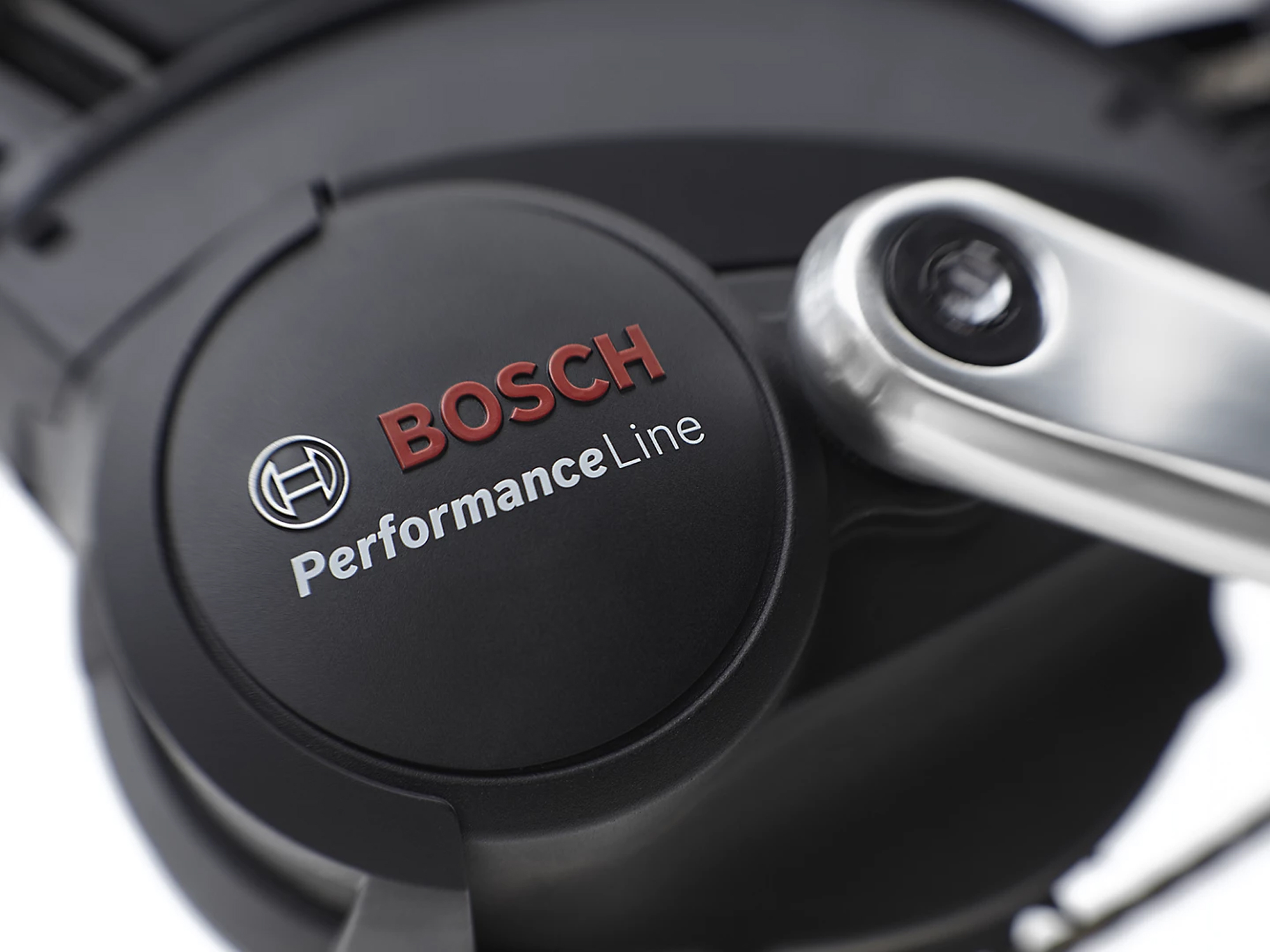

Motor Details Details about the primary motor system propelling the electric bike	Bosch Performance Line, 250 watts
Motor Output The measure of continuous power being produced by the motor, measured in watts	250

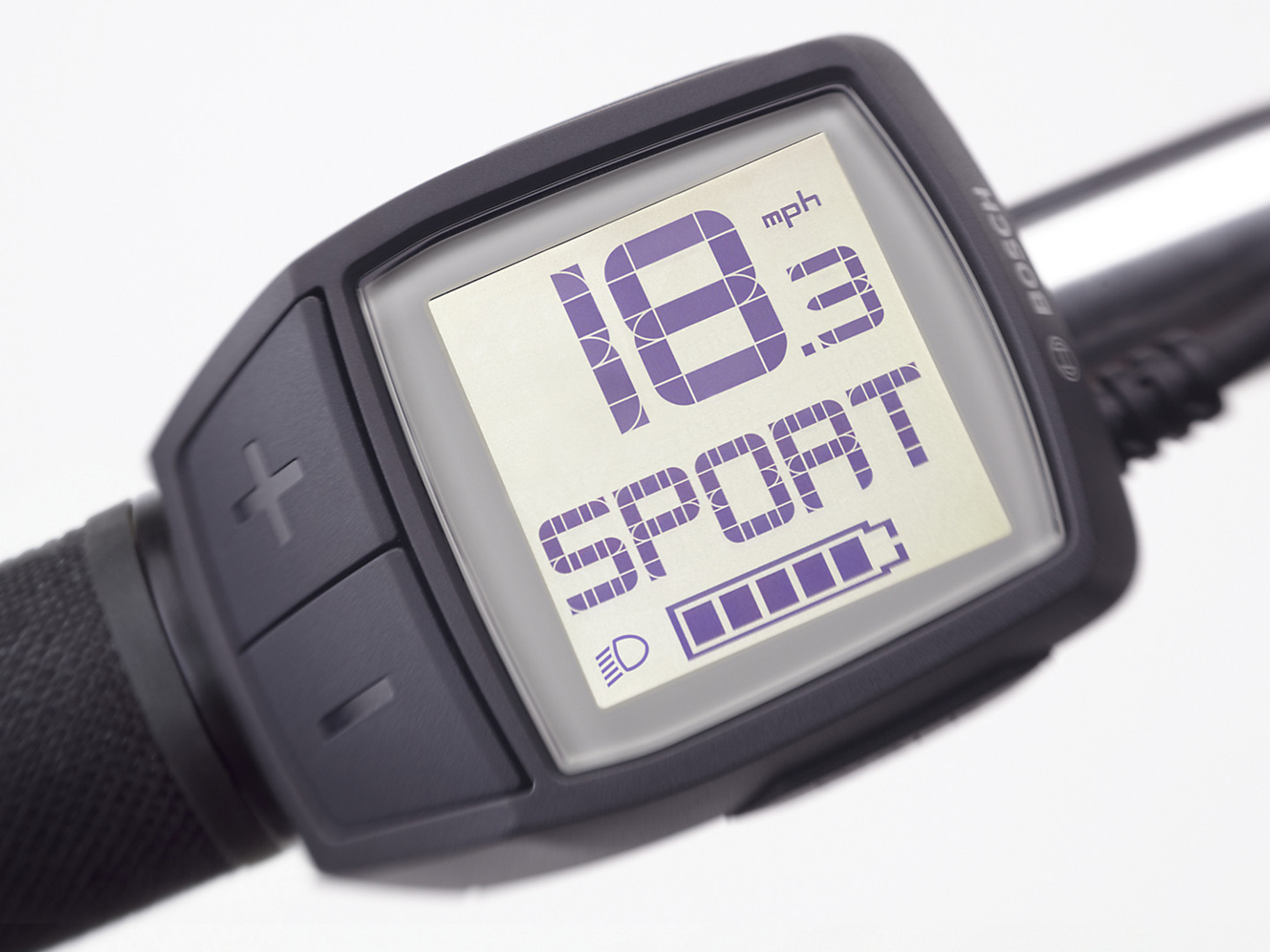

Display A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more	Bosch Purion
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	400 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	400 Wh

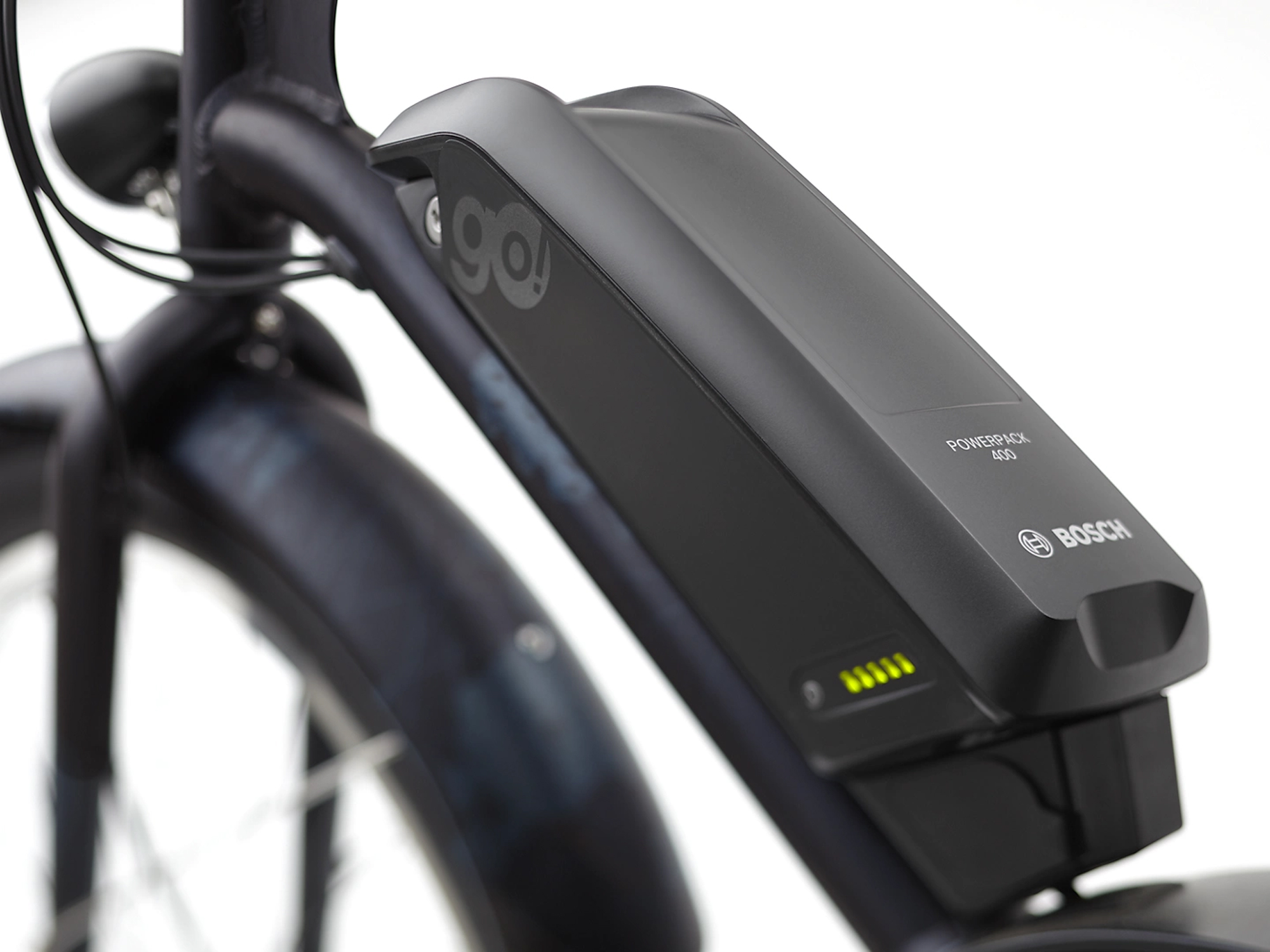

Battery Details Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer	Bosch PowerPack 400
Charger A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery	4 AMP charger

Lights

Spanninga LED

Availability Additional details about the electric bike that did not fit into other categories	United States, Canada
Warranty Additional details about the electric bike that did not fit into other categories	2 Years Comprehensive, Lifetime Frame
Frame Colors Additional details about the electric bike that did not fit into other categories	Matte Nautilus Blue
Chain Additional details about the electric bike that did not fit into other categories	KMC Z1EHX nickel plated

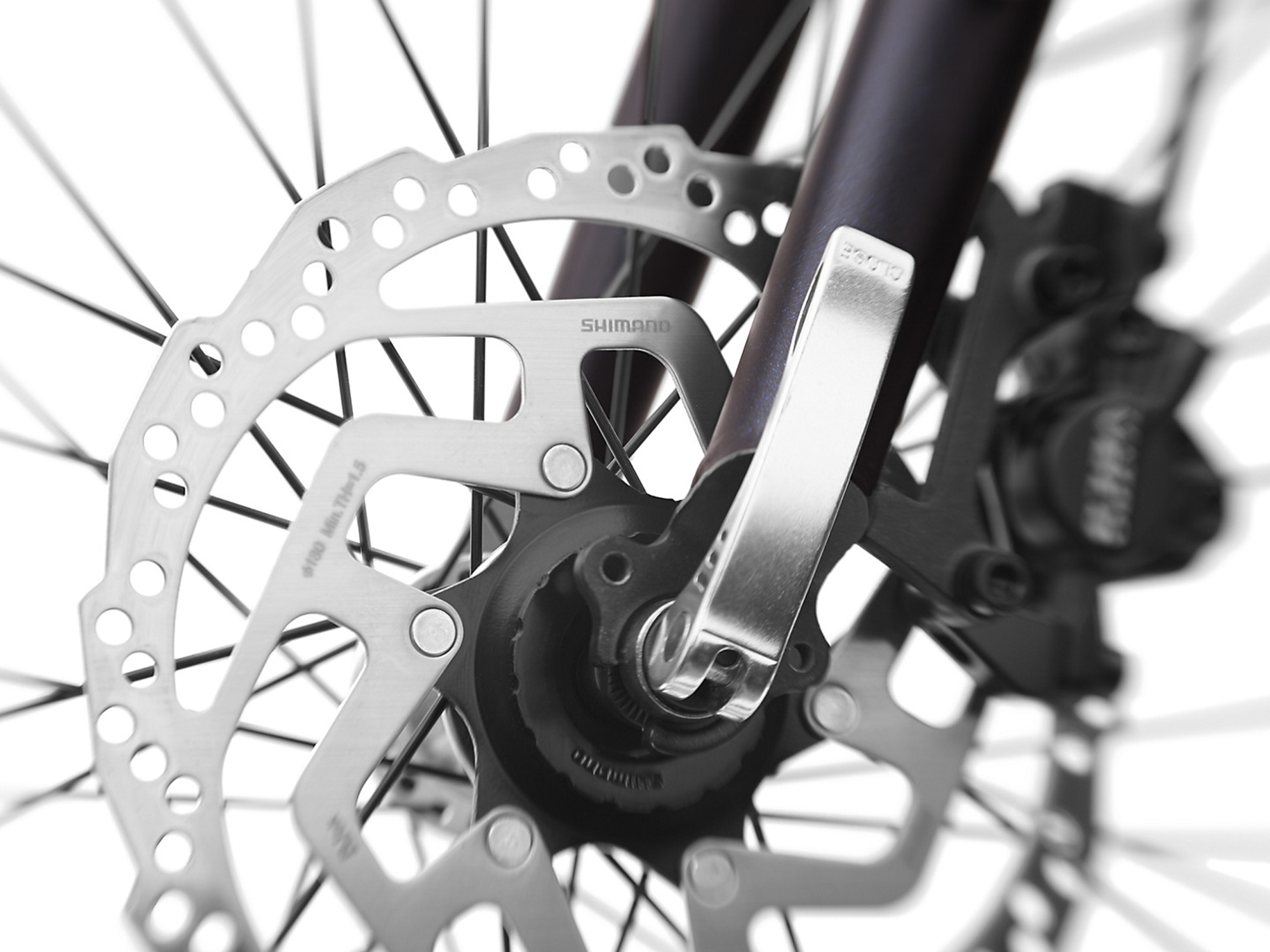

Front Hub Additional details about the electric bike that did not fit into other categories	Alloy low-flange w/center lock disc brake 36h
Rear Hub Additional details about the electric bike that did not fit into other categories	Shimano Nexus Inter-5E 5-speed internal
Kickstand Additional details about the electric bike that did not fit into other categories	Alloy double leg

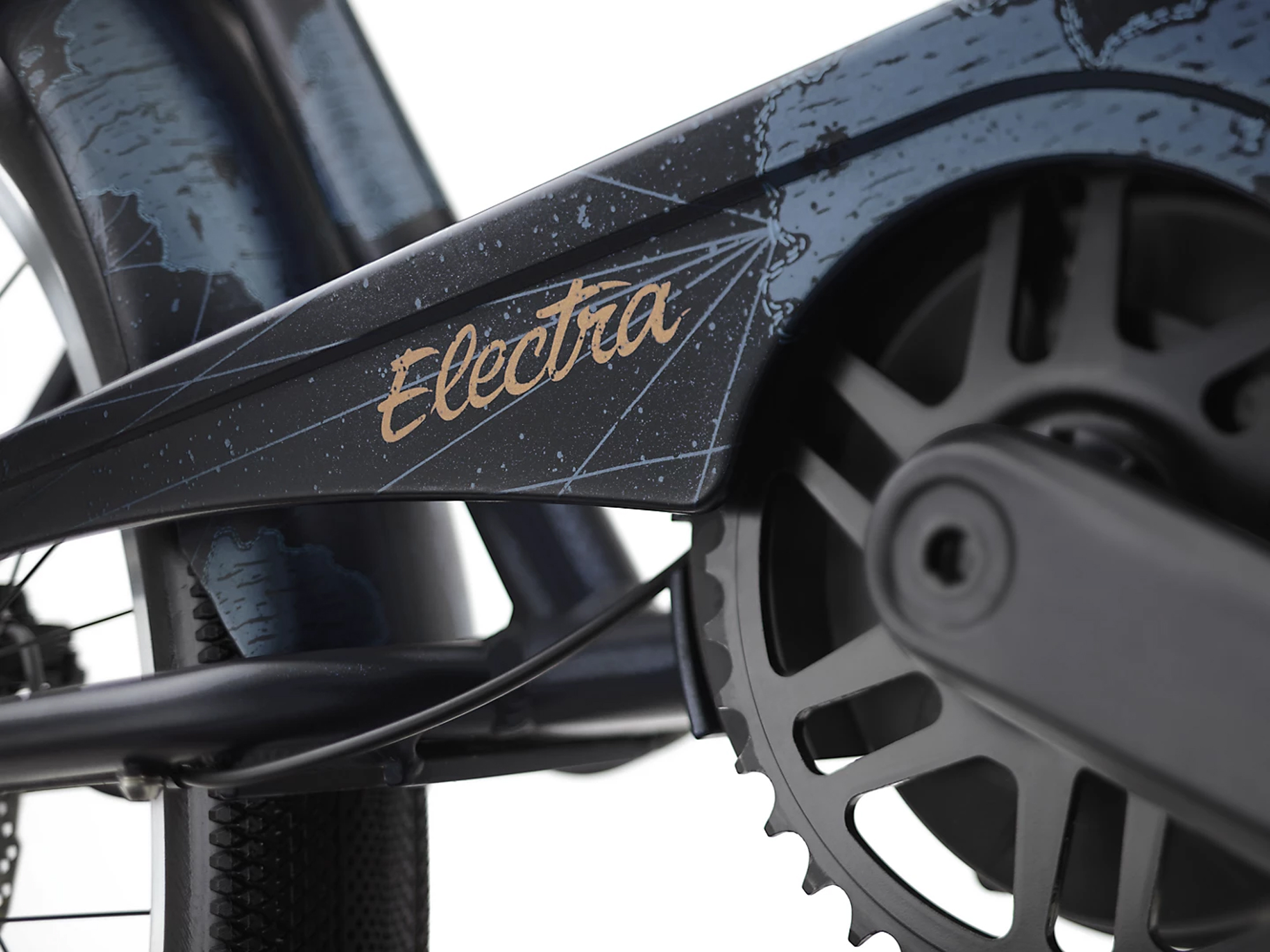

Extras Additional details about the electric bike that did not fit into other categories	Reflective battery decal, painted chainguard, internal cable routing, and stainless steel and anti-rust hardware

Video Reviews

Written Reviews

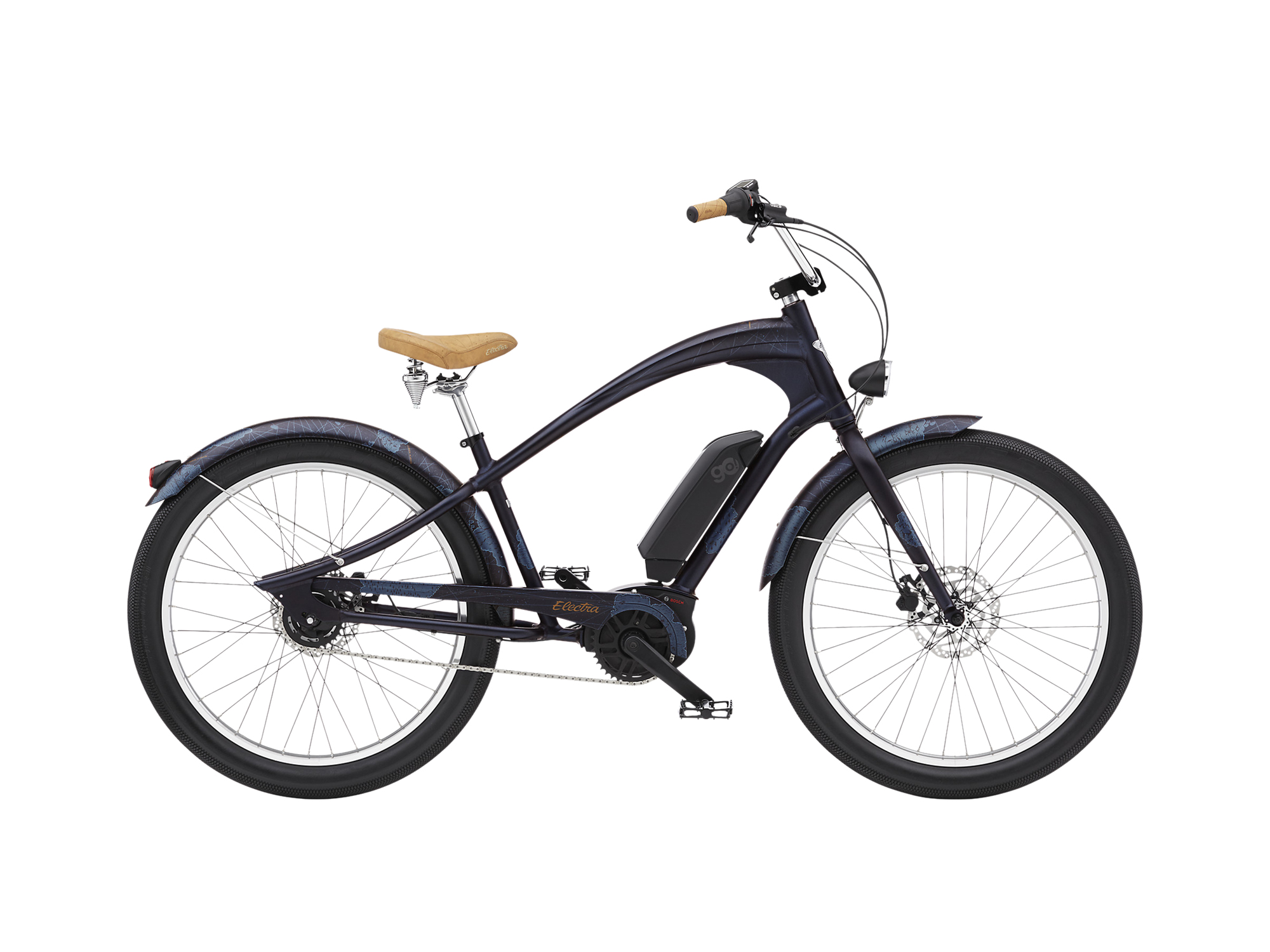

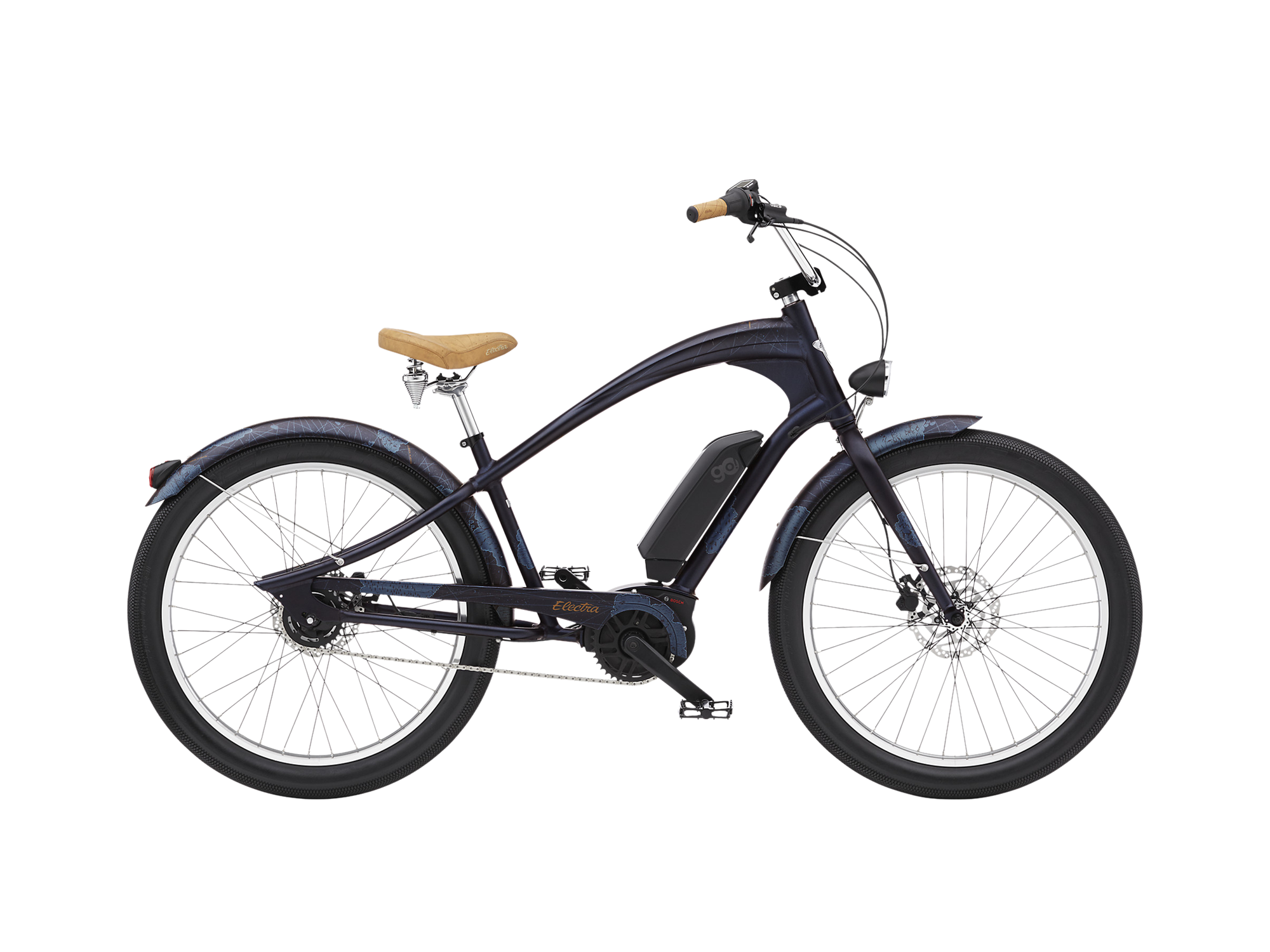

The Navigator Go! 5i electric bike by Electra is a versatile and stylish e-bike designed to provide a smooth and enjoyable riding experience. Here are the key features of the Navigator Go! 5i:

Frameset: The frame is made of 6061-T6 aluminum with a hydroformed top tube and patented Flat Foot Technology®, providing a comfortable and ergonomic riding position.

Drivetrain: The bike offers smooth and efficient gear changes with a Shimano Nexus 5-speed twist shifter with an optical display. The drivetrain includes a forged alloy crank, 38t chainring, 30t cassette, and a KMC Z1EHX nickel-plated chain.

Wheels and Tires: The bike features 26" anodized alloy rims with Vee Rubber Speedster 26×2.8" tires, providing stability and traction on various terrains.

Brakes: The Navigator Go! 5i has Tektro hydraulic disc brakes, offering reliable stopping power and control.

Motor and Battery: Powered by a Bosch Performance Line 250-watt motor and a Bosch PowerPack 400 battery, the bike provides efficient pedal assistance and a range of up to 48 miles on eco mode.

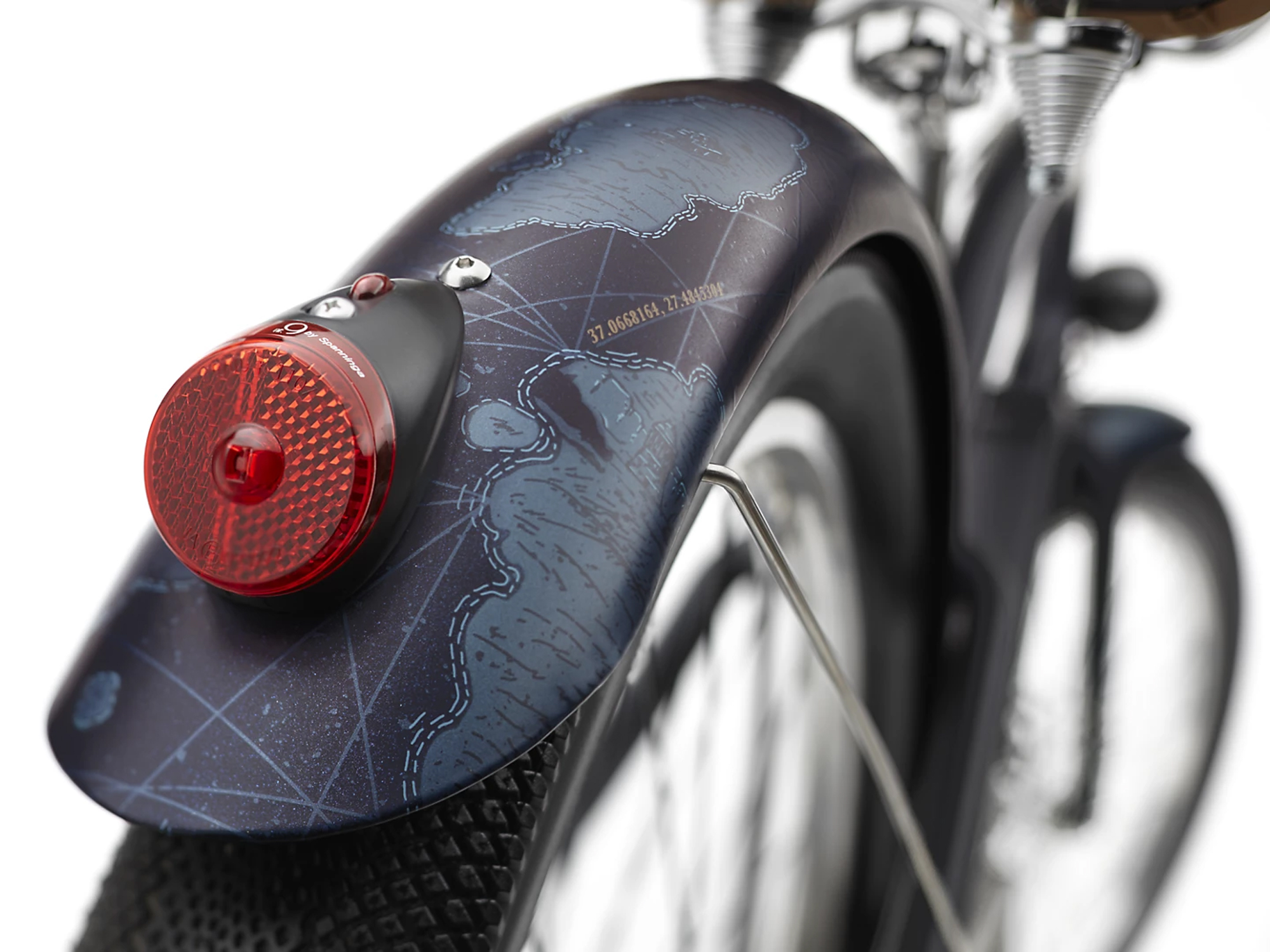

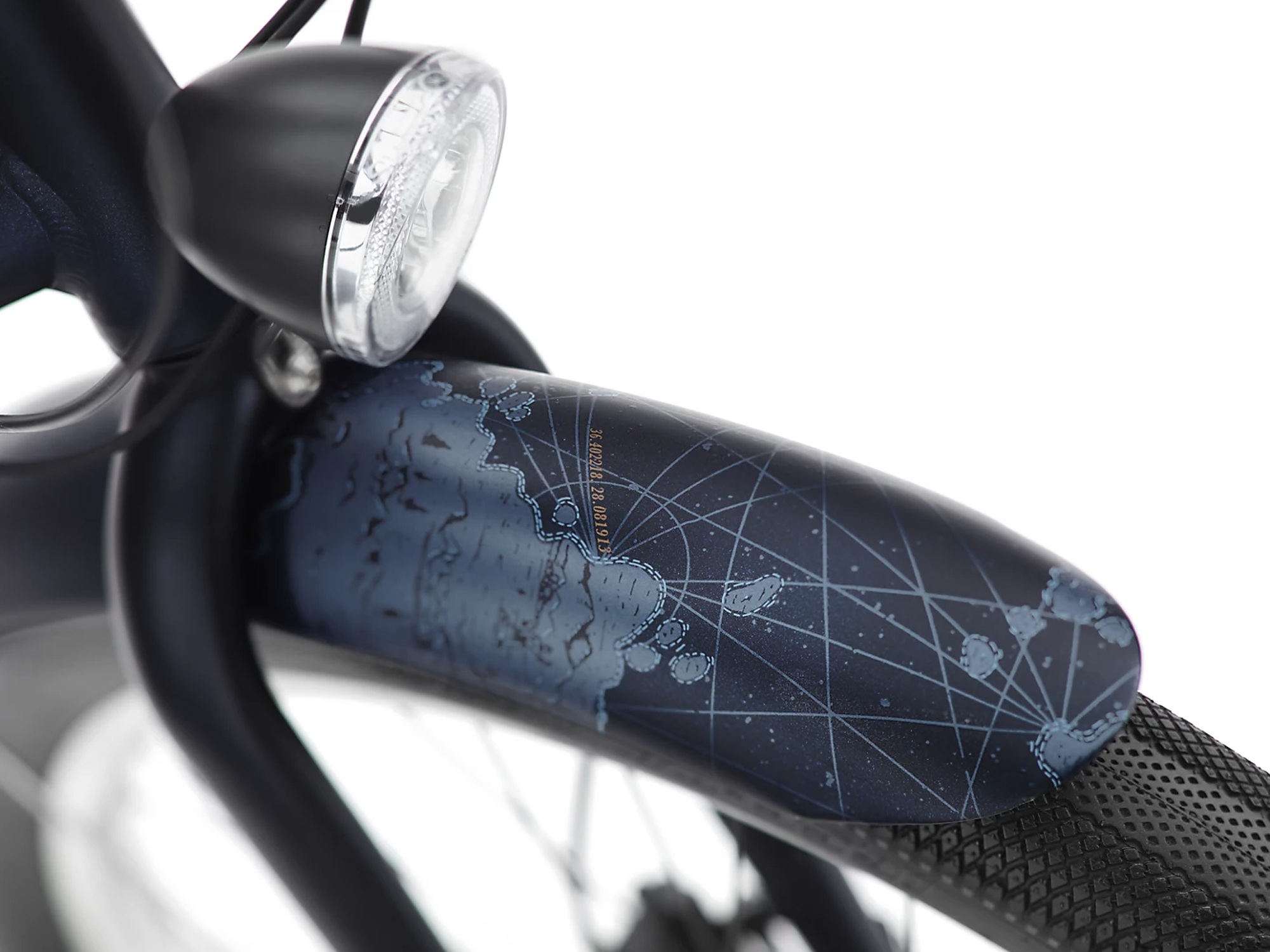

Lights and Accessories: The bike comes with a Spanninga LED front and rear light, ensuring visibility and safety during rides. It includes a kickstand, reflective battery decal, painted chainguard, and internal cable routing.

Weight and Size: The bike weighs 27.27 kg (60 lbs) and has a maximum total weight limit of 300 pounds (136 kg). It is suitable for riders with heights ranging from 5'1" to 6'3".
