2023 Electra Townie Go! 8D EQ Step-Thru Review

CRUISER

CITY

2023 Electra Townie Go! 8D EQ Step-Thru Review camera.png Photos (16)
electric-bike-review-videos youtube.png Videos
electric-bike-shops map-pin.png Shops

Highlights

Technical Specs & Ratings

General

Year

When this particular ebike model configuration was released

2023
Brand

The company that produces this particular electric bicycle

Electra

Model

The specific product or family of products from a brand

Townie Go! 8D EQ Step-Thru
MSRP

The Manufacturer’s Suggested Retail Price listed in US Dollars

$2,449.99
Category

A grouping of products with similar features and uses

Cruiser Electric Bike Reviews , City Electric Bike Reviews

Class

Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other

Class 1
Frame Type

The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more

Mid-Step
Wheel Size

The diameter of wheels used on the bike, may be listed in inches or millimeters, may include multiple wheel sizes

26.0
Gears

The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions

8

Brake Type

The mechanism used to slow and stop the ebike, may include multiple brake types

Hydraulic Disc
Motor Type

Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency

Mid-Drive
Motor Output

The measure of continuous power being produced by the motor, measured in watts

250
Battery Watt Hours

The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh

400 Wh
Max Watt Hours

Some ebikes have multiple battery size options, this is the maximum capacity offered

400 Wh
Weight

The total heaviness of the ebike: the force acting on it due to gravity

49.5 lbs / 22.47 kgs

Frameset

Frame Type

The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more

Mid-Step
Weight

The total heaviness of the ebike: the force acting on it due to gravity

49.5
Load Capacity

The maximum weight that an electric bike can safely handle, according to the manufacturer

300
Fork Details

The part of an electric bike that holds the front wheel, steers it, and may include suspension

Hi-ten steel unicrown, straight/tapered leg
Wheel Details

A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim

Anodized alloy 26"—36h
Tire Details

A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike

26"—2.35" balloon

Drivetrain

Gears

The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions

8
Shift Levers

The interface that a rider interacts with to change gears, they may be levers, twist mechanisms, or electronic buttons

Shimano Acera Rapid Fire Plus
Crankset

A group of components that convert reciprocating motion of a rider's legs into rotational motion used to drive a chain, belt, or shaft, which in turn drives the rear wheel, usually consisting of a bottom bracket, crank arms, and chainrings

Forged alloy 170mm, Bosch type, 38t FSA chainring
Rear Derailleur

A mechanism that moves the chain in different directions to fit different sized freewheel or cassette cogs, effectively changing pedal ratio and speed

Shimano Tourney TX 8-speed
Internally Geared Hub

A gear ratio changing system that is implemented with planetary or epicyclic gears, sealed within the shell of a hub, they tend to require less maintenance and can be shifted at standstill, but introduce more weight than a traditional cassette

Shimano Nexus inter-5E 5-speed internal w/center lock disc brake, 36h
Cassette

The cluster of sprockets mounted on the rear hub of an ebike, they may be grouped together as a freewheel that threads onto a hub or slotted individually onto a freehub body which is referred to as a cassette and is stronger

Sram PG-820 11-32 8 speed

Components

Headset

The set of components that provide a rotatable interface between the fork and the head tube of the frame

1 1/8" steel threaded/semi-integrated
Stem

The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort

Forged alloy 25.4mm quill, 80mm extension
Handlebar

The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork

Alloy custom bend 25.9" width/4" rise
Grips

The component that a rider holds to direct the handlebar, often made of rubber or cork, may consiste of grip tape

Electra hand-stitched leatherette
Seatpost

A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension

Alloy straight post 27.2x350mm
Seatpost Diameter

The diameter measurement of a seat post, usually in millimeters, this may be important if you wish to replace a rigid post with a suspension seatpost, consider using shims to match a smaller seatpost with a larger seat tube.

27.2

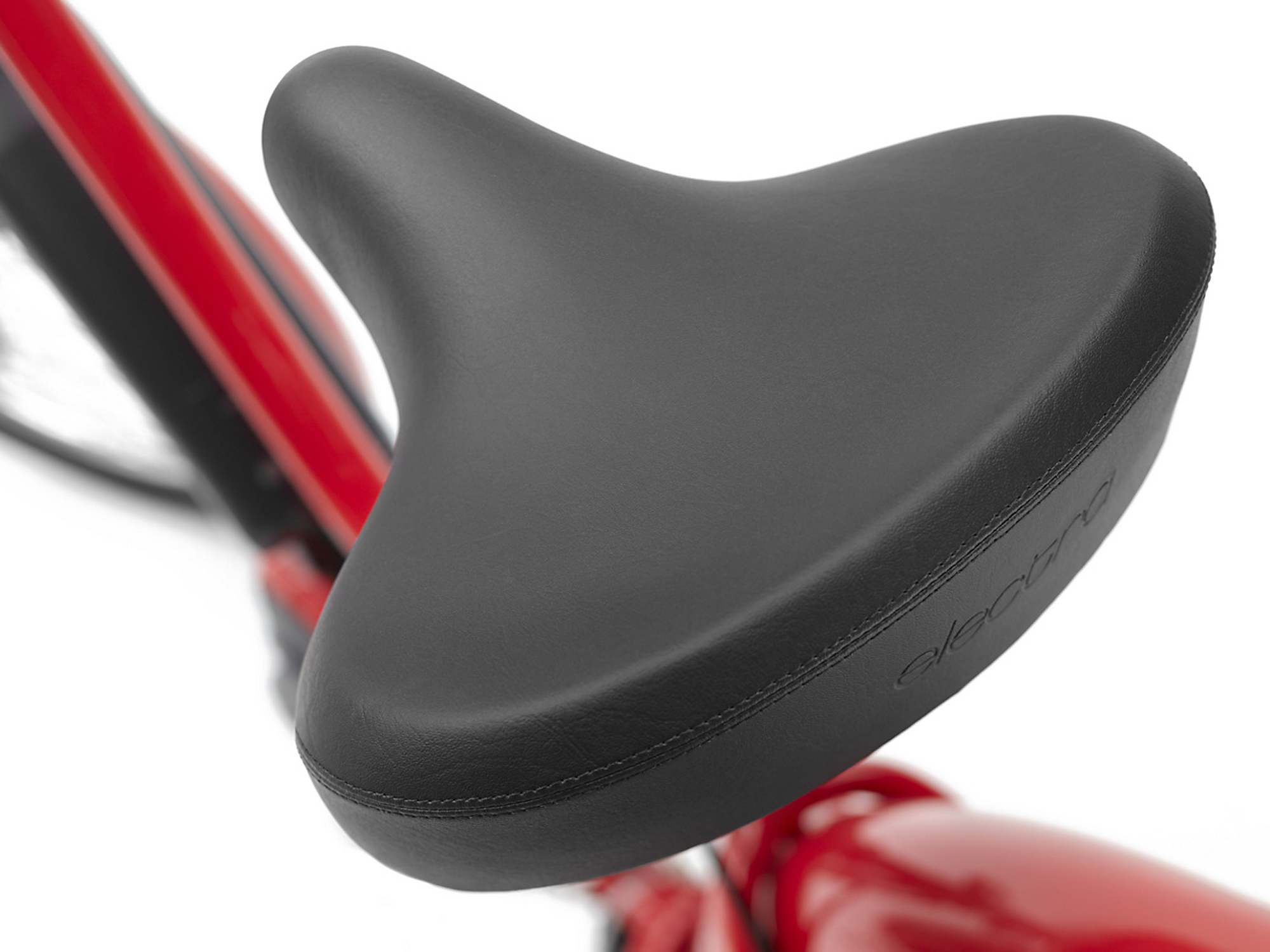

Saddle

A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics

Ergonomic w/shock-absorbing elastomers
Pedals

The part of a bicycle that the rider pushes with their foot to create motion in the drivetrain, they are usually easy to replace with different designs for greater traction and surface area or reduced weight

Resin platform w/non-slip rubber tread
Brake Type

The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently

Hydraulic Disc
Brake Details

The component that applies friction to the front wheel to provide stopping force

Front/rear: Tektro mechanical disc brakes| Rotor: Front: 180mm, rear: 160mm

Ebike Systems

Bike Class

Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other

Class 1
Motor Type

Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency

Mid-Drive

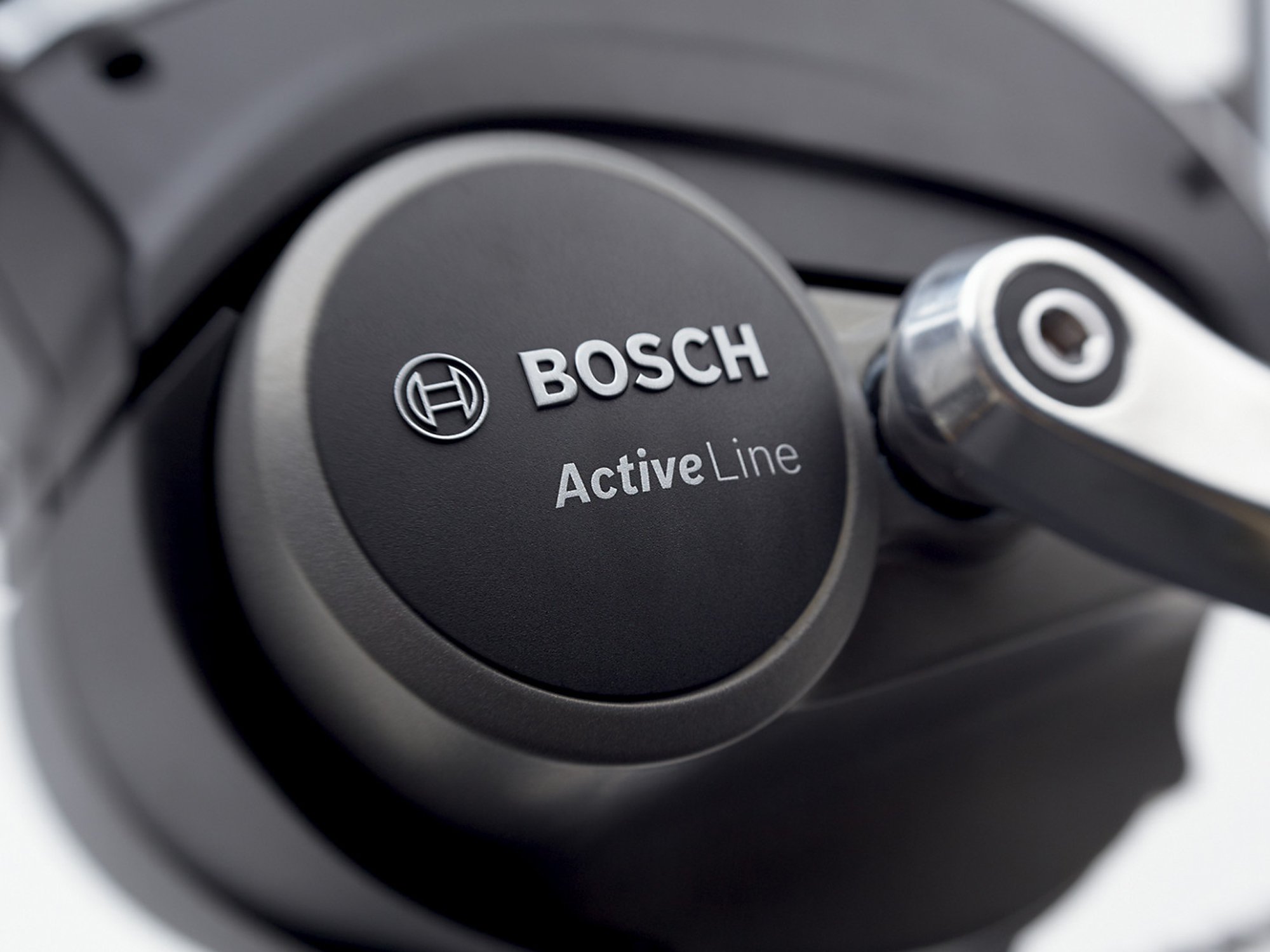

Motor Details

Details about the primary motor system propelling the electric bike

Bosch Active Line, 250 watts
Motor Output

The measure of continuous power being produced by the motor, measured in watts

250
Display

A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more

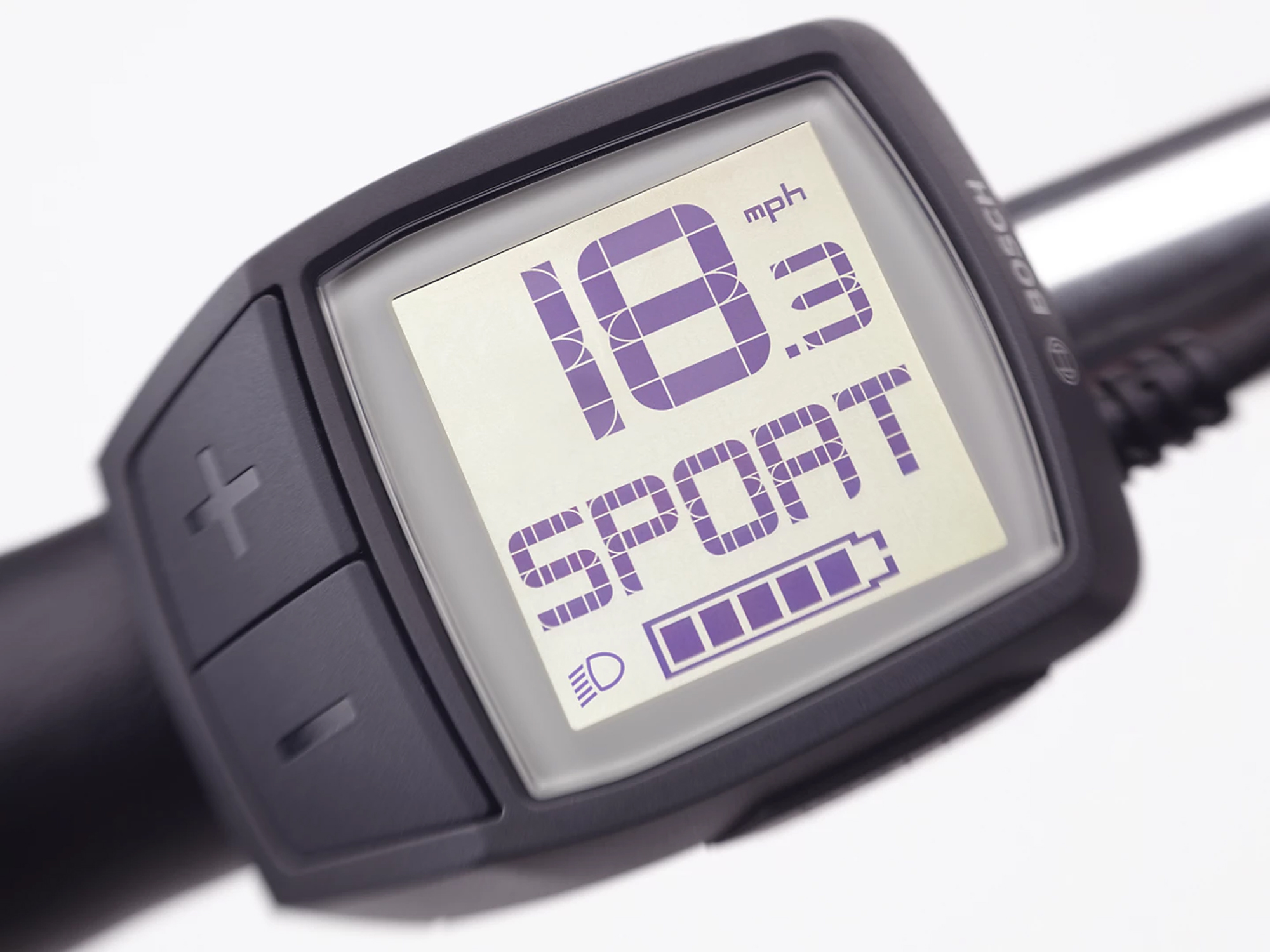

Bosch Purion
Theft / Gps

Security systems designed to deter or prevent theft, and aid in location and recovery

ABUS frame lock
Battery Watt Hours

The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh

400 Wh
Max Watt Hours

Some ebikes have multiple battery size options, this is the maximum capacity offered

400 Wh
Battery Details

Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer

Bosch PowerPack 400
Charger

A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery

4 AMP charger

Accessories

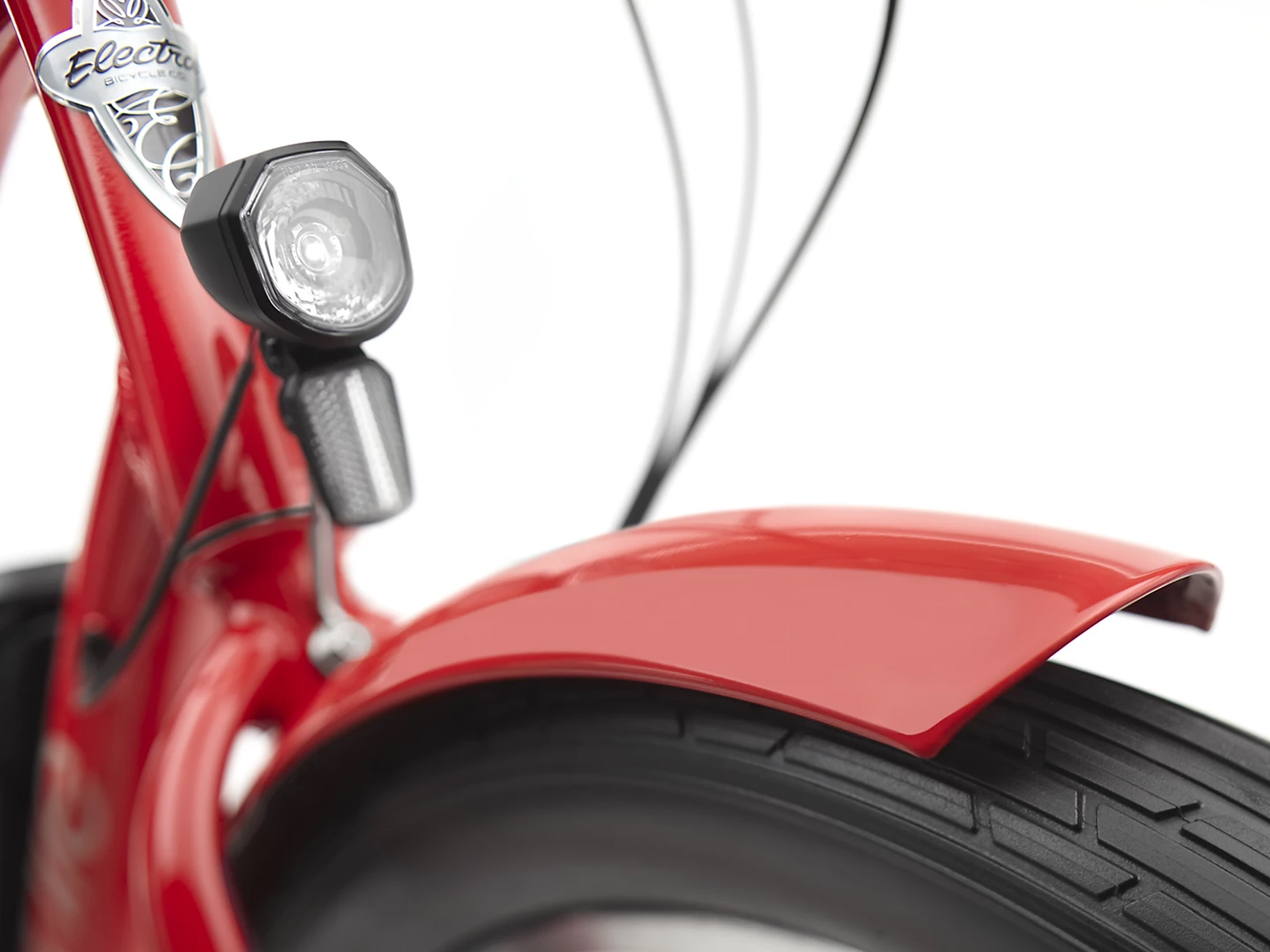

Lights

Components that illuminate the surroundings and help make the ebike more visible during low light conditions

Spanninga LED

More Details

Availability

Additional details about the electric bike that did not fit into other categories

United States, Canada
Warranty

Additional details about the electric bike that did not fit into other categories

2 Years Comprehensive, Lifetime Frame
Frame Colors

Additional details about the electric bike that did not fit into other categories

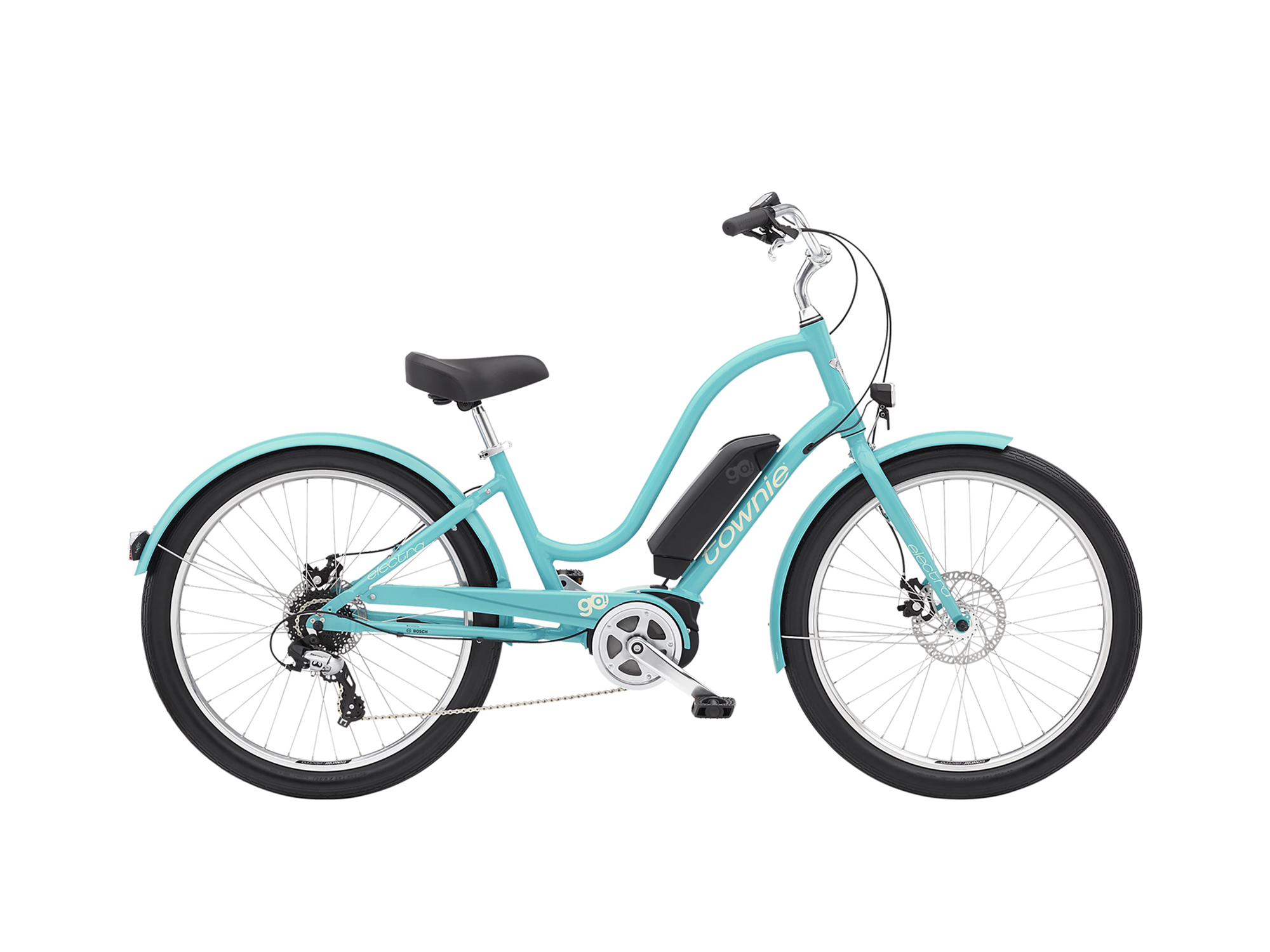

Turquoise
Chain

Additional details about the electric bike that did not fit into other categories

KMC X8.99 nickel plated

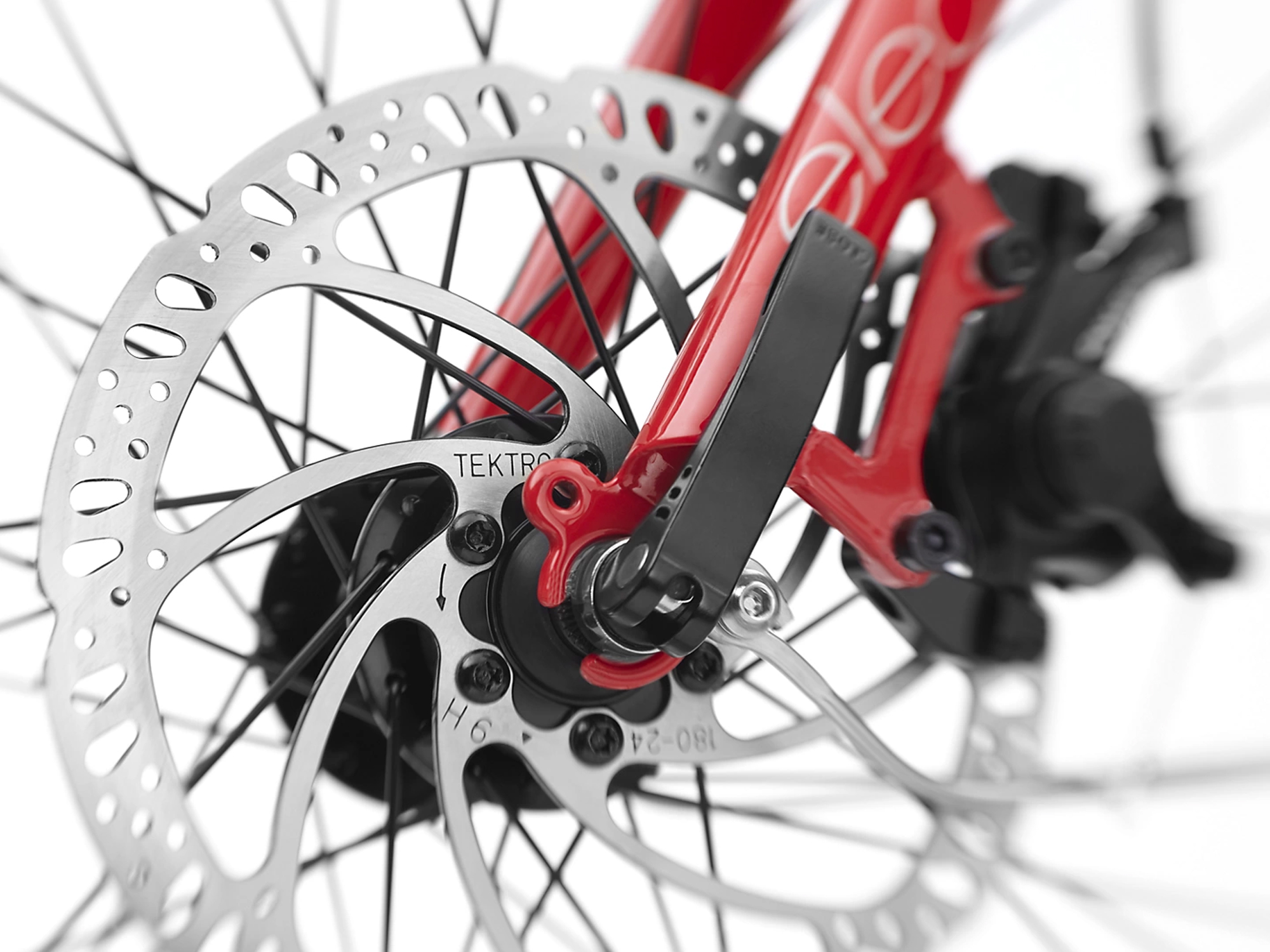

Front Hub

Additional details about the electric bike that did not fit into other categories

Alloy low-flange disc 36h
Rear Hub

Additional details about the electric bike that did not fit into other categories

Alloy low-flange w/6-bolt disc 36h
Kickstand

Additional details about the electric bike that did not fit into other categories

Alloy single leg
Extras

Additional details about the electric bike that did not fit into other categories

Reflective battery decal, ring lock mounts, painted chainguard, internal cable routing, and stainless steel and anti-rust hardware

Shops pay to appear on this list, learn more

Video Reviews

Written Reviews

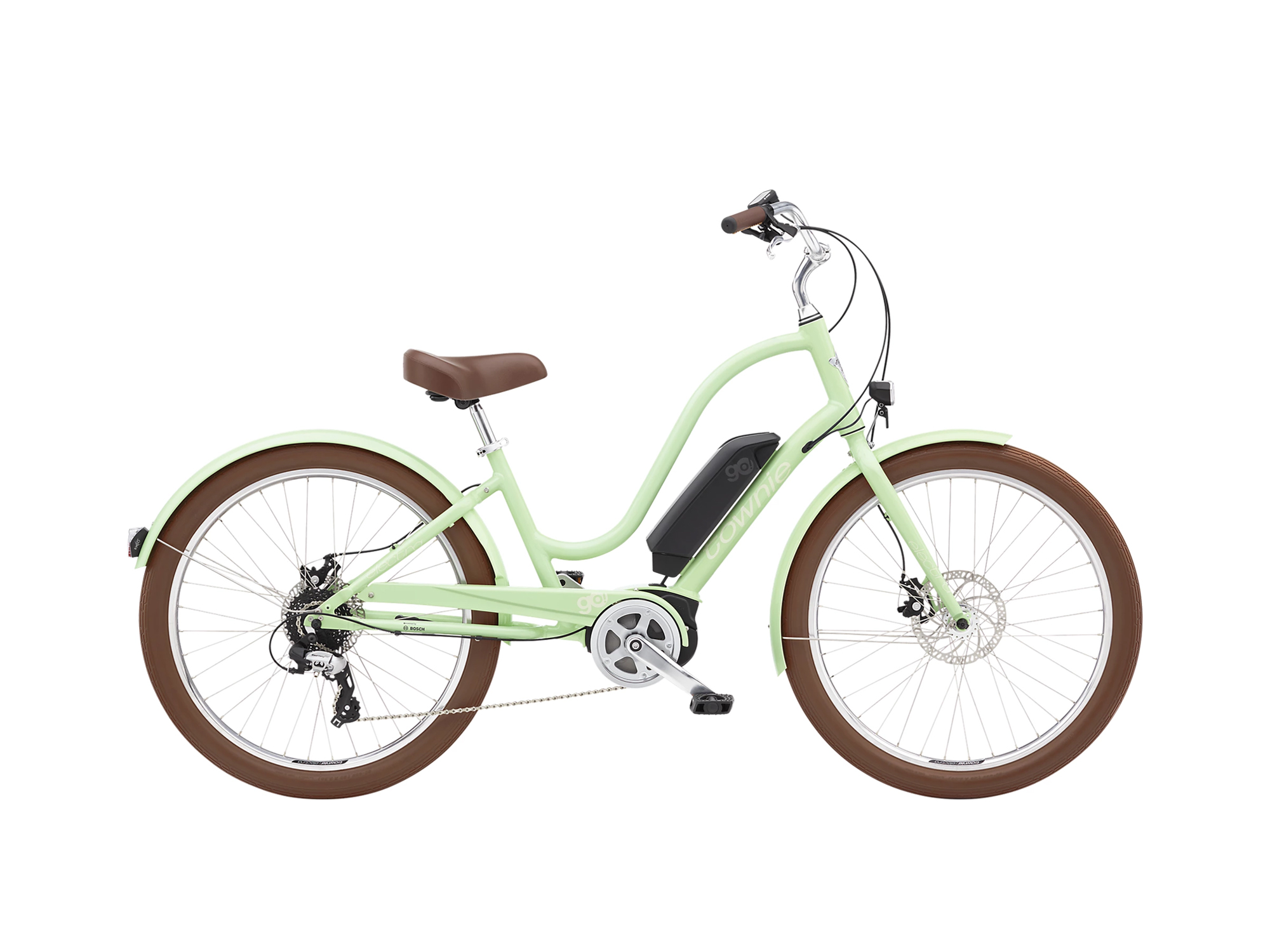

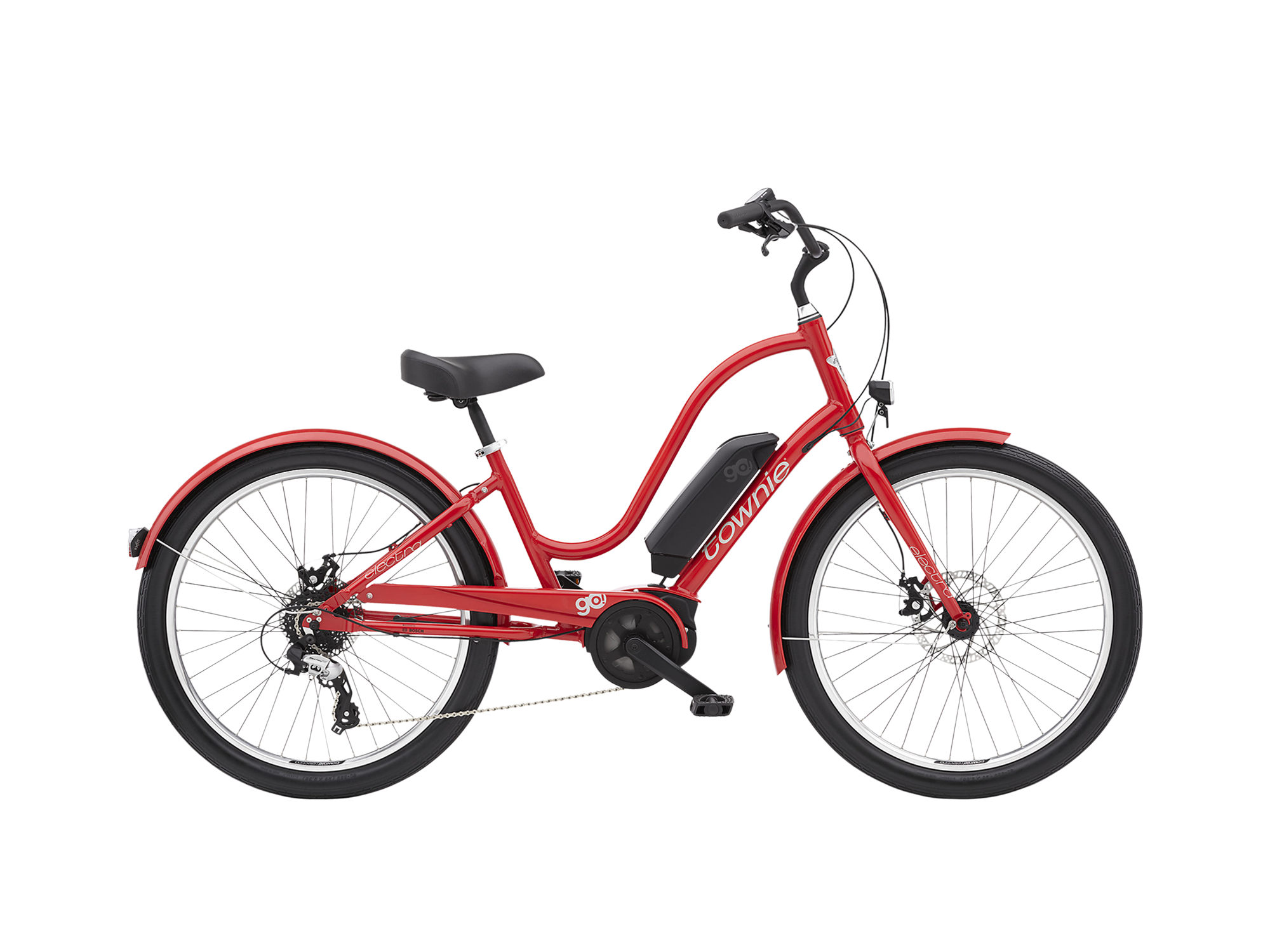

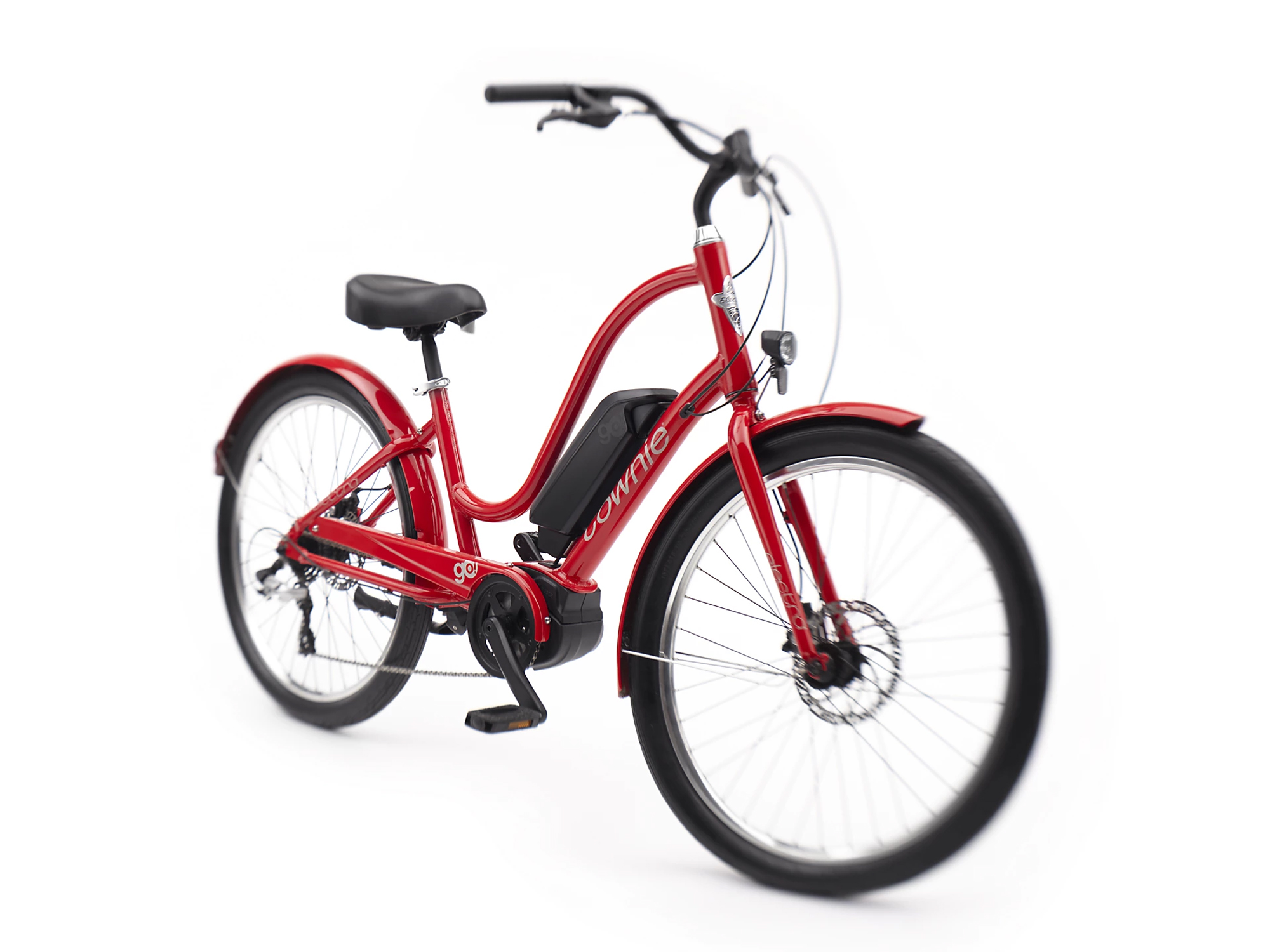

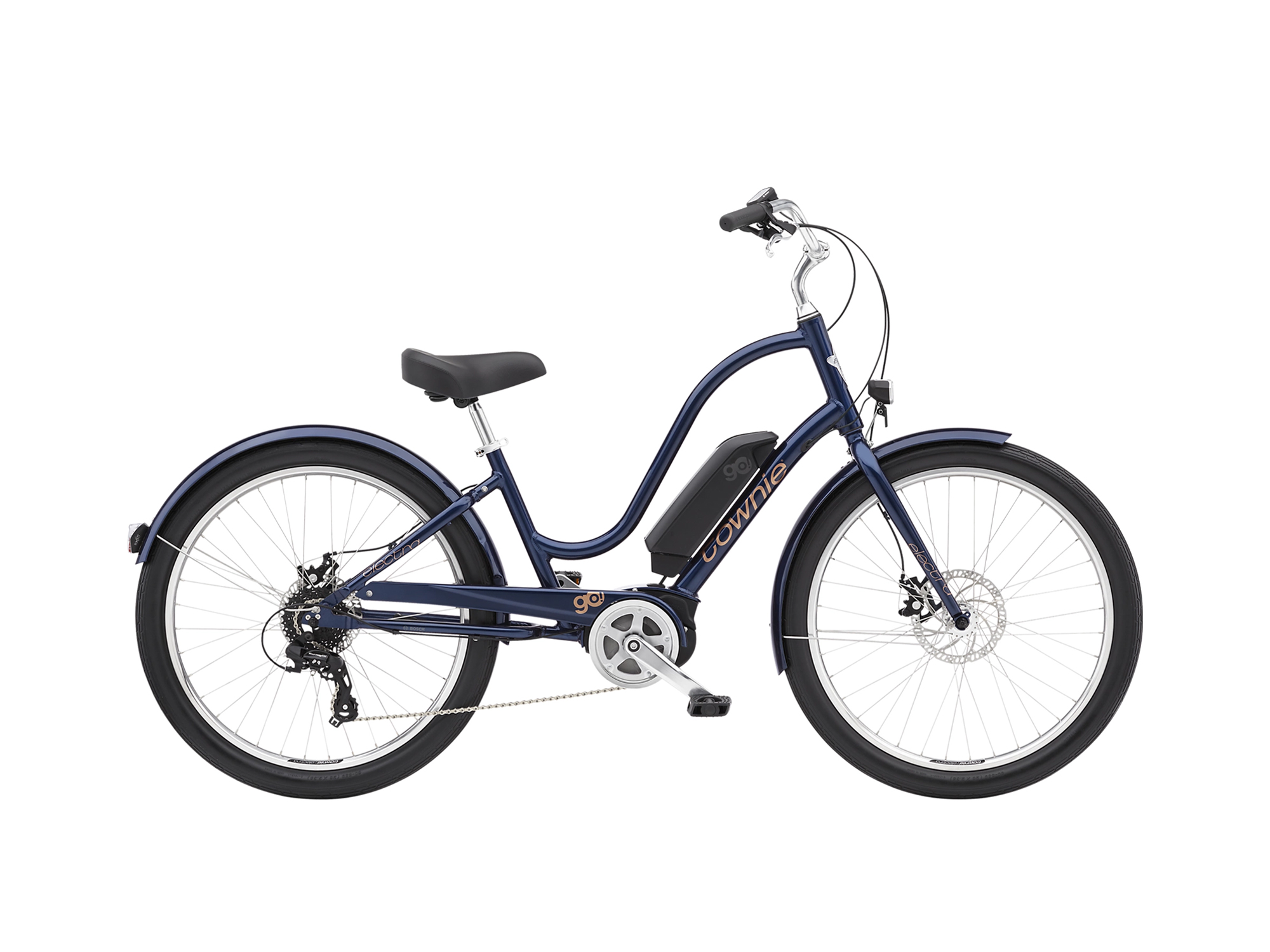

The Townie Go! 8D EQ Step-Thru is a versatile electric bike with the following features:

Step-Thru Frame: The bike features a step-thru frame designed to make it easy to mount and dismount, especially for riders with limited mobility or flexibility.

Frame and Fork: The bike features a 6061-T6 aluminum frame with patented Flat Foot Technology®, providing a comfortable and upright riding position. The Hi-ten steel unicrown fork with straight/tapered leg ensures stability and control.

Wheels and Tires: Equipped with 26" anodized alloy rims and 26×2.35" balloon tires, the Townie Go! 8D EQ Step-Thru offers a smooth and stable ride.

Drivetrain: The electric bike comes with a Shimano Acera Rapid Fire Plus shifter, Shimano Tourney TX 8-speed rear derailleur, and a forged alloy crank with a 38t FSA chainring, ensuring smooth and reliable gear changes.

Brakes: The bike has Tektro mechanical disc brakes, providing reliable stopping power in various conditions.

Motor and Battery: The Townie Go! 8D EQ Step-Thru features a Bosch Active Line 250-watt motor and a Bosch PowerPack 400 battery, offering efficient pedal assistance and a range suitable for long rides.

Lights and Accessories: The electric bike comes with Spanninga LED front and rear lights, ensuring visibility and safety during low-light conditions. It also includes a kickstand, reflective battery decal, ring lock mounts, painted chainguard, and internal cable routing.

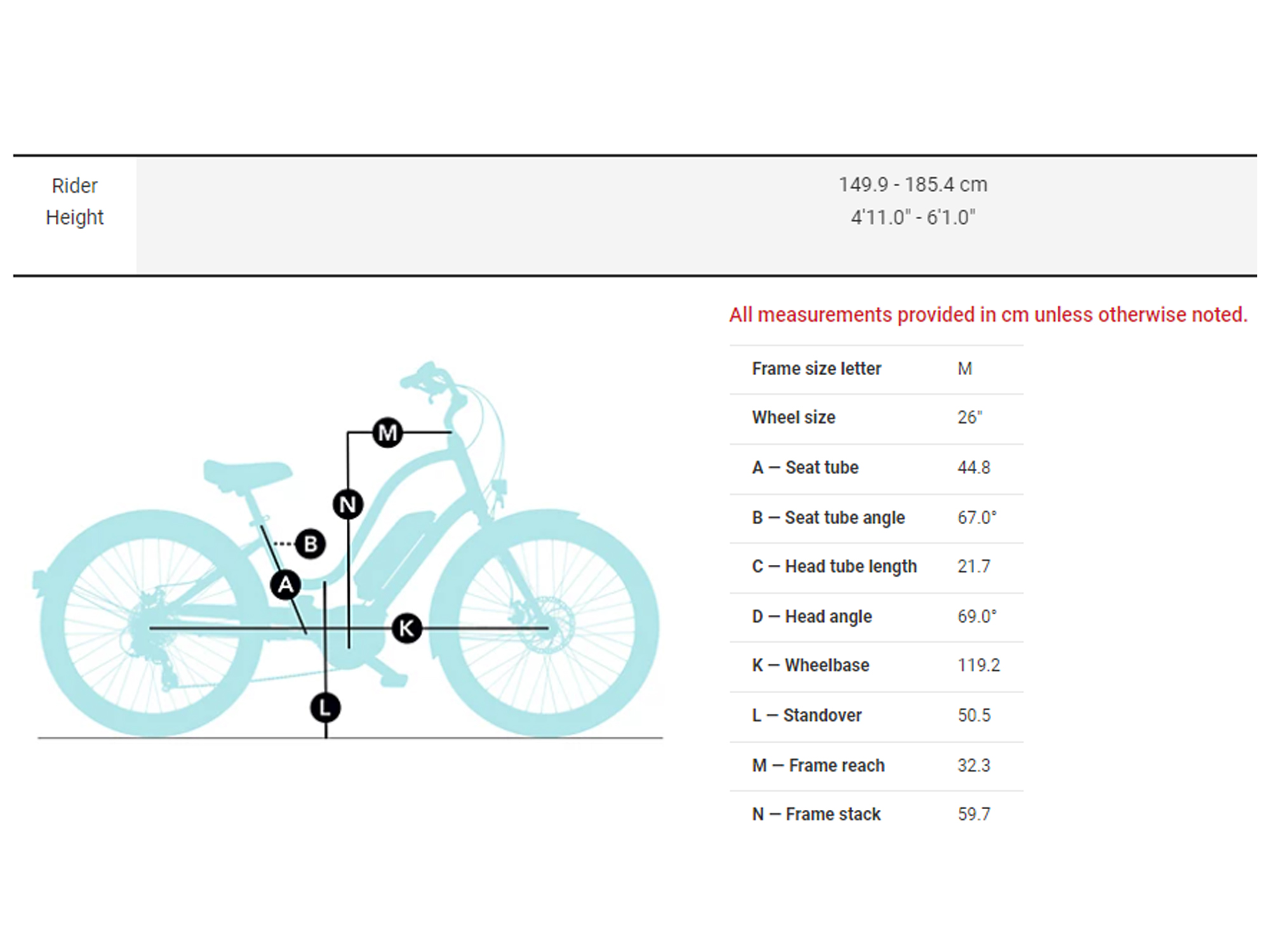

Weight and Size: Weighing 49.5 lbs, the bike has weight limit of 300 pounds. It is available in a frame size suitable for riders with a height range of 4'11" to 6'1".
