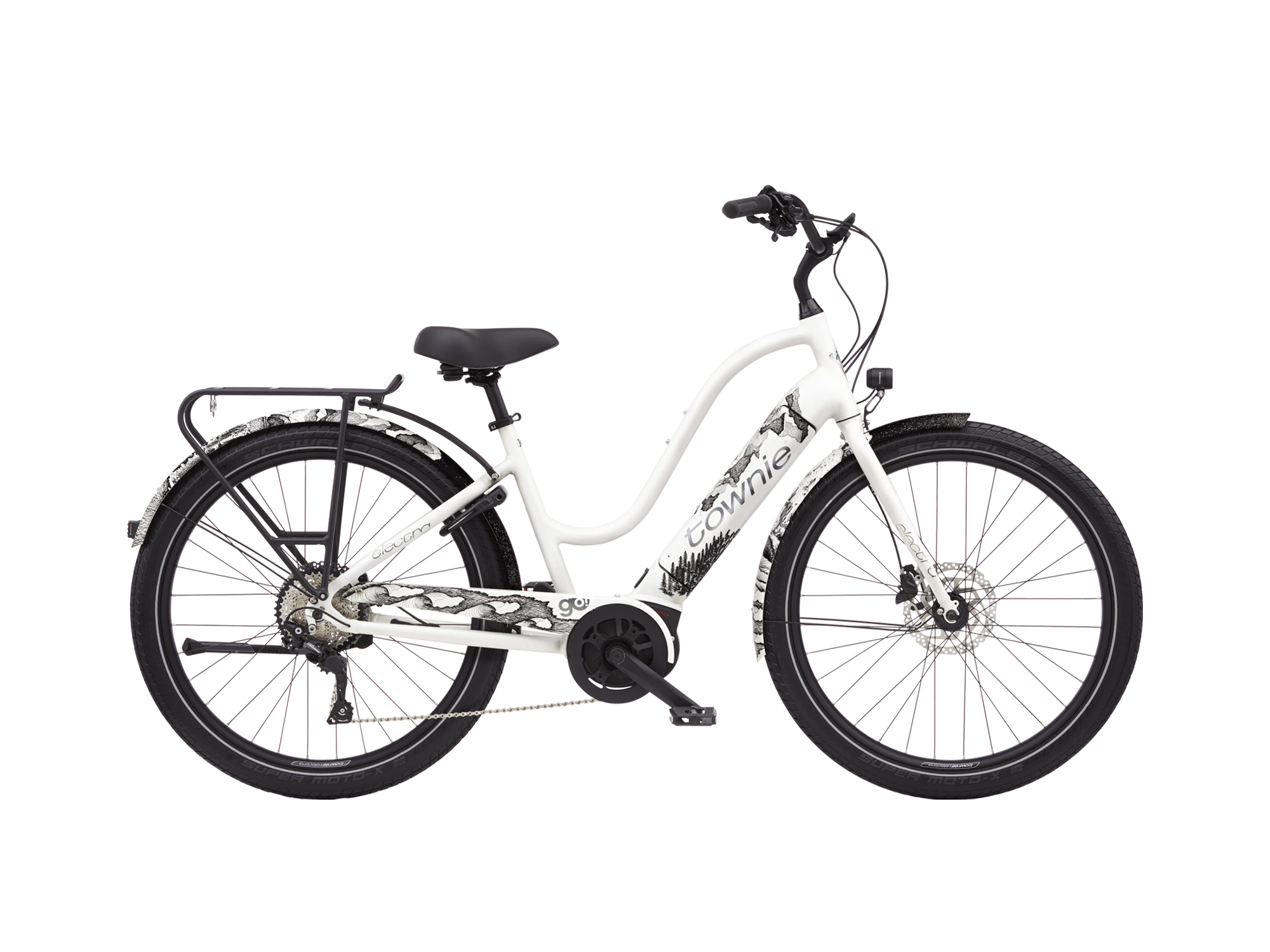

2023 Electra Townie Path Go! 10D EQ Step-Thru Review

2023-electra-townie-path-go-10d-eq-step-thru-model

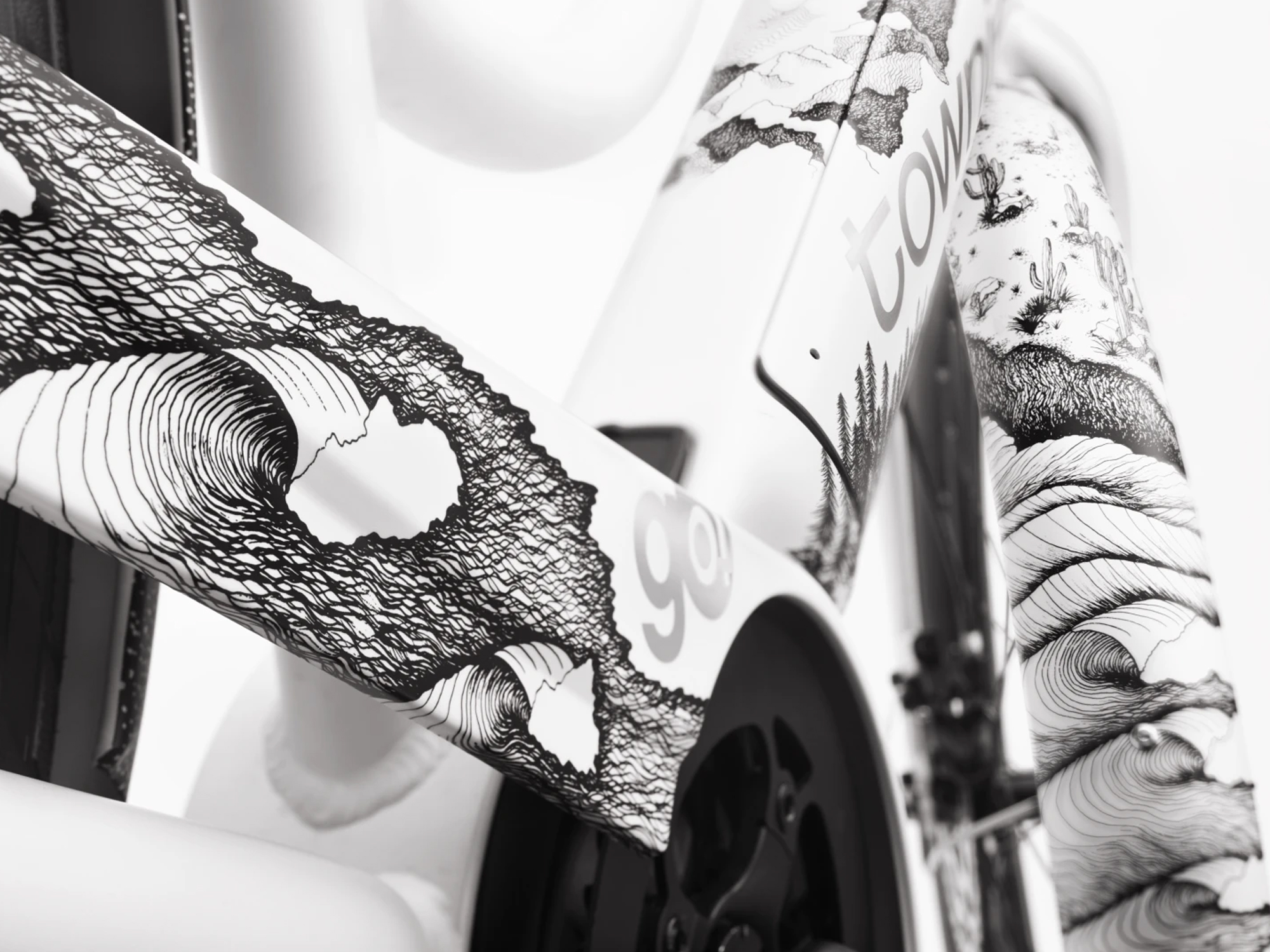

2023-electra-townie-path-go-10d-eq-step-thru-painted-chainguard

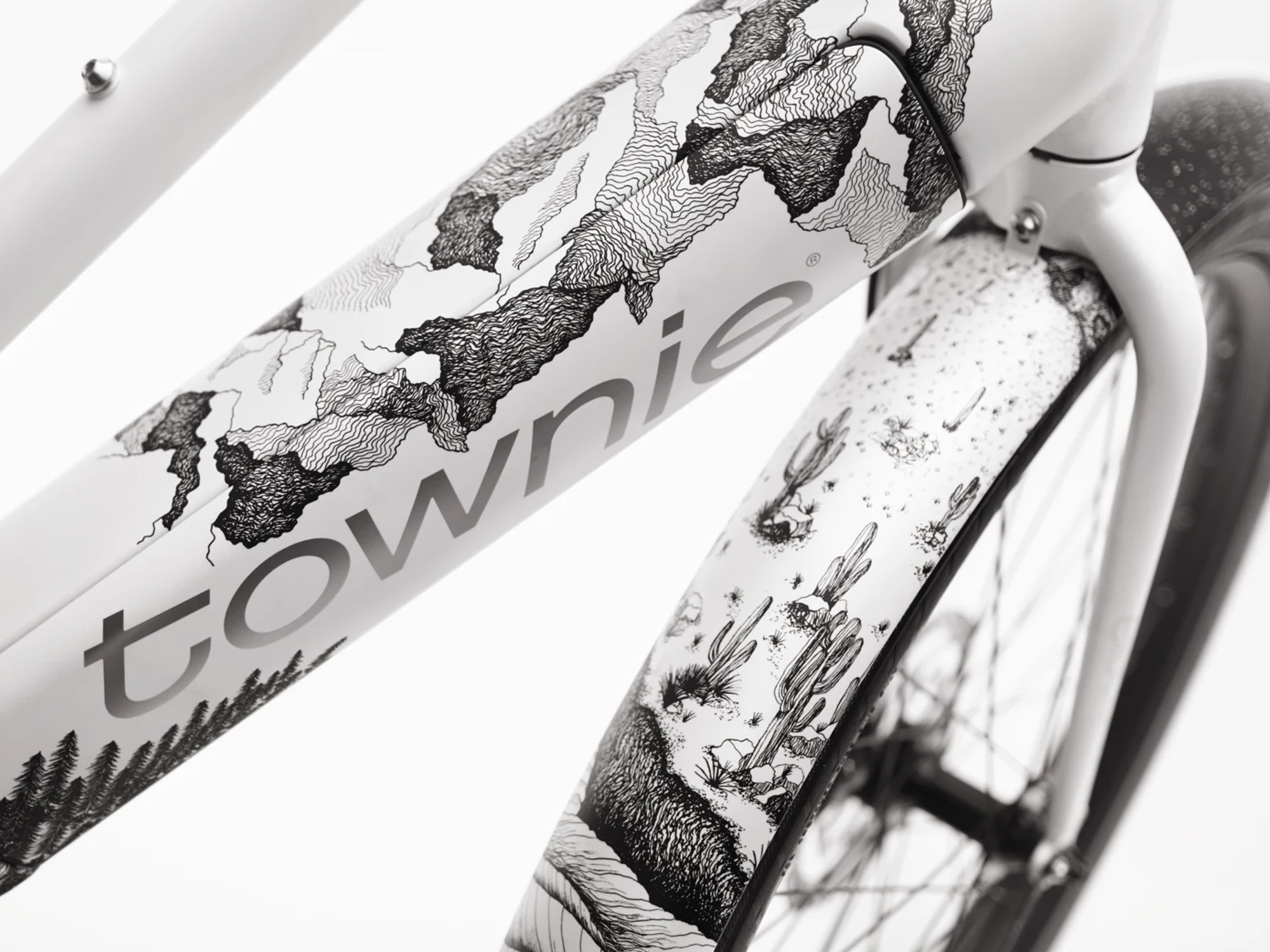

2023-electra-townie-path-go-10d-eq-step-thru-bosch-powertube-500-includes-4-amp-charger-battery

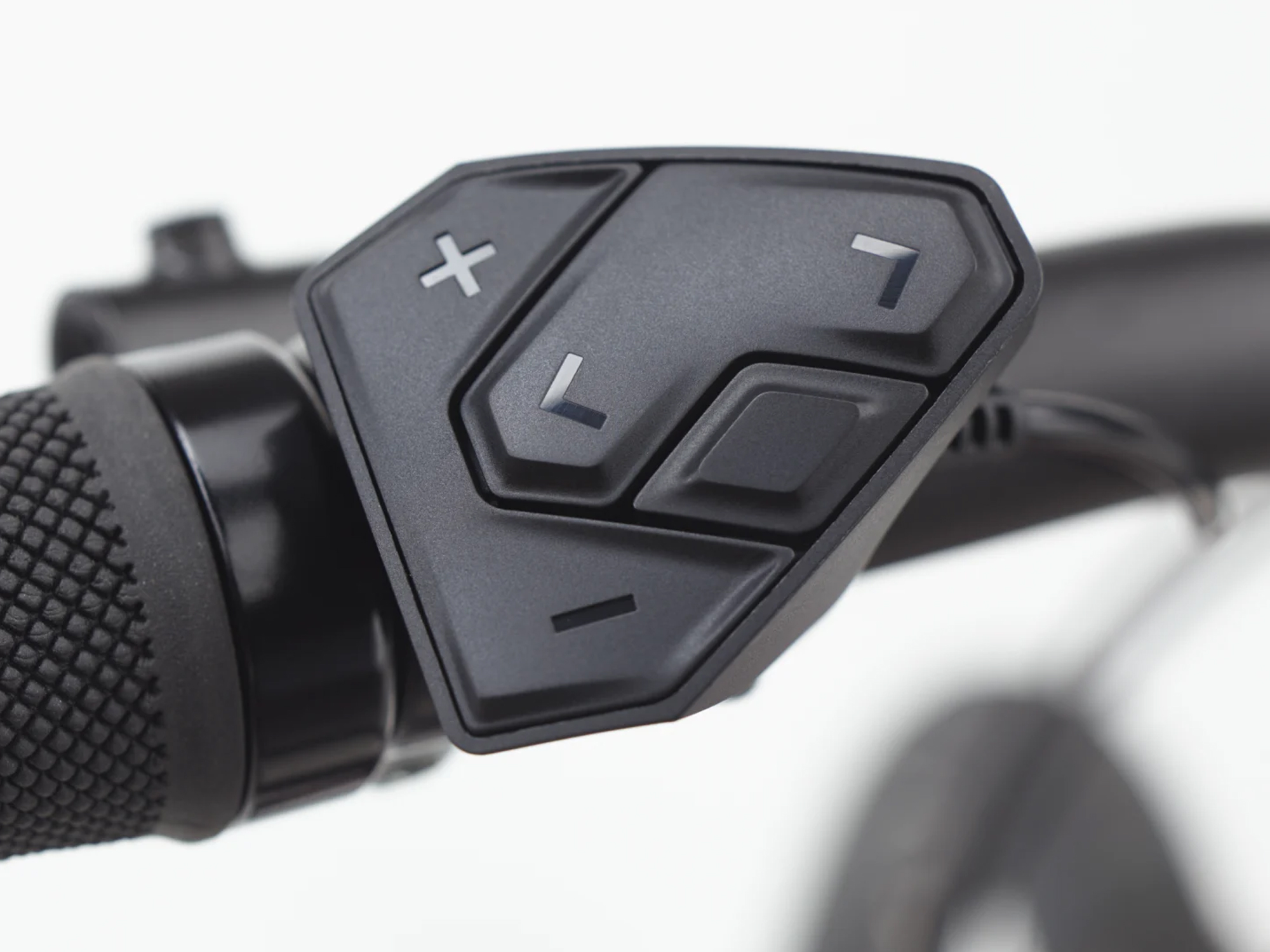

2023-electra-townie-path-go-10d-eq-step-thru-bosch-smartphonehub-controller

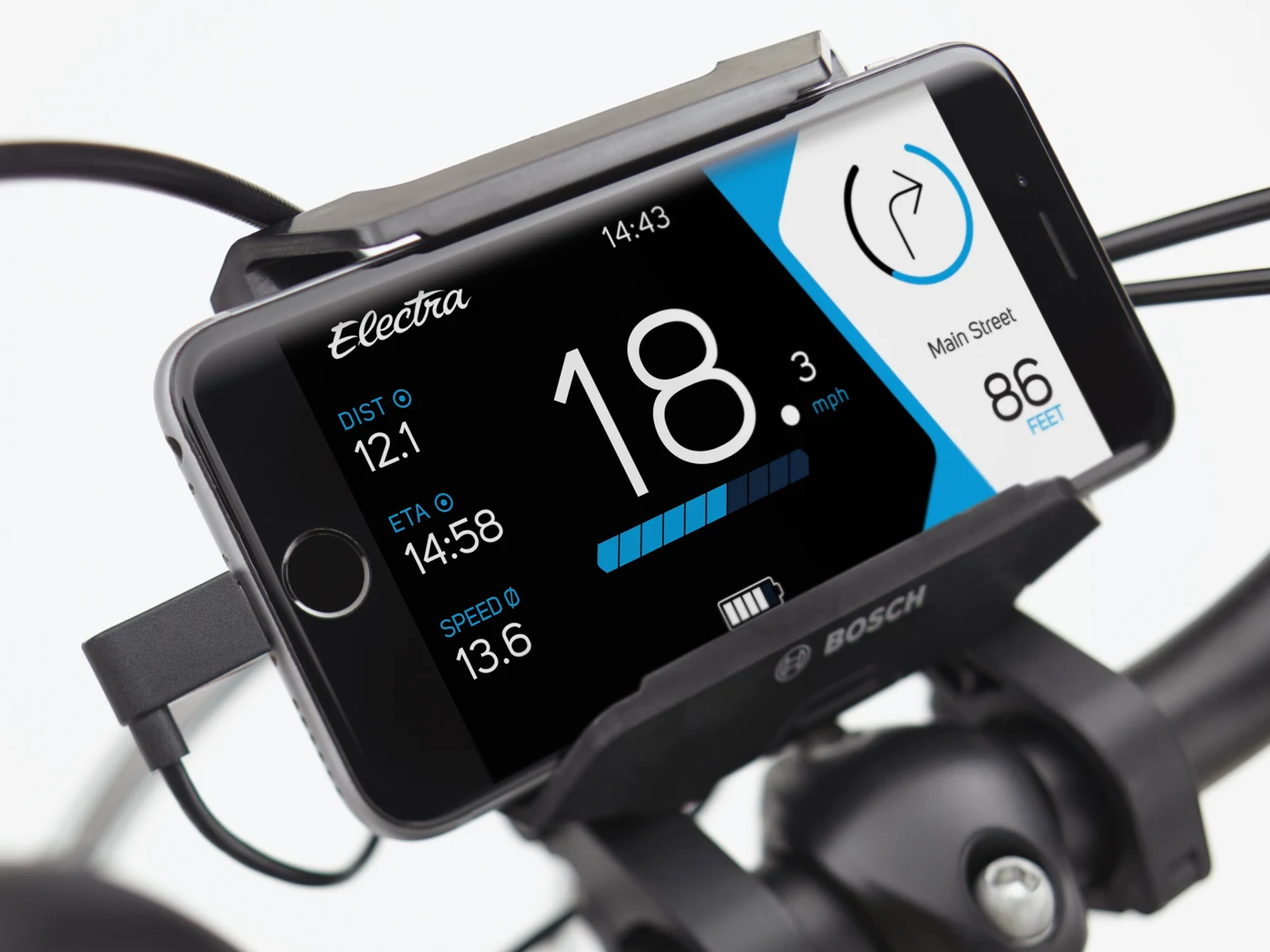

2023-electra-townie-path-go-10d-eq-step-thru-bosh-smartphone-hub-display

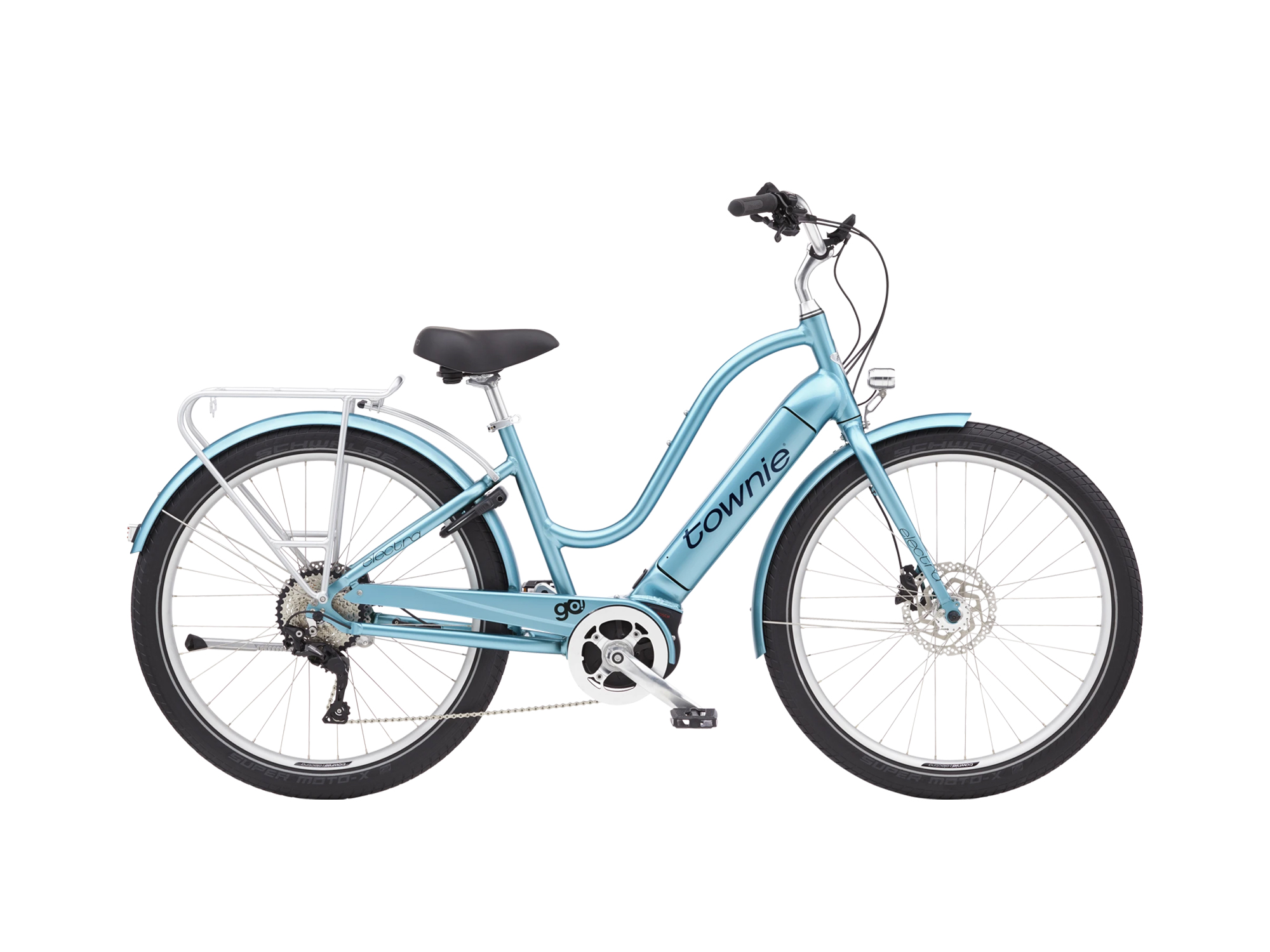

2023-electra-townie-path-go-10d-eq-step-thru-step-thru-aqua-metallic

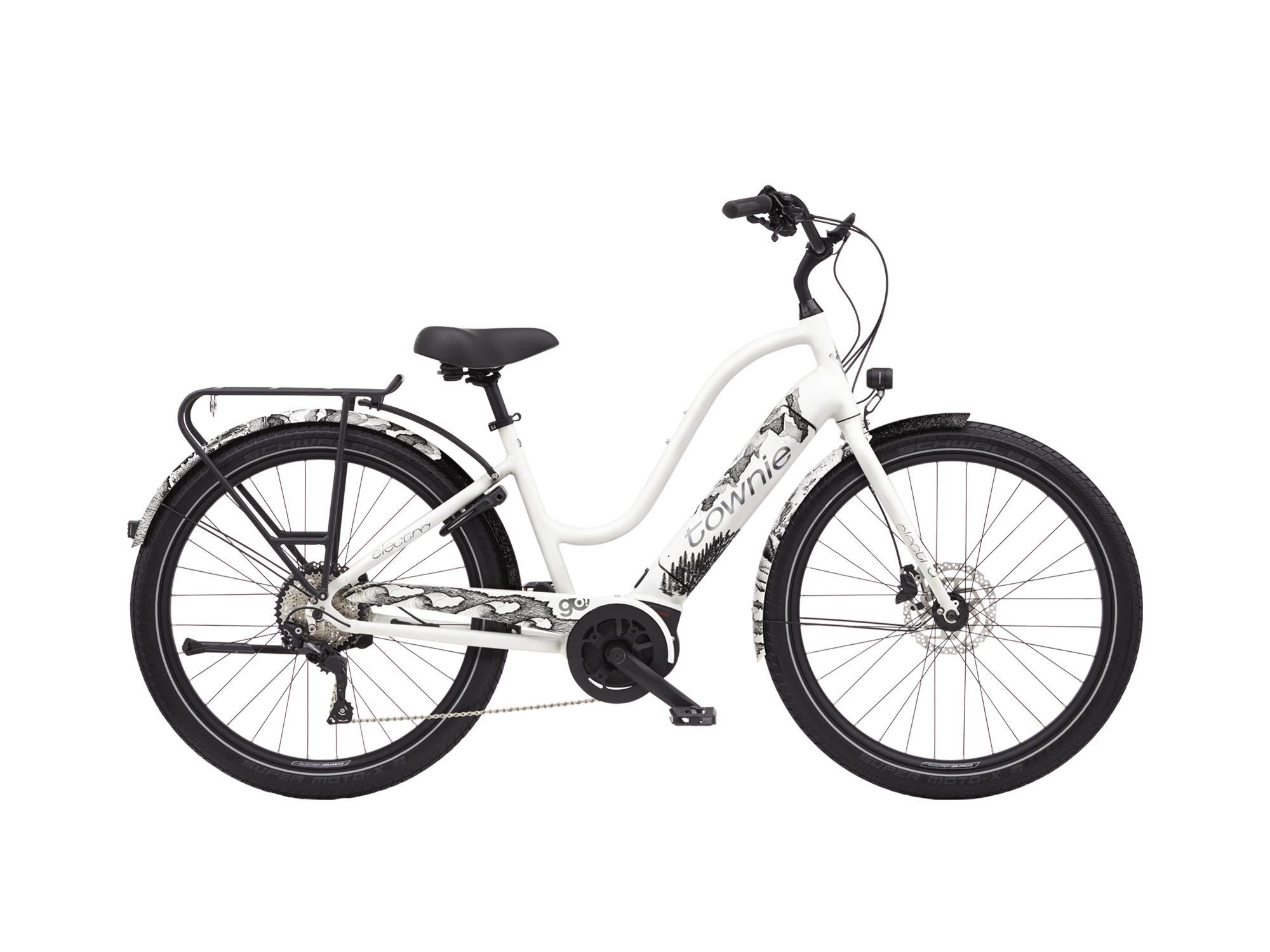

2023-electra-townie-path-go-10d-eq-step-thru-step-thru-pearl-white

2023-electra-townie-path-go-10d-eq-step-thru-electric-bike-review-white-background

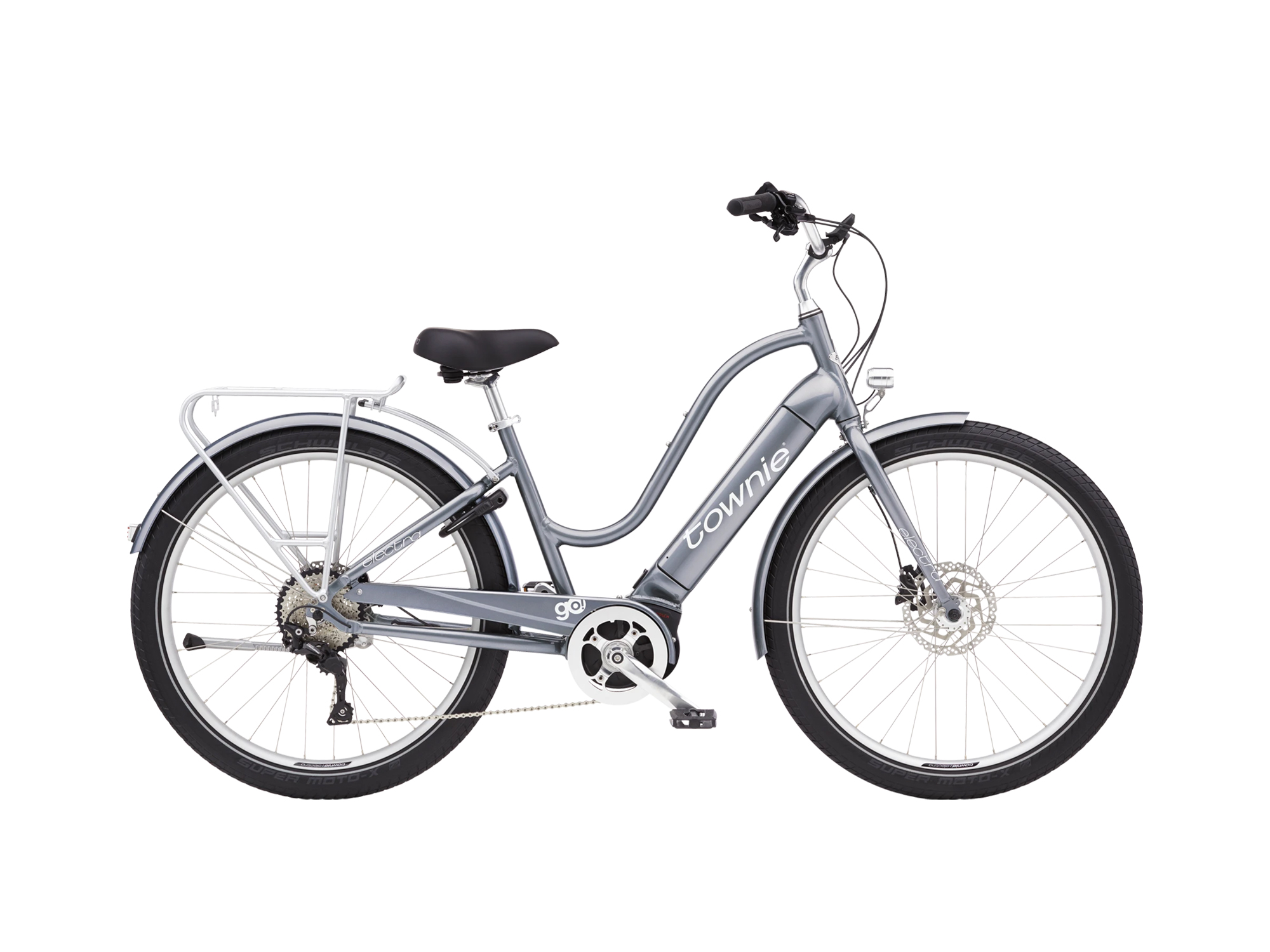

2023-electra-townie-path-go-10d-eq-step-thru-step-thru-holographic

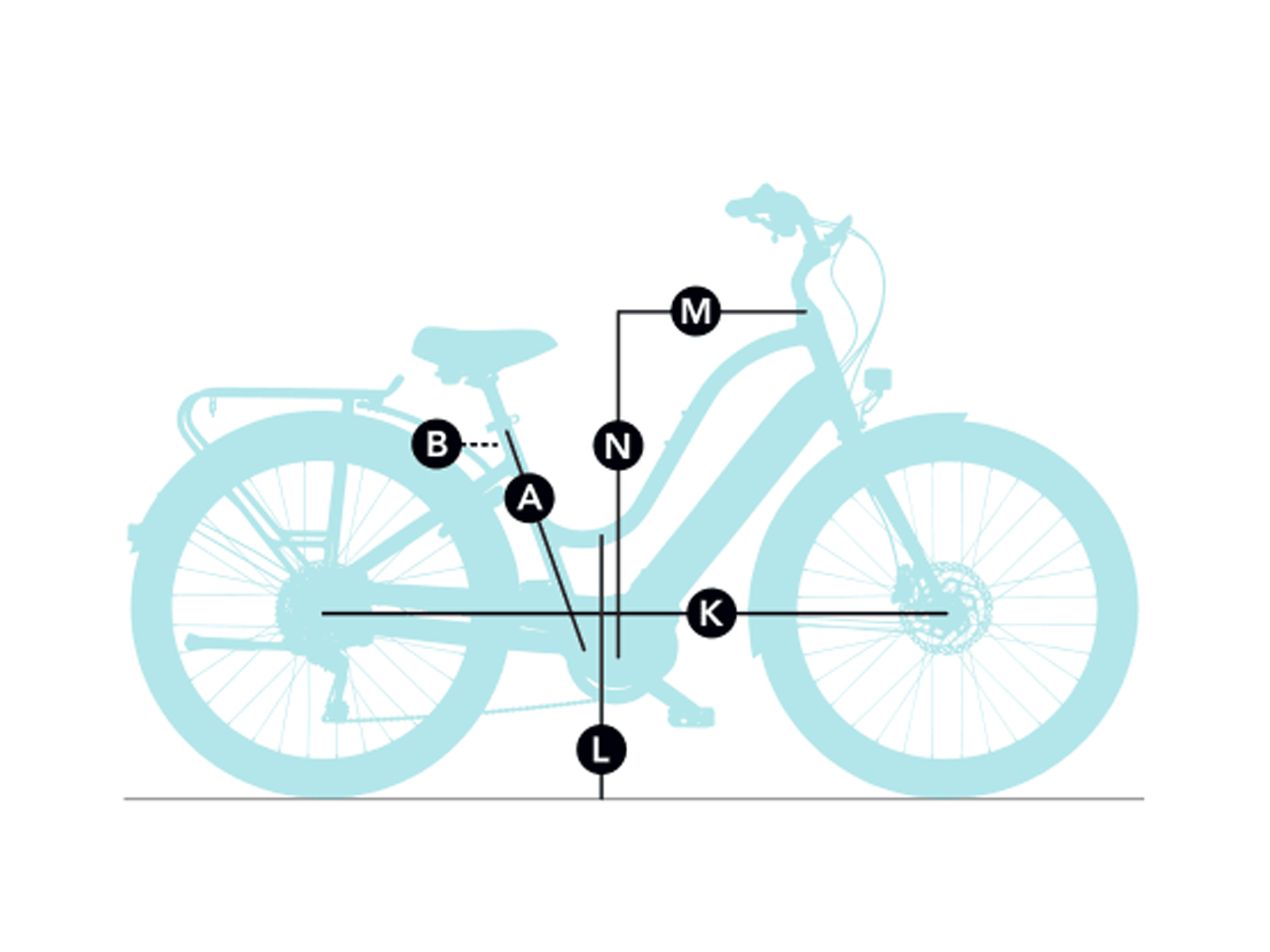

2023-electra-townie-path-go-10d-eq-step-thru-frame-geometry-sizing-legend

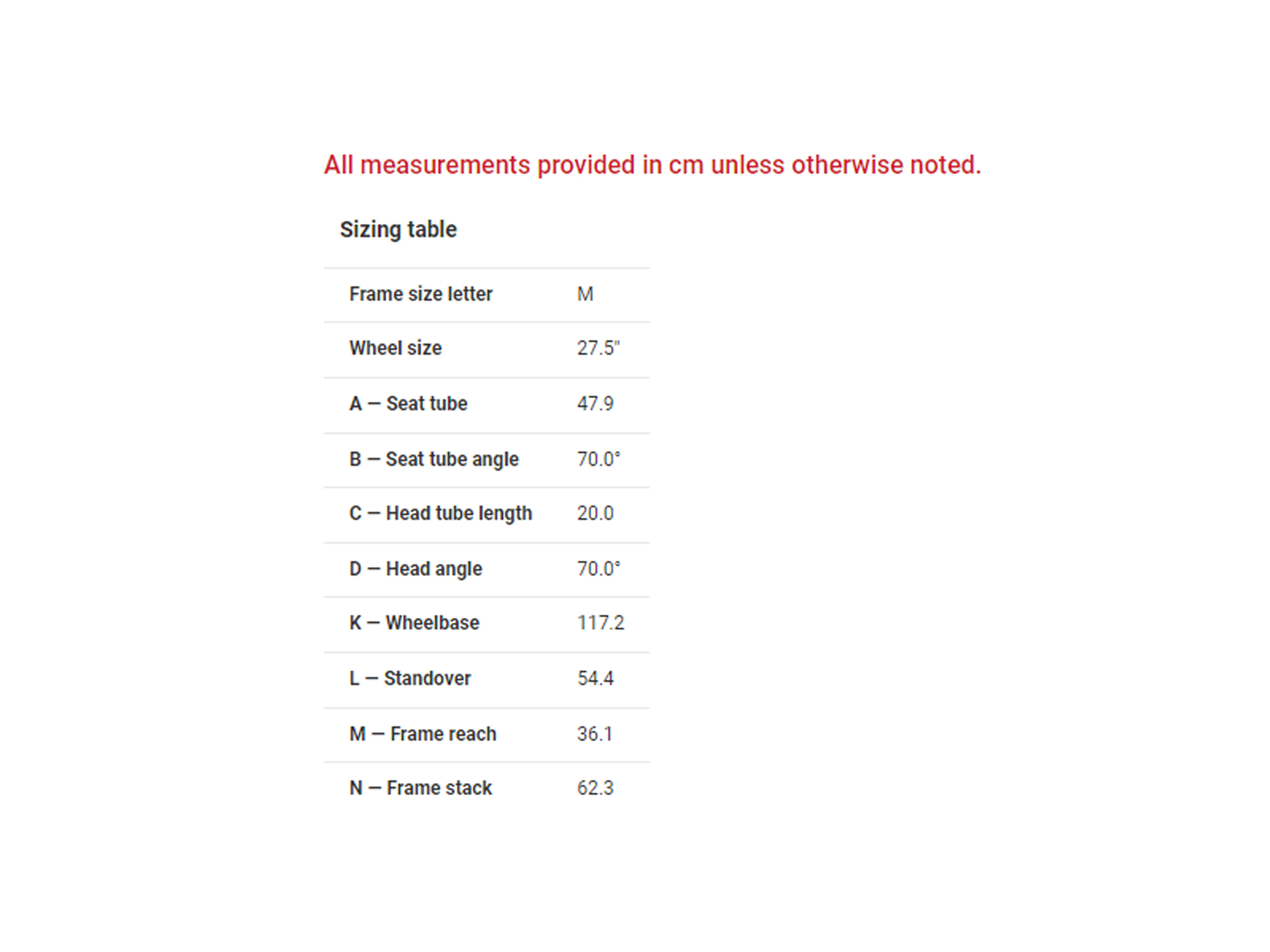

2023-electra-townie-path-go-10d-eq-step-thru-frame-geometry-sizing-chart-1

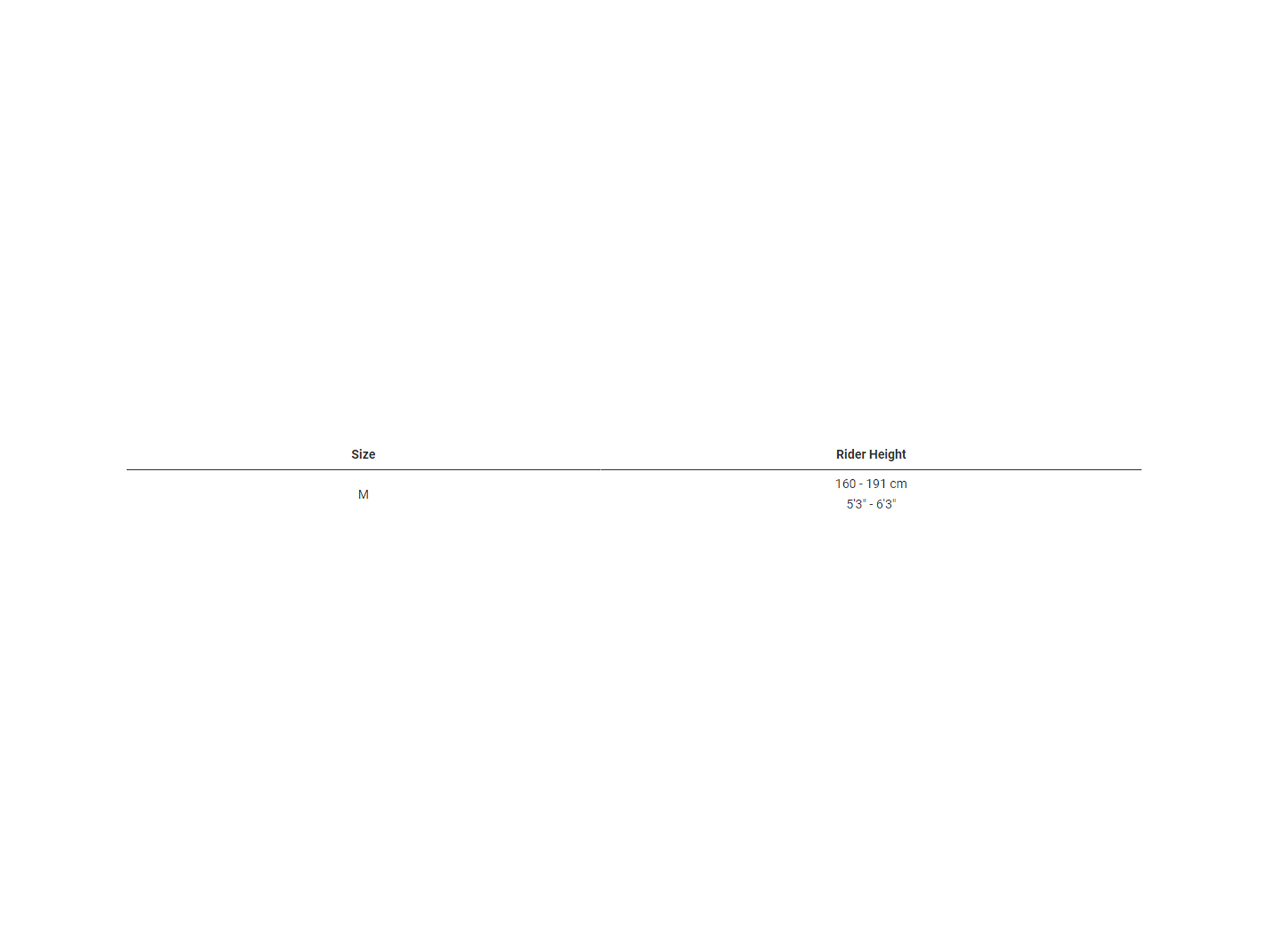

2023-electra-townie-path-go-10d-eq-step-thru-frame-geometry-sizing-chart-2

Photos (13)

Videos

Shops

Highlights

Technical Specs & Ratings

General

Year When this particular ebike model configuration was released	2023
Brand The company that produces this particular electric bicycle	Electra
Model The specific product or family of products from a brand	Townie Path Go! 10D EQ Step-Thru
MSRP The Manufacturer’s Suggested Retail Price listed in US Dollars	$3,849.99
Category A grouping of products with similar features and uses	Commuting Electric Bike Reviews , Cruiser Electric Bike Reviews , City Electric Bike Reviews
Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Mid-Step
Wheel Size The diameter of wheels used on the bike, may be listed in inches or millimeters, may include multiple wheel sizes	27.5
Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	10
Brake Type The mechanism used to slow and stop the ebike, may include multiple brake types	Hydraulic Disc
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Output The measure of continuous power being produced by the motor, measured in watts	250
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Weight The total heaviness of the ebike: the force acting on it due to gravity	55 lbs / 24.97 kgs

Frameset

Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Mid-Step
Weight The total heaviness of the ebike: the force acting on it due to gravity	55
Load Capacity The maximum weight that an electric bike can safely handle, according to the manufacturer	300
Fork Details The part of an electric bike that holds the front wheel, steers it, and may include suspension	Alloy, straight/tapered leg
Wheel Details A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim	Alloy double walled 27.5"x32h
Tire Details A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike	Bontrager E6 Hard-Case Lite 27.5x2.4" w/puncture resistant casing and reflective stripe

Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	10
Shift Levers The interface that a rider interacts with to change gears, they may be levers, twist mechanisms, or electronic buttons	Shimano Deore Rapid Fire Plus
Crankset A group of components that convert reciprocating motion of a rider's legs into rotational motion used to drive a chain, belt, or shaft, which in turn drives the rear wheel, usually consisting of a bottom bracket, crank arms, and chainrings	Forged alloy 170mm, Bosch type, 40t FSA chainring
Rear Derailleur A mechanism that moves the chain in different directions to fit different sized freewheel or cassette cogs, effectively changing pedal ratio and speed	Shimano Deore 10-speed
Cassette The cluster of sprockets mounted on the rear hub of an ebike, they may be grouped together as a freewheel that threads onto a hub or slotted individually onto a freehub body which is referred to as a cassette and is stronger	Shimano 10-speed 11-42t

Headset The set of components that provide a rotatable interface between the fork and the head tube of the frame	1 1/8" steel threaded/semi-integrated
Stem The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort	Forged alloy 25.4mm quill, 80mm extension
Handlebar The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork	Alloy custom bend 25.9" width/4" rise
Grips The component that a rider holds to direct the handlebar, often made of rubber or cork, may consiste of grip tape	Electra Townie custom ergo kraton w/alloy locking collars
Seatpost A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension	Alloy micro-adjust 27.2x400mm
Seatpost Diameter The diameter measurement of a seat post, usually in millimeters, this may be important if you wish to replace a rigid post with a suspension seatpost, consider using shims to match a smaller seatpost with a larger seat tube.	27.2
Saddle A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics	Selle Royal Electra gel comfort saddle w/shock-absorbing elastomers
Pedals The part of a bicycle that the rider pushes with their foot to create motion in the drivetrain, they are usually easy to replace with different designs for greater traction and surface area or reduced weight	Resin platform w/grip tape tread
Brake Type The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently	Hydraulic Disc
Brake Details The component that applies friction to the front wheel to provide stopping force	Front/rear: Shimano hydraulic disc brakes\| Rotor: Front/rear: 180mm

Bike Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Details Details about the primary motor system propelling the electric bike	Bosch Performance Line, 250 watts
Motor Output The measure of continuous power being produced by the motor, measured in watts	250
Display A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more	Bosch SmartphoneHub
Smart Bike An electric bike with advanced settings and feedback available to riders through a computer or smartphone application	Bosch SmartphoneHub, COBI.Bike App, Bluetooth
Theft / Gps Security systems designed to deter or prevent theft, and aid in location and recovery	ABUS frame lock
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Battery Details Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer	Bosch PowerTube 500
Charger A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery	5 AMP charger

Lights Components that illuminate the surroundings and help make the ebike more visible during low light conditions	Supernova V521S, Supernova E3 rear LED light
Rear Rack A component that can store and transport cargo on the rear portion of an ebike, good capacity is 25kg or 55lbs, it may include a top platform, pannier hangers on the sides, bungee loops, and proprietary accessory interfaces such as RackTime or MIK, some racks are removeable	Rear MIK compatible rack w/load strap

Availability Additional details about the electric bike that did not fit into other categories	United States, Canada
Warranty Additional details about the electric bike that did not fit into other categories	2 Years Comprehensive, Lifetime Frame
Frame Colors Additional details about the electric bike that did not fit into other categories	Pearl White Aqua Metallic Holographic
Chain Additional details about the electric bike that did not fit into other categories	KMC E10T nickel plated
Front Hub Additional details about the electric bike that did not fit into other categories	Alloy low flange w/6-bolt disc, 32h
Rear Hub Additional details about the electric bike that did not fit into other categories	Alloy low flange w/6-bolt disc, 32h
Kickstand Additional details about the electric bike that did not fit into other categories	Alloy
Extras Additional details about the electric bike that did not fit into other categories	ABUS frame lock, painted chainguard, internal cable routing, and stainless steel and anti-rust hardware

Video Reviews

Written Reviews

The Electra Townie Path Go! 10D EQ Step-Thru electric bike IS known for its comfort, ease of use, and performance. Here are the key features of this electric bike:

Step-Thru Frame: The bike features a step-thru frame designed to make it easy to mount and dismount, especially for riders with limited mobility or flexibility.

Frame and Wheels: The frame is made of Townie 6061-T6 aluminum with patented Flat Foot Technology®, providing a comfortable and ergonomic riding position. It features an alloy fork with straight/tapered leg for stability and control. The bike has 27.5" double-walled alloy rims and Bontrager E6 Hard-Case Lite tires, offering puncture resistance and reflective stripes for enhanced visibility.

Drivetrain: The Shimano Deore Rapid Fire Plus shifters and rear derailleur provide smooth and precise gear changes. The bike is powered by a Bosch Performance Line 250-watt motor and a Bosch PowerTube 500 battery, offering reliable and efficient assistance.

Components: The saddle is a Selle Royal Electra gel comfort saddle with shock-absorbing elastomers for a plush and supportive ride. It comes with a Bosch SmartphoneHub controller, Supernova front and rear lights, and a rear MIK compatible rack for added convenience and safety.

Brakes and Accessories: The bike is equipped with Shimano hydraulic disc brakes for reliable stopping power. It features a kickstand, ABUS frame lock, and internal cable routing for a clean and organized look.

Additional Details: The bike weighs 25 kg (55 lbs) and a maximum weight limit of 300 pounds (136 kg). The Bosch SmartphoneHub allows for connectivity and control, although some users have reported issues with the smartphone app pairing.
