2023 Gazelle Arroyo C5 HMB Elite Review

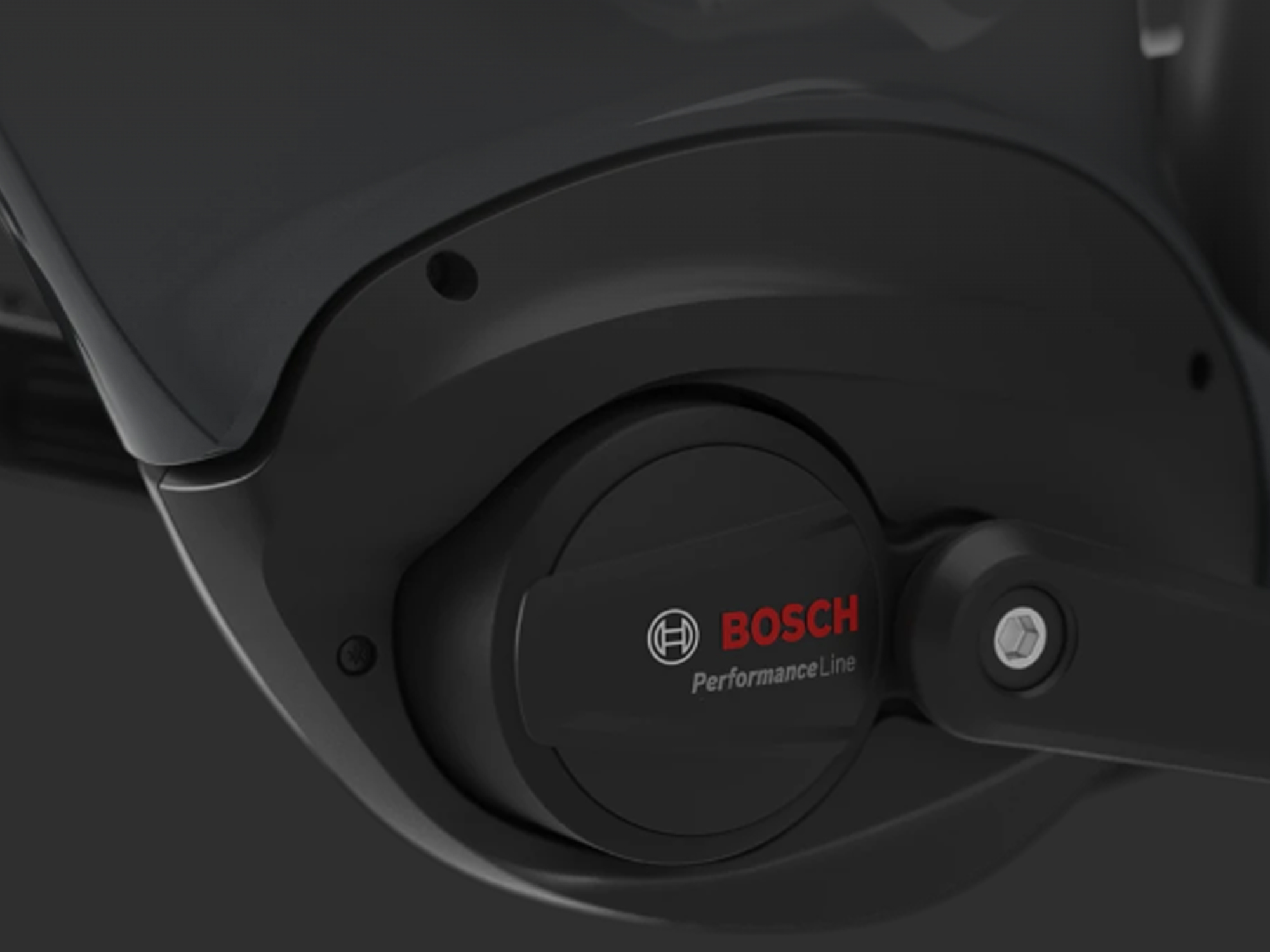

2023-gazelle-arroyo-c5-hmb-elite-bosch-performance-line-75nm-mid-drive-motor

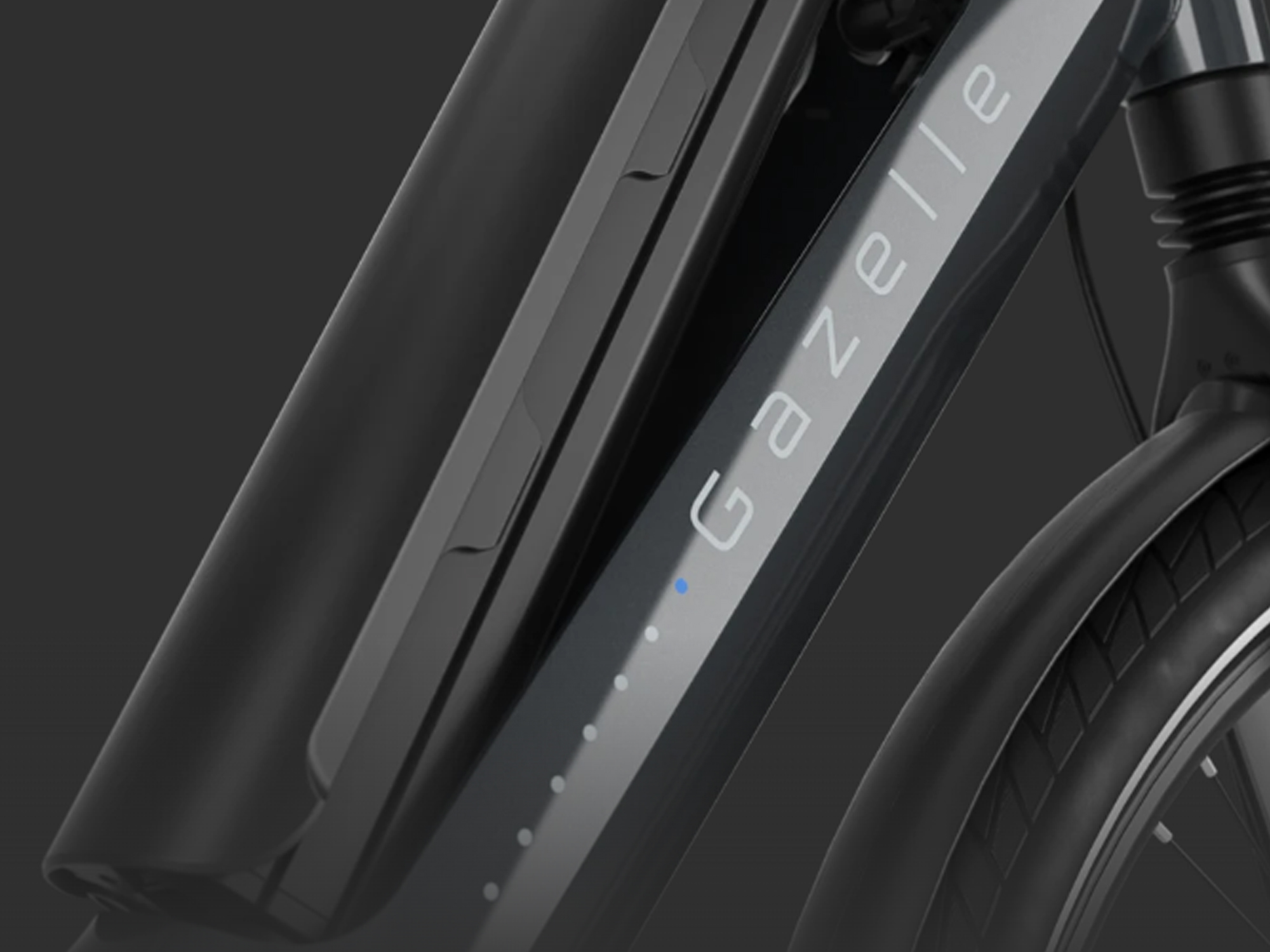

2023-gazelle-arroyo-c5-hmb-elite-bosch-lithium-ion-500wh-battery

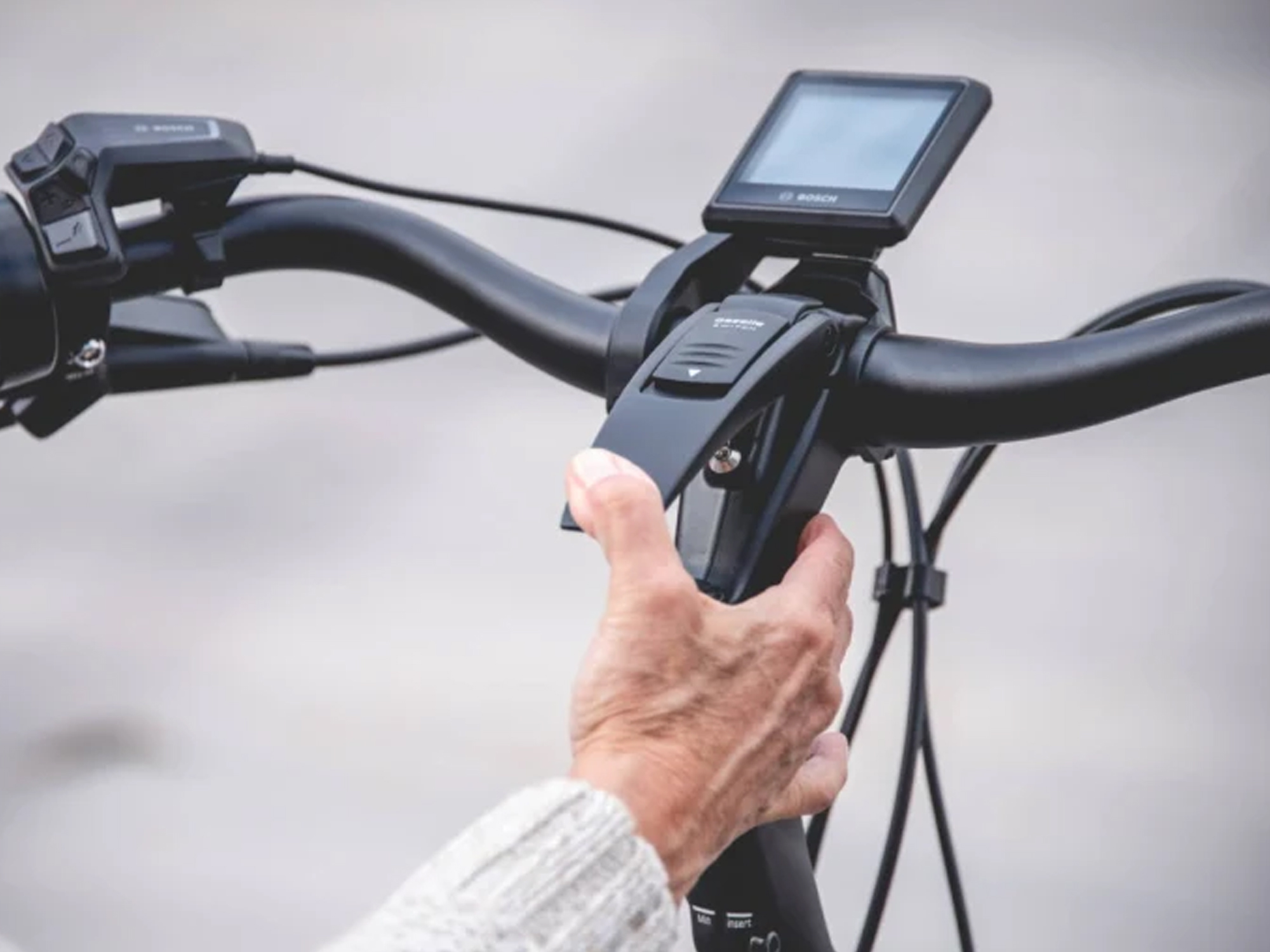

2023-gazelle-arroyo-c5-hmb-elite-gazelle-switch

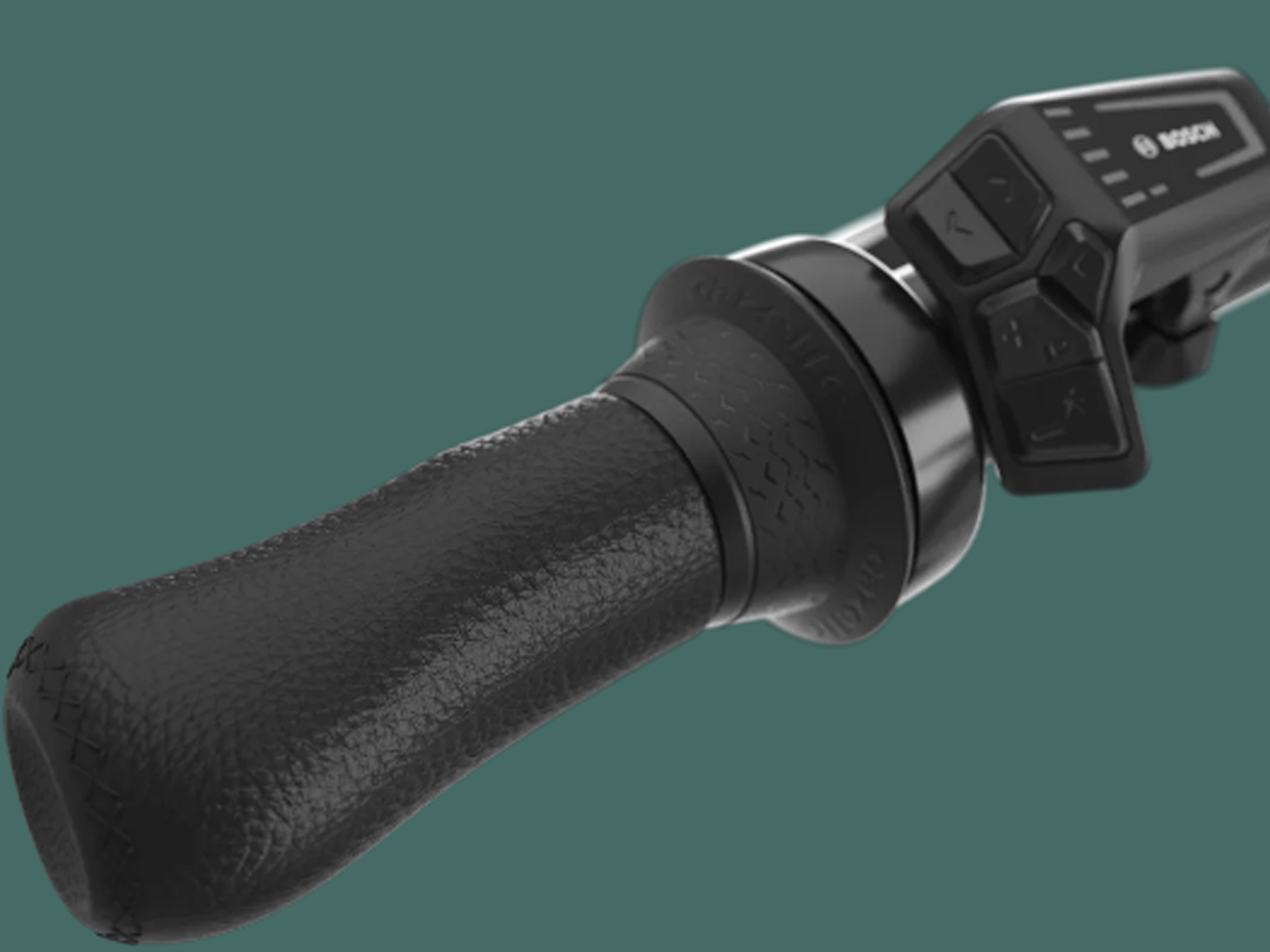

2023-gazelle-arroyo-c5-hmb-elite-luxury-leather-handlebar-grip

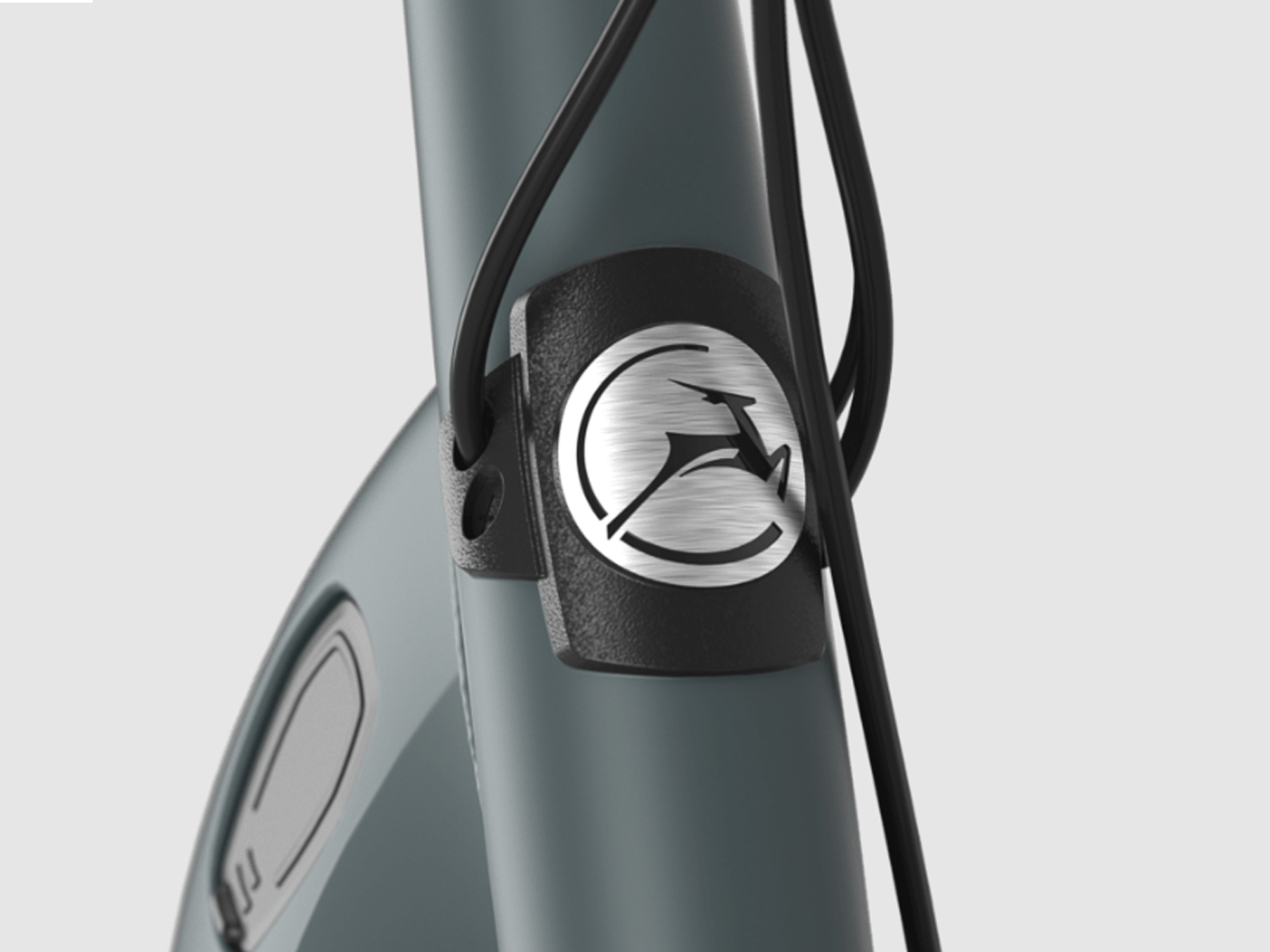

2023-gazelle-arroyo-c5-hmb-elite-internal-cable-routing

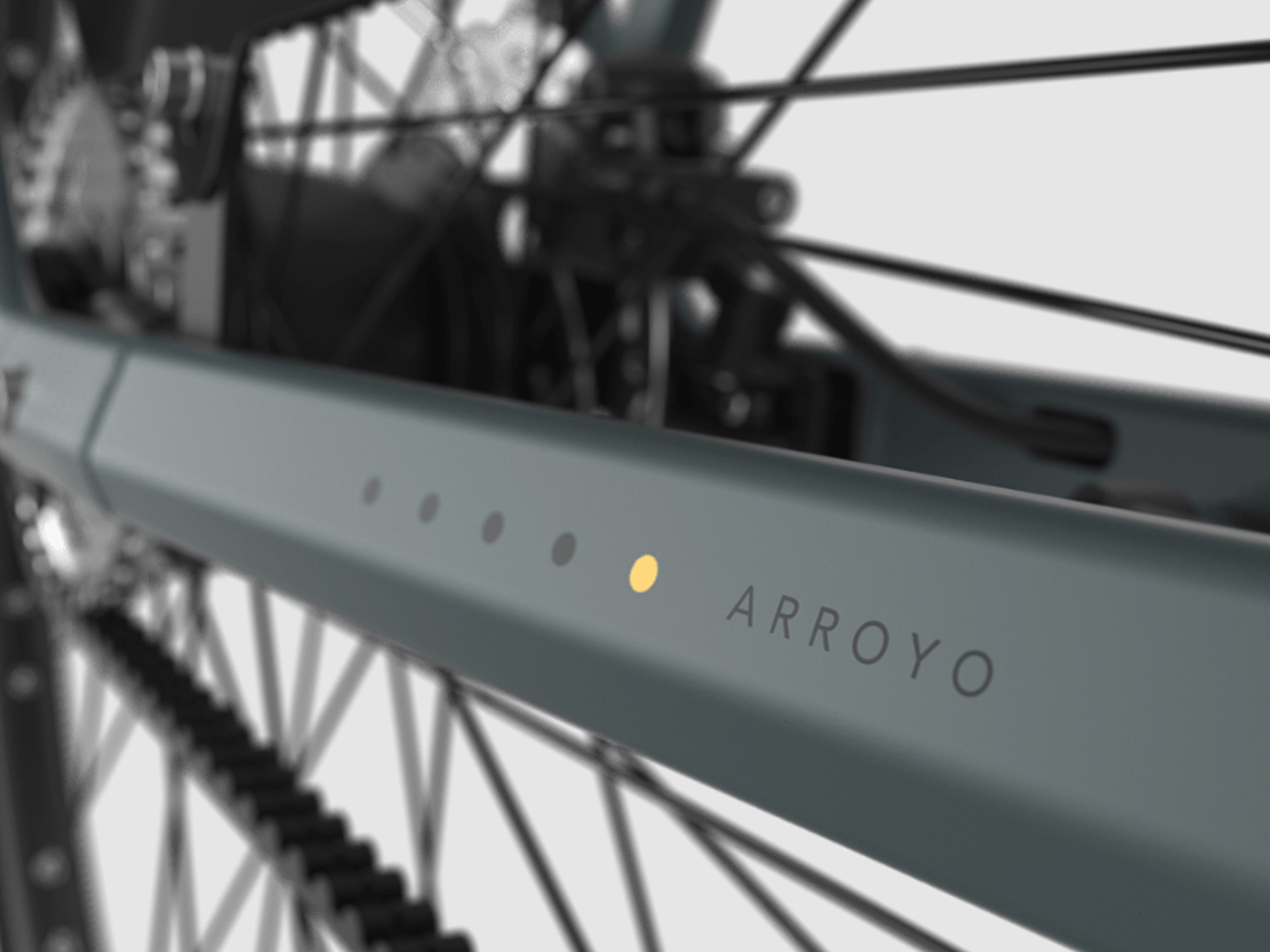

2023-gazelle-arroyo-c5-hmb-elite-chain-stay

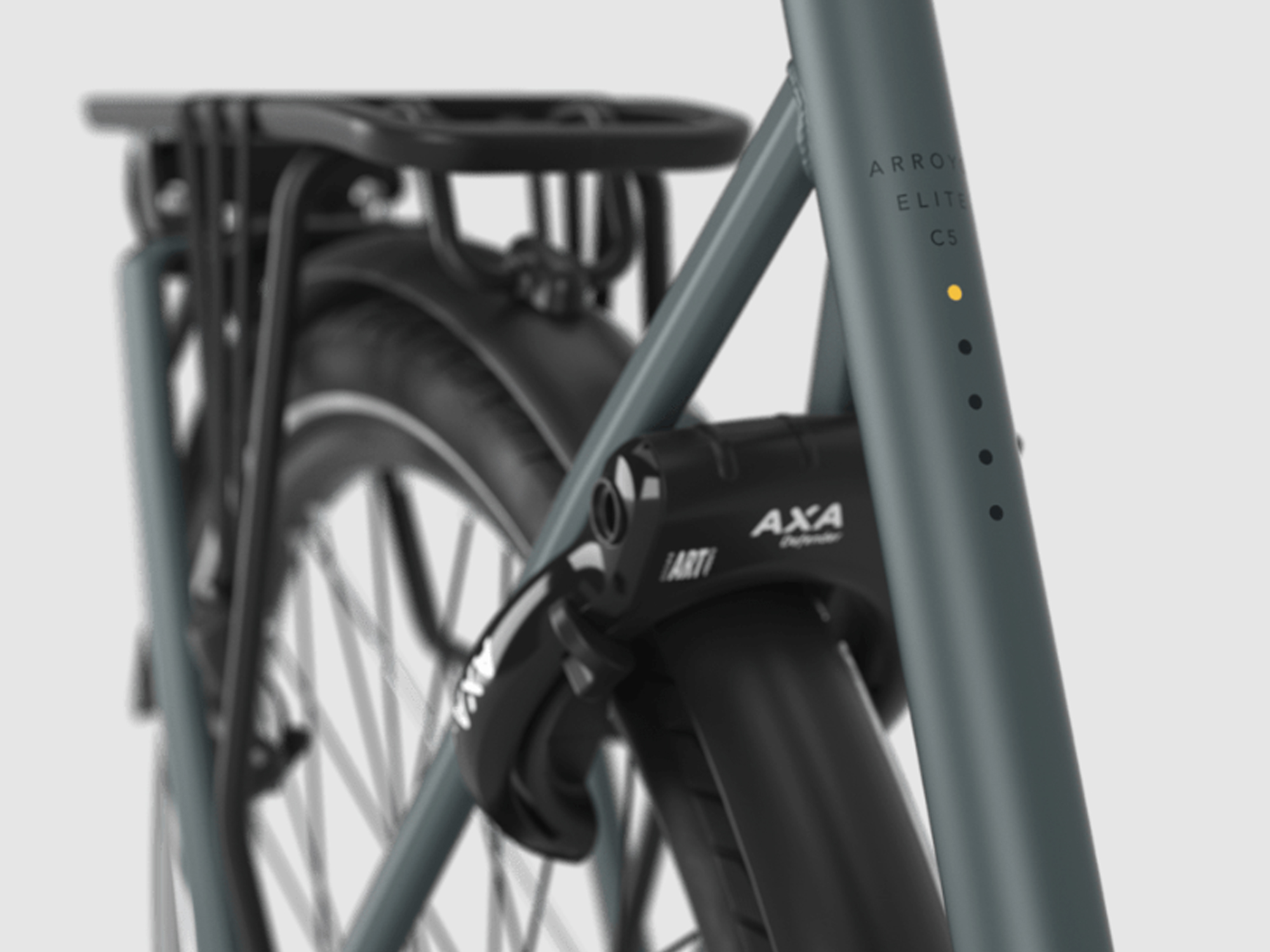

2023-gazelle-arroyo-c5-hmb-elite-seat-tube

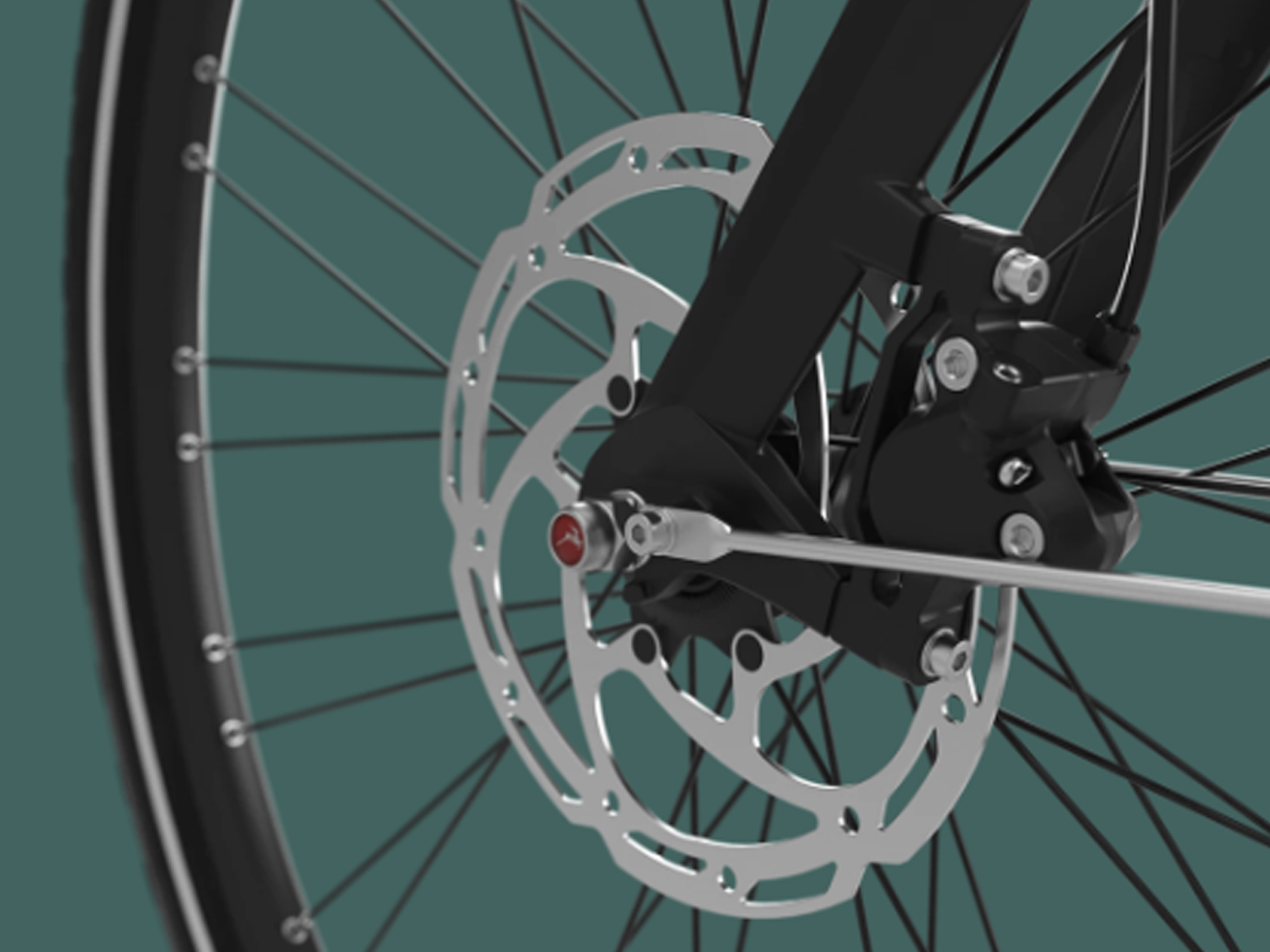

2023-gazelle-arroyo-c5-hmb-elite-tektro-hd-t280-2-piston-disc-brake-with-hydraulic-control-front-brake

2023-gazelle-arroyo-c5-hmb-elite-gates-belt-drive

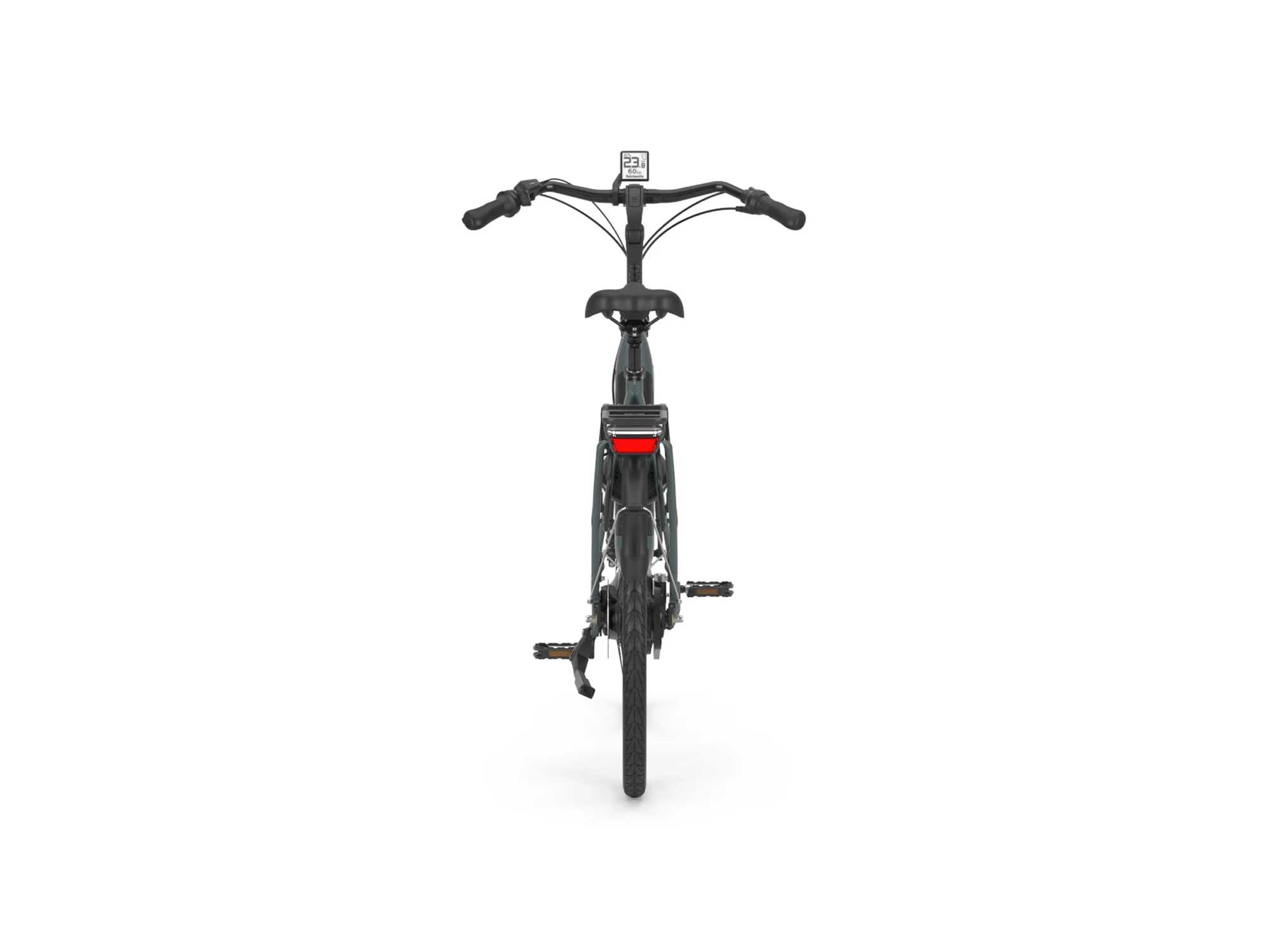

2023-gazelle-arroyo-c5-hmb-elite-back-view

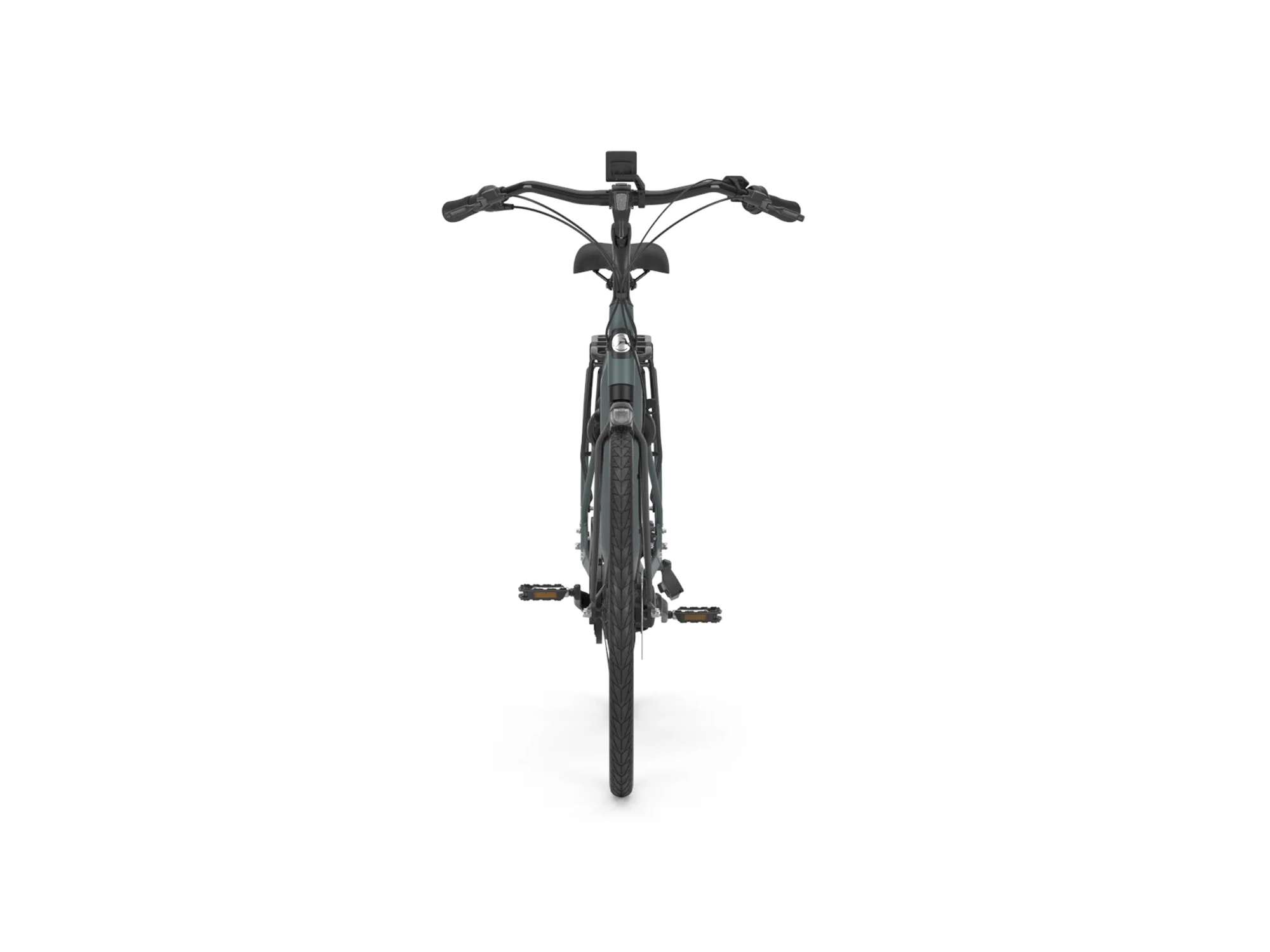

2023-gazelle-arroyo-c5-hmb-elite-front-view

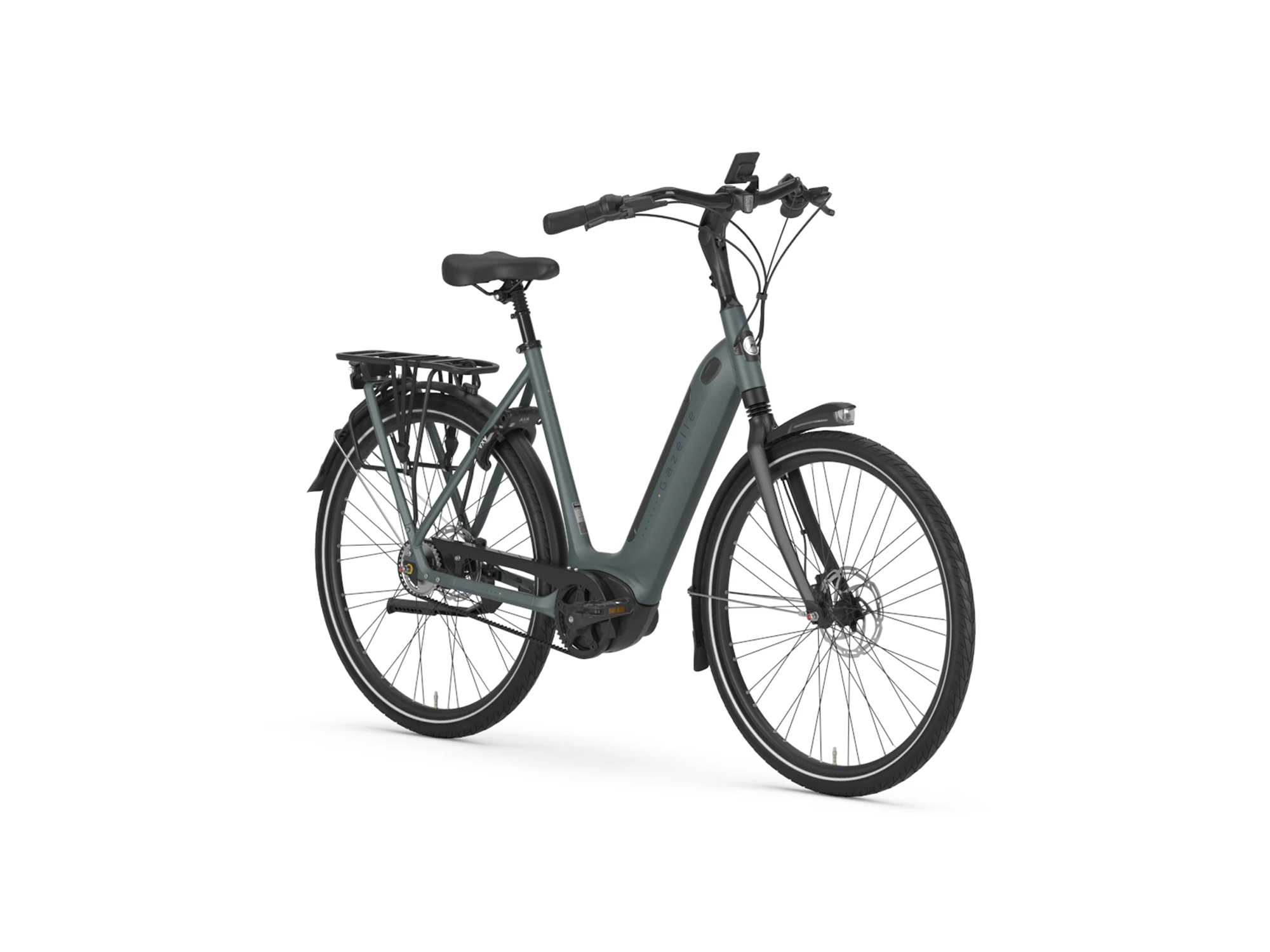

2023-gazelle-arroyo-c5-hmb-elite-front-right-side-view

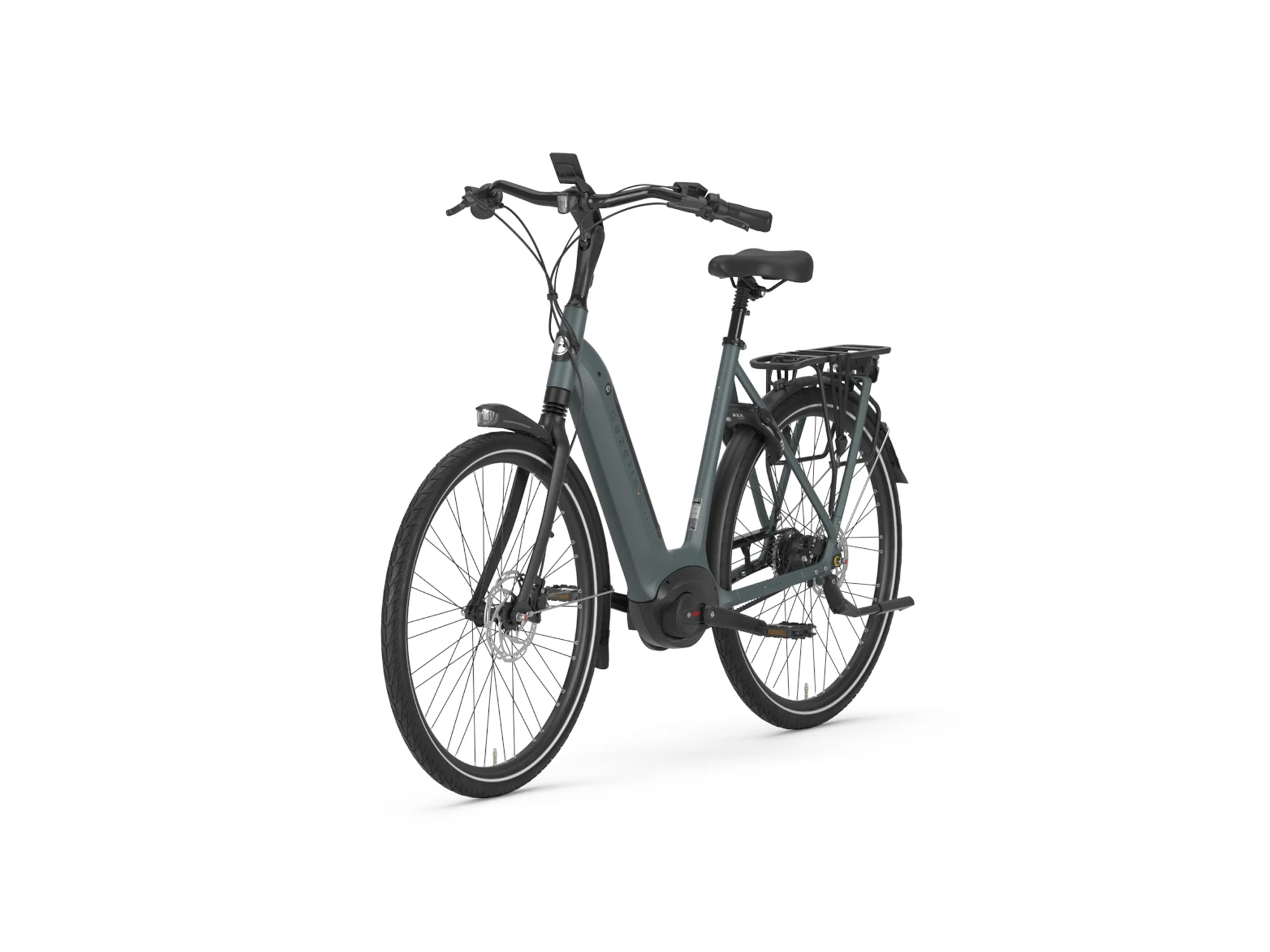

2023-gazelle-arroyo-c5-hmb-elite-front-left-side-view

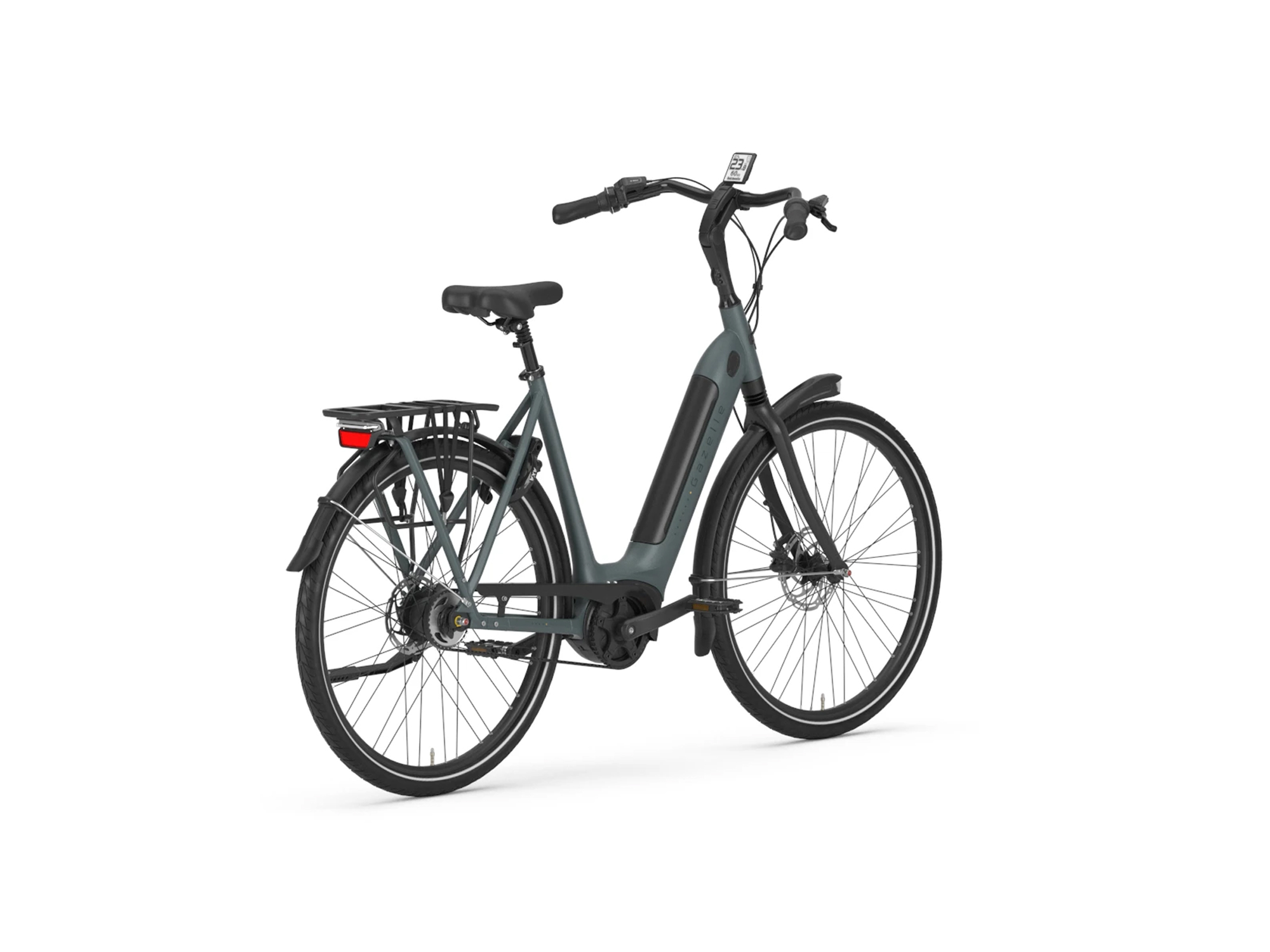

2023-gazelle-arroyo-c5-hmb-elite-back-right-side-view

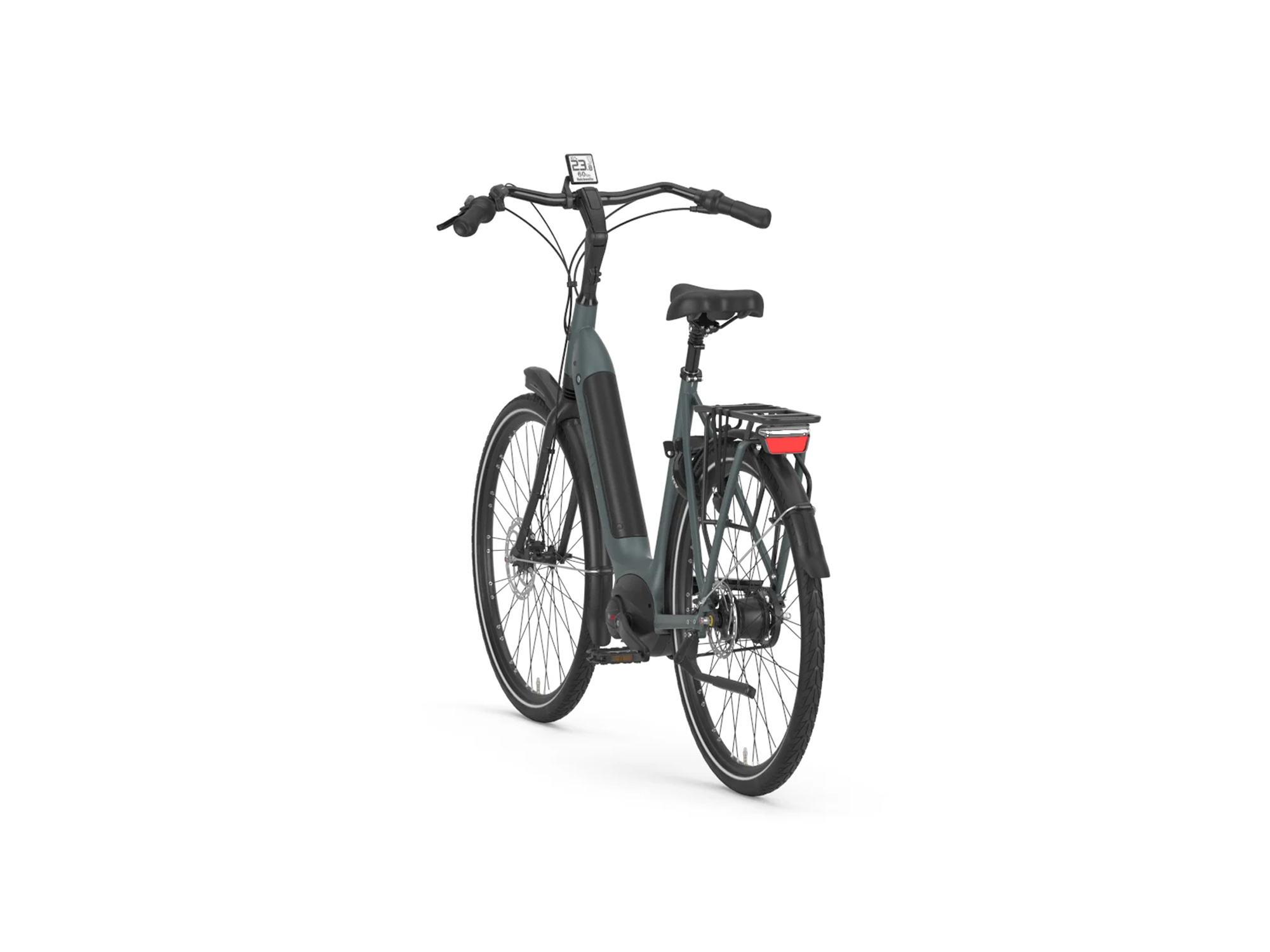

2023-gazelle-arroyo-c5-hmb-elite-back-left-side-view

2023-gazelle-arroyo-c5-hmb-elite-low-step-anthracite-grey

2023-gazelle-arroyo-c5-hmb-elite-low-step-petrol-blue

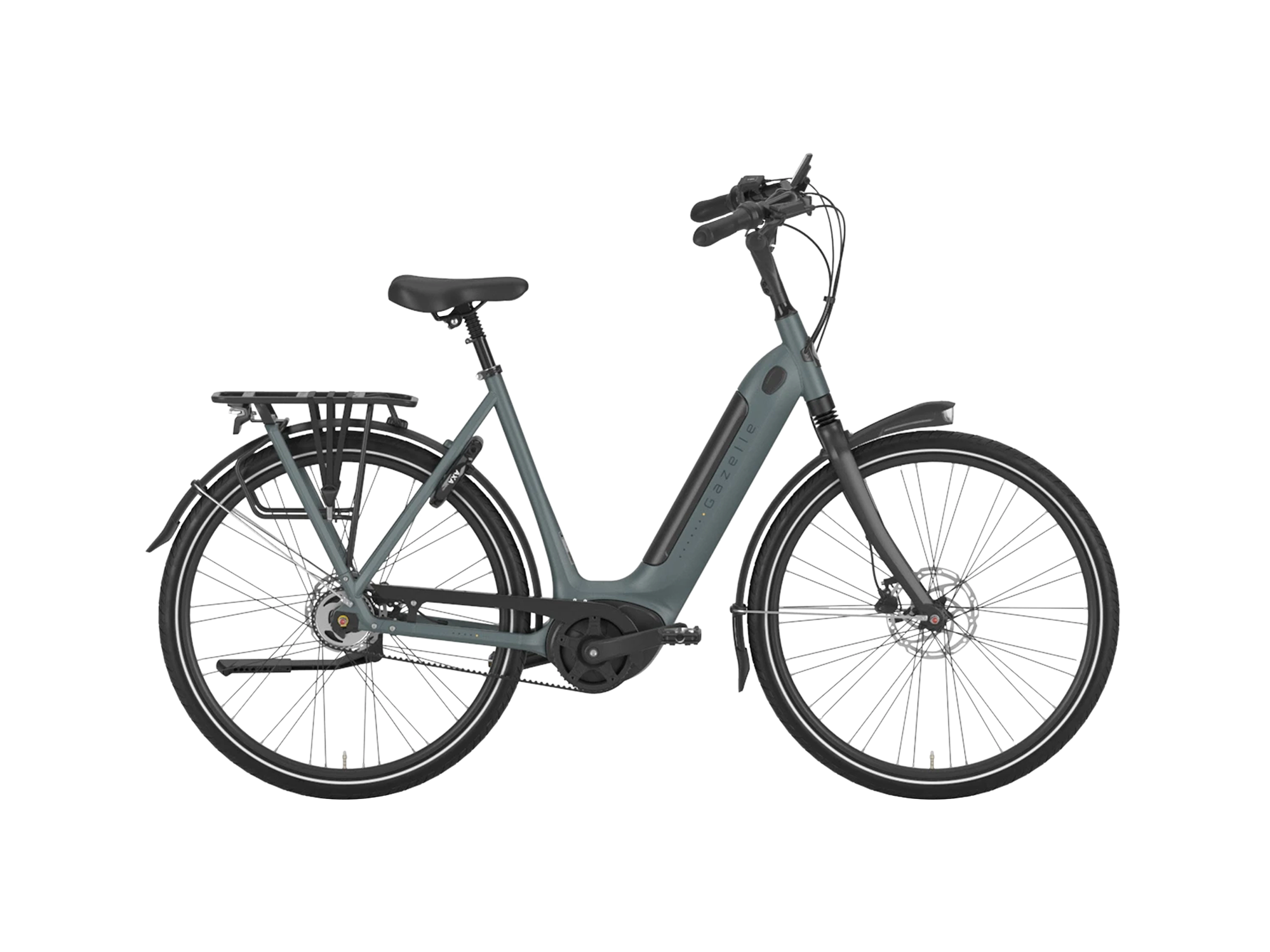

2023-gazelle-arroyo-c5-hmb-elite-electric-bike-review-white-background

Photos (20)

Videos

Shops

Highlights

Technical Specs & Ratings

General

Year When this particular ebike model configuration was released	2023
Brand The company that produces this particular electric bicycle	Gazelle
Model The specific product or family of products from a brand	Arroyo C5 HMB Elite
MSRP The Manufacturer’s Suggested Retail Price listed in US Dollars	$3,999
Category A grouping of products with similar features and uses	Commuting Electric Bike Reviews , Cruiser Electric Bike Reviews , City Electric Bike Reviews
Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Step-Thru
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Wheel Size The diameter of wheels used on the bike, may be listed in inches or millimeters, may include multiple wheel sizes	28.0
Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	5
Brake Type The mechanism used to slow and stop the ebike, may include multiple brake types	Hydraulic Disc
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Weight The total heaviness of the ebike: the force acting on it due to gravity	53.8 lbs / 24.43 kgs

Frameset

Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Step-Thru
Weight The total heaviness of the ebike: the force acting on it due to gravity	53.8
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Suspension Travel The distance a suspension system can flex or move under load, usually measured in millimeters	40
Fork Details The part of an electric bike that holds the front wheel, steers it, and may include suspension	Aluminum, Internal to Headset
Wheel Details A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim	RODI Viper
Tire Details A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike	Schwalbe Energizer Active Plus, Puncture Resistant

Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	5
Internally Geared Hub A gear ratio changing system that is implemented with planetary or epicyclic gears, sealed within the shell of a hub, they tend to require less maintenance and can be shifted at standstill, but introduce more weight than a traditional cassette	5-speed Shimano Nexus
Belt Drive A toothed synchronous belt used to transmit power from the pedals to the drivetrain and wheels, it replaces a traditional chain and is often quieter and more durable	Yes

Stem The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort	Adjustable Stem
Handlebar The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork	Aluminum, Comfort Curved Model
Grips The component that a rider holds to direct the handlebar, often made of rubber or cork, may consiste of grip tape	Gazelle Aero Leather, Luxury leather handlebar grips for a sophisticated feel and extra comfort
Seatpost A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension	Sprung
Saddle A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics	Selle Royal Essenza Plus
Brake Type The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently	Hydraulic Disc
Brake Details The component that applies friction to the front wheel to provide stopping force	Front: Tektro HD-T280, 2 piston, 180mm Rotor \| Rear:Tektro HD-T280, 2 piston, 160mm Rotor

Bike Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Details Details about the primary motor system propelling the electric bike	Bosch Performance Line (75Nm)
Display A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more	Bosch Intuvia 100
Smart Bike An electric bike with advanced settings and feedback available to riders through a computer or smartphone application	Bosch Smart System
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Battery Details Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer	Bosch Li-ion Integrated into frame
Charger A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery	4 Amp

Lights Components that illuminate the surroundings and help make the ebike more visible during low light conditions	Gazelle Fendervision, LED headlamp, on/off switching via display
Fenders Components that partially surround the tires, deflecting mud, water, and other debris from splashing up onto the rider and their surroundings	Yes
Rear Rack A component that can store and transport cargo on the rear portion of an ebike, good capacity is 25kg or 55lbs, it may include a top platform, pannier hangers on the sides, bungee loops, and proprietary accessory interfaces such as RackTime or MIK, some racks are removeable	Aluminum MIK HD System Carrier

Sitting Position Additional details about the electric bike that did not fit into other categories	Upright
Availability Additional details about the electric bike that did not fit into other categories	United States, Canada, Europe
Warranty Additional details about the electric bike that did not fit into other categories	2 Years Comprehensive, 10 Years Frame
Frame Material Additional details about the electric bike that did not fit into other categories	Aluminum
Spoke Description Additional details about the electric bike that did not fit into other categories	Stainless Steel, Extra Strong
Frame Sizes Additional details about the electric bike that did not fit into other categories	46, 53, 57
Tire Color Additional details about the electric bike that did not fit into other categories	Black
Frame Colors Additional details about the electric bike that did not fit into other categories	Anthracite Grey, Petrol Blue
Gear Type Additional details about the electric bike that did not fit into other categories	Hub
Front Chain Wheel Additional details about the electric bike that did not fit into other categories	46
Rear Chain Wheel Additional details about the electric bike that did not fit into other categories	34
Light Power Additional details about the electric bike that did not fit into other categories	Battery
Light Lux Additional details about the electric bike that did not fit into other categories	50
Lock Description Additional details about the electric bike that did not fit into other categories	AXA Defender, Ring Lock With an Option for a Plug-in Cable to Attach Your Bike to a Fixed Object for Extra Protection Against Theft, ART ** certified
Chaincase Description Additional details about the electric bike that did not fit into other categories	Aluminum Chain Guard
Coat Protector Additional details about the electric bike that did not fit into other categories	Yes
Kickstand Additional details about the electric bike that did not fit into other categories	Ursus Mooi, Drop-down Rear Stand
Integrated Cables Additional details about the electric bike that did not fit into other categories	Yes
Torque Additional details about the electric bike that did not fit into other categories	75
EBike Sensors Additional details about the electric bike that did not fit into other categories	Pedal Force Sensor, Rotation Sensor, Speed Sensor
Amount of Support Levels Additional details about the electric bike that did not fit into other categories	4
Walk Assist Additional details about the electric bike that did not fit into other categories	Yes
Display Control Unit Additional details about the electric bike that did not fit into other categories	Yes
Seatpost Suspension Additional details about the electric bike that did not fit into other categories	Yes
Max Speed Additional details about the electric bike that did not fit into other categories	20 mph (32 kph)

Video Reviews

Written Reviews

The Gazelle Arroyo C5 HMB Elite is a versatile and powerful electric bike designed for a comfortable and enjoyable riding experience. This e-bike offers a combination of luxury and performance for riders of all levels.

Key Features:

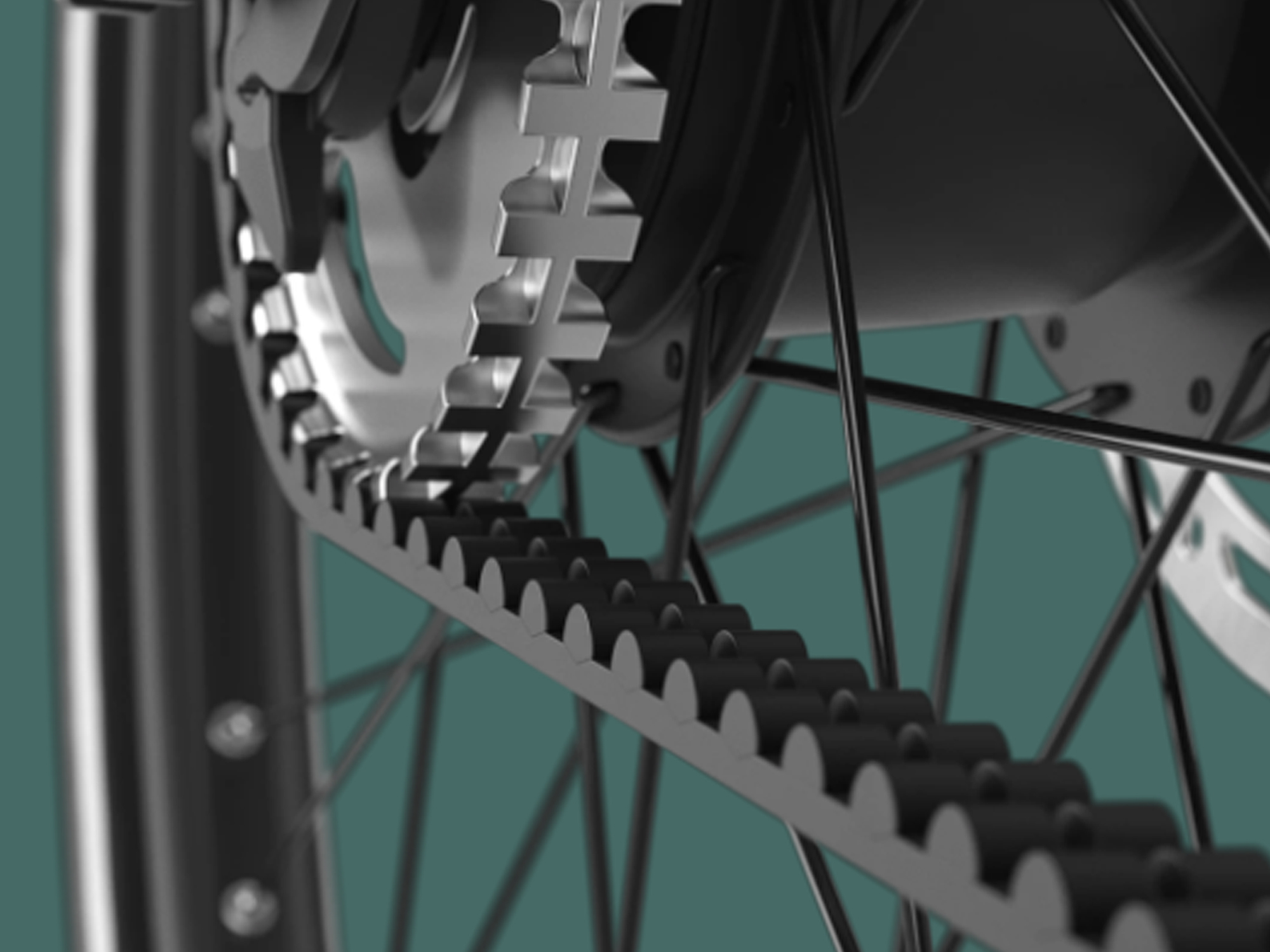

Gates Belt Drive: One of the standout features of the Arroyo C5 HMB Elite is its Gates belt drive system. Belt drives offer several advantages over traditional chain drives, including increased durability, low maintenance, and quiet operation. They don't require lubrication and last 3-5 times longer than chain drives. Shifting with a belt drive is smooth and quiet, making for a more enjoyable ride.

Powerful Bosch Performance Line Motor: The Arroyo C5 HMB Elite features a powerful Bosch Performance Line mid-drive motor, providing 75 Nm of torque and an integrated 500 Wh battery. This motor ensures that neither headwinds nor hills will be a problem, allowing you to tackle various terrains easily.

Comfortable Riding Experience: The Arroyo C5 HMB Elite was designed for comfort, with a low, wide step-through frame and an upright sitting position. The bike also features leather handlebar grips, a gel seat that absorbs bumps and vibrations, and a front suspension with 40mm travel. These elements work together to provide a smooth and enjoyable ride, even on longer journeys.

Hydraulic Disc Brakes: The Arroyo C5 HMB Elite is equipped with hydraulic disc brakes for added safety and control, ensuring quick and reliable stopping power in all conditions.

Integrated Accessories: The Arroyo C5 HMB Elite has a range of integrated accessories, including high-quality lights, fenders, and a rear rack. These features make the bike suitable for everyday adventures and ensure you're well-prepared for various riding conditions.

With its innovative features, such as the Gates belt drive and Bosch Performance Line motor, this e-bike is a good choice for riders seeking a reliable and stylish option for their daily commutes or leisurely rides.
