2023 Gazelle Medeo T9 HMB Review

CITY

COMMUTING

2023-gazelle-medeo-t9-hmb-shimano-bl-mt200-hydraulic-disc-front-brake

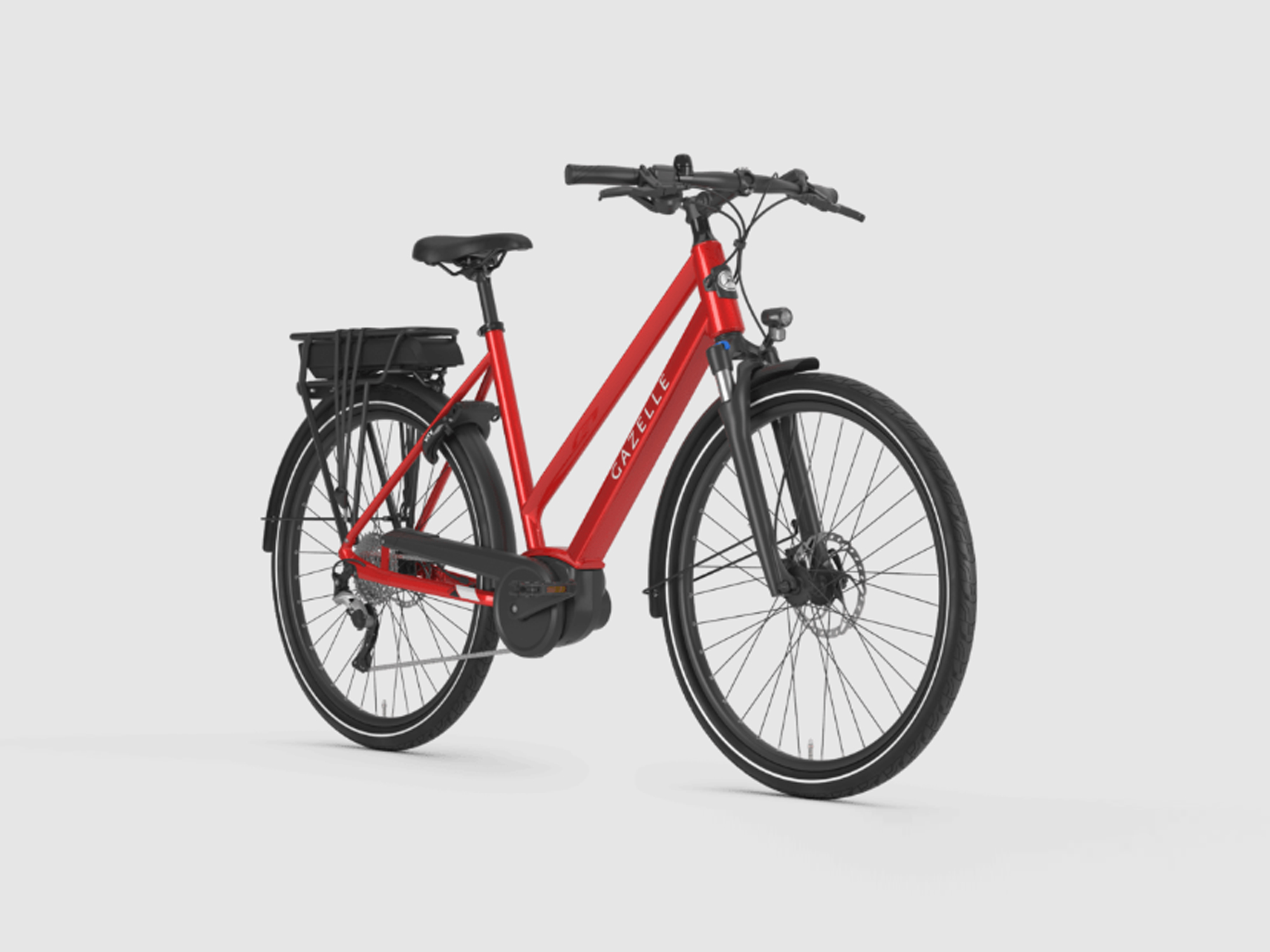

2023-gazelle-medeo-t9-hmb-front-right-side-view

2023-gazelle-medeo-t9-hmb-bosch-active-line-plus-50nm-mid-drive-motor

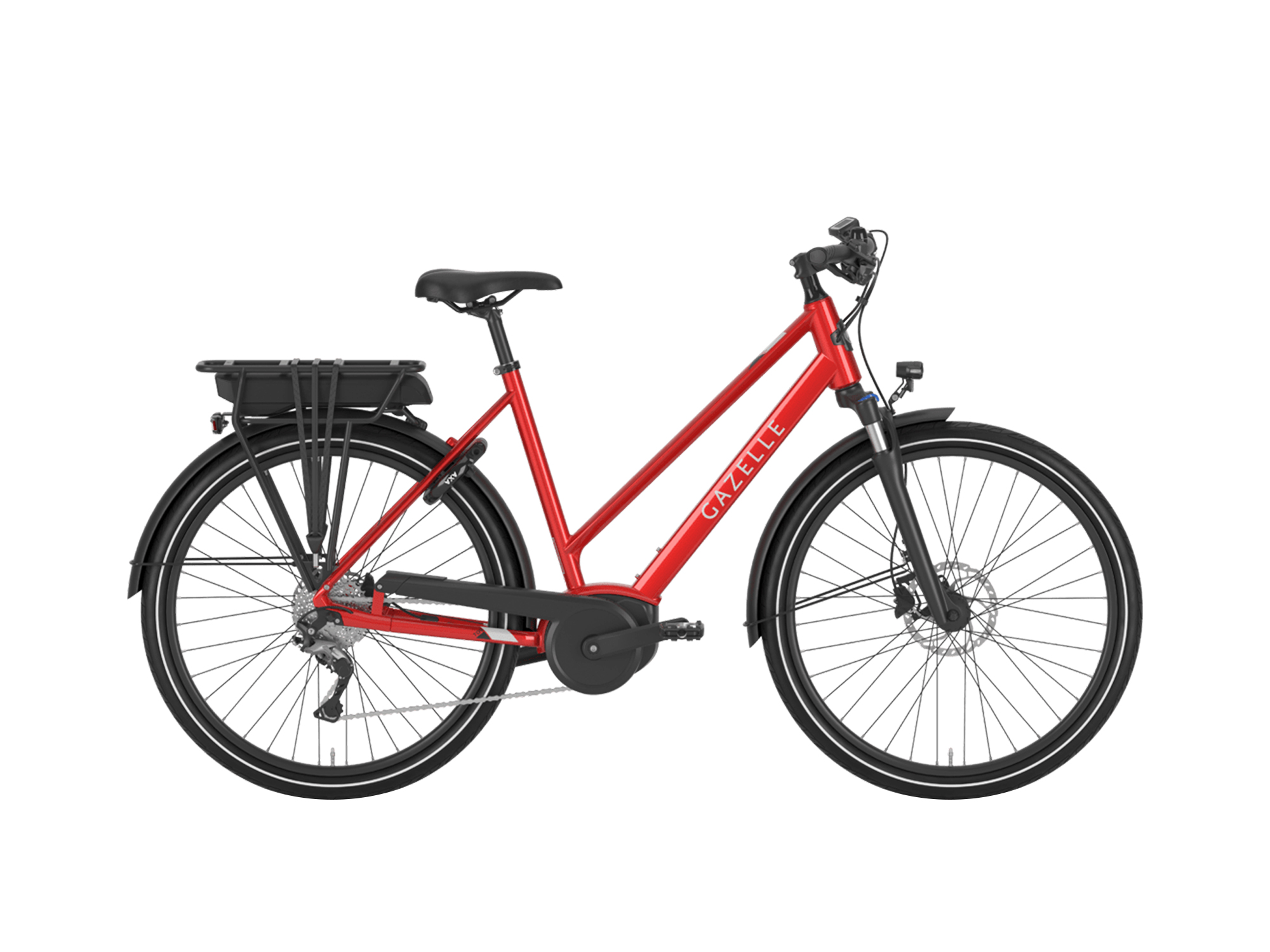

2023-gazelle-medeo-t9-hmb-low-step-champion-red

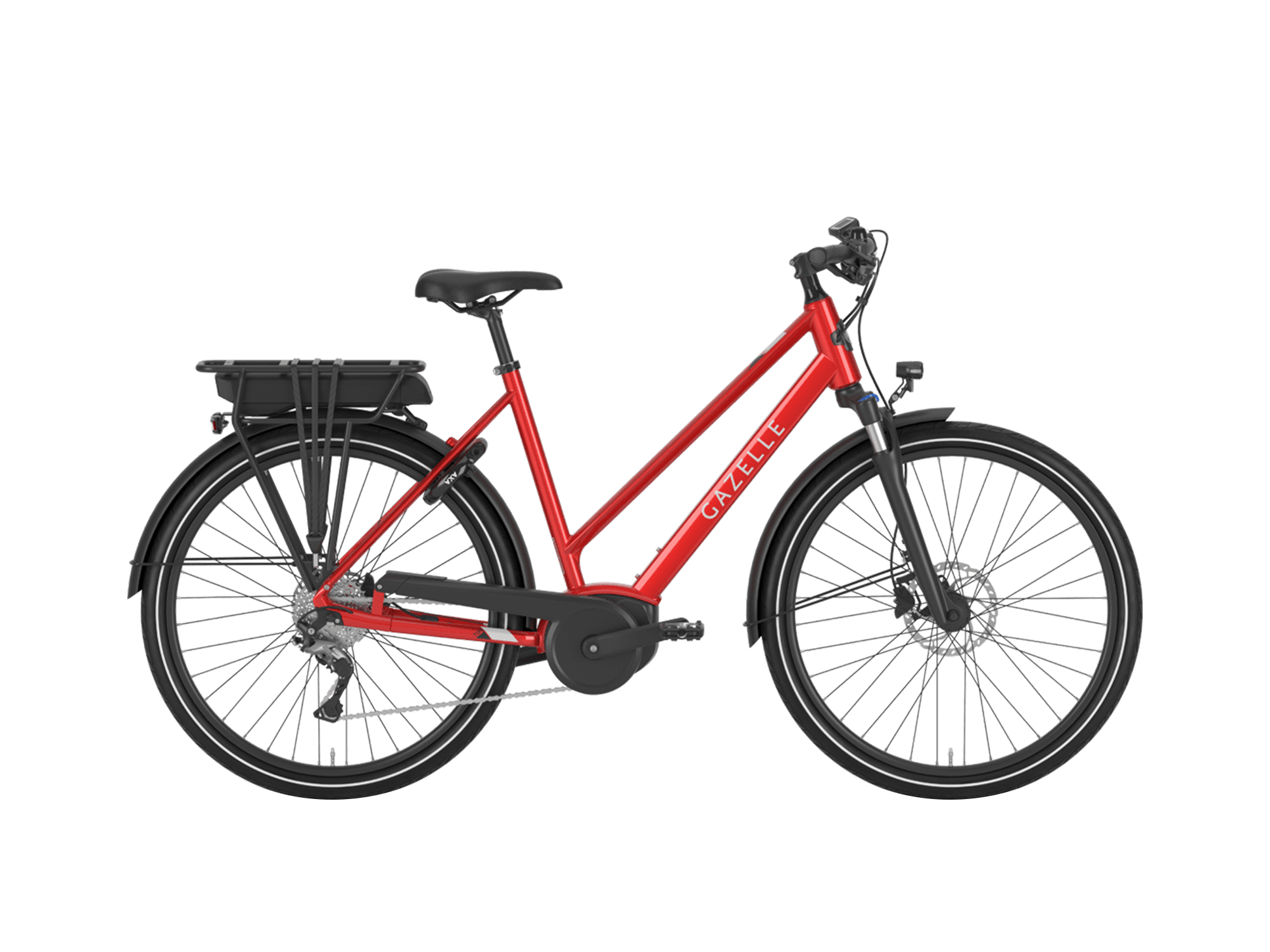

2023-gazelle-medeo-t9-hmb-electric-bike-review-white-background

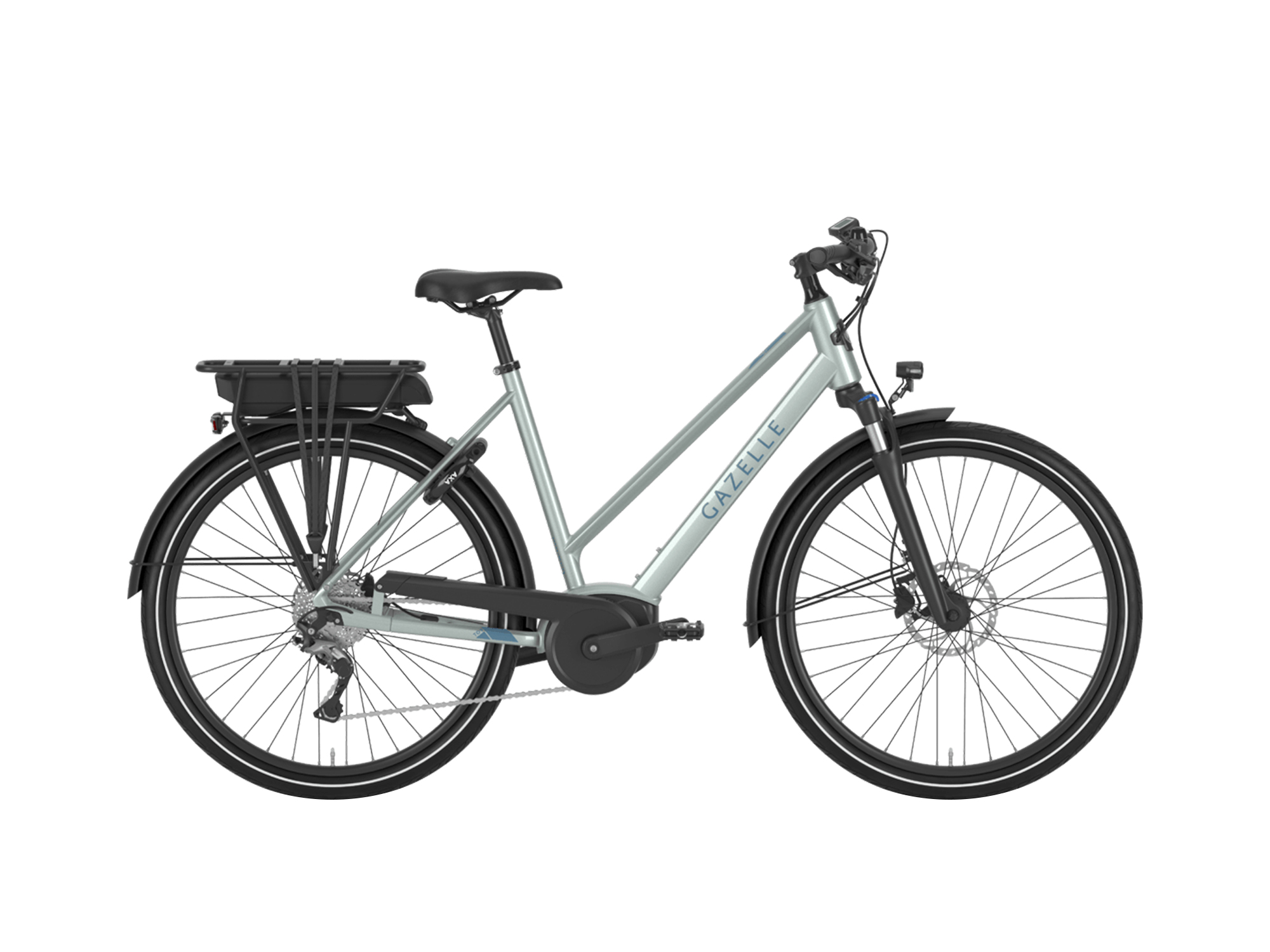

2023-gazelle-medeo-t9-hmb-low-step-iced-blue

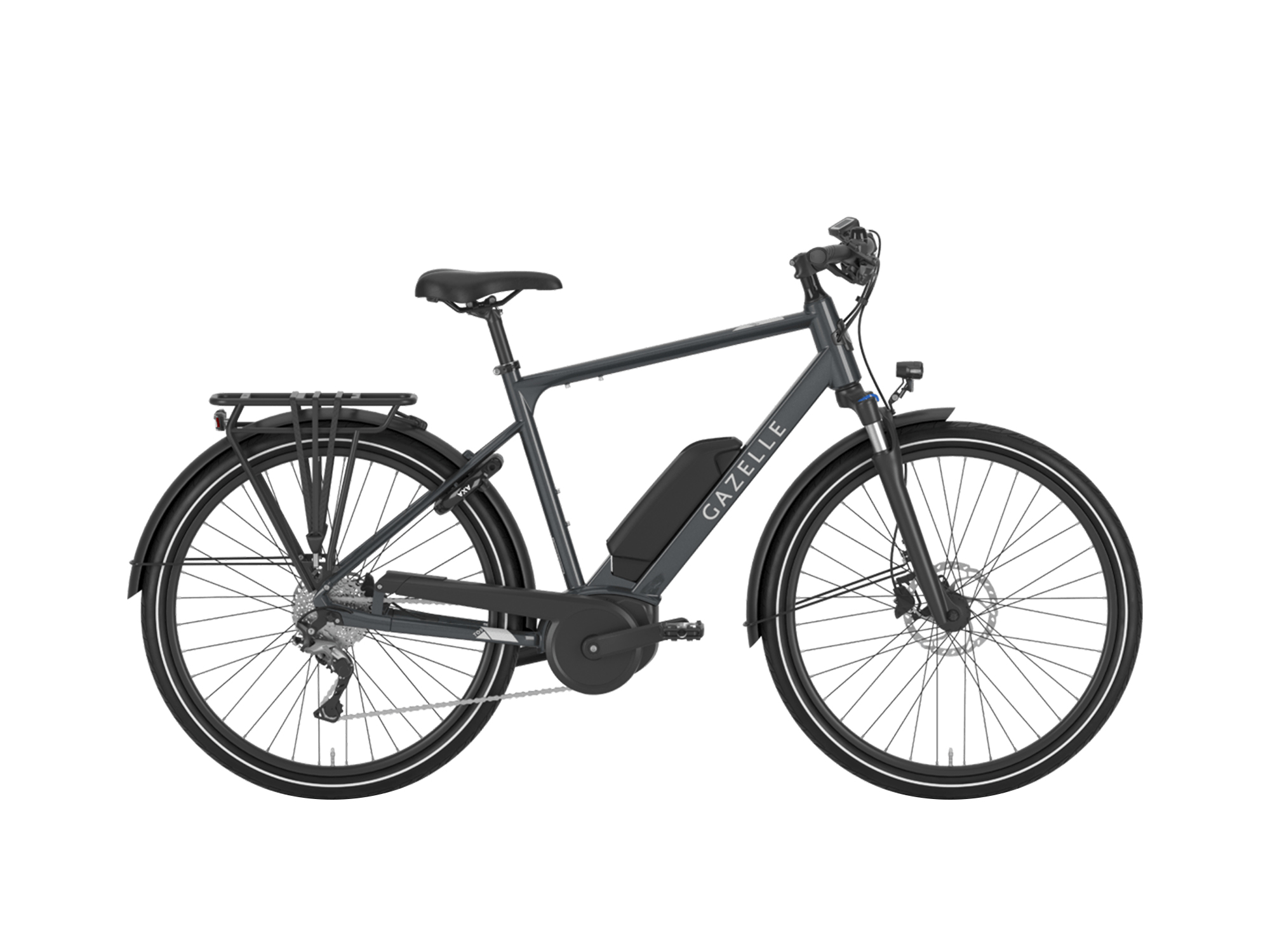

2023-gazelle-medeo-t9-hmb-high-step-anthracite-grey

Photos (9)

Videos

Shops

Highlights

Technical Specs & Ratings

General

Year When this particular ebike model configuration was released	2023
Brand The company that produces this particular electric bicycle	Gazelle
Model The specific product or family of products from a brand	Medeo T9 HMB
MSRP The Manufacturer’s Suggested Retail Price listed in US Dollars	$2,299
Category A grouping of products with similar features and uses	City Electric Bike Reviews , Commuting Electric Bike Reviews
Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Mid-Step
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Wheel Size The diameter of wheels used on the bike, may be listed in inches or millimeters, may include multiple wheel sizes	28.0
Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	9
Brake Type The mechanism used to slow and stop the ebike, may include multiple brake types	Hydraulic Disc
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	400 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	400 Wh
Weight The total heaviness of the ebike: the force acting on it due to gravity	48.1 lbs / 21.84 kgs

Frameset

Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Mid-Step
Weight The total heaviness of the ebike: the force acting on it due to gravity	48.1
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Suspension Travel The distance a suspension system can flex or move under load, usually measured in millimeters	50
Fork Details The part of an electric bike that holds the front wheel, steers it, and may include suspension	Aluminium, Telescopic
Wheel Details A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim	Mach1 ER-10, Double-walled aluminium for extra strong and efficient cycling performance
Tire Details A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike	Schwalbe Energizer Plus, Puncture Resistant

Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	9
Rear Derailleur A mechanism that moves the chain in different directions to fit different sized freewheel or cassette cogs, effectively changing pedal ratio and speed	Shimano Alivio

Stem The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort	Adjustable Stem
Handlebar The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork	Aluminum, Slightly Curved Model
Grips The component that a rider holds to direct the handlebar, often made of rubber or cork, may consiste of grip tape	Herrmans DD36, Plastic wear-resistant handlebar grips for a firm grasp
Seatpost A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension	Fixed
Saddle A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics	DDK, Sportive
Brake Type The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently	Hydraulic Disc
Brake Details The component that applies friction to the front wheel to provide stopping force	Front: Shimano BR-MT200, 2 piston, 180 mm Rotor Rear: Shimano BR-MT200, 2 piston, 160 mm Rotor

Bike Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Details Details about the primary motor system propelling the electric bike	Bosch Active Line Plus (50Nm)
Display A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more	Bosch Purion LCD
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	400 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	400 Wh
Battery Details Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer	Bosch Li-ion Integrated into carrier
Charger A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery	4 Ah

Lights Components that illuminate the surroundings and help make the ebike more visible during low light conditions	Axa Compactline 35, LED headlamp, on/off switching via display
Fenders Components that partially surround the tires, deflecting mud, water, and other debris from splashing up onto the rider and their surroundings	Yes
Rear Rack A component that can store and transport cargo on the rear portion of an ebike, good capacity is 25kg or 55lbs, it may include a top platform, pannier hangers on the sides, bungee loops, and proprietary accessory interfaces such as RackTime or MIK, some racks are removeable	Aluminum MIK System Carrier

Sitting Position Additional details about the electric bike that did not fit into other categories	Active
Availability Additional details about the electric bike that did not fit into other categories	United States, Canada, Europe
Warranty Additional details about the electric bike that did not fit into other categories	2 Years Comprehensive, 10 Years Frame
Frame Material Additional details about the electric bike that did not fit into other categories	Aluminum
Spoke Description Additional details about the electric bike that did not fit into other categories	Stainless Steel, Extra Strong
Frame Sizes Additional details about the electric bike that did not fit into other categories	45, 50, 55
Tire Color Additional details about the electric bike that did not fit into other categories	Black
Frame Colors Additional details about the electric bike that did not fit into other categories	Anthracite Grey, Champion Red, Iced Blue
Gear Type Additional details about the electric bike that did not fit into other categories	Derailleur
Front Chain Wheel Additional details about the electric bike that did not fit into other categories	38
Rear Chain Wheel Additional details about the electric bike that did not fit into other categories	Nov-36
Light Power Additional details about the electric bike that did not fit into other categories	Battery
Light Lux Additional details about the electric bike that did not fit into other categories	35
Lock Description Additional details about the electric bike that did not fit into other categories	Axa Block XXL, Ring Lock With an Option for a Plug-in Cable to Attach Your Bike to a Fixed Object for Extra Protection Against Theft, ART ** certified
Chaincase Description Additional details about the electric bike that did not fit into other categories	Plastic Chain Guard
Kickstand Additional details about the electric bike that did not fit into other categories	Ursus Mooi, Drop-down Rear Stand
Integrated Cables Additional details about the electric bike that did not fit into other categories	Yes
Torque Additional details about the electric bike that did not fit into other categories	50
EBike Sensors Additional details about the electric bike that did not fit into other categories	Pedal Force Sensor, Rotation Sensor, Speed Sensor
Amount of Support Levels Additional details about the electric bike that did not fit into other categories	4
Walk Assist Additional details about the electric bike that did not fit into other categories	Yes
Max Speed Additional details about the electric bike that did not fit into other categories	20 mph (32 kph)

Video Reviews

Written Reviews

The Gazelle Medeo T9 HMB is a versatile electric bike that is sporty and comfortable for those who enjoy long bike rides and appreciate a powerful motor, stable frame, and attention to detail.

Frame and Design: The Medeo T9 HMB features a stable frame, with relatively thin frame tubes contributing to its lightweight design. The frame has an MIK carrier and integrated lighting. Choose from both high- and low-step versions and various battery options to get the configuration that best suits your needs,

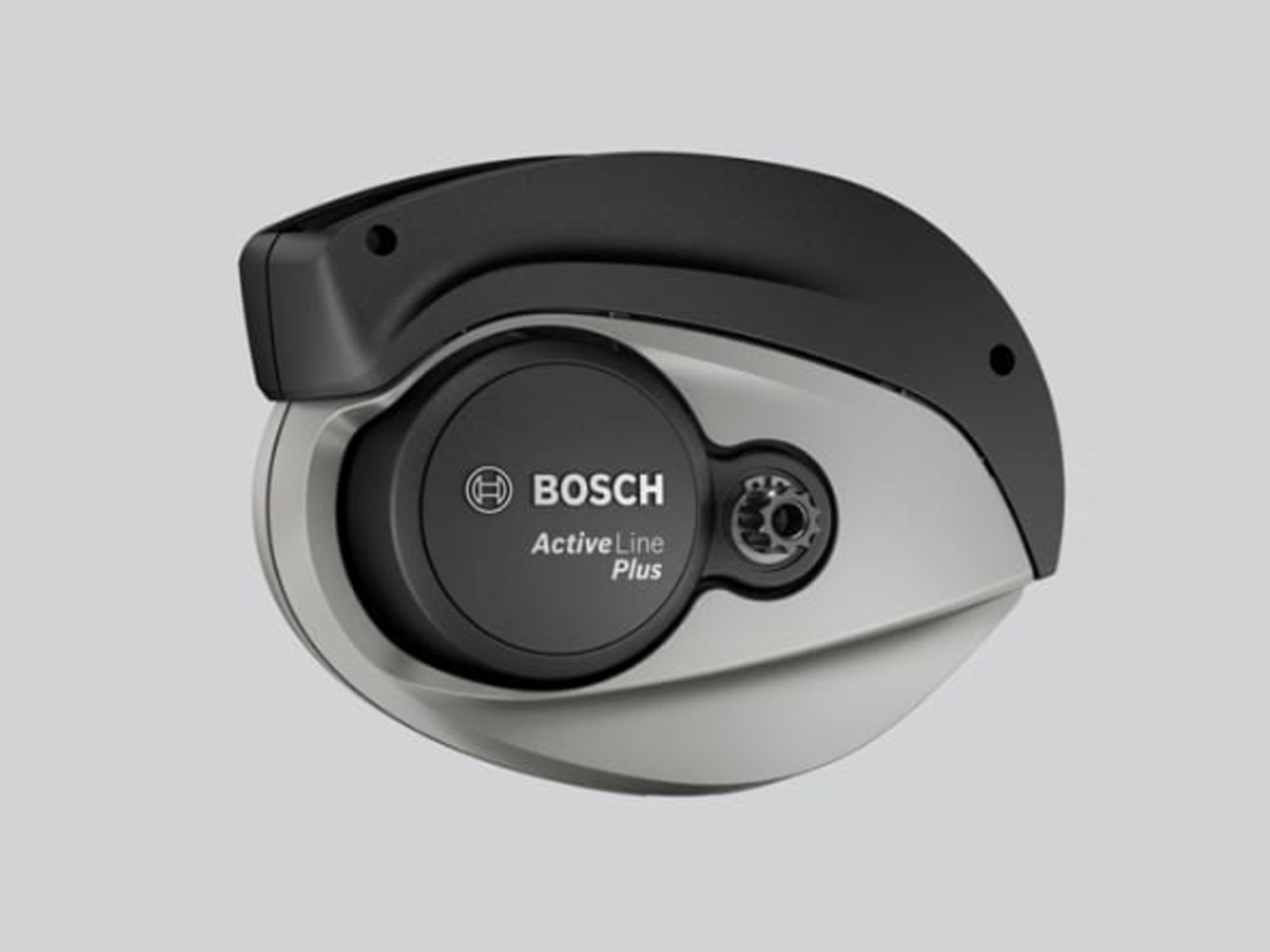

Motor and Performance: The Gazelle Medeo T9 HMB has a Bosch Active Line Plus motor, which provides silent, natural assistance and 50 Newton-meters (Nm) of torque. This motor offers a quiet, small, powerful drive unit for an enjoyable riding experience.

Suspension and Tires: The Medeo T9 HMB has a Suntour suspension front up front with 50 mm of travel and wide Schwalbe Big Apple tires, ensuring a smooth and comfortable ride on various terrains.

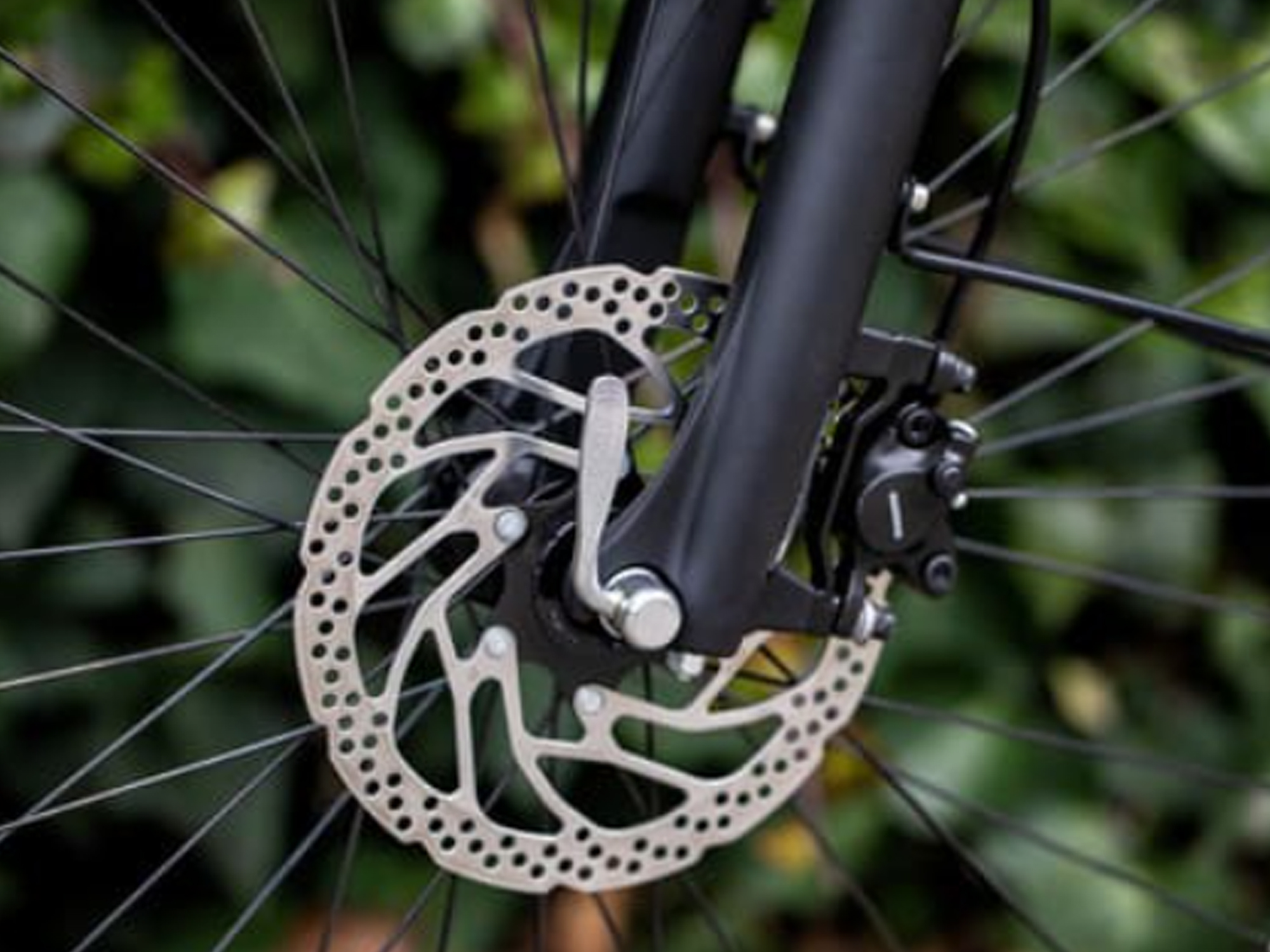

Braking System: The Medeo T9 HMB has powerful Shimano BR-MT200, 2-piston hydraulic disc brakes for reliable stopping power. These brakes provide reliable control, modulation, and low maintenance requirements.

Drivetrain and Gearing: The bike features a Shimano Acera 9-speed derailleur, which provides smooth and efficient gear shifting during your rides. The cassette offers a wide selection of gears for various terrains and riding conditions.

Additional Features: The Gazelle Medeo T9 HMB has a sturdy rear rack that protects the battery and includes an elastic strap system for securing your belongings. The bike also has powerful lights and high-performance fenders, ensuring visibility and protection from the elements during your rides.

Summary: The Gazelle Medeo T9 HMB is a well-rounded electric bike with a comfortable, powerful, and sporty riding experience. It offers a lightweight design, powerful motor, smooth suspension, reliable braking system, and helpful additional features.
