2023 Gazelle Ultimate C8 HMB Review

CITY

COMMUTING

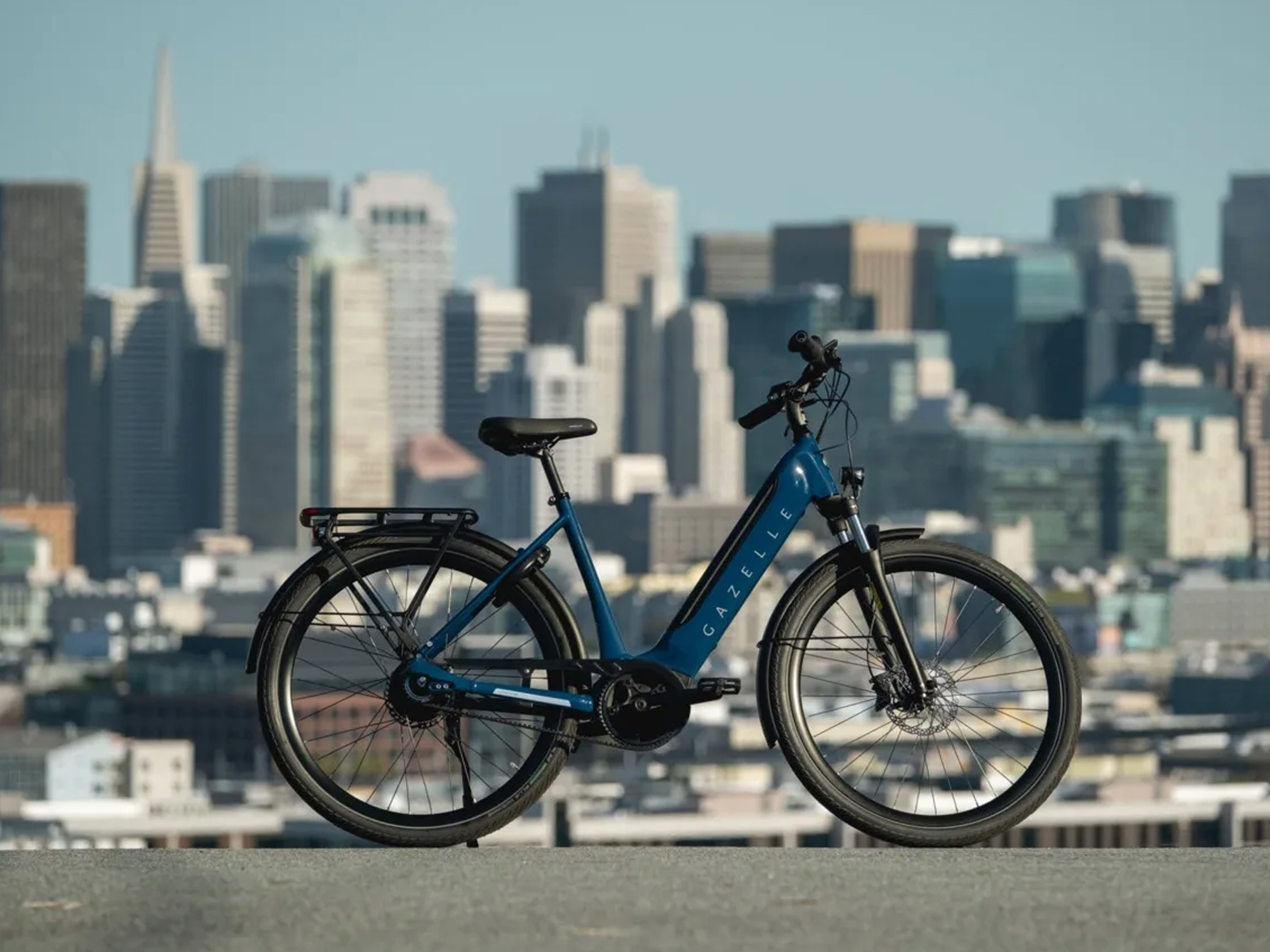

2023-gazelle-ultimate-c8-hmb-electric-bike

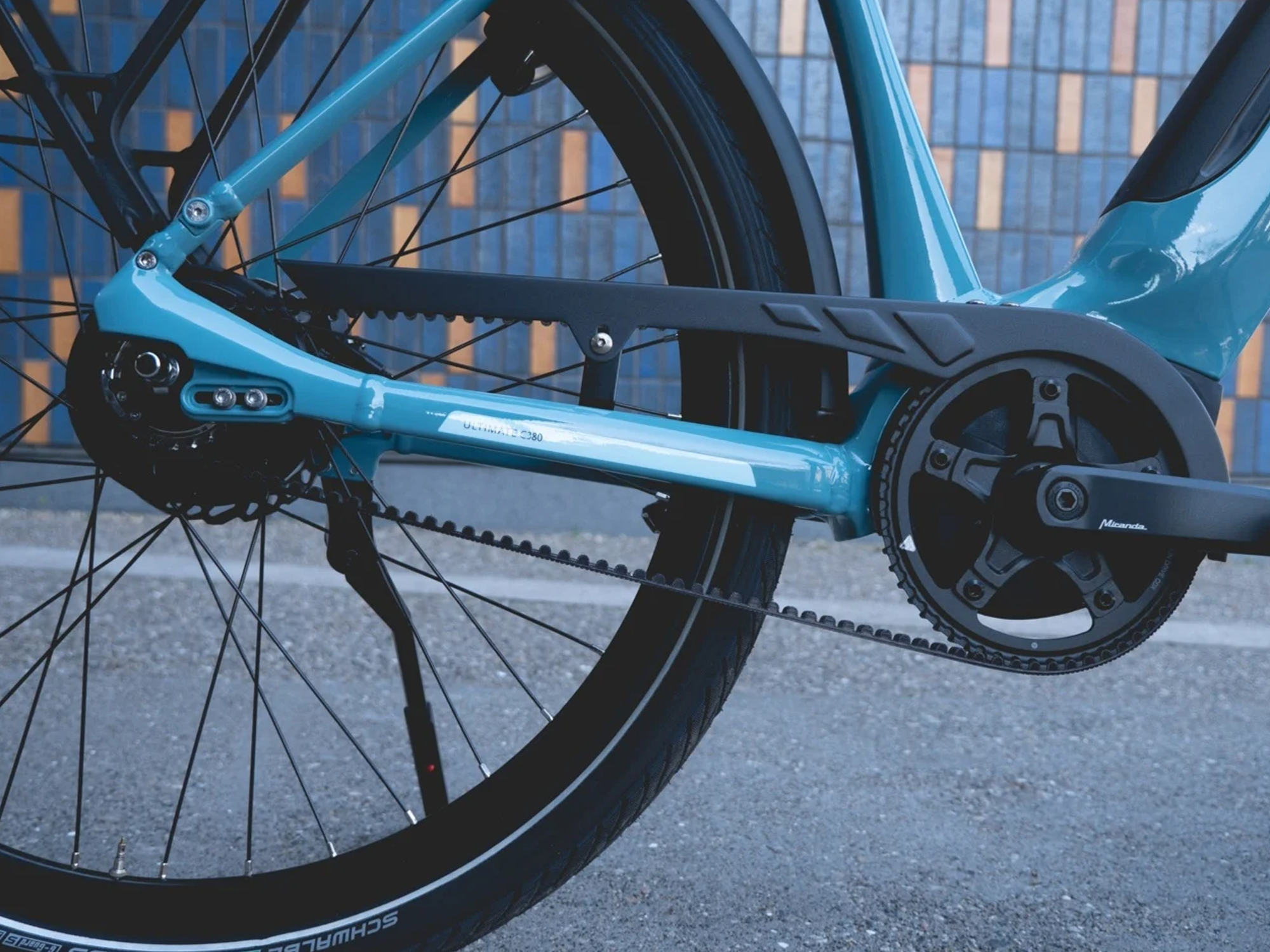

2023-gazelle-ultimate-c8-hmb-aluminum-chain-guard

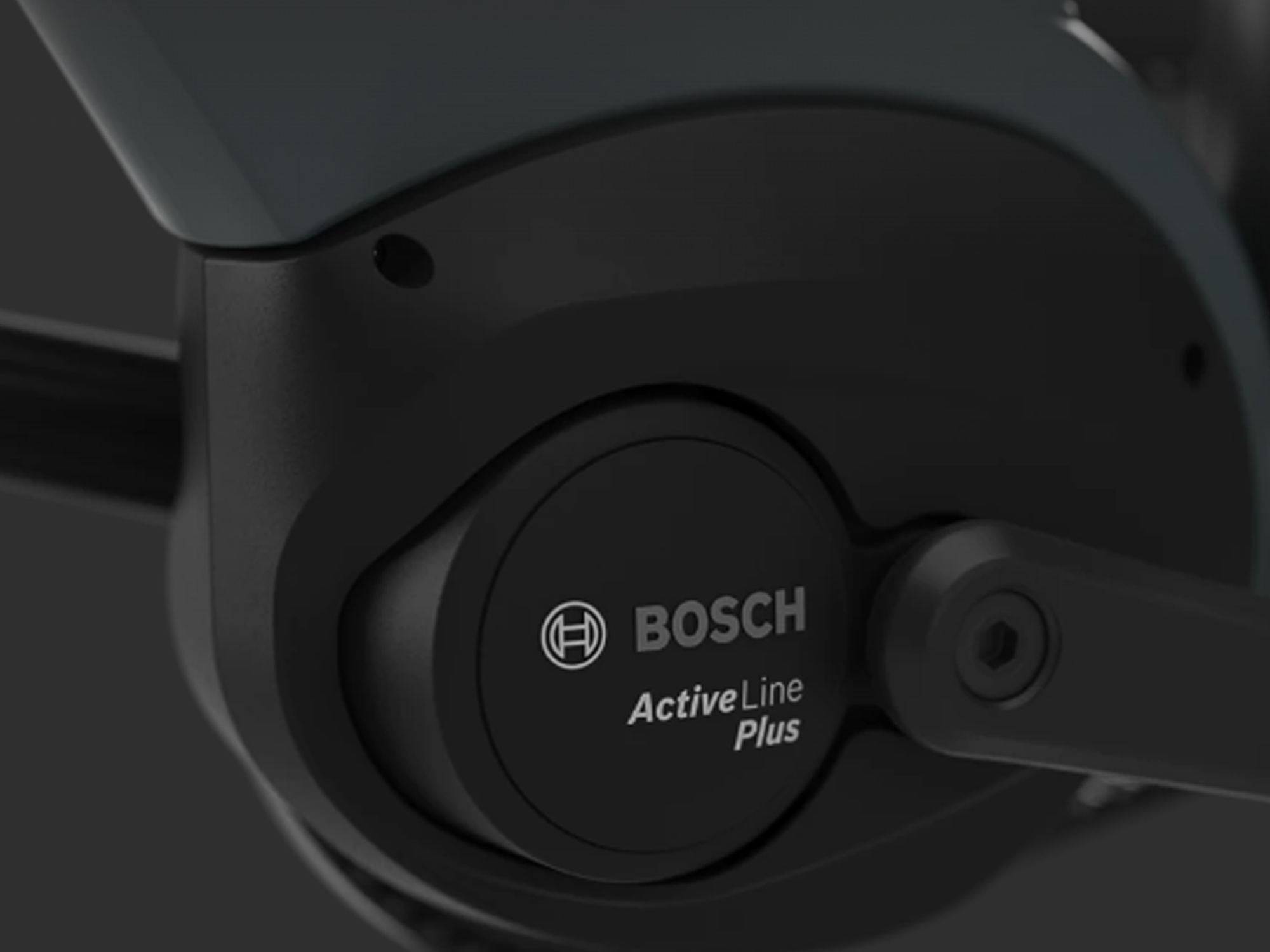

2023-gazelle-ultimate-c8-hmb-bosch-active-line-plus -50nm-mid-drive-motor

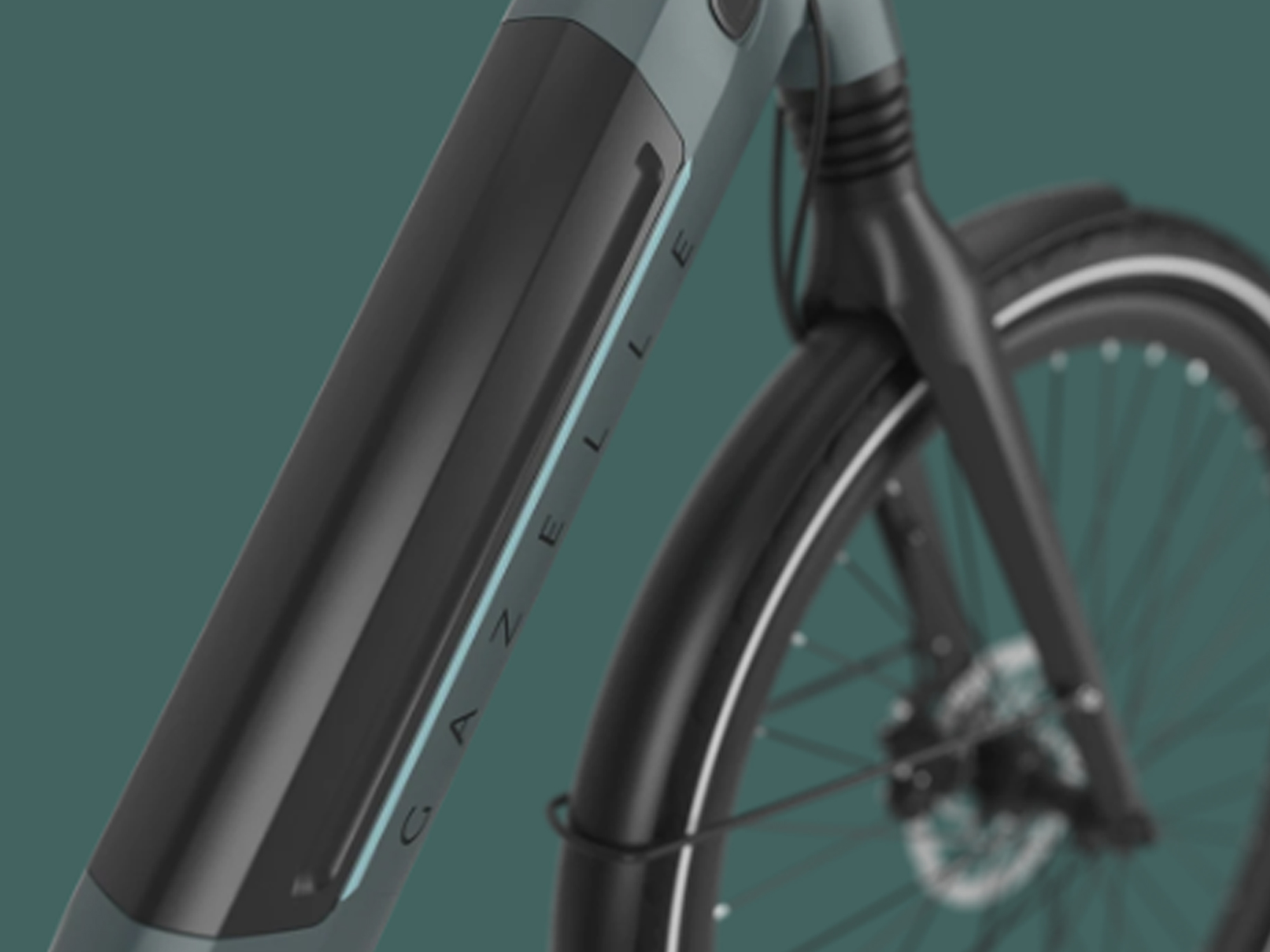

2023-gazelle-ultimate-c8-hmb-bosch-li-ion-battery

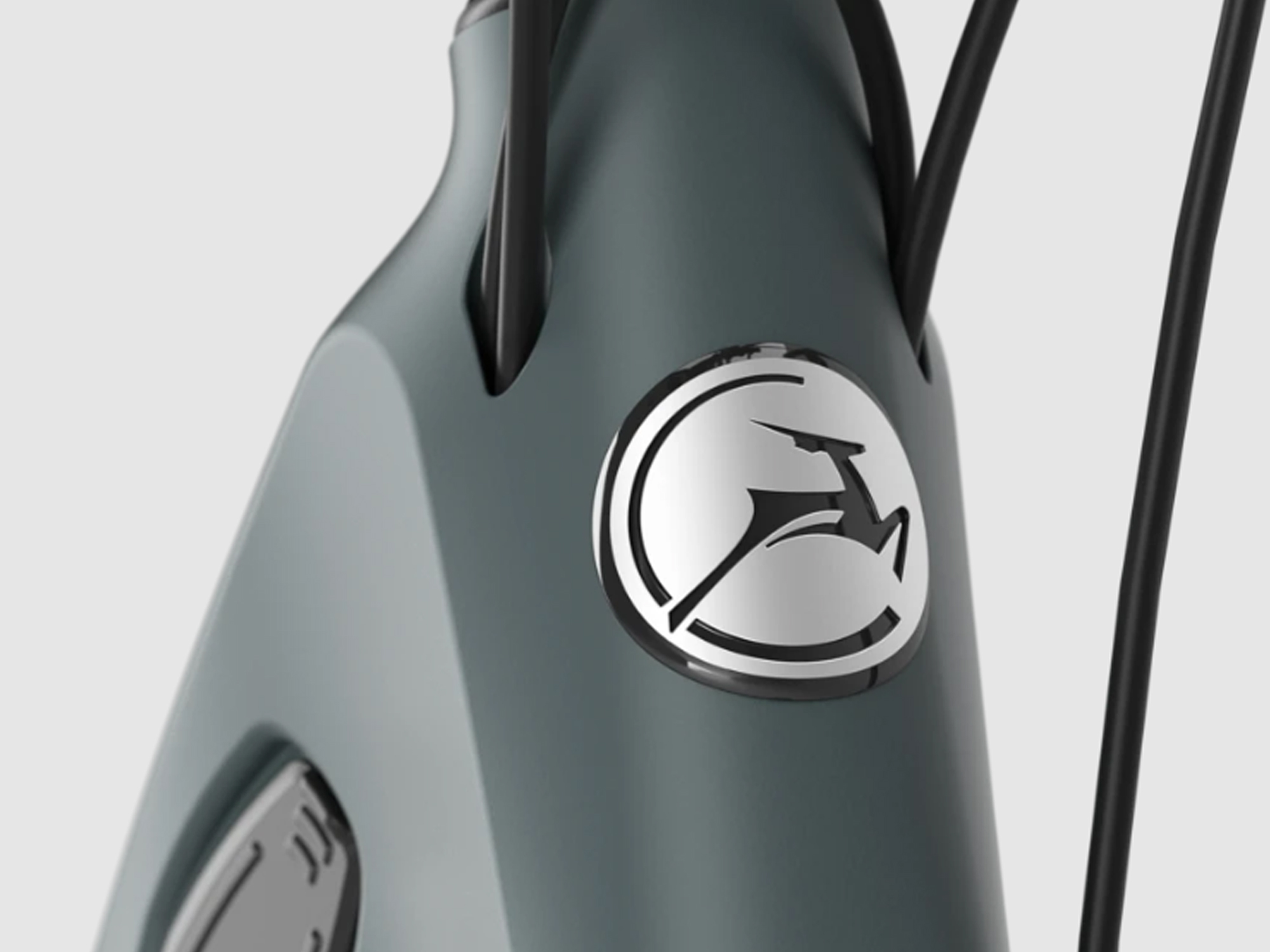

2023-gazelle-ultimate-c8-hmb-internal-cable-routing

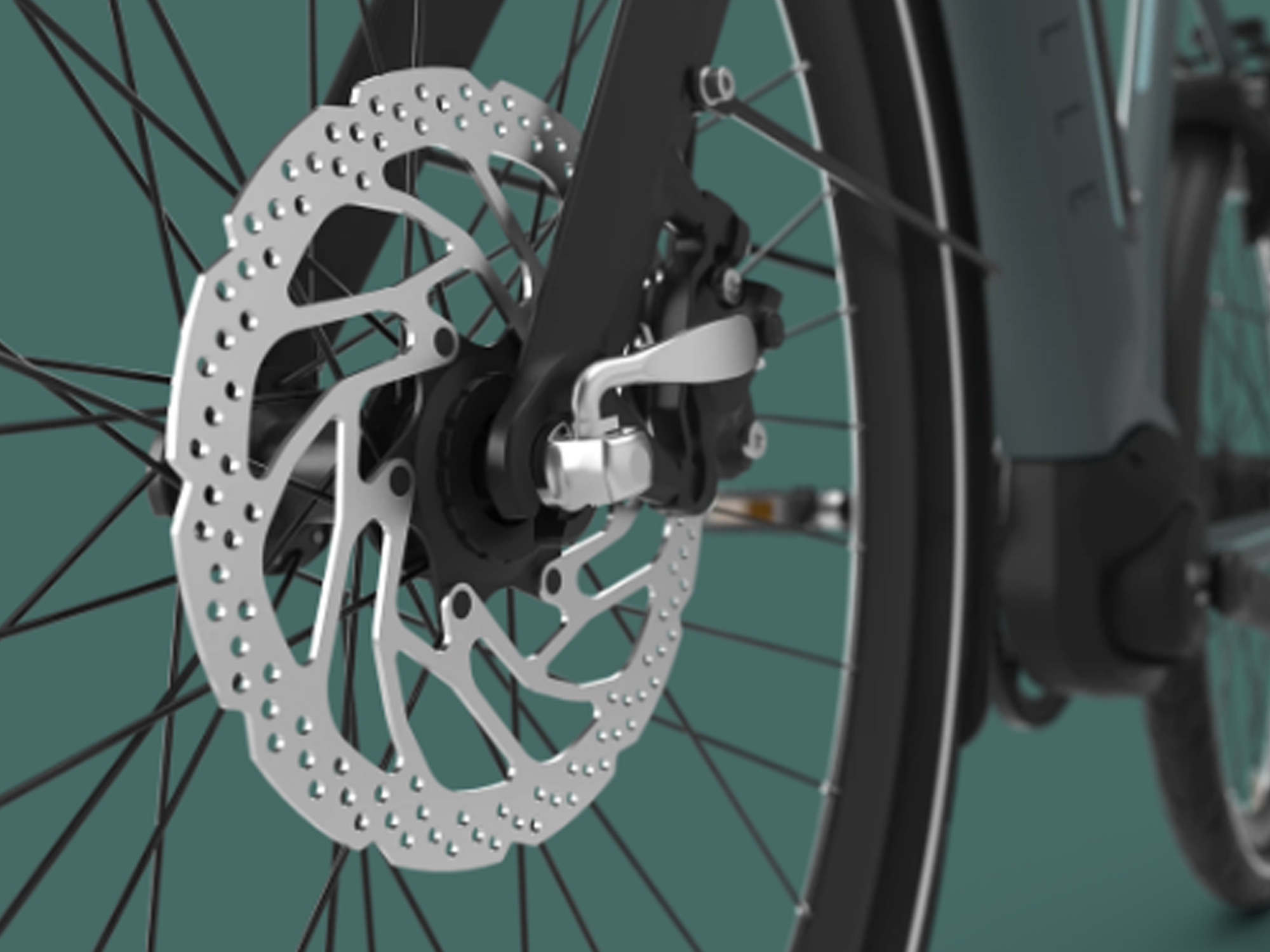

2023-gazelle-ultimate-c8-hmb-shimano-br-c3000f-front-brake

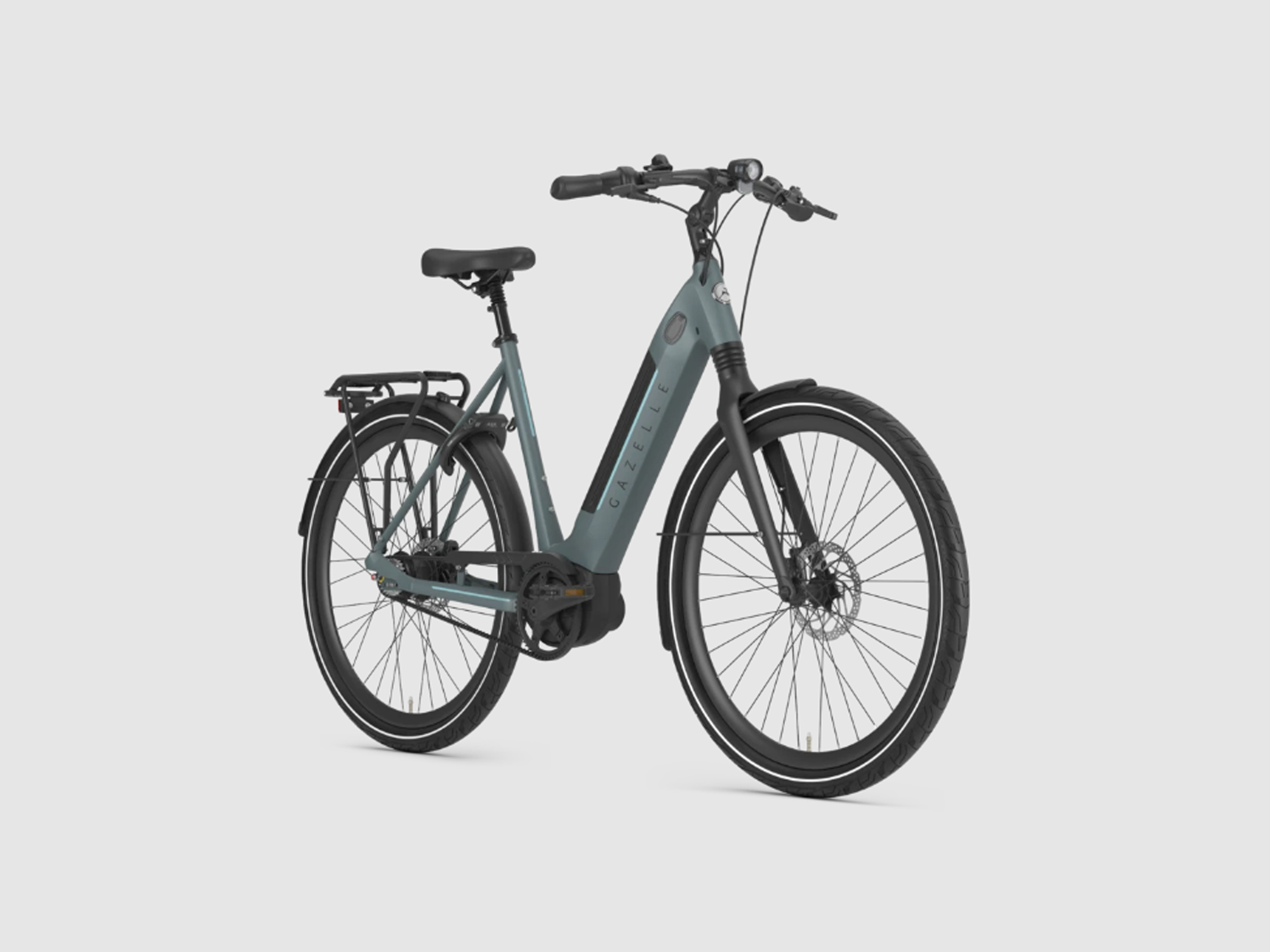

2023-gazelle-ultimate-c8-hmb-front-right-side-view

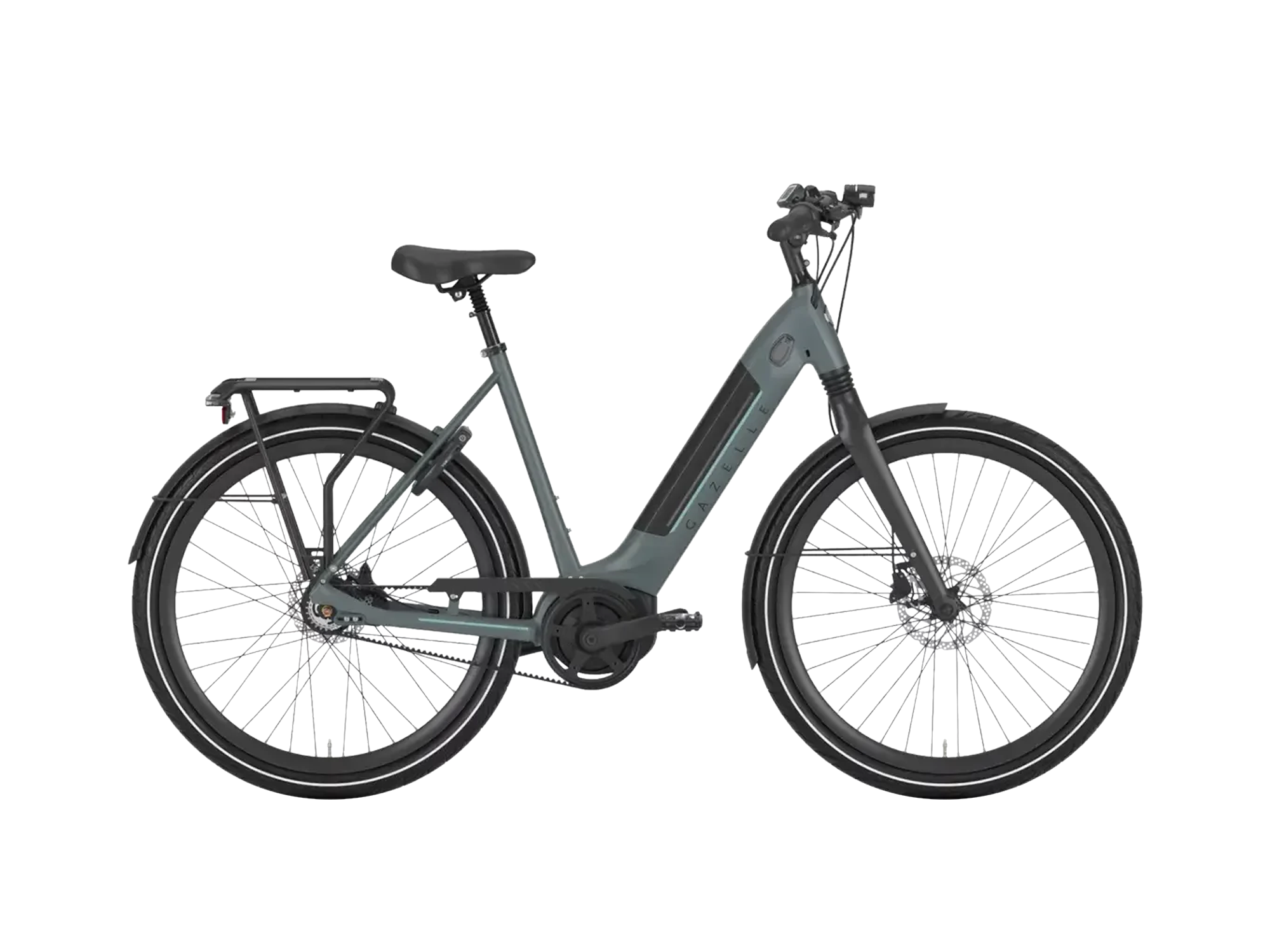

2023-gazelle-ultimate-c8-hmb-electric-bike-review-white-background

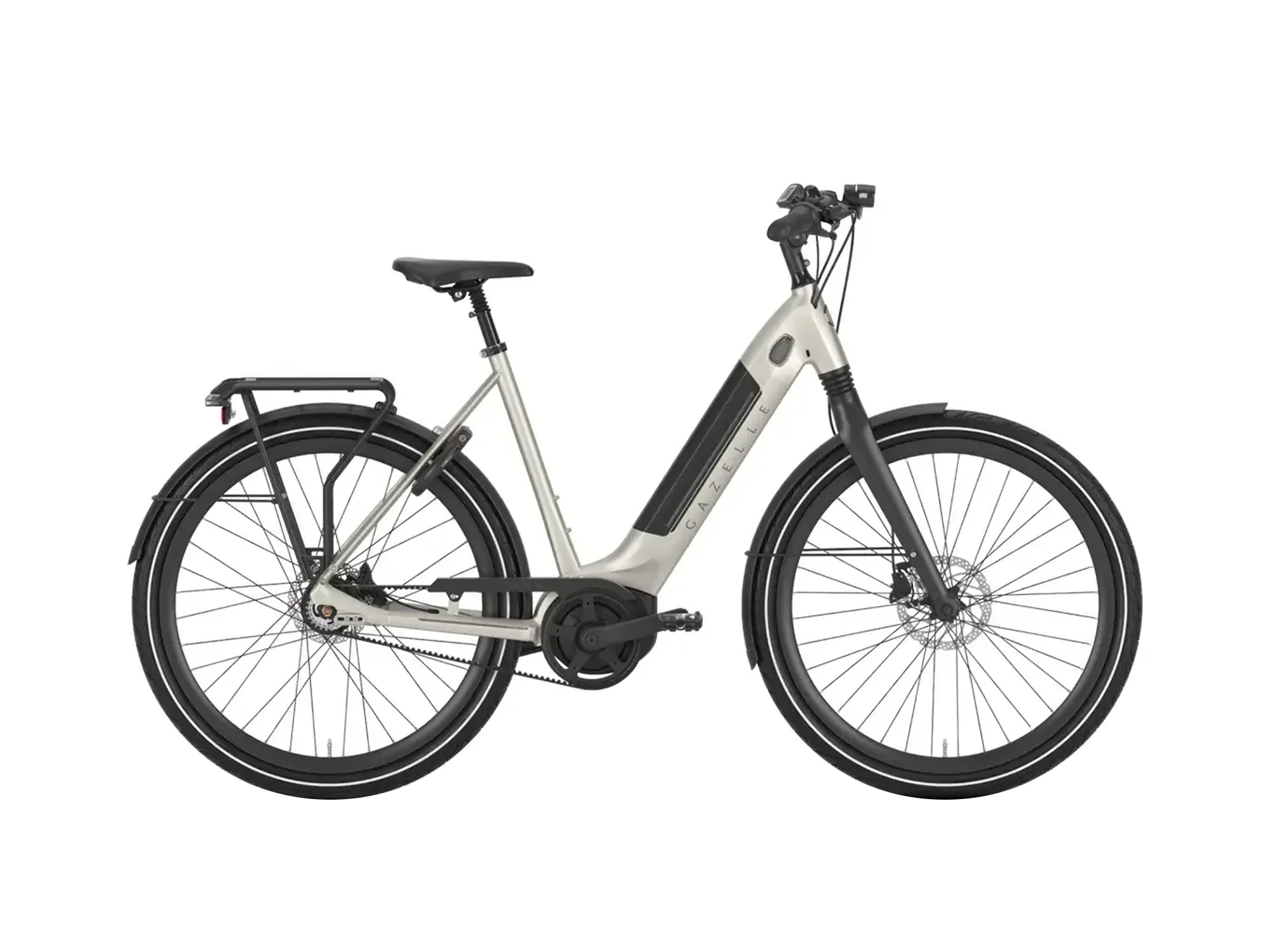

2023-gazelle-ultimate-c8-hmb-low-step-light-sienna

2023-gazelle-ultimate-c8-hmb-low-step-petrol-blue

Photos (15)

Videos

Shops

Highlights

Technical Specs & Ratings

General

Year When this particular ebike model configuration was released	2023
Brand The company that produces this particular electric bicycle	Gazelle
Model The specific product or family of products from a brand	Ultimate C8 HMB
MSRP The Manufacturer’s Suggested Retail Price listed in US Dollars	$3,199
Category A grouping of products with similar features and uses	City Electric Bike Reviews , Commuting Electric Bike Reviews
Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Step-Thru
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Wheel Size The diameter of wheels used on the bike, may be listed in inches or millimeters, may include multiple wheel sizes	28.0
Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	8
Brake Type The mechanism used to slow and stop the ebike, may include multiple brake types	Hydraulic Disc
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Weight The total heaviness of the ebike: the force acting on it due to gravity	53.8 lbs / 24.43 kgs

Frameset

Frame Type The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more	Step-Thru
Weight The total heaviness of the ebike: the force acting on it due to gravity	53.8
Suspension Type Hardware designed to reduce vibration and impacts	Front Suspension
Suspension Travel The distance a suspension system can flex or move under load, usually measured in millimeters	40
Fork Details The part of an electric bike that holds the front wheel, steers it, and may include suspension	Aluminium, Internal to Headset
Wheel Details A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim	Ryde Dutch
Tire Details A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike	Schwalbe Energizer Plus, Puncture resistant

Gears The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions	8
Internally Geared Hub A gear ratio changing system that is implemented with planetary or epicyclic gears, sealed within the shell of a hub, they tend to require less maintenance and can be shifted at standstill, but introduce more weight than a traditional cassette	8-speed Shimano Nexus
Belt Drive A toothed synchronous belt used to transmit power from the pedals to the drivetrain and wheels, it replaces a traditional chain and is often quieter and more durable	Yes

Stem The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort	Adjustable Stem
Handlebar The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork	Aluminum, Slightly Curved Model
Grips The component that a rider holds to direct the handlebar, often made of rubber or cork, may consiste of grip tape	Gazelle Aero leather, Luxury leather handlebar grips for a sophisticated feel and extra comfort
Seatpost A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension	Sprung
Saddle A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics	Selle Royal Loire
Brake Type The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently	Hydraulic Disc
Brake Details The component that applies friction to the front wheel to provide stopping force	Front: Shimano BR-MT200, 2 piston, 180mm Rotor \| Rear:Shimano BR-MT200, 2 piston, 160mm Rotor

Bike Class Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other	Class 1
Motor Type Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency	Mid-Drive
Motor Details Details about the primary motor system propelling the electric bike	Bosch Active Line Plus (50Nm)
Display A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more	Bosch Purion LCD
Battery Watt Hours The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh	500 Wh
Max Watt Hours Some ebikes have multiple battery size options, this is the maximum capacity offered	500 Wh
Battery Details Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer	Bosch Li-ion Integrated into frame
Charger A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery	4 Ah

Lights Components that illuminate the surroundings and help make the ebike more visible during low light conditions	Axa Blue Line 50, LED headlamp, on/off switching via display
Fenders Components that partially surround the tires, deflecting mud, water, and other debris from splashing up onto the rider and their surroundings	Yes
Rear Rack A component that can store and transport cargo on the rear portion of an ebike, good capacity is 25kg or 55lbs, it may include a top platform, pannier hangers on the sides, bungee loops, and proprietary accessory interfaces such as RackTime or MIK, some racks are removeable	Gazelle Commuter, Aluminium

Sitting Position Additional details about the electric bike that did not fit into other categories	Active
Availability Additional details about the electric bike that did not fit into other categories	United States, Canada, Europe
Warranty Additional details about the electric bike that did not fit into other categories	2 Years Comprehensive, 10 Years Frame
Frame Material Additional details about the electric bike that did not fit into other categories	Aluminum
Spoke Description Additional details about the electric bike that did not fit into other categories	Stainless Steel, Extra Strong
Frame Sizes Additional details about the electric bike that did not fit into other categories	46, 53, 57
Tire Color Additional details about the electric bike that did not fit into other categories	Black
Frame Colors Additional details about the electric bike that did not fit into other categories	Light Sienna, Petrol Blue
Gear Type Additional details about the electric bike that did not fit into other categories	Derailleur
Front Chain Wheel Additional details about the electric bike that did not fit into other categories	38
Rear Chain Wheel Additional details about the electric bike that did not fit into other categories	Nov-42
Light Power Additional details about the electric bike that did not fit into other categories	Battery
Light Lux Additional details about the electric bike that did not fit into other categories	60

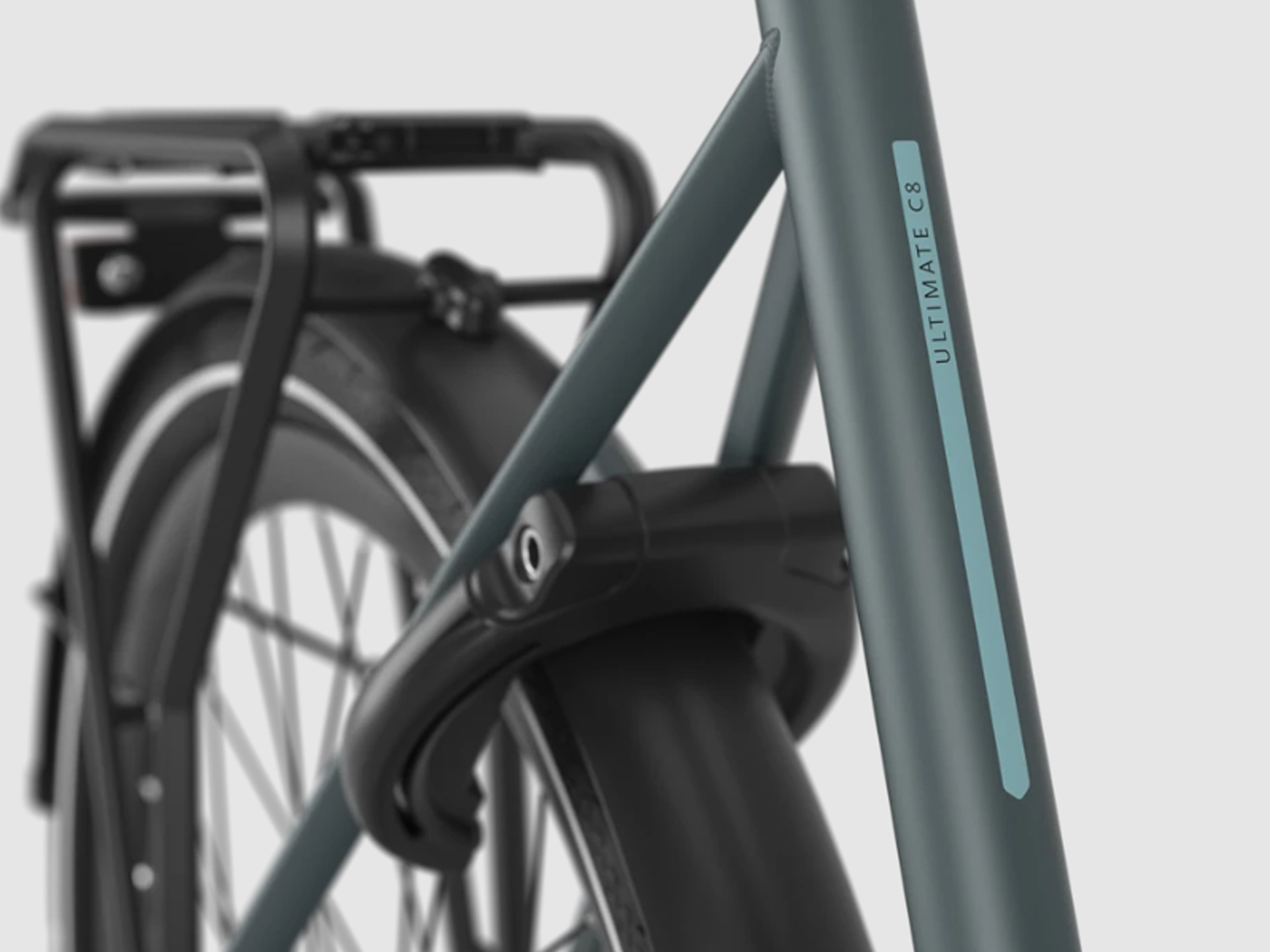

Lock Description Additional details about the electric bike that did not fit into other categories	Axa Imenso, Ring Lock With an Option for a Plug-in Cable to Attach Your Bike to a Fixed Object for Extra Protection Against Theft, ART ** certified
Chaincase Description Additional details about the electric bike that did not fit into other categories	Plastic Chain Guard
Kickstand Additional details about the electric bike that did not fit into other categories	Ursus Mooi, Drop-down Rear Stand
Integrated Cables Additional details about the electric bike that did not fit into other categories	Yes
Torque Additional details about the electric bike that did not fit into other categories	75
EBike Sensors Additional details about the electric bike that did not fit into other categories	Pedal Force Sensor, Rotation Sensor, Speed Sensor
Amount of Support Levels Additional details about the electric bike that did not fit into other categories	4
Walk Assist Additional details about the electric bike that did not fit into other categories	Yes
Max Speed Additional details about the electric bike that did not fit into other categories	20 mph (32 kph)

Video Reviews

Written Reviews

The Gazelle Ultimate C8 HMB has a stable and rigid frame with an integrated battery, which provides a low center of gravity to ensure stability when riding in an active position. The bike incorporates low-maintenance components including the Nexus 8 geared hub and the durable Gates carbon belt drive. This combination results in confident operation and smooth functionality, resulting in carefree cycling.

The Nexus 8 geared hub and Gates belt drive require little maintenance, making the Gazelle Ultimate C8 HMB an easy-to-use electric bike. The bike also features powerful Shimano BR-MT200, 2-piston disc brakes that provide excellent hydraulic stopping power. The front fork has an integrated front suspension, ensuring a smooth ride on rough terrain. Combining the bike's components provides a comfortable and enjoyable riding experience.

The cockpit features leather grips, which are ergonomic and comfortable, and Shimano's twist shifter to control the Nexus hub. The bike also comes with a kickstand, mudguards, and a rear carrier, making it a practical and versatile choice for commuting or touring.
