Highlights

Technical Specs & Ratings

General

Year

When this particular ebike model configuration was released

2023
Brand

The company that produces this particular electric bicycle

Specialized

Model

The specific product or family of products from a brand

S-Works Turbo Creo SL EVO
MSRP

The Manufacturer’s Suggested Retail Price listed in US Dollars

$13,999.99
Category

A grouping of products with similar features and uses

Electric Road Bike Reviews , Drop Bars Electric Road Bike Reviews , Electric Gravel Bike Reviews

Class

Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other

Class 1
Frame Type

The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more

High-Step
Gears

The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions

12

Brake Type

The mechanism used to slow and stop the ebike, may include multiple brake types

Hydraulic Disc
Motor Type

Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency

Mid-Drive
Motor Output

The measure of continuous power being produced by the motor, measured in watts

240
Battery Watt Hours

The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh

320 Wh
Max Watt Hours

Some ebikes have multiple battery size options, this is the maximum capacity offered

320 Wh

Frameset

Frame Type

The physical layout of a frame. High-Step tends to be sturdy and light but tall, Mid-Step is fairly sturdy and easier to stand over, Step-Thru is the most approachable but may flex and weigh more

High-Step
Fork Details

The part of an electric bike that holds the front wheel, steers it, and may include suspension

Future Shock 2.0 w/ Smooth Boot, Boost 12x110mm thru-axle, flat-mount disc
Wheel Details

A circular component that connects the front hub to the tire, consisting of spokes or arms and a rim

Roval Terra CLX, 30mm inner width carbon rim, 32mm depth, Roval AFD hub, 24h, DT Swiss Aerolite spokes
Tire Details

A construction of rubber that fits on a wheel, usually contains an inner tube filled with air, providing cusion for the rider and traction for the ebike

Front: Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c | Rear: Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c | Inner Tubes: Presta valve, 48mm

Drivetrain

Gears

The number of gear ratios offered by the drivetrain, infinity is used for continuously variable transmissions

12
Shift Levers

The interface that a rider interacts with to change gears, they may be levers, twist mechanisms, or electronic buttons

SRAM Red eTap AXS
Crankset

A group of components that convert reciprocating motion of a rider's legs into rotational motion used to drive a chain, belt, or shaft, which in turn drives the rear wheel, usually consisting of a bottom bracket, crank arms, and chainrings

Crank: Praxis Carbon Crank Arms | Chainring: SRAM X-SYNC, 44T
Rear Derailleur

A mechanism that moves the chain in different directions to fit different sized freewheel or cassette cogs, effectively changing pedal ratio and speed

SRAM XX1 Eagle AXS
Wireless Components

A method of changing gears using electronic switches instead of conventional control levers and mechanical cables

Shifter: SRAM Red eTap AXS | Rear Derailleur: SRAM XX1 Eagle AXS | SeatPost: RockShox Reverb AXS, 27.2mm
Cassette

The cluster of sprockets mounted on the rear hub of an ebike, they may be grouped together as a freewheel that threads onto a hub or slotted individually onto a freehub body which is referred to as a cassette and is stronger

SRAM XG-1295 Eagle, 12-speed, 10-50t
Chainring

The large cog or cogs attached to the crankset that directly carry the chain as the rider pedals

SRAM X-SYNC, 44T

Components

Stem

The component that connects the handlebars to the steerer tube of the bicycle fork, it often extends forward and up, it may offer adjustable angle for rider comfort

S-Works Future Stem w/ Integrated Computer mount

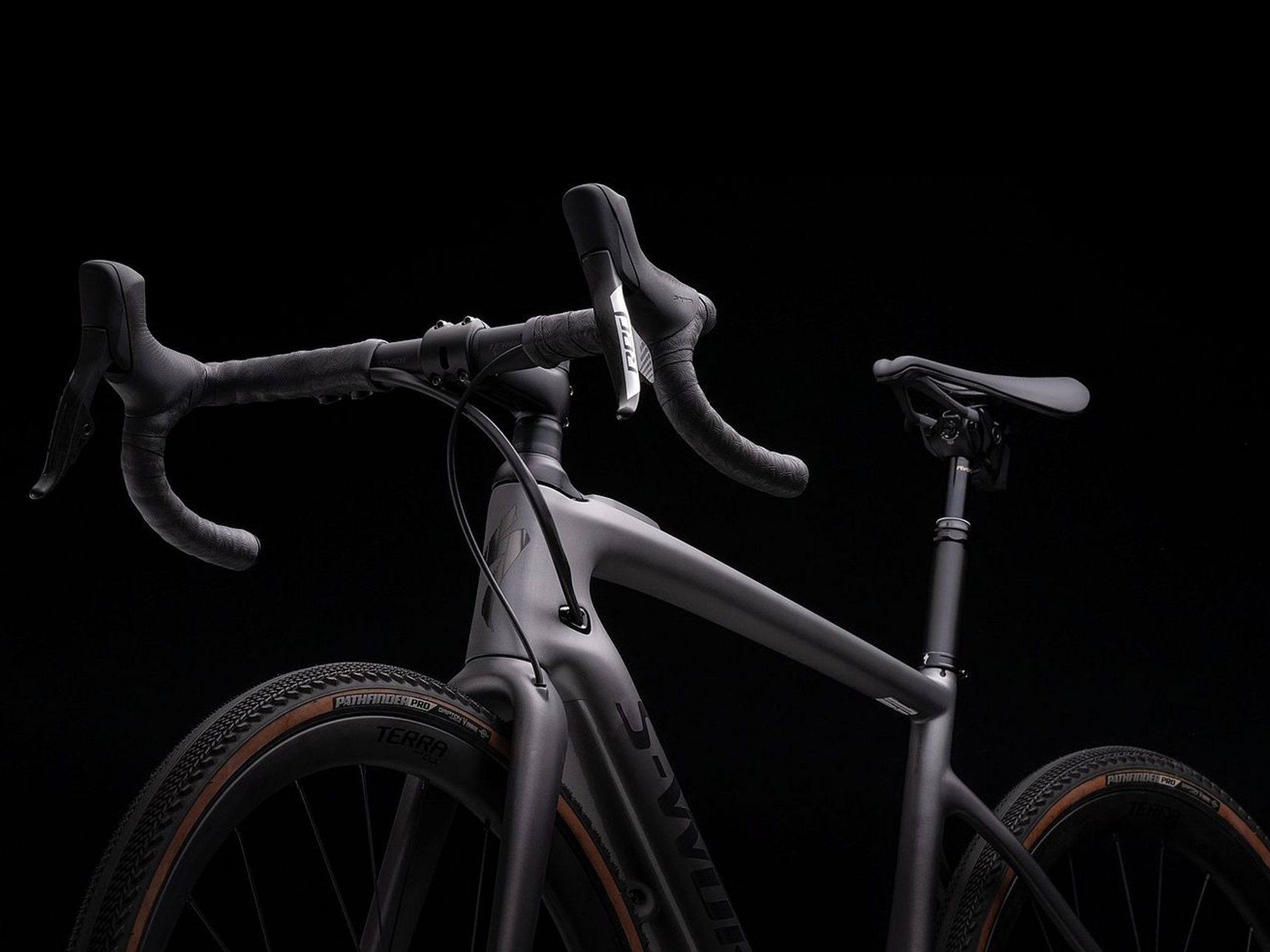

Handlebar

The steering control for bicycles, it is most often directly mechanically linked to a pivoting front wheel via a stem which in turn attaches it to the fork

Roval Terra, carbon, 103mm drop x 70mm reach x 12Aº flare
Seatpost

A component that connects the saddle or seat to the bicycle frame, often vertically adjustable to provide a rider with comfortable leg extension

RockShox Reverb AXS, 27.2mm
Seatpost Diameter

The diameter measurement of a seat post, usually in millimeters, this may be important if you wish to replace a rigid post with a suspension seatpost, consider using shims to match a smaller seatpost with a larger seat tube.

27.2
Saddle

A component that supports the rider as they sit and pedal a bicycle, it may slide forward and back to improve ergonomics

Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
Brake Type

The group of components that introduce friction and stopping force to the bicycle, hydraulic systems tend to require less hand effort and actuate more consistently

Hydraulic Disc
Brake Details

The component that applies friction to the front wheel to provide stopping force

SRAM Rival 1, hydraulic disc

Ebike Systems

Bike Class

Ebike performance type: Class 1 = 20mph or 25km/h pedal assist only, Class 2 = includes throttle activation, Class 3 = 28mph or 45km/h top speed, Other

Class 1
Motor Type

Electronically activated machine that produces motion, hub motors are built directly into wheels and offer a single gear ration, mid-drives interface with the chain, belt, or shaft and leverage the drivetrain for improved efficiency

Mid-Drive
Motor Details

Details about the primary motor system propelling the electric bike

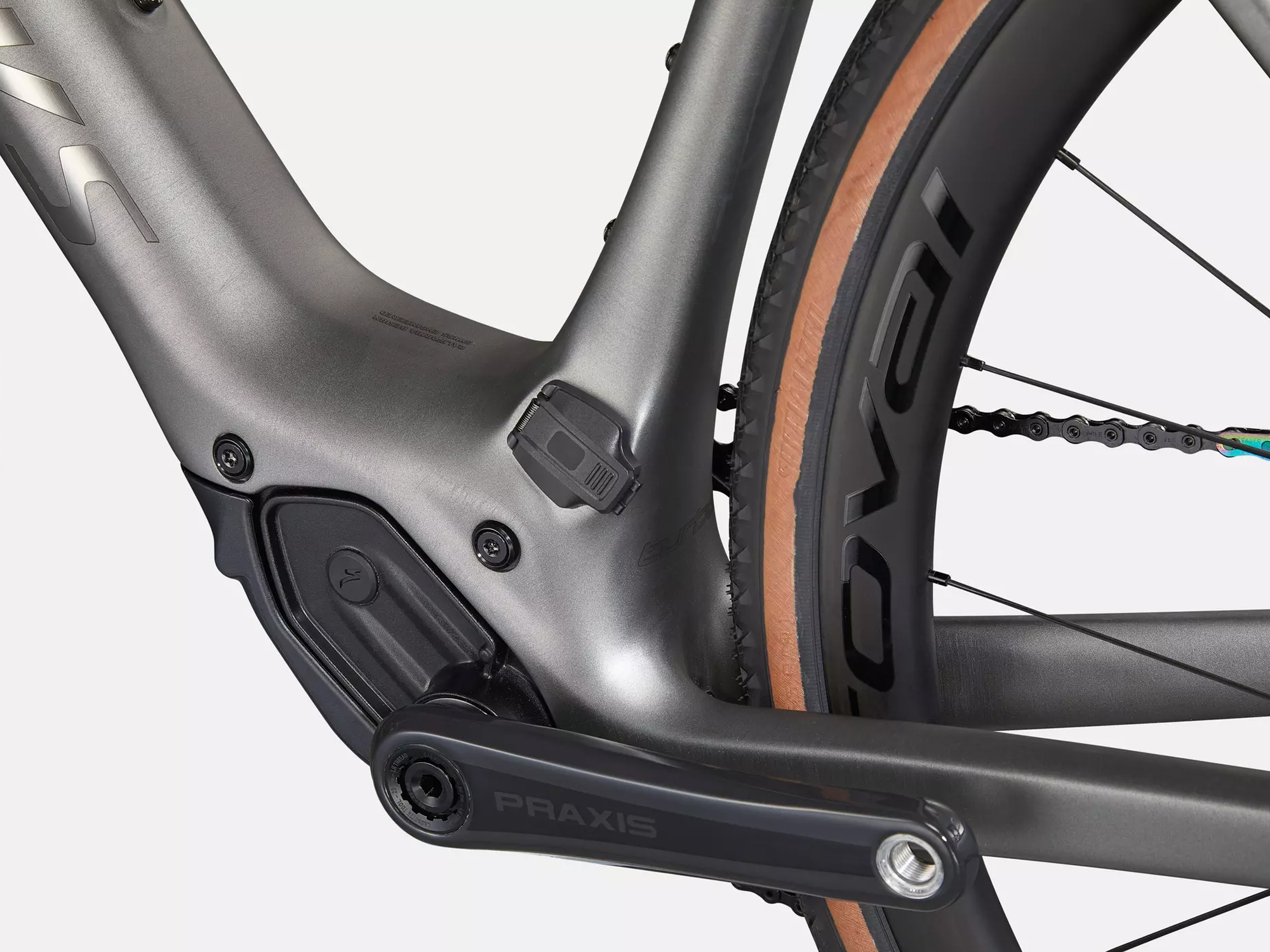

Specialized SL 1.1, custom lightweight motor
Motor Output

The measure of continuous power being produced by the motor, measured in watts

240

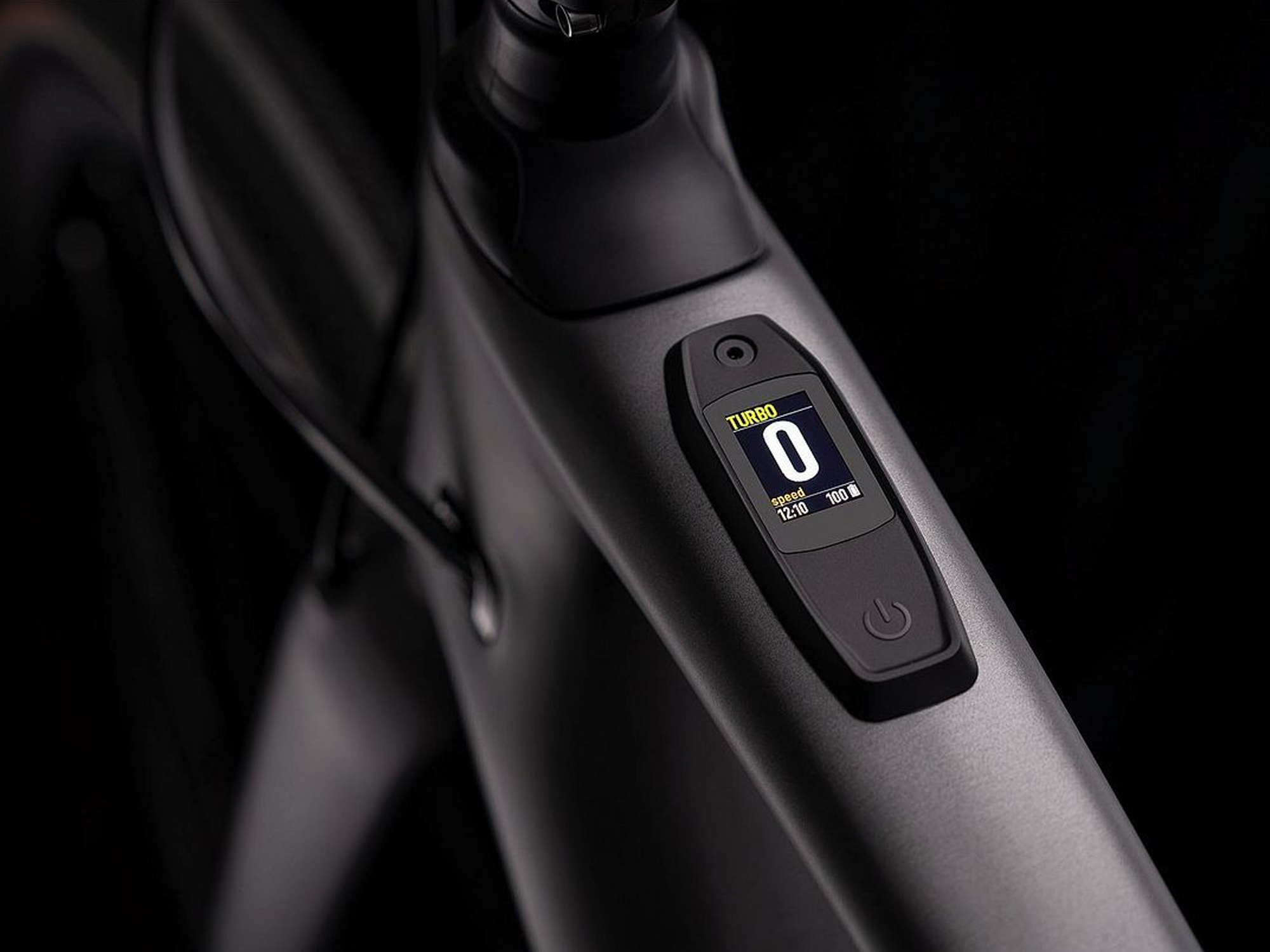

Display

A component that communicates ebike system information to the rider including battery charge level, assist setting, speed, and more

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, over-the-air updates, ANT+/Bluetooth, w/Handlebar remote
Smart Bike

An electric bike with advanced settings and feedback available to riders through a computer or smartphone application

Mission Control App
Battery Watt Hours

The measure of power capacity found by multiply voltage by amp hours ie 36V * 10ah = 360wh

320 Wh
Max Watt Hours

Some ebikes have multiple battery size options, this is the maximum capacity offered

320 Wh
Battery Details

Details about the power system of an ebike, may include the type of cells, battery chemistry, and manufacturer

Specialized SL1-320, fully integrated, 320Wh
Charger

A device that plugs into a standard power outlet and converts electricity to fill an electric bike battery

Custom charger, 48V System w/ SL system charger plug

Accessories

More Details

Availability

Additional details about the electric bike that did not fit into other categories

United States, Canada, Europe, Australia, New Zealand, South America
Warranty

Additional details about the electric bike that did not fit into other categories

Lifetime Frame (if registered), 2 Years Battery & Other

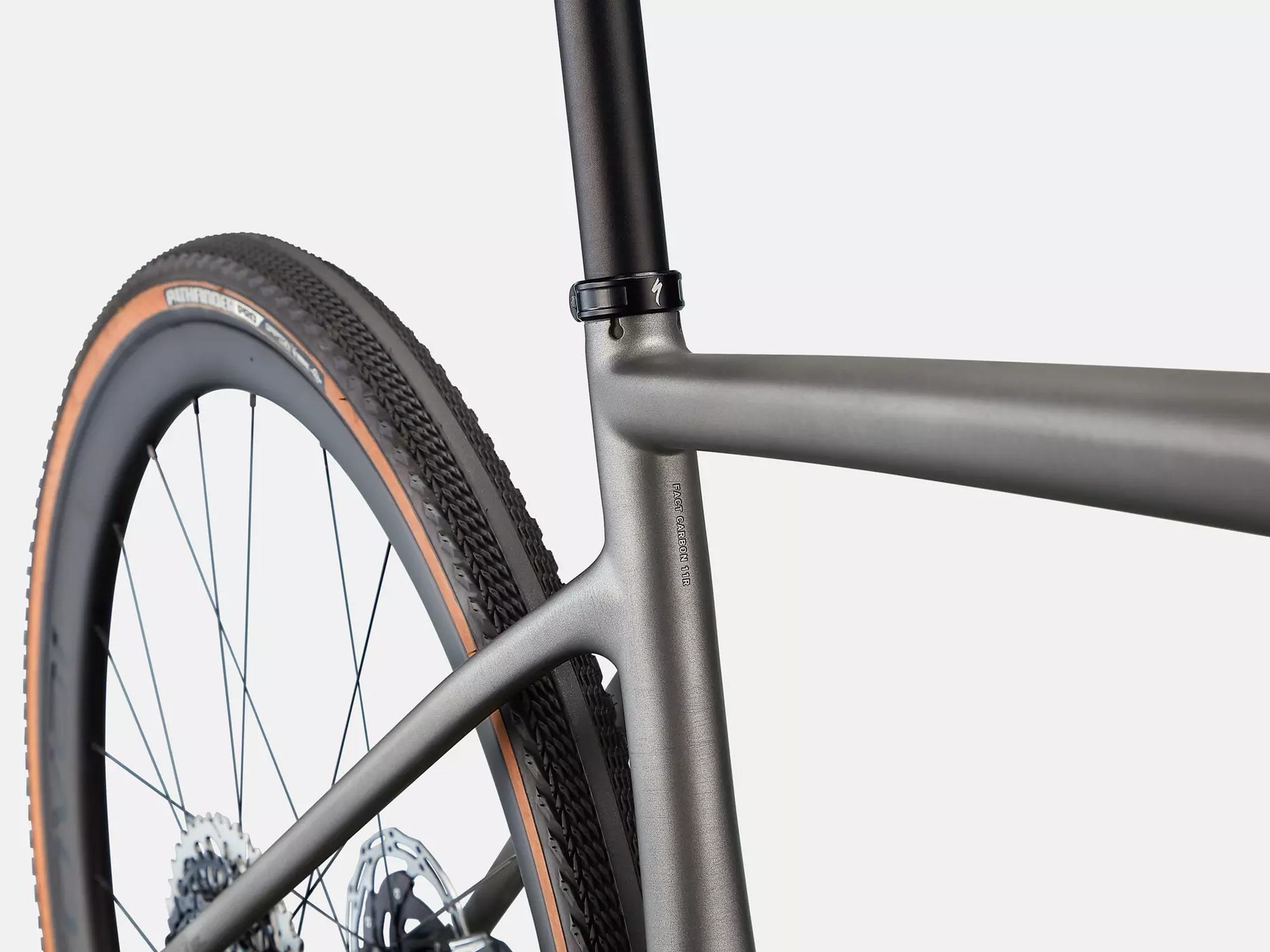

Seat Binder

Additional details about the electric bike that did not fit into other categories

Specialized Alloy, 30.8mm

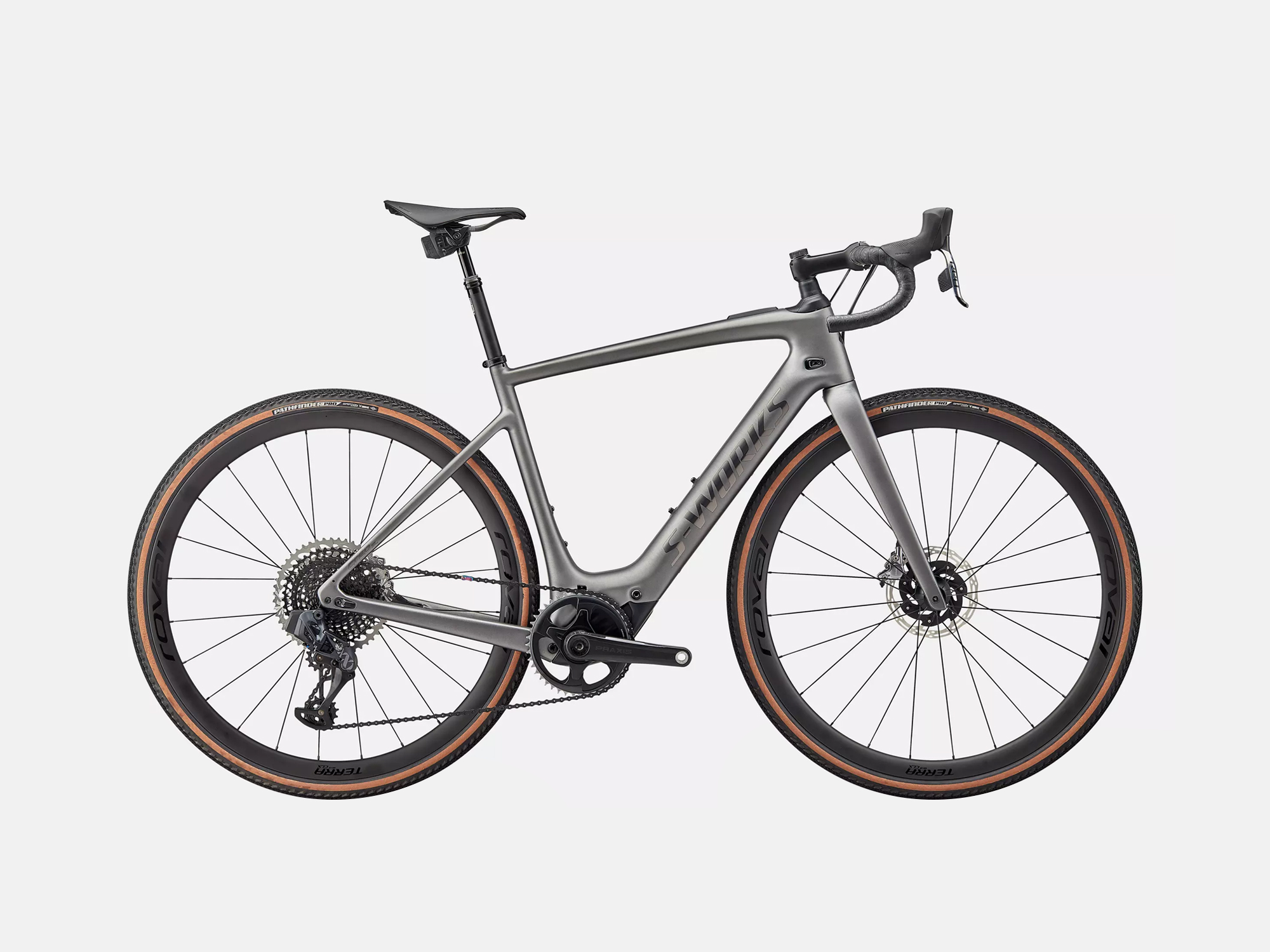

Frame Colors

Additional details about the electric bike that did not fit into other categories

Brushed/Smoked Liquid Metal/Black Liquid Metal

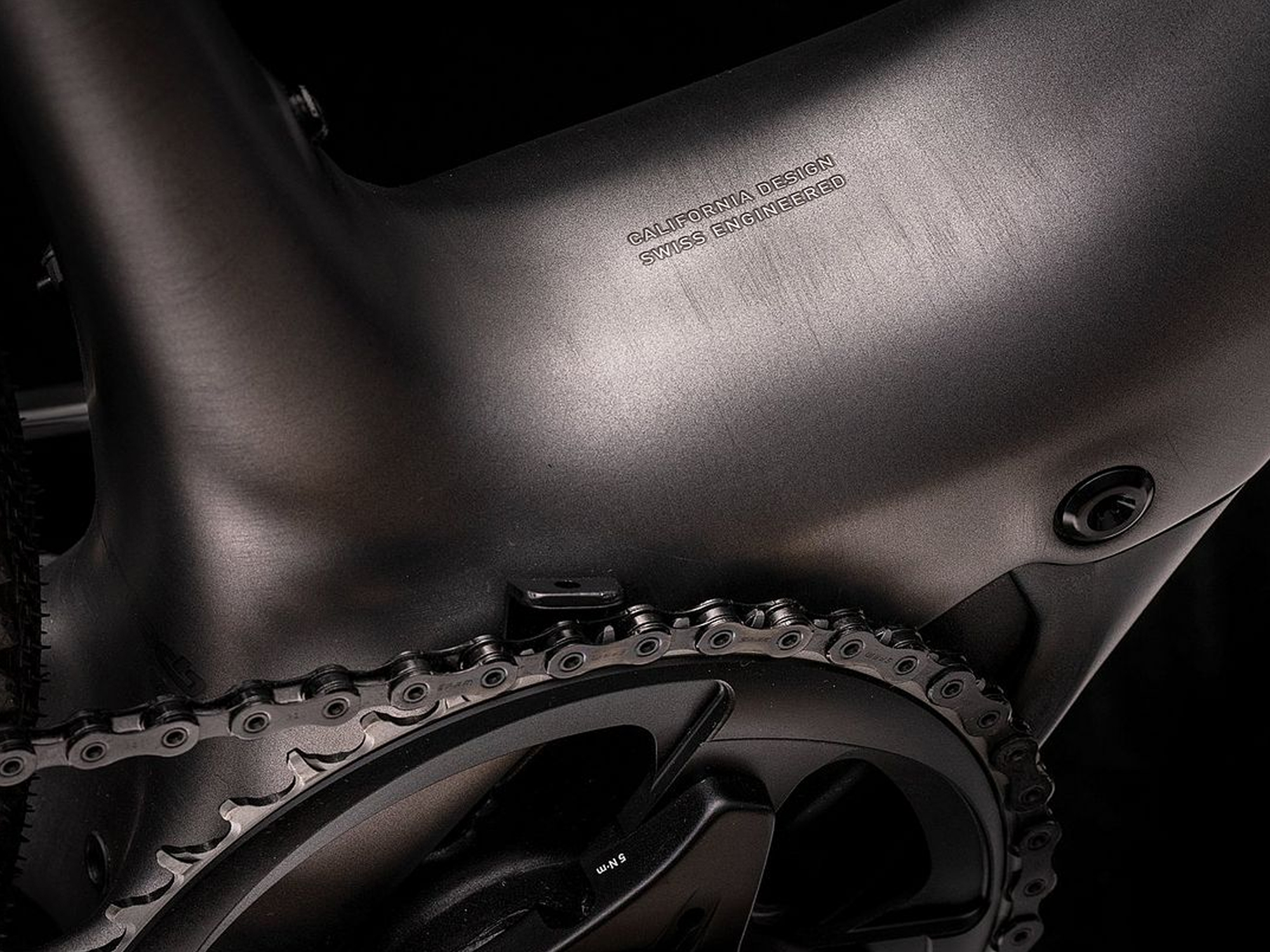

Chain

Additional details about the electric bike that did not fit into other categories

SRAM XX1 Eagle
Wiring Harness

Additional details about the electric bike that did not fit into other categories

Custom Specialized wiring harness w/ chargeport

Shops pay to appear on this list, learn more

Video Reviews

Written Reviews

The Turbo Creo SL EVO is a versatile electric bike designed to take riders on adventures across a variety of terrains. It shares the same motor, battery, and frame as its road-oriented counterpart but offers enhanced tire clearance and adventure-ready components.

The pinnacle build of the Turbo Creo SL EVO features a FACT 11r chassis and Future Shock 2.0 with a hydraulic damper, providing a smooth and controlled ride. The 1x build includes SRAM Red AXS eTap, a SRAM XX1 Eagle rear derailleur, and a 10-50t cassette, offering an exceptional gear range.

Equipped with Roval Terra CLX Disc carbon wheels and 38mm Pathfinder Pro 2Bliss Ready tires, the Turbo Creo SL EVO ensures worry-free and high-speed rolling on any terrain. The bike also features Roval Terra carbon bars with 12 degrees of flare, a S-Works Future Stem, a SRAM Reverb AXS dropper seatpost, and a Body Geometry S-Works Power saddle, providing comfort and control during long rides.

The Creo SL is known for being lightweight thanks to its light and stiff FACT 11r carbon frame. The SL 1.1 motor provides up to 240 watts of silent and powerful assistance, amplifying the rider's effort. With a responsive torque curve, the motor delivers power in sync with the rider's cadence, ensuring a seamless riding experience.

The internal battery offers up to 80 miles of range, with an optional range extender providing an additional 40 miles of power. The Specialized app allows riders to customize the motor settings, record rides, and monitor the battery, ensuring optimal performance and range. The motor also features a built-in power meter that transmits data to any ANT+ head unit.

The Future Shock 2.0 reduces fatigue and increases speed, offering more control via a knob atop the stem. The hydraulically-damped internals control rebound, while the new Smooth Boot, top cap, and Future Stem enhance the bike's aesthetic appeal.

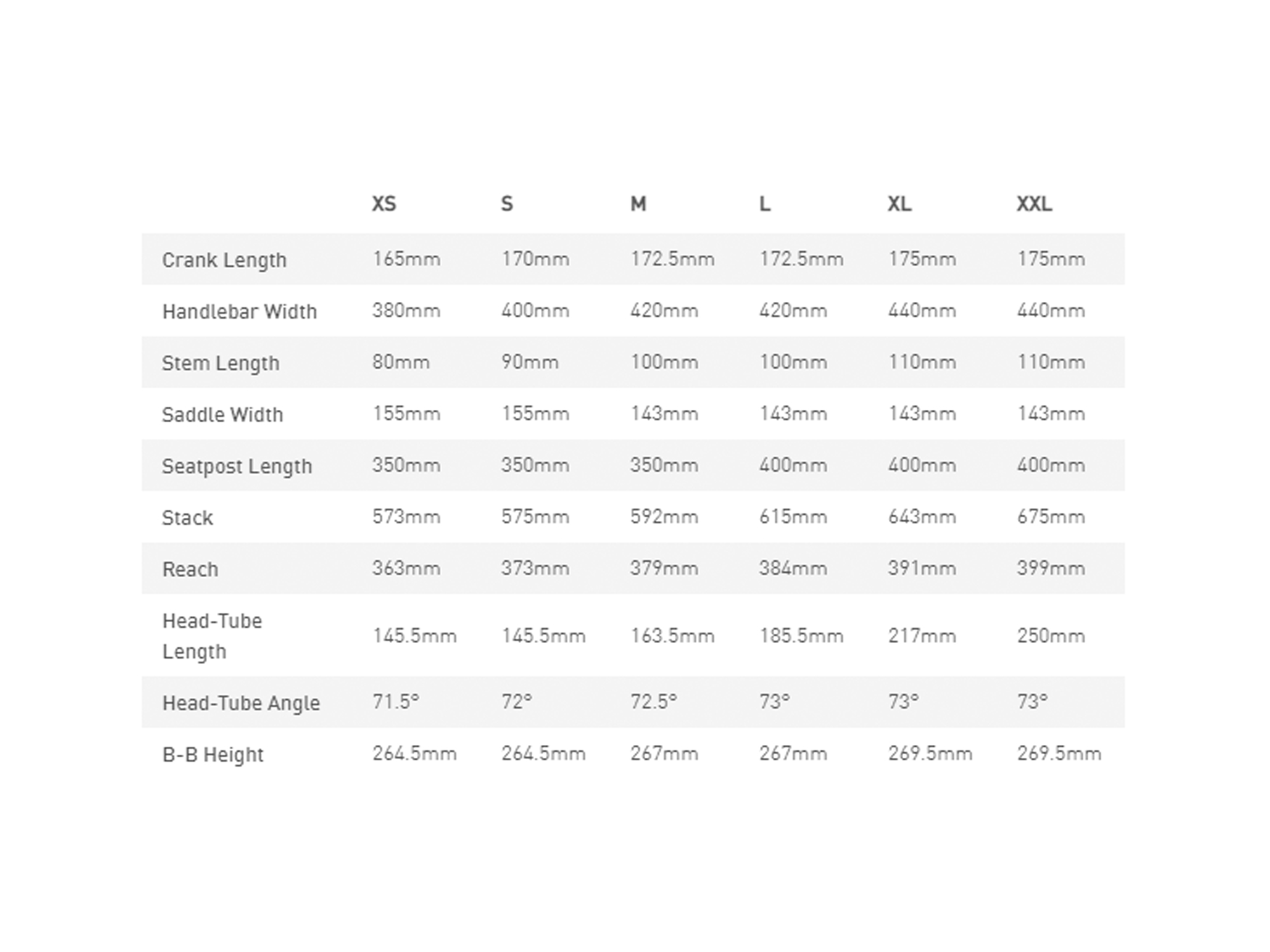

The Turbo Creo SL EVO features an easily approachable gender-neutral geometry designed to accommodate all riders, offering comfort and agility on the road while delivering the attributes of a proper gravel bike, such as a long wheelbase, raked-out fork, and low bottom bracket for stability at high speeds and control in corners.
