Total Weight:
28.25 lbs (12.81 kg)
Battery Weight:
4.5 lbs (2.04 kg)
Frame Material:
Carbon Fiber
Geometry Measurements:

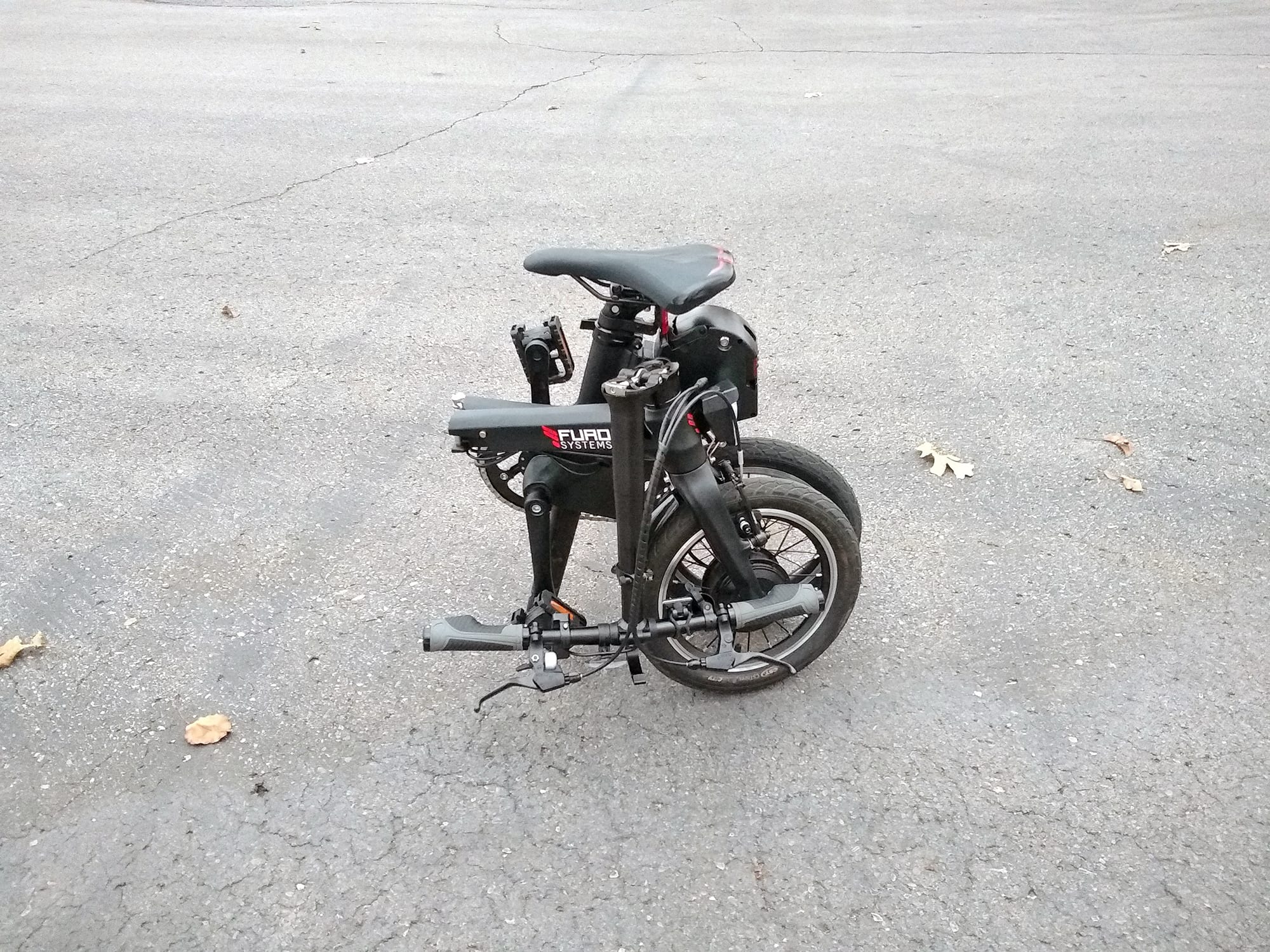

11" Seat Tube, 19.5" Reach, 16" Stand Over Height, 27" Minimum Saddle Height, 20.5" Width, 45.5" Length (Folded: 16" Length, 26.5" Width, 25" Height)
Frame Types:
Folding
Frame Colors:
Matte Black
Frame Fork Details:
Carbon Fiber, 80mm Hub Spacing, 12mm Keyed Threaded Axle with 17mm Nuts
Frame Rear Details:
85mm Hub Spacing, Horizontal Dropout with Hollow Threaded Axle
Attachment Points:
Front and Rear Fender Bosses

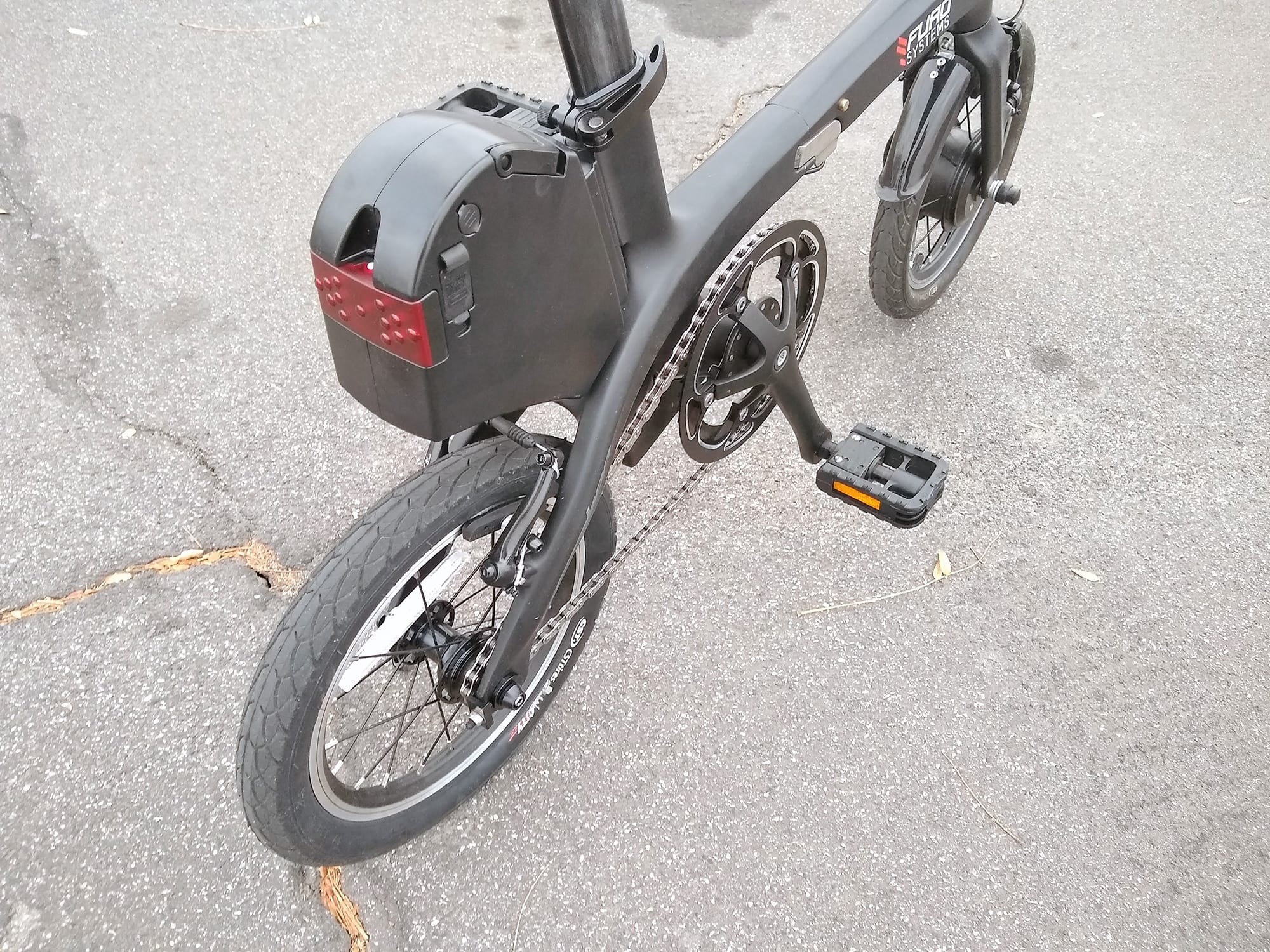

Gearing Details:
1
Single Speed with 9 Tooth Rear SprocketCranks:

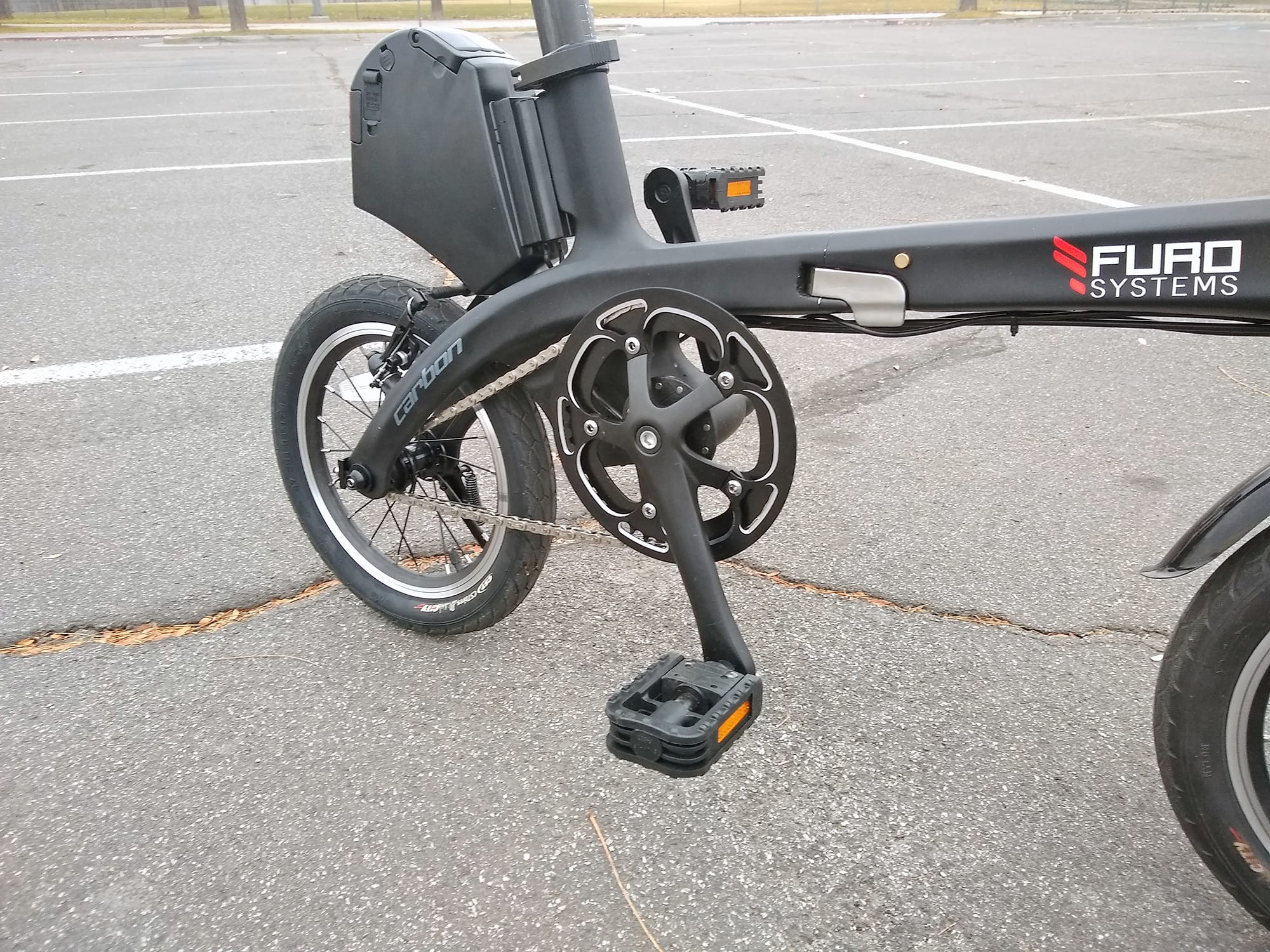

Forged Aluminum Alloy Arms, 170mm Length, Square Taper Bottom Bracket Spindle, 48 Tooth Chainrings with Metal Guard
Pedals:
Syun-LP F-586 Plastic Folding Pedal
Headset:
Integrated, Sealed Bearing, Straight 1.5"

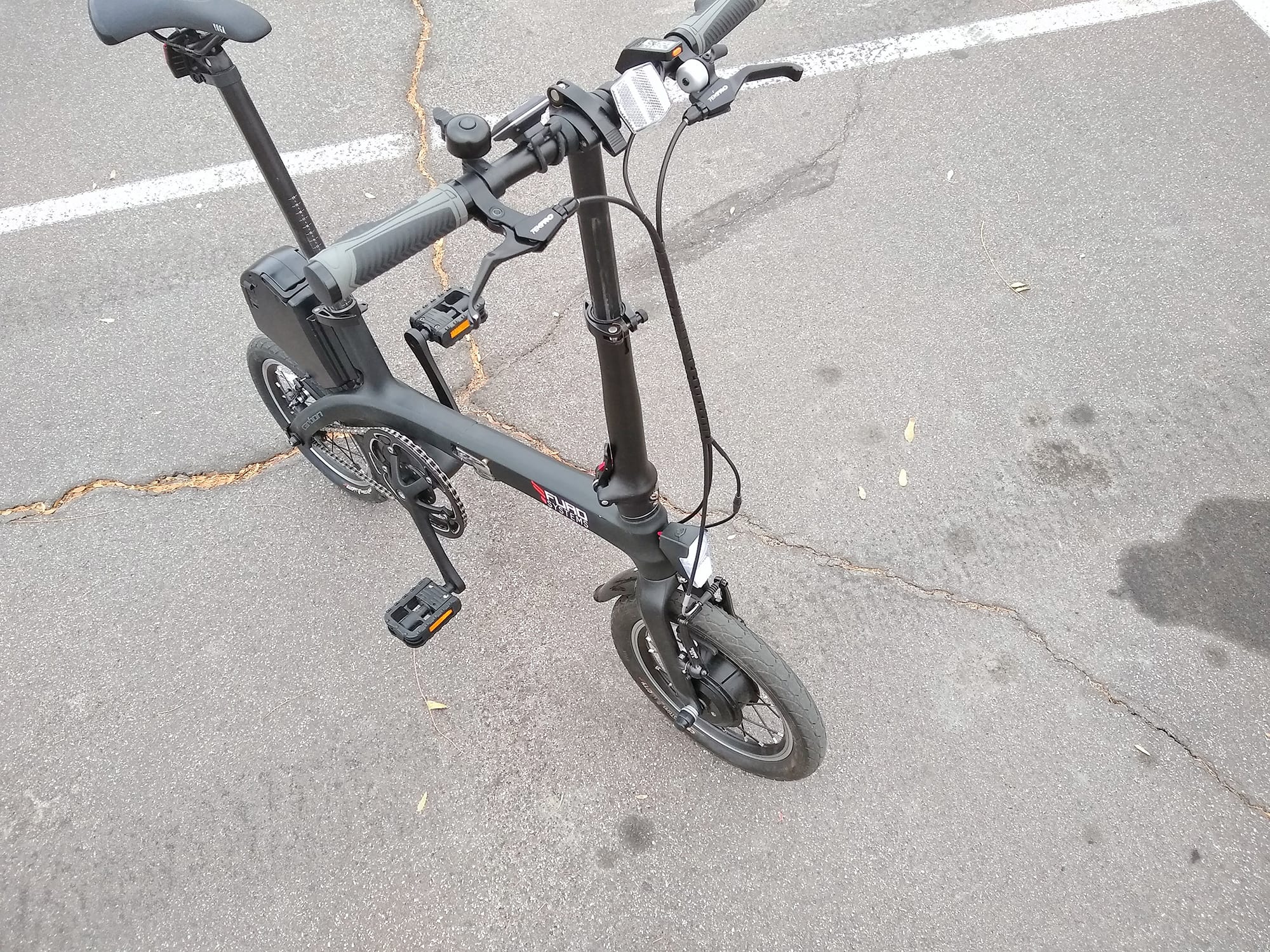

Stem:
Aluminum Alloy, Folding, Telescoping Height (20mm to 160mm), 270mm Base Height, One 10mm Spacer, 25.4mm Clamp Diameter

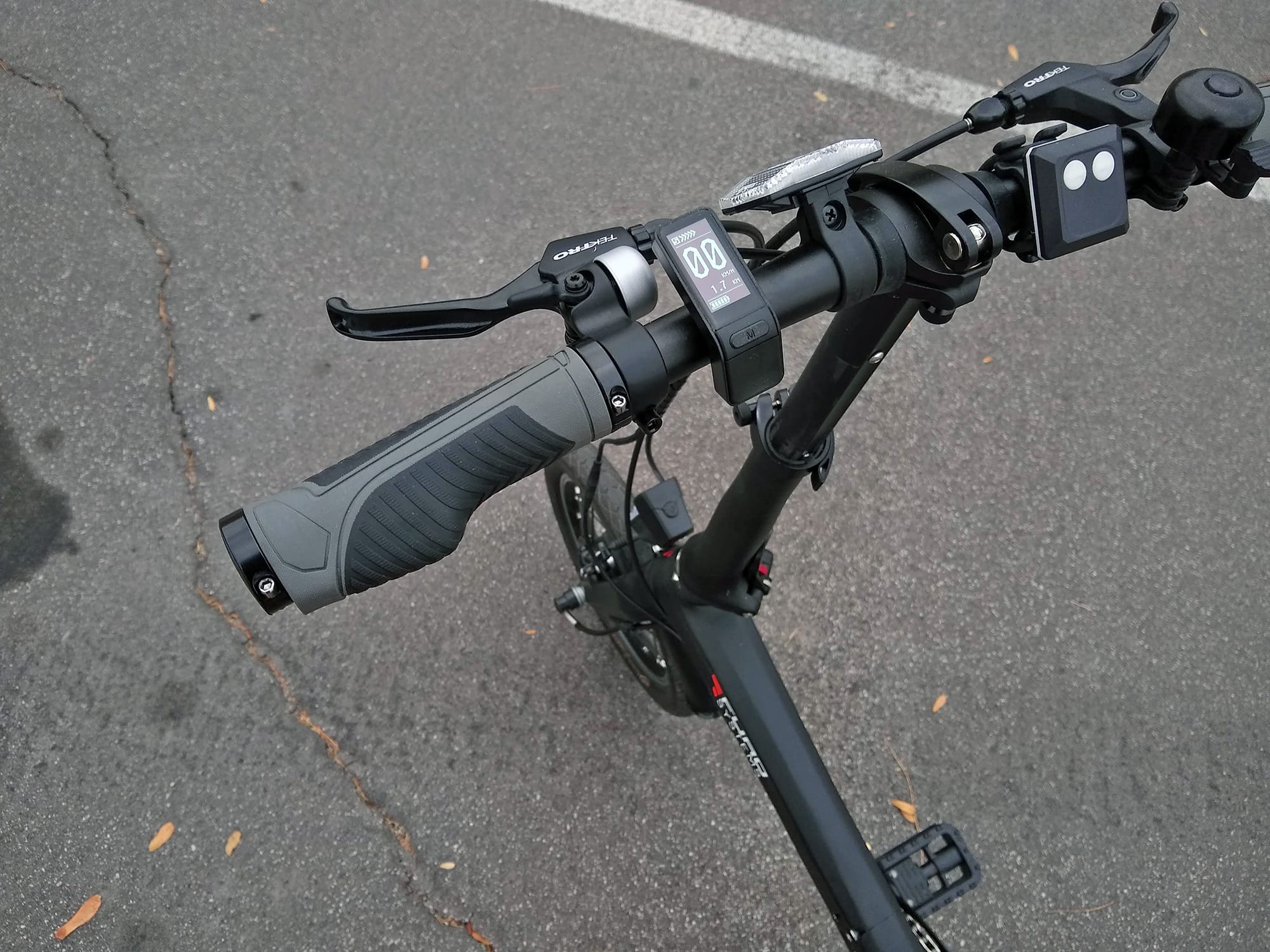

Handlebar:
Aluminum Alloy, 5º Backsweep, 500mm Width
Brake Details:
Cantilever Tektro RX1, Three-Finger Levers with Integrated Bell
Grips:
Gray Rubber with Ergonomic Edge, Locking Rings
Saddle:
Selle Royal Voga Saddle
Seat Post:
Aluminum, Tear-Drop Shape with Quick Release Collar and Plastic Foot
Seat Post Length:
580 mm
Rims:
Aluminum Alloy, Double Walled, 22mm Outer Width, 20 Hole, Black
Spokes:
Stainless Steel, 11 Gauge Front 12 Gauge Rear, Black
Tire Brand:
CST,14" x 1.75" (47-254)
Wheel Sizes:
14 in (35.56cm)Tire Details:
35 to 45 PSI, 2.4 to 3.1 BAR
Tube Details:
Schrader Valve
Accessories:

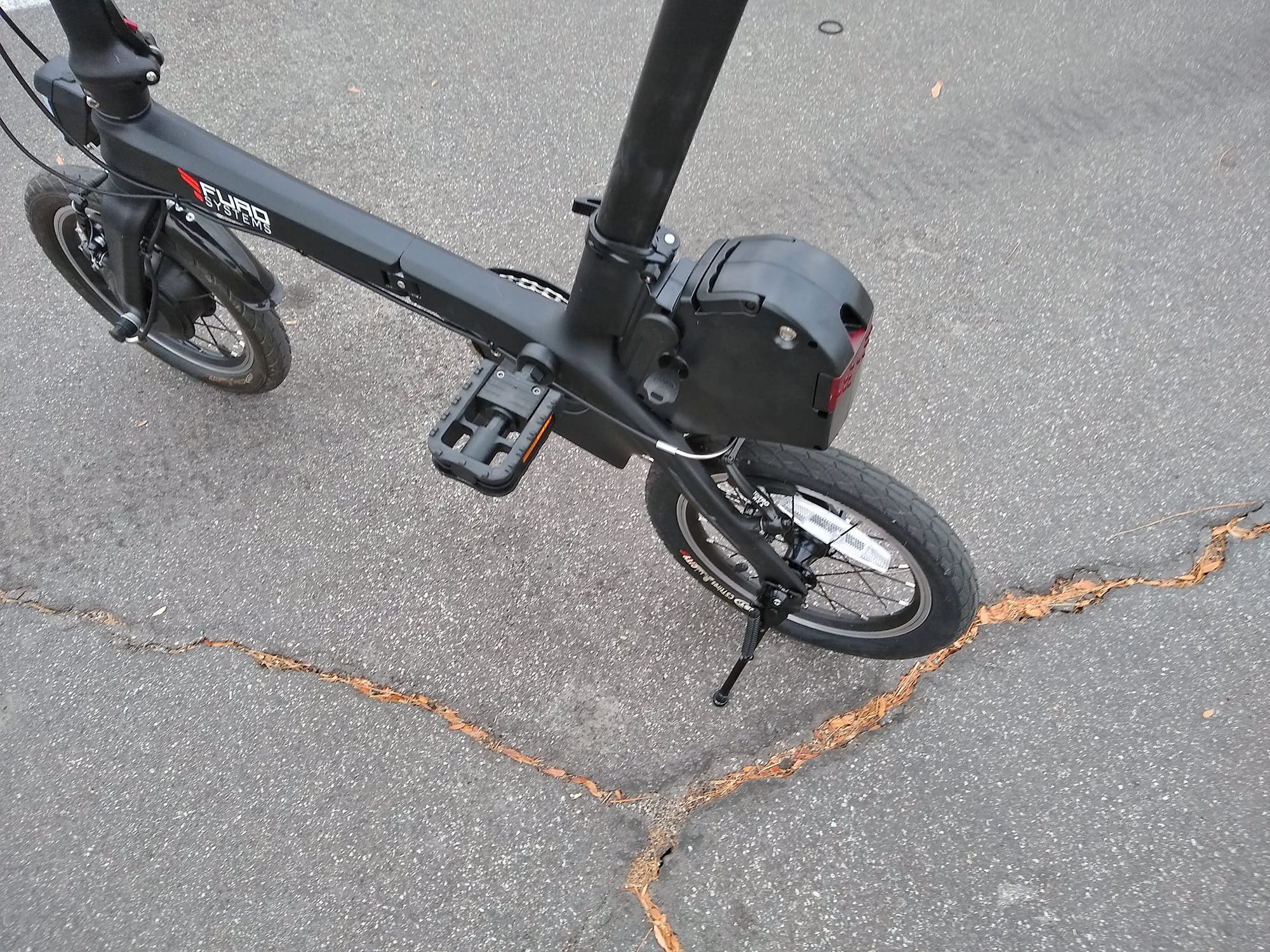

Front Fender (50mm Width), Battery Integrated LED Turn Signals, Battery Powered LED Headlight, Rear Mount Kickstand (Forked in Rear Axle Bolt)
Other:

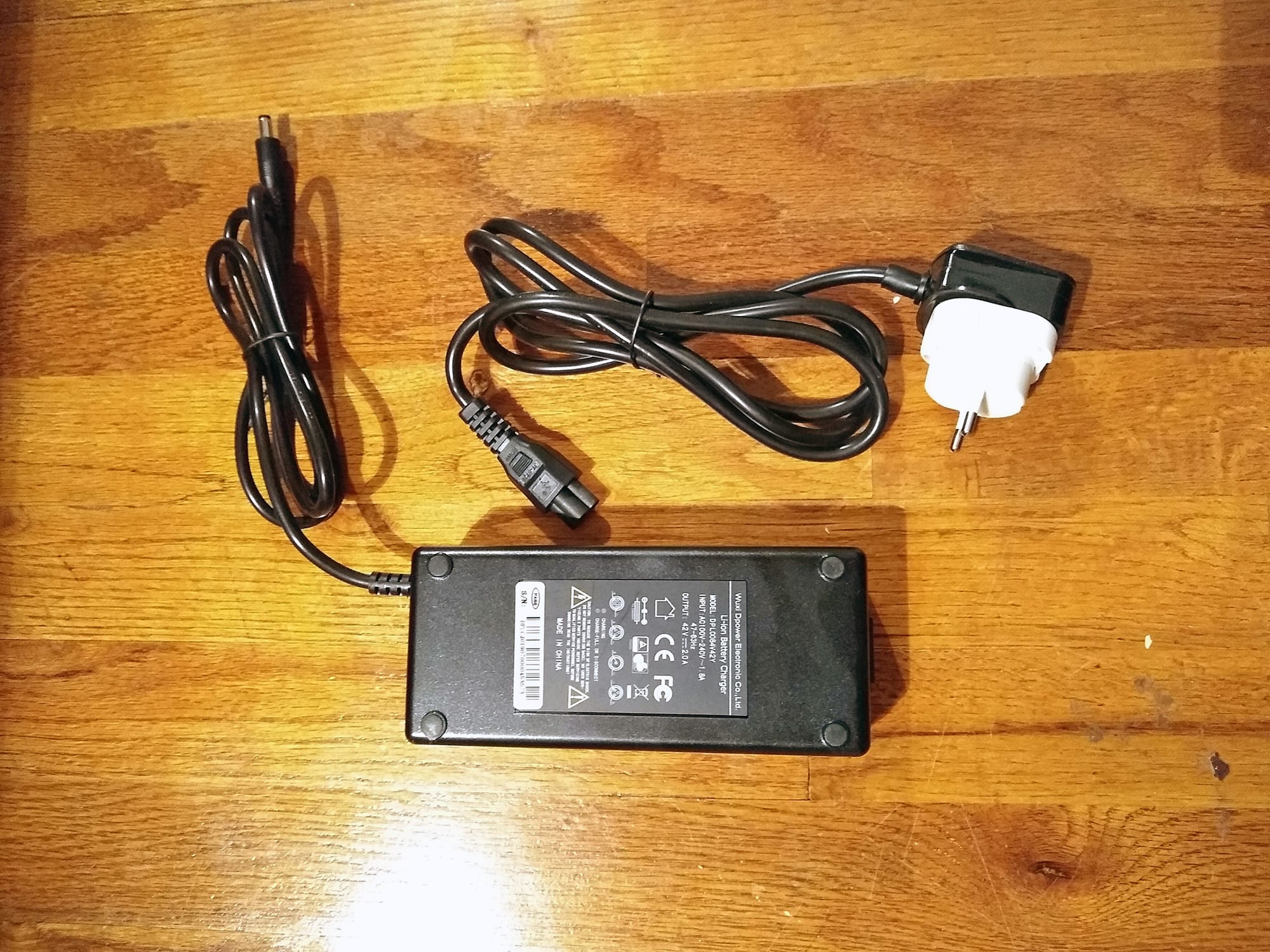

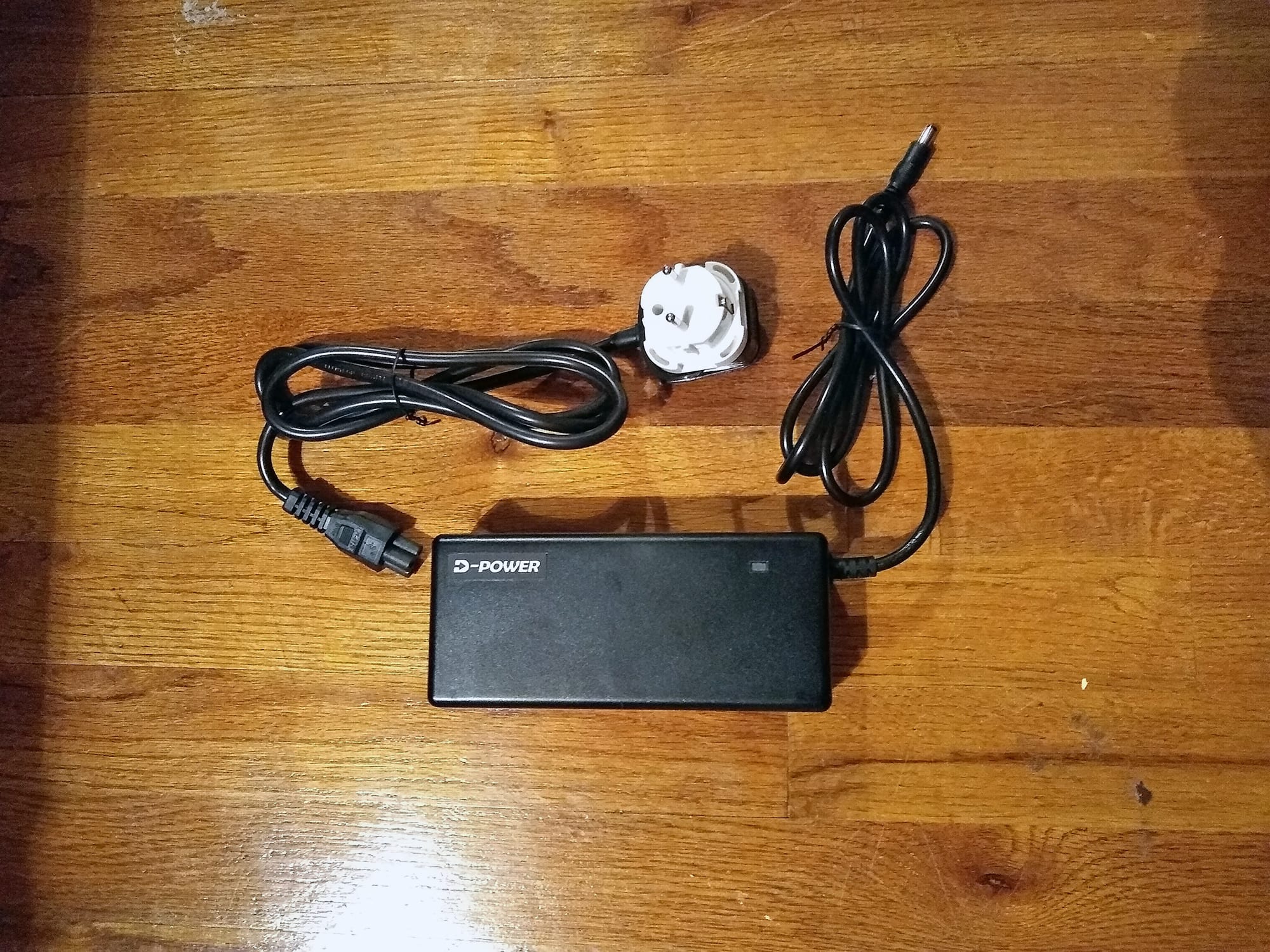

Locking Removable Seattube Mounted Battery Pack, D-Power 1.3lb 2 Amp Charger, Basic Assembly Toolkit, 220lb Max Load (Not Tested by EBR)
