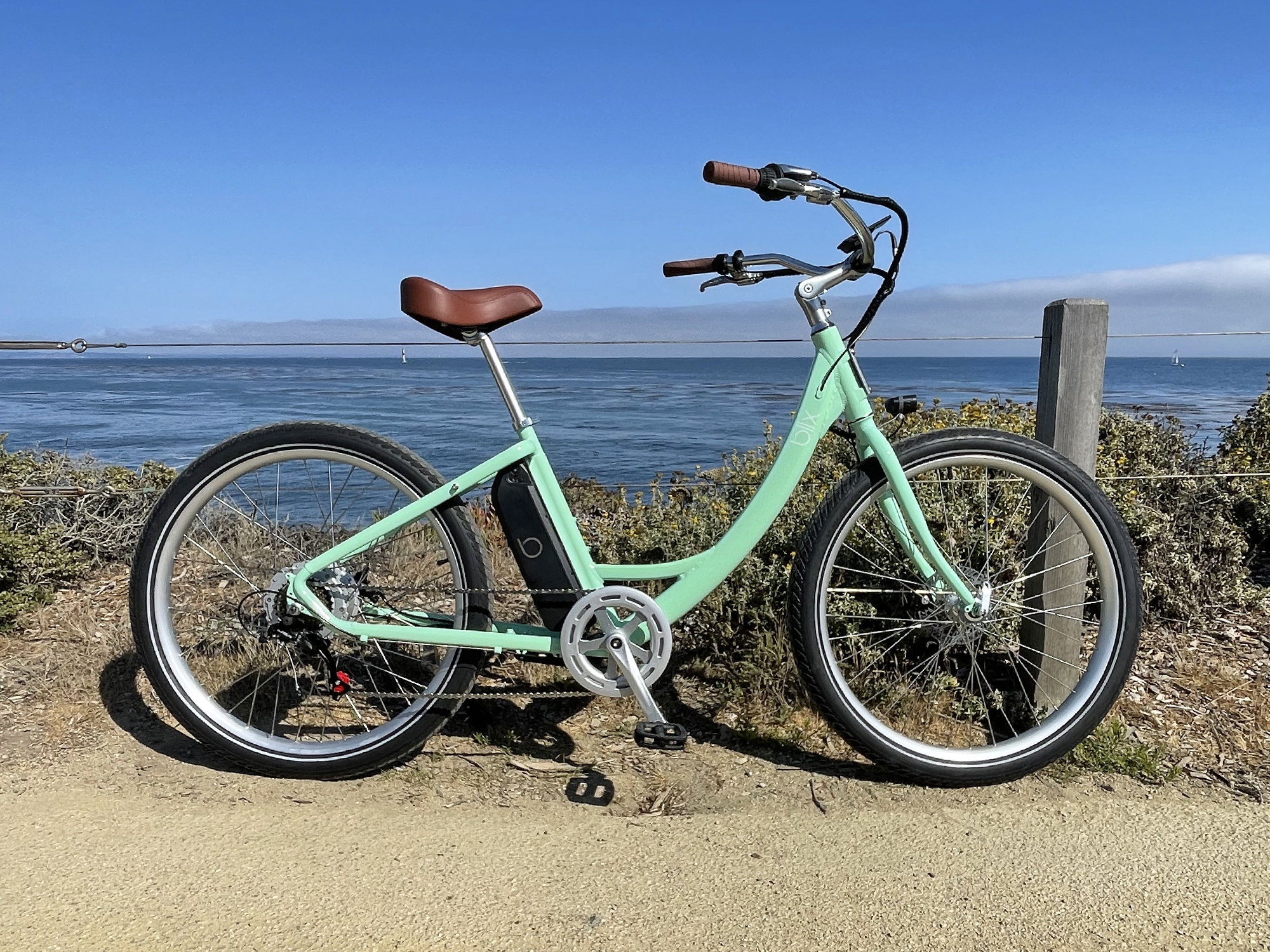

2022 Blix Sol Eclipse

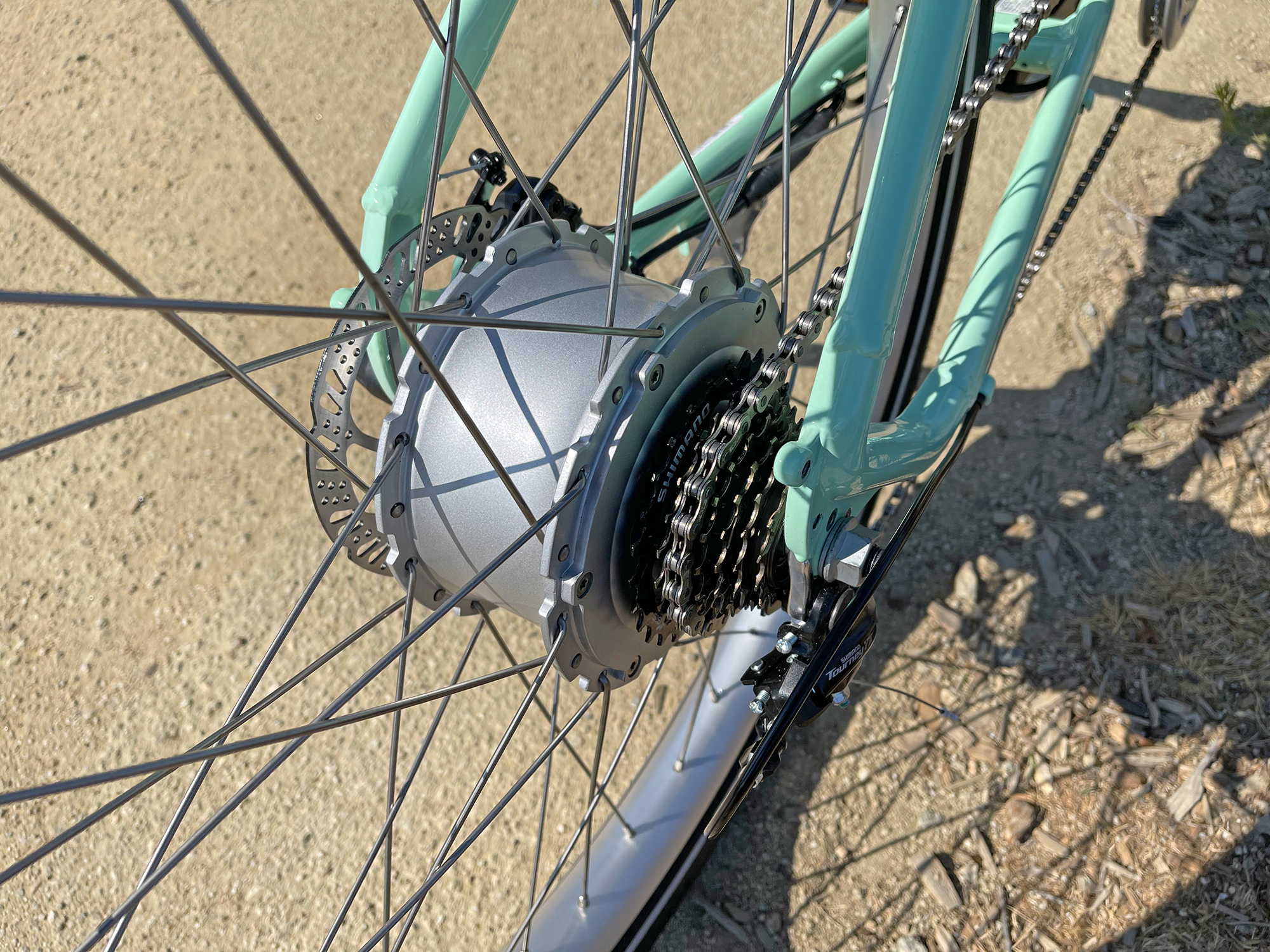

2022 Blix Sol Eclipse Shengyi Dgw25 Geared Hub Motor Silver

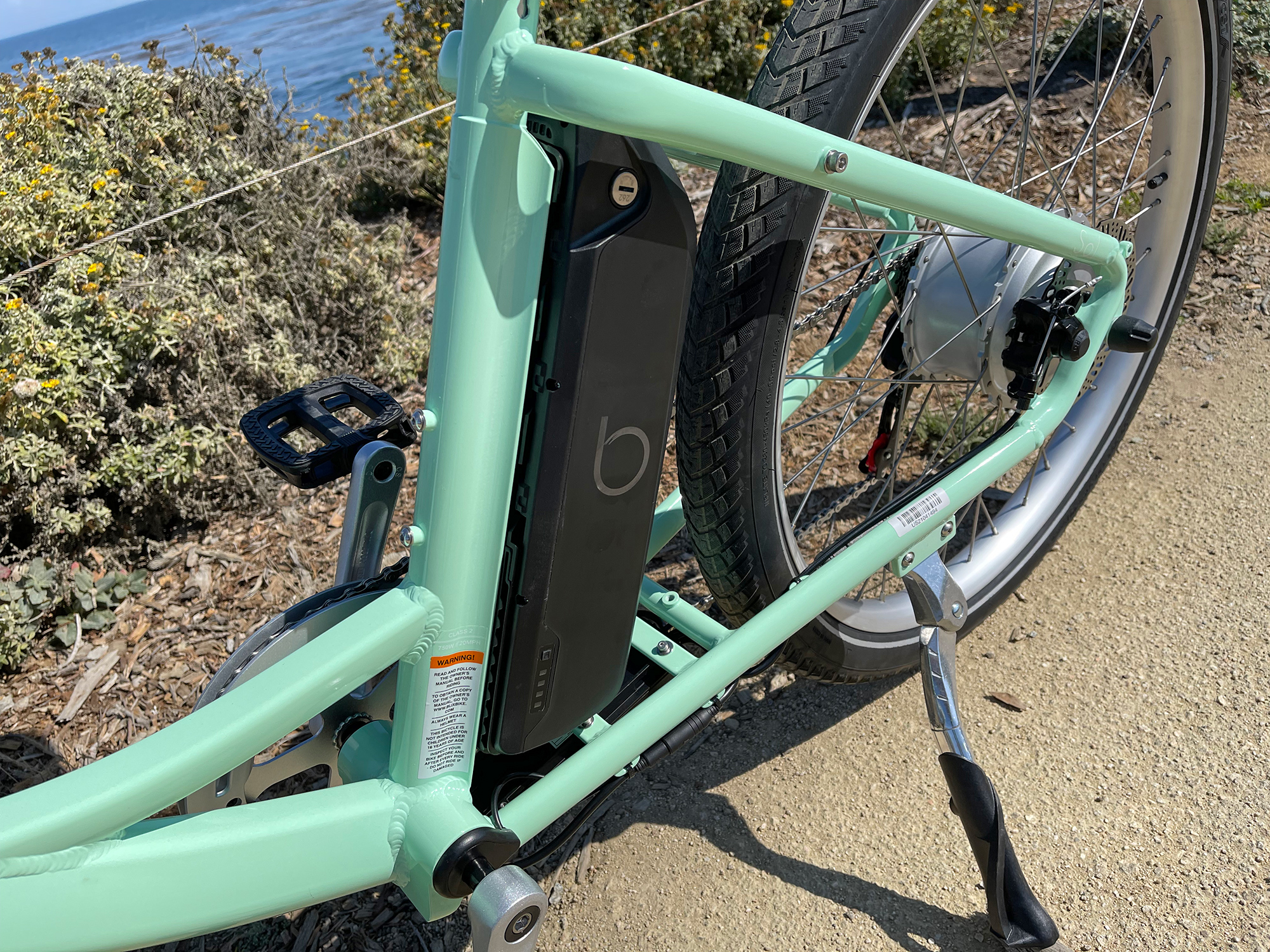

2022 Blix Sol Eclipse Sealed Cadence Sensor Bottom Bracket And Battery Mount

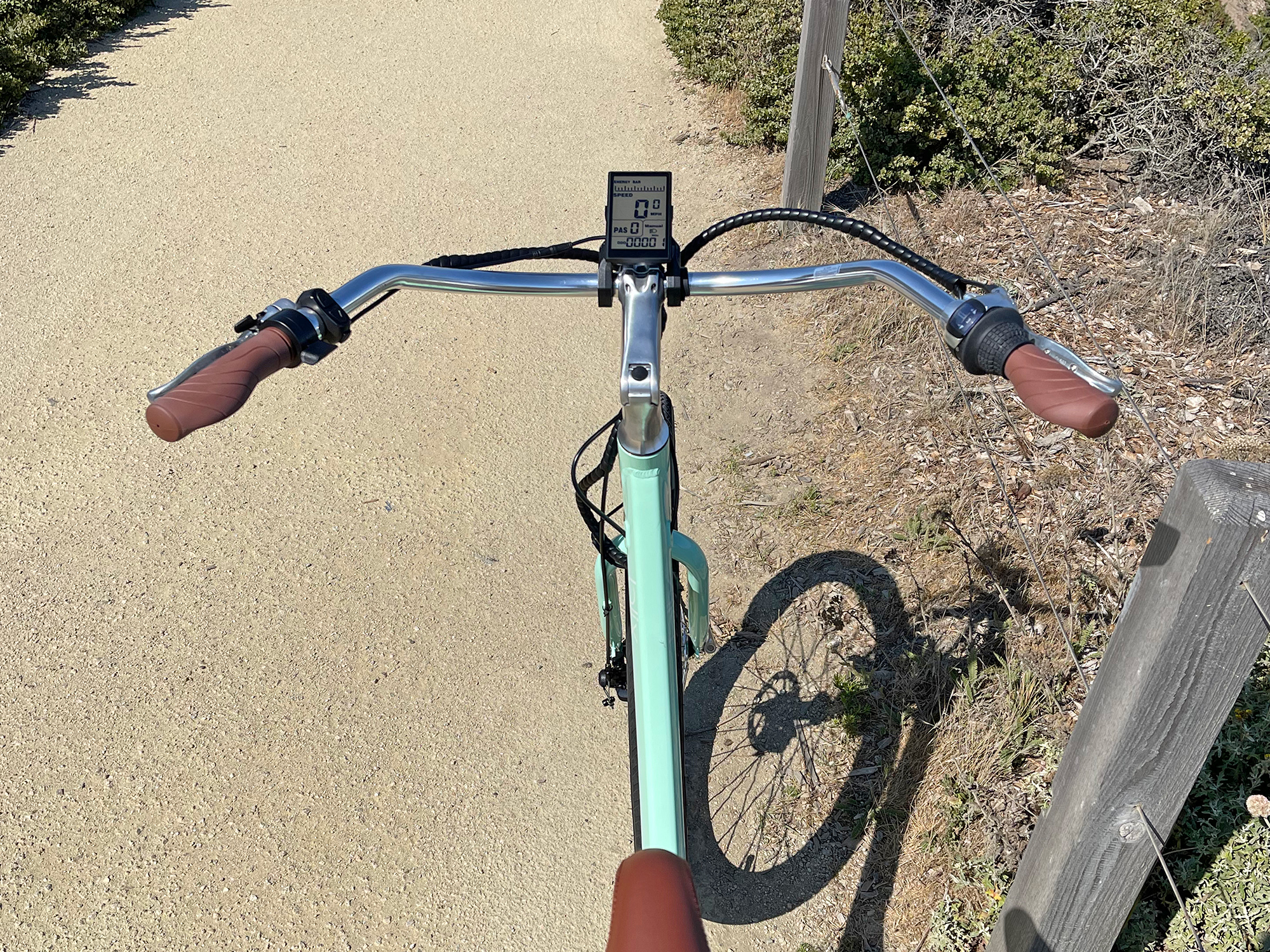

2022 Blix Sol Eclipse Wide Cruiser Handlebar Ergonomic Grips Adjustable Angle Stem

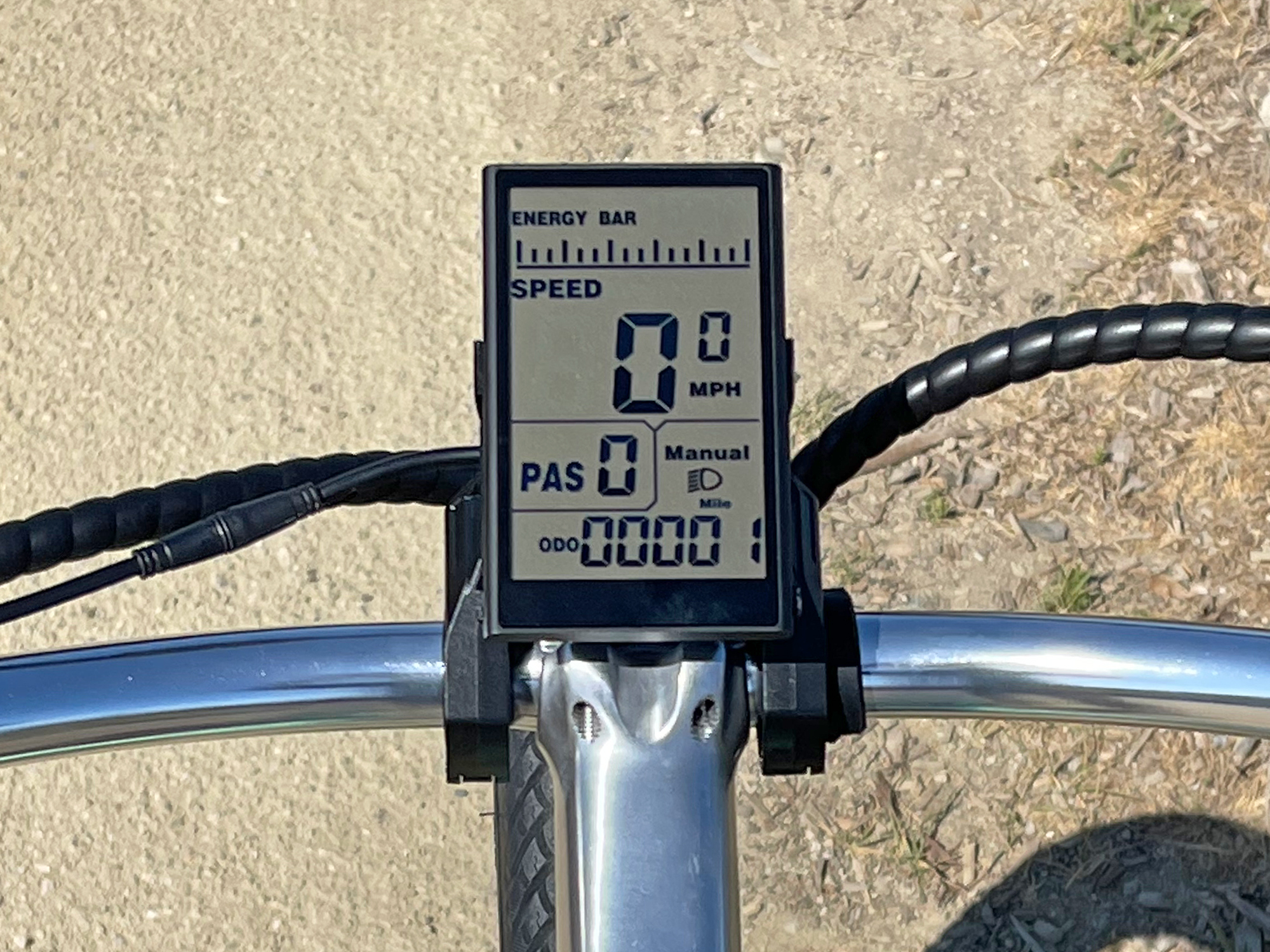

2022 Blix Sol Eclipse Large King Meter Nokee U Lcd Display

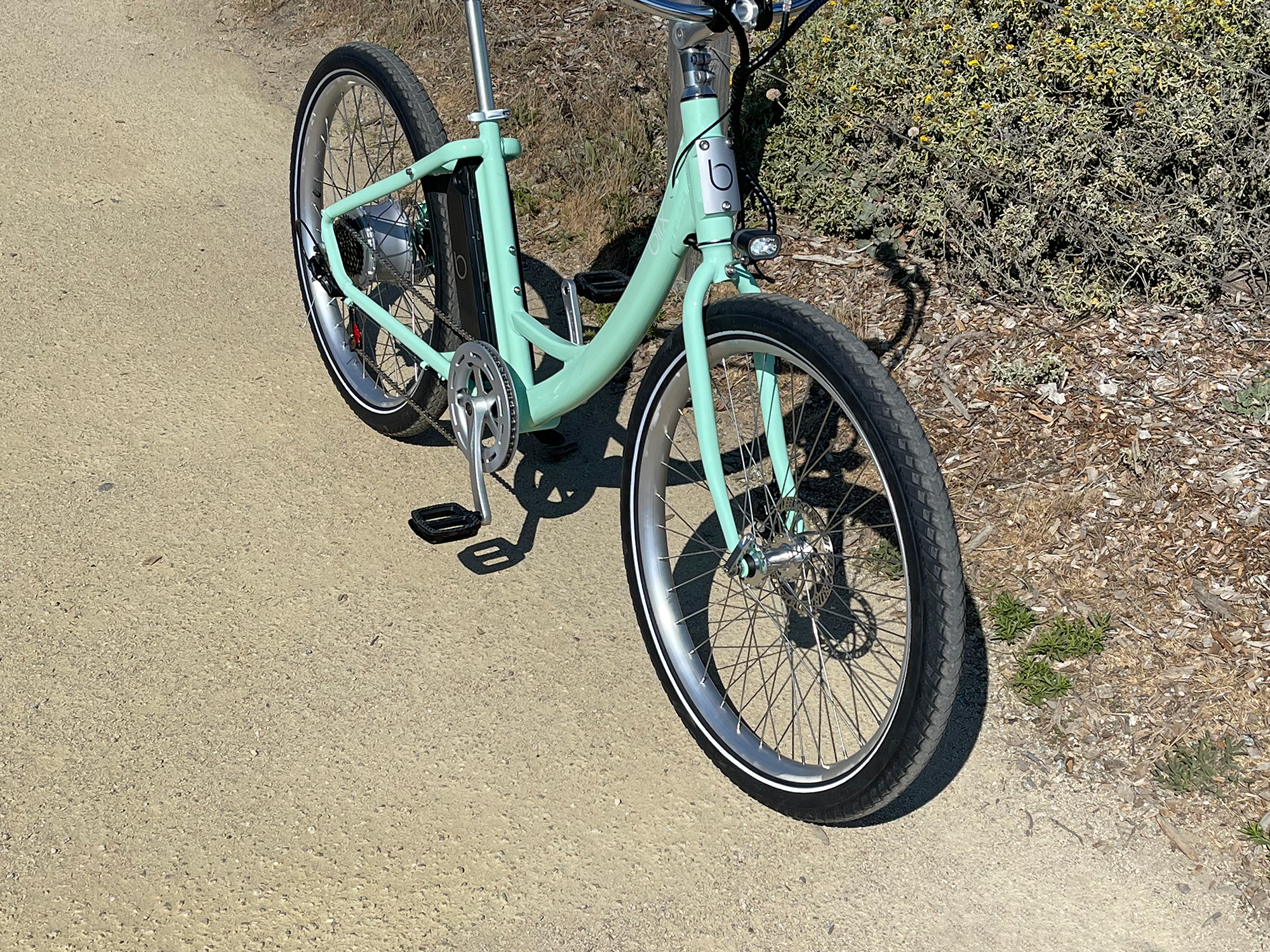

2022 Blix Sol Eclipse Cst 27 5 Cruiser Tires With Reflective Sidewall Stripes

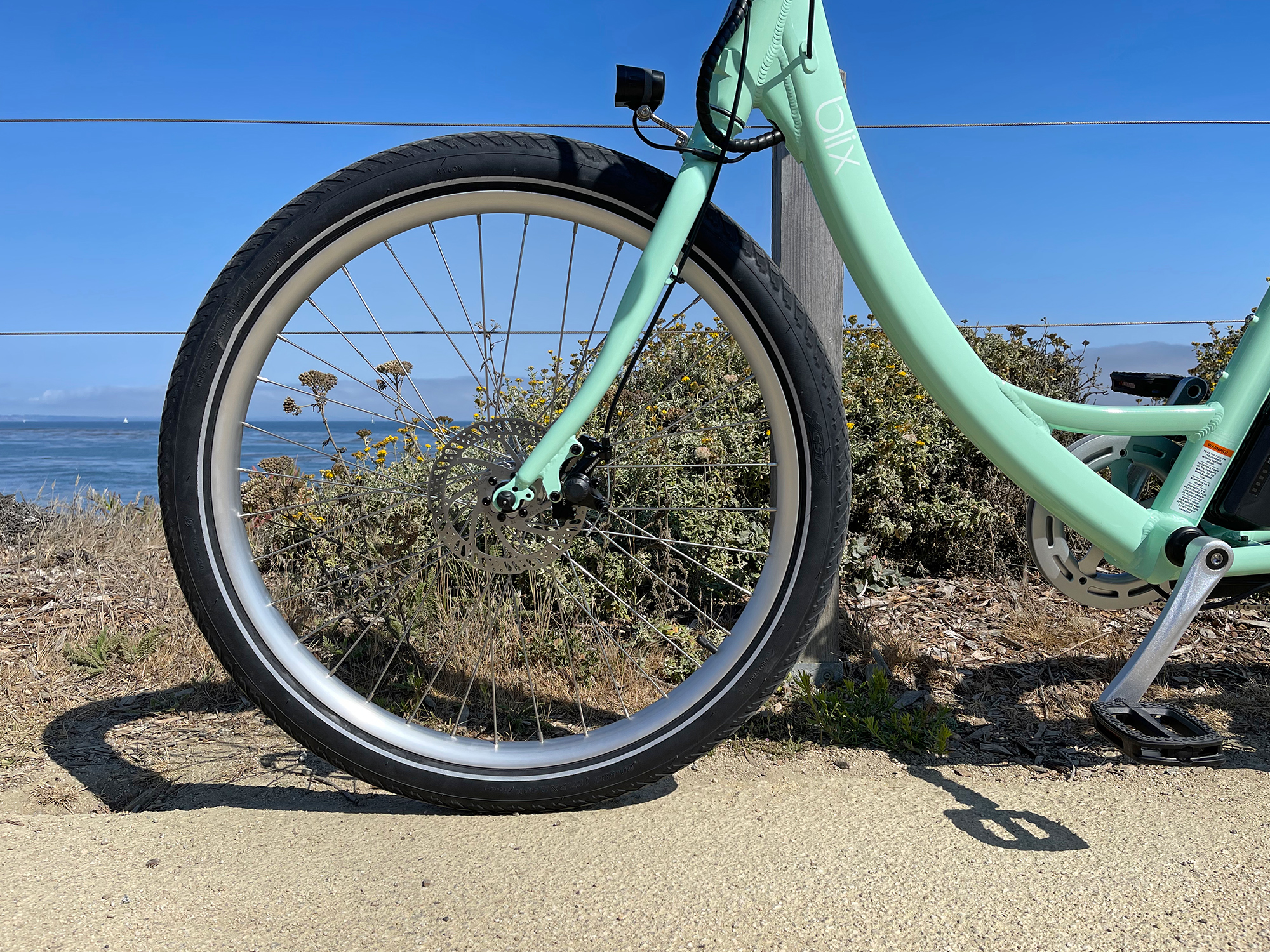

2022 Blix Sol Eclipse Tektro Aries Mechanical Disc Brakes 160mm Rotors

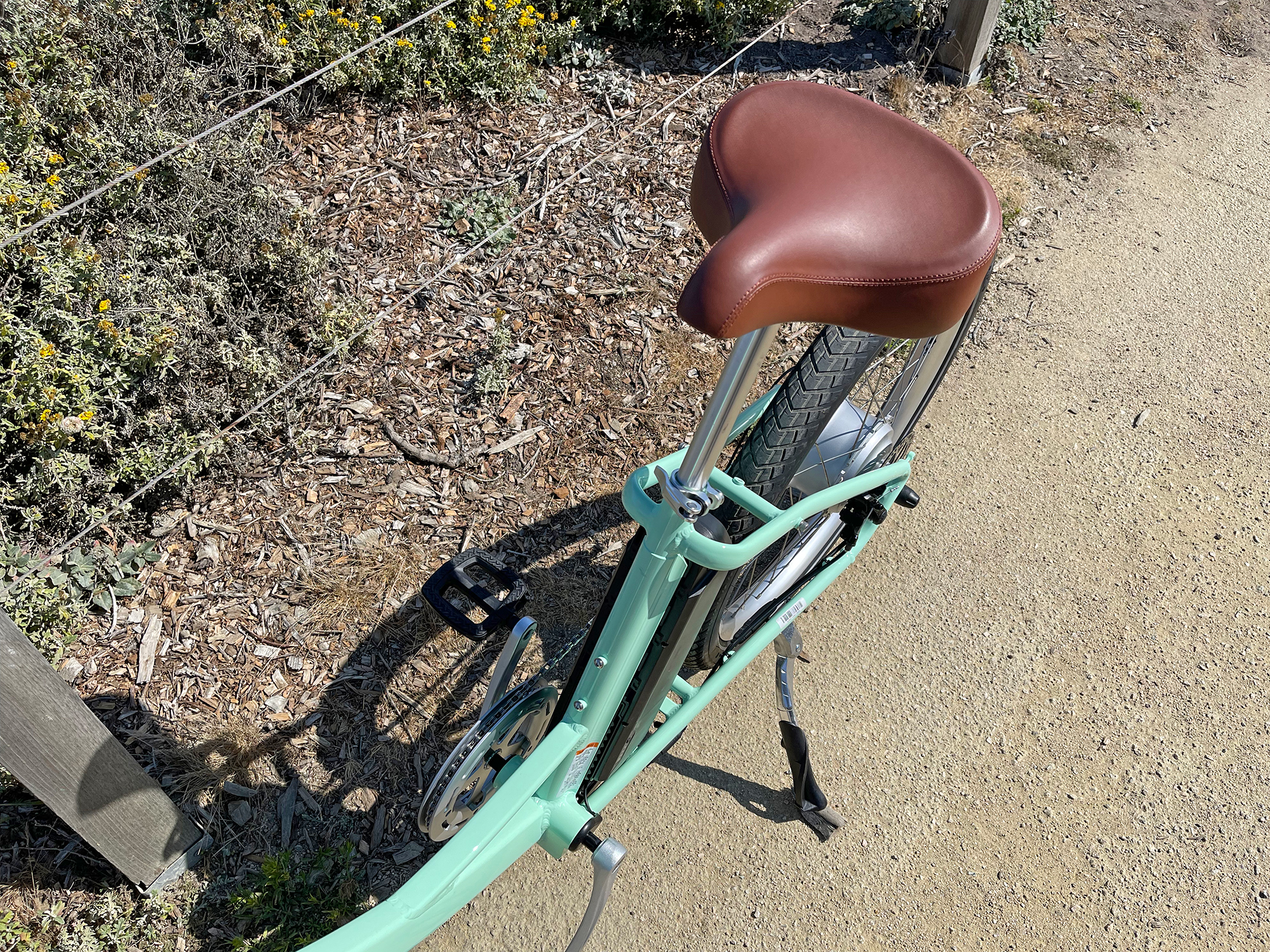

2022 Blix Sol Eclipse Oversized Comfort Saddle And Bottle Cage Bosses

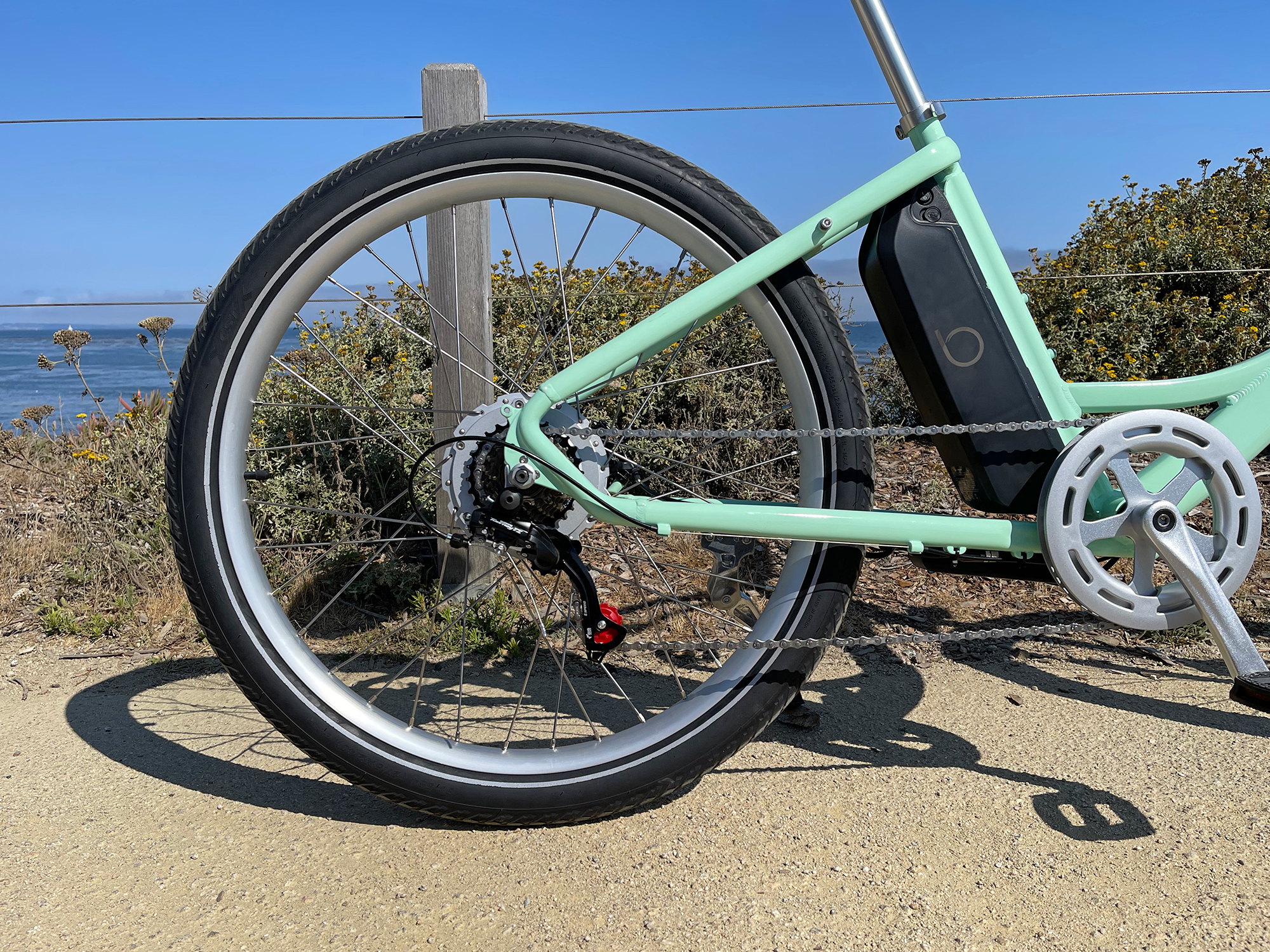

2022 Blix Sol Eclipse 7 Speed Shimano Tourney Tz Drivetrain

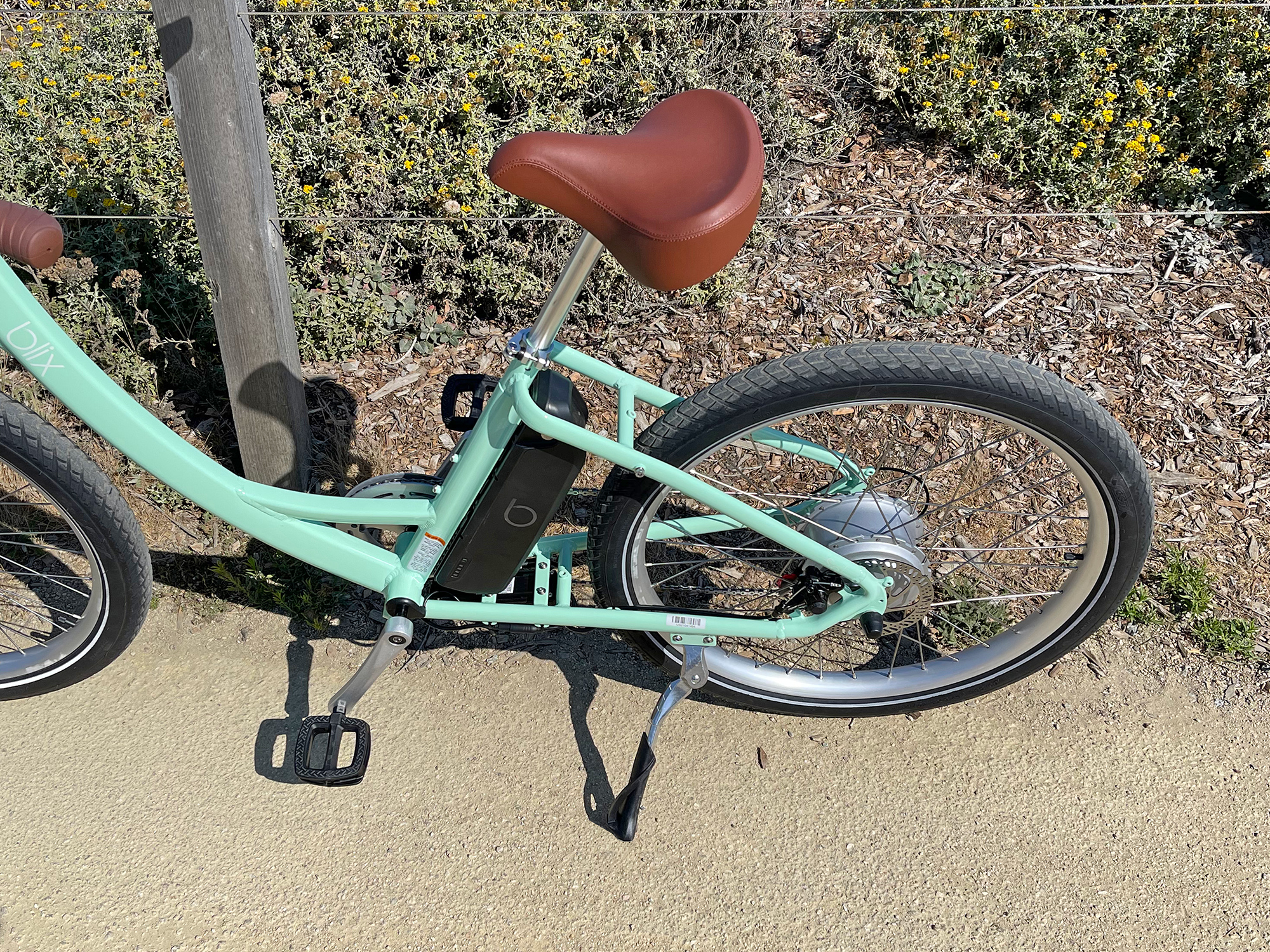

2022 Blix Sol Eclipse Adjustable Kickstand Wellgo Alloy Pedals

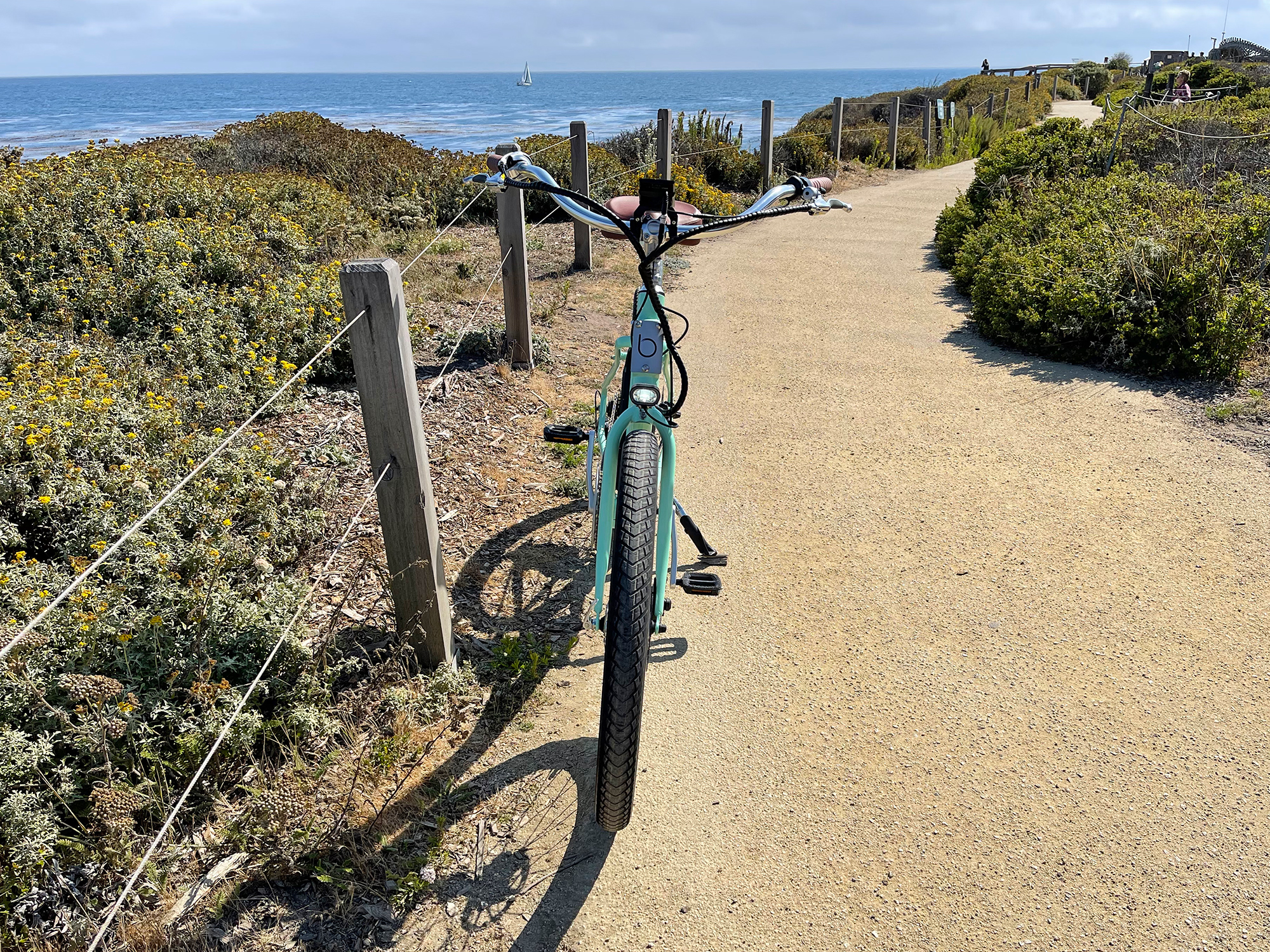

2022 Blix Sol Eclipse Front View Spanninga Axendo 40 Headlight

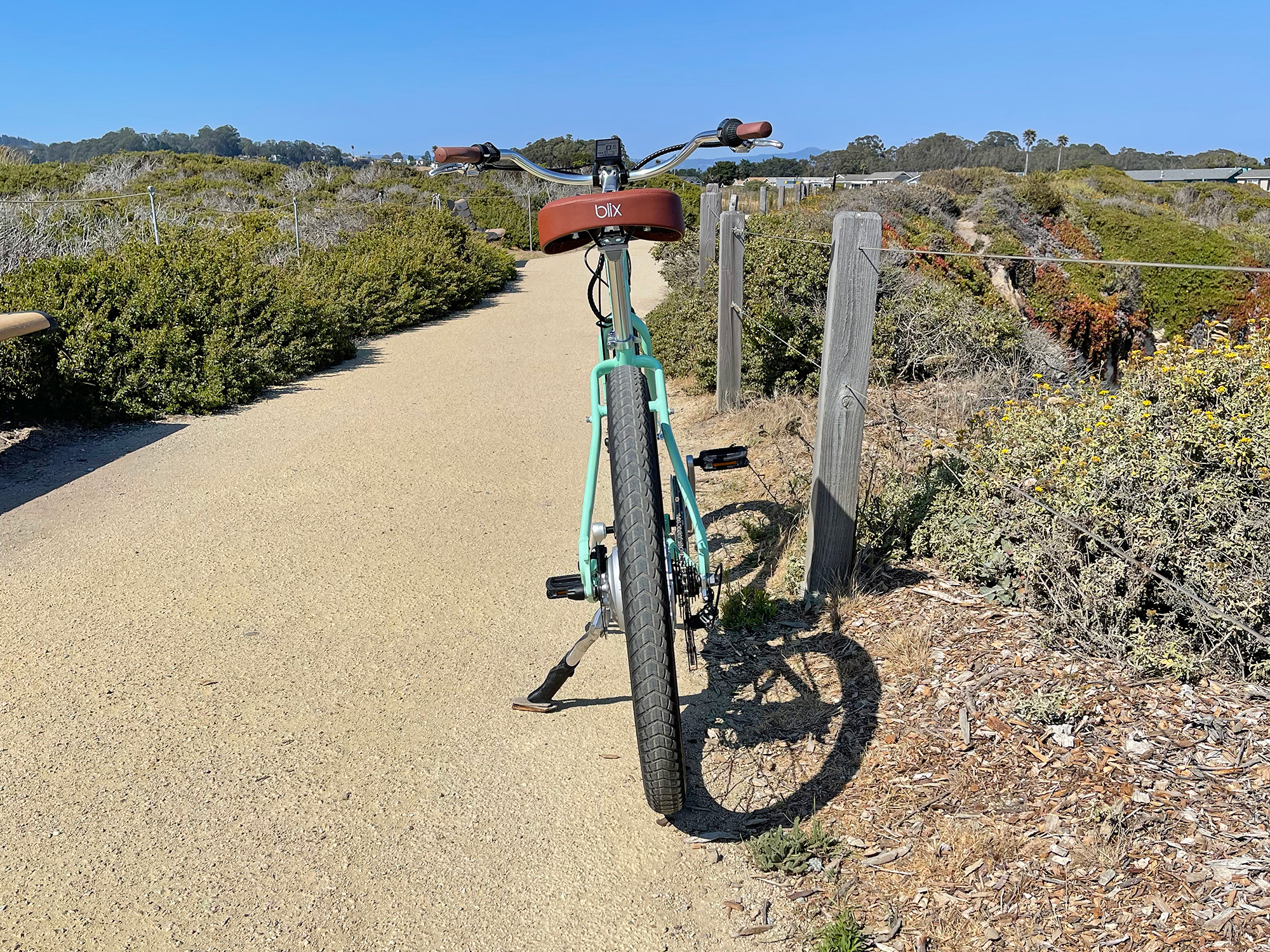

2022 Blix Sol Eclipse Back View Cruiser Saddle

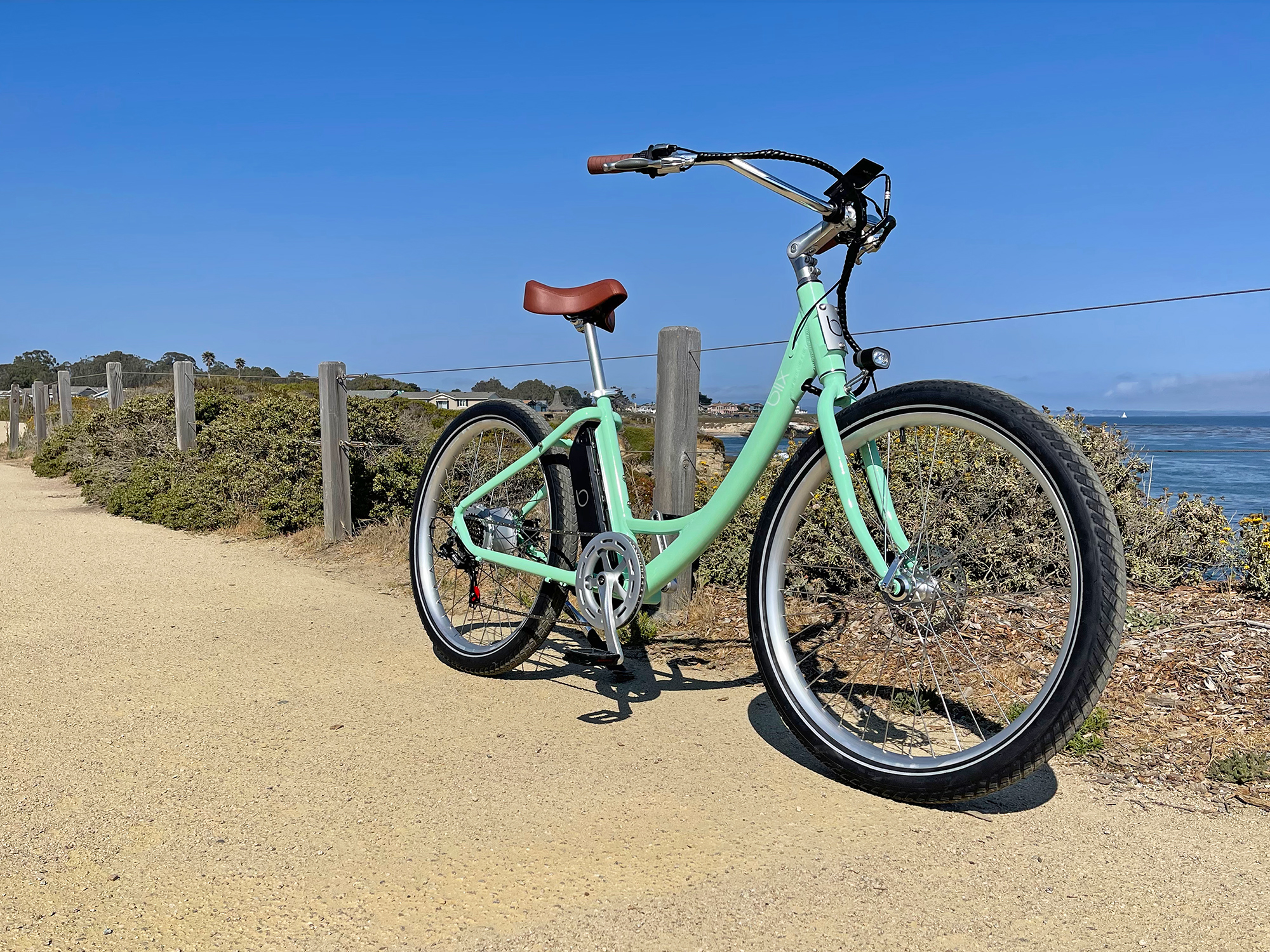

2022 Blix Sol Eclipse Cruiser Ebike

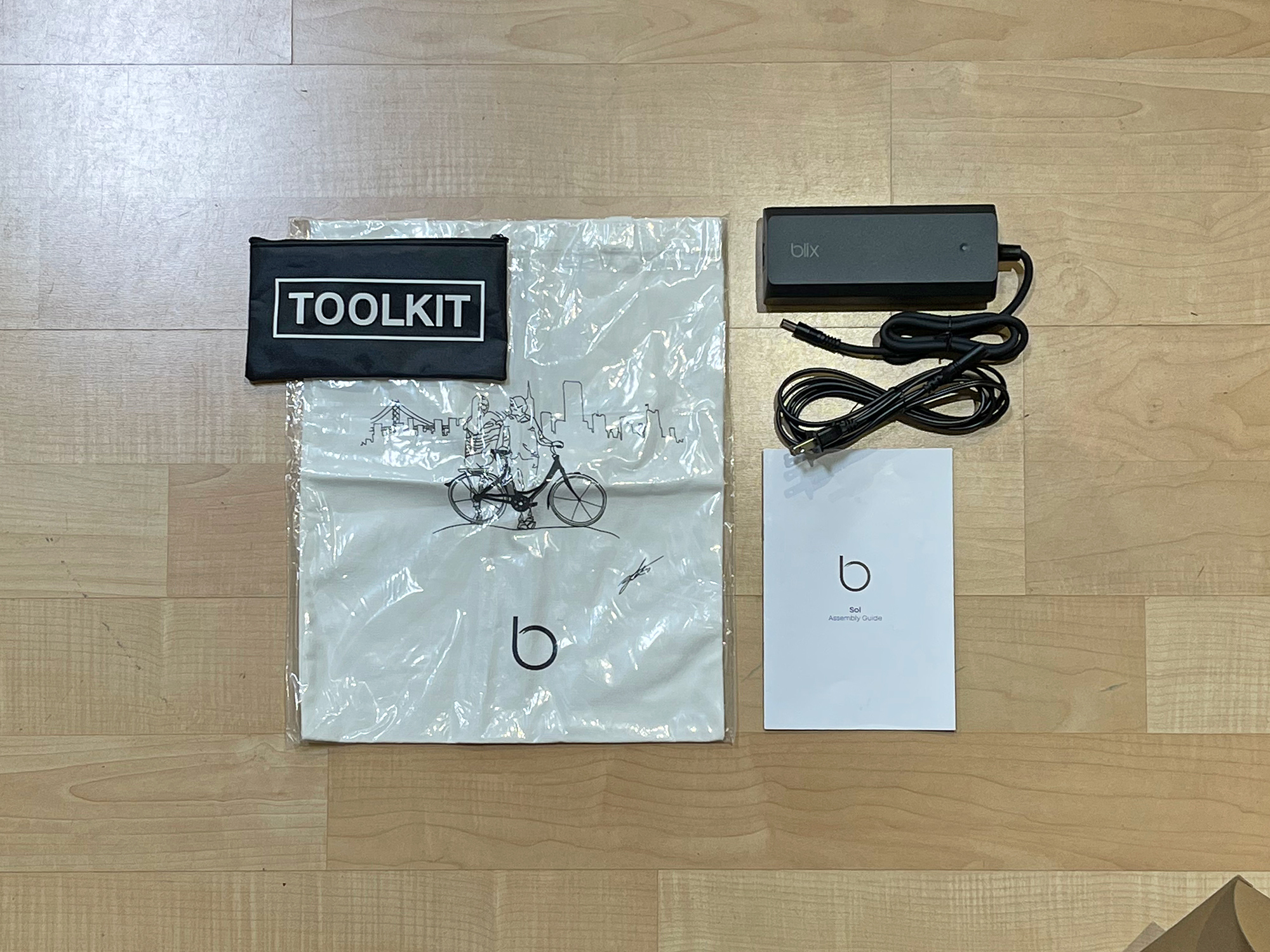

2022 Blix Sol Eclipse Tools And 2 Amp Charger
2022 Blix Sol Eclipse Stock Step Thru Seafoam Green

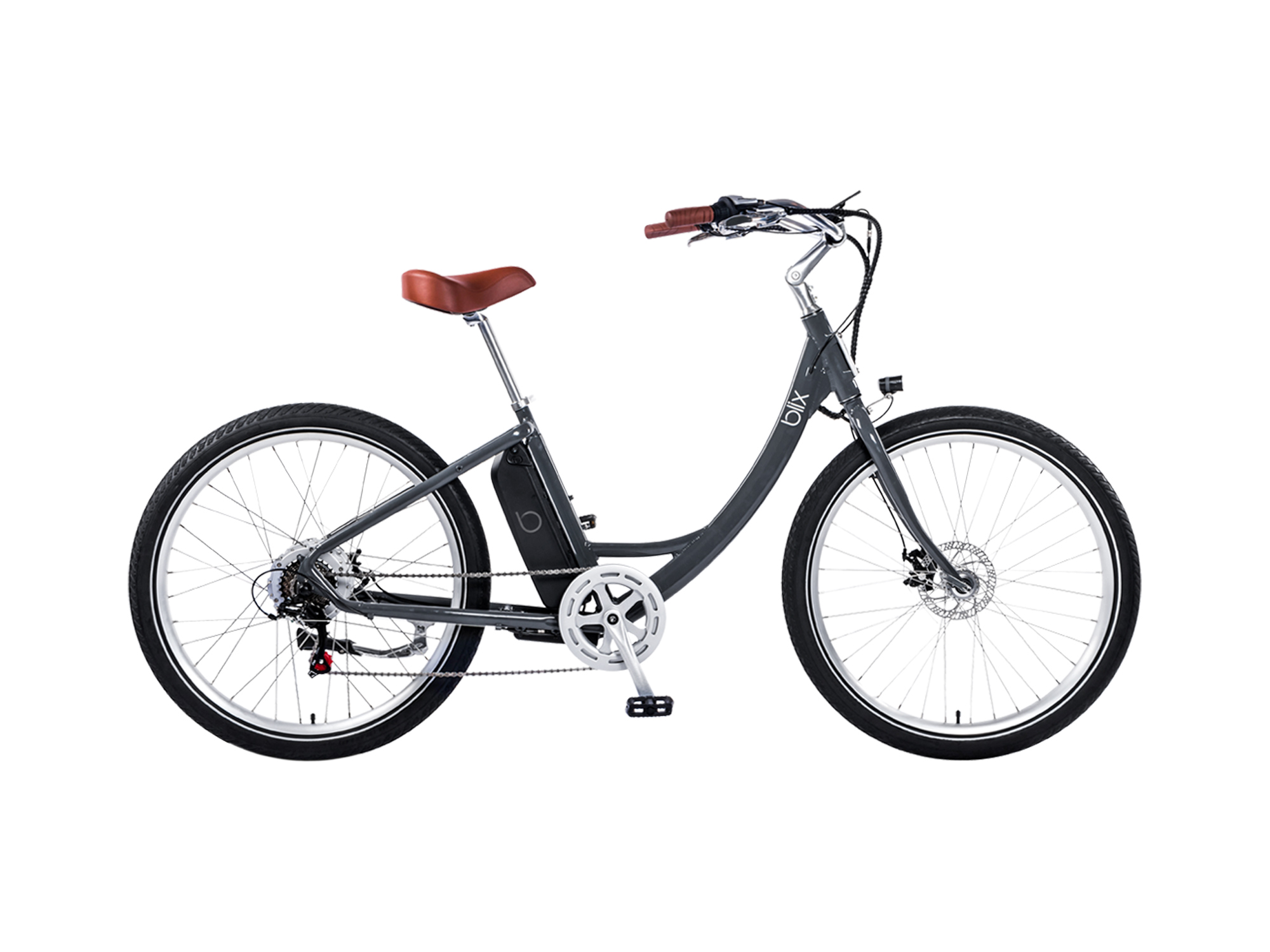

2022 Blix Sol Eclipse Stock Step Thru Slate Grey

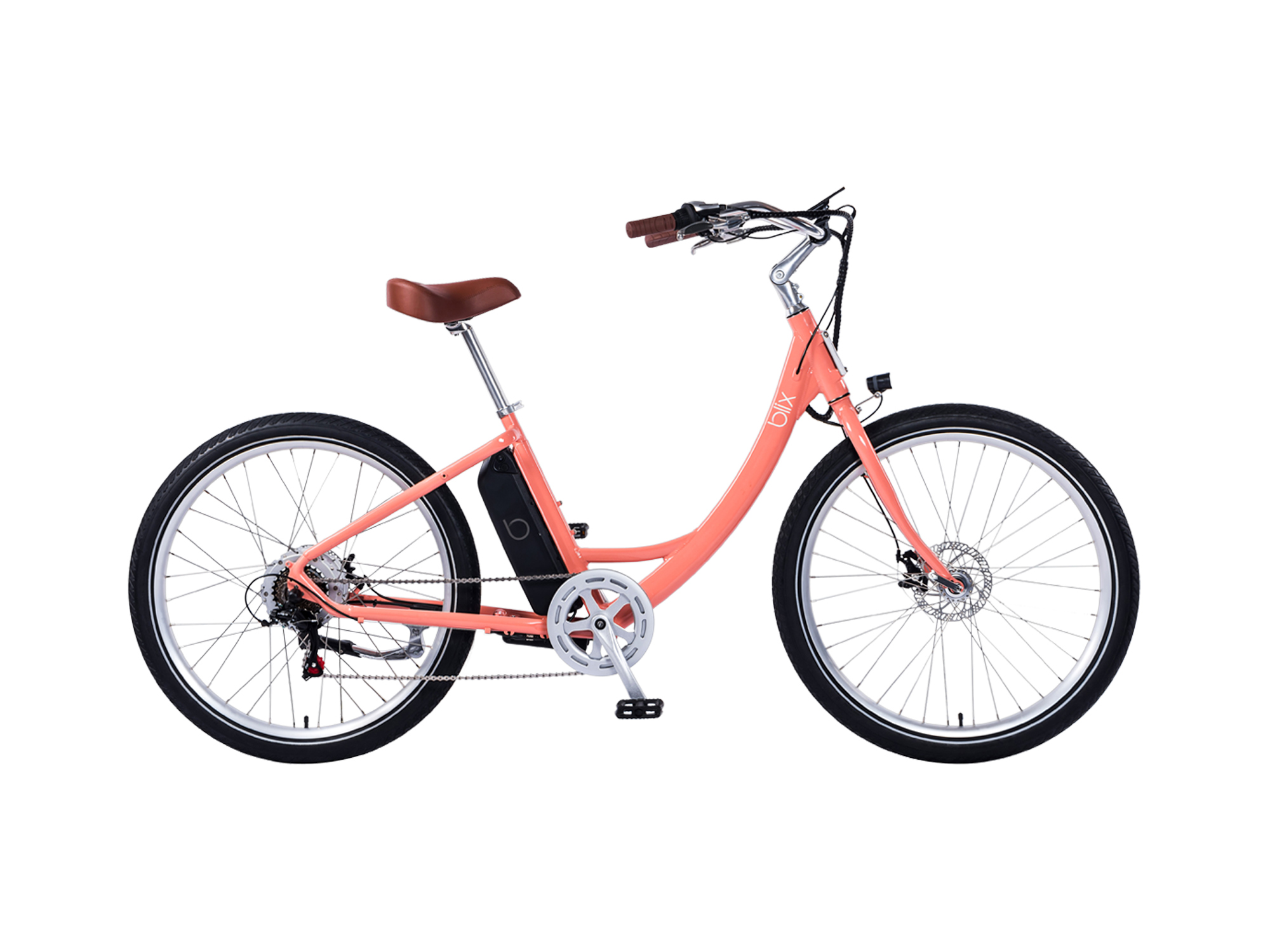

2022 Blix Sol Eclipse Stock Step Thru Sorbet

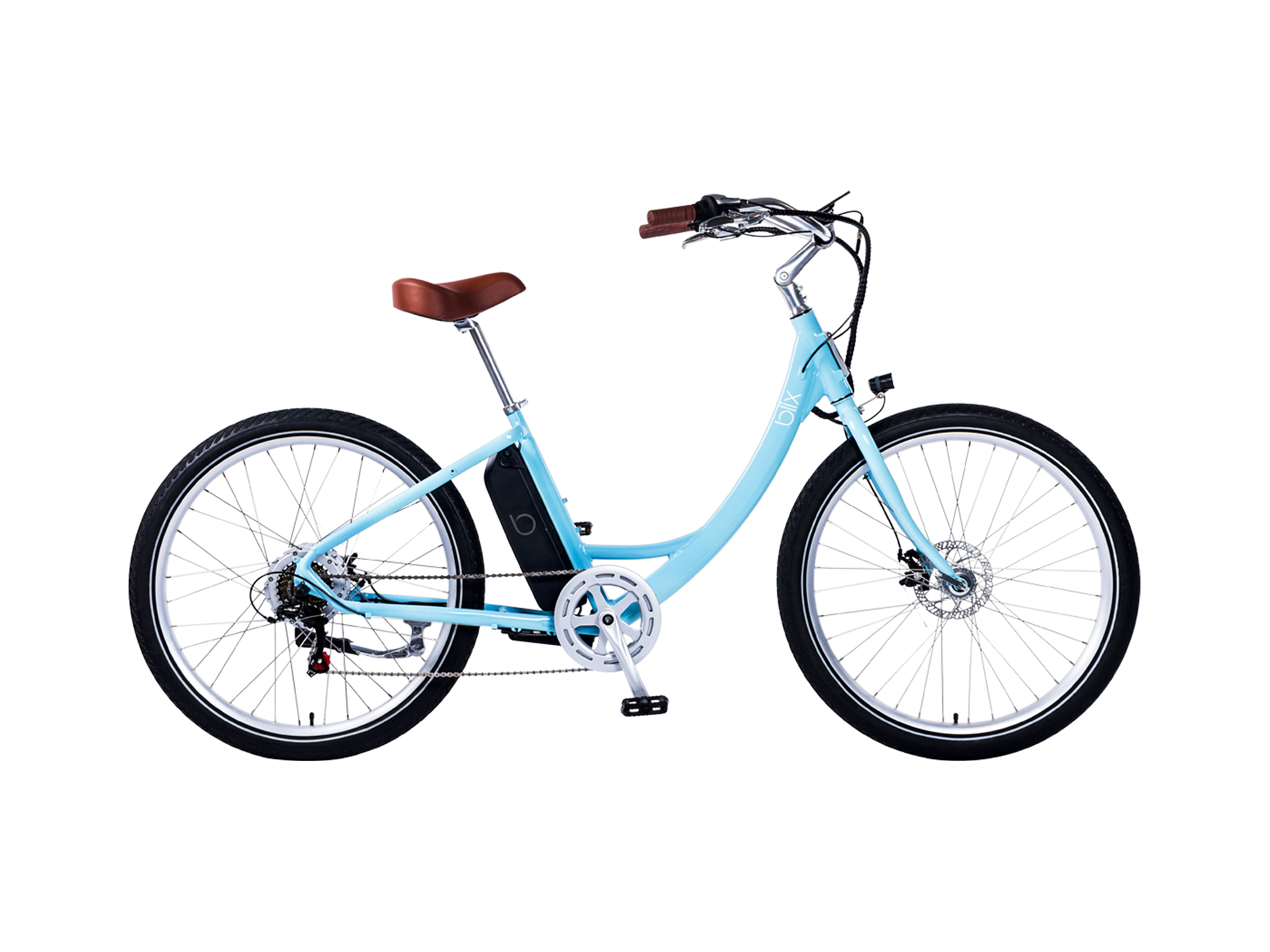

2022 Blix Sol Eclipse Stock Step Thru Steel Blue

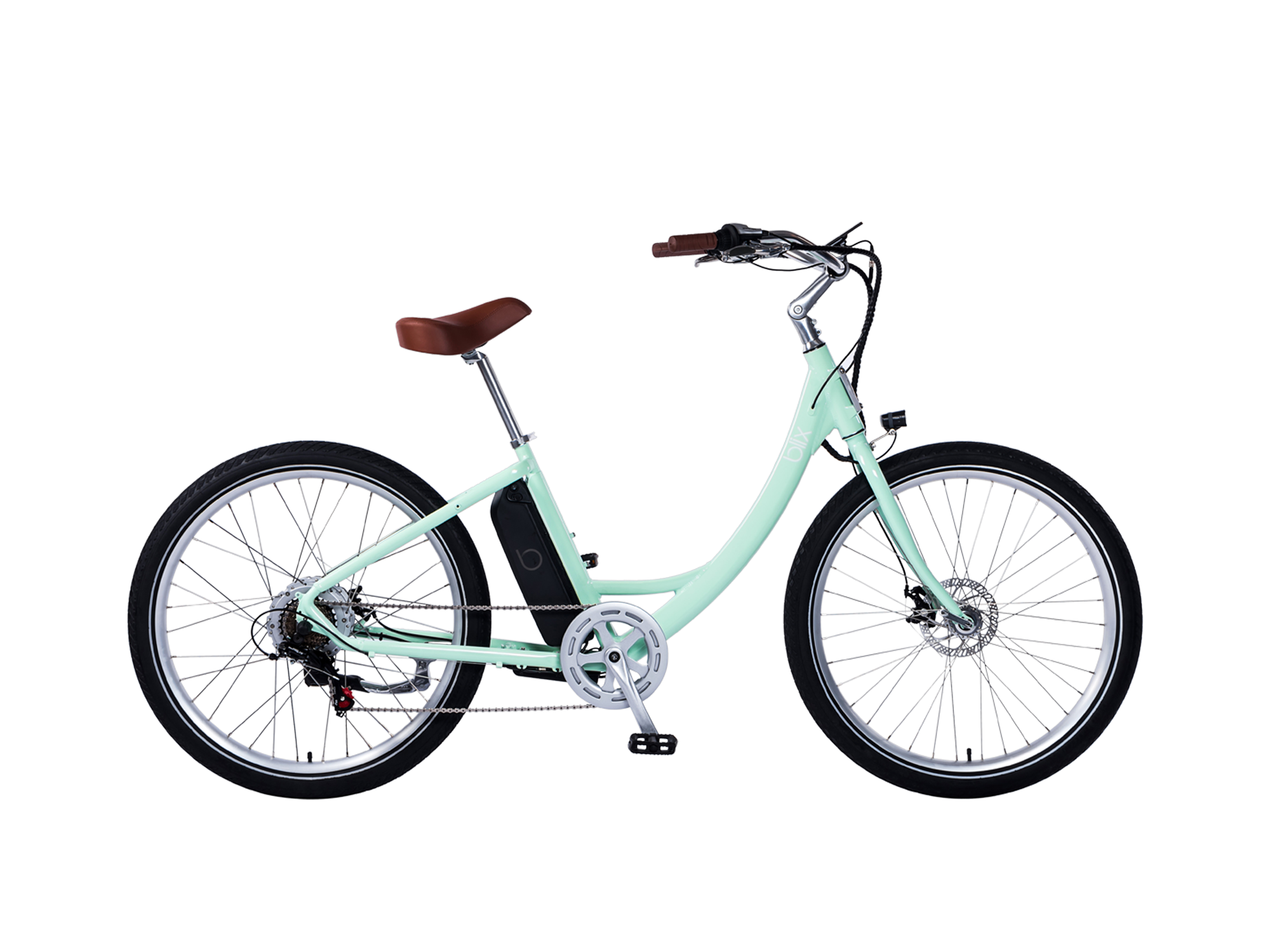

2022 Blix Sol Eclipse Electric Bike Review
2022 Blix Sol Eclipse
2022 Blix Sol Eclipse Shengyi Dgw25 Geared Hub Motor Silver
2022 Blix Sol Eclipse Sealed Cadence Sensor Bottom Bracket And Battery Mount
2022 Blix Sol Eclipse Wide Cruiser Handlebar Ergonomic Grips Adjustable Angle Stem
2022 Blix Sol Eclipse Large King Meter Nokee U Lcd Display
2022 Blix Sol Eclipse Cst 27 5 Cruiser Tires With Reflective Sidewall Stripes
2022 Blix Sol Eclipse Tektro Aries Mechanical Disc Brakes 160mm Rotors
2022 Blix Sol Eclipse Oversized Comfort Saddle And Bottle Cage Bosses
2022 Blix Sol Eclipse 7 Speed Shimano Tourney Tz Drivetrain
2022 Blix Sol Eclipse Adjustable Kickstand Wellgo Alloy Pedals
2022 Blix Sol Eclipse Front View Spanninga Axendo 40 Headlight
2022 Blix Sol Eclipse Back View Cruiser Saddle
2022 Blix Sol Eclipse Cruiser Ebike
2022 Blix Sol Eclipse Tools And 2 Amp Charger
2022 Blix Sol Eclipse Stock Step Thru Seafoam Green
2022 Blix Sol Eclipse Stock Step Thru Slate Grey
2022 Blix Sol Eclipse Stock Step Thru Sorbet
2022 Blix Sol Eclipse Stock Step Thru Steel Blue

Summary

  • A stylish approachable cruiser electric bike with excellent weight distribution and balance. Available in four beautiful colors, it comes with a large comfortable saddle, swept-back handlebar, ergonomic grips, and adjustable angle stem.
  • Great safety upgrades including puncture resistant tires that also have reflective sidewall stripes, an integrated headlight, and optional integrated rear light (requires the rear rack) with brake activation bright mode.
  • Comfortable 27.5" wheel size lowers the attack angle and adds air volume compared to traditional 26" wheels. Wide 2.4" tires improve stability and comfort on uneven terrain. Great chain guide, decent mechanical disc brakes, intuitive twist shifter.
  • Good price point, good customer service in my experience, but these are sold direct so there will be some unboxing and assembly. Heavier than I expected given that there's no suspension fork, rack, or fenders included... but Blix does sell matching accessories. Great USB charging port on display, large readable screen, but I wish the battery infographic was more precise.

Video Review

Introduction

Make:

Blix

Model:

Sol Eclipse

Price:

$1,599

Body Position:

Upright Relaxed

Suggested Use:

Cruising, Neighborhood

Electric Bike Class:

Pedal Assist (Class 1), Throttle on Demand (Class 2)
Learn more about Ebike classes

Warranty:

1 Year Comprehensive, Extended Warranty Options (2 Years $160, 3 Years $220)

Availability:

United States

Model Year:

20212022

Bicycle Details

Total Weight:

54.7 lbs (24.81 kg)

Battery Weight:

7.2 lbs (3.26 kg)

Motor Weight:

8.6 lbs (3.9 kg)

Frame Material:

6061 Aluminum Alloy

Frame Sizes:

18.25 in (46.35 cm)

Geometry Measurements:

18.25" Seat Tube, 24.5" Top Tube, 14.5" Reach, 17" Stand Over Height, 31.5" Minimum Saddle Height, 38" Maximum Saddle Height, 29.75" Width, 50.5" Wheelbase, 80" Length

Frame Types:

Step-Thru

Frame Colors:

Gloss Seafoam Green, Gloss Steel Blue, Gloss Sorbet, Gloss Slate Gray

Frame Fork Details:

Rigid Steel, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer

Frame Rear Details:

175mm Hub Spacing, 12mm Keyed Threaded Axle with 18mm Nuts

Attachment Points:

Fender Mounts, Front Rack Mounts, Rear Rack Mounts, Bottle Cage Mount on Seat Tube

Gearing Details:

7 Speed 1x7 Shimano Tourney TZ Derailleur, Shimano MF-TZ500-7 14-32 Tooth Freewheel

Shifter Details:

Shimano Revoshift Grip Shifter on Right

Cranks:

Prowheel Forged Aluminum Alloy Arms, 170mm Length, Square Taper Bottom Bracket Spindle, 48 Tooth Steel Chainring with Plastic Guide

Pedals:

Wellgo B249DU, Aluminum Alloy Platform

Headset:

Threadless, Captive Bearings, Straight 1-1/8"

Stem:

Zoom, Aluminum Alloy, Adjustable Angle 0° to 90°, 90mm Length, 65mm Height, 15mm Tapered Base Spacer, 25.4mm Clamp Diameter

Handlebar:

Zoom, Aluminum Alloy, Cruiser, 60mm Width, 55° Backsweep

Brake Details:

Tektro Aries Mechanic Disc with 160mm Rotors, Three-Finger Rubberized Levers with Integrated Bell and Motor Inhibitors and Brake Light Activation

Grips:

Velo Ergonomic, Non-Locking

Saddle:

Blix Branded, Chifan Oversized Cruiser, Faux Leather

Seat Post:

Aluminum Alloy, Single Bolt 6mm Hex, Quick Release Collar

Seat Post Length:

350 mm

Seat Post Diameter:

27.2 mm

Rims:

Star Circle, Aluminum Alloy, Double Walled, 40mm Inner Width, 36 Hole, Silver, KT Front Hub

Spokes:

Stainless Steel, 13 Gauge Front 12 Gauge Rear, Silver with Nipples

Tire Brand:

CST CTC-06, 27.5" x 2.40" (60-584)

Wheel Sizes:

27.5 in (69.85cm)

Tire Details:

40 to 65 PSI, 2.8 to 4.5 BAR, Reflective Sidewall Stripe, Anti-Puncture Casing

Tube Details:

Schrader Valve

Accessories:

Spanninga Axendo 40 Integrated Headlight (40 Lux), Rear Mount Adjustable Kickstand (40mm Mount)

Other:

Locking Removable Seat Tube Mounted Battery Pack, 1.2lb 2 Amp Charger, Basic Assembly Toolkit, 270lb Max Load, 50lb Front Rack Max Weight, IP65 Rated Electronics, 15 Amp Continuous 25 Peak Potted Controller, 3-Bolt Head Tube Badge Rack Mount

Electronic Details

Motor Brand:

Shengyi DGW25

Motor Type:

Rear-Mounted Geared Hub
Learn more about Ebike motors

Motor Nominal Output:

750 watts

Motor Torque:

90 Newton meters

Battery Brand:

Panasonic 18650 3,200 mAh 13S4P

Battery Voltage:

48 volts

Battery Amp Hours:

12.8 ah

Battery Watt Hours:

614.4 wh

Battery Chemistry:

Lithium-ion

Charge Time:

6 hours

Estimated Min Range:

25 miles (40 km)

Estimated Max Range:

45 miles (72 km)

Display Type:

King Meter NOKEE-U, Fixed, Backlit, Grayscale LCD, 3.75" Diagonal, Full Sized USB Type-A Charging Port on Right Side of Display (5 Volt 1 Amp)

Readouts:

Battery Level (5 Bars), Assist Level (0-5), Speed, Average Speed, Max Speed, Assist Level (0-5), Trip A, Trip B, Odometer

Display Accessories:

Independent Button Pad on Left, Buttons: Up, Down, Mode/Power, Lights: Hold Up Arrow, Cycle Display: Press Mode Button, Walk Mode: Hold Down Arrow, Settings Menu: Hold Up and Down, Charge Level Indicator on Battery Pack (4 LEDs), On Off Toggle Switch on Battery Pack

Drive Mode:

Cadence Sensing Pedal Assist, Trigger Throttle (12 Magnet Sealed Cedence Sensor)

Top Speed:

20 mph (32 kph)


Written Review

This review was provided for free, but Blix split the cost of travel with me so I could meet the team and spend more time with the bikes. My goal is to be transparent and unbiased with you, this video and writeup are not meant to be an endorsement of Blix products. I welcome your corrections, additions, and feedback in the comments below, and the Blix electric bike forums.

Pros:

  • Great value for the money here. This model has been refined since it was first launched, and I love that it comes in a range of fun colors, includes reflective puncture-resistant tires, and has an integrated headlight.
  • Battery weight is positioned low and center on the frame, behind the seat tube so the pack won’t get kicked when you step onto the bike. They also included a pair of braze-on bottle cage mounts on the front side of the seat tube! I like that they actually welded on the threaded eyelets vs. screwing directly into the tubing, because it adds strength and might allow the seat post to go lower.
  • Blix offers some nice accessories for their ebikes, including paint-matched fenders, touch up paint, suspension seat post, and a front or rear rack. You could get one of the racks and a set of their beautiful pannier bags or one of the bolt-on top baskets to add a lot of utility for your bike vs. just cruising.
  • Interesting wheel size here! Blix chose 27.5″ to smooth out the ride vs. 26″ on most cruisers. This larger size does raise the frame about 0.5″ but lowers the attack angle of the wheel and adds air volume. Note the wider 2.4″ tires they chose, which also add air volume, comfort, and stability.
  • As with most step-thru wave style frames, this ebike is extremely easy to approach, mount, and stabilize. I found that the frame reinforcement was strong enough to reduce flex, so it felt steady when riding. I love the adjustable kickstand that they chose, and appreciate that it’s mounted far enough back to be clear of the crank arms when deployed, so you don’t get pedal lock when backing the bike up.
  • The bike felt very comfortable to me, even without suspension, because of the higher volume 2.4″ wide tires, upright adjustable angle stem, long swept back handlebar with ergonomic grips, relaxed head tube angle, and steel fork (which helps to dampen vibration).
  • The LCD display panel is center mounted and fairly large, making it easy to read. Most of the controls on this ebike are intuitive, including the half-grip twist shifter that switches gears. It has an optical window on top that displays the gear you’re riding in.
  • I think it’s neat that the LCD display panel has a 5 volt 1 amp USB charging port built-in! This could be useful for charging portable electronics, like a smartphone, speaker, or additional lights, while riding.
  • Blix has left the display panel open, so you can adjust the settings… including top speed. You can lower the top speed to improve range and add some safety, or raise it a bit and operate the bike more like a Class 3 speed pedelec if you’d like. They ship it at 20mph 32kmh to comply with legal framework for Class 2 ebikes. You could even unplug and remove the throttle to ride this as Class 1 if you wanted.
  • Blix is using a high resolution cadence sensor with 12 magnets, so pedal assist feels very responsive. The sensor is compact and appears to be well sealed against water and dust, good choices.
  • Updated battery pack design! They are using very high quality Panasonic cells and spacing them apart in the casing for improved air flow and durability. The 48 volt system provides efficiency for sending energy and also increases the potential power output. This enabled them to increase motor power to 700 watts and get that high 90 newton meter torque rating.
  • I like how the battery seems really secure on the flared metal seat tube, and how their replacement packs are less expensive since the controller is separate. There’s also an on/off toggle switch built into the side of the battery pack, so you can disable it completely when transporting or storing for long periods. Ideally, keep it in a cool dry location and try to maintain 50%+ when you aren’t riding the bike. Fully draining the pack can stress the cells.
  • Blix also increased the motor controller amp output to 15 amps continuous and 25 amps peak, so the motor can operate efficiently. And, they moved the motor power cable to the non-drivetrain side of the bike to reduce clutter and add physical protection if the bike tips. Note the wider rear dropout 175mm vs. 135mm for bigger motor and magnets inside that can increase power without requiring such a tall visible motor casing. These are small things that can go unnoticed, but to me it shows that they care about the details.
  • The electronics are all modular, using press fit connectors, which makes them easier to replace if damaged. I was told that this used to be more difficult, especially for the main controller. Considering that the bike is primarily sold direct to consumer, it’s nice that they are making it easier to maintain.
  • Geared hub motors are known for being compact, lightweight, and efficient. I’m familiar with the Shengyi brand. This bike felt very satisfying, and I was able to test it out by climbing some of the steeper hills in Santa Cruz California, using throttle only (no pedaling). It seems like a solid choice, based on what I’ve observed from competing hub motor powered electric cruiser ebikes.
  • The plastic chainring guide protects your pant legs or dress end, and ensures that the chain won’t drop off as easily when riding on bumpy terrain.
  • I love that Blix has updated their throttle behavior to allow for full power output at any level of assist, even zero! This is handy for getting started from stop signs or traffic signals, catching up with friends, or focusing on balance vs. pedaling when transporting kids and other cargo. The trigger throttle offers variable power output too, so you can be gentle by only pressing part way.
  • Blix has been in business since 2014, I’ve reviewed a bunch of their products and met the founder on many occasions. They seem to offer great customer support, especially for the low price point.
  • I appreciate the one year comprehensive warranty that Blix offers, along with their optional $160 one-year extension so you can basically have a two year warranty that covers all sorts of things. That’s good peace of mind when you’re buying direct vs. in a local shop.

Cons:

  • The drivetrain is very basic, using the entry-level derailleur from Shimano. You get seven gears, but the range is pretty limited at 14 to 28. It’s best suited to neighborhood riding and cruising vs. steep climbing or high speed.
  • Another component choice that helps to keep the price lower on this model is the mechanical disc brakes. In my experience, they do require a bit of extra hand effort compared to hydraulic, especially the rear brake (right lever), and the cables can set in and get stickier over time with dust and water ingress. Notice how the brake housing is pointed up and the wire runs down into it so water and dust can also settle downwards into it. Blix chose standard 160mm rotors vs. larger 180mm, which leaves less cooling surface and lower mechanical advantage, but they are also less likely to get bent at bike racks.
  • If you get the optional front tray rack system, you’ll have to re-mount the headlight to the base of the basket and it will no longer point where you steer. If you get fenders, it seems like the headlight gets blocked a bit from shining down and lighting your path perfectly. I only tested during the day, but tried to demo the brightness during our elevator ride. It should still help you to be seen when riding.
  • This is a direct-to-consumer electric bike, meaning that most customers order online and have to receive and unbox it. There aren’t too many steps, but there’s definitely some extra time required to attach the handlebar and get the bike going compared to buying from a local dealer. I was told that they work with some shops to showroom their bikes, but ordering is still direct… and that’s part of how they keep the price so low.
  • The bike is a bit heavy at 54.7lbs without any fenders or racks attached. Most cruisers do weigh a bit extra because of the larger tires and swept-back handlebar.
  • It’s a bummer that this bike does not come stock with a rear light like many of the other Blix models, but if you opt for the rear rack, you can also get a rear light that plugs right in! I appreciate that the bike is pre-wired for this optional rear light, and it features a bright mode when you pull the brakes! It’s much more convenient and efficient than a disposable battery operated rear light.
  • Minor complaint, the frame only comes in one size… but the low step-thru design is fairly easy to approach and the adjustable angle stem, swept back handlebar, and adjustable seat height offer a wide range of fit options.
  • The display isn’t removable for protection at public bike racks or from inclement weather but at least it can be angled to reduce glare while riding. I was surprised that the battery charge level is actually split into 5 bars even though there are 10 lines… it would be more precise if you actually had 10% increments vs. 20% here.
  • Sometimes, adjustable angle stems can start to wiggle loose and then strip. I’ve experienced this with some cheaper stems and would just keep an eye out this part and keep the bolt tight to avoid issues. The one Blix used here appears to be of good quality so this is just a proactive observation.
  • I didn’t see a clear sticker slap guard on the chainstay, which means the chain could bounce down and mar the paint. You can find these for sale aftermarket or just use some clear box tape to avoid chips and make the grease easier to clean off.
  • The controller box is mounted below the frame where it can stay cool but may also take some damage if you get high-centered on rocks or logs. Sometimes it’s nice to have these internal, but that can make troubleshooting and repairs more difficult.
  • It can be a little tricky to remove the battery pack because it’s surrounded by a section of frame tubing. This is especially true if the seat is positioned low, you may need to raise the seat or take the seat post out completely for easier access.
