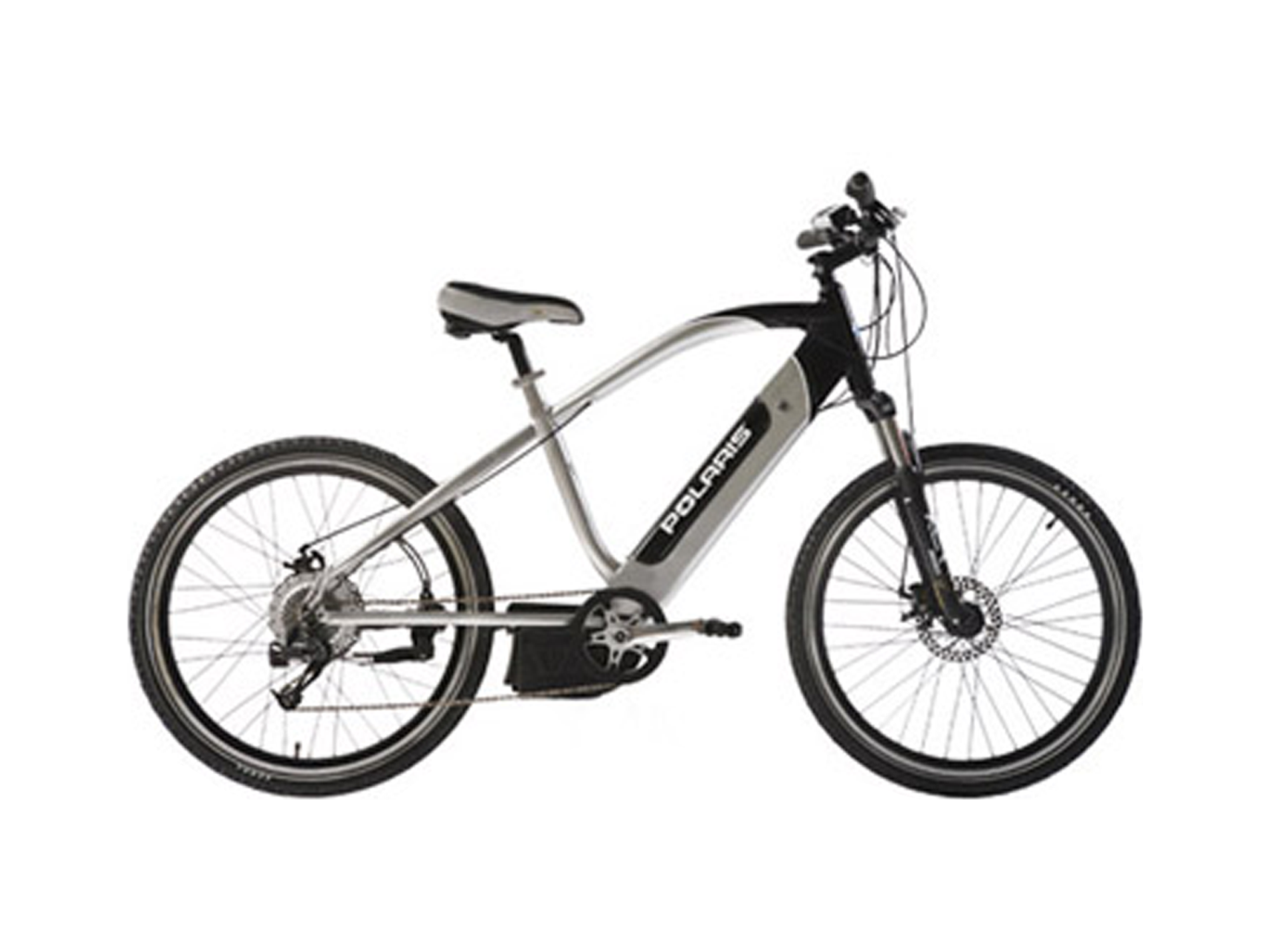

Polaris Vector Electric Bike Review 1

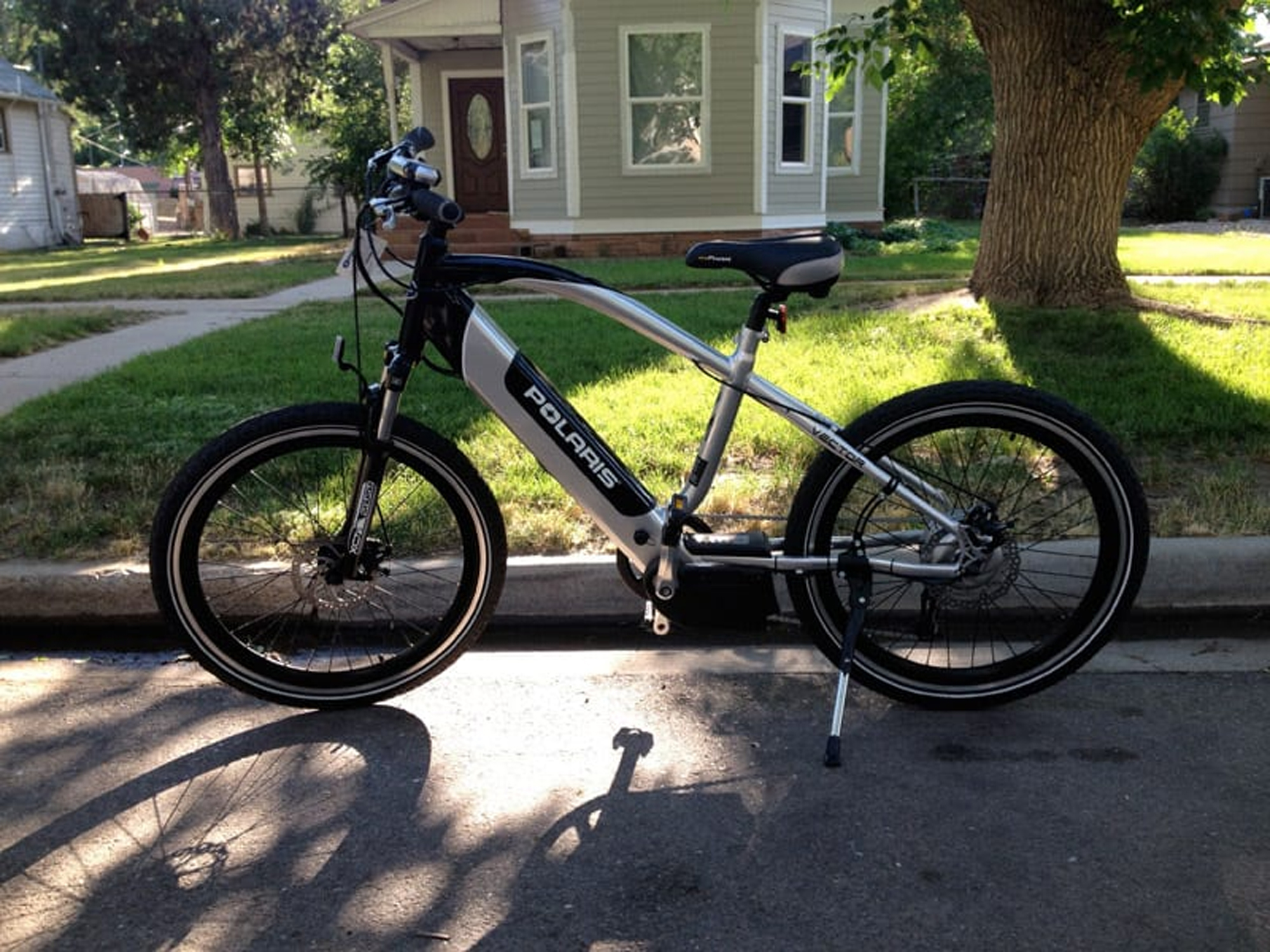

Polaris Vector

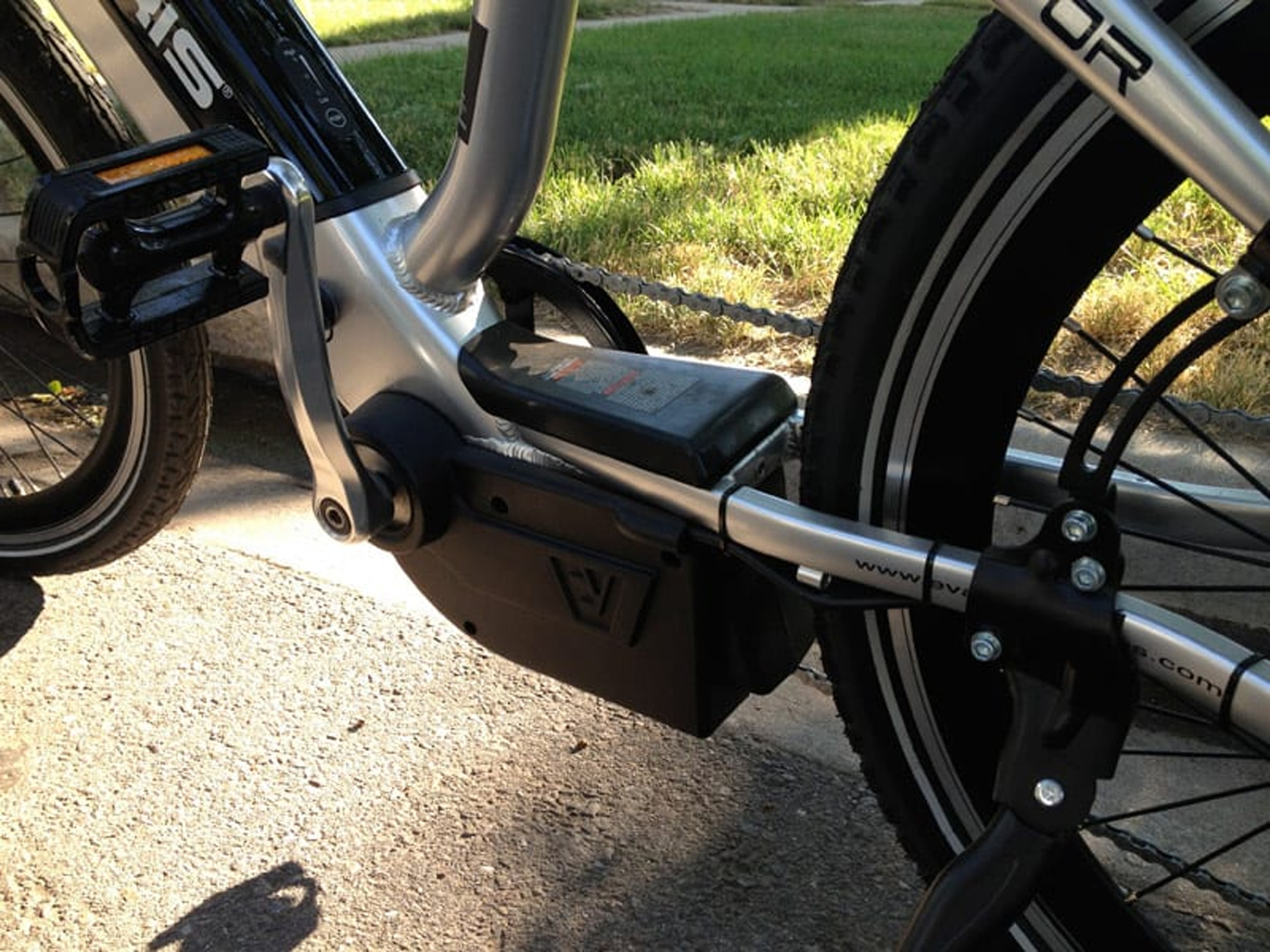

Polaris Vector Bottom Bracket Controller

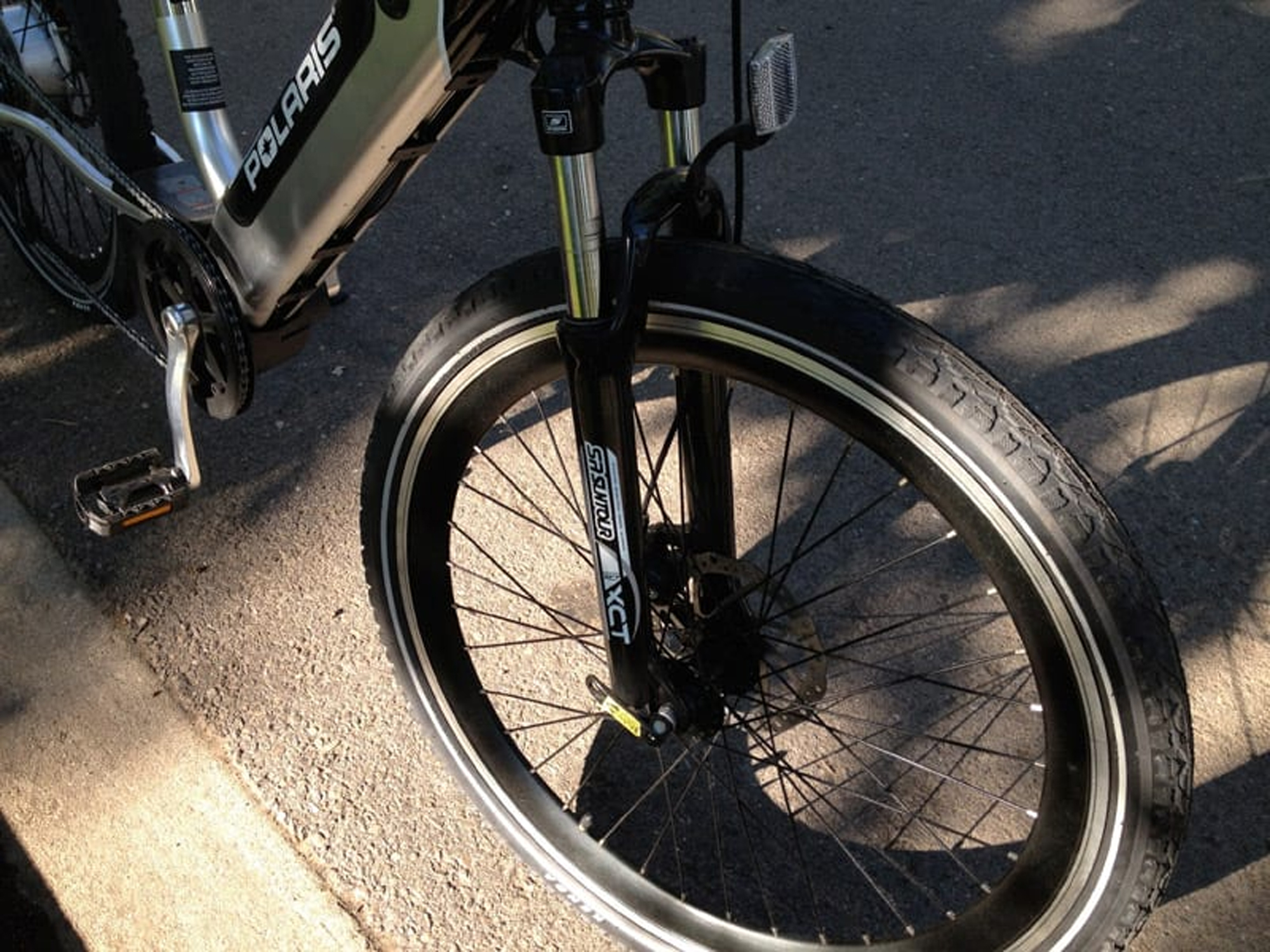

Polaris Vector Front Shock

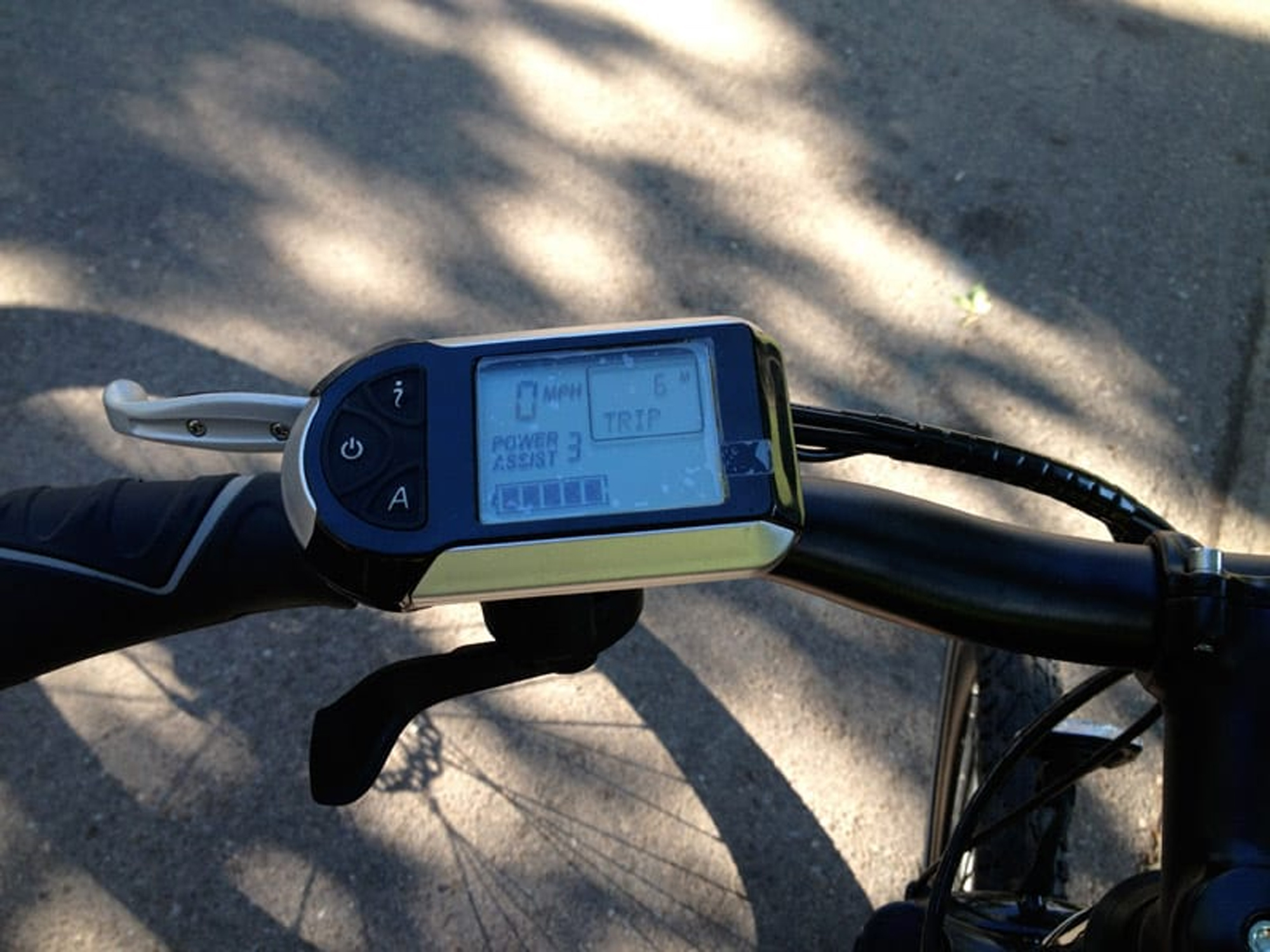

Polaris Vector Lcd Computer

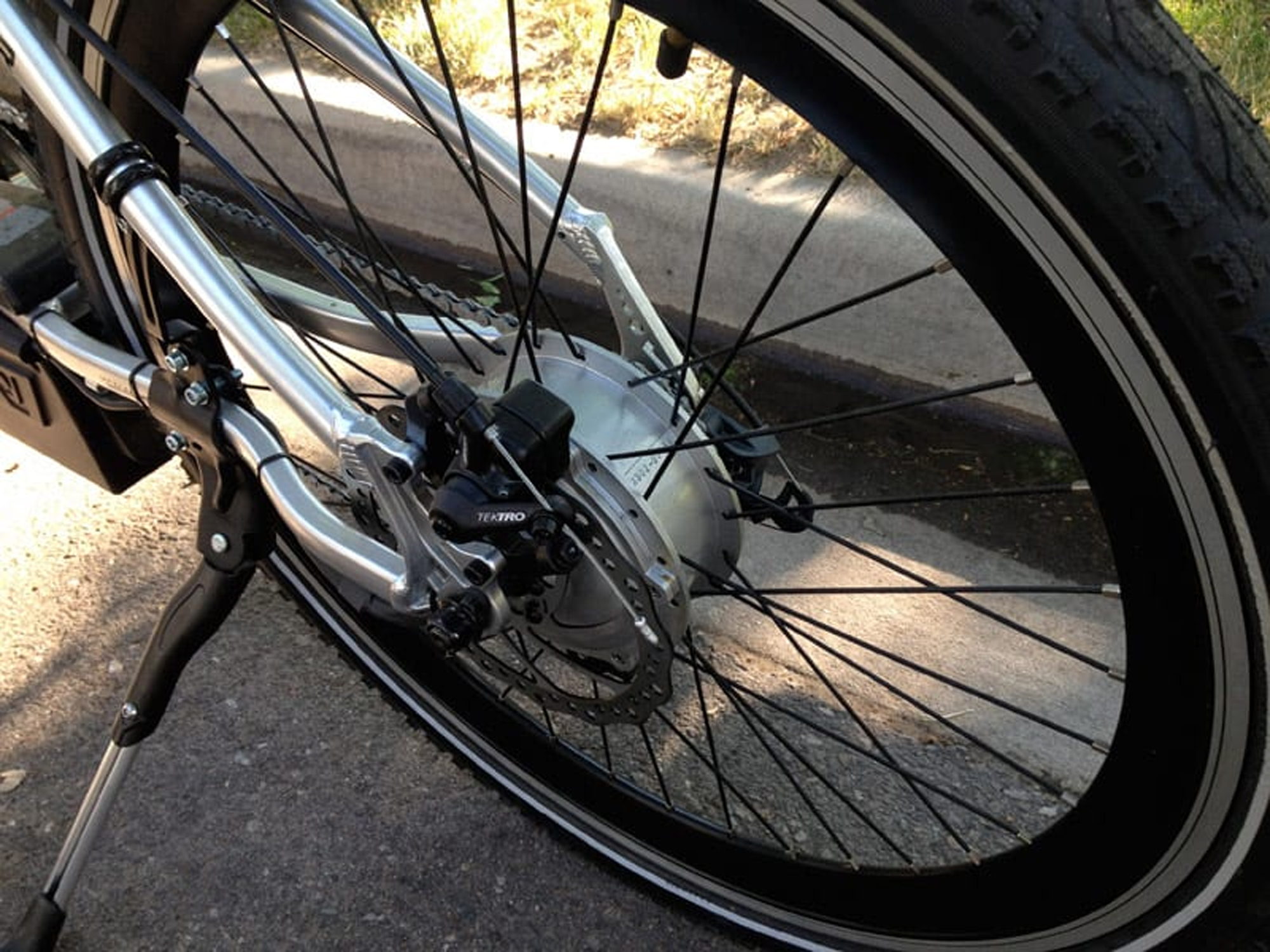

Polaris Vector Rear Hub Motor

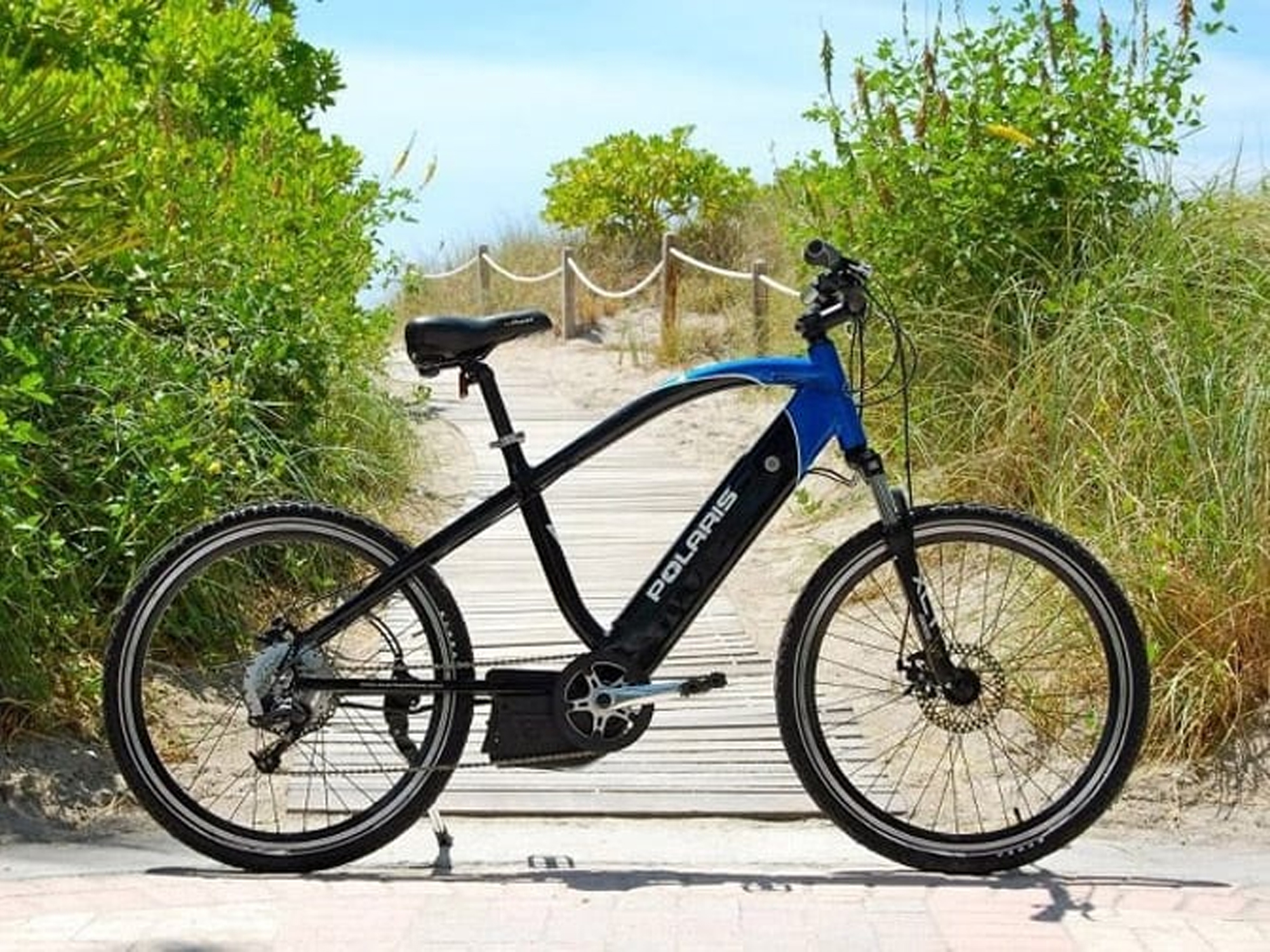

Polaris Vector Electric Bike Review

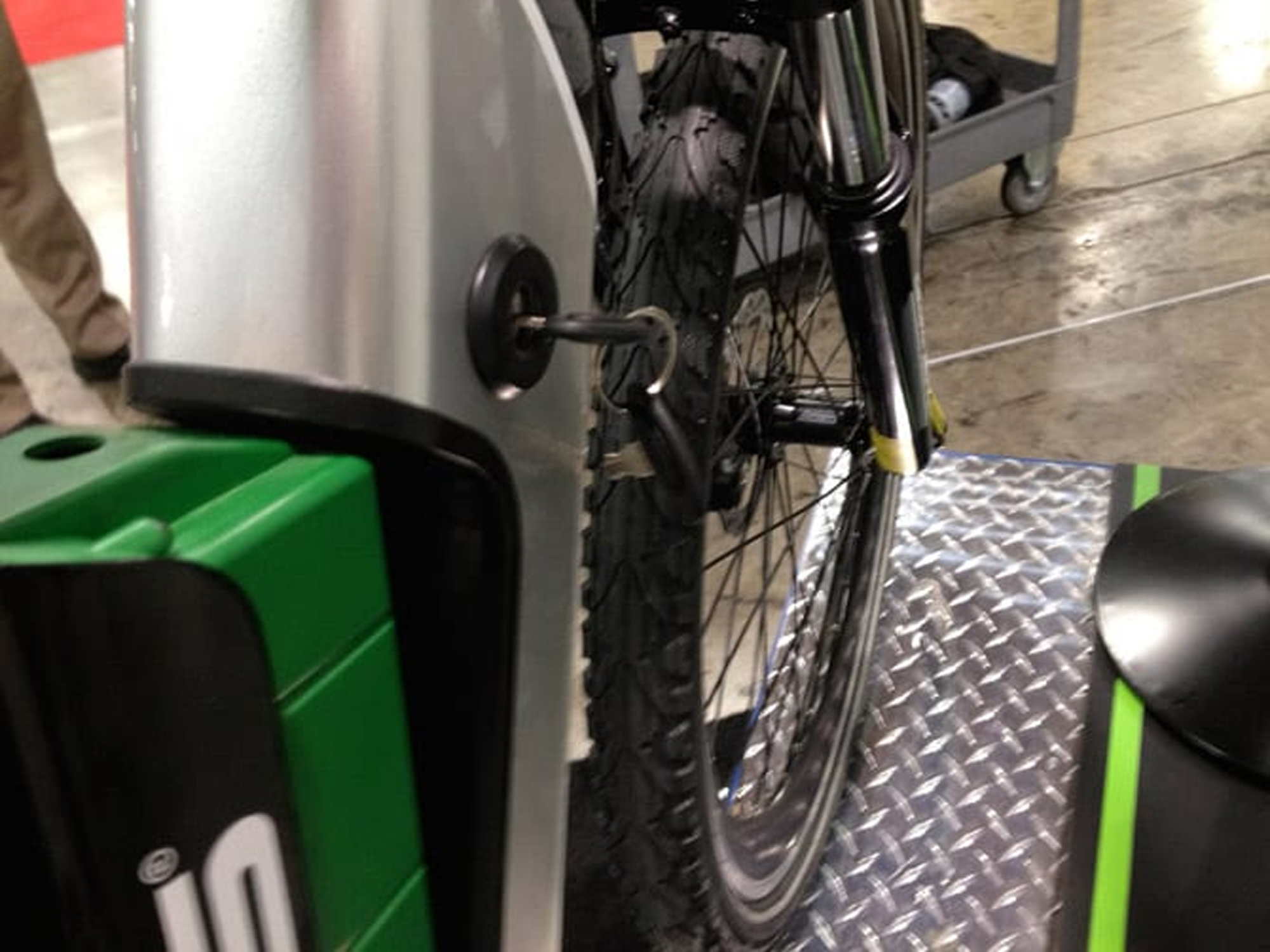

Polaris Vector Battery Pack Lock

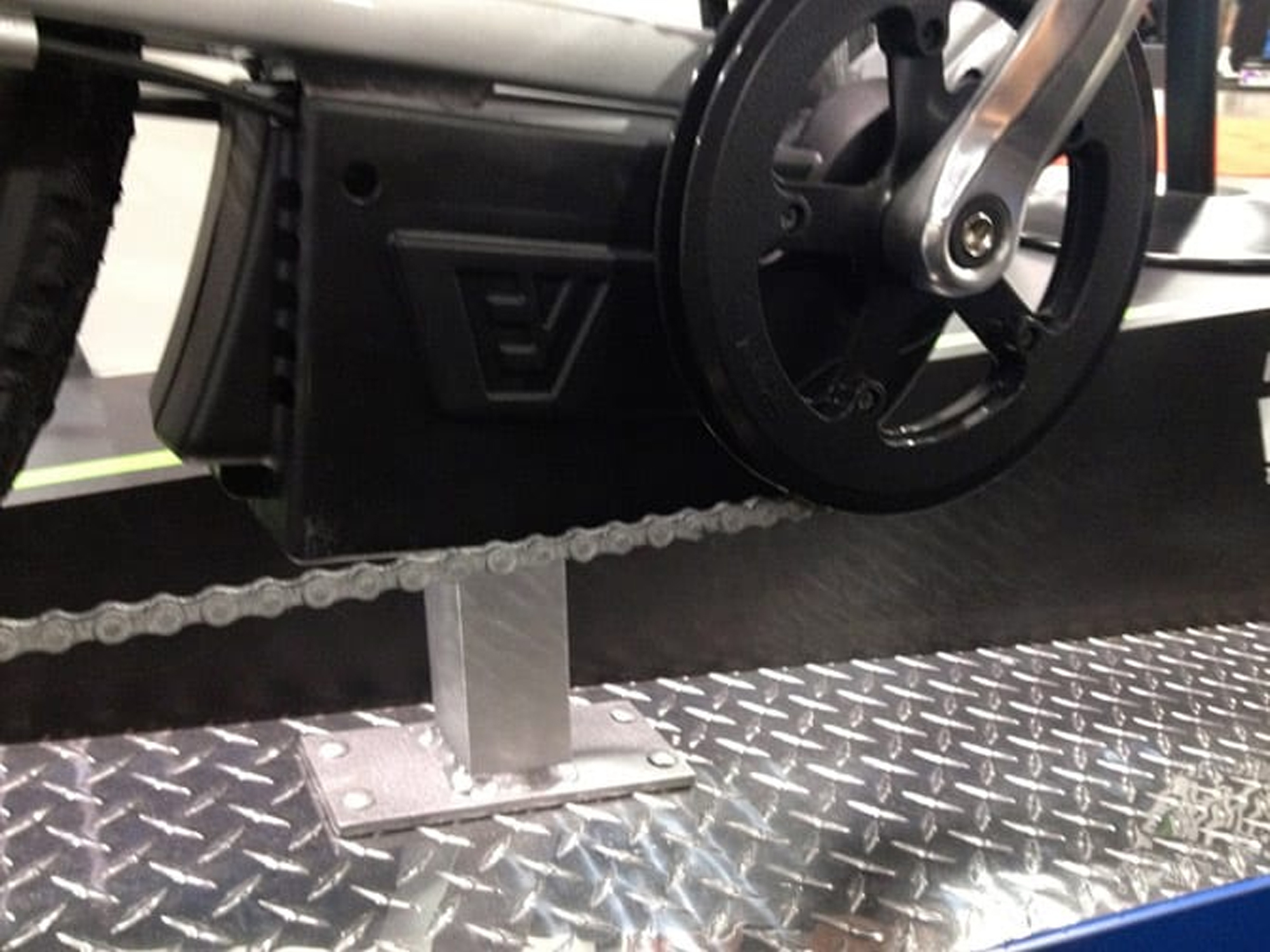

Polaris Vector Chain Guide Controller
Polaris Vector Electric Bike Review 1
Polaris Vector
Polaris Vector Bottom Bracket Controller
Polaris Vector Front Shock
Polaris Vector Lcd Computer
Polaris Vector Rear Hub Motor
Polaris Vector Electric Bike Review
Polaris Vector Battery Pack Lock
Polaris Vector Chain Guide Controller

Summary

  • Custom design with integrated cables, controller, and battery plus regenerative braking
  • Battery mounted in the down tube keeping weight low and stable, looks nice and doesn't rattle
  • Control system and mid-drive sensors mounted below bottom bracket, exposed to rocks, curbs and elements
  • Only available in high step frame, may be difficult or inconvenient for some to mount, relatively expensive

Search EBR

Video Review

Trusted Advertisers

Introduction

Make:

Polaris

Model:

Vector

Price:

$2,499 USD

Body Position:

Forward

Suggested Use:

Neighborhood, Urban, Trail

Electric Bike Class:

Throttle on Demand (Class 2)
Learn more about Ebike classes

Warranty:

1 Year Comprehensive

Availability:

United States

Model Year:

2013

Bicycle Details

Total Weight:

53 lbs (24.04 kg)

Battery Weight:

7 lbs (3.17 kg)

Frame Material:

6061 Aluminum Alloy

Frame Types:

High-Step

Frame Colors:

Silver with Black Accents

Frame Fork Details:

SR Suntour XCT Suspension with 80 mm Travel

Attachment Points:

Rear Rack Bosses, Fender Bosses

Gearing Details:

8 Speed 1x8 SRAM X7

Shifter Details:

SRAM X5 Triggers on Right Bar

Pedals:

Plastic Platform

Handlebar:

Comfort Sport, Low Rise

Brake Details:

Tektro IO Mechanical Disc with 160 mm Rotor, Integrated Motor Cutoff and Regen Activation Switch in Levers

Grips:

Velo Comfort Ergonomic

Saddle:

Velo Plush D2 Comfort

Tire Brand:

Kenda K935

Wheel Sizes:

26 in (66.04cm)

Tire Details:

Reflective Sidewall

Tube Details:

Schrader Valve

Accessories:

Side Mounted Kickstand, Plastic Chain Guide, LED Power Indicator on Battery

Other:

Removable Locking Battery Pack, Regenerative Braking, KMC Anti Corrosion Chain, Quick Release Front Wheel, Model EV206PH

Electronic Details

Motor Brand:

Evantage DuoDrive

Motor Type:

Rear-Mounted Geared Hub
Learn more about Ebike motors

Motor Nominal Output:

450 watts

Battery Brand:

ProRide

Battery Voltage:

29.6 volts

Battery Amp Hours:

6 ah

Battery Watt Hours:

177.6 wh

Battery Chemistry:

Lithium-ion

Charge Time:

3 hours

Estimated Min Range:

15 miles (24 km)

Estimated Max Range:

30 miles (48 km)

Display Type:

Backlit Monochrome LCD

Readouts:

Speed, Odometer, Battery Level, Assist Level (Eco, Normal, Sport)

Drive Mode:

Cadence Sensing Pedal Assist, Trigger Throttle

Top Speed:

18 mph (29 kph) (Automatic Regeneration Above 18 mph)

Trusted Advertisers



Written Review

UPDATE! It appears that Polaris is no longer working with the manufacturer who designed and built these electric bikes, but that company is now selling their own line as PIM (Power in Motion) and you can connect with them through their official website at www.pimbicycles.com to possibly get replacement batteries, chargers, and other hardware. The following review stands on its own and represents the Polaris bike as I experienced it at the time.

The Polaris Vector offers a unique combination of efficiency and power. On the one hand, you’ve got a 450 Watt brushless geared hub motor paired with ~30 Volts of power which is actually quite powerful. On the other hand, you’ve got regenerative braking paired with a fancy control system designed to limit top speed and extend range. In my time riding this bike I felt a bit underwhelmed with the torque and peppiness but that’s a design decision Polaris made on purpose. The computer system is striving for efficiency and trying to deliver a smooth ride.

The Vector weighs just 53lbs including the battery pack which mounts and locks right into the down tube. This keeps the center of gravity low and makes the bike easy to handle, carry and park. It rides quiet and the sprung seat and front shock smooth out minor bumps in the road so the overall experience is peaceful. The battery pack on this bike doesn’t rattle around compared with the plastic tray styles used on the other models Polaris offers like the Strive or Meridian.

The Vector is easy to lift but a bit harder to maneuver onto car racks because of the curved top tube, which to me looks kind of funny. The benefit of this design is that it allows the seat to be positioned lower, making the bike easier to mount, creating a more upright seating position. Another unique design feature of this bike is the positioning of the controller system. It’s located just below the bottom bracket in a small plastic box. While this is a more vulnerable location, it does serve the purpose of enhanced torque and drive sensing which helps to create that ultra-smooth acceleration in pedal assist mode.

I think the best way to describe this bike is “controlled”. It’s smart, efficient, relatively light weight and potentially powerful but not directly satisfying. The three modes of pedal assist are the best feature here and really let this bike reach its full potential, they just don’t feel the same as a heavier more powerful ebike. This has actually been described as a benefit to me by Polaris representatives who were trying to design a system that didn’t feel so jerky. I tend to like the feeling of “peppiness” however and prefer to smooth out the ride myself by using the throttle manually.

Considering the relatively high price point of this bike, the technology and offering may not be a fit for everyone. People who enjoy a smoother feel, lighter frame and integrated battery style however will feel right at home. Keep in mind the bike actually limits rider top speed to 18mph when turned on, extra speed is regenerated into power for the battery extending range. It’s one of the few bikes out there with regenerative braking at all. Polaris is a great brand with experience making vehicles of all sorts and I know they are working to refine this offering even more in the years to come.

Pros:

  • Integrated battery design is stylish, keeps weight low to the ground and doesn’t rattle
  • Front and rear disc brakes provide plenty of stopping power, front shock and seat springs smooth out the ride
  • Computer is easy to use, provides some fun extras such as carbon footprint savings
  • Rapid fire trigger shifters work well and are my preference vs. twist shift on other ebikes
  • Advanced computer system provides smooth acceleration and regenerative braking
  • Battery is chargeable on or off the bike
  • High end Lithium ion battery will last 1,000+ cycles and reduces overall weight of bike
  • Polaris is a well established brand with experience building other light weight vehicles
  • Plastic chain guide helps keep the chain on track when riding and using mid-drive

Cons:

  • Drive system leaves something to be desired in terms of peppiness
  • 18mph top speed may be frustrating for those wishing to go faster down hills
  • Frame is a bit awkward, doesn’t mount well to car racks that connect to top-tube
  • No water bottle mounts due to battery placement
  • Expensive price point considering the motor power and battery system
  • Bottom bracket controller mount seems vulnerable
