Summary

  • A powerful, sturdy and fast electric bicycle that performs like a motocross dirt bike
  • Weighs 75lbs and offers 3,000 watts of power with top speed of 37mph (or 20mph in USA mode)
  • Offers two speeds to pedal with and a twist throttle mode (no pedal assist) making this bike more of a moped than a bicycle
Warning, in some configurations this electric bike is classified as a moped or motorcycle and may not be ridden on cycling trails or paths. It may require licensing, insurance and lights when used on public roads.

Video Review

Trusted Advertisers

Introduction

Make:

Stealth

Model:

Fighter

Price:

$7,900 USD

Body Position:

Forward

Suggested Use:

Trail

Electric Bike Class:

Moped or Motorcycle (Class 4)
Learn more about Ebike classes

Warranty:

Lifetime Frame, 1 Year Battery and Components

Availability:

United States, Australia

Model Year:

20132014

Bicycle Details

Total Weight:

75 lbs (34.01 kg)

Frame Material:

One Piece Monocoque with Aircraft Certified CrMo Alloy

Frame Types:

High-Step

Frame Colors:

Jet Black, Space Blue, Army Green, Camo Grey, Ultra Orange, Devil Red, Snow White, Bumble Bee

Frame Fork Details:

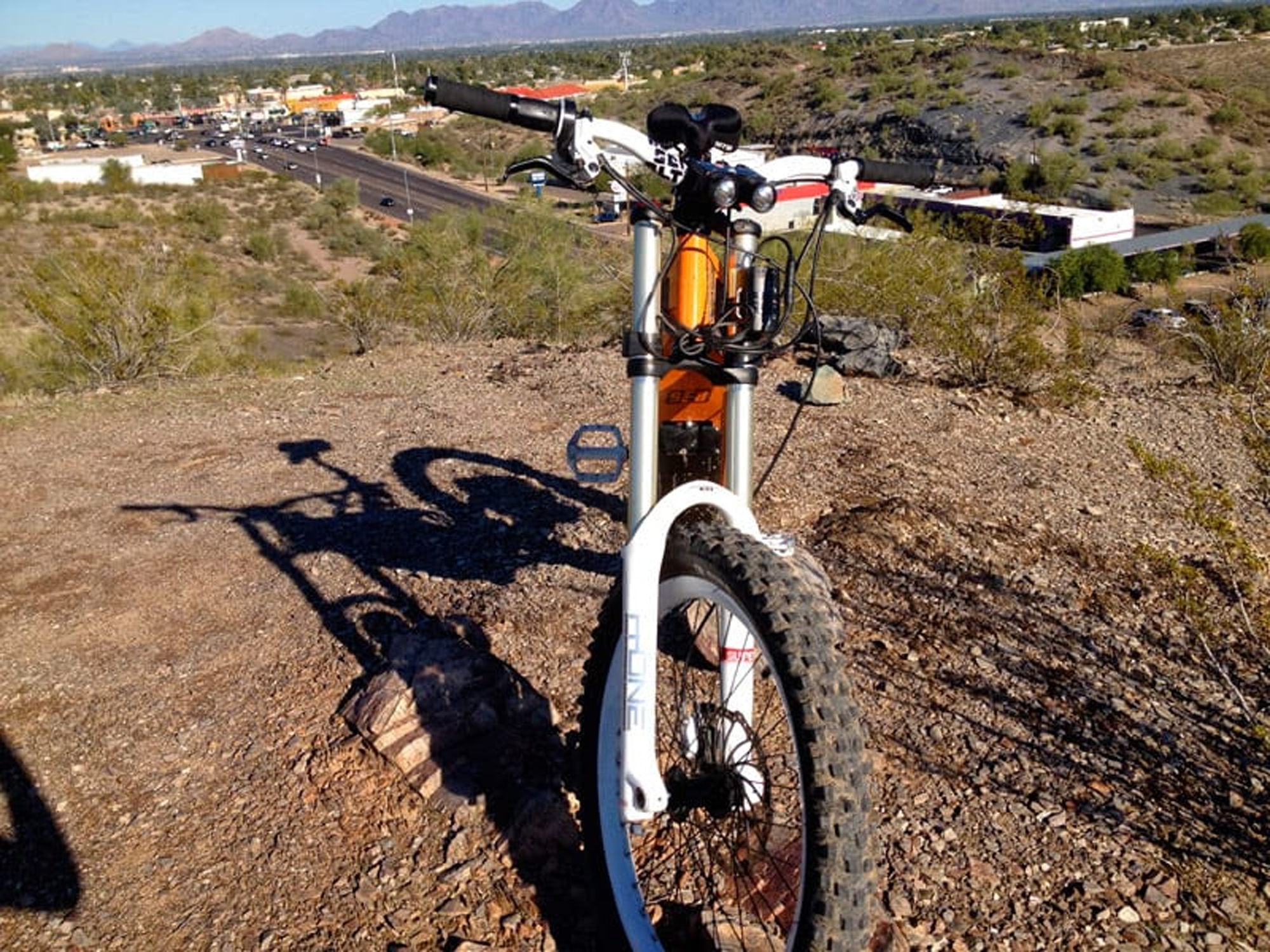

Dual Crown Long Travel Suspension with Quick Adjust 180 mm Travel (Optional 200 mm Travel Upgrade)

Frame Rear Details:

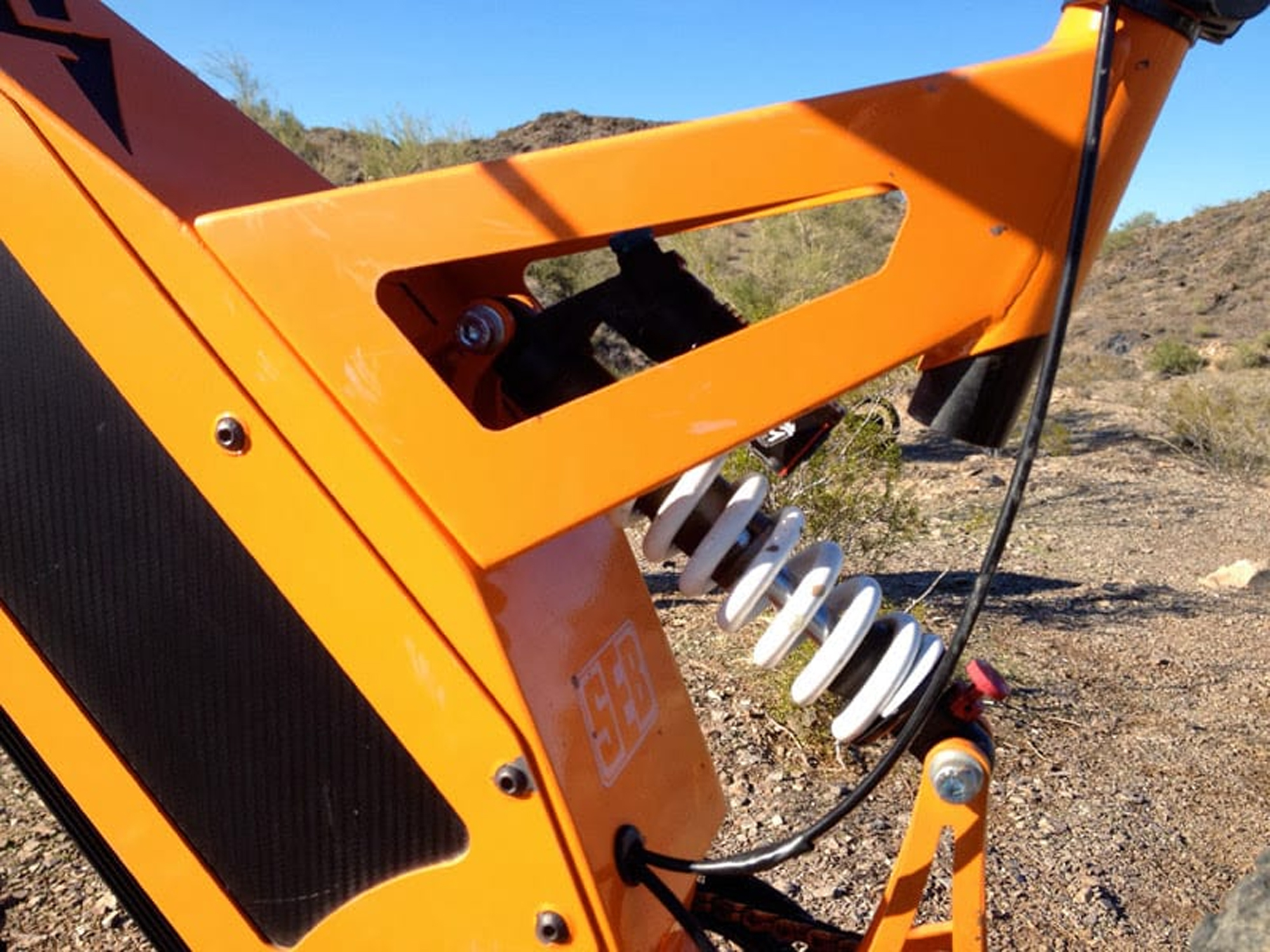

Single Pivot Coil Over Mono-Shock with Quick Adjust 250 mm Travel

Gearing Details:

2 Speed 2x1 Schlumpf Internal Gear Box (In Bottom Bracket)

Shifter Details:

Heel Tap Shifter

Pedals:

Aluminum Alloy Platform

Handlebar:

Low Rise

Brake Details:

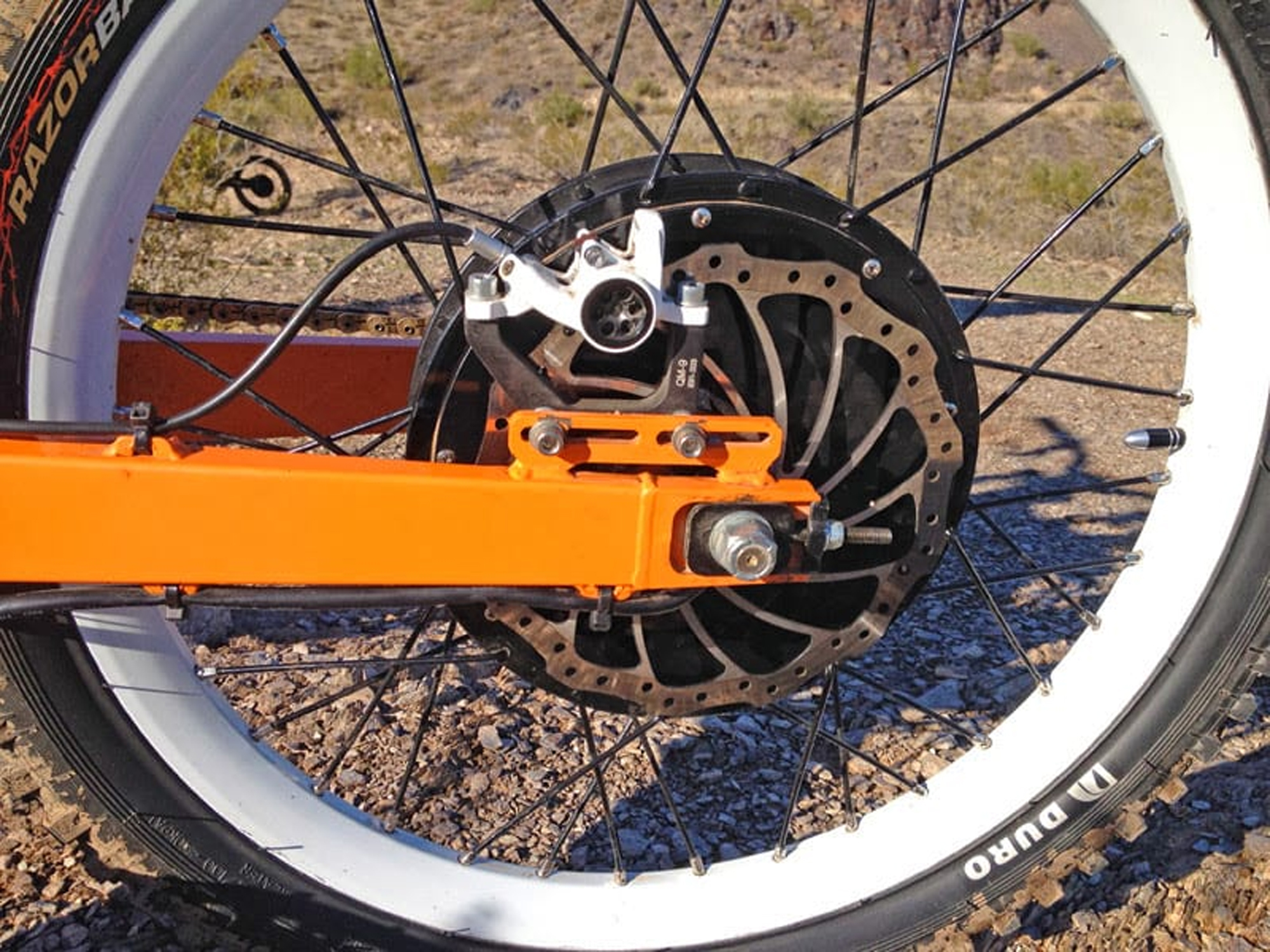

Magura MT2 Hydraulic Disc with 203 mm Rotors (Optional MT4 or MT8 Upgrade)

Saddle:

MTB Padded

Tire Brand:

Duro Razorback All-Condition Studded for Trail Use, Crazy Bob for Road Use

Wheel Sizes:

24 in (60.96cm)

Other:

Thru Axles, Removable Battery

Electronic Details

Motor Type:

Rear-Mounted Gearless Direct Drive Hub
Learn more about Ebike motors

Motor Nominal Output:

3000 watts

Motor Peak Output:

3500 watts (Limited to 750 Watts in USA Mode)

Battery Voltage:

48 volts

Battery Amp Hours:

20 ah

Battery Watt Hours:

960 wh

Battery Chemistry:

Lithium Phosphate

Charge Time:

2 hours (Fast Charger Capable of Using 110 or 120 Volt Power Source)

Estimated Min Range:

30 miles (48 km)

Estimated Max Range:

40 miles (64 km)

Display Type:

Backlit Grayscale LCD by Cycle Analyst

Readouts:

Speed, Odometer, Battery Level, Voltage, Wattage

Drive Mode:

Twist Throttle

Top Speed:

37 mph (60 kph)(Up to 20 mph in USA Mode)

Trusted Advertisers



Written Review

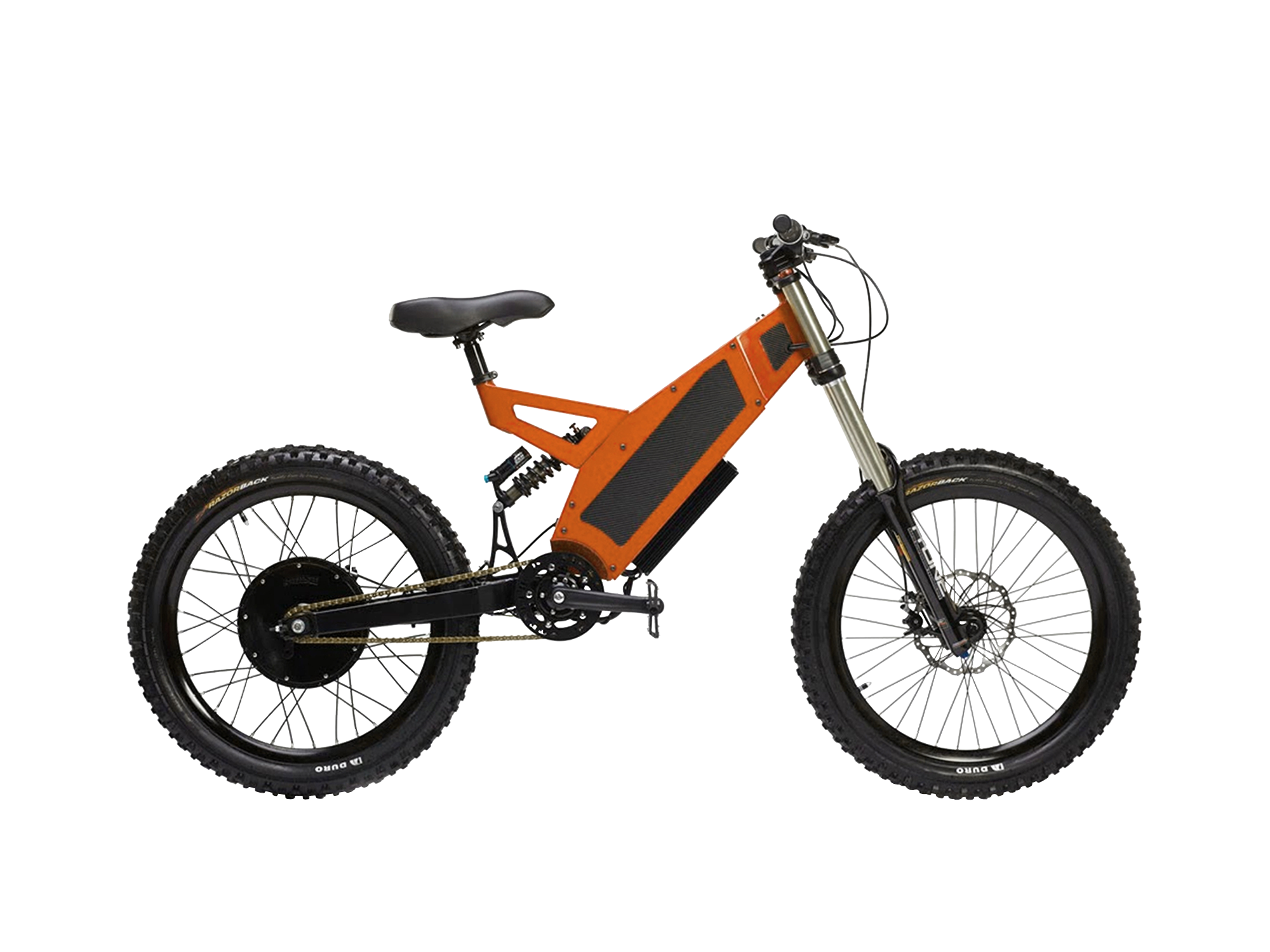

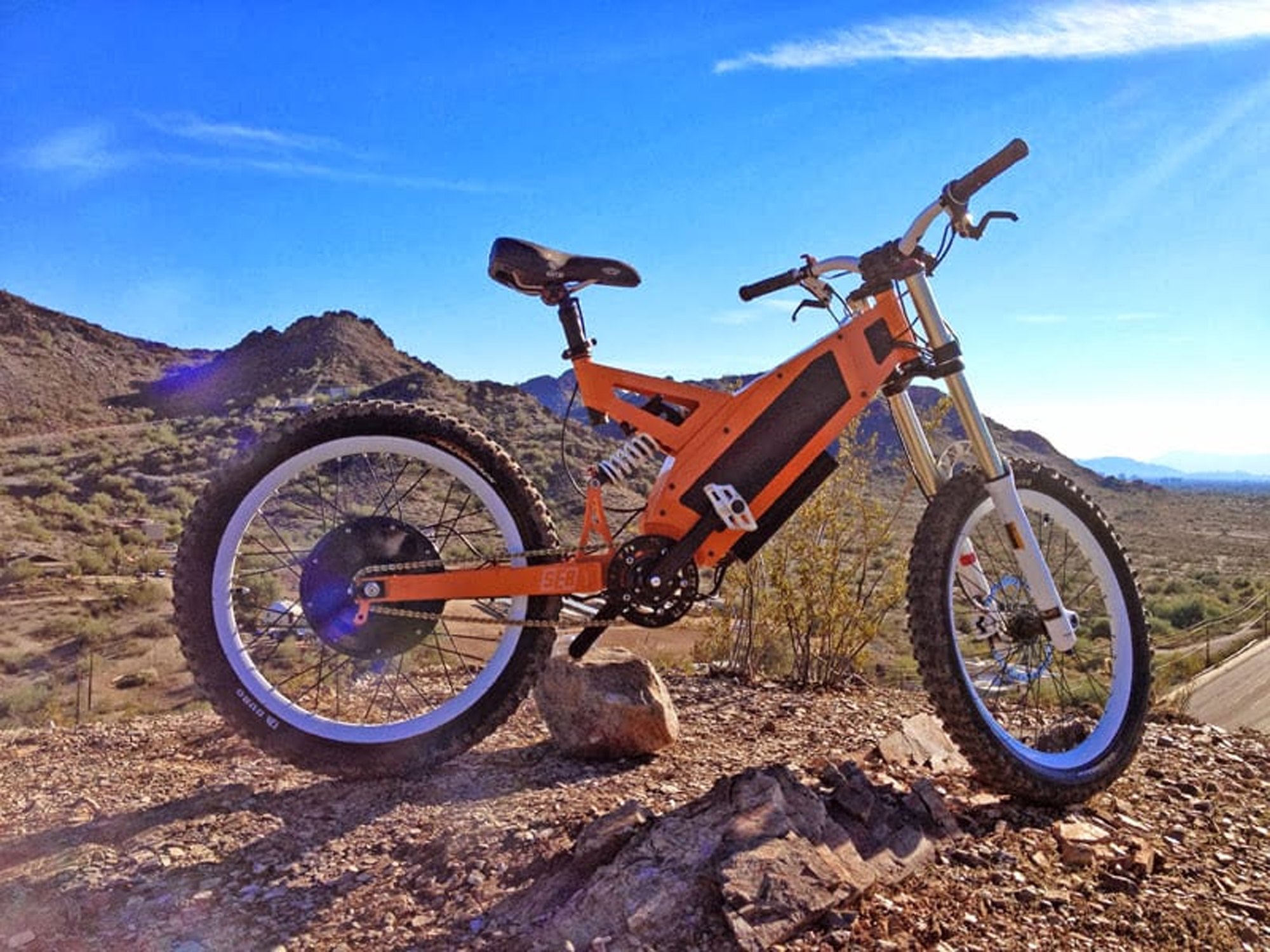

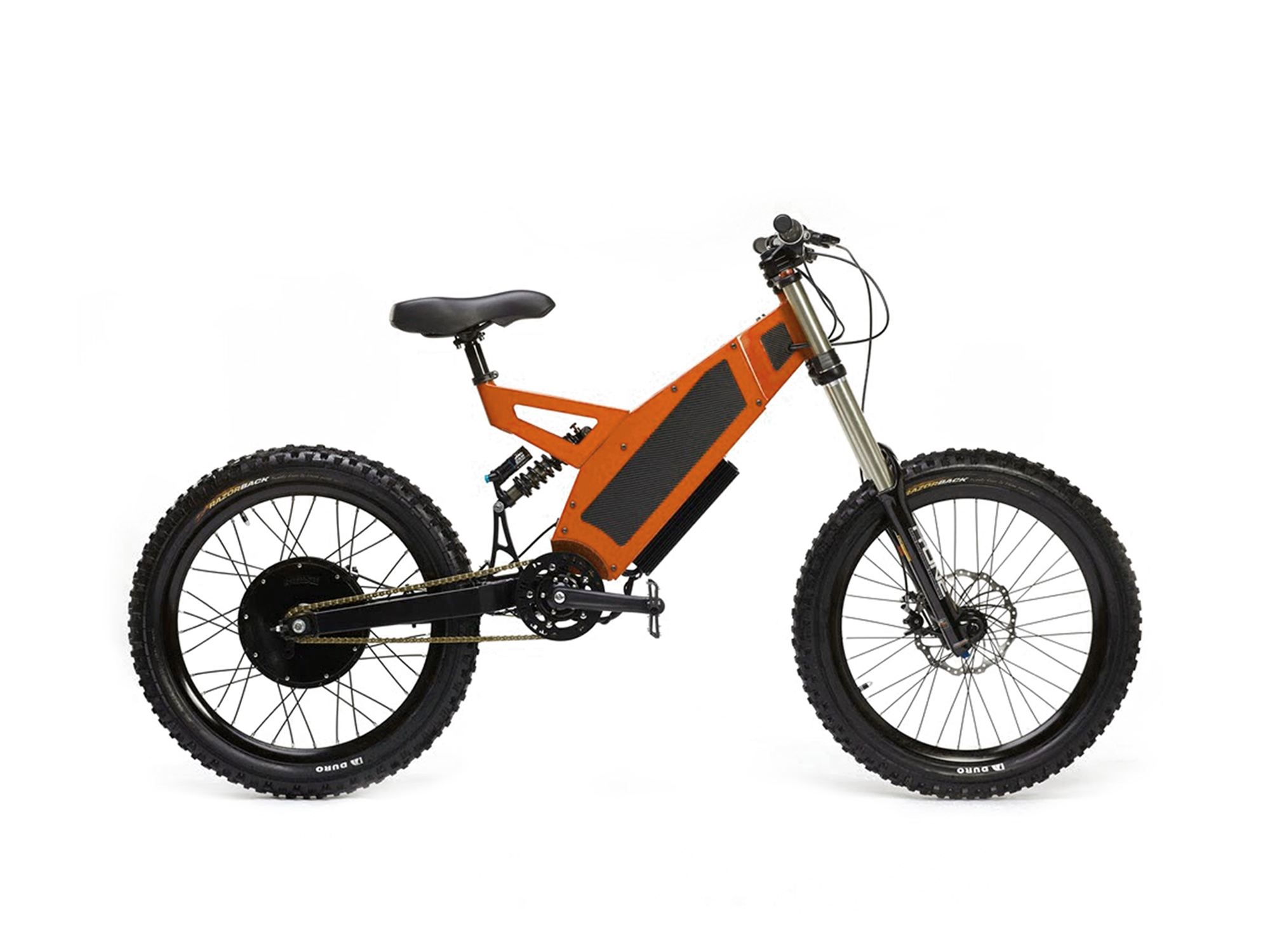

The Stealth Fighter is the lighter, more nimble, less powerful model in the Stealth lineup. Weighing in at 75lbs vs. 116lbs it’s easier to transport, maneuver when riding and control in the air. It’s a ton of fun to ride and to me, more comfortable than the Bomber (when in Competition mode) because it has less torque and power. I’m not used to saying I prefer the “less powerful” model of an electric bike but that’s because these machines are really more motocross than ebike. With impressive front and rear suspension and braking systems that can be upgraded, an enormous 1 kilowatt-hour battery pack and 2 hour fast charge system that can run on 110 or 240 volts, this thing is impressive!

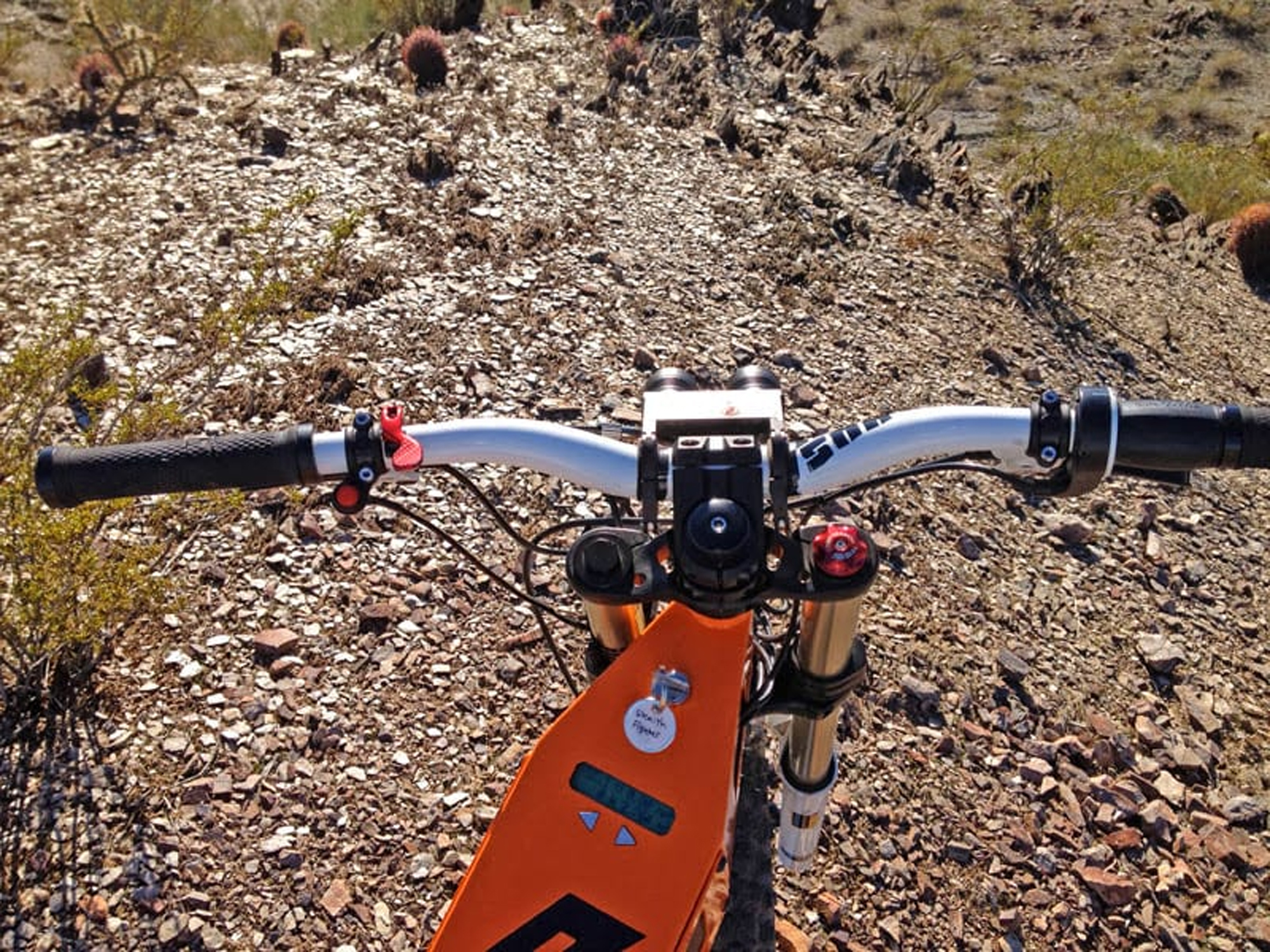

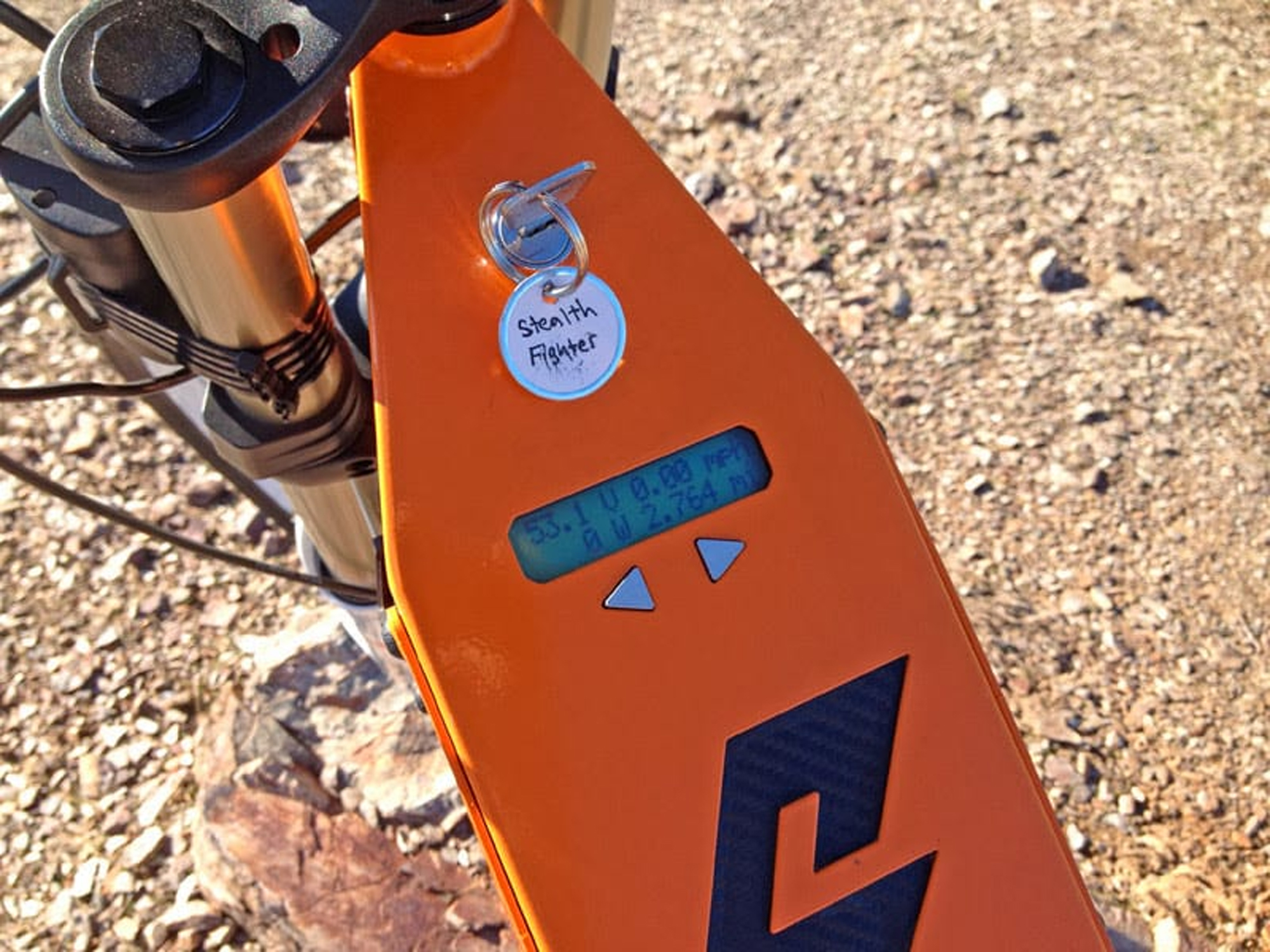

I love that Stealth offers a lifetime warranty on their frames and rear suspension. The battery only gets a year (along with the other components) but that’s not bad considering the abuse these things are sure to encounter off road. The LCD computer on this bike is from Cycle Analyst and offers more advanced information about performance and battery condition (specifically, battery performance) than most ebike computers. It is also backlit for night riding and Stealth offers some optional headlights for the bike that work really well. Cycle Analyst computers are not cheap, and that adds to the overall price of this bike, but they are high quality and they offer readouts on everything from volts at rest or when riding, current flow into and out of the battery and relative to time, speed in m/hr or k/hr, energy limit in amps or volts to control speed and power (hence the USA mode or Competition mode).

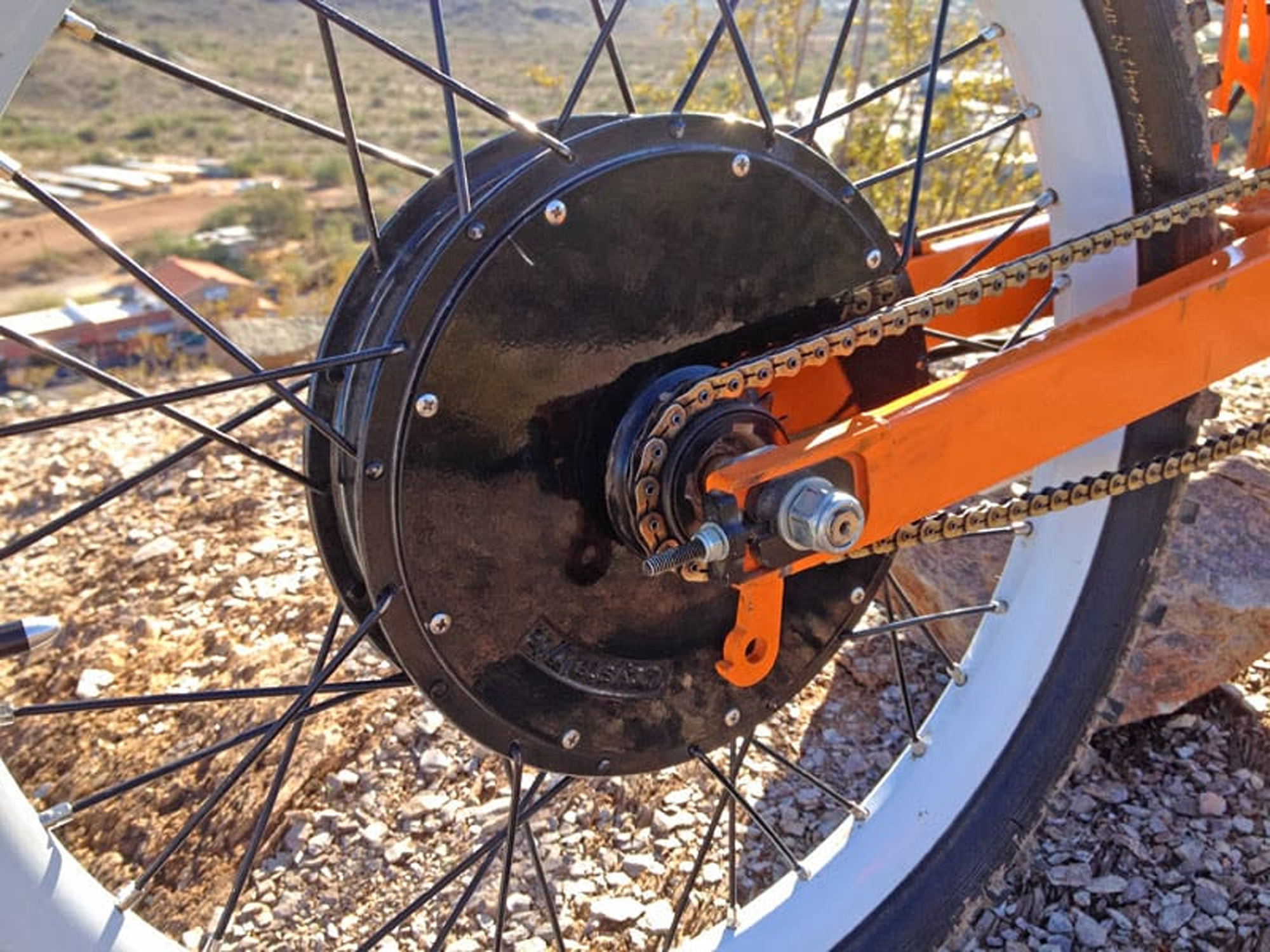

Driving this beast is a 3,000 watt motor (that’s nearly 10x normal electric bikes or those sold in Europe). It’s gearless and offers a regen-mode to help slow the bike down and recuperate energy while saving the brakes. The motor runs pretty quiet considering the size (decibels at 30 miles per hour is 65dB), provides a ton of torque and accelerates very smoothly using the twist throttle. The Cycle Analyst computer monitors the system and is designed to keep the motor from overheating.

The battery powering all of this performance is a 1 kilowatt-hour Lithium Iron Phosphate pack. This technology offers less energy density than some other Lithium-ion chemistries (meaning it’s heavier for the same amount of juice) but is known for being very stable and long lasting. Considering the high charge and discharge rate and potential vibration and impacts a bike like this could endure, that’s a great thing. It means longer life and fewer chances of a fire between your legs ;)

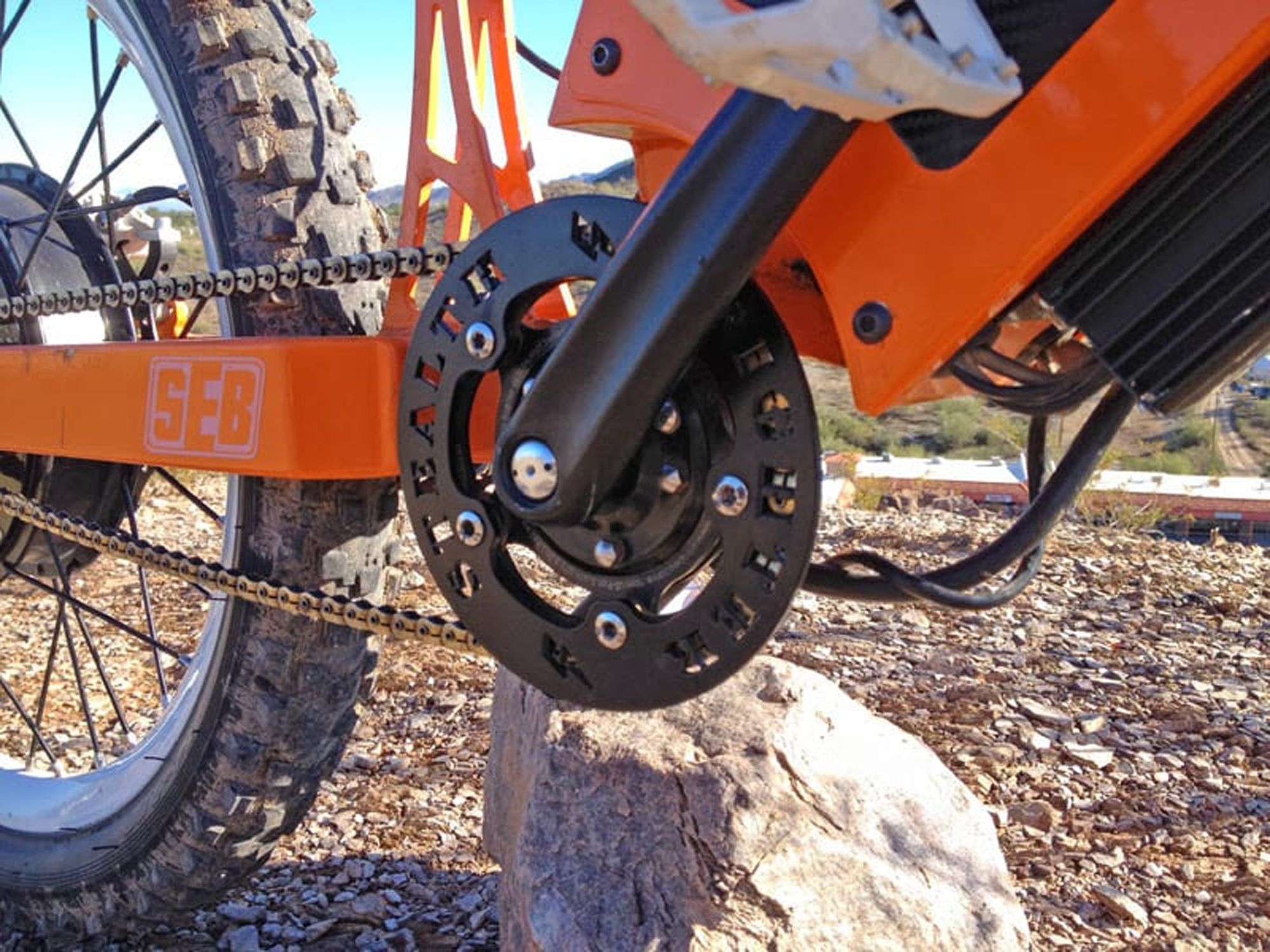

I loved riding the Fighter and other electric bikes from Stealth. It’s awesome that there’s a company building custom ebikes that push the envelope and garner attention. Everything from the custom engraved bash guard to the carbon fiber accents and oversized chain screams quality. These bikes aren’t for everyone and they are clearly focused on performance vs. commuting but they certainly deliver! I love ride quality that long travel full suspension offers and the simplicity of operation combined with advanced features on the LCD computer. Keep in mind, transporting and parking an oversized 75lb bike is not going to be easy. While the battery pack is removable, it requires a hex wrench and really isn’t meant to be taken out (though it would help for transport to make the bike lighter weight). If you love the idea of an electric motocross bike that you can pedal and mod, this is the perfect choice… or the Bomber of course.

Pros:

  • Super powerful and well balanced with batteries mounted inside the mid-frame area
  • Stable and reliable Lithium Iron Phosphate battery technology will last well
  • Full suspension for comfortable off road riding and jumping
  • Uses Cycle Analyst LCD computer system with lots of options and readouts, provides two modes of operation helping it to qualify as a legal ebike
  • Regeneration button helps to recharge the bike and slow it down without wearing out the brake pads
  • Offered in a wide range of colors including black, blue, green, grey, orange, red, white and yellow
  • Stock pedals are higher quality, made of metal with wide grippy surface
  • Hydraulic disc brakes provide great stopping power with very little effort and hand fatigue
  • The suspension and brakes can be upgraded, optional lighting system and two choices of tires (studded or slick)
  • Cockpit is clean and handle bars are easy to grip when riding in rough conditions, gears are shifted using a mid-bottom bracket heel switch
  • Solid lifetime warranty on the frame and rear suspension, one year on battery and other components

Cons:

  • Heavier than normal electric bikes at 75 pounds (34 kilograms) making it harder to transport and maneuver
  • No pedal assist and only two gears to choose from when pedaling
  • While battery is removable, it requires tools and is really built to stay in the bike
  • Wider downtube/midsection of the bicycle is easier to bump with your knees when riding, takes a bit of getting used to
  • More expensive than other ebikes but offers a good range of options and higher quality parts including the Cycle Analyst computer
