Total Weight:
51.2 lbs (23.22 kg)
Battery Weight:
5.5 lbs (2.49 kg)
Motor Weight:
8 lbs (3.62 kg)
Frame Material:
Aluminum Alloy
Frame Sizes:
19.5 in (49.53 cm)Geometry Measurements:
(Top Tube Horizontal 635 mm, Head Tube Length 150 mm, Seat Tube Center to Top 500 mm, Chain Stay 445 mm, Wheelbase 1175 mm)
Frame Types:
High-Step
Frame Colors:
Matte Black with Metallic Purple and Flat Red Accents

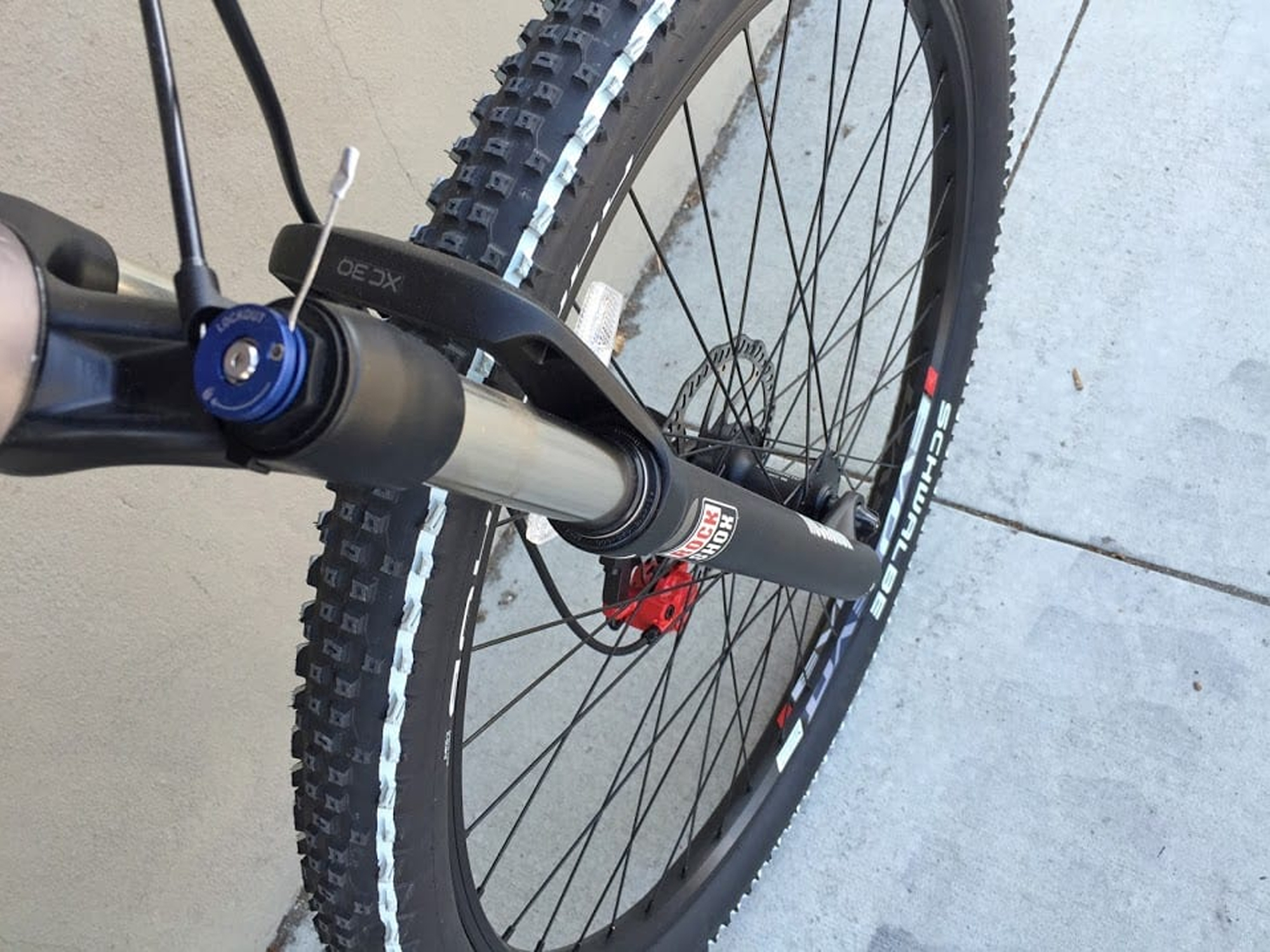

Frame Fork Details:
RockShox XC30 Air Suspension with Remote Lockout
Attachment Points:
Fender Bosses, Rear Rack Bosses

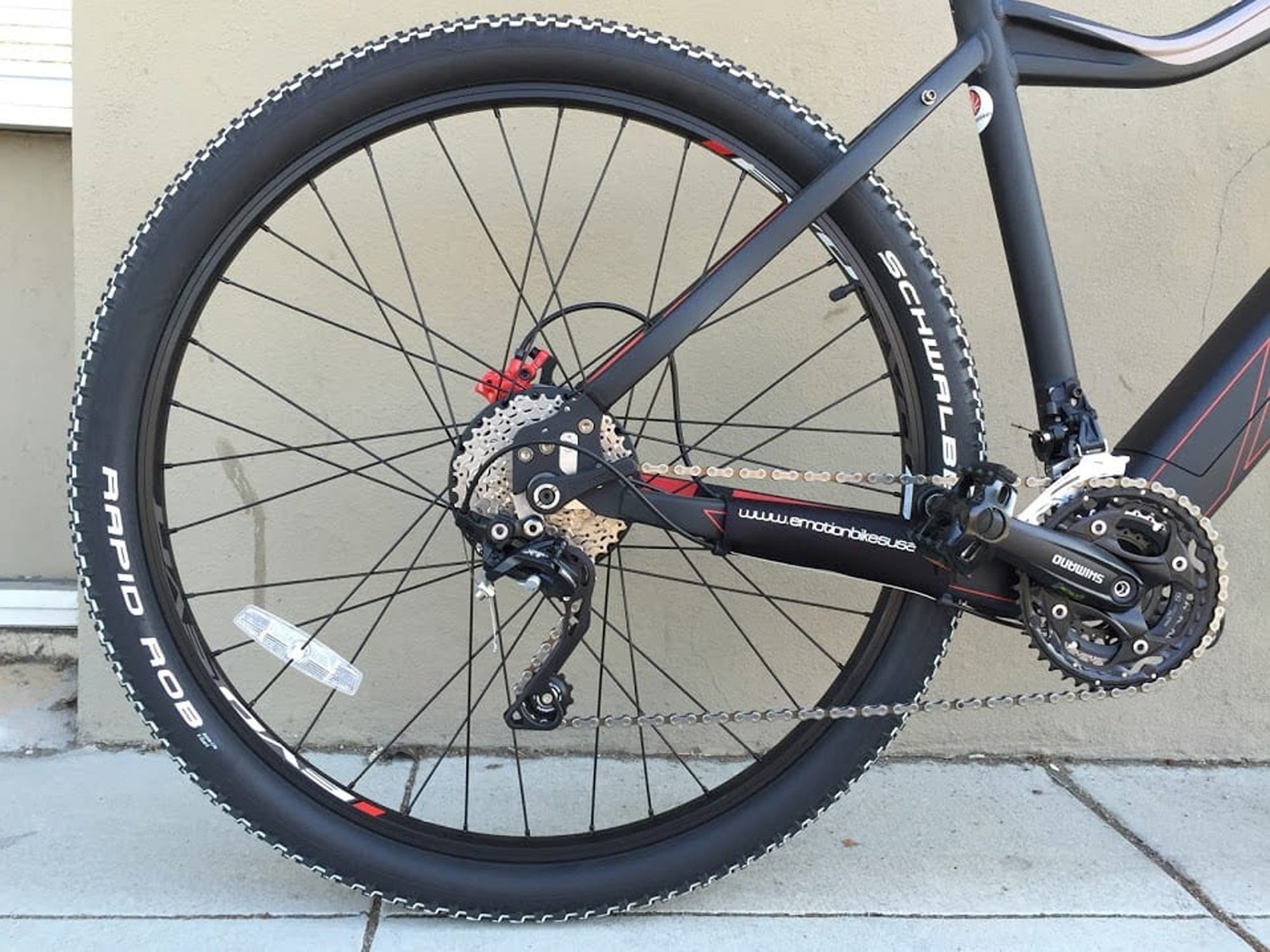

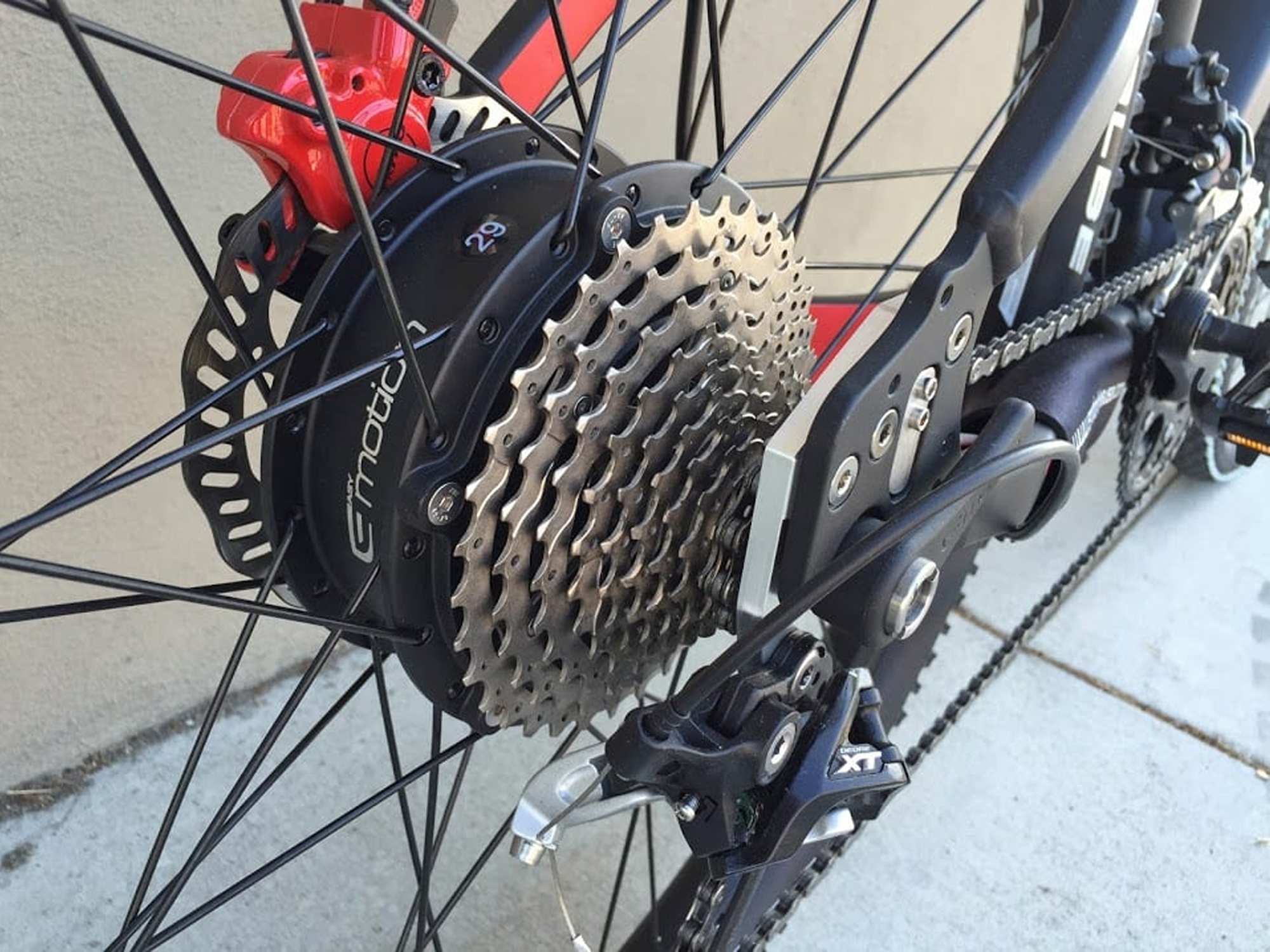

Gearing Details:
30
Speed 3x10 Shimano XT Rear Derailleur, Shimano Deore Front Derailleur, 11-36T CassetteShifter Details:
Shimano Deore Rapidfire

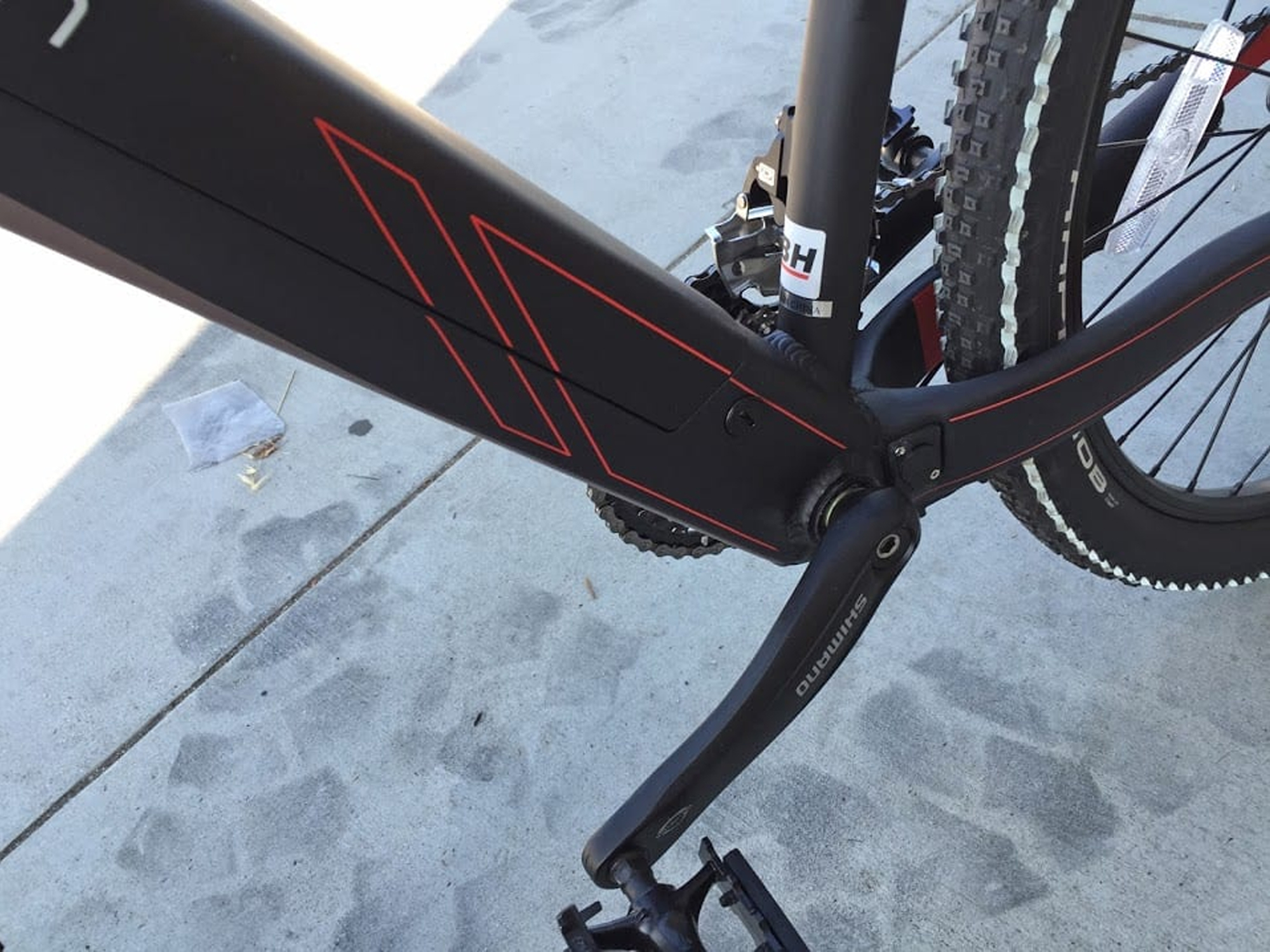

Cranks:
Shimano Deore
Pedals:
Aluminum Alloy Platform
Headset:
FSA, Tapered Head Tube
Handlebar:
Aluminum Alloy, Emotion Cross Low Rise

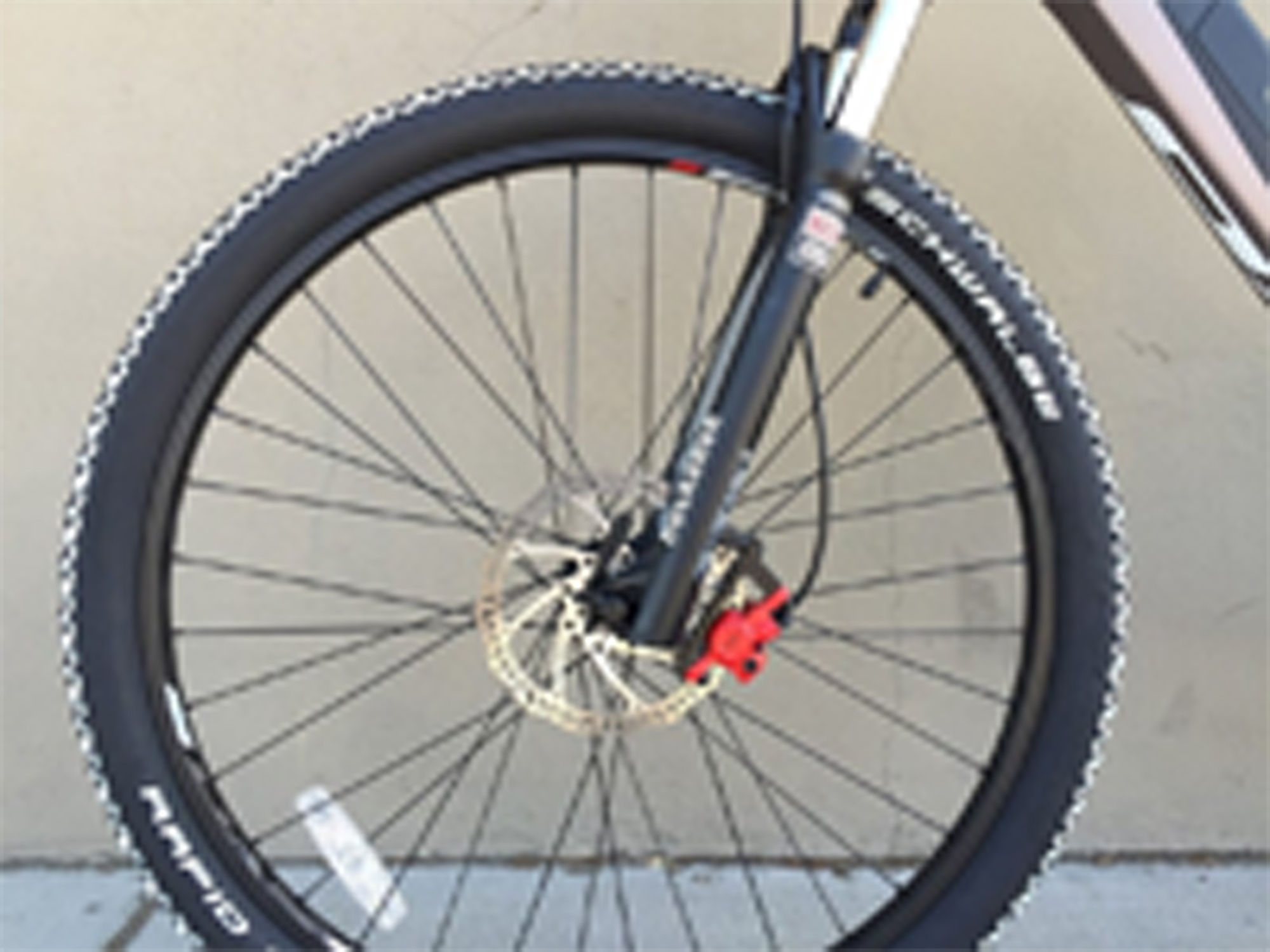

Brake Details:
Tektro E-Comp Hydraulic Disc with 180mm Front Rotor and 160 mm Rear Rotor, E-Comp Levers with Motor Inhibitor

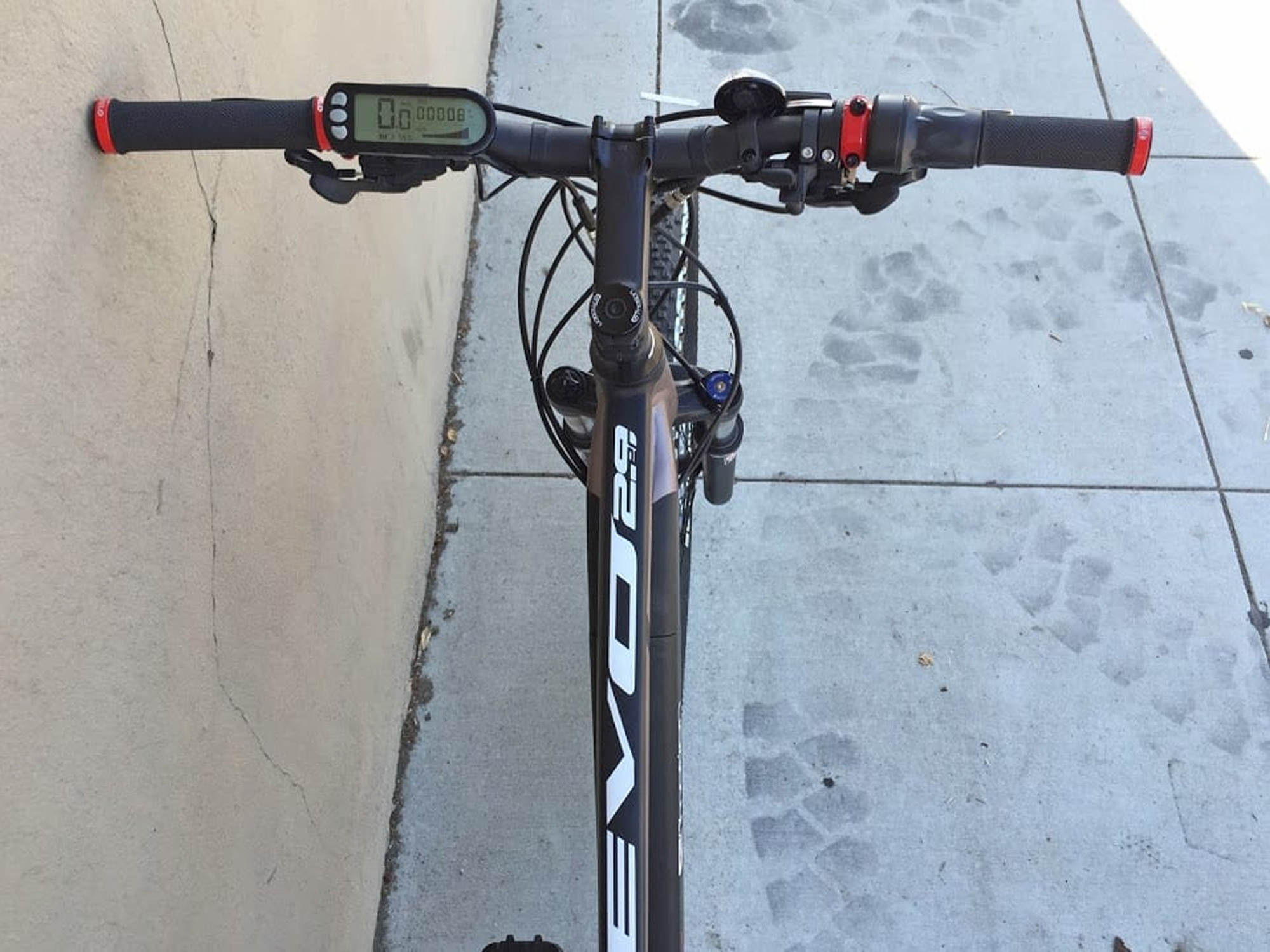

Grips:
Velo, Flat Rubber with Lockers

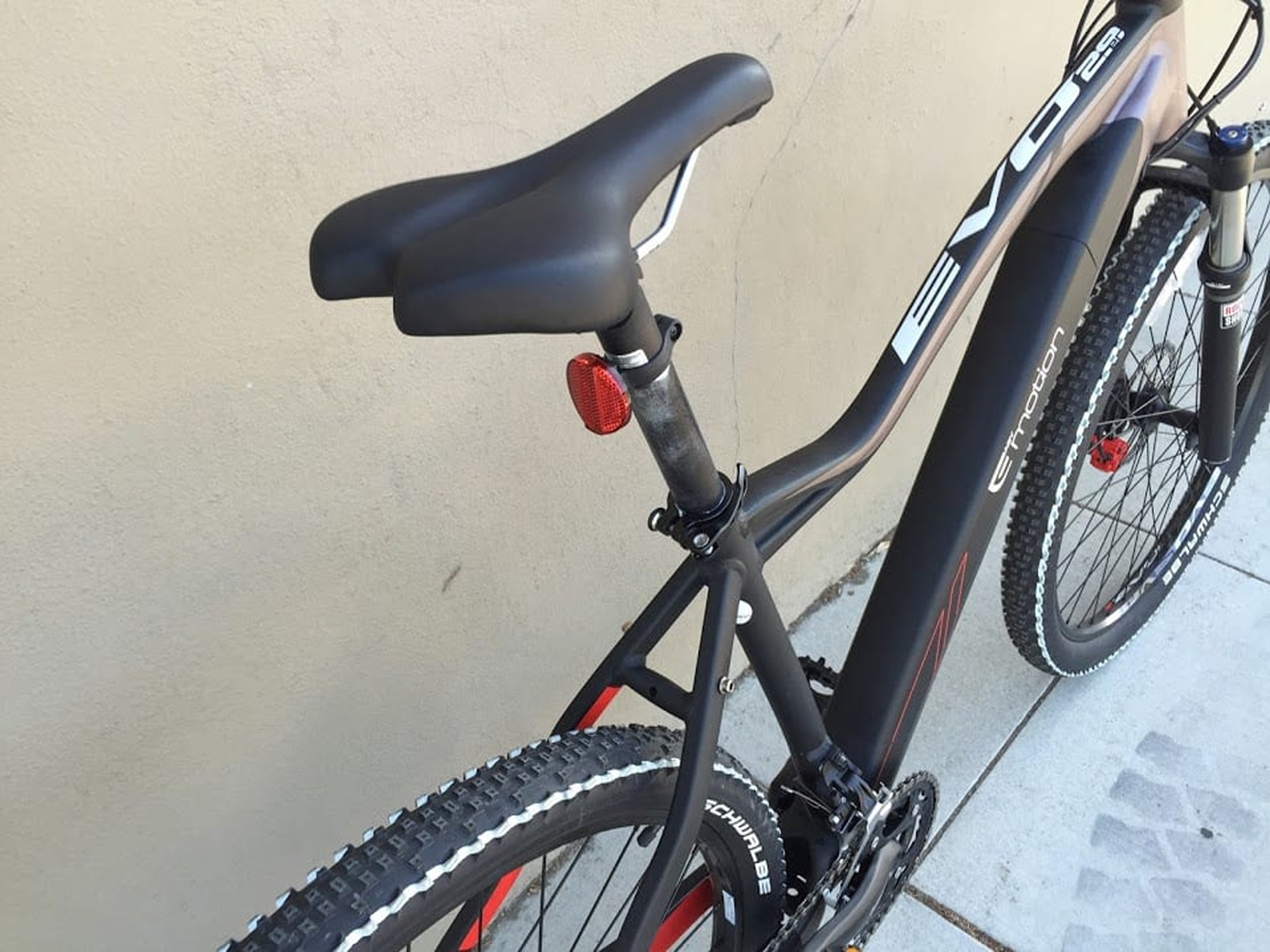

Saddle:
EMotion Performance
Seat Post Length:
350 mm
Seat Post Diameter:
31.6 mm
Rims:
Aluminum Alloy, Double Wall
Spokes:
Stainless Steel

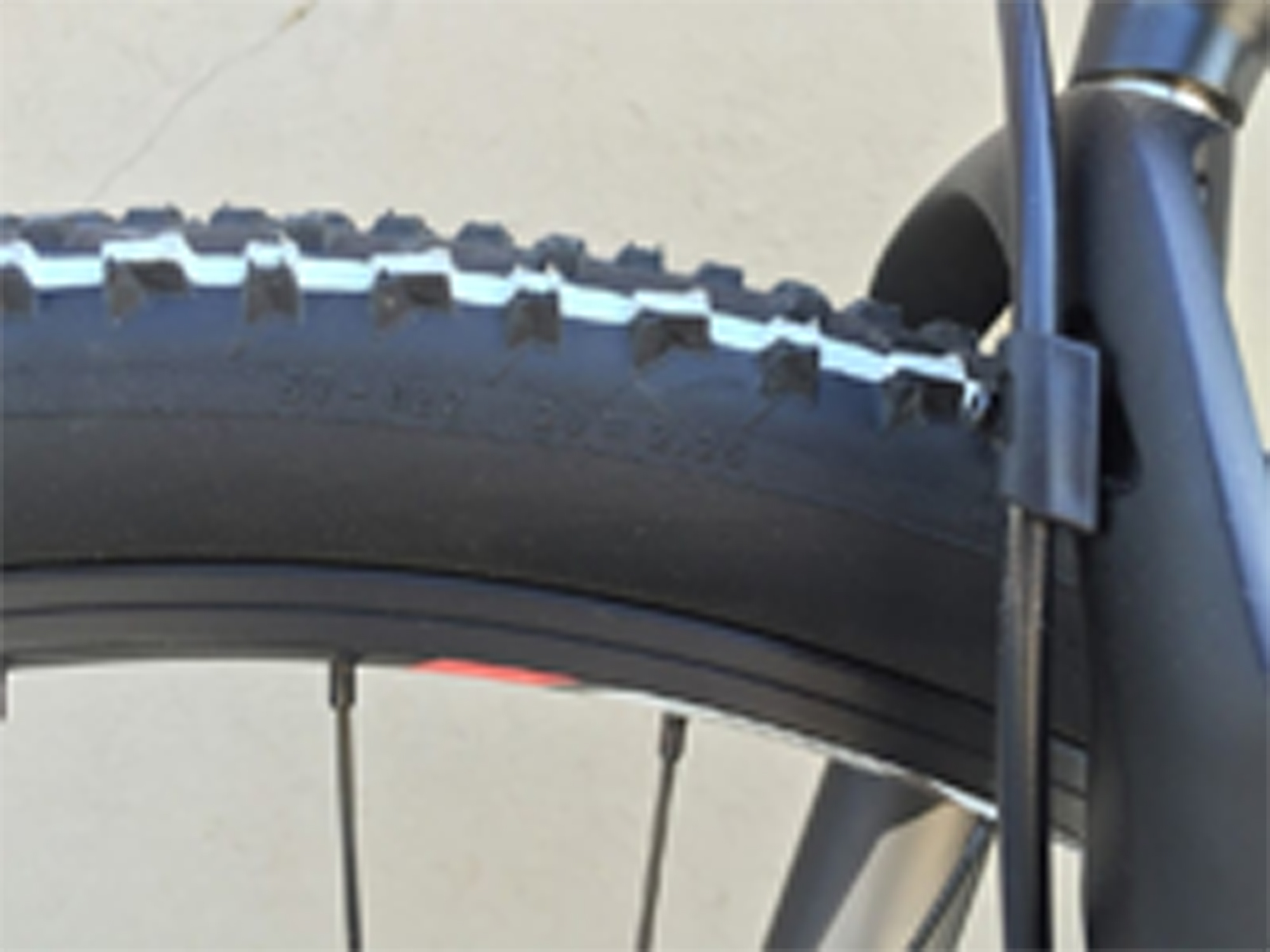

Tire Brand:
Schwalbe Rapid Rob, 29" x 2.25"
Wheel Sizes:
29 in (73.66cm)Tube Details:
Schrader Valve
Accessories:
LED Battery Level Indicator on Battery Pack, Neoprene Wire Organizer on Left Chain Stay, Integrated Torque Arm on Rear Dropout
Other:

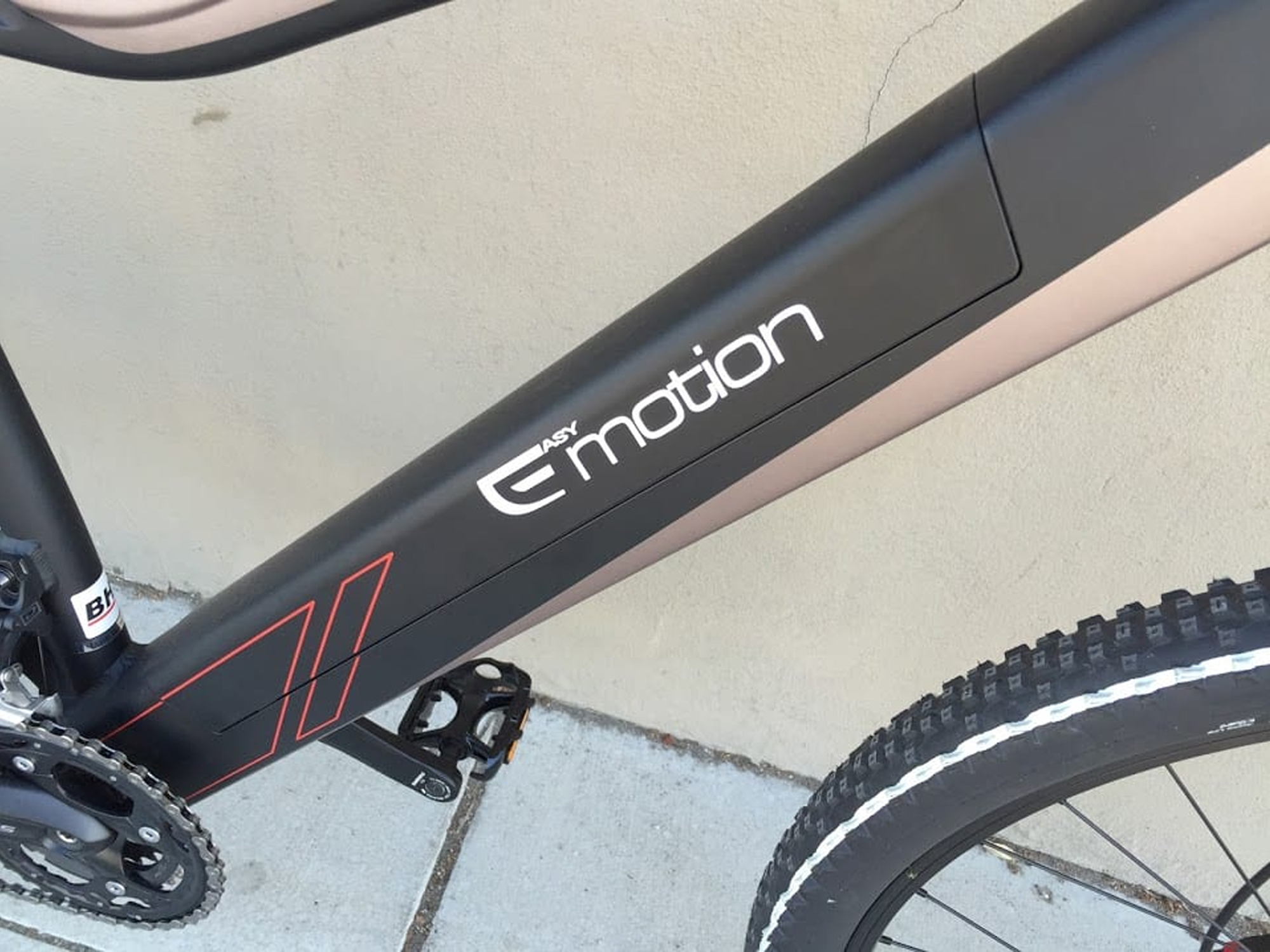

Model EV765, Locking Removable Battery Pack, Quick Release Front and Rear Wheels with Quick Disconnect Cable on Motor, Tapered Headtube
Earl
9 years agoYou do a great job with this website and reviews. In your opinion what do yo think the differences between the Evo 27.5 and the Evo 29 are? I am 6’2 210 lbs. should I pick the 29 based on frame size alone. Keep up the great work! Tomas Hooper
ReplyCourt Rye
9 years agoGreat question, I think you’re on the right track looking at the larger 29 given your height. This bike has a longer frame and the larger wheels lift the frame higher off the ground. It might make your seating position feel less cramped and allow for better leg extension while pedaling. I’m 5’9″ and was able to ride both models fairly easily but preferred the 27.5 because it felt more comfortable for my body type, in your case I think the 29 would feel the most comfortable. Another benefit of the 29 is the remote lockout for the front suspension fork, the 27.5 doesn’t offer this :)
ReplyMichael Fenerin
9 years agoLove your website! Very complete, informative and balanced. My question is probably a dumb one, but when you’re going downhill on a fairly rutty and steep-in-parts fire road, with the throttle and pedal assist both off, will that chain bounce you were describing still trigger the motor? Thanks!
ReplyCourt Rye
9 years agoHi Michael! If you’re in either throttle mode or the bike is powered off then the torque sensor won’t be activated and chain bounce won’t be an issue. Even in the lower levels of assist, it shouldn’t cause much jump… especially if you’re using the brakes. The worst case scenario would be pedaling in a low gear while using the higher levels of assist, then coasting to navigate some rocks or sticks. I usually coast to maintain focus and balance across obstacles in this kind of situation but depending on how jerky they are it could trigger the motor and propel the bike forward unexpectedly which could upset balance momentarily. Hope this helps!
ReplyMichael Fenerin
9 years agoThanks, Court! Perfect answer. I really appreciate the help.
ReplyMichael T.
6 years agoThere is a Easy Motion EVO City Wave used bike for sale in my area. I was wondering if you’d be so kind and tell me the things I should ask about? I’m an Senior dude looking for an easier way to get around town, but money of course is tight.
