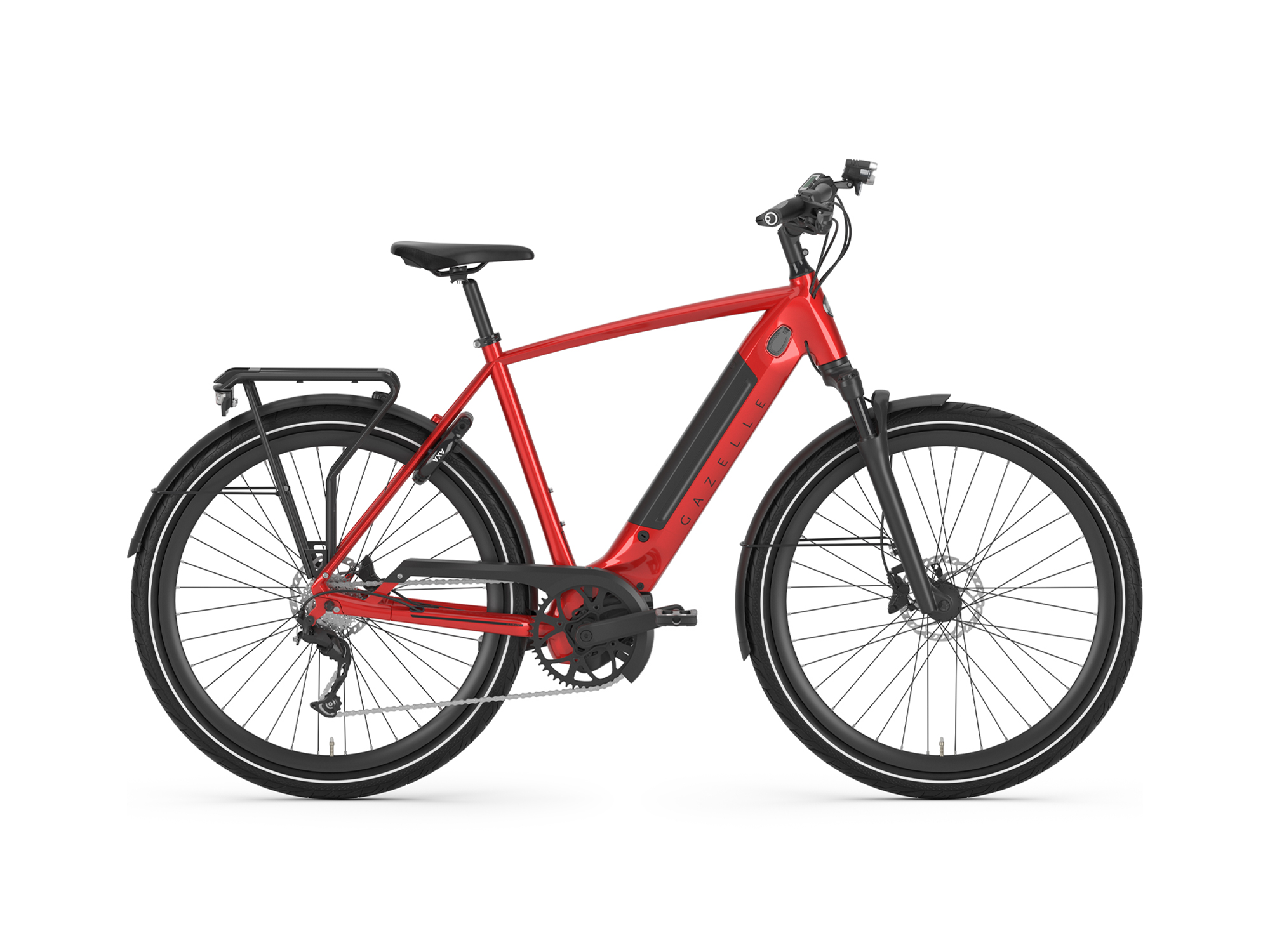

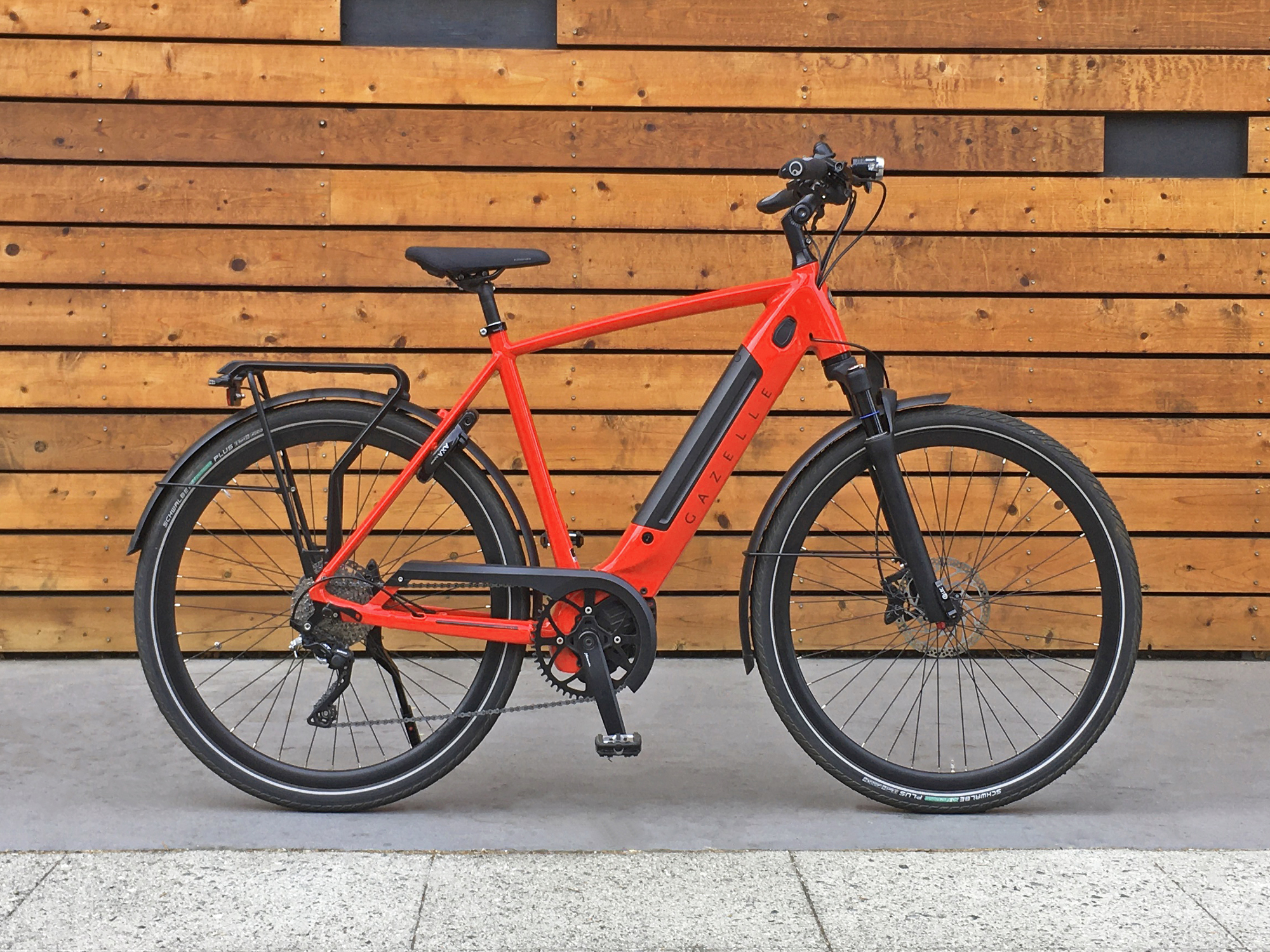

Gazelle Ultimate T10 Plus Hmb Electric Bike Review

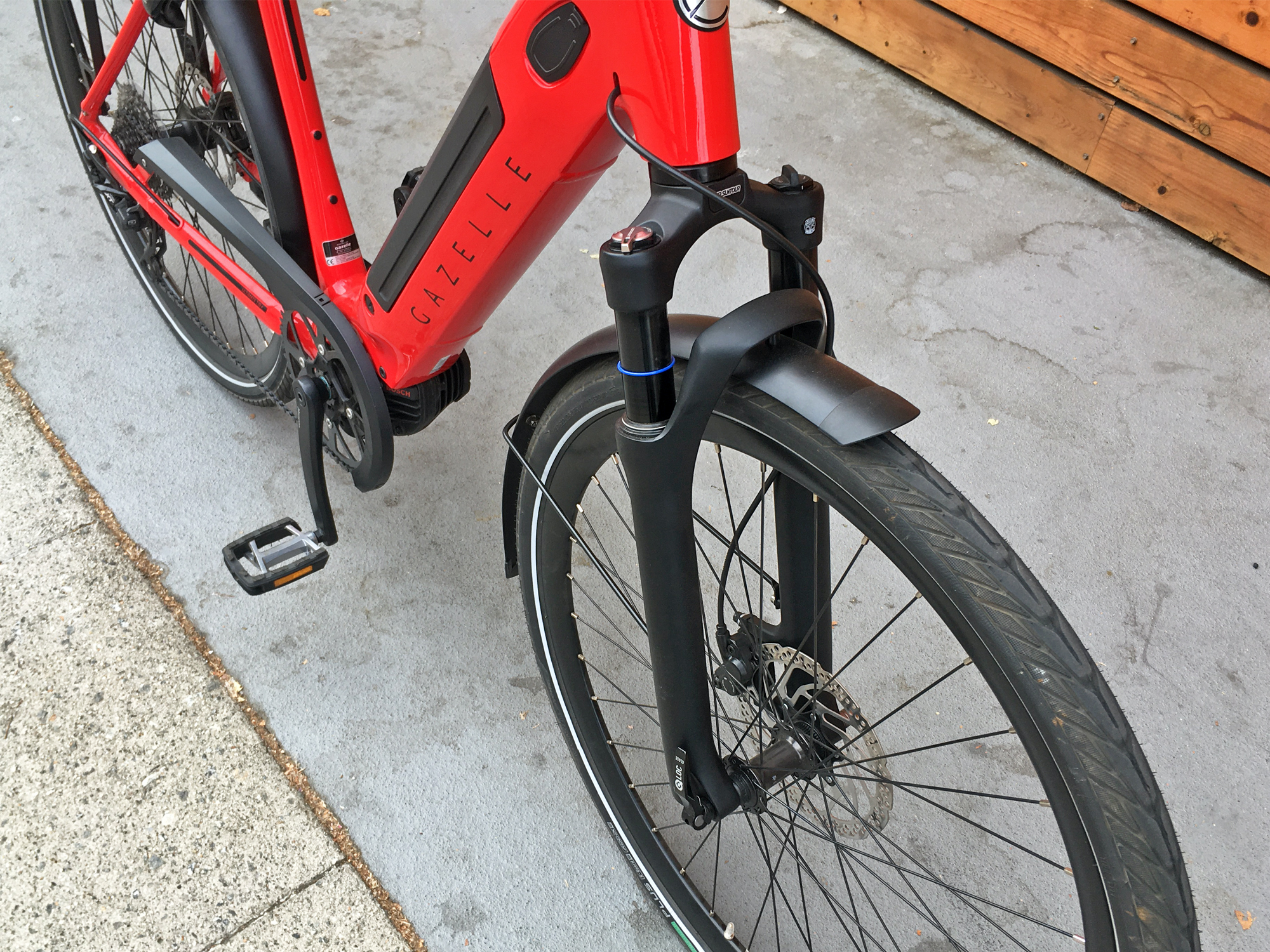

Gazelle Ultimate T10 Plus Hmb Suntour Mobie Air Suspension Fork 80mm Travel

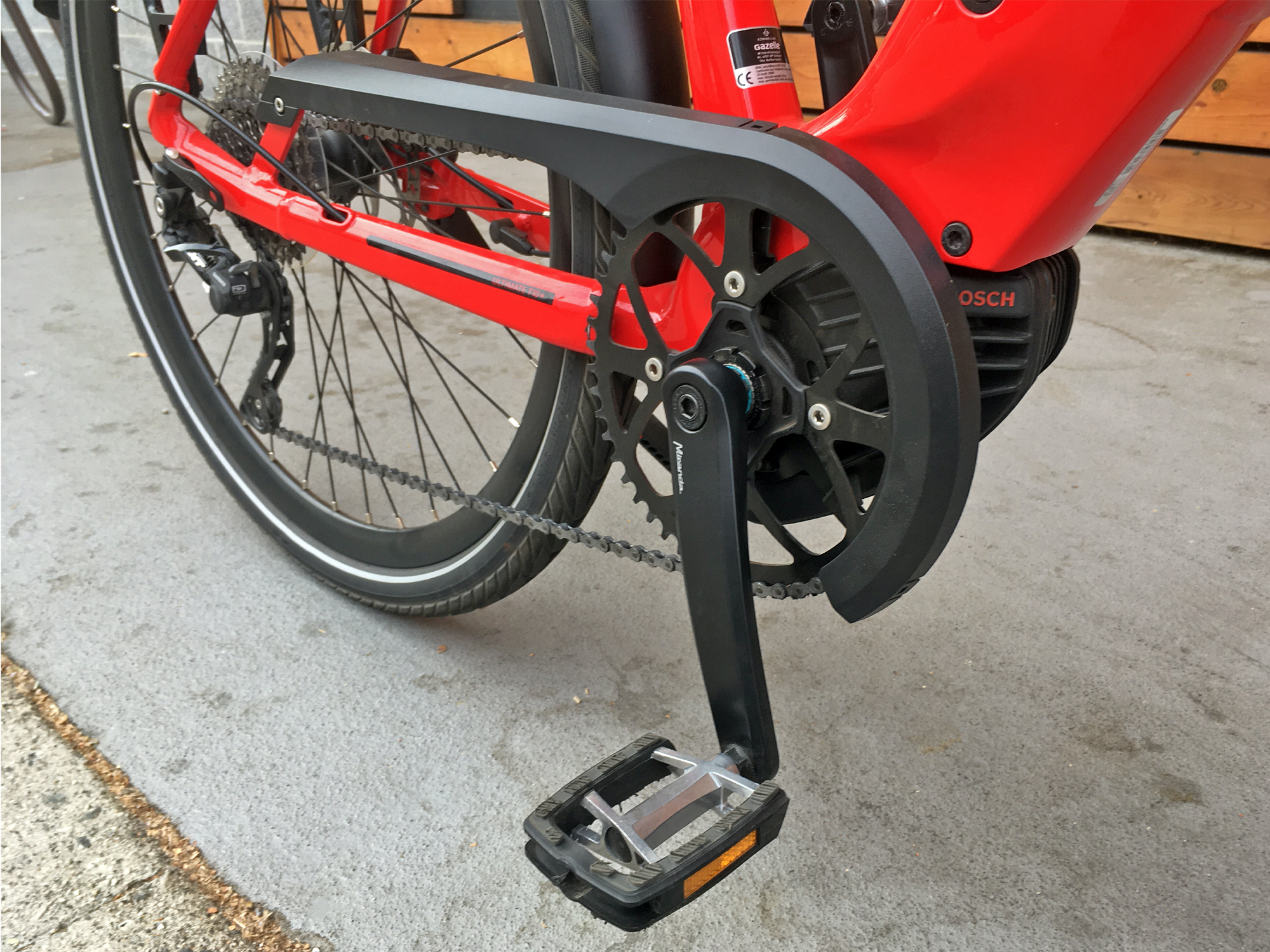

Gazelle Ultimate T10 Plus Hmb Plastic Chain Guard 170mm Crank Arms Alloy Pedals With Rubber Grips

Gazelle Ultimate T10 Plus Hmb Shimano Deore Xt With Shadow Plus

Gazelle Ultimate T10 Plus Hmb Axa Defender Cafe Lock

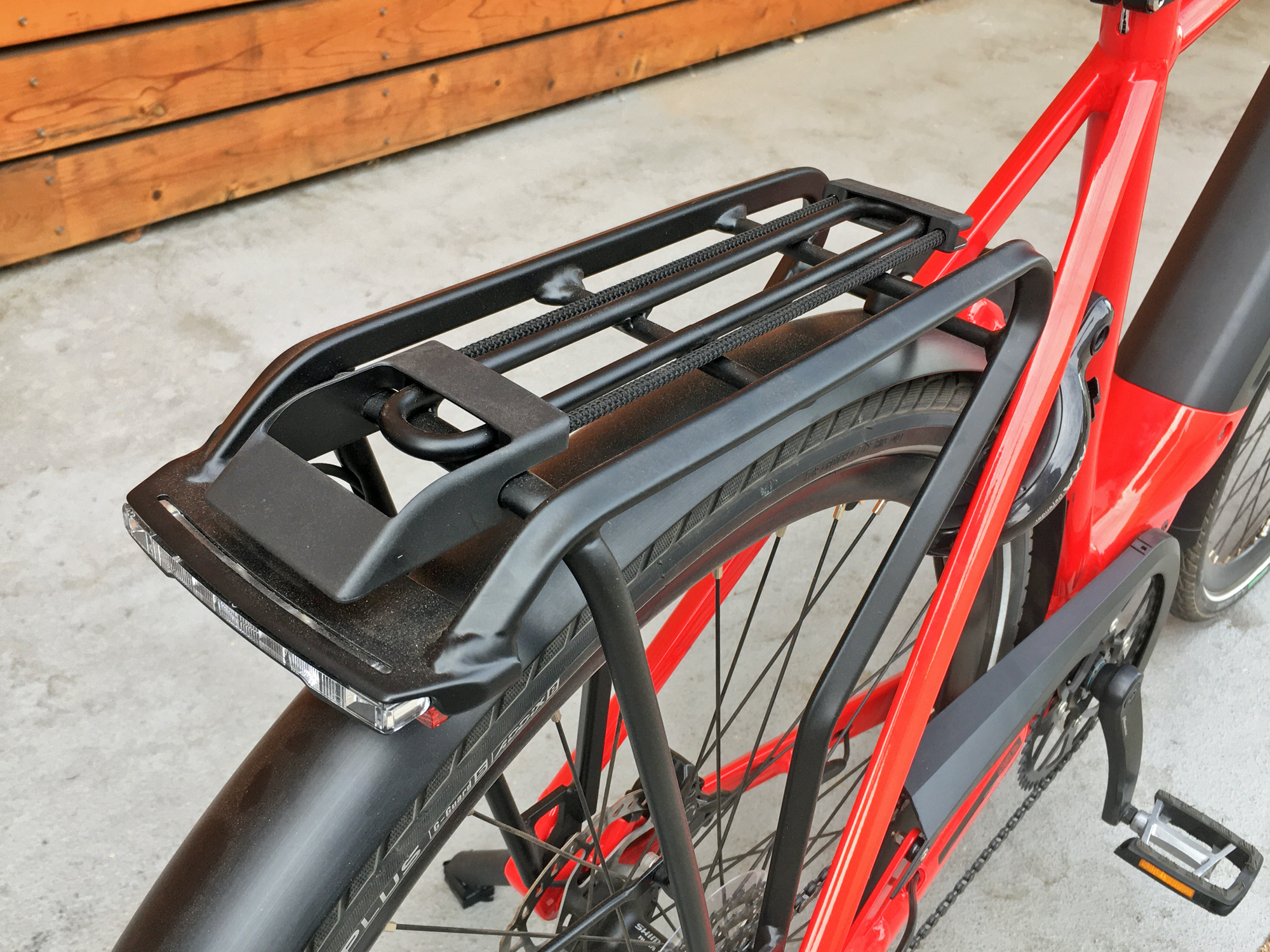

Gazelle Ultimate T10 Plus Hmb Rear Rack Integrated Hermanns Taillight Bungee Clip

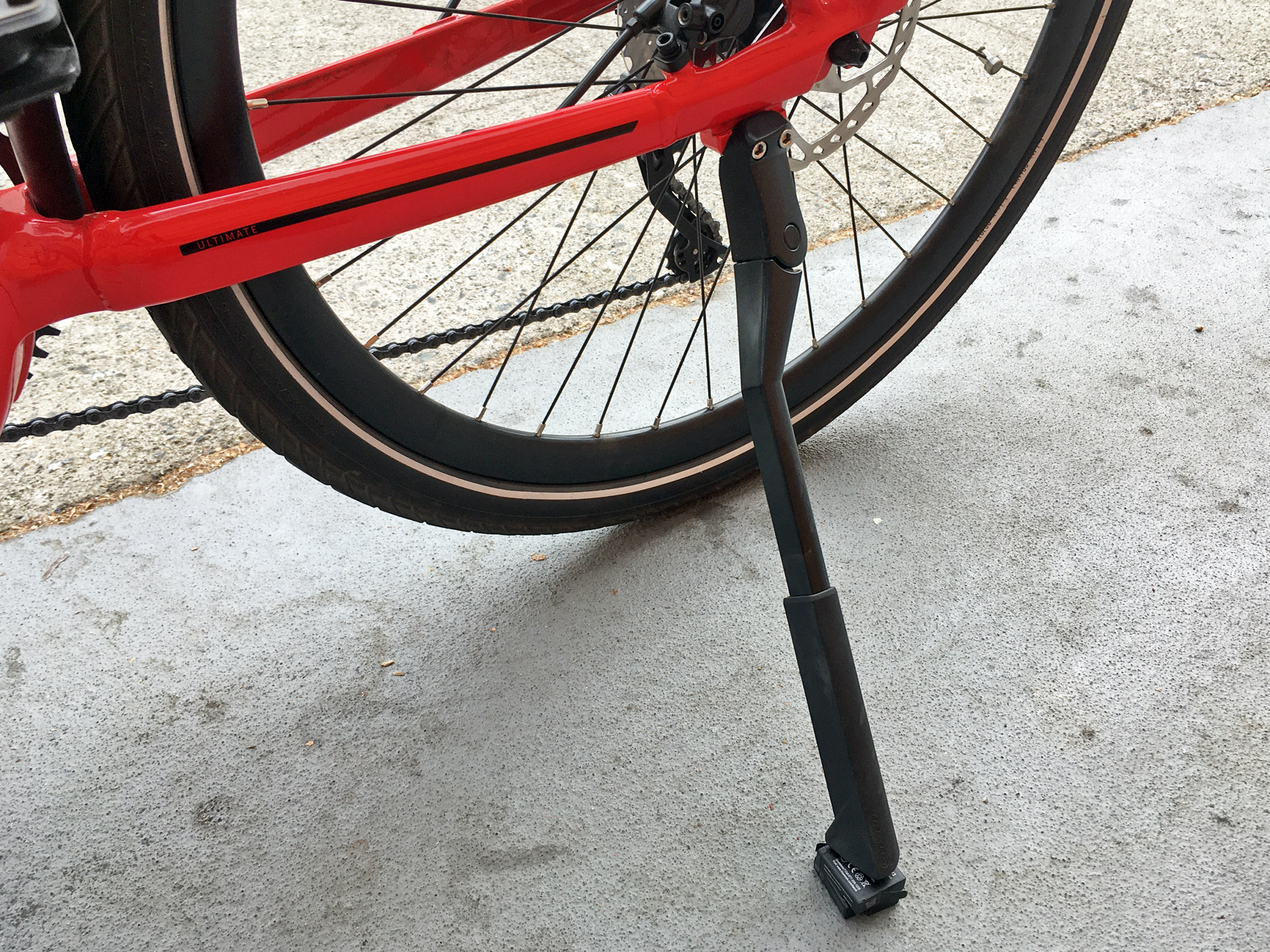

Gazelle Ultimate T10 Plus Hmb Rear Mounted Adjustable Length Kickstand

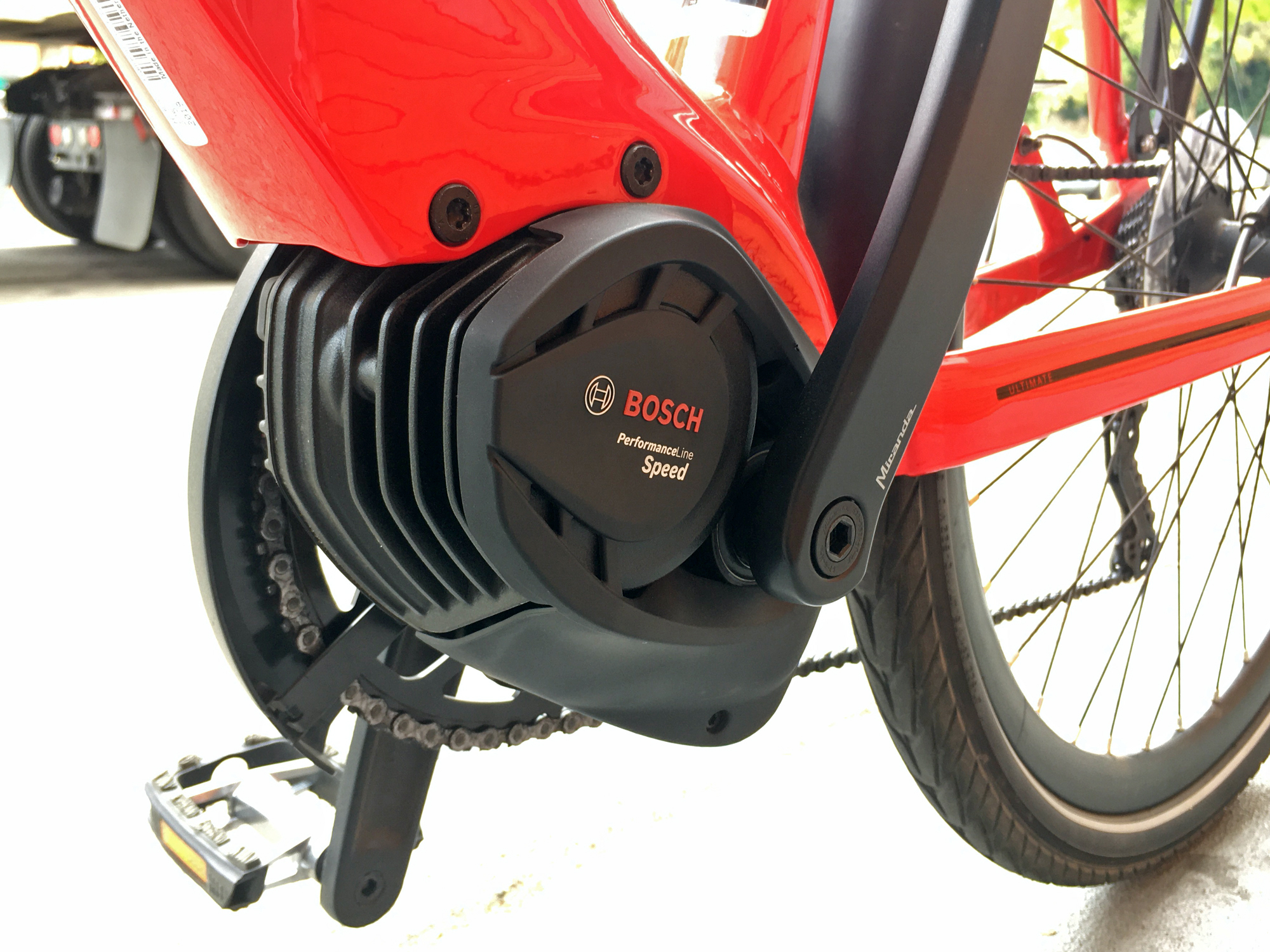

Gazelle Ultimate T10 Plus Hmb Bosch Performance Line Speed My20

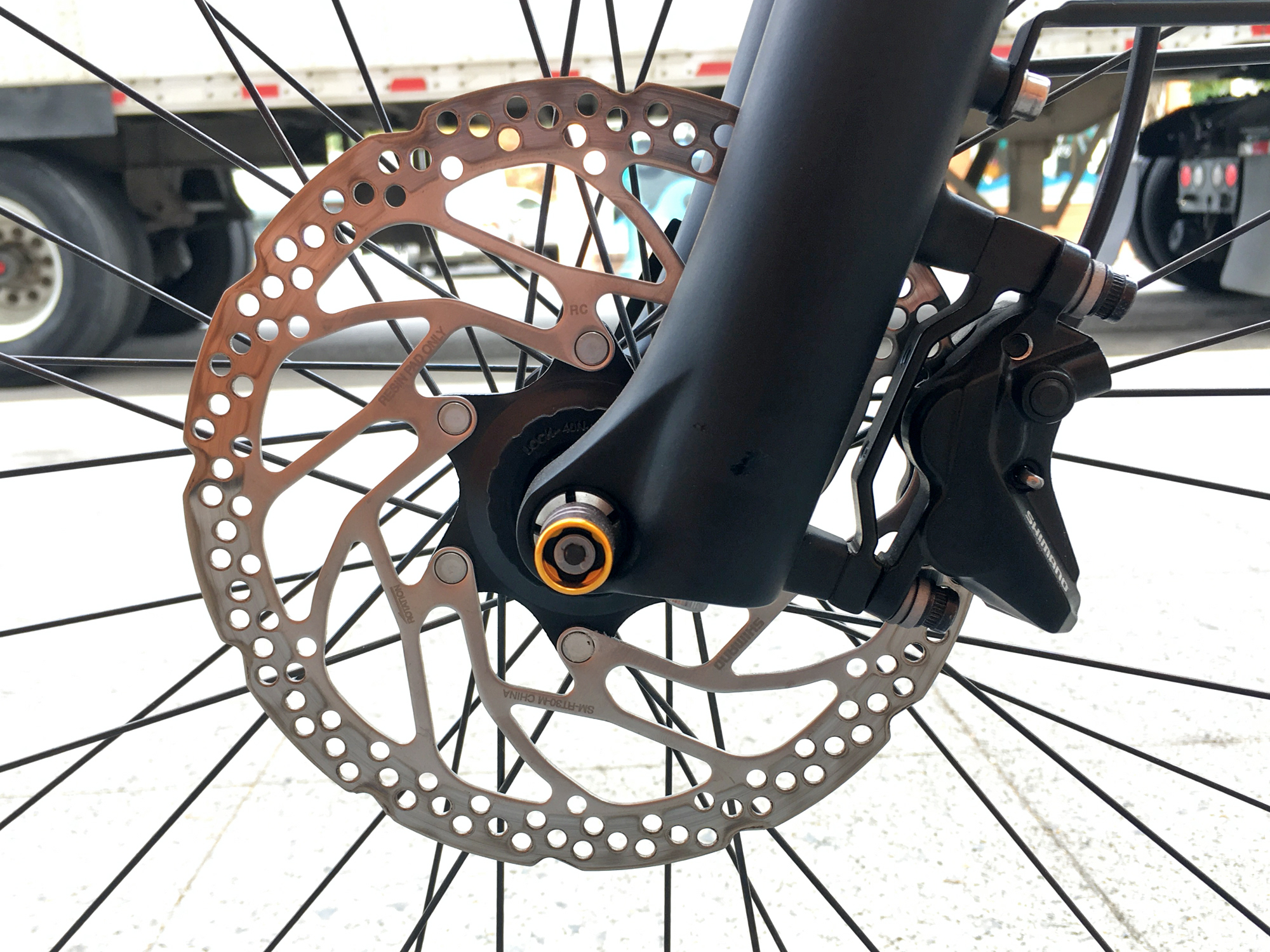

Gazelle Ultimate T10 Plus Hmb Shimano Hydraulic Disc Brake 180mm Front Rotor

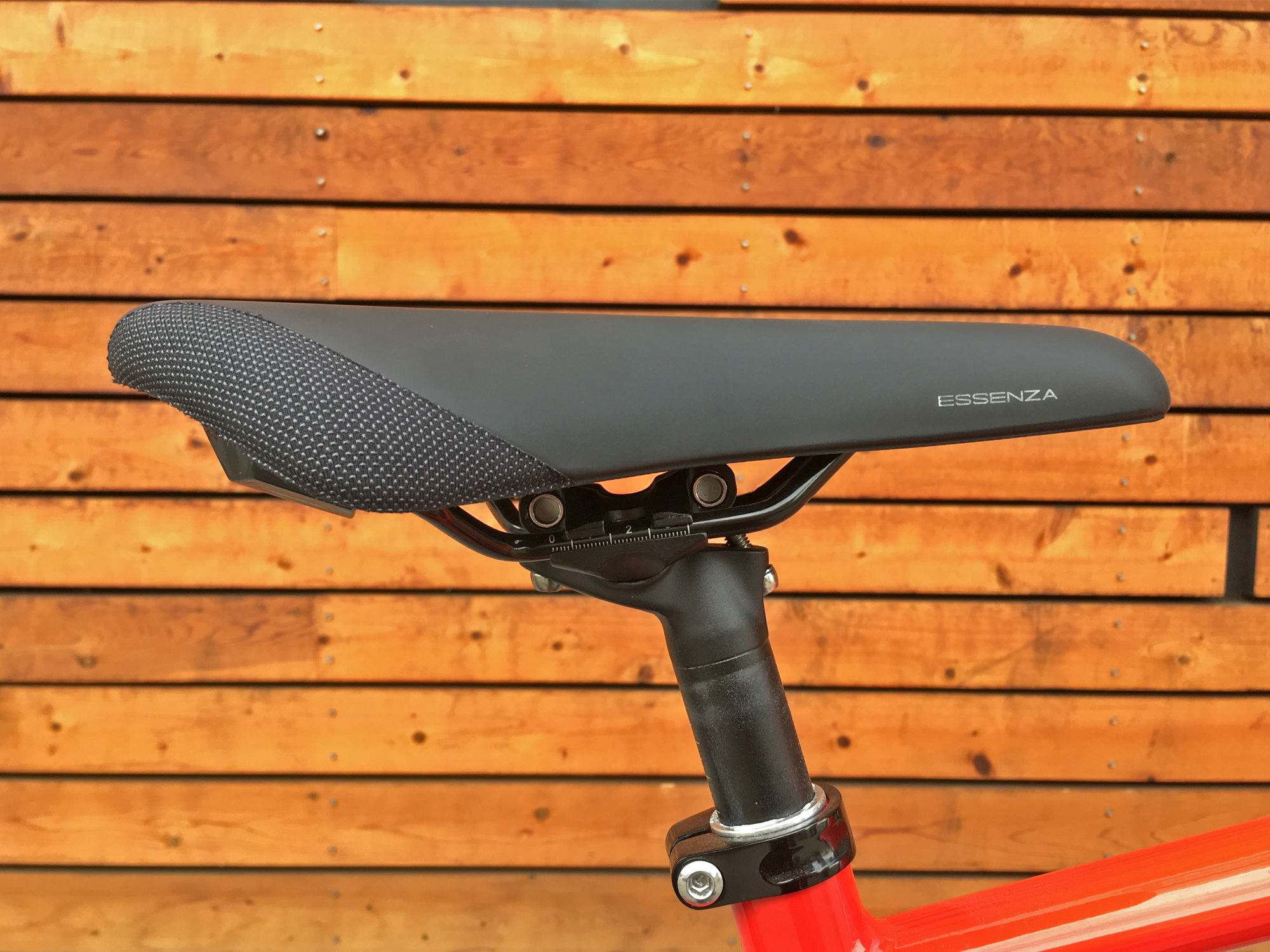

Gazelle Ultimate T10 Plus Hmb Selle Royale Essenza Saddle

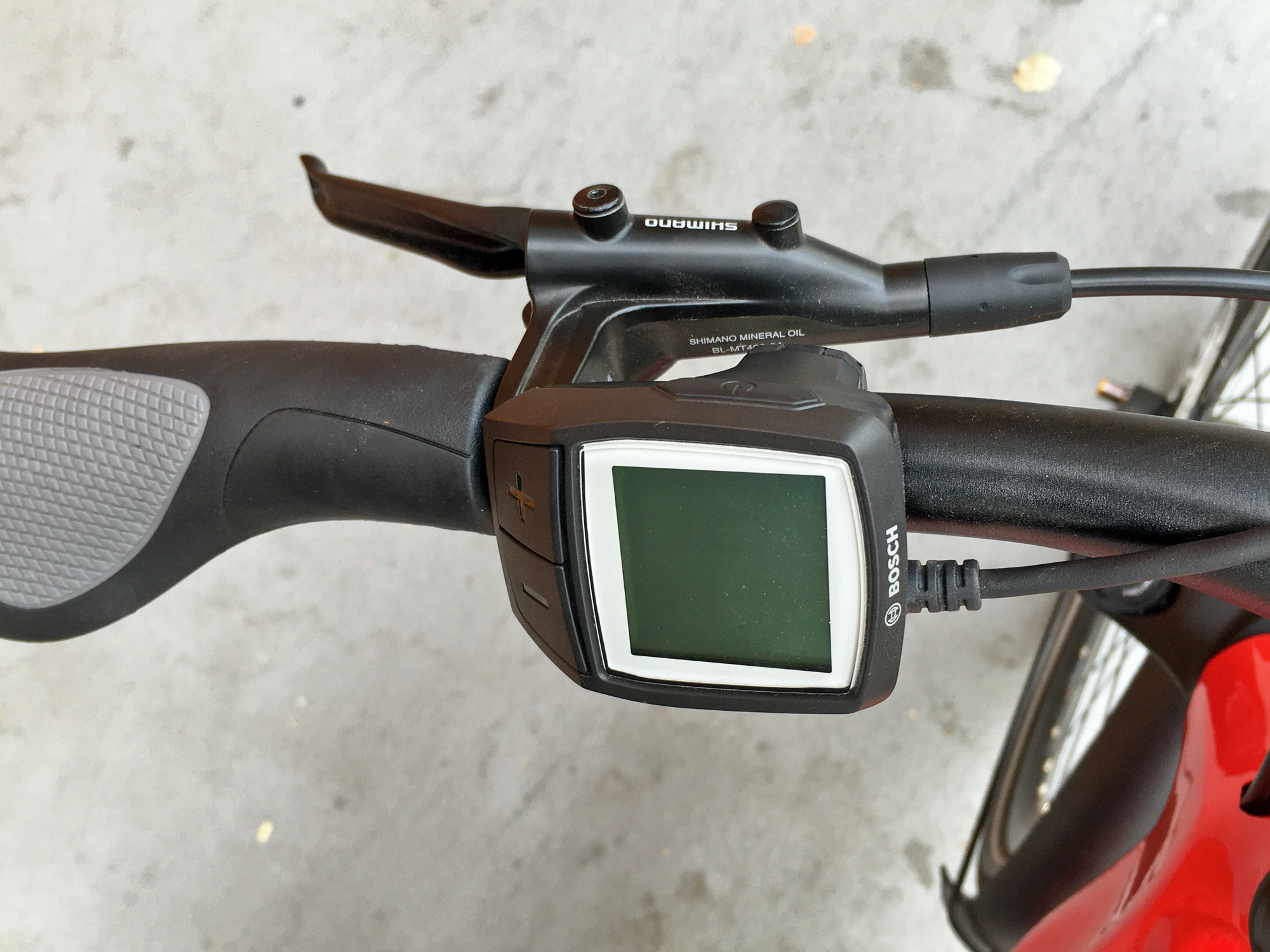

Gazelle Ultimate T10 Plus Hmb Bosch Purion Display

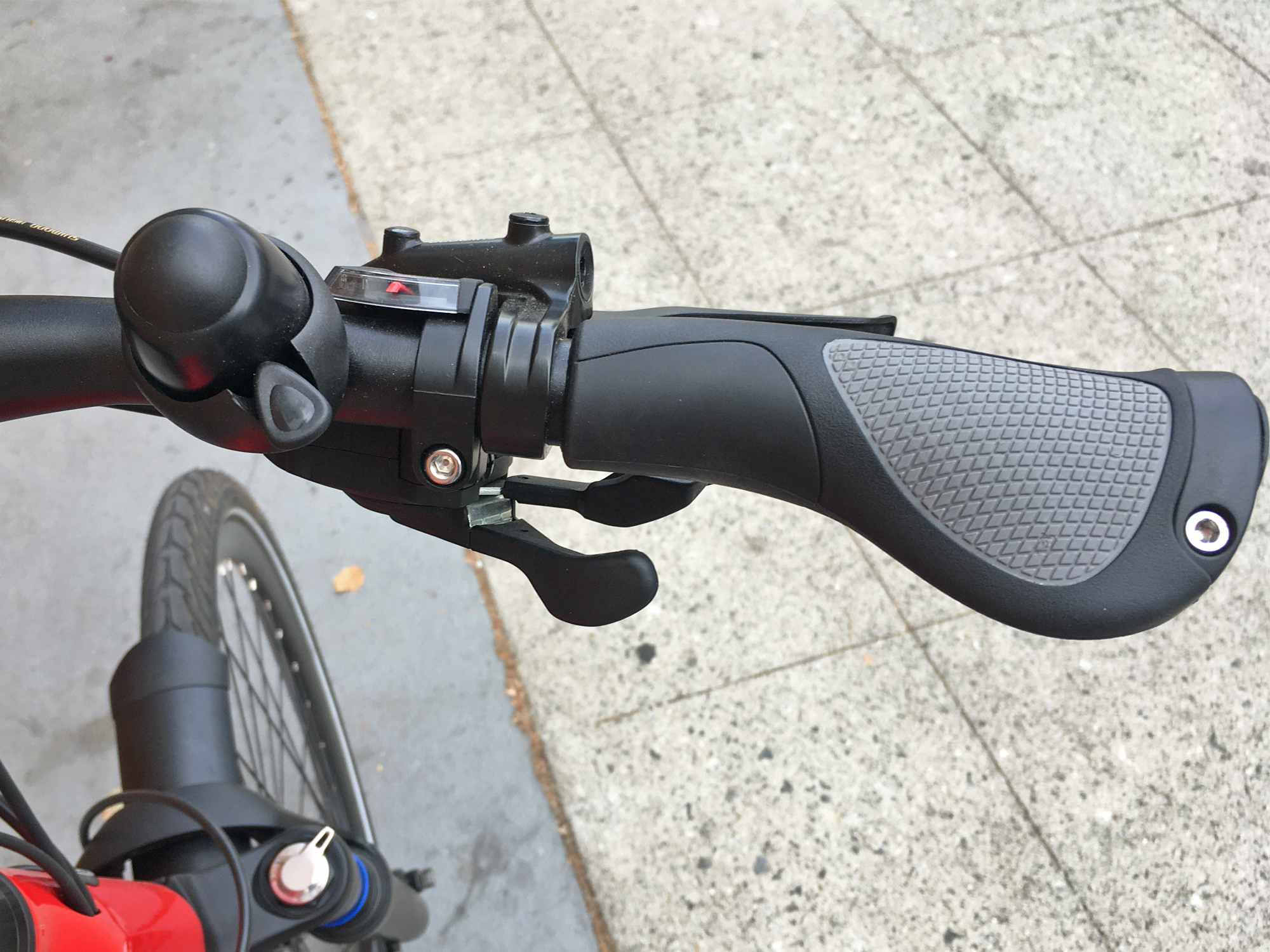

Gazelle Ultimate T10 Plus Hmb Rubber Ergonomic Grips Shimano Trigger Shifters Flick Bell

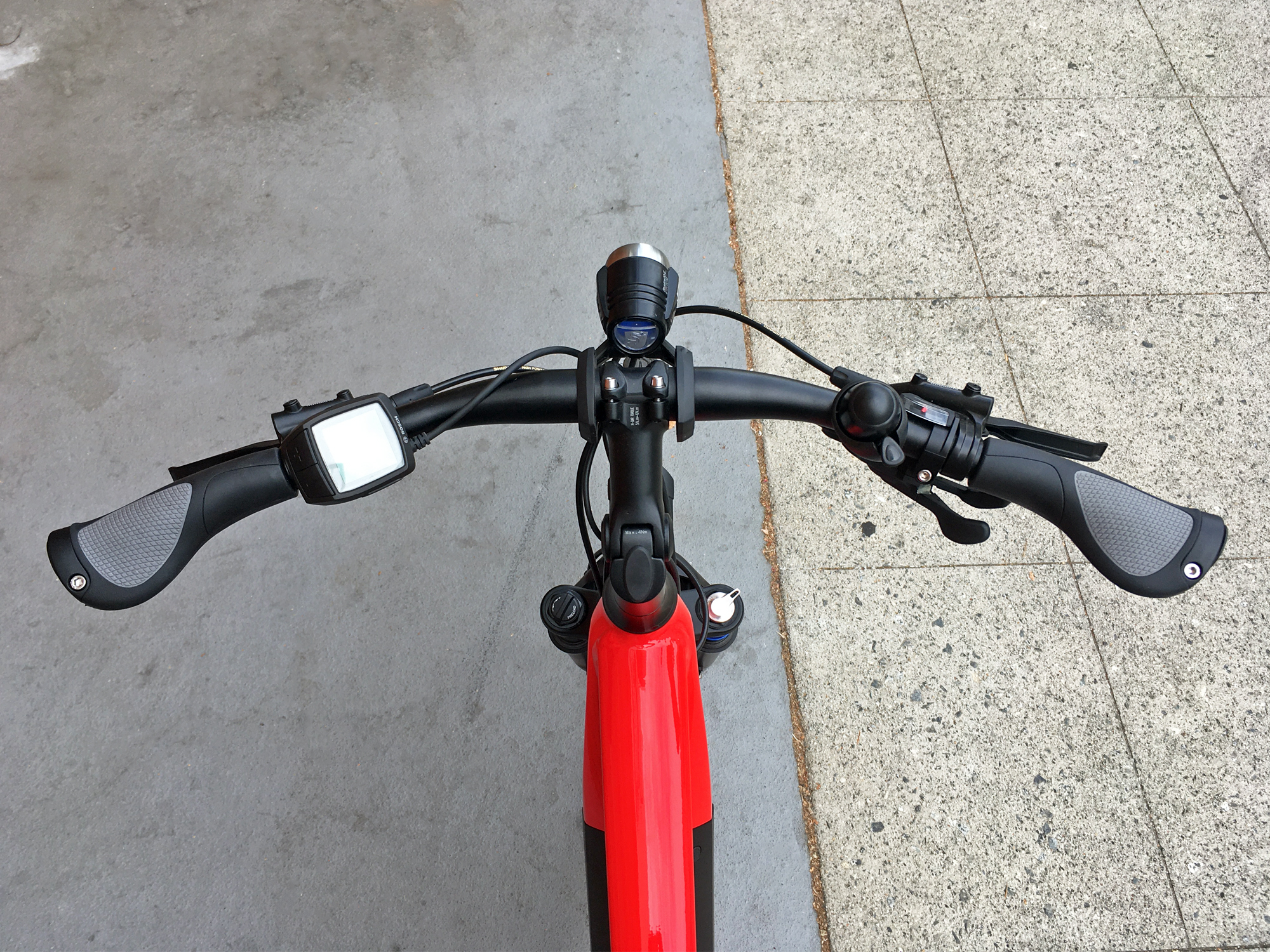

Gazelle Ultimate T10 Plus Hmb Cockpit Swept Back Handlebars

Gazelle Ultimate T10 Plus Hmb Stock High Step Champion Red

Gazelle Ultimate T10 Plus Hmb Stock Mid Step Dust Light

An upgraded version of the original T10 with more speed and a dual-battery option, feature-complete with high-quality accessories, backed by a great warranty from a company that has been operating for over 125 years
Three sizes and two frame types (high-step and mid-step) with multiple colors to choose from, coupled with a vast dealer network for fitting and test rides as well as support down the road
Great power and performance from the fourth generation of the Bosch Performance Line Speed with stopping power to match from the Shimano hydraulic disc brakes, Shimano Deore XT with Shadow Plus is a top-tier derailleur that performs flawlessly
Bosch Purion display functions well but is fairly basic compared to other display offerings from Bosch, torque-focused sensors and lack of throttle may not be a good fit for riders with knee sensitivity, lack of quick-release on the seatpost prevents theft but makes adjustments time-consuming

Make:

Gazelle

Model:

Ultimate T10+ HMB

Price:

$3,999

Body Position:

Forward

Suggested Use:

Neighborhood, Urban, Commuting, Touring

Electric Bike Class:

Speed Pedelec (Class 3)

Learn more about Ebike classes

Warranty:

2 Year Comprehensive, 10 Year Frame

Availability:

United States, Canada, Europe, Australia

Model Year:

2020

Total Weight:

57.3 lbs (25.99 kg)

Battery Weight:

6.6 lbs (2.99 kg) (Including Plastic Cover)

Motor Weight:

6.3 lbs (2.85 kg)

Frame Material:

Aluminum Alloy

Frame Sizes:

22.4Mid-Step:18.1 in (56.89 cm)20.9 in (53.08 cm)

Geometry Measurements:

57cm Large High-Step Measurements: 23" Seat Tube, 26" Reach, 33" Standover Height, 36.5" Minimum Saddle Height, 25.5" Width, 72" Length

Frame Types:

High-Step, Mid-Step

Frame Colors:

Champion Red Gloss, Dust Light Gloss

Frame Fork Details:

SR Suntour Mobie 45-AIR, 80mm Travel, Progressive Lockout, Preload Adjust, Black Anodized Stanchions, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer

Frame Rear Details:

135mm Hub Spacing, 10mm Slotted Axle with Anti-Rotation Washers, Quick Release Skewer

Attachment Points:

Rear Rack Mount, Fender Mounts, Bottle Cage Bosses, Bosch Range Boost Battery Mount (High-Step Only)

Gearing Details:

10 Speed 1x10 11-36T Shimano SHG50010 Steel Cassette, Shimano Deore XT M786 DSGSL Derailleur with Shadow Plus

Shifter Details:

Shimano Deore 10 Triggers on Right (Two-Way High, Three-Shift Low)

Cranks:

Miranda Delta, Aluminum Alloy, 170mm Length, 46 Tooth Steel Chainring with Plastic Cover

Pedals:

Gazelle Linea, Aluminum Alloy Platform with Rubber Tread and Reflectors

Headset:

Integrated, Sealed, Straight 1-1/8"

Stem:

Aluminum Alloy, Tool Adjustable Angle, 80mm Length, 60mm Height, 32mm Clamp Diameter

Handlebar:

Aluminum Alloy, 650mm Width, Swept Back

Brake Details:

Shimano BL-MT402-3A Hydraulic Disc with 180mm Front and 160mm Rear Rotors, Dual-Piston Calipers, Three Finger Levers with Adjustable Reach

Grips:

Ergon GP1, Rubber, Ergonomic, Locking, Black with Grey Accents

Saddle:

Selle Royal Essenza, Large Comfort, Black

Seat Post:

Aluminum Alloy

Seat Post Length:

280 mm

Seat Post Diameter:

27.2 mm

Rims:

Ryde Dutch, Aluminum Alloy, Double Wall, 19mm Inner Width, 36 Hole

Spokes:

Stainless Steel, Extra Strong, 12 Gauge, Black with Silver Spoke Nuts

Tire Brand:

Schwalbe Energizer Plus, 28" x 1.75" (47-622)

Wheel Sizes:

28 in (71.12cm)

Tire Details:

45 to 70 PSI, 3.0 to 5.0 BAR, ADDIX Rubber, G-Guard 5 Puncture Protection, Reflective Sidewall

Tube Details:

Presta Valve

Accessories:

Aluminum Alloy Rear Rack (27kg 59lb Max Weight, Standard Gauge Tubing, Bungee Clip), Aluminum Alloy Fenders with Plastic Toe Strike Guards, AXA Defender Cafe Lock (Keyed-Alike to Battery Lock), Plastic Chain Cover, Handlebar Integrated AXA Blueline 50-E LED Headlamp (50 Lumens, Side Windows), Rack-Integrated Hermans Rear Light (4-LED, Side Windows), Ursus Mooi Rear-Mount Tool-Free Adjustable Length Kickstand, Flick Bell on Left, Optional Bosch Range Boost Second Battery Mount (High-Step Only)

Other:

Locking Removable Donwtube-Integrated Battery Pack, 1.6lb 4 Amp Charger, 120RPM Maximum Cadence, 340% Maximum Motor Support

Motor Brand:

Bosch Performance Line Speed 4.0 (MY20)

Motor Type:

Mid-Mounted Geared Motor

Learn more about Ebike motors

Motor Nominal Output:

250 watts

Motor Peak Output:

450 watts

Motor Torque:

75 Newton meters

Battery Brand:

Bosch PowerTube 500 3200mAa 40 18650 Cells

Battery Voltage:

36 volts

Battery Amp Hours:

13.4 ah

Battery Watt Hours:

482.4 wh

Battery Chemistry:

Lithium-ion

Charge Time:

4 hours

Estimated Min Range:

30 miles (48 km)

Estimated Max Range:

120 miles (193 km)

Display Type:

Bosch Purion, Fixed, 1.75" Backlit Grayscale Display, Buttons: Walk, +, i, -, (Hold - to Cycle Through Readouts, Hold - and Press Power to Change Units, Hold + and - to Reset Trip, Hold + to Activate Lights)

Readouts:

Speed, Assist Level (Eco, Tour, Sport, Turbo), Battery Level (1-5), Odometer, Trip Distance, Total Distance, Estimated Range, Lights

Display Accessories:

Micro-USB Port for Diagnostics and Software Updates Only

Drive Mode:

Advanced Pedal Assist (Measures Wheel Speed, Pedal Cadence and Pedal Torque, Over 1,000 Readings Per Second, Power Output Relative to Pedal Input: Eco 40% 35nm, Tour 100% 40nm, Sport 180% 45nm, Turbo 270% 50nm)

Top Speed:

28 mph (45 kph)

Hide Advanced Search

Search Now

Make or Model

Model Year

Body Position

Suggested Use

Frame Type

Drive Mode

Availability

Price Range

$0 (0 €)$18,000 (16,920 €)

Total Weight

0 lbs (0 kg)227 lbs (103 kg)

Top Speed

0 mph (0.0 km/hr)50 mph (80.5 km/hr)

Battery Watt Hrs

0 watt3,456 watt

Frame Size

0 in (0.00 cm)432 in (1,097.28 cm)

Motor Power

0 Newton meters250 Nm

Trusted Advertisers

To run the forums, host the website, and travel, I charge a universal service fee for my reviews. This in-depth review was sponsored by Gazelle. My goal is to be transparent and unbiased with you, this video and writeup are not meant to be an endorsement of Gazelle products. I welcome your corrections, additions, and feedback in the comments below and in the Gazelle electric bike forums.

Observations:

The Ultimate bicycle was one of Gazelle’s more popular non-electric bike models in years past, now they have produced an electrified version! A Class 1 version of this Ebike was released last year, you can check out that review of the Ultimate T10 HMB, or compare them head-to-head using our Comparison Tool.
Gazelle hails from the Netherlands where cycling is an integral part of the culture, demonstrated by their bycicle ownership per capita – highest in the world! This article has some more details: Dutch Cycling Figures
The dual-battery range extender option was not available to test at the time of filming which is why we don’t show it in the video… but it’s an official feature now! You can add a Dual Battery Kit which allows you to attach an additional PowerPack 500 to the frame, effectively doubling your range. To preserve your warranty this add-on should be installed by a Gazelle dealer, you can read more information in the Dual Battery Kit Ultimate Factsheet. This upgrade is only available for the high-step frame, not the mid-step!

Pros:

The Ultimate T10+ is packed with features including a rear rack, full-size fenders, bright integrated lights, adjustable rear kickstand, bottle cage bosses, optional range extender, and a cafe lock! It was designed from the ground up as an Ebike with extra attention given to the strength of the frame, and many Ebike-specific components. This makes a big difference when it comes to long-term durability as Ebike components receive much higher levels of stress and wear than non-electric bike components do
Supported by a vast dealer network which makes it easy to get fitted and take test rides, available in three sizes accross two frame types, and backed by an excellent warranty with two years of comprehensive coverage and ten years of frame coverage. Gazelle has been operating for over 125 years and has received numerous awards recognizing their quality and influence in the Dutch cycling industry
Unlike the original Ultimate T10, the T10+ is a Class 3 electric bike capable of pedal-assisted speeds of 28mph, making the T10+ a compelling option for those with longer commutes. In addition to reducing travel time, higher speeds can actually help you to ride more safely by allowing you to “keep pace” with traffic instead of riding slowly off to the side
The included charger is 4 amp which is twice as powerful as most Ebike chargers, allowing you can charge up much more rapidly. Faster chargers to tend to weigh more but this one is only at 1.6 pounds, still within reason for carrying easily in a backpack
Smooth and capable shifting is provided by the Deore XT derailleur, this is an excellent top-tier setup from Shimano. The rear cassette has a reasonably wide range of 11 to 36 teeth across 10 speeds, narrow-wide teeth on the 42-tooth steel chainring help keep the chain from jumping, and the derailleur is equipped with Shadow Plus which helps provide cleaner shifting as well as limiting derailleur movement and helping to reduce the risk of damage. Rounding things out is the full plastic chain guard keeping the entire drivetrain safe and clean, and the chain itself is an Ebike-specific chain designed to handle higher levels of wear and tear
Shimano hydraulic disk brakes with dual-piston calipers provide excellent stopping power, hydraulic brakes provide instant response and require very little force to actuate compared to mechanical brakes, and 180mm/160mm front/rear rotors provide good heat dissipation
The frame is rock-solid sturdy, if you watch the video review you can see me coasting at 32mph downhill, completely stable with only one hand on the grips! I did only test the high-step frame so it’s possible that the mid-step version of this Ebike might have a bit more frame flex… although I would expect it to be just as sturdy, based on my experience with the low-step Ultimate T10 last year
The integrated cafe lock is a great safety feature that is easy to engage and useful if you need to lock your bike for a short period, such as a quick run inside the store or just when running around at the park with friends. It runs a bolt through the rear wheel preventing anyone from just jumping on the bike and taking off, and AXA also offers a lot of accessories that connect into the cafe lock allowing you to then lock it to a rack or other solid object. The key for this cafe lock is keyed to like with the battery lock, allowing you to use just one key for both
Seamless integration of the Bosch PowerTube 500 battery into the downtube, this is a nice perk of the PowerTube as it allows manufacturers to customize the fit and finish a bit more. I appreciate the two-step removal process that helps to keep the battery a bit more secure, as well as the placement of the charging port: high up on the frame where it is out of the crank arm “danger zone”
Bosch has a variety of displays and they all have their tradeoffs, I am a big fan of the Purion because it’s less obtrusive, very easy to read in any light setting, and it keeps things simple! It does only show basic information but that does include a range estimate that I have found to be fairly accurate, much more useful than the five-bar battery meter which can be a bit frustrating when trying to estimate how much riding you have left
Another Ebike-specific component is the Schwalbe Energizer Plus tires, a great fit for a speed pedelec like this. Reflective sidewalls for maximum side visibility, top-tier puncture protection, and a nifty hybrid tread pattern that is more efficient when riding on flat surfaces while providing more traction when turning
The T10+ shares many components with the original T10… but not in the motor department! Here the T10+ is equipped with the fourth generation of the Bosch Performance Line Speed, capable of much higher speeds and higher levels of torque, assistance, and supported cadence. It is incredibly responsive, gathering over 1,000 readings per second while measures torque, cadence, and wheel speed, and it’s also lighter than ever before at just 6.6 pounds! For more details on how this motor stacks up against other Bosch motors, check out the Bosch Ebike Systems Motor Comparison on the EBR Forums
The SR Suntour Mobie suspension fork is a nice upgrade from the mono-shock suspension on the original T10, this air suspension fork provides 80mm of travel with clicks for progressive lockout and preload adjust, it provides an excellent amount of cushion for riding on rougher roads at high speeds. I think it also looks great from a visual standpoint with the black anodized stanchions complimenting the frame primary color
Ride comfort is further helped by the premium Selle Royale Essenza saddle and ergonomic rubber grips, the grips are also locking and won’t twist around if you bear down on them
I loved the original Ultimate T10 for how it performed as a mixed-use bike, working well for riders ranging from casual to trekking. The T10+ tips the scale further in the trekking and touring direction with a more aggressive forward riding position and a dual-battery option, but it will still perform great for commuters and more casual riders, especially those that loved everything about the original T10 except for the slower Class 1 status
Integrated lights are always a plus for convenience, and it’s even better when they’re high-quality like the ones we get here! The AXA Blueline headlamp has side cutouts for safety and is powerfully bright at 50 LUX, the rack-integrated taillight from Hermans has four LEDs and is visible even in daylight, I recommend riding with lights on even during the daytime to help make yourself more visible to traffic
Full-length fenders are constructed from aluminum alloy which means none of the rattling that sometimes happens with plastic fenders, plus more durability than steel fenders which can ding and rust. The fenders are mounted securely and also have a toe-strike guard on the front
The rack is mounted on top of the rear fender but surprisingly sturdy thanks to the steel supports that run along the inside of the fender and connect to the frame, this rack features a bungee clamp that comes in handy for securing smaller items without needing to carry extra tie-downs, plenty of mount points if you are using those other tie-downs, and a slightly higher-than-average weight limit of 27kg (55lb)

Cons:

The saddle and handlebars don’t have quick-release and will require tools to adjust, this is especially missed on the saddle if you share this Ebike with someone else and need to adjust the saddle height frequently. Interestingly, there are quick-release skewers on the wheels, while this will help to make maintenance easier in the event of a flat tire… that isn’t going to be a frequent occurrence thanks to the durability of the Schwalbe Energizer Plus tires, and premium tire and wheel components like these can be a theft target when they are so easy to remove. To help discourage this I recommend always engaging the cafe lock and a chain or cable lock through your wheels in addition to your other locking components
The Purion display is the most basic of Bosch’s displays, it is not removable which leaves it more exposed to weather or getting damaged at bike racks, there is no USB charging port for powering your phone or additional lights while riding, and it lacks some of the more enhanced features of other displays like the Intuvia or Kiox. These upgraded displays are interchangeable so a Gazelle dealer should be able to upgrade these for you, and you could also check out Bosch’s newer Smartphone Hub for even more features
I love the cafe lock but I do wish that you didn’t have to leave the key in while it is unlocked, this makes it easier to lose the key since it’s not on your keychain. You could put it on your keychain, of course, but then you’d have your whole keychain rattling around in the cafe lock when riding… not a good solution! My recommendation is simply to get a small carabineer to leave on the cafe lock key so that you can easily attach and remove it from your keychain
The lack of throttle and use of a Bosch mid-drive motor means this Ebike may not be a good fit for riders with knee sensitivity that need some extra help from the motor when starting out. Bosch’s motors are incredibly responsive and the assistance kicks in quickly, but it does require some effort when starting out, and the torque sensor means that in order to get extra assistance you have to press harder on the pedals, this is compared to a cadence-sensing system that only requires cycling the cranks around with minimal effort
The range extension option is awesome to see… but it’s not available on the mid-step frame, which is a bummer for those who might want both the extra range and the approachability of the mid-step design
No derailleur guard which would help protect it from damage in the event of bumps or a tip-over, although this is a minor issue since the derailleur has Shadow Plus – this limits the derailleur movement and keeps it positioned in closer to the bike, as opposed to protruding on the side and being more exposed the way most derailleurs are

Useful Resources:

Gazelle Ebike Dealers Near You
Gazelle official website
Bosch Ebike Systems Motor Comparison on the EBR forums
Dutch cycling statistics
AXA Circle Lock cable accessory
Bosch drive comparison on the official Bosch website
