Total Weight:
53.6 lbs (24.31 kg)
(56.4lbs As Shown with Upgrades)Battery Weight:
8.4 lbs (3.81 kg)
(Including Rubberized Cover)Motor Weight:
6.39 lbs (2.89 kg)
Frame Material:
Aluminum Alloy
Frame Sizes:
17.71 in (44.98 cm)20.86 in (52.98 cm)Geometry Measurements:
45cm Measurements: 17.75" Seat Tube Length, 20.5" Top Tube, 13.5" Reach, 25.5" Stand Over Height, 31.5" Minimum Saddle Height with Suspension Post, 26.25" Width with Comfort Handlebar, 42.75" Wheelbase, 71.25" Length
Frame Types:

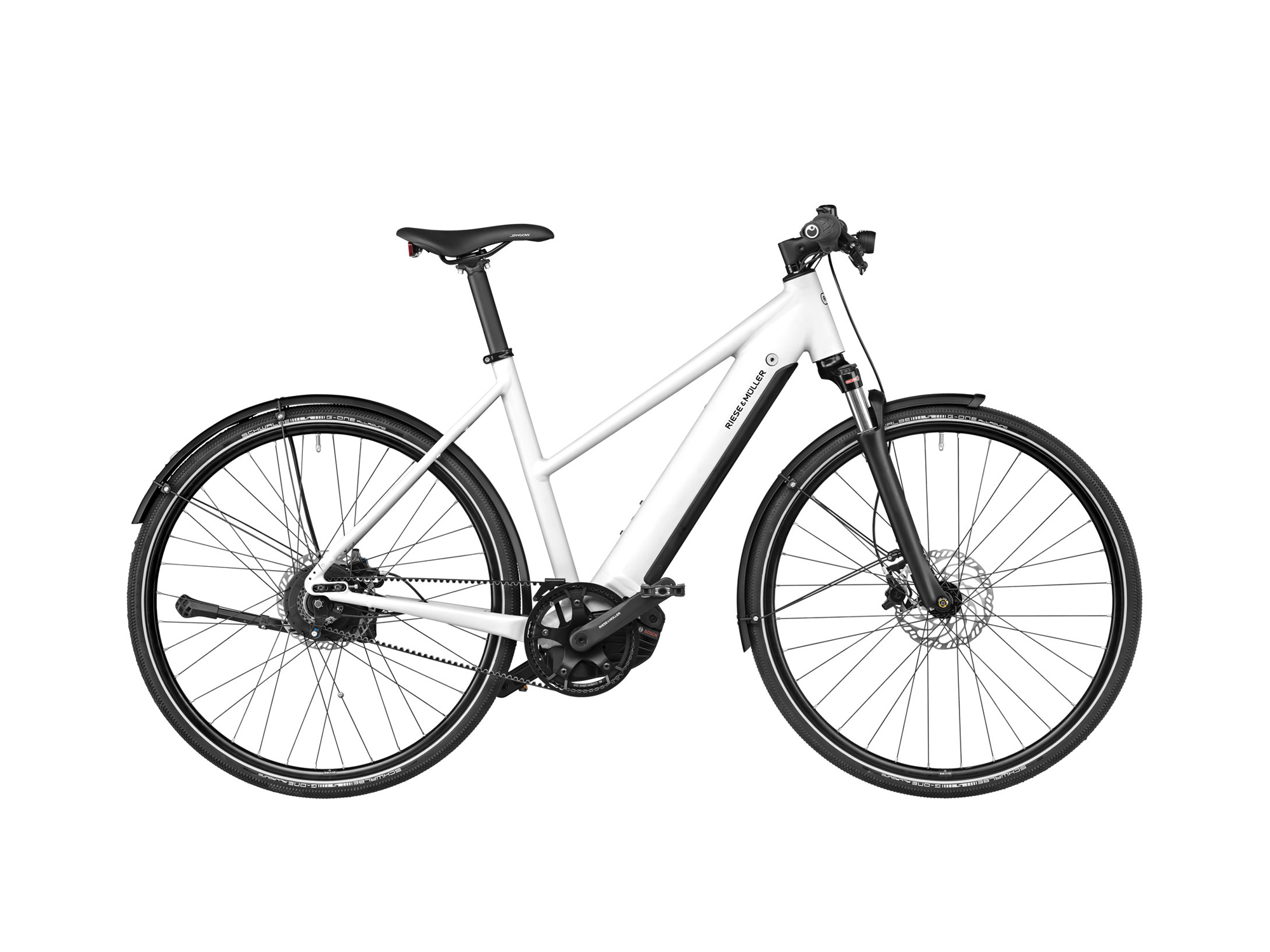

High-Step, Mid-Step
Frame Colors:
Gloss Crystal White, Matt Salvia Green
Frame Fork Details:

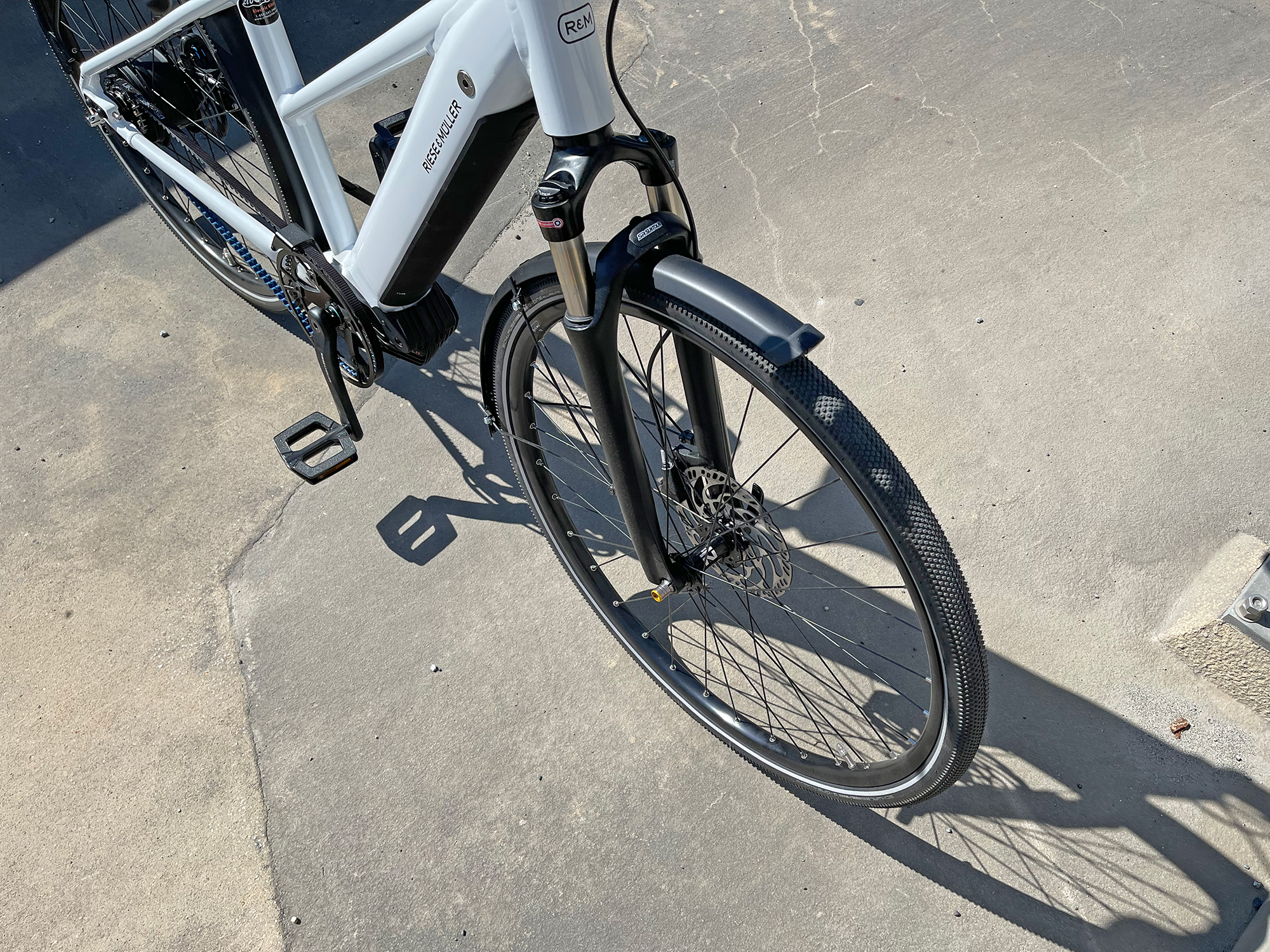

SR Suntour NCX 28 Spring, 63mm Travel, Compression Adjust, Hydraulic Lockout, 100mm Hub Spacing, 15mm Thru Axle with Quick Release
Frame Rear Details:
135mm Hub Spacing, 12mm Threaded Axle with Nuts
Attachment Points:

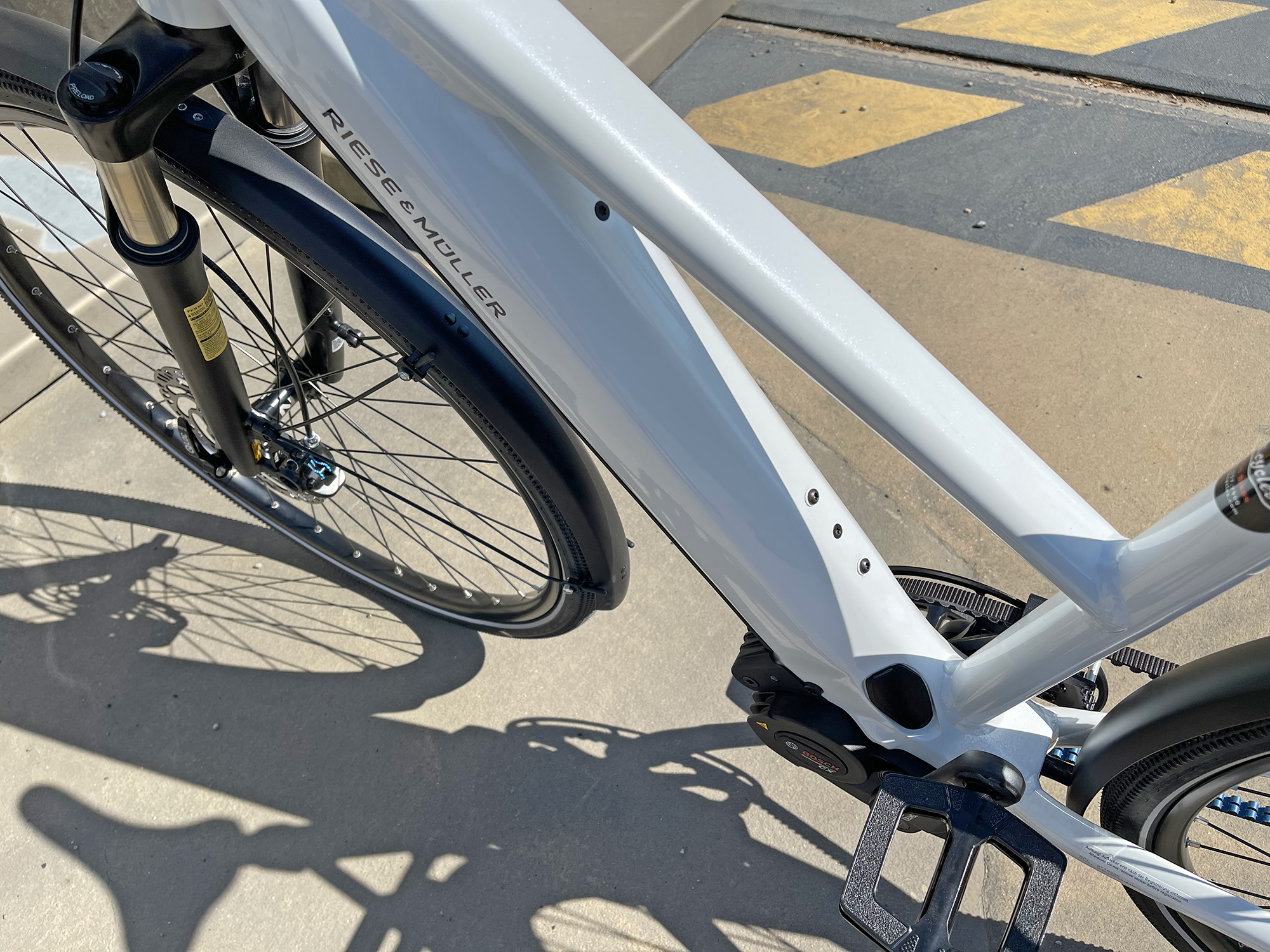

Frame Lock, Fenders, Rear Rack, Front Rack, Bottle Cage Bosses
Gearing Details:
1

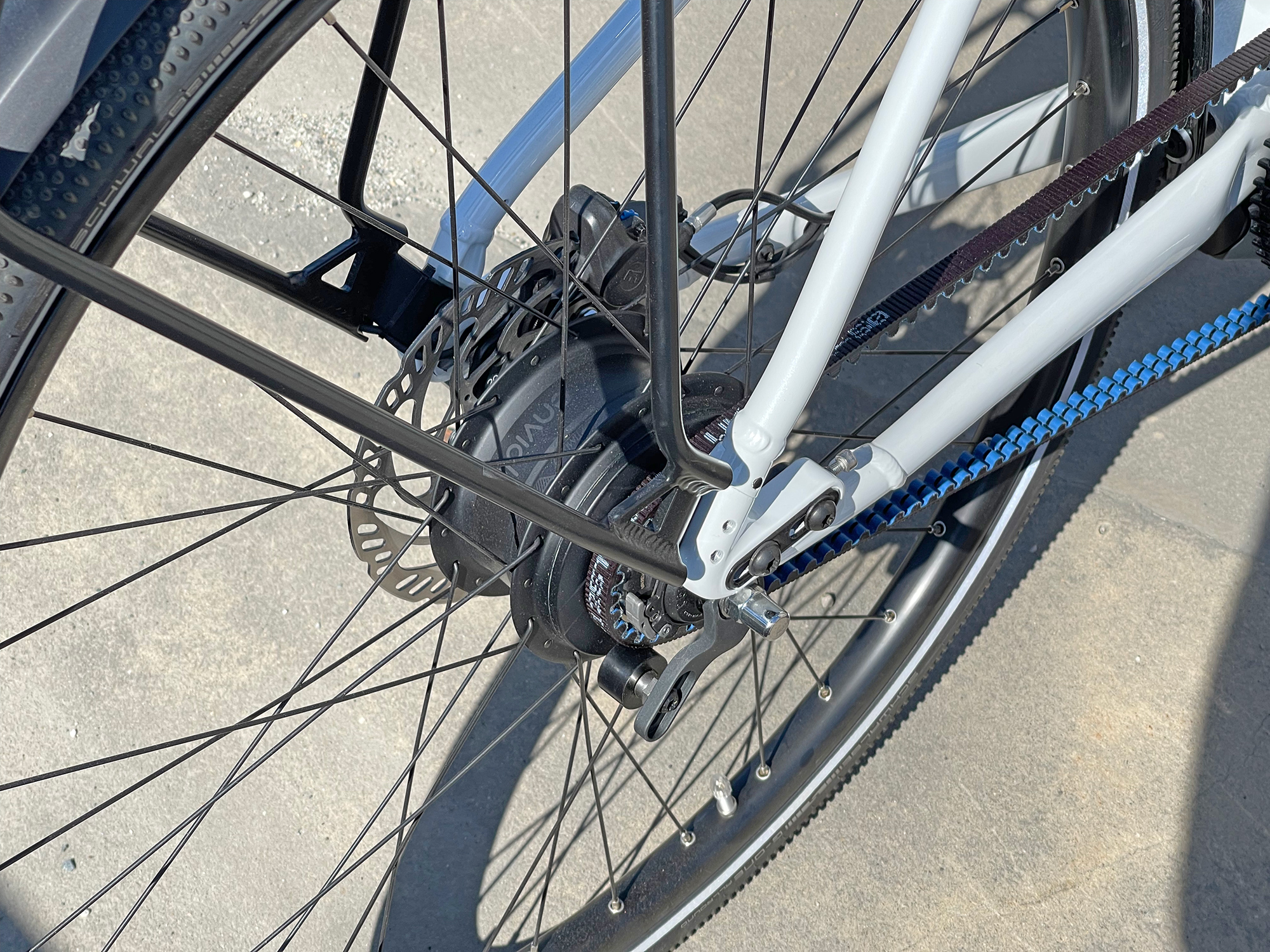

1 Speed 1x∞ Enviolo NuVinci N380 Trekking Edition Mechanical Continuously Variable Transmission, 22 Tooth Gates Belt SprocketShifter Details:

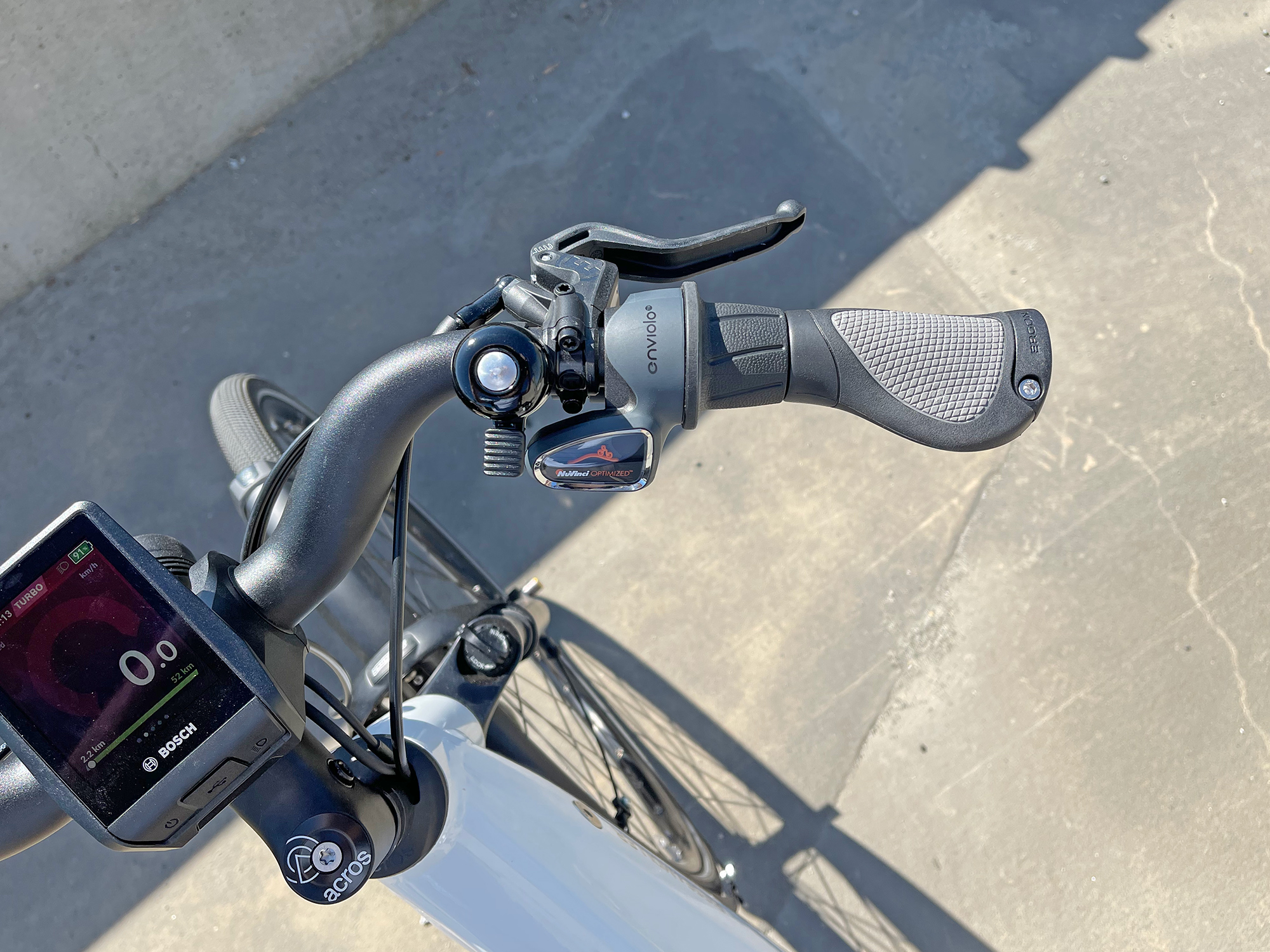

Enviolo Half-Grip Twist Shift on Right (Rider Infographic, NuVinci OPTIMIZED)
Cranks:

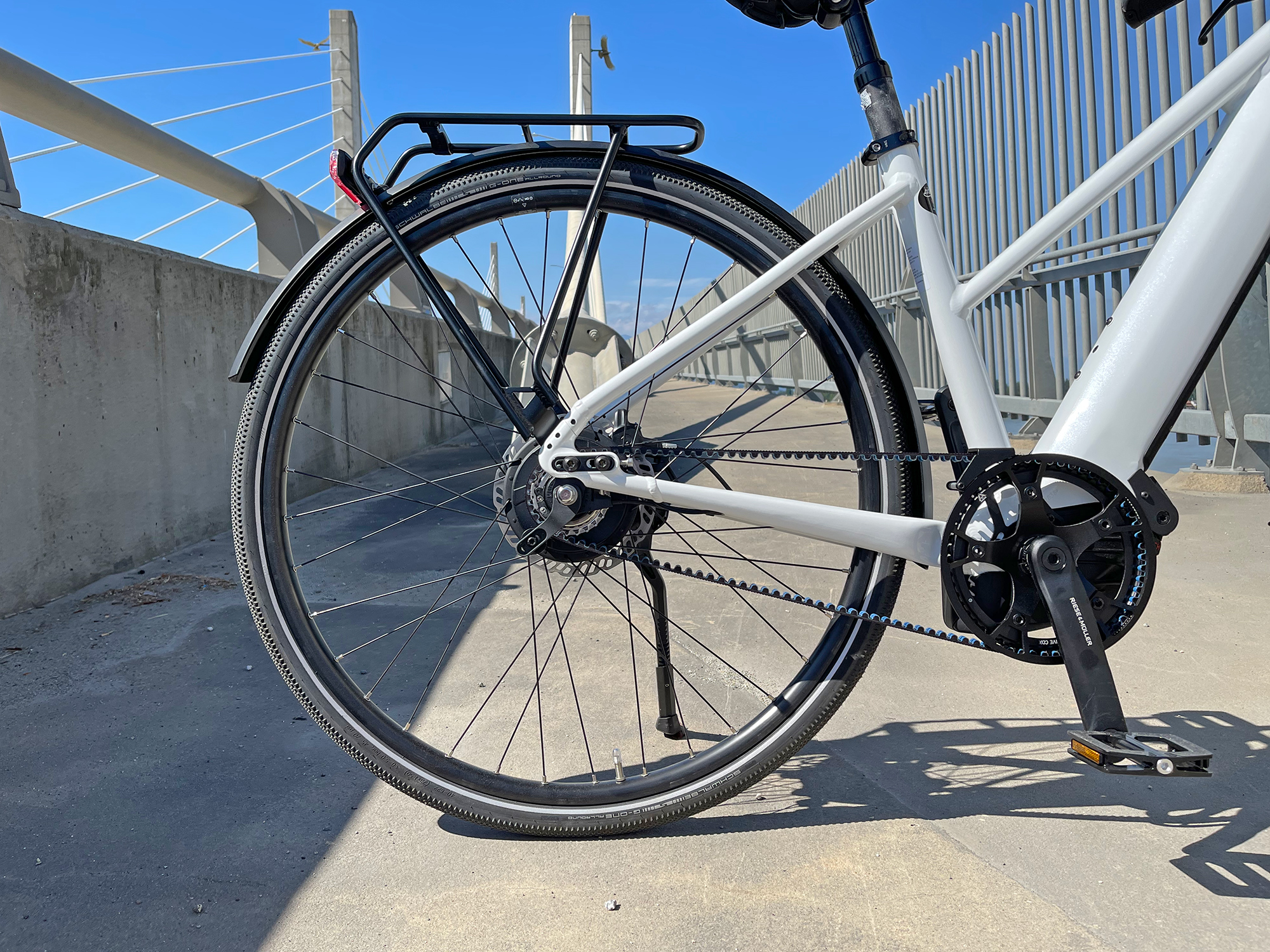

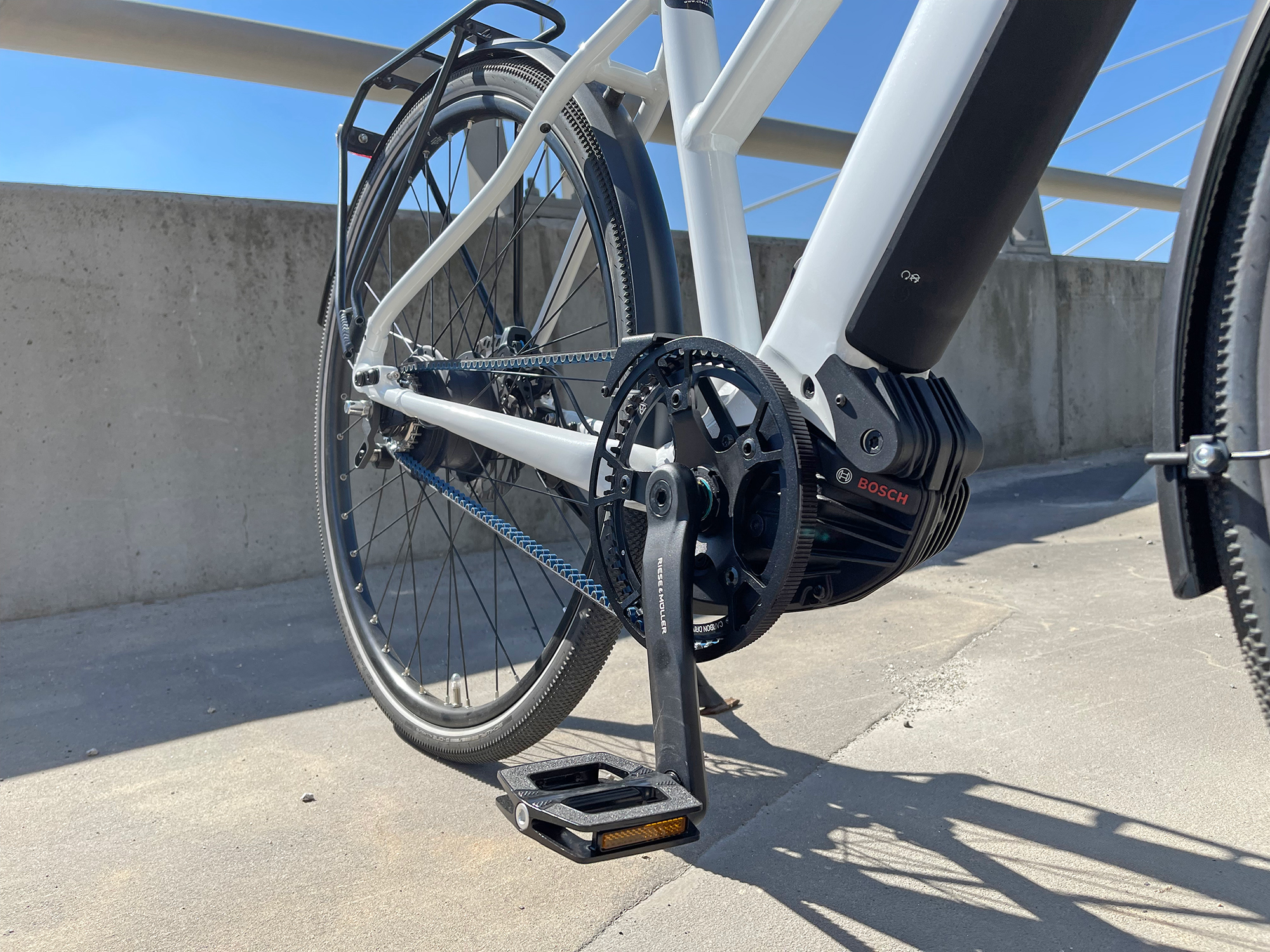

Riese & Müller Branded FSA CK-745, Aluminum Alloy 170mm Crank Arms, Gates CDX 52 Tooth Aluminum Alloy Chainring with Alloy Guard and Guide and Rear Tensioner
Pedals:
VP R&M Custom Aluminum Alloy Platform with Grip Tape
Headset:
Acros IntegrationX with BlockLock, Tapered 1-1/8" to 1-1/2"
Stem:
Acros, Aluminum Alloy, Semi-Integrated Cable Routing, 90mm Length, 7-Degree Rise, 31.8mm Clamp
Handlebar:
R&M Custom, Aluminum Alloy, Low-Rise, Swept-Back, 660mm Length
Brake Details:
Magura MT4 Front MT5 Rear Hydraulic Disc with 180mm Rotors, Dual-Piston Calipers, Three-Finger Magura MT Levers with Adjustable Reach and Ball Ends
Grips:

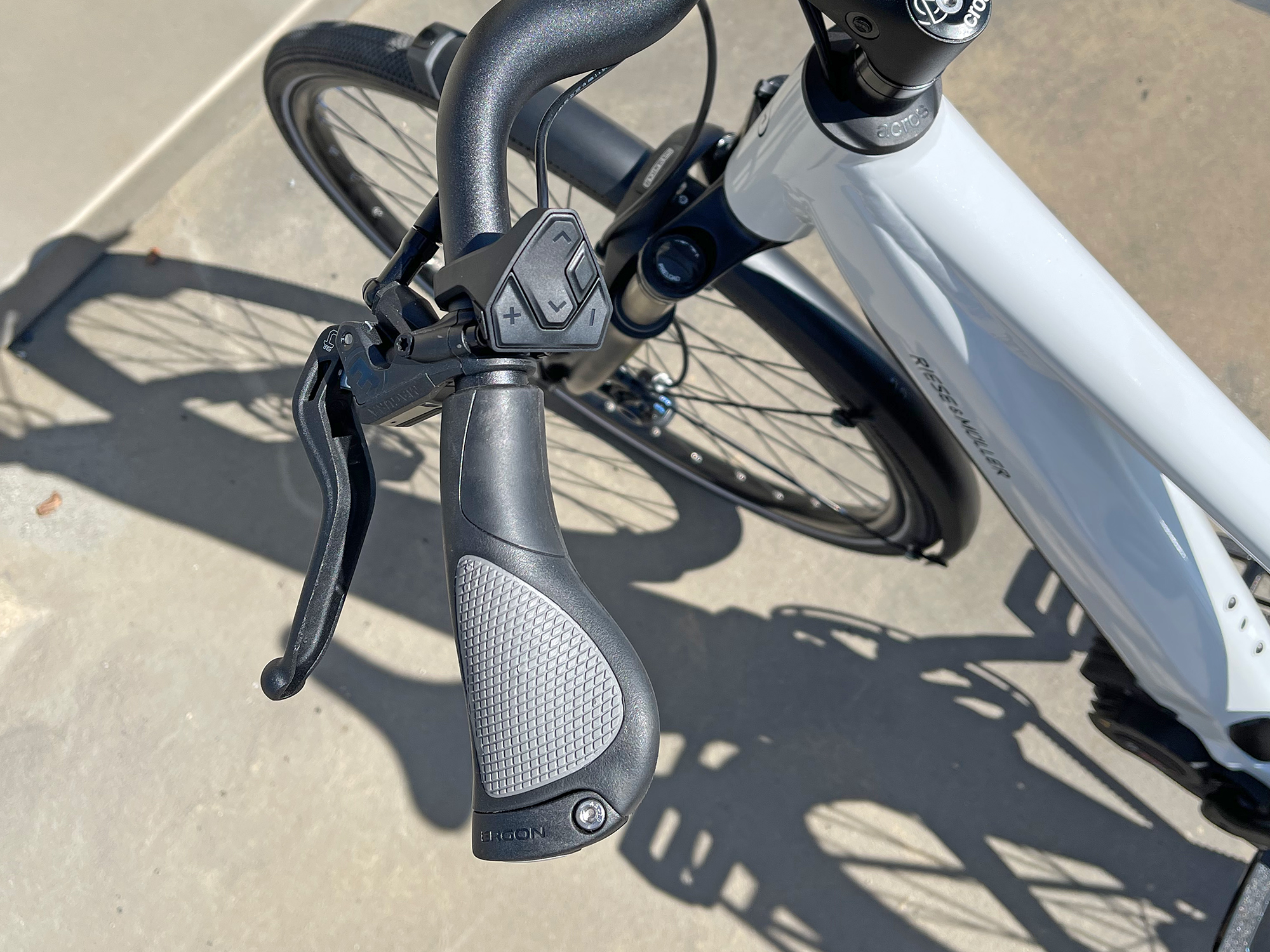

Ergon Ergonomic, Rubber, Locking
Saddle:
Selle Royal Shadow
Seat Post:
Satori Trident or Satori Elegance-LT OV Suspension Post
Seat Post Length:
400 mm
Seat Post Diameter:
34.9 mm
Rims:
Mach1 650, Aluminum Alloy, Double Wall, 32 Hole Front, 36 Hole Rear, 622x23c, Reinforcement Eyelets
Spokes:
Stainless Steel, 14 Gauge, Black with Silver Nipples
Tire Brand:
Schwalbe G-One ALLROUND, 28" x 1.5" (40-622)
Wheel Sizes:
28 in (71.12cm)Tire Details:
45 to 70 PSI, 3.0 to 5.0 BAR, Reflective Sidewall Stripes
Tube Details:
Presta Valve
Accessories:

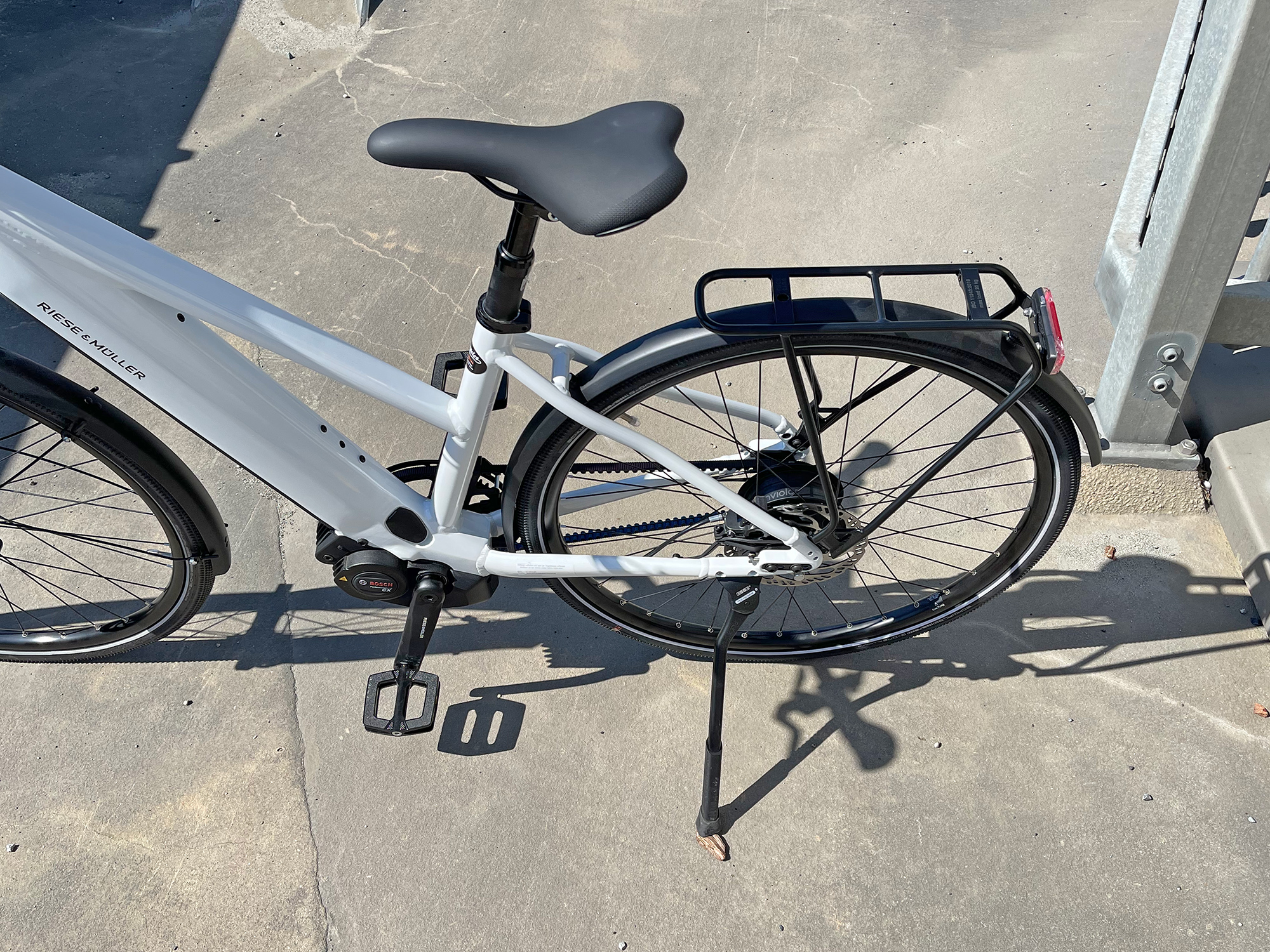

Flick Bell on Right, SKS Plastic Fenders (50mm Width, Safety Design), RackTime Aluminum Alloy Rear Rack (20kg 44lb Max Load), Side Mount Adjustable Kickstand, Integrated Supernova Mini 2 Pro Headlight (550 Lumens 160 Lux), Integrated Busch & Müller Toplight 2C LED Tail Light (Two LEDs)
Other:

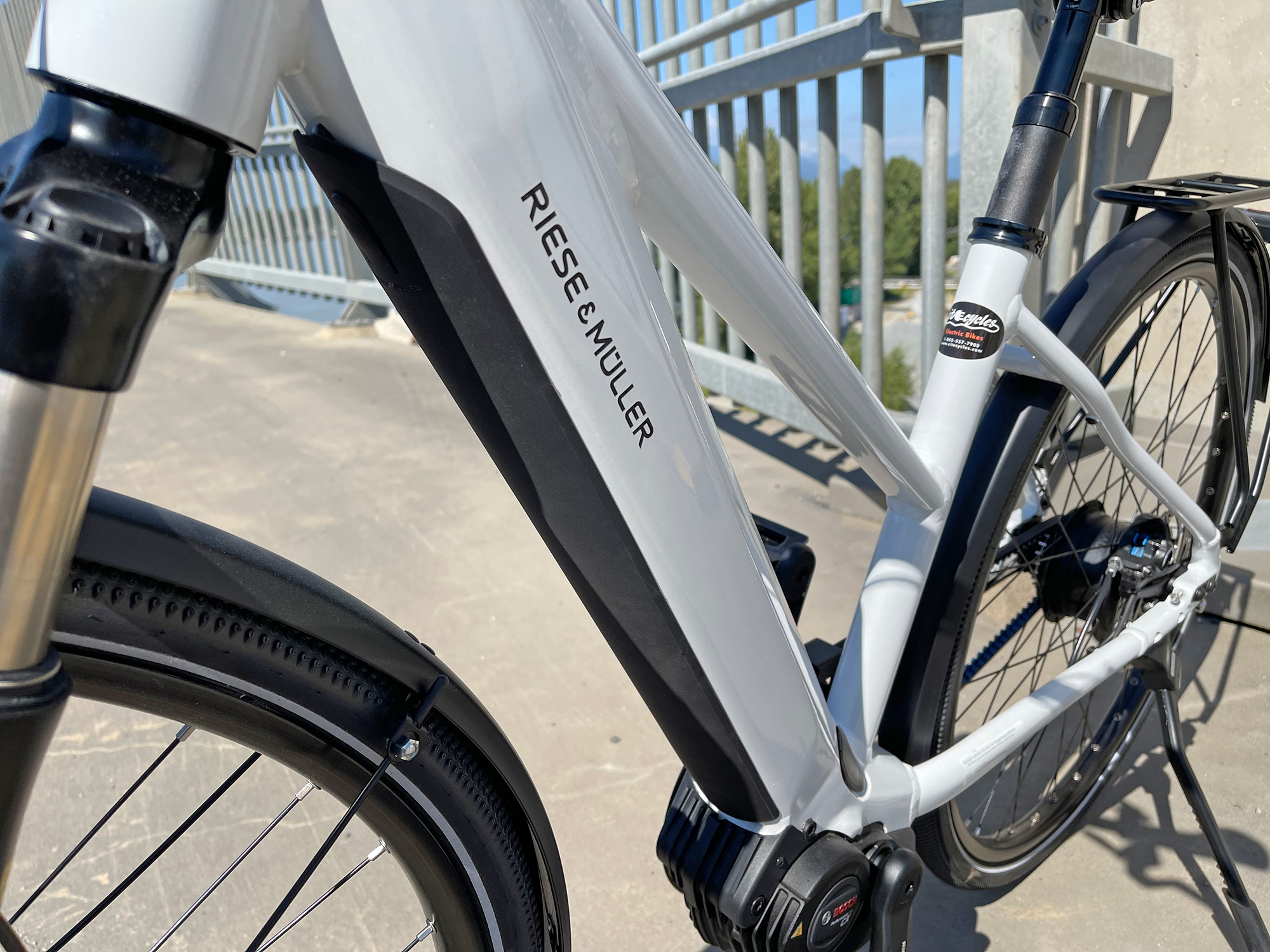

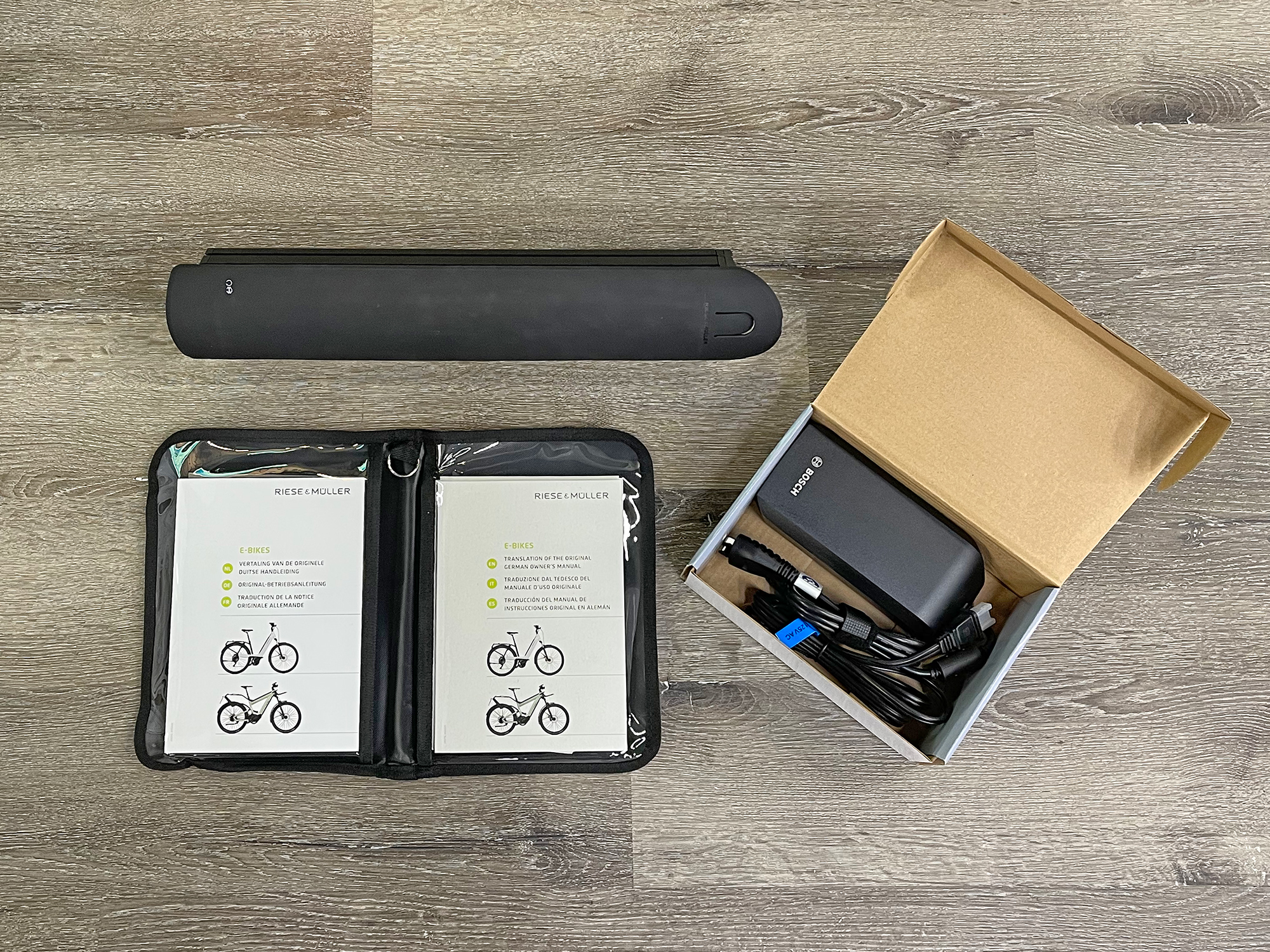

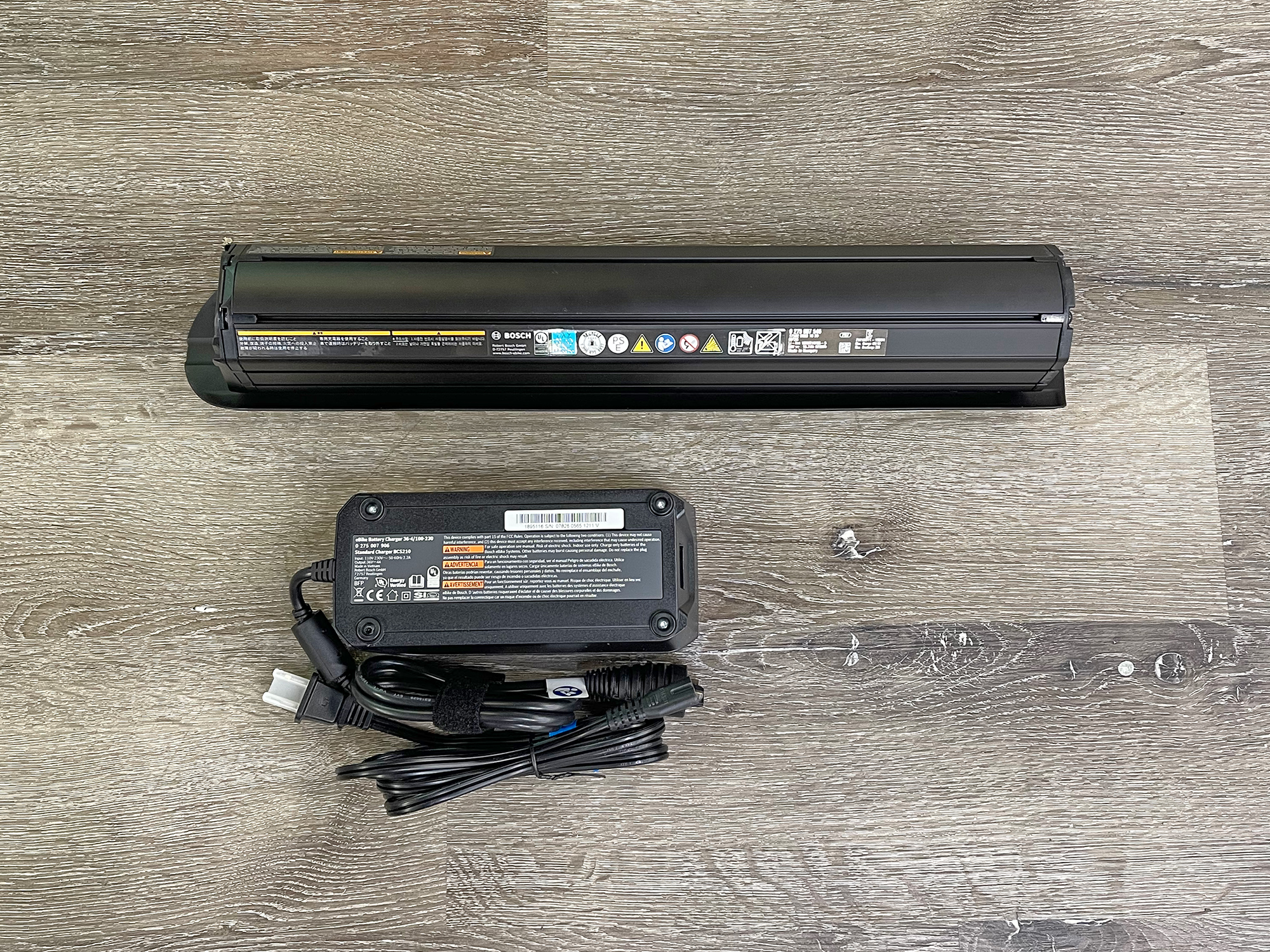

Locking Removable Downtube-Integrated Battery Pack with LED Charge Level Indicator, 1.7lb 4 Amp Charger, ABUS Plus Code Keys (Battery and Optional Lock Match)
Alex

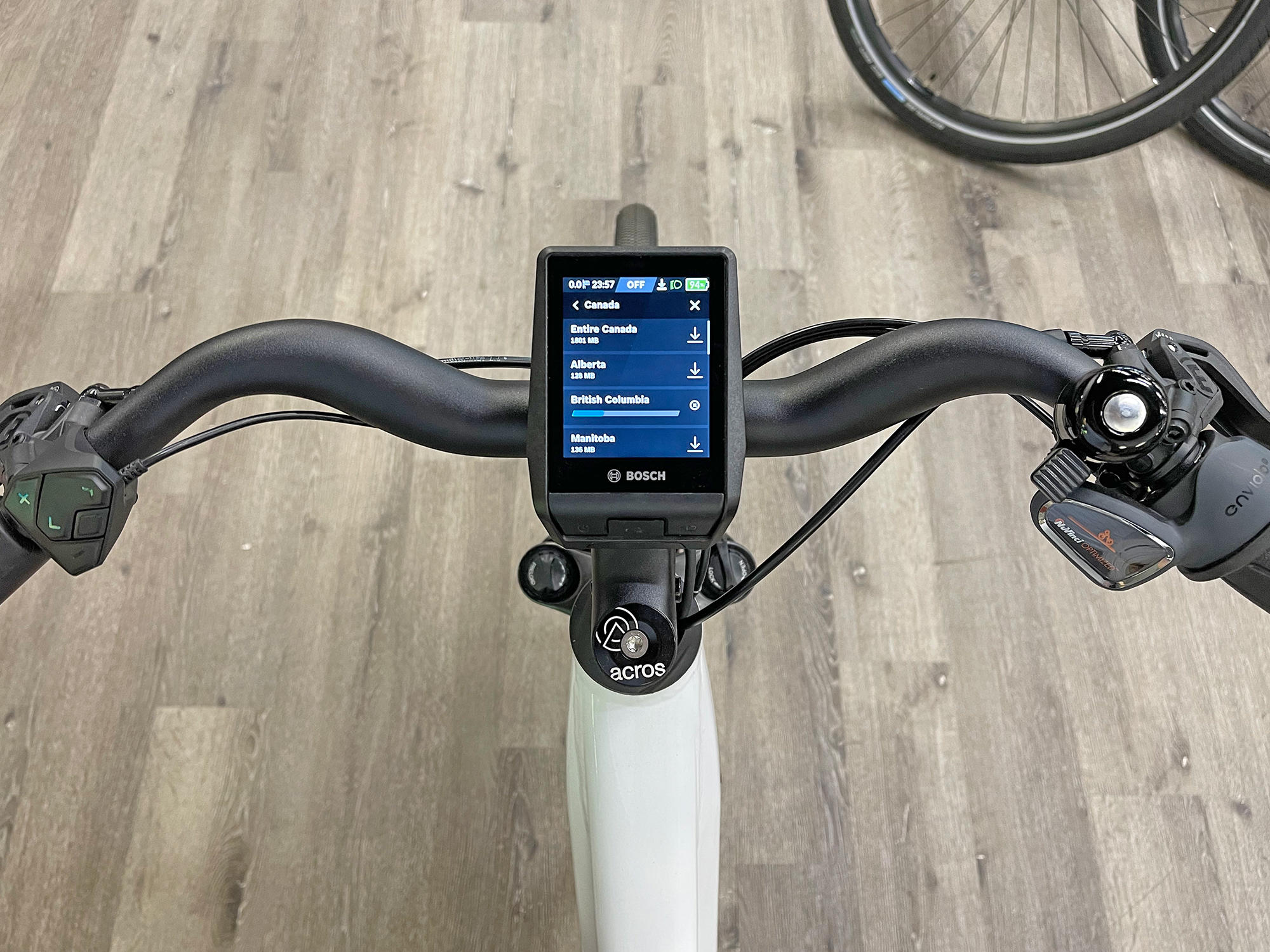

2 years agoThanks for the review Court! I want to share a correction – the microUSB port on Nyon display can NOT be used to charge other devices – it only suitable to charge Nyon itself when it is not mounted on the bike. Know this for sure since I got Purion -> Smartphone hub -> Nyon on my bike and rode with all of them for a while. Bosch is pretty disappointing in this aspect unfortunately.
