Total Weight:
132 lbs (59.87 kg)
Battery Weight:
9.3 lbs (4.21 kg)
Motor Weight:
8.8 lbs (3.99 kg)
Frame Material:

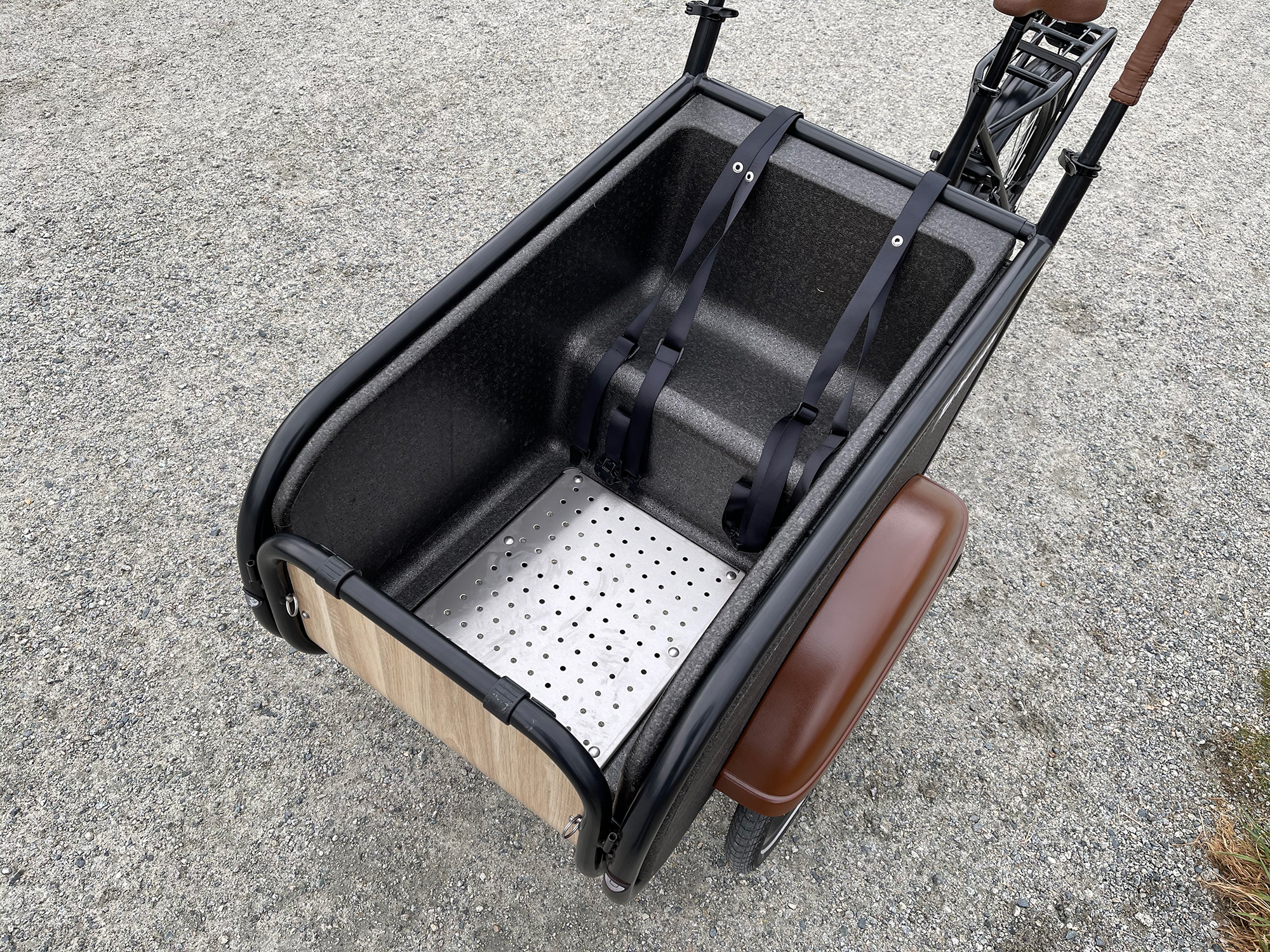

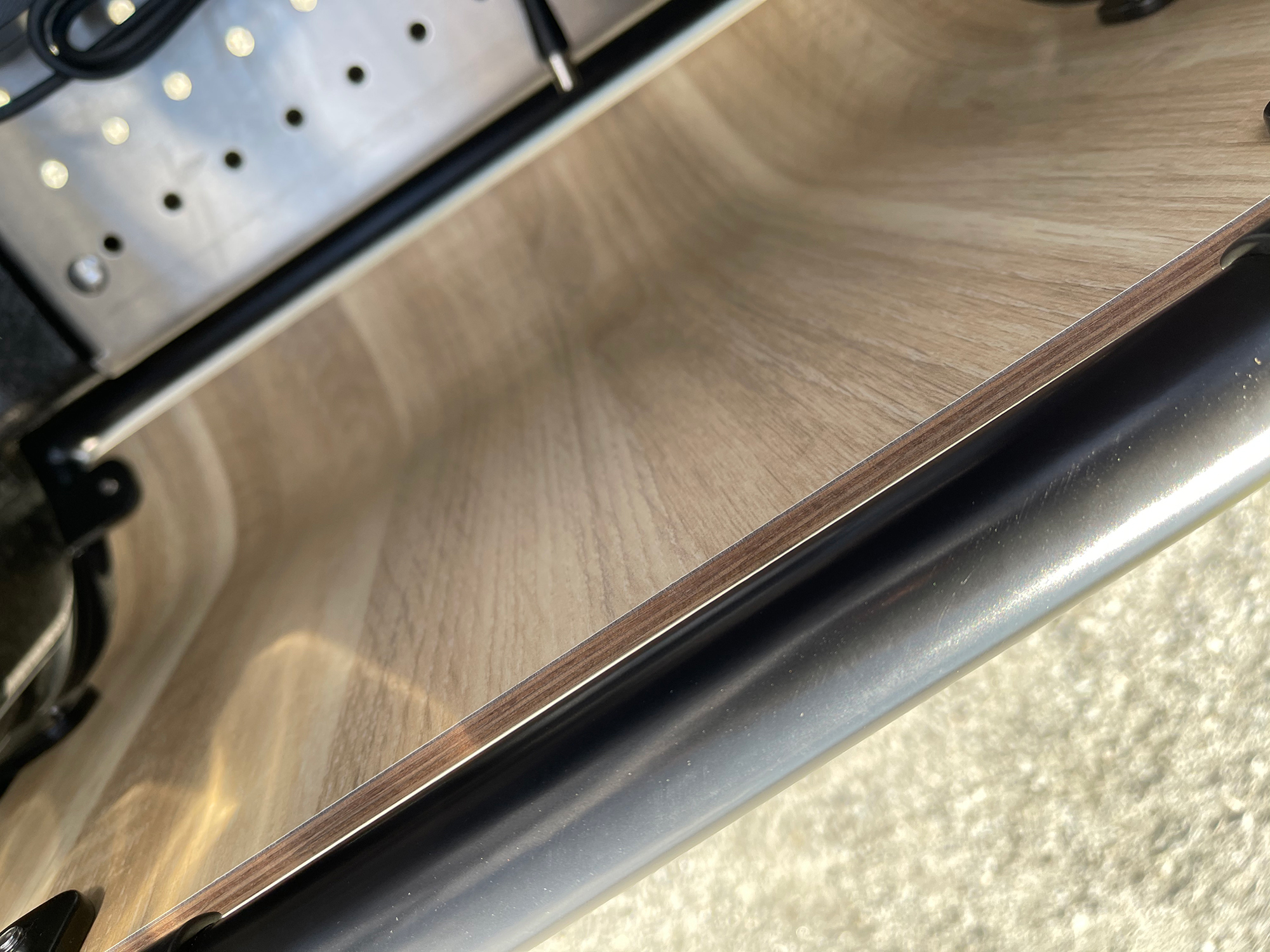

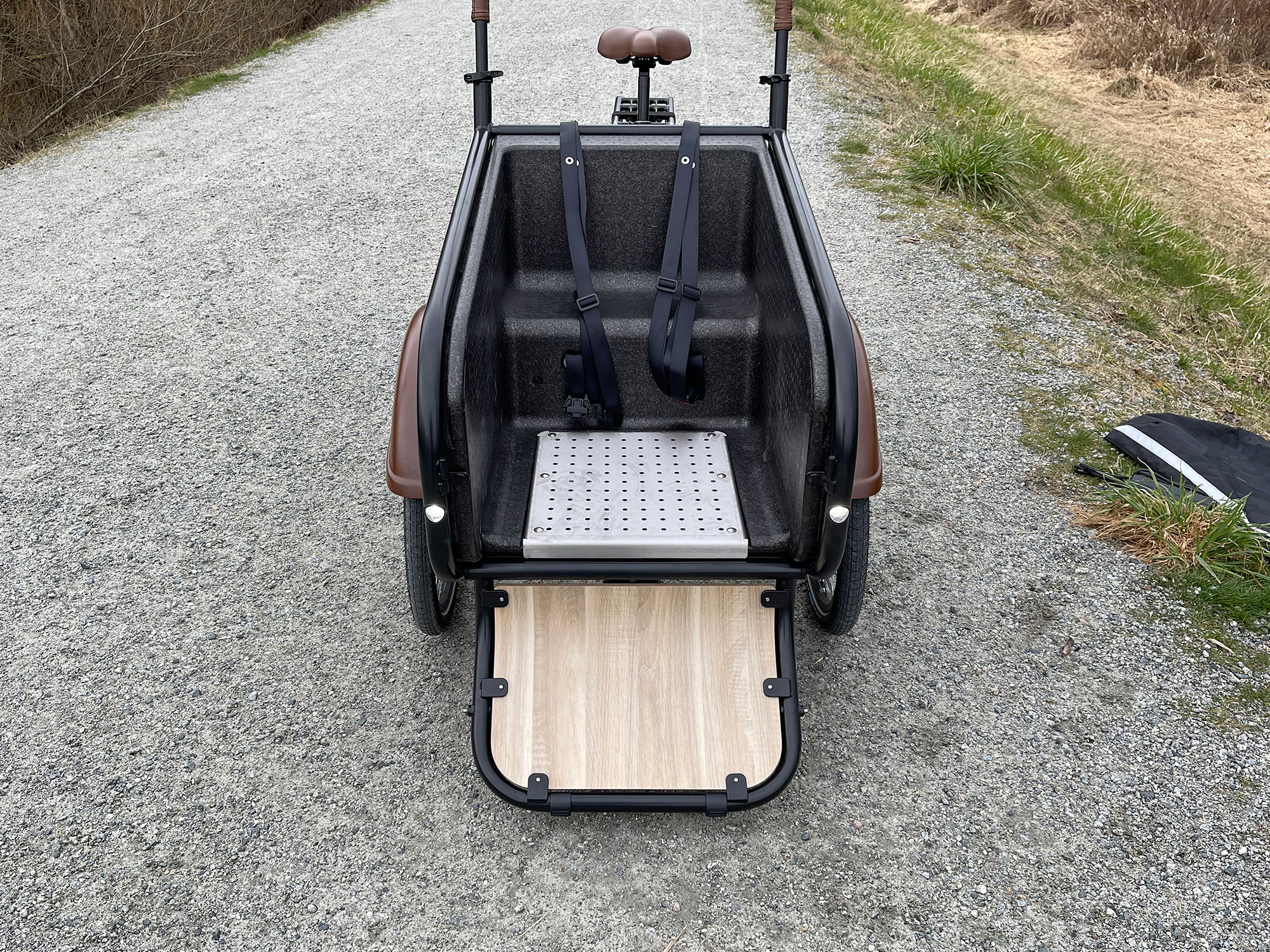

6061 Aluminum Alloy Bike Frame, Steel Front Box Surround and Undercarriage, Expanded Polypropylene (EPP) Box with Stainless Steel Floor and Beech Laminate Front Door
Frame Sizes:
20.5 in (52.07 cm)Geometry Measurements:
20.5" Seat Tube, 21" Reach, 46" to 49" Handlebar Height, 21" Stand Over Height, 34.5" Minimum Saddle Height, 42.75" Maximum Saddle Height, 83.5" Length, 32" Width, Box Dimensions: 31.25" Length, 18.25" Width, 16" Height
Frame Types:
Cargo, Step-Thru, Trike

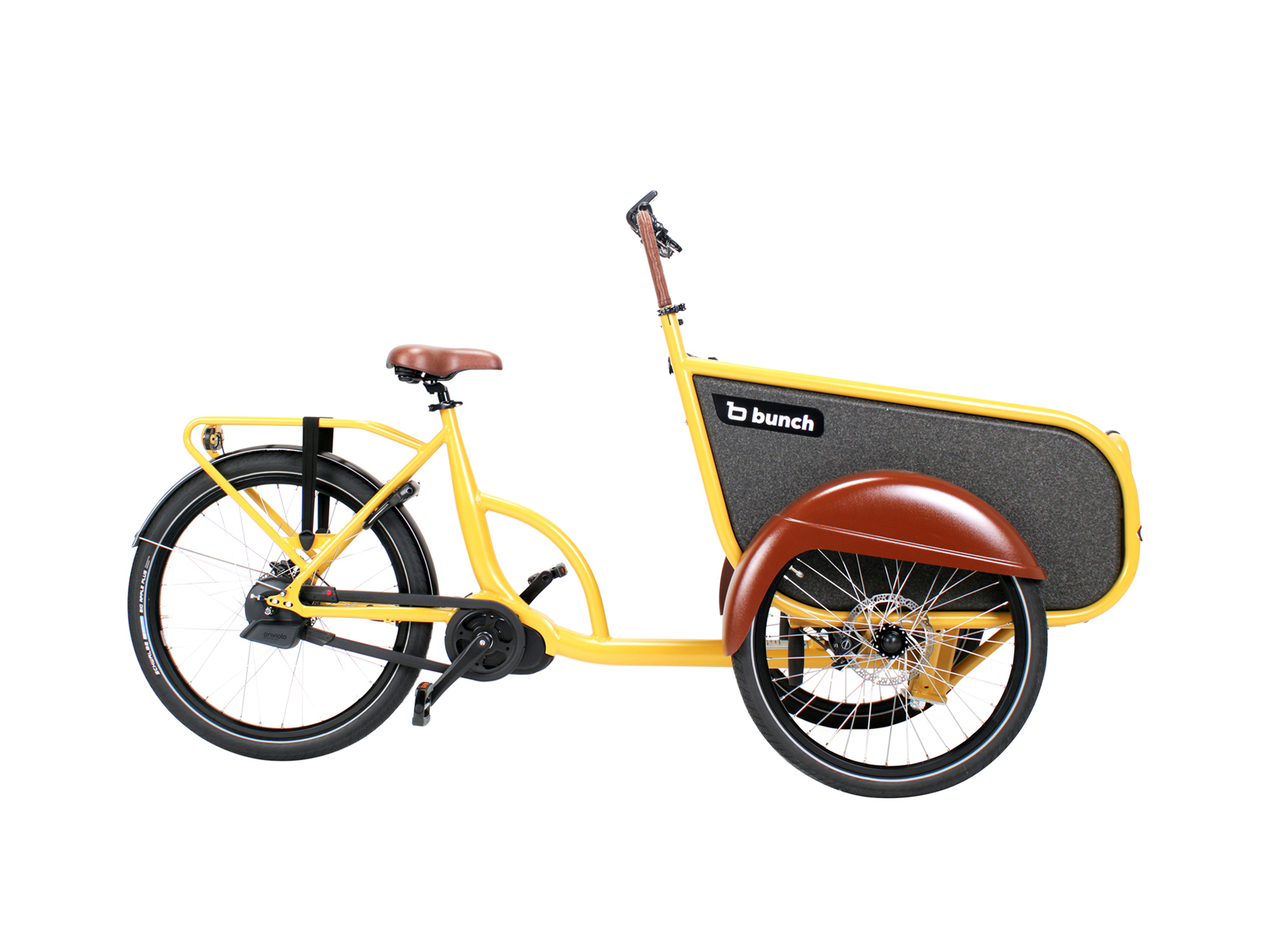

Frame Colors:
White, Black, Mustard Yellow, Azure Blue, (Powder Coated Alloy Tubing, Electro Galvanized Steel Tubing)
Frame Fork Details:
Single Side Mount Thru Axles, 12mm Threaded Solid Axle, International Standard Disc Brake Caliper Mounts
Frame Rear Details:
135mm Hub Spacing, 10mm Sliding Vertical Dropouts with Integrated Tensioner and Extended Non-Drive Side Dropout, International Standard Disc Brake Caliper Mounts
Attachment Points:
Rear Rack, Fenders, Two Three-Point Seat Belts, Rear Wheel Frame Lock
Gearing Details:
1
Speed 1x∞ Enviolo AUTOMATiQ CT City, Electronic Stepless Automatic Shifting with Wireless Remote, Enviolo Powered by Ebike Battery and Remote Powered by Coin Battery, Gear Ratio Range: 310% (.55-1.7), 17 Tooth Rear Sprocket, Rated to 50Nm Continuous TorqueShifter Details:

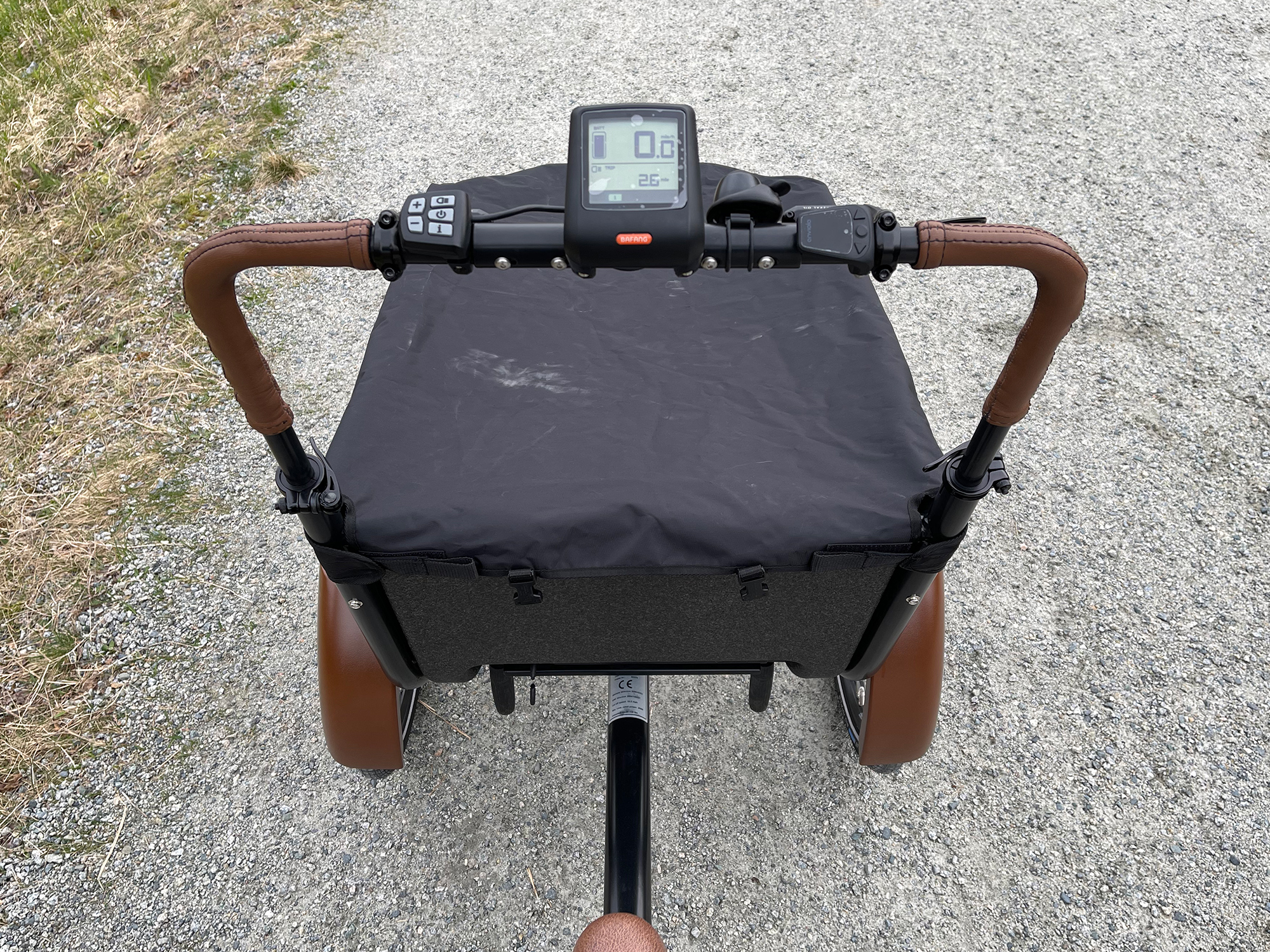

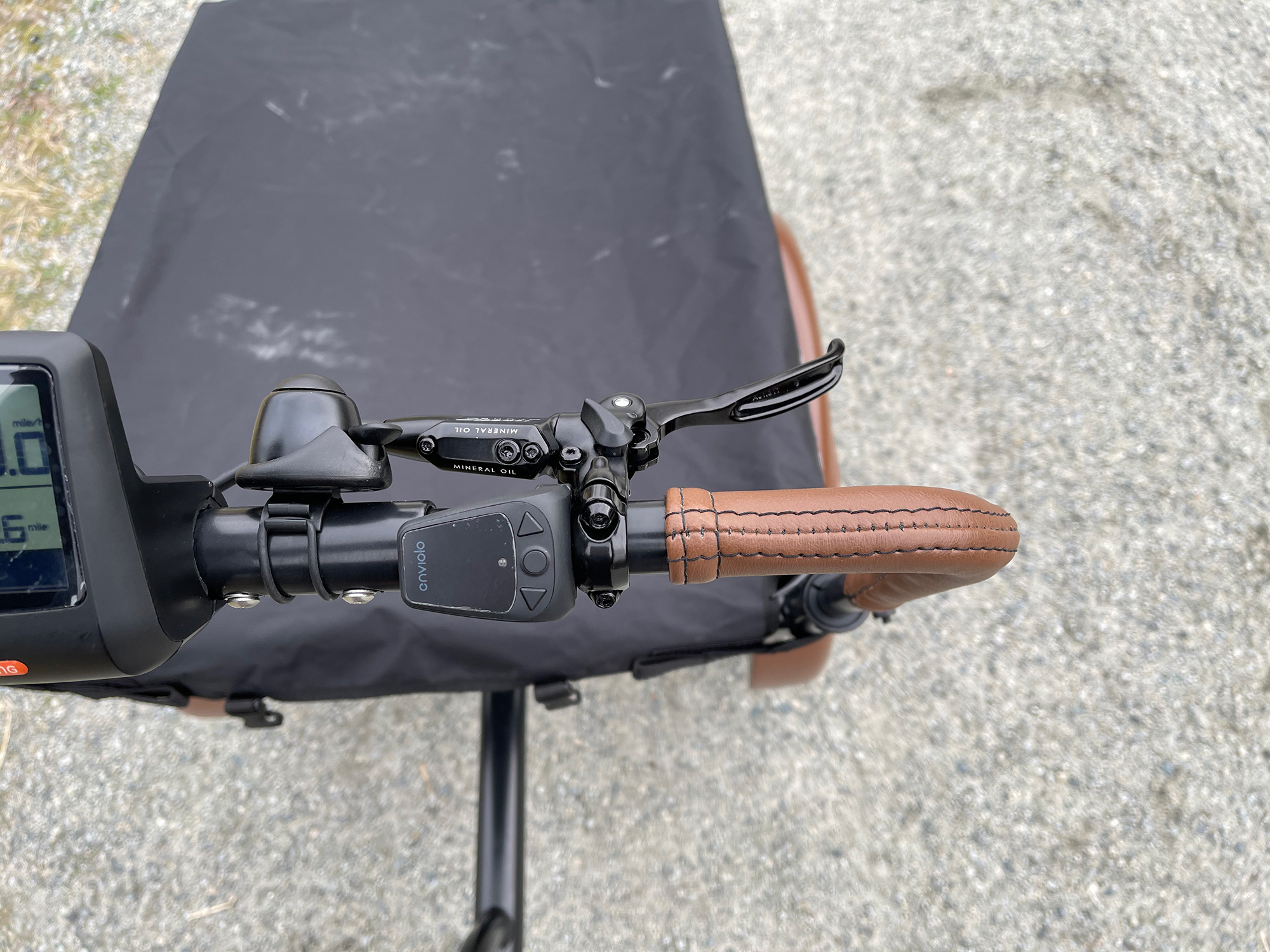

Enviolo AUTOMATiQ CO Controller, (Wireless Remote with Three Buttons: Up, Mode, Down, Press Any Button to Wake Up, Press Up or Down to Change RPM by 1, Hold for Faster Changes, Set Your Preferred Cadence Then it Automatically Does the Rest, Red LED for 3 Seconds Means Replace Coin Battery)
Cranks:
Bafang Aluminum Alloy, 170mm Crank Arm Length, 38 Tooth Steel Chainring
Pedals:

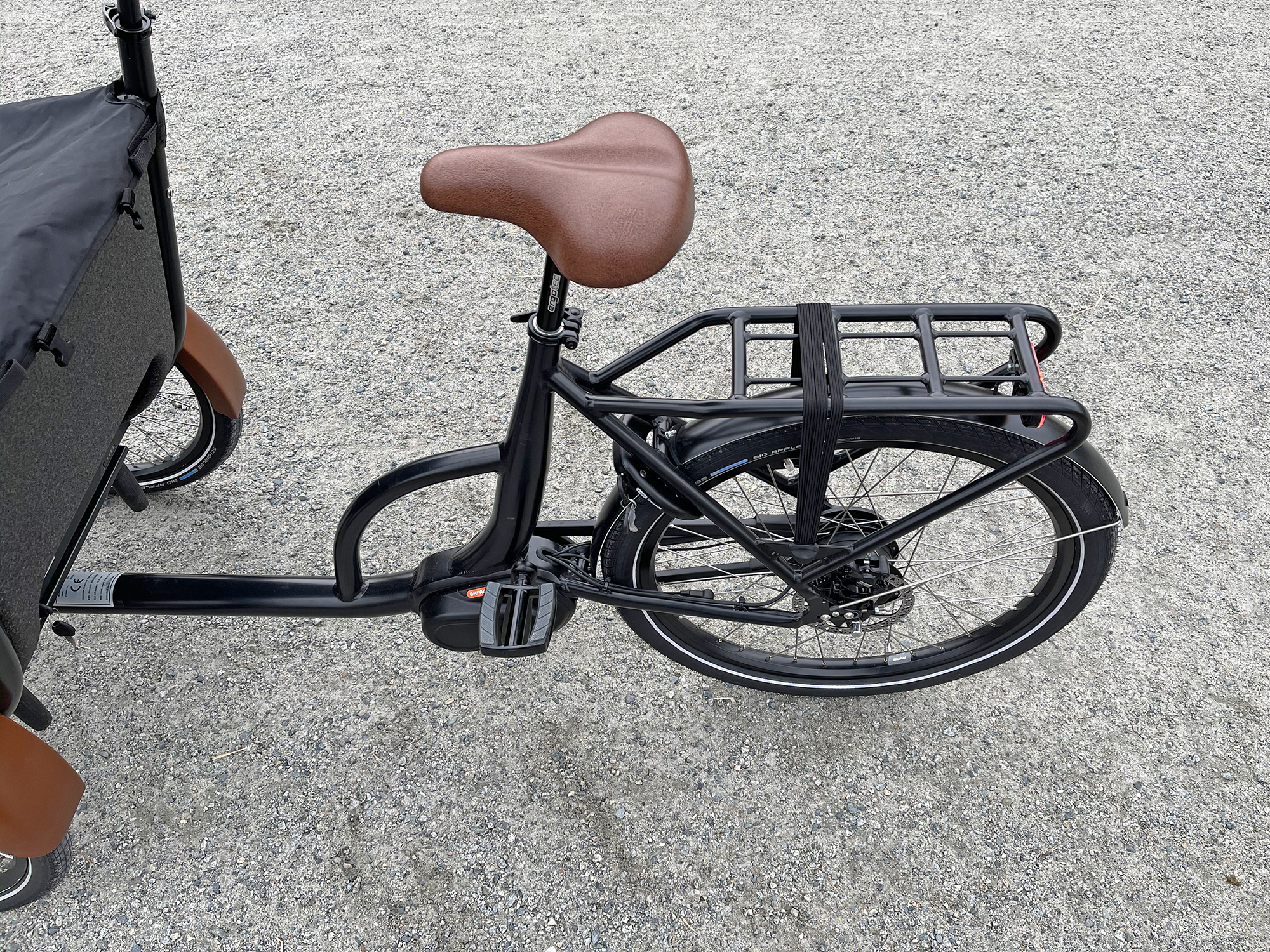

Union SP-2828, Plastic Platform with Rubber Grip and Reflectors
Handlebar:
22.2mm Diameter, Flat, Steel, Mounted to Box, Adjustable Height
Brake Details:

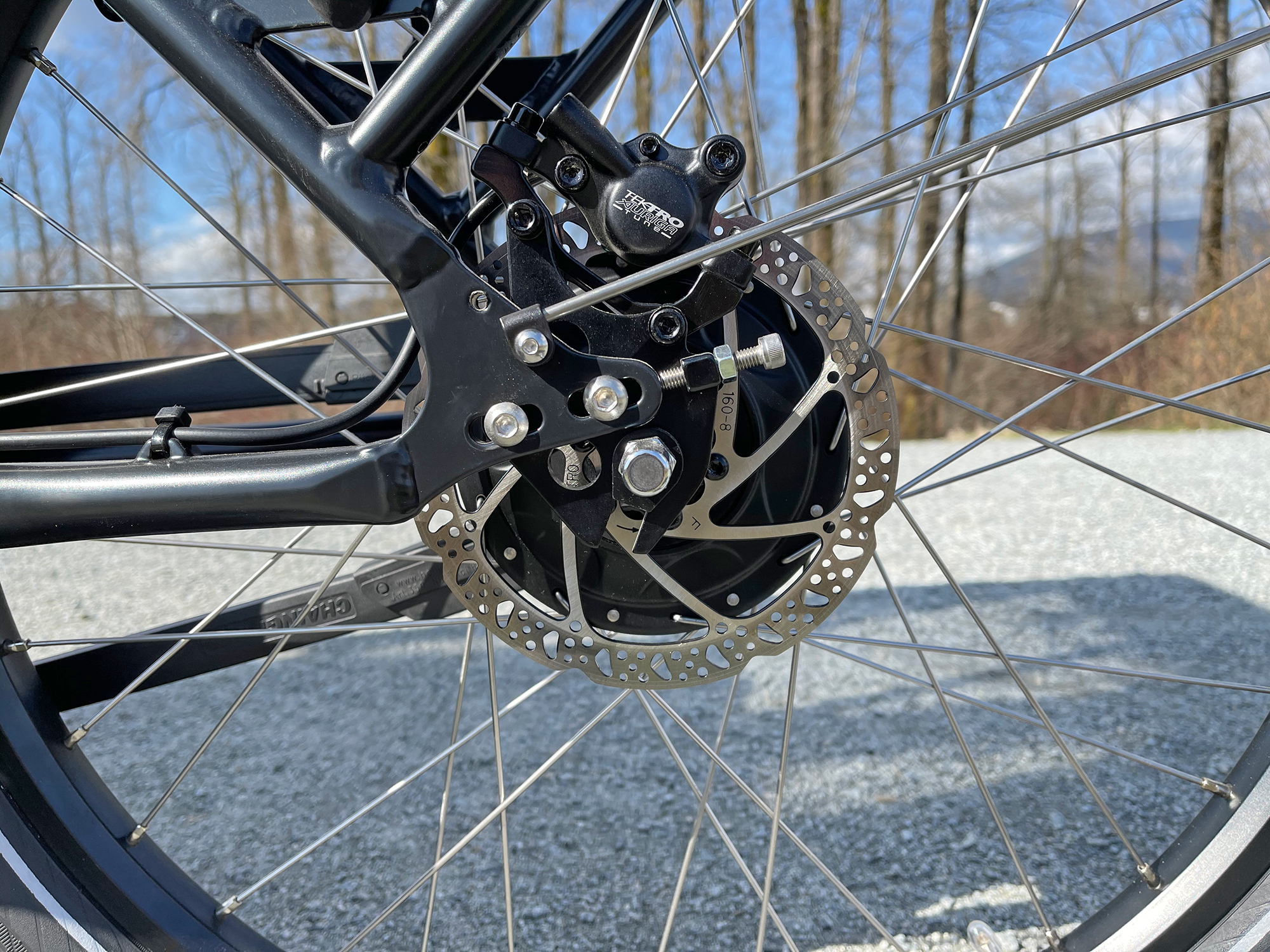

Tektro Auriga Hydraulic Disc Brakes with 180mm E-Twin HD-E525 Rotors on Both Front Wheels and One 160mm E-Tune HD-E530 Back Wheel, Dual Piston Calipers, Three-Finger Levers with Adjustable Reach, Motor Inhibitors, and Parking Brake Switch
Grips:
Faux Leather, Padded, Stitched, Extra-Long for Multiple Hand Positions, Flat

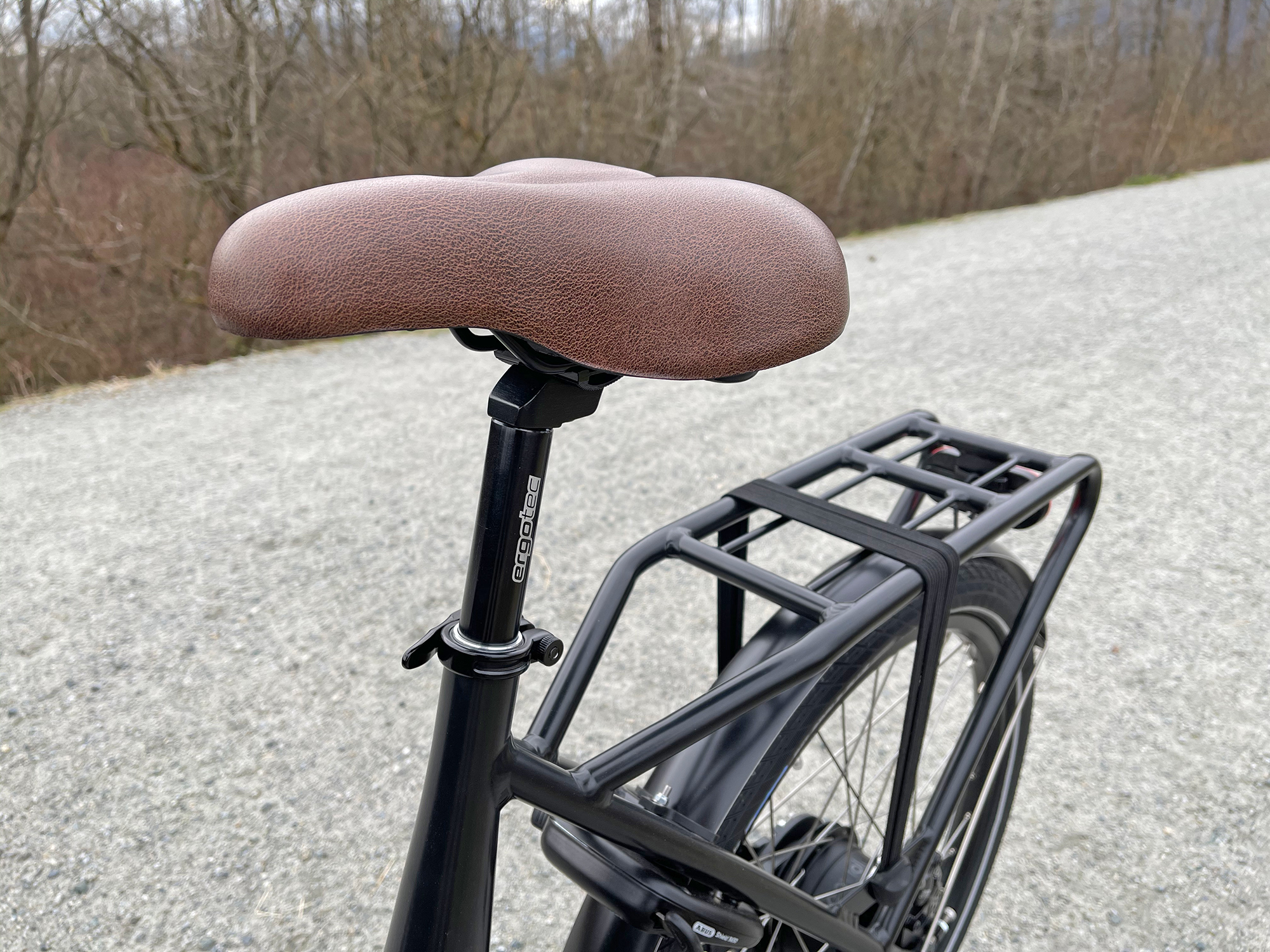

Saddle:
Selle San Remo, Monaco, Hybrid Comfort
Seat Post:
Aluminum Alloy, CNC Shaped, Ergotech 2, Single Bolt Clamp, 30.8mm to 27.2mm Shim
Seat Post Length:
350 mm
Seat Post Diameter:
27.2 mm
Rims:
Ryde Andra 40, Double Wall, Aluminum Alloy, 32mm Outer Width, 36 Hole
Spokes:
Stainless Steel, 12 Gauge, Adjustable Nipples, Silver
Tire Brand:
Schwalbe Big Apple HS 430, Front 24" x 2.0" and Rear 26" x 2.125"
Wheel Sizes:
24 in (60.96cm)26 in (66.04cm)Tire Details:
Front: 55-507, 35 to 75 PSI, 2.0 to 4.0 BAR, Rear: 55-559, 30 to 55 PSI 2.5 to 5.0 BAR, Both: Performance Line, Level 4 RaceGuard, Reflective Sidewall Stripe
Tube Details:
Schrader Valve
Accessories:

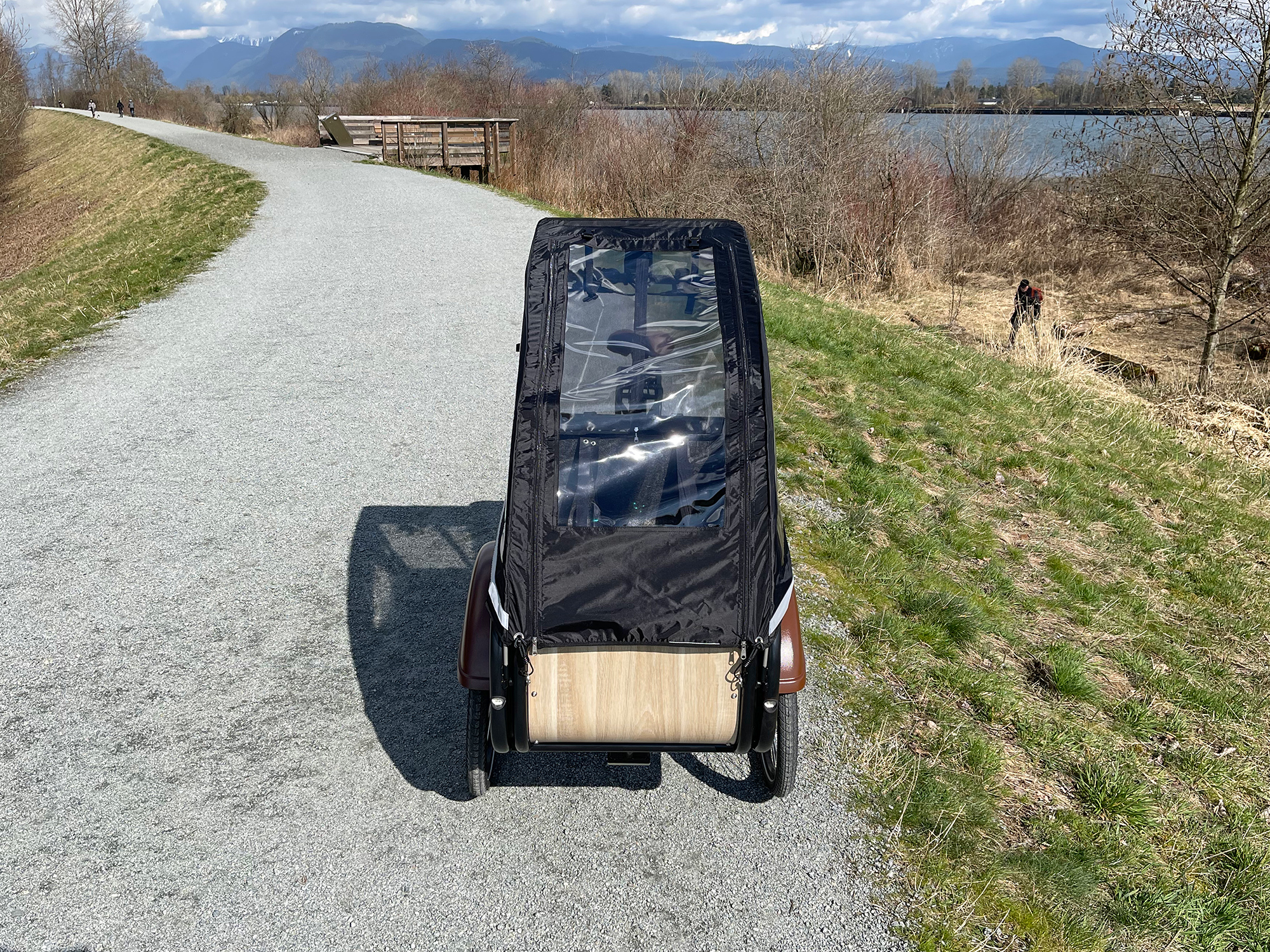

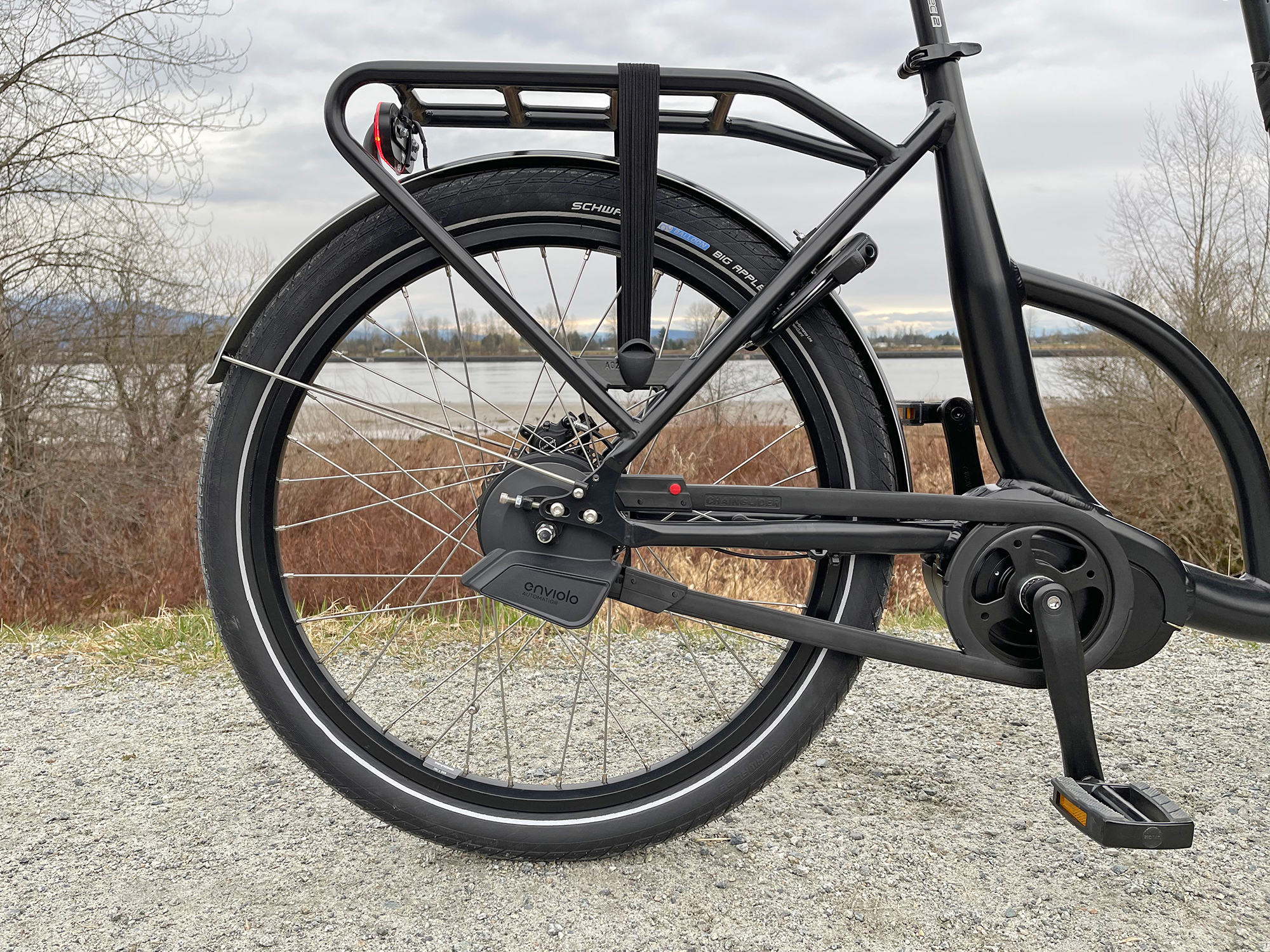

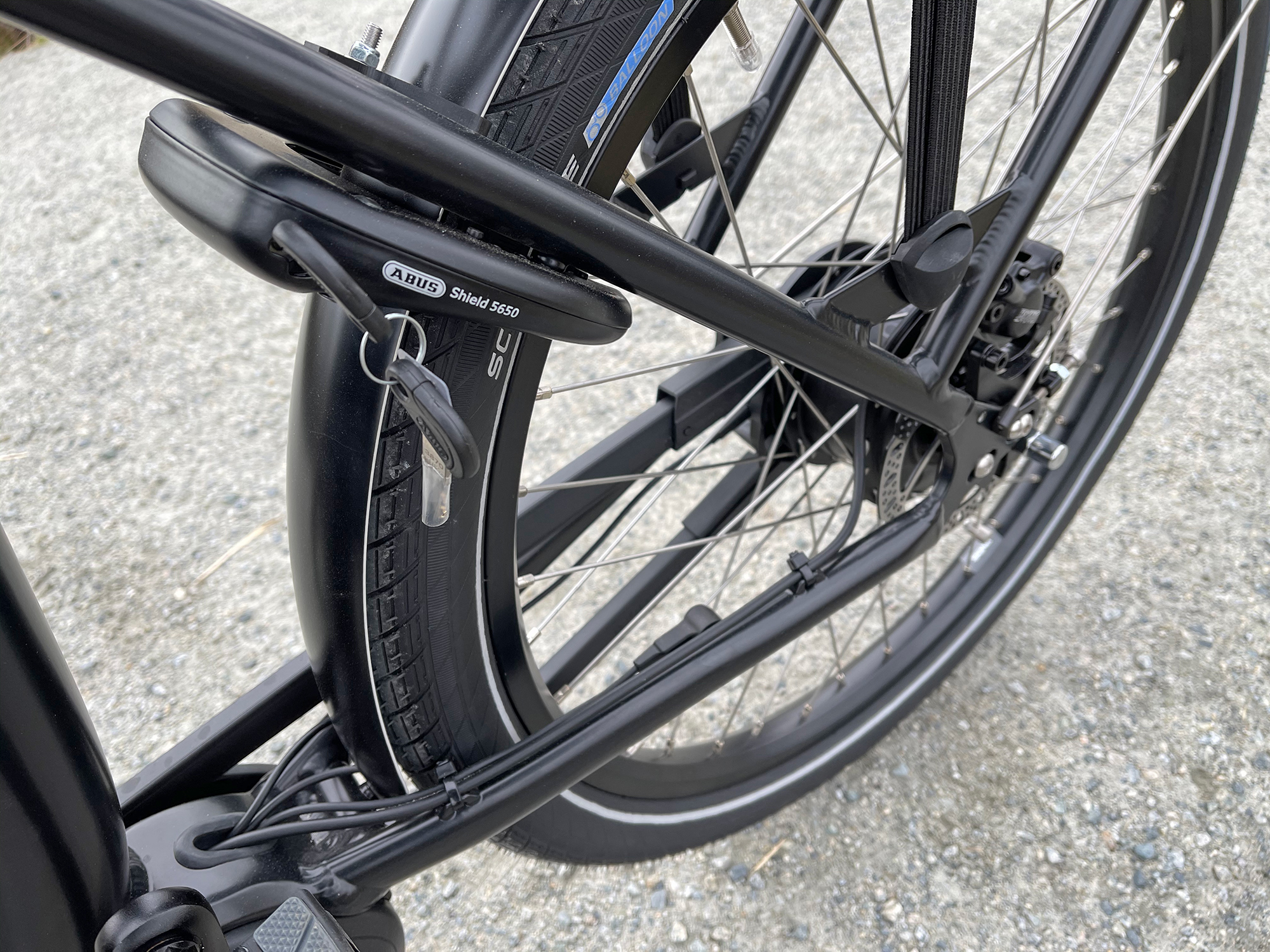

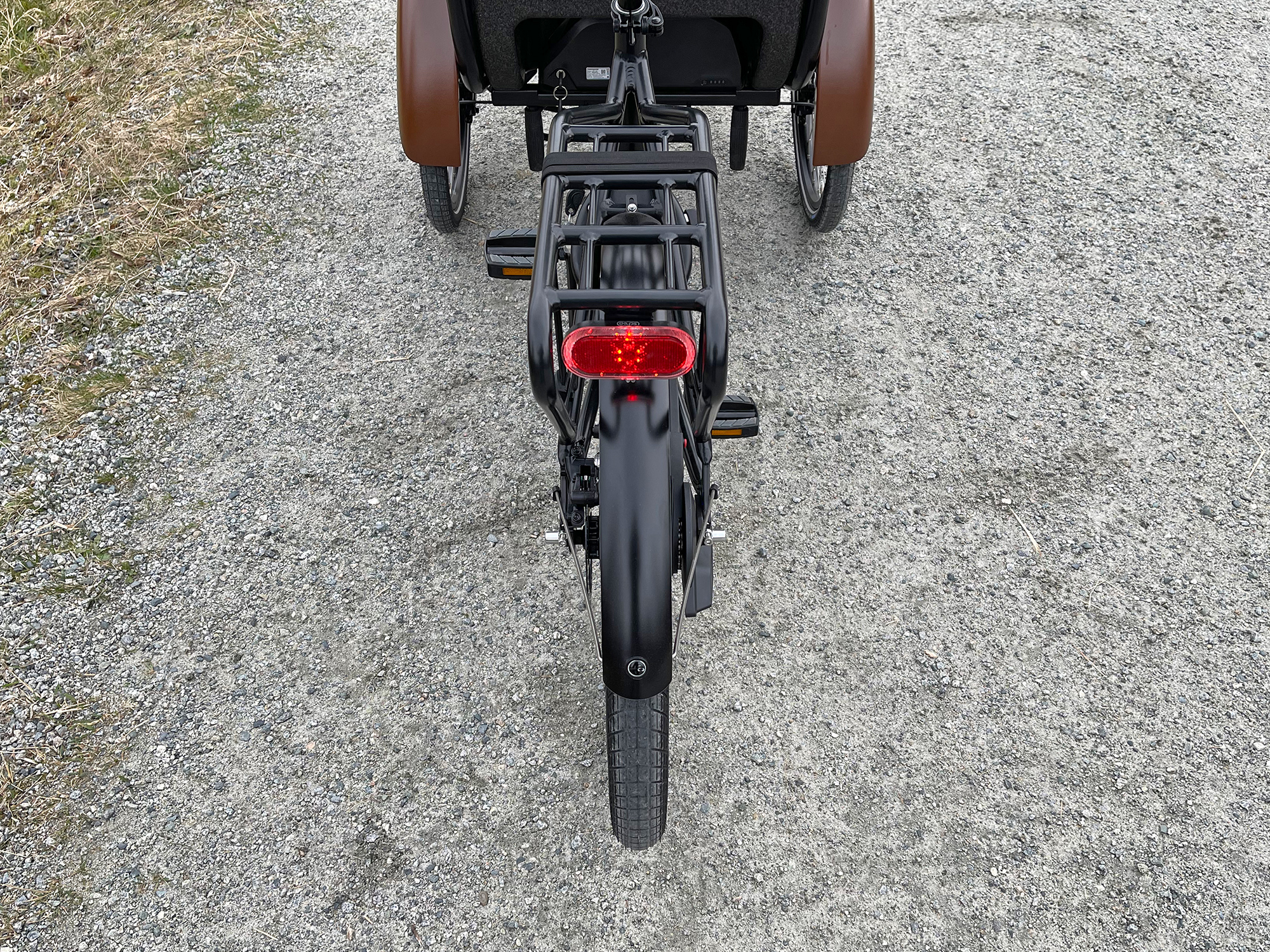

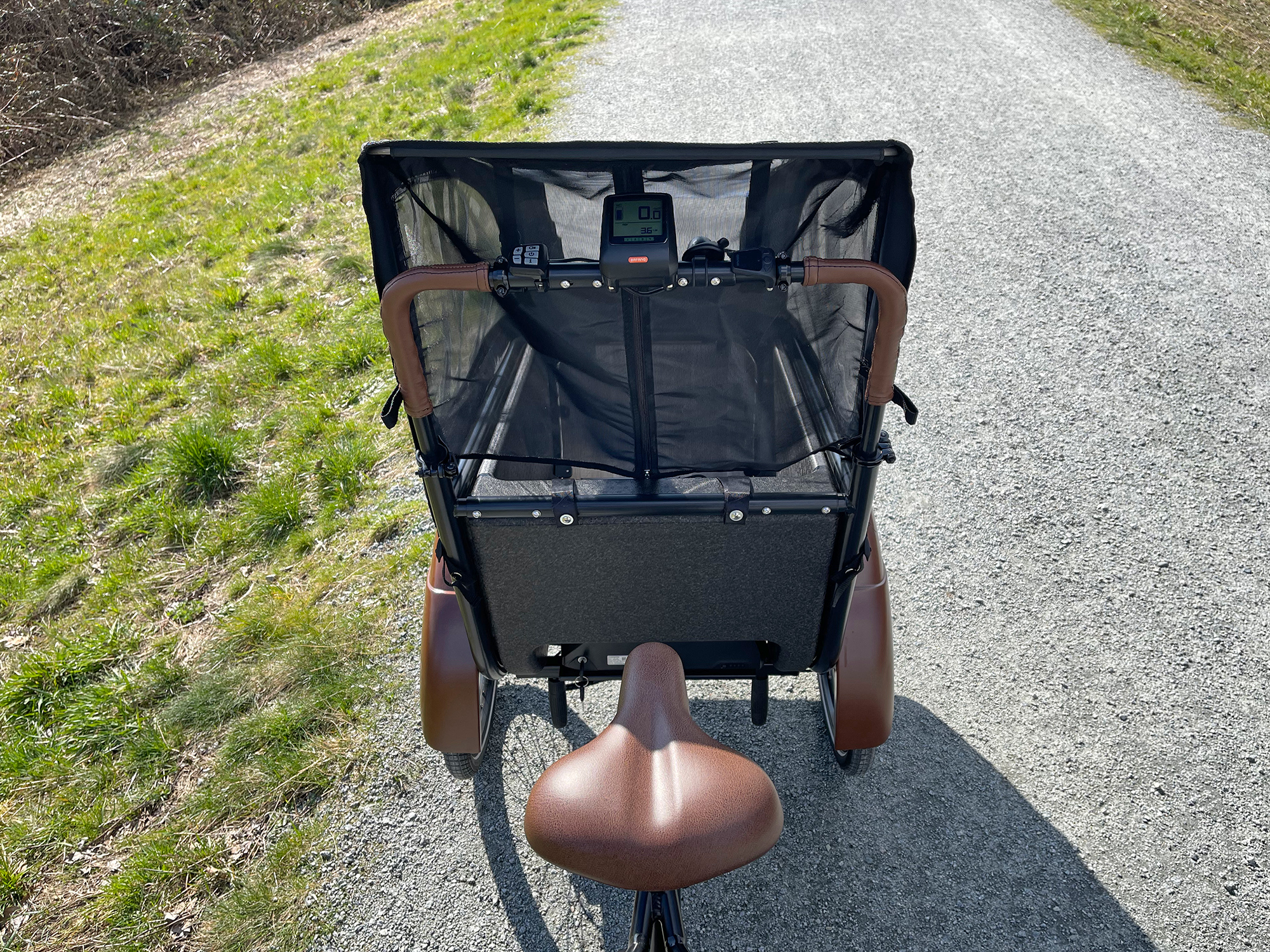

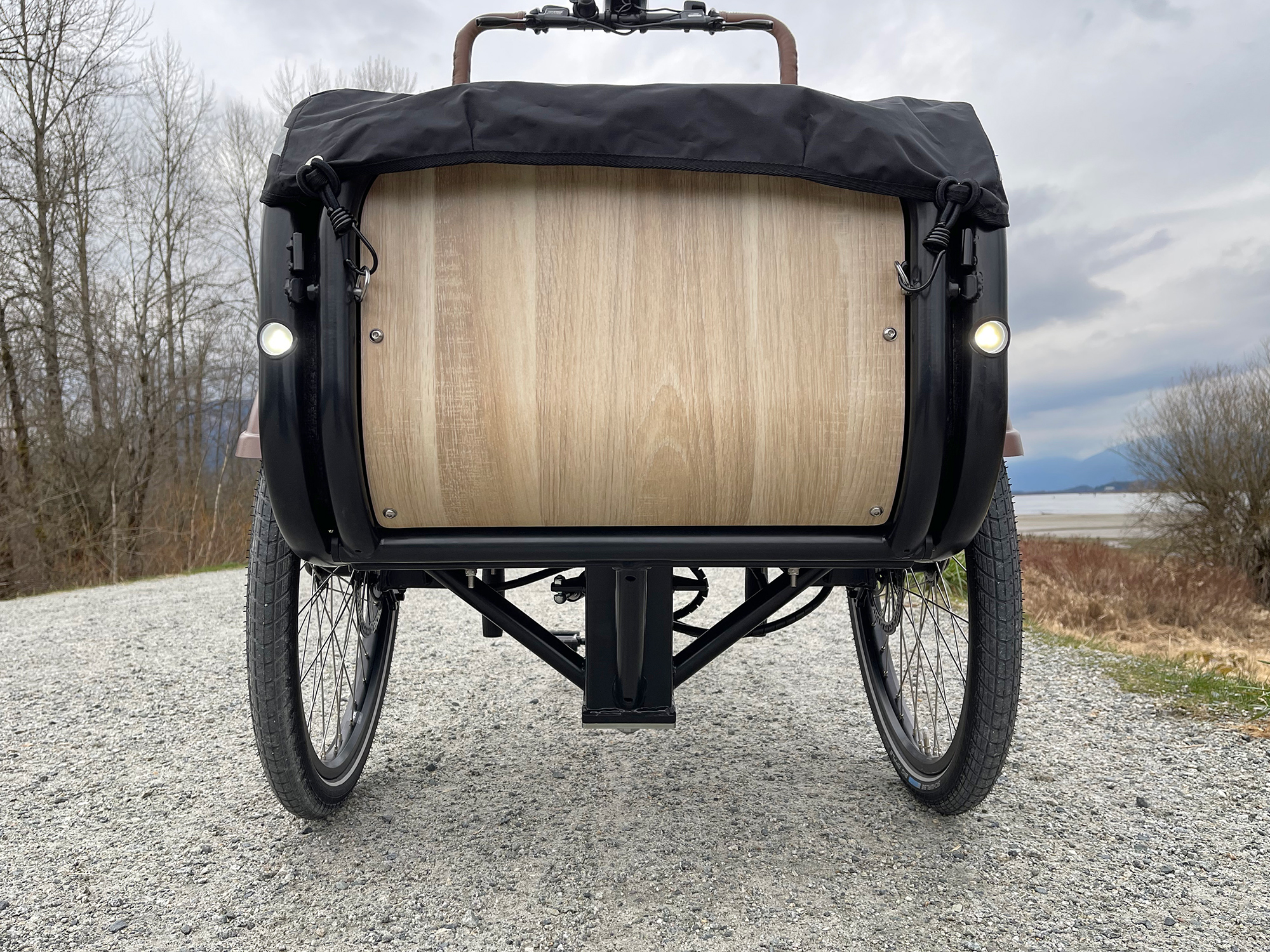

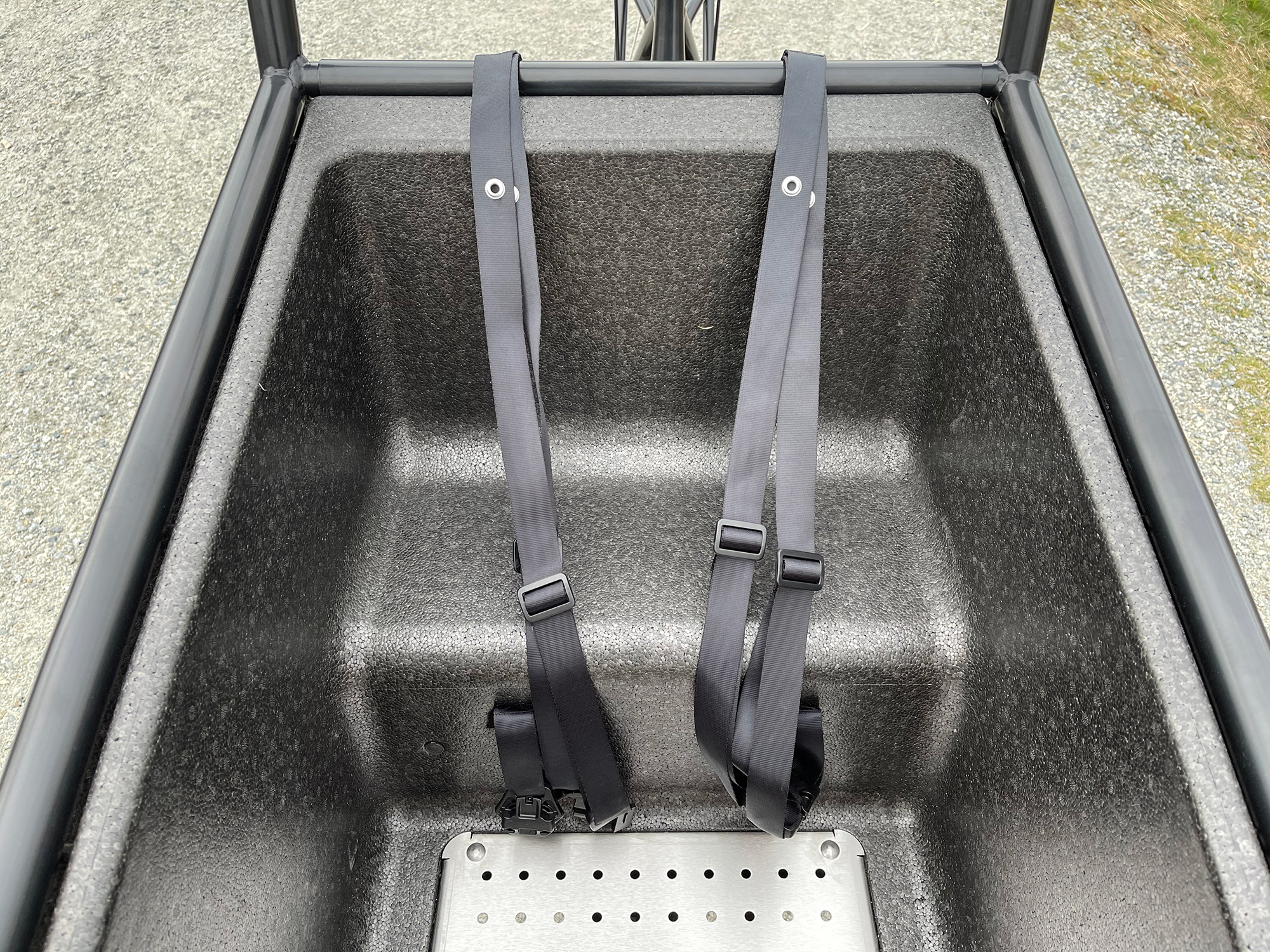

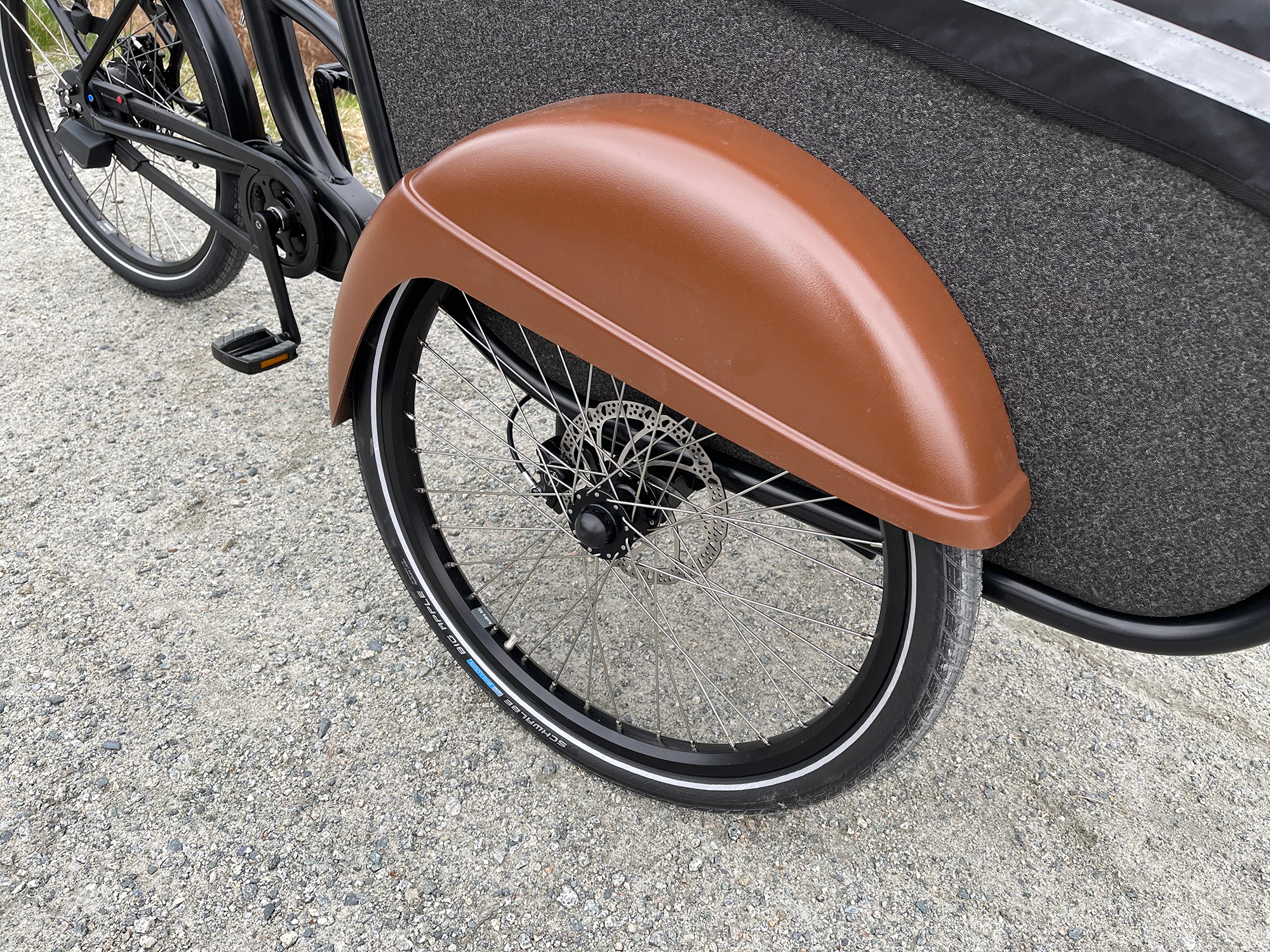

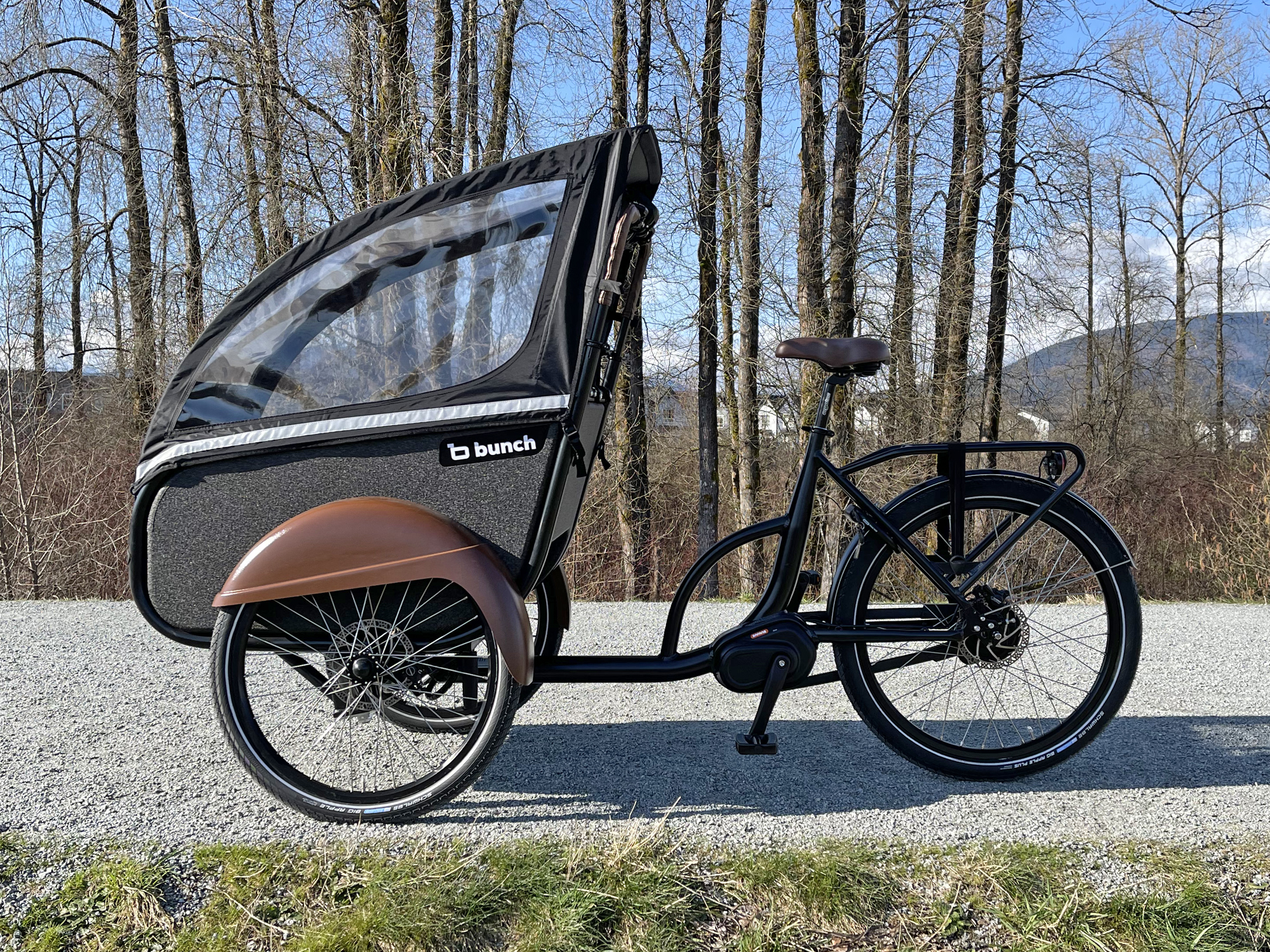

Plastic Front Fenders with Side Coverage (Protects Passenger Fingers from Tires and Walls), Curana CLite Aluminum Plastic Rear Fender, Hebie Chainglider Full-Wrap Chain and Chainring Guard, Twin headlights Integrated into Frame Tubing (150 Lumens Per Light, 3 LED Per Light), Integrated Spanninga Elips Rear Light (Attached to Rear Rack, 6 LED, 13 Candela, 320° Visible Angle), Two 3-Point Removable Seat Belts, ABUS Shield 5650L Lock on Rear Wheel (Cafe Lock, Not Keyed Alike to Battery), Optional Rain Cover $299 (Has Reflective Striping), Optional Cargo Box Cover $119 (Has Reflective Striping), Optional Seat-Floor Pad $79 (Bench Cushion for Child, or Floor Pad for Pet), Optional Thule Yepp! Maxi Cosi Adapter $249 (To Mount Child Car Seat into Cargo Box), Optional Dog Leash Mounting Ring $15, Optional Additional Battery Pack $600
Other:

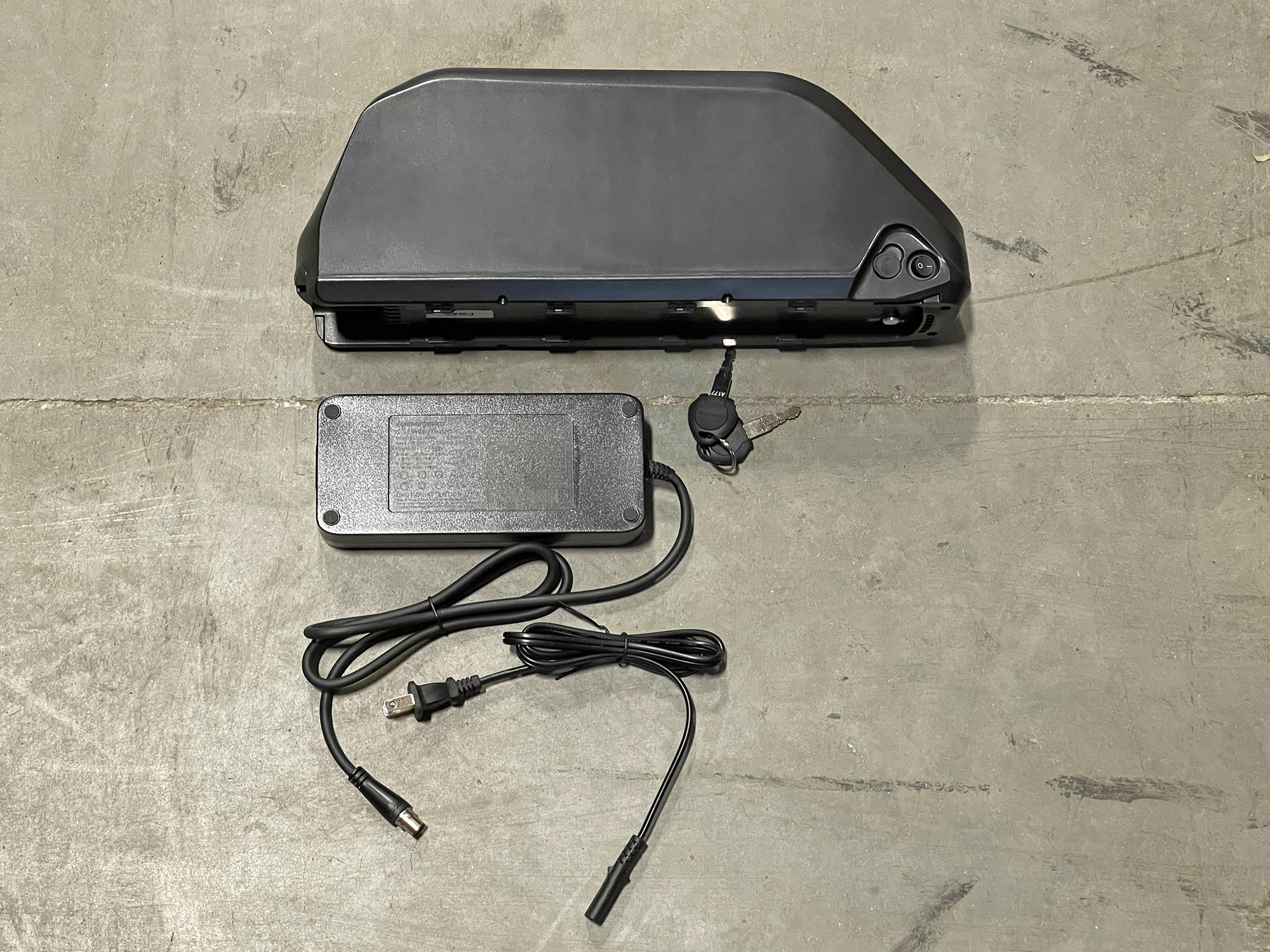

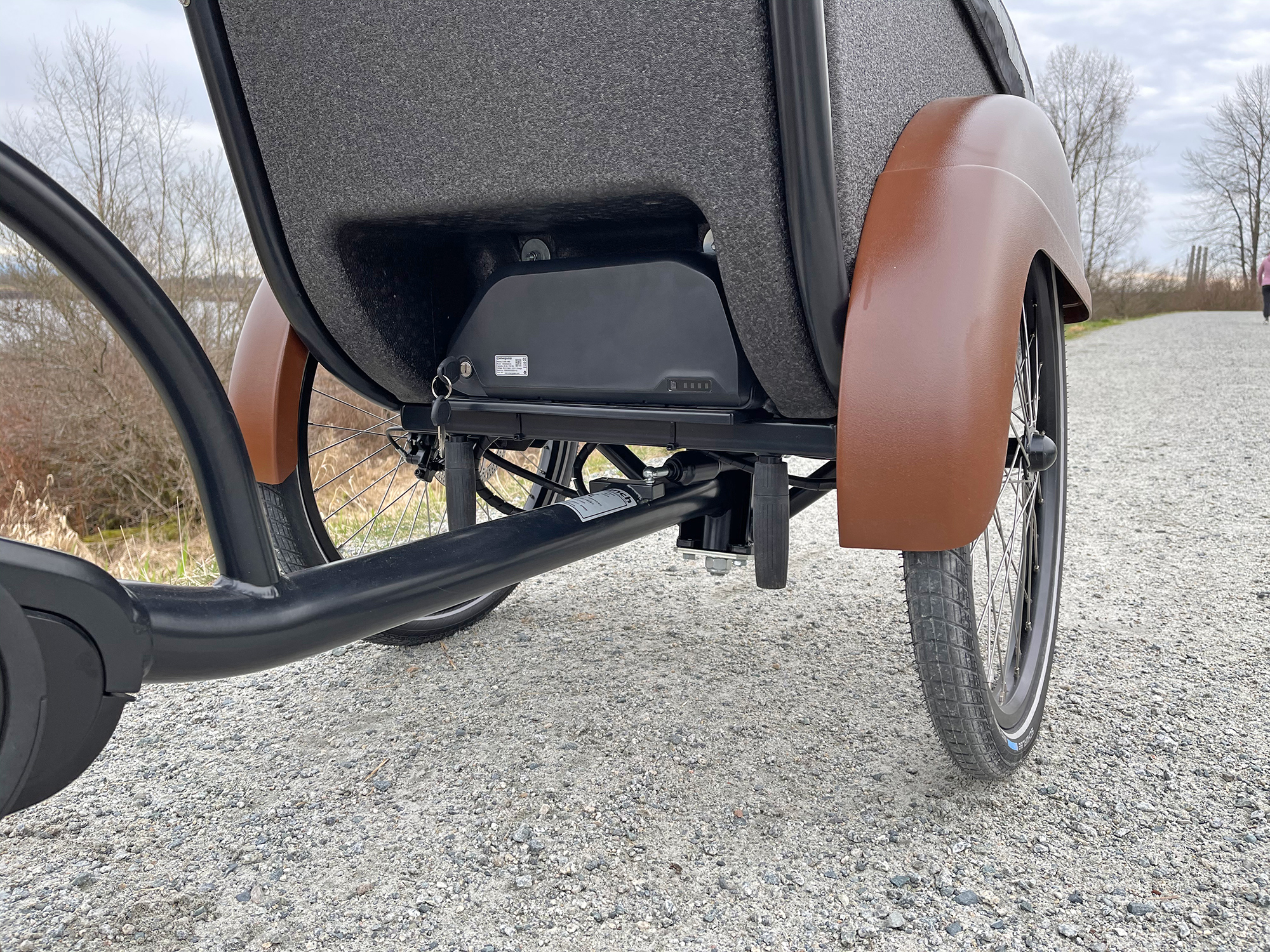

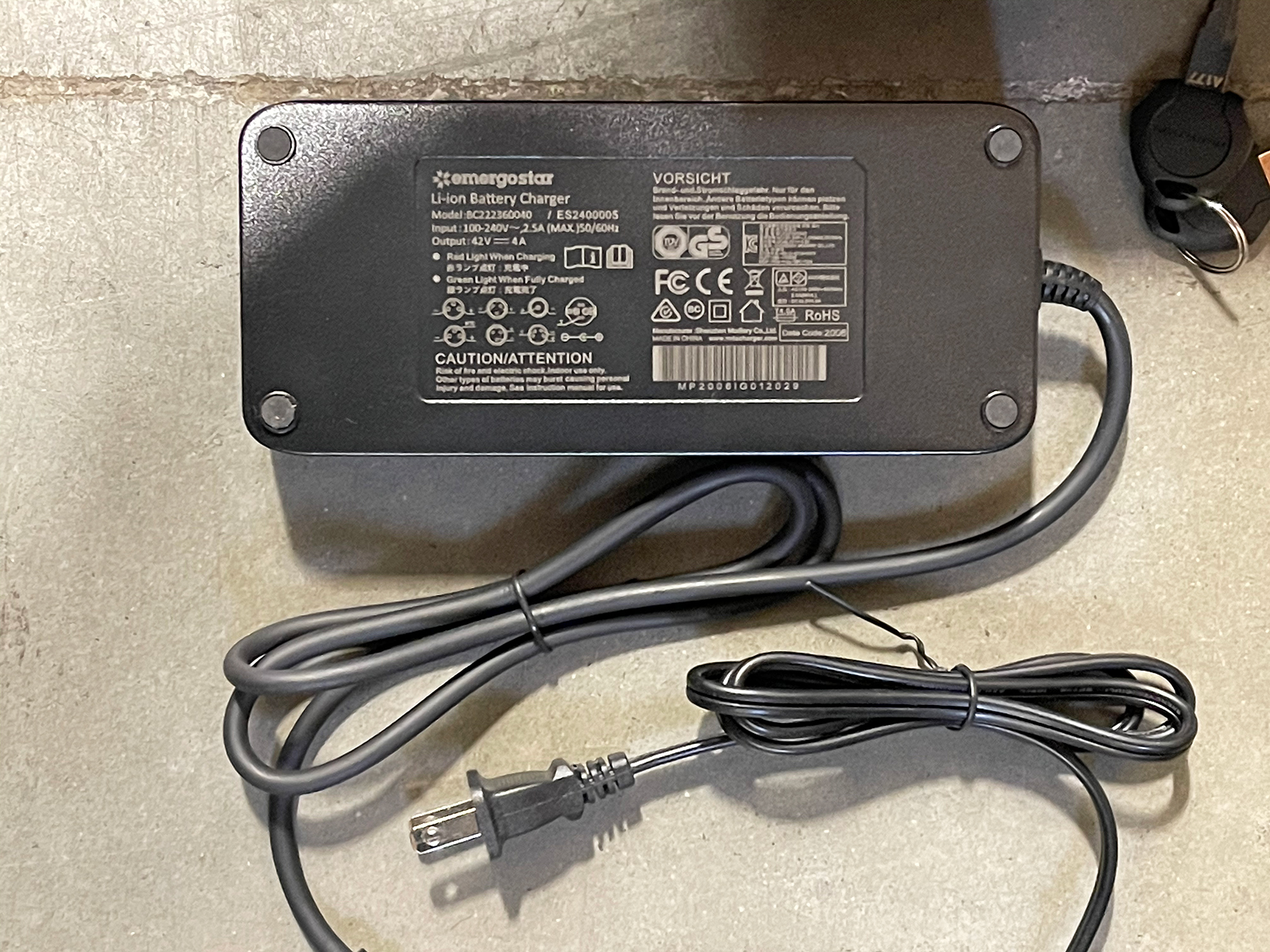

Total Bike Capacity 350lbs, Rear Rack Load Capacity 100lbs, Front Box Load Capacity 220lbs, 1.8lb 4 Amp Emergostar Charger, Locking Removable Battery Pack (Mounted at Base of Cargo Box, Charging Port on Front of Bench Seat), Fits riders 5'5" to 6'5", Anti-Tip Cornering Geometry (Captain Leans Into Turns), Front Wheels Angle Inward for Stability
