Total Weight:
78 lbs (35.38 kg)
Battery Weight:
6 lbs (2.72 kg)
Motor Weight:
9.3 lbs (4.21 kg)
Frame Material:
6061 T6 Aluminum Alloy
Frame Sizes:
14 in (35.56 cm)Geometry Measurements:
14" Seat Tube, 21.5" Top Tube Length, 15" Reach, 16.75" Stand Over Height, 29.25" Minimum Saddle Height, 29.25" Width, 73" Length
Frame Types:
Trike, Step-Thru
Frame Colors:
Gloss White

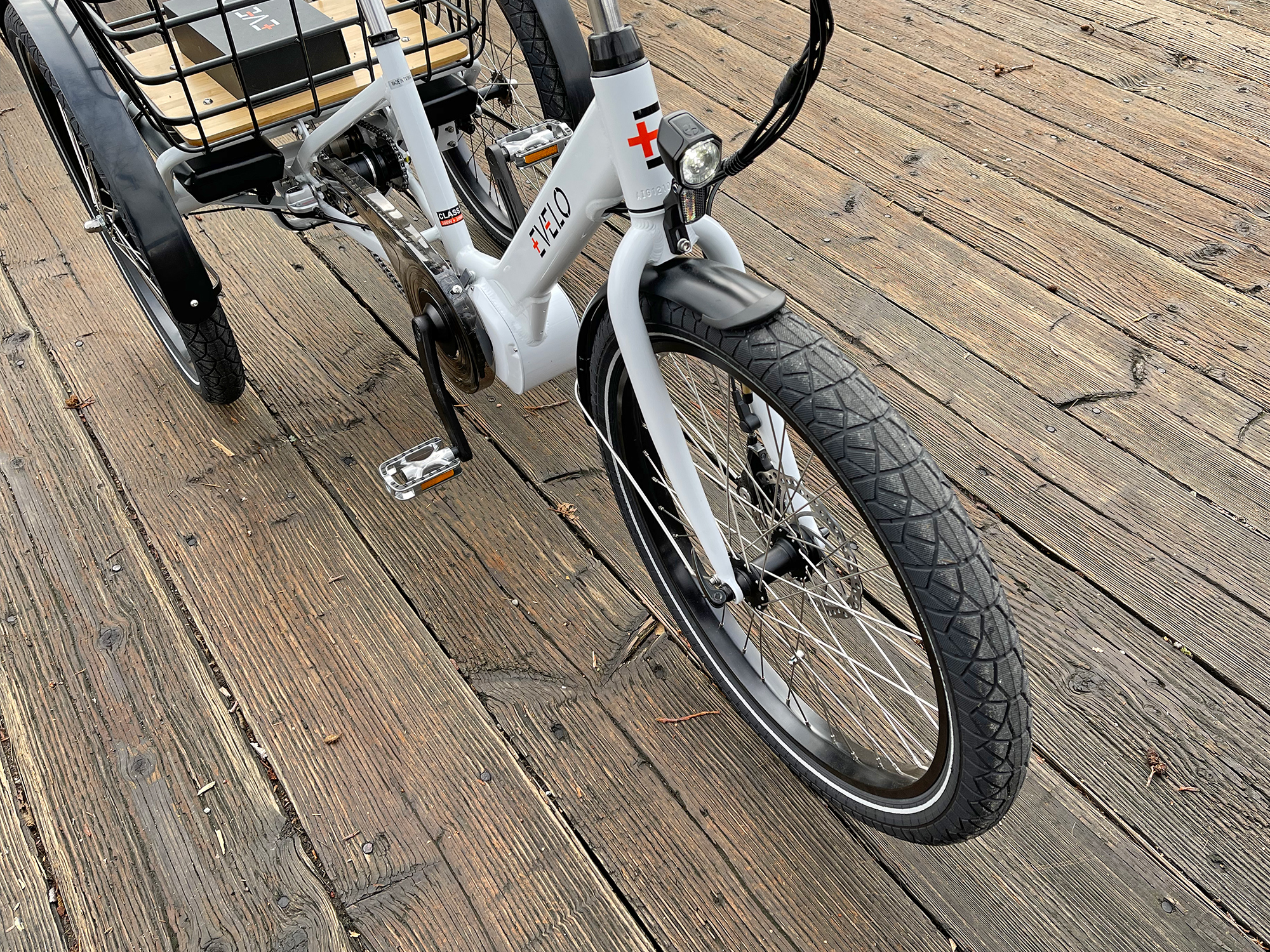

Frame Fork Details:
Rigid Aluminum Alloy, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer
Frame Rear Details:
14.8mm Solid Axle with Nuts
Attachment Points:
Fenders, Rear Rack Basket
Gearing Details:
3

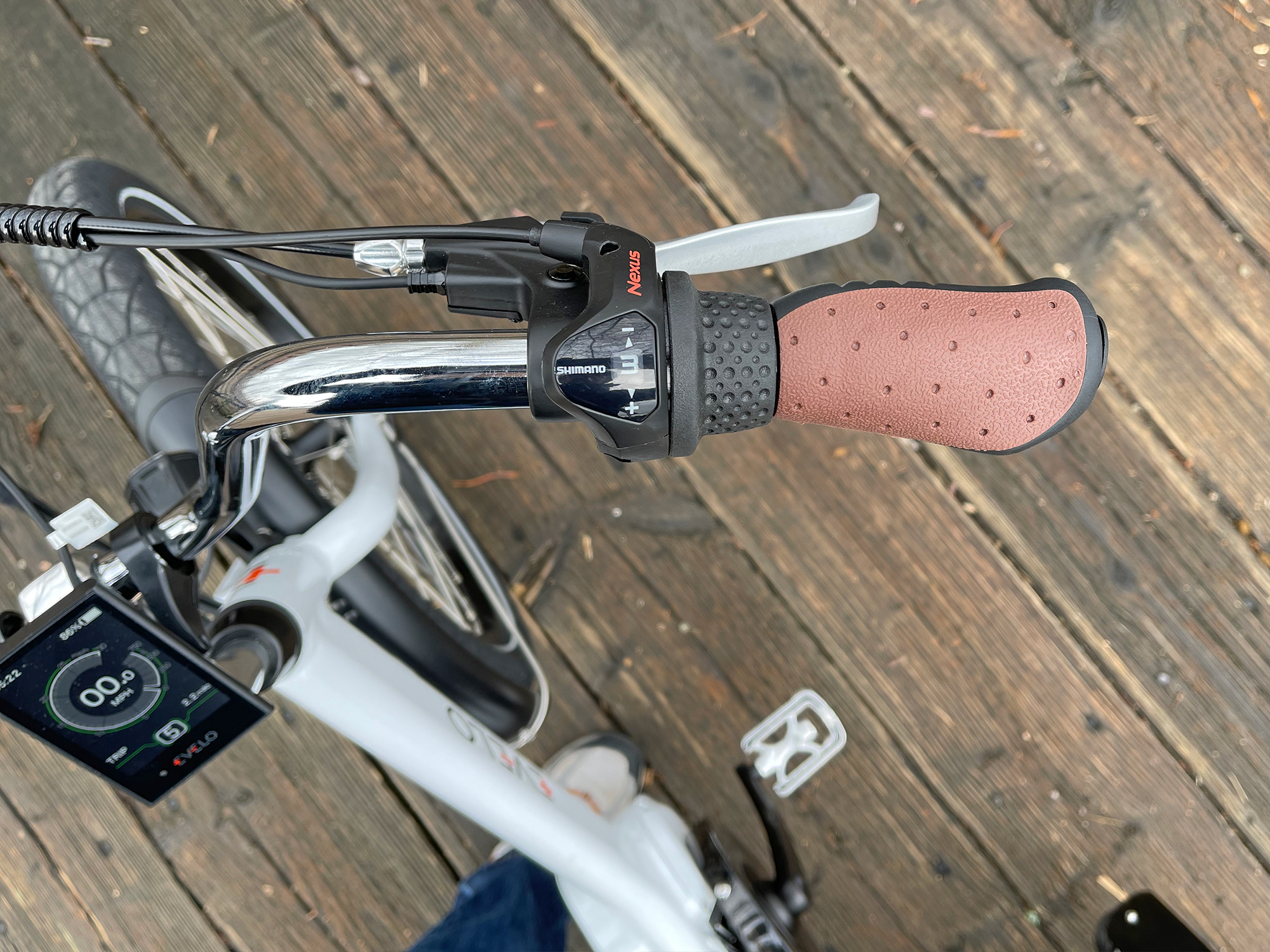

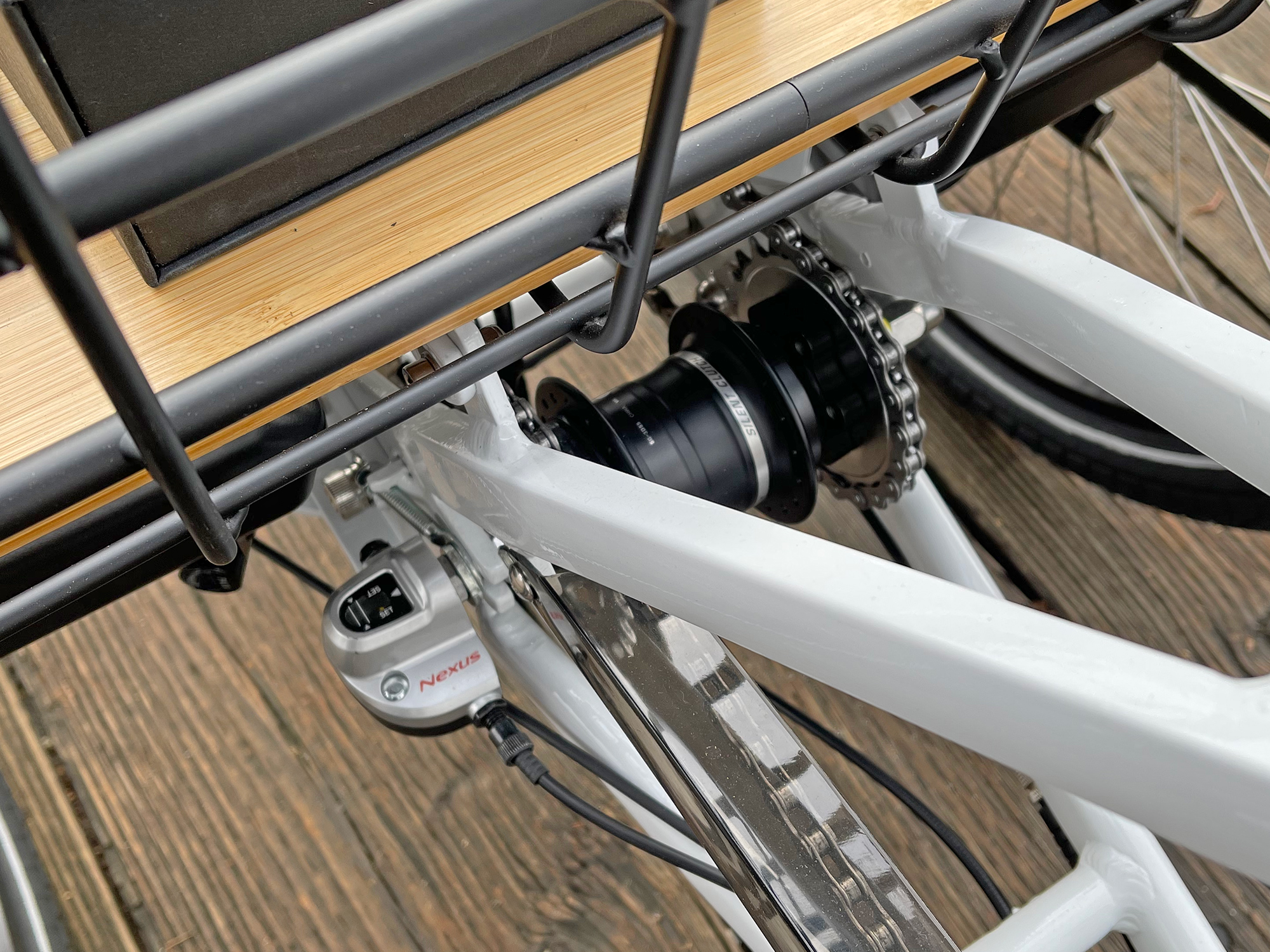

Speed 1x3 Shimano INTER3 Internally Geared Hub, 22 Tooth Rear SprocketShifter Details:
Shimano Nexus Half-Grip Twist Shifter
(Optional NuVinci Grip Twist on Right Bar)Cranks:
Bafang E807 Aluminum Alloy Crank Arms, 170mm Length, 40 Tooth Chainring
Pedals:
Wellgo Aluminum Alloy Platform with Rubber Tread
Headset:
Neco, Threaded, Ball and Race, Pressed In Cups, 1-1/8" Straight
Stem:
Zido, Quill Style, 80mm Length, 60° Angle, 25.4mm Clamp Diameter

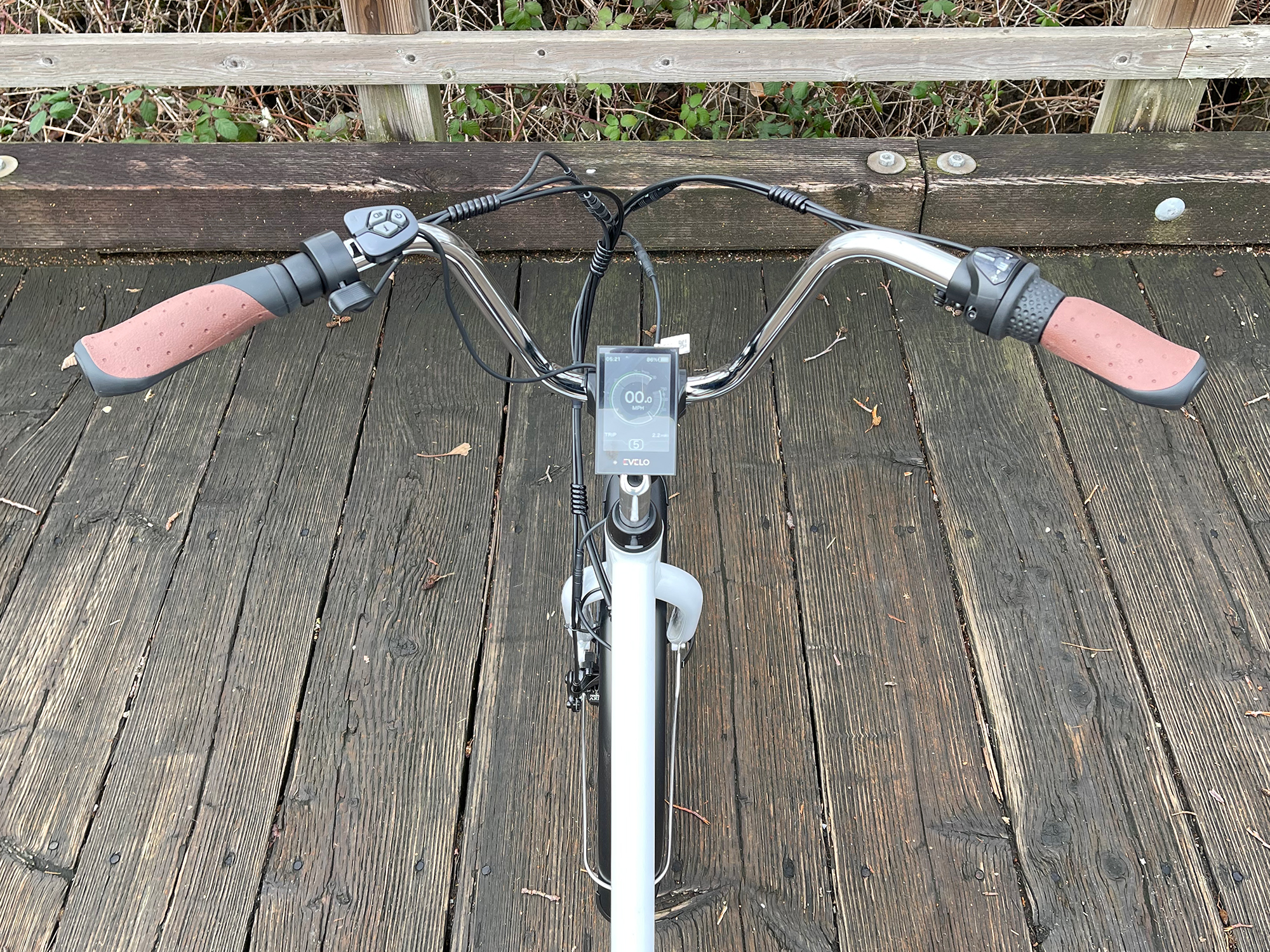

Handlebar:
High-Rise, Steel, 230mm Rise, 20° Back Sweep, 680mm Width, 25.4mm Diameter
Brake Details:

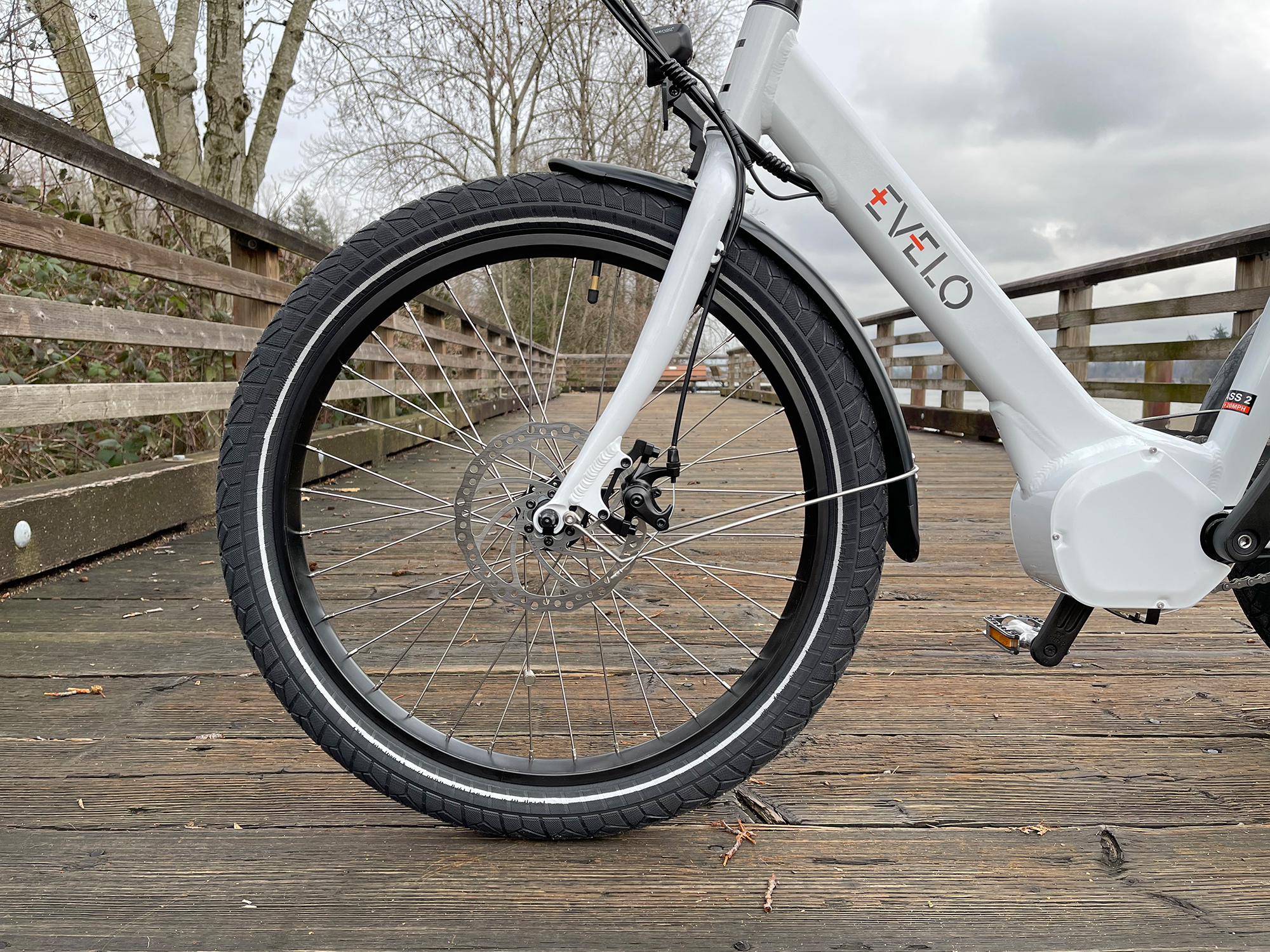

Tektro Aries MDM-300 Mechanical Disc with 180mm Rotors, Tektro Four-Finger Levers with Motor Inhibitors and Parking Brake Locks
Grips:
Velo, Rubber, Ergonomic, Non-Locking

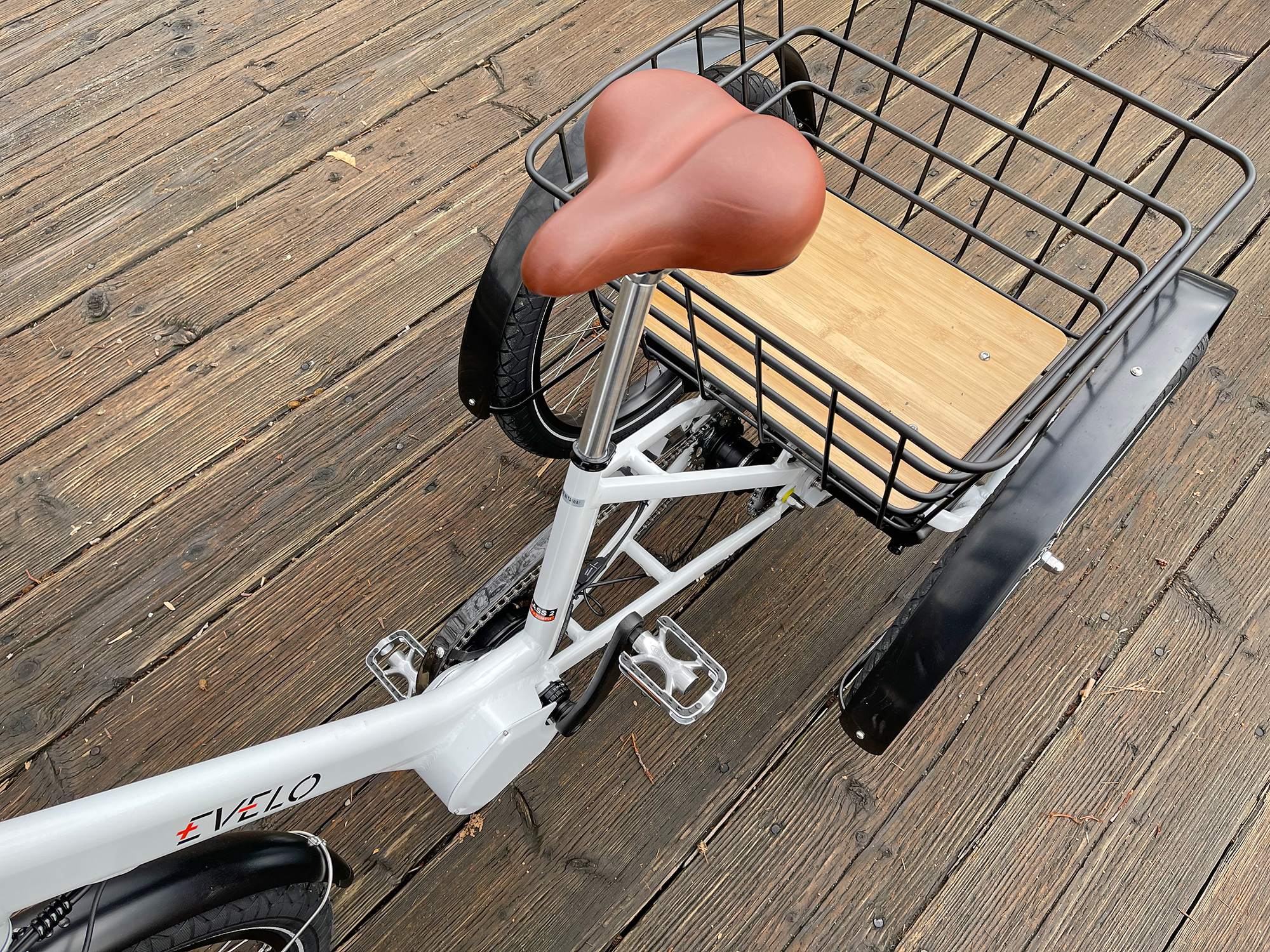

Saddle:
Velo Breeze with Memory Foam
(Optional Upgrade Program)Seat Post:
Promax, Aluminum Alloy, Single Bolt Clamp
Seat Post Length:
350 mm
Seat Post Diameter:
27.2 mm
Rims:
Aluminum Alloy, Double Wall, 40mm Outer Width, 36 Hole
Spokes:
Stainless Steel, 13 Gauge, Silver with Adjustable Nipples
Tire Brand:
CST Cyclopse, 24" x 2.4" (61-507)
Wheel Sizes:
24 in (60.96cm)Tire Details:
35 to 65 PSI, 2.5 to 4.5 BAR, Reflective Sidewall Stripes
Tube Details:
Schrader Valve
Accessories:

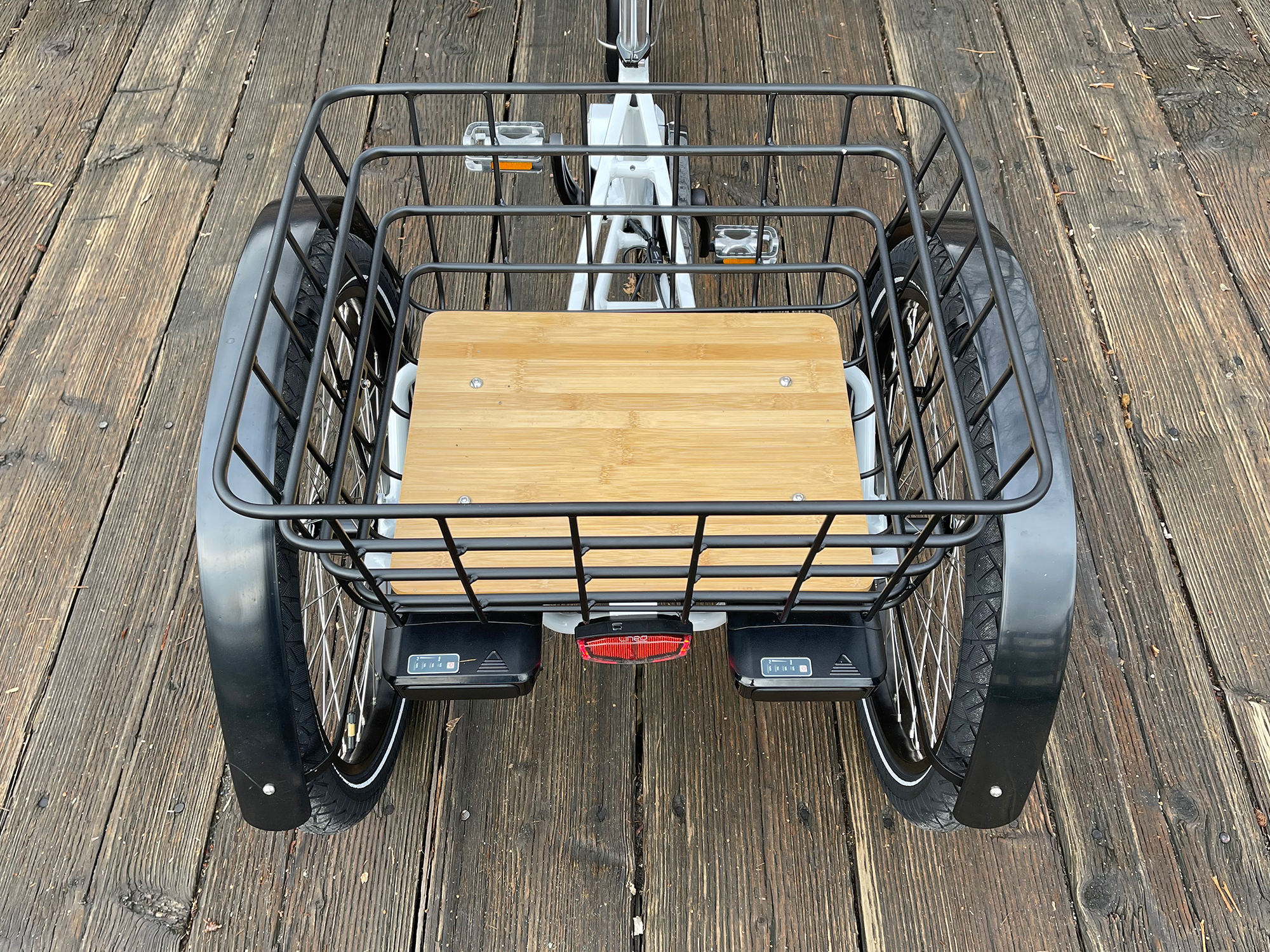

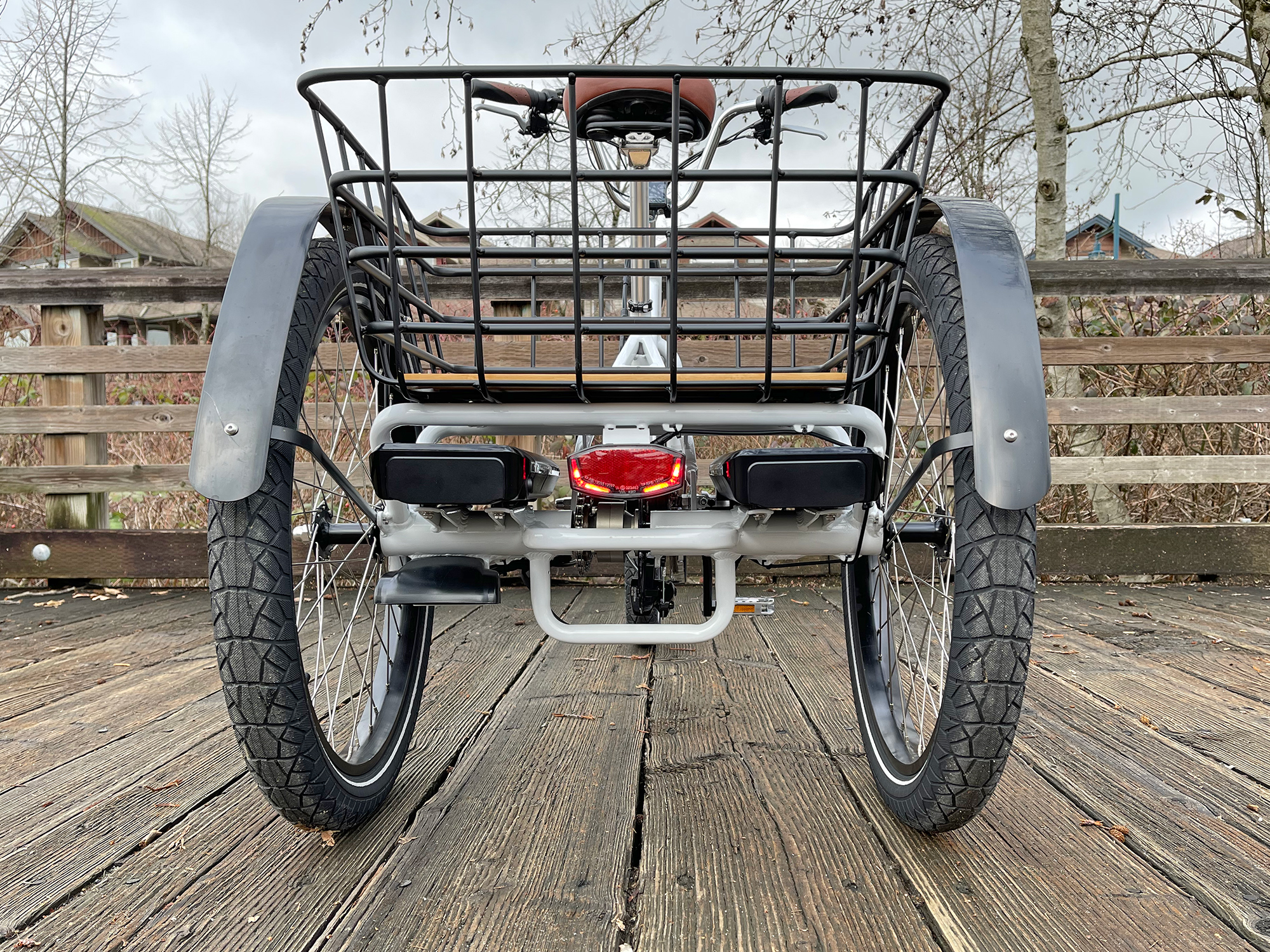

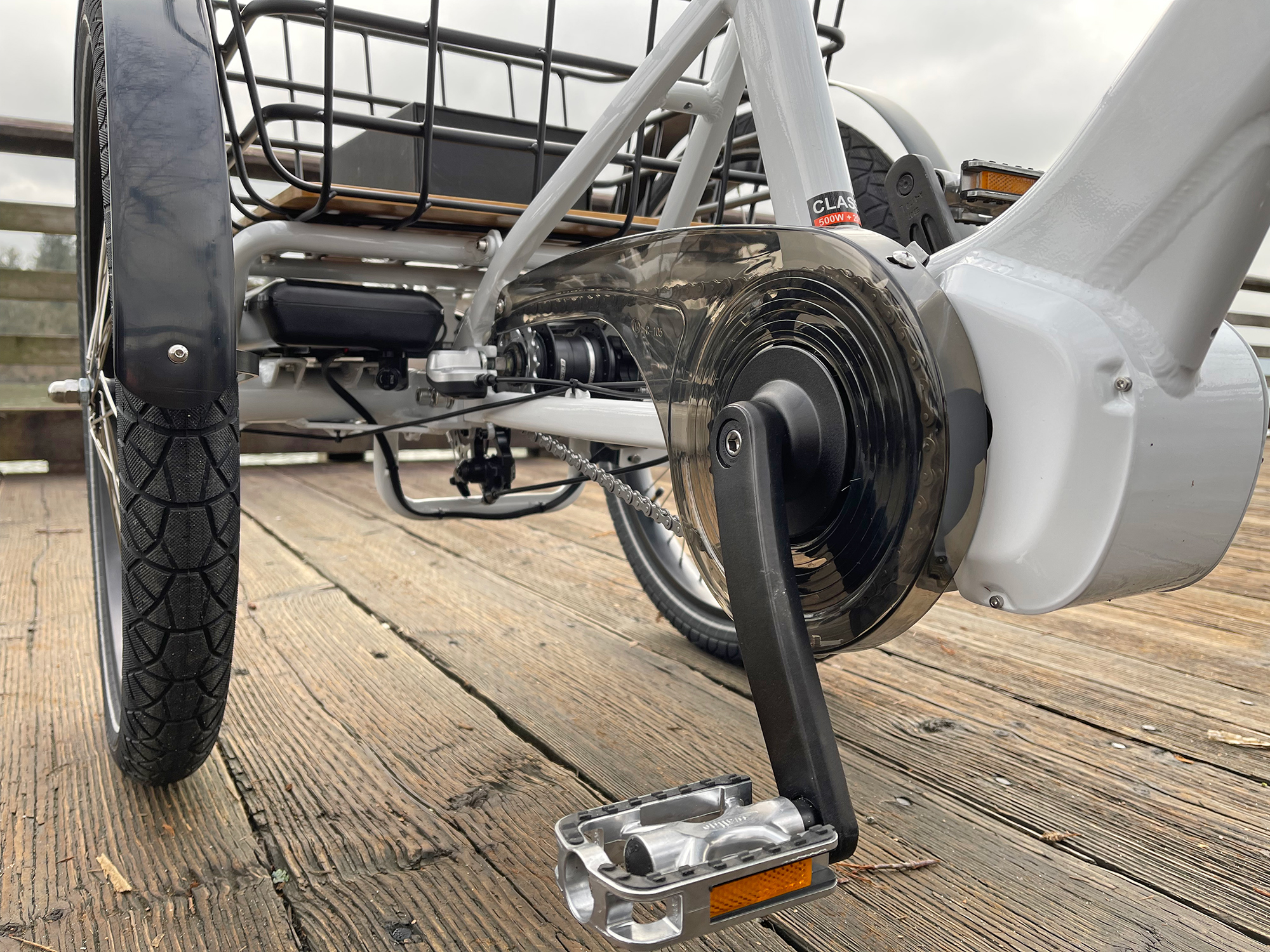

Aluminum Alloy Basket with Bamboo Deck (80lb Weight Limit), Spanninga Kendo+ Integrated LED Headlight, Spanninga Lineo Integrated Rear Light (With Bright Brake Activation), Plastic Fenders (65mm Wide Front, 60mm Wide Rear), Semi-Clear Plastic Chain Cover, Optional Comfort Seat with Back Rest, Optional Additional Battery Pack ($800), Optional Canvas Bike Cover, Optional Comfort Package: (Ergon GP2-L Ergonomic Locking Grips, Optional Cane Creek Thudbuster LT Suspension Seat Post, Optional Cloud Nine C9 Extra Large Saddle, Optional Safety Package: (High Powered 450 Lumen Rechargeable Cygolite Streak Front and Rear Lights, Optional Bar-End Mirricycle Mirror, Optional Big Brass Bell, Optional Security Package: (EVELO Branded Crops Heavy Duty Chain Lock, Pinhead Security Hardware System Axle Nuts and Seat Post Binder)
Other:

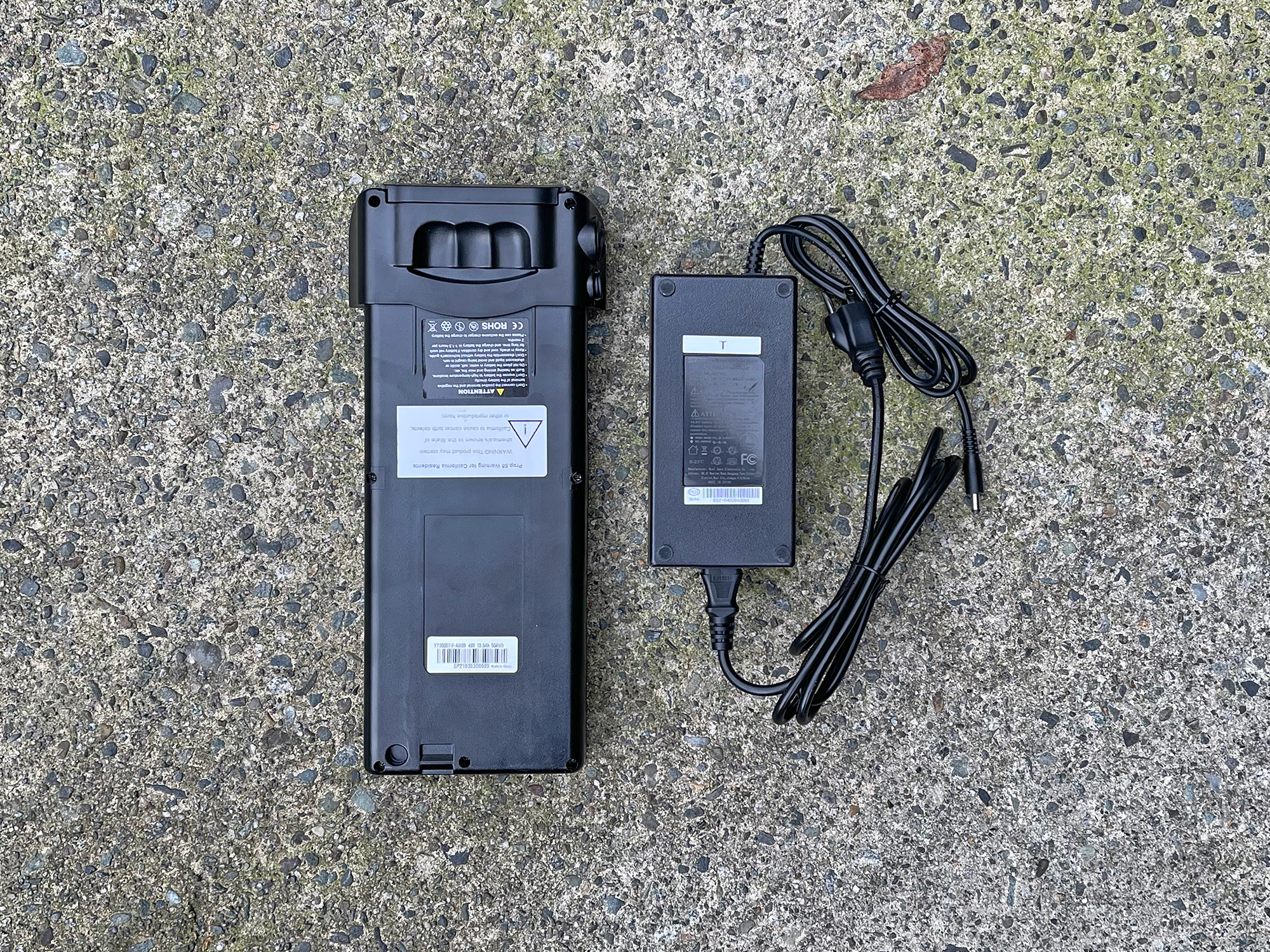

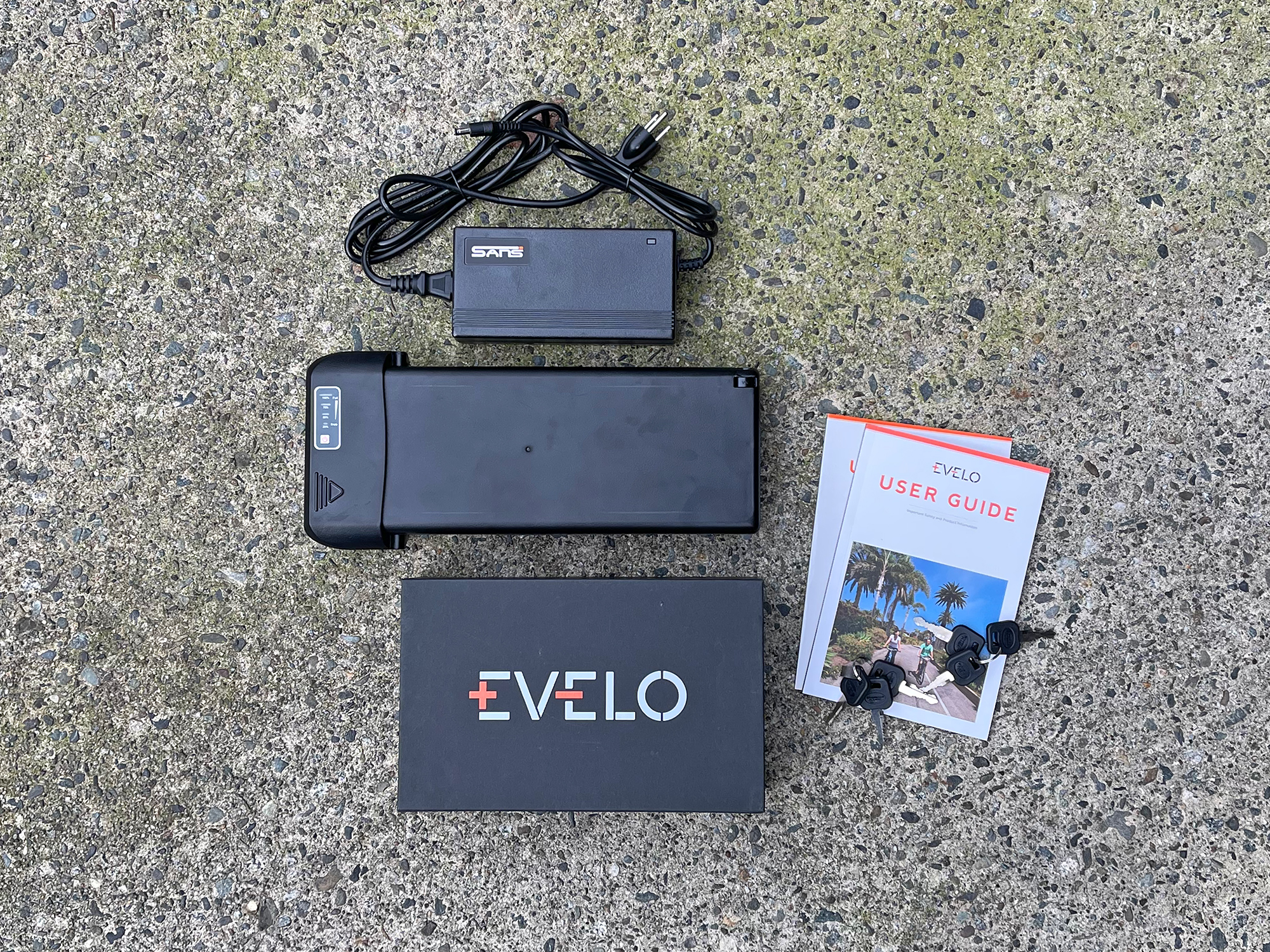

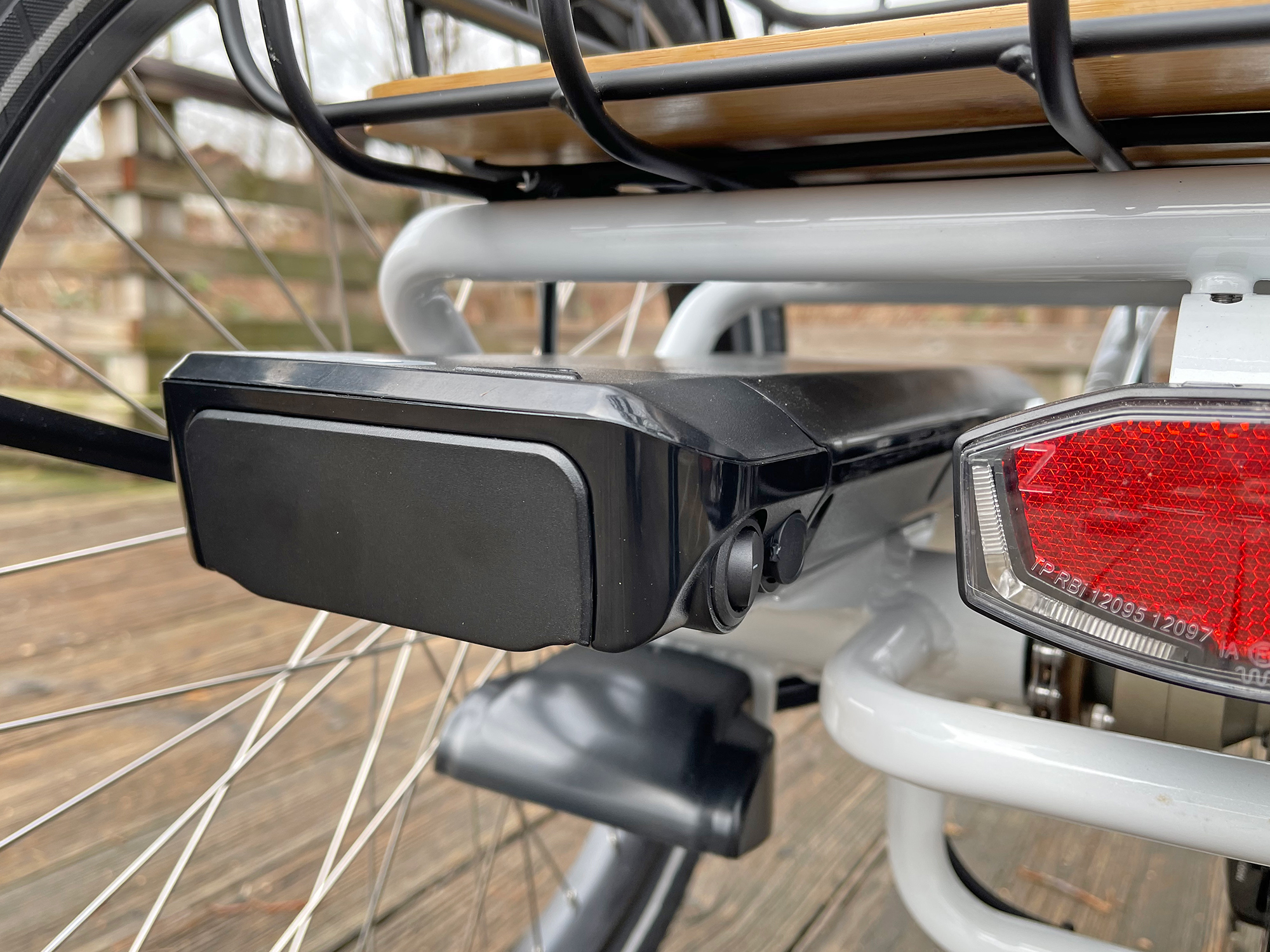

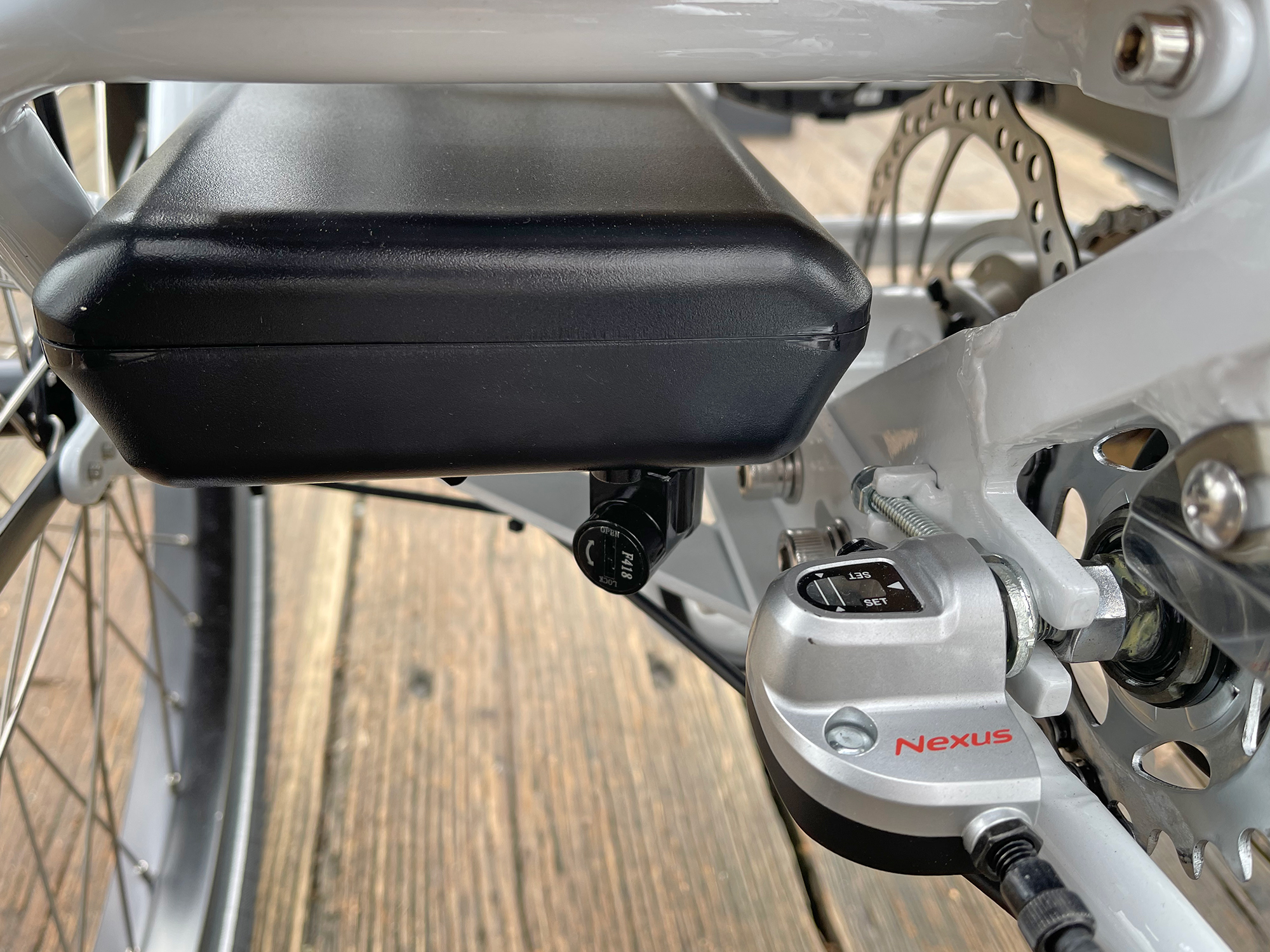

Locking Removable Rear Rack Mounted Battery Bays Below Basket, Sans 1.1 lb 2 Amp Battery Charger, 350lb Max Weight Rating, Two KMC Z410 EPT Rust Resistant Chains
Adam Wilt
2 years agoThe right-side battery can’t be charged on-bike with the supplied plug as the fender stay is in the way. We added a right-angle adapter (look for a 5.5mm x 2.1mm DC power extension cable with a 90º plug head like this one that completely solves the problem.
ReplyCourt
2 years agoThanks for the tip Adam! That’s great :D
ReplyRudy Pekau
2 years agoNice review, well done, I like the trike, but I feel the saddle is too high, centre of gravity too high and can tip more easily. I have been riding trikes for several years now and have built my own hybrid trike/scooter with pedals that can either charge the batteries or have an adjustable friction brake for exercise. I also have the choice to operate the trike with either one, two or three wheel drive, each wheel has its own motor with 5 levels of PAS and each has a throttle. My trike is a semi recumbent type and I have a comfortable backrest with lumbar support.
I can email you a picture if I know your email address. Regards, Rudy
ReplyCourt
2 years agoThat sounds pretty cool Rudy! I’d love to see the pictures and have setup a trike section in the EBR forums where you could upload easily if you want. Check it out here. Thanks for sharing your thoughts on the EVELO Compass!
