Total Weight:
62.7 lbs (28.44 kg)
Battery Weight:
5.7 lbs (2.58 kg)
Motor Weight:
8.8 lbs (3.99 kg)
Frame Material:
Aluminum
Frame Sizes:
19.29 in (48.99 cm)22.83 in (57.98 cm)Geometry Measurements:
19.5" Seat Tube, 21.5" Reach, 21.5" Stand Over Height, 75.5" Length
Frame Types:
Step-Thru
Frame Colors:
Black Matt, Dormant Red, White
Frame Fork Details:

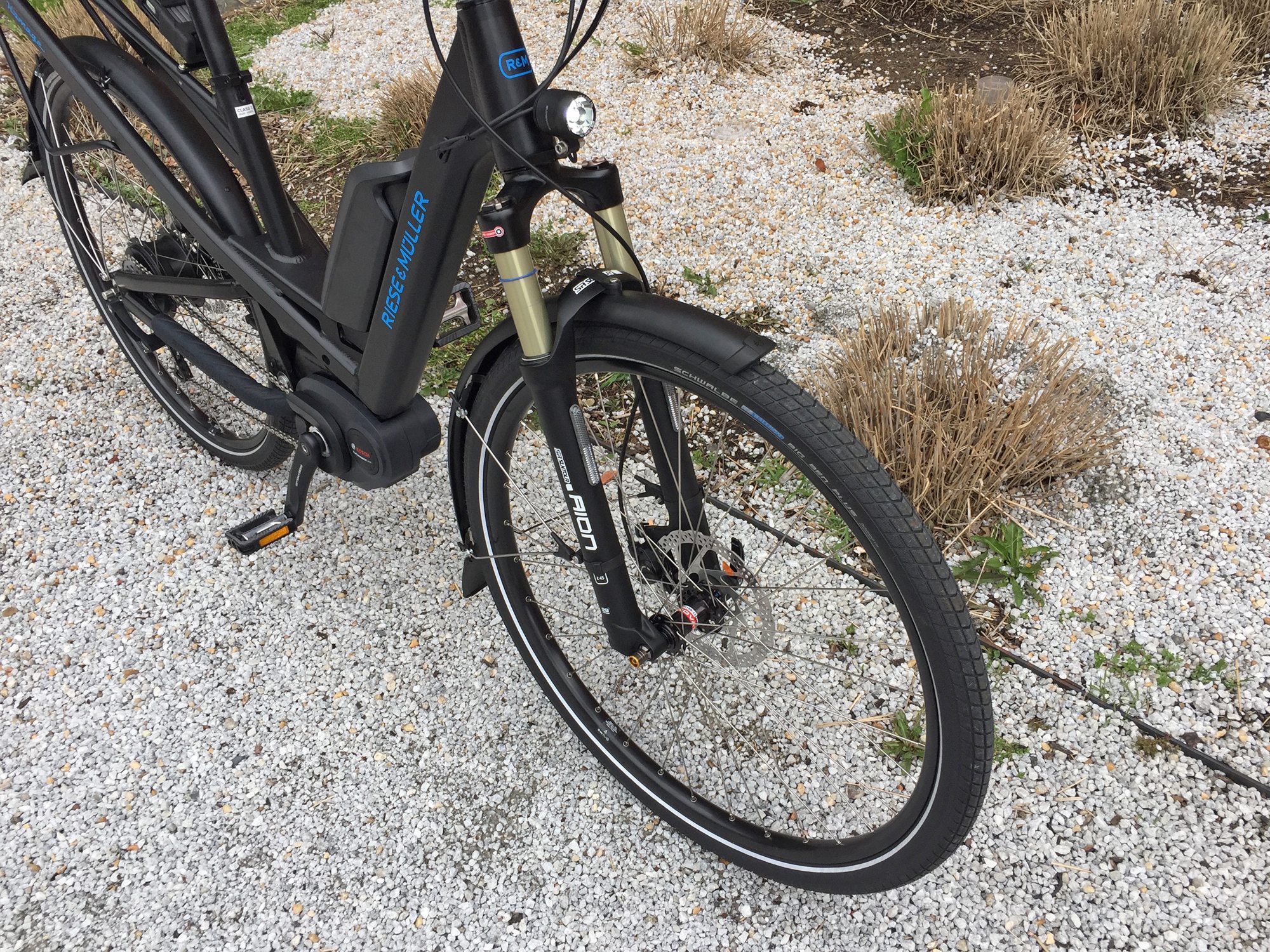

SR Suntour Aion LO-R Air, 100 mm Travel, Lockout, Rebound Adjust, 100 / 15 mm Thru Axle with Quick Release
Frame Rear Details:

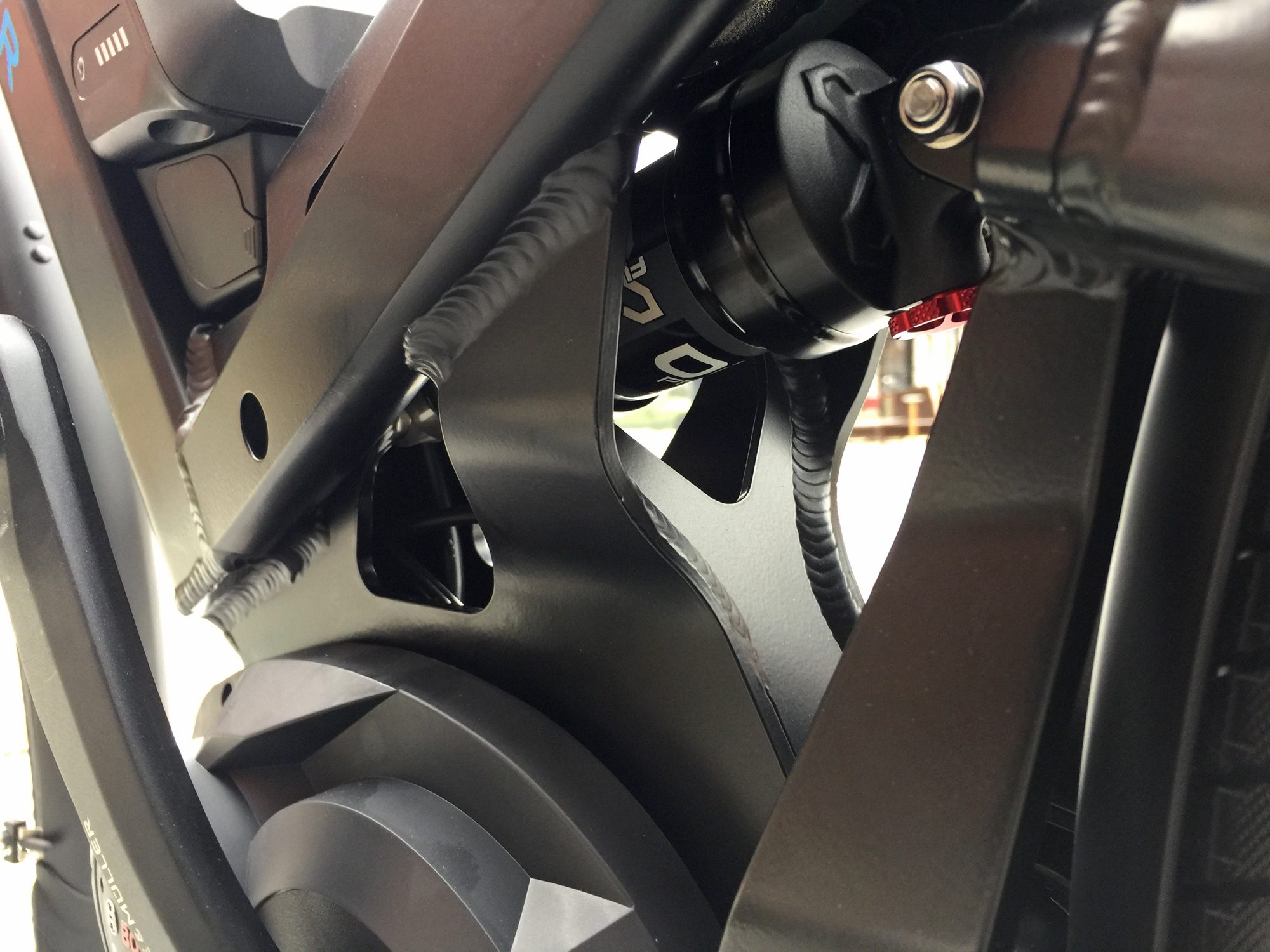

X-Fusion O2 Pro Air, 100 mm Travel, Rebound Adjust, 135 / 10 mm Threaded Axle with Nuts
Attachment Points:
Rear Rack Bosses, Fender Bosses
Gearing Details:
1

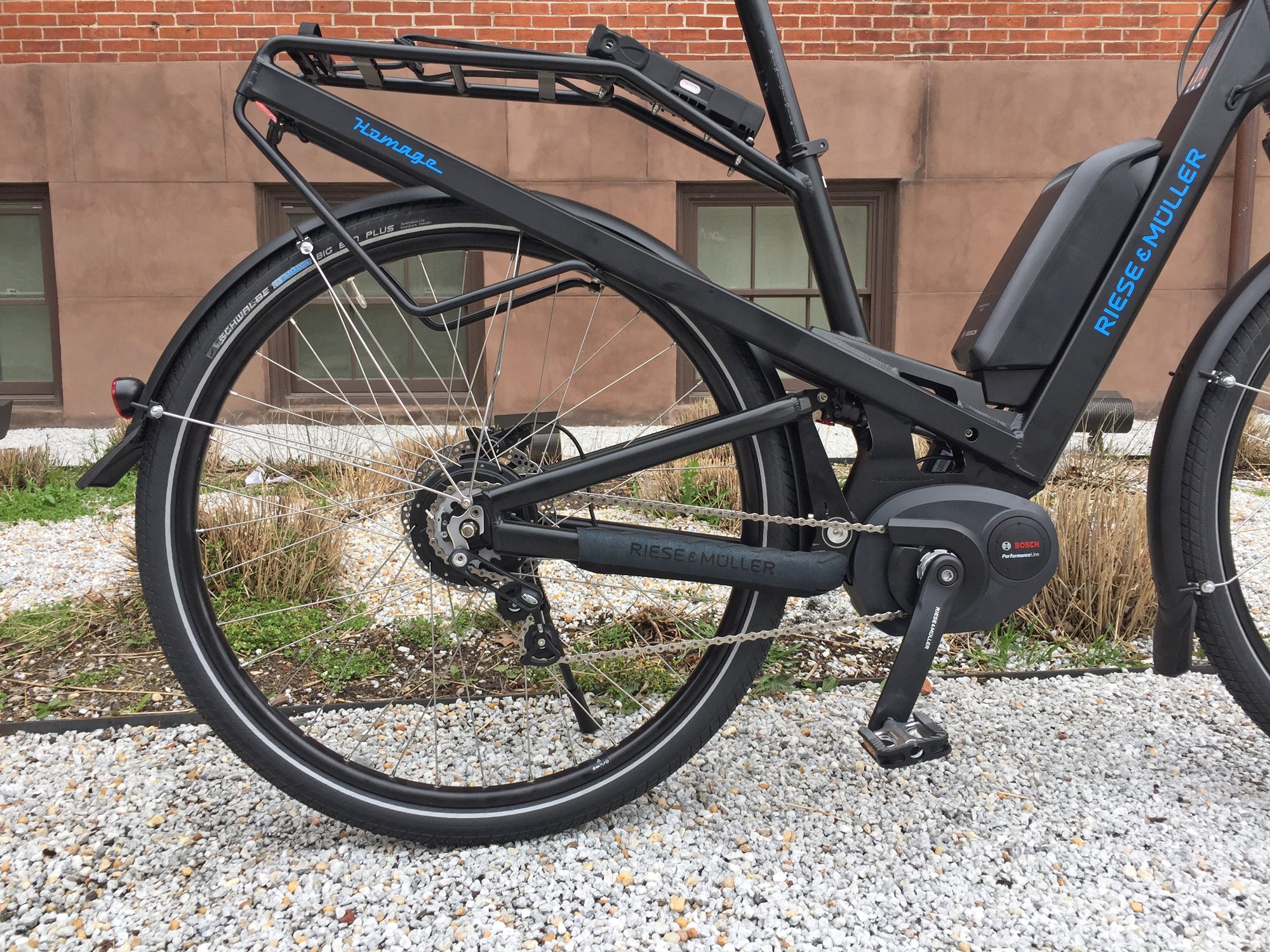

Speed 1x∞ NuVinci N380 CVT with 380% Ratio Range, 22T CogShifter Details:

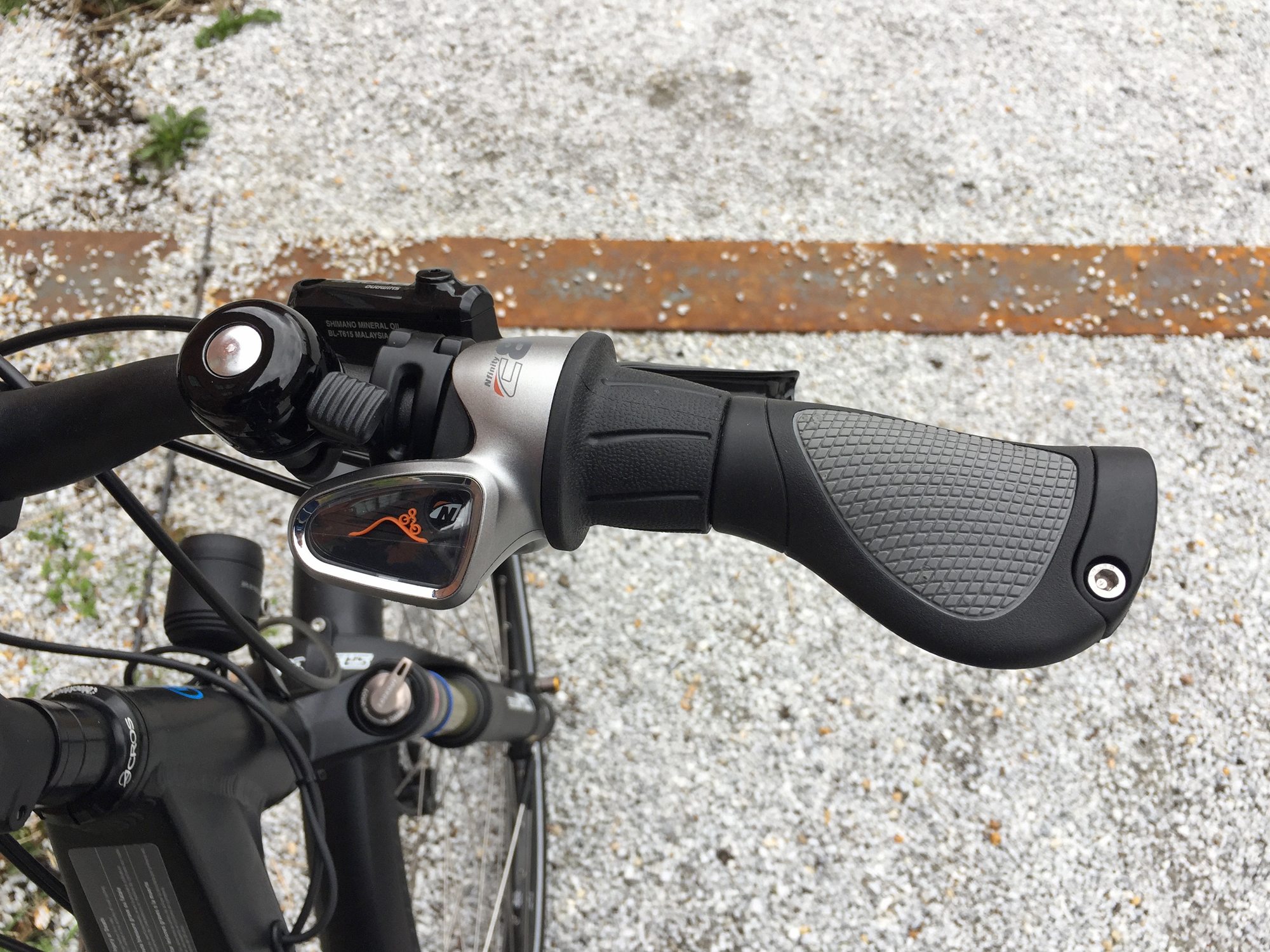

NuVinci C8 Grip Twist on Right
Cranks:
Riese & Müller Branded FSA Alloy 170 mm Crank Arms, 22T Chainring
Pedals:
VP-191 Alloy Platform with Rubber Tread
Headset:
Acros AZX-220 with BlockLock, Tapered 1-1/8" to 1-1/2"
Stem:
Humpert Ergotec Charisma, Alloy, 90 mm Length, 20° Rise
Handlebar:
Humpert Ergotec Ergo XXL, Low-Rise, Alloy, 31.8 mm Diameter, 26" Length
Brake Details:

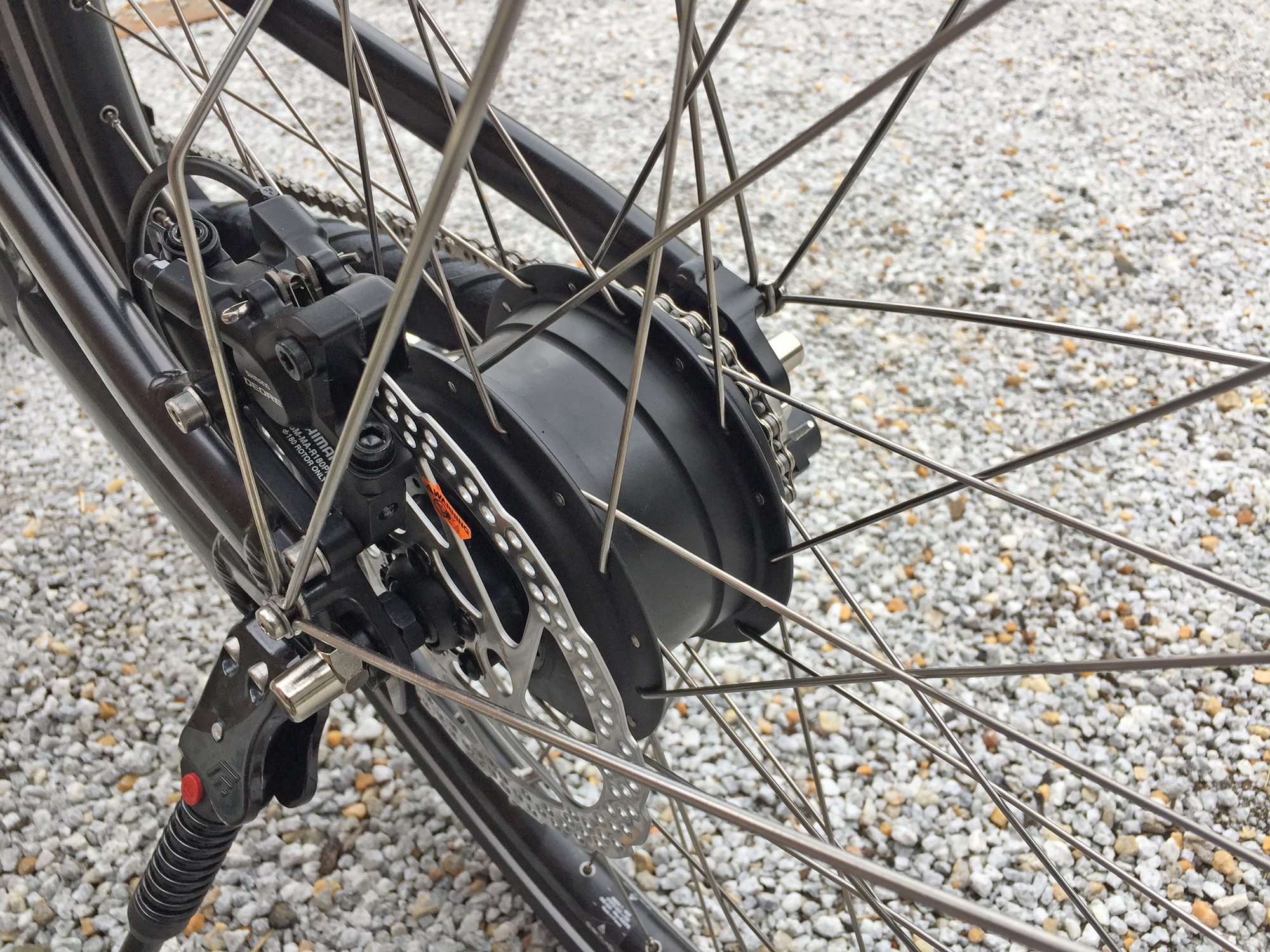

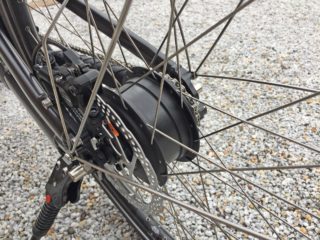

Shimano Deore Hydraulic Disc with 180 mm Rotors, Shimano Levers with Adjustable Reach
Grips:

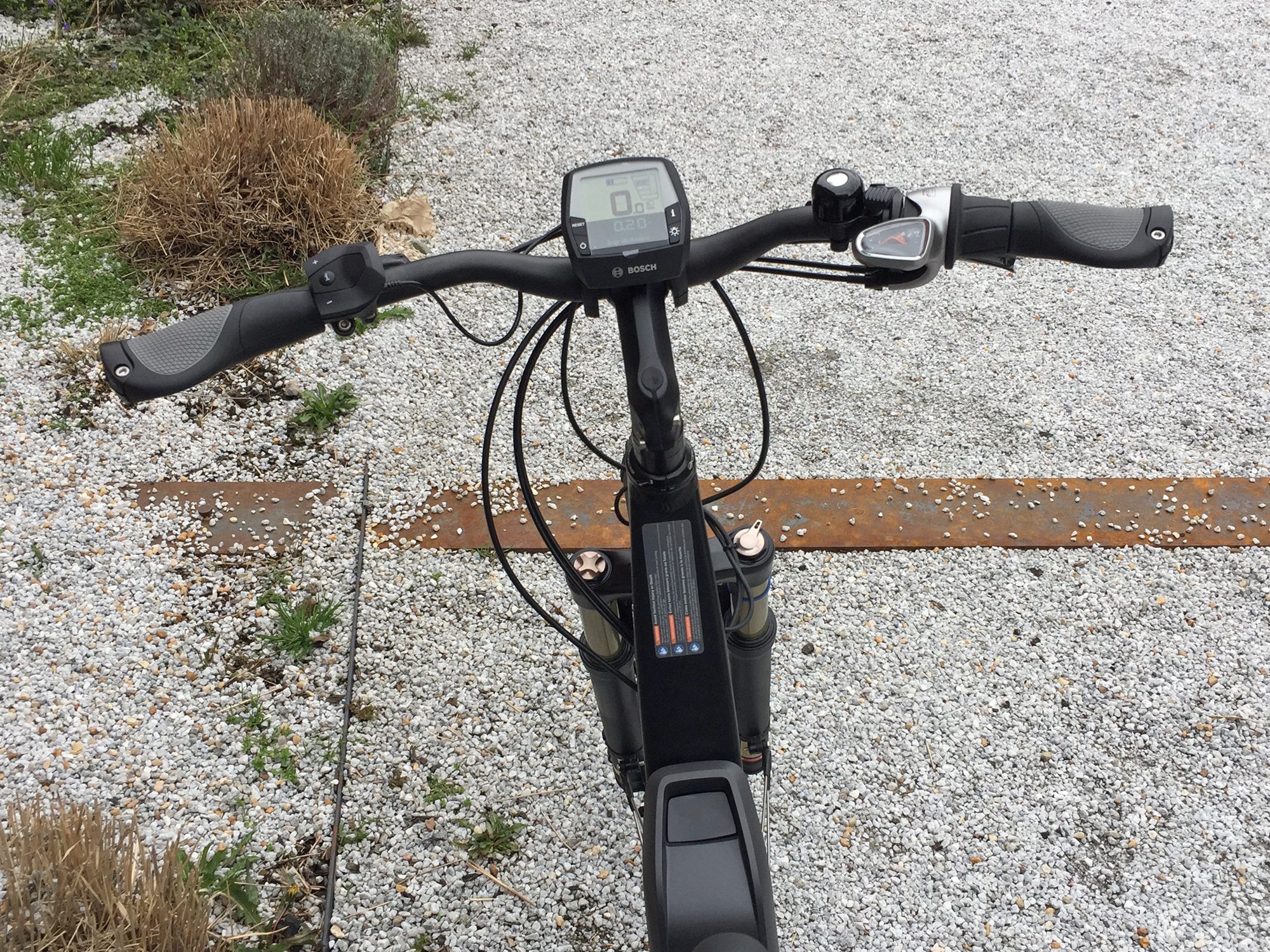

Ergon GP1 Ergonomic, Rubber, Locking
Saddle:
Selle Royale Lookin, Gel
Seat Post:
Satori Trident, Aluminum Alloy
Seat Post Length:
350 mm
Seat Post Diameter:
34.9 mm
Rims:
Mach1 650, Aluminum Alloy, Double Wall, 32 Hole Front, 36 Hole Rear, Reinforcement Eyelets
Spokes:
Stainless Steel, 14 Gauge, Silver with Nipples
Tire Brand:
Schwalbe Big Ben Plus, 28" x 2.0" (50-622)
Wheel Sizes:
28 in (71.12cm)Tire Details:
Reflective Sidewall Stripe, 35 to 70 PSI, Performance Line GreenGuard
Tube Details:
Presta Valve
Accessories:

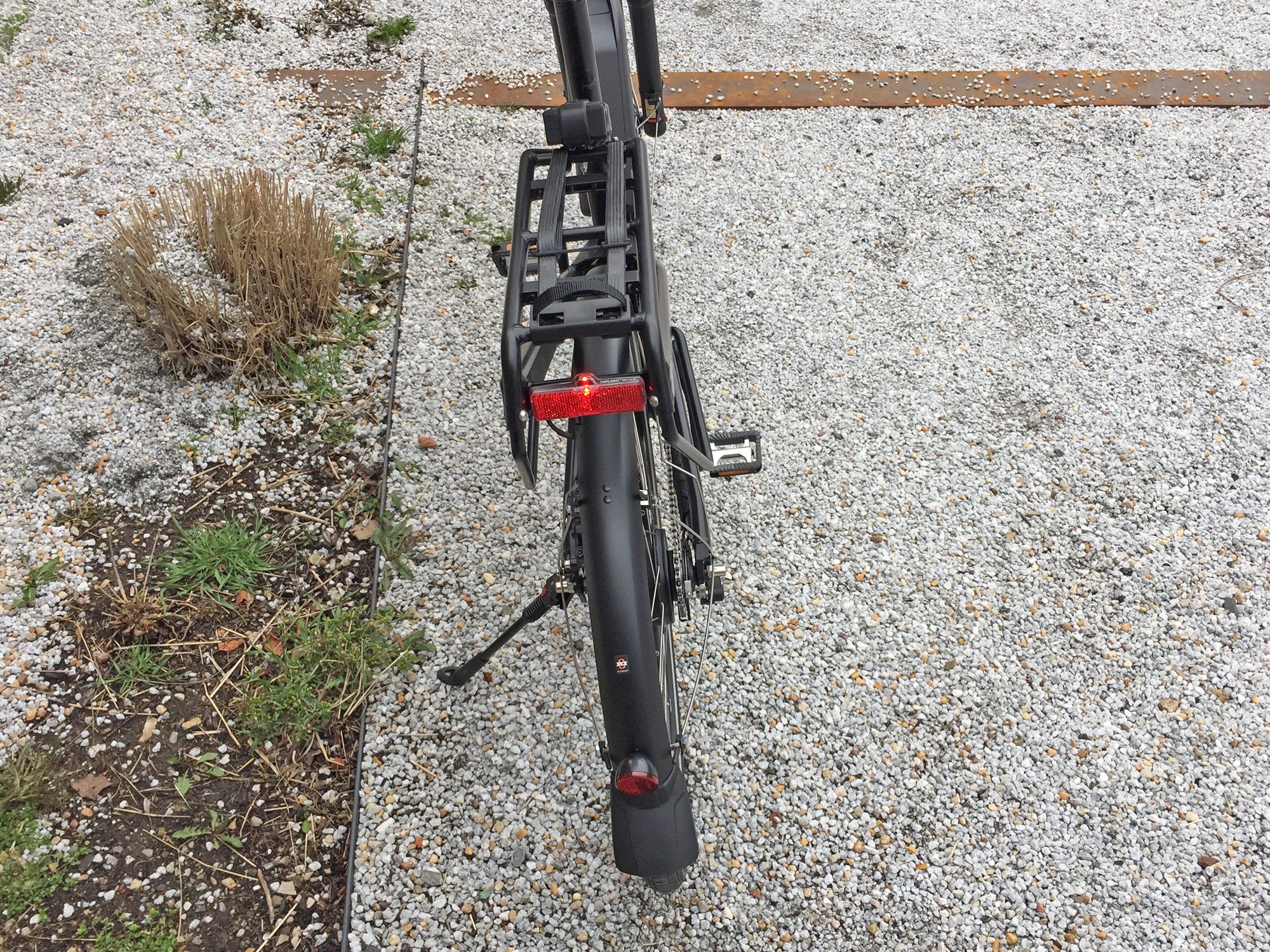

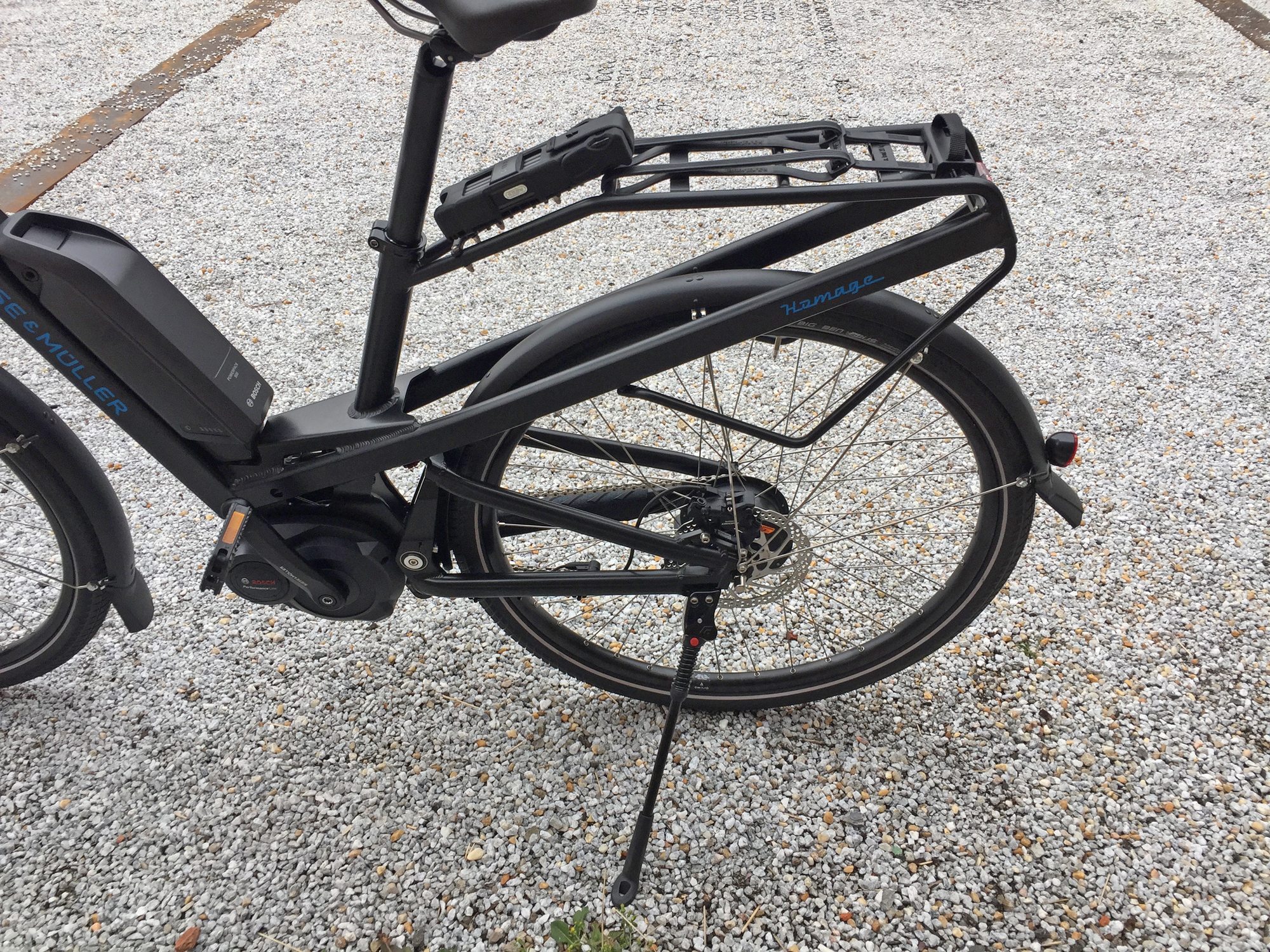

Flick Bell on Right, ABUS Bordo 6000 Folding Lock Keyed to Match Battery (90 cm Length, 2.4 lbs), SKS B55 Plastic Fenders with Rubber Mud Flaps (55 mm Width), Riese & Müller Alloy Suspended Rear Rack with Pannier Blockers two Bibia Adjustable Rubber Straps and Child Seat Approved (44 lb Max Weight), Hebie FIX18 Adjustable Kickstand, Rubberized Slap Guard, Supernova E3 E-Bike V6s Headlight (165 Lumens), Busch & Müller Toplight Mini LED, Optional Fox Float CTE Air Suspension with Remote Lockout ($659)
Other:

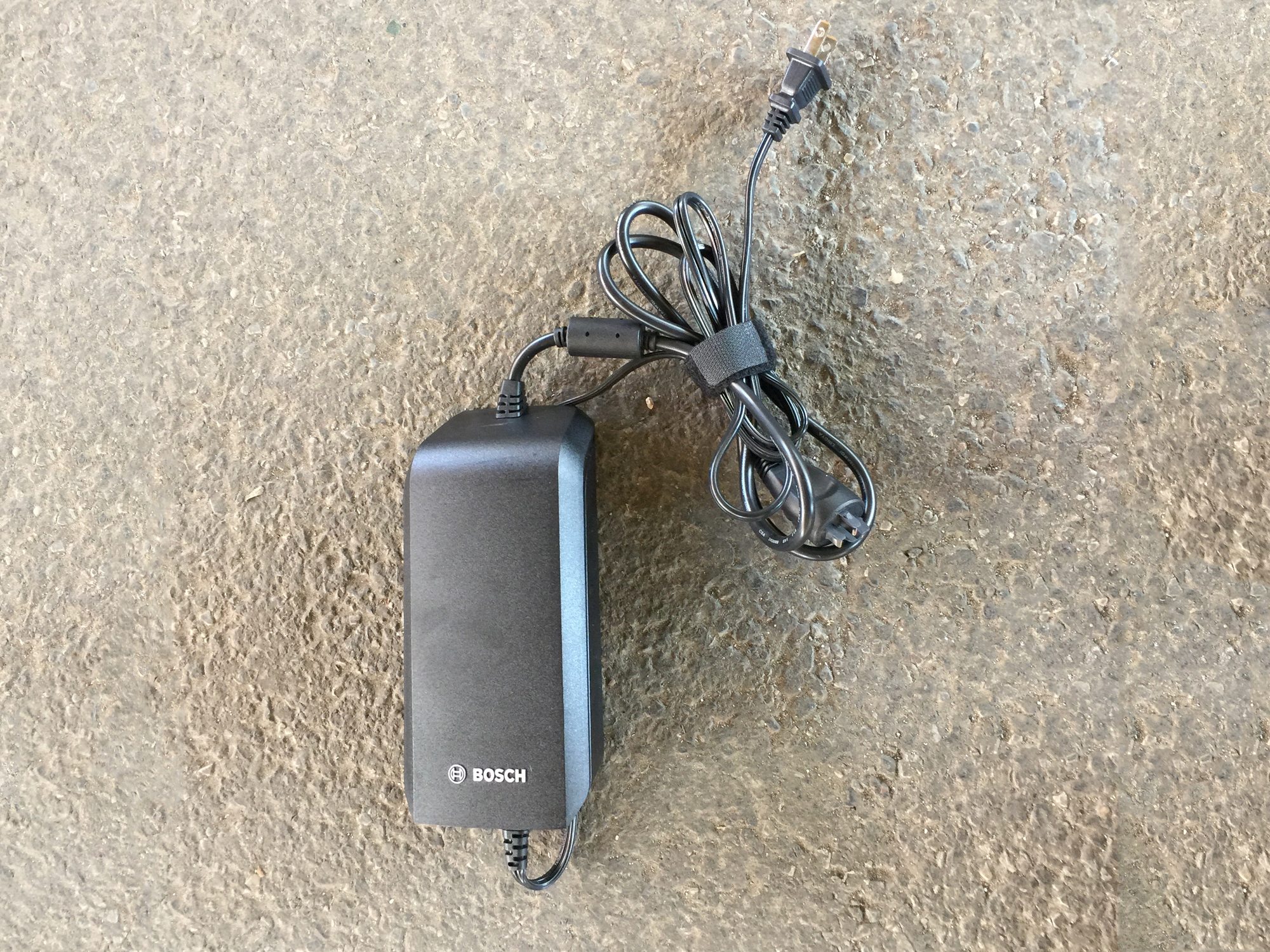

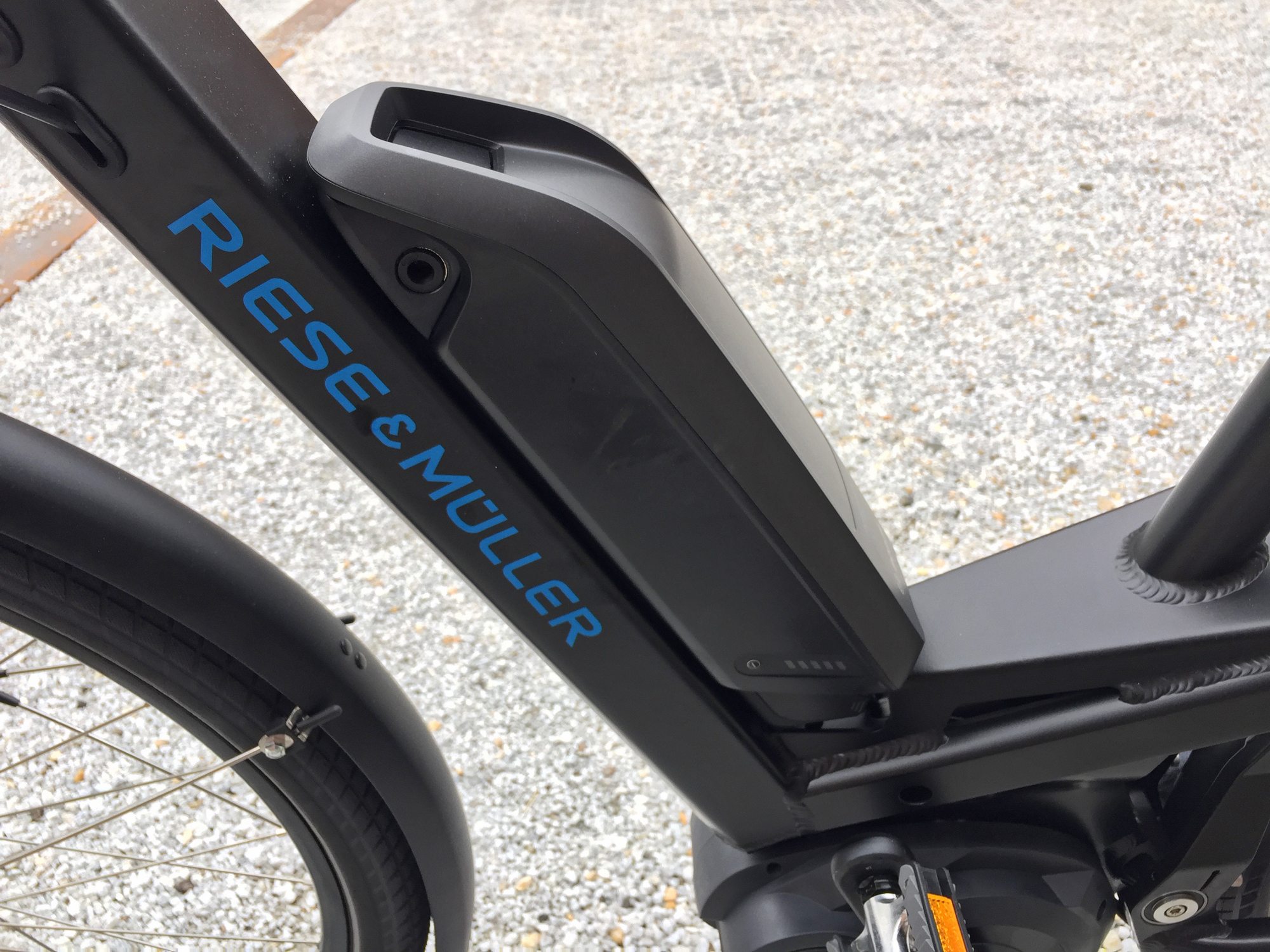

Locking Removable Battery Pack with LED Indicator, 1.7 lb 4 Amp Charger
Dewey
8 years agoWow, a full suspension step through speed pedelec with a downtube mounted battery, mid-drive motor, and a rear rack. I appreciated your comments about the rear suspension and a child seat. I tow my daughter in a Chariot trailer with leaf spring suspension and it makes a difference over bumps, particularly when loaded down on a grocery run. There’s a section of bike trail near me where asphalt was laid over sand which has washed out causing the asphalt to subside leaving a series of ridges and bumps on which it is easy to lose control.
ReplyCourt Rye
8 years agoHi Dewey, is your Chariot trailer like this one? I’d like to learn more about your suspension child trailer because it sounds like a good solution if you don’t have a suspension bike.
ReplyDewey
8 years agoHi Court, yes I have an older Chariot Cougar 1 multi-sport trailer. Thule bought the company and kept the Chariot Cougar in production for at least 10 years until the beginning of 2017 when they introduced the Chariot Cross replacement, this has helped with getting spare parts for my trailer and Thule customer service have answered questions and are helpful. Two Wheeling Tots does great reviews of bike trailers. My Cougar trailer has leaf suspension with 2″ travel, some other multi-sport trailers from Burley and Hamax use springs with 1″ travel. It doesn’t sound a lot but it does help to minimise the jostling and movement of my daughters head.
