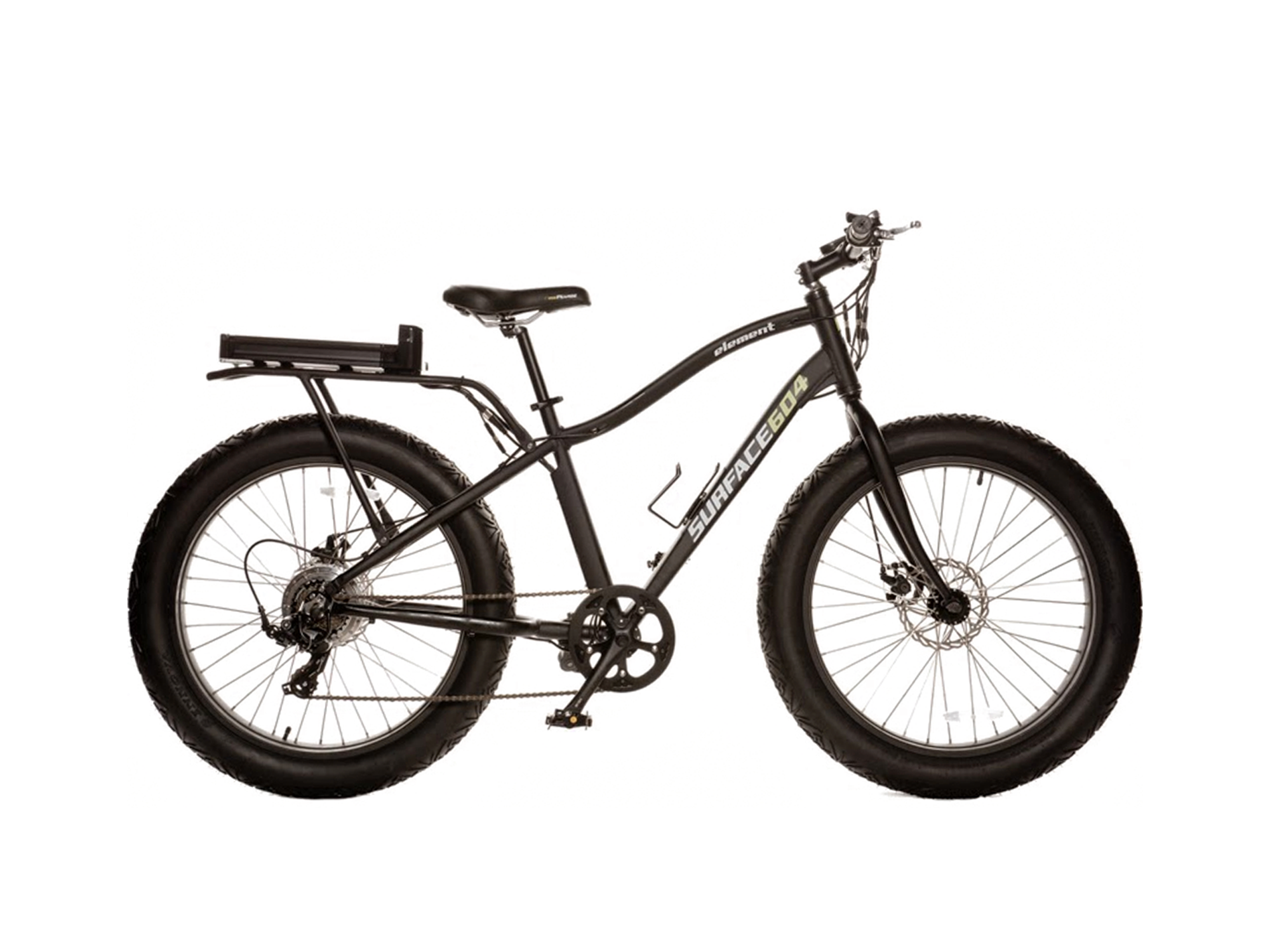

Surface 604 Element Electric 2 0 Electric Bike Review 1
Surface 604 Element Electric 2 0

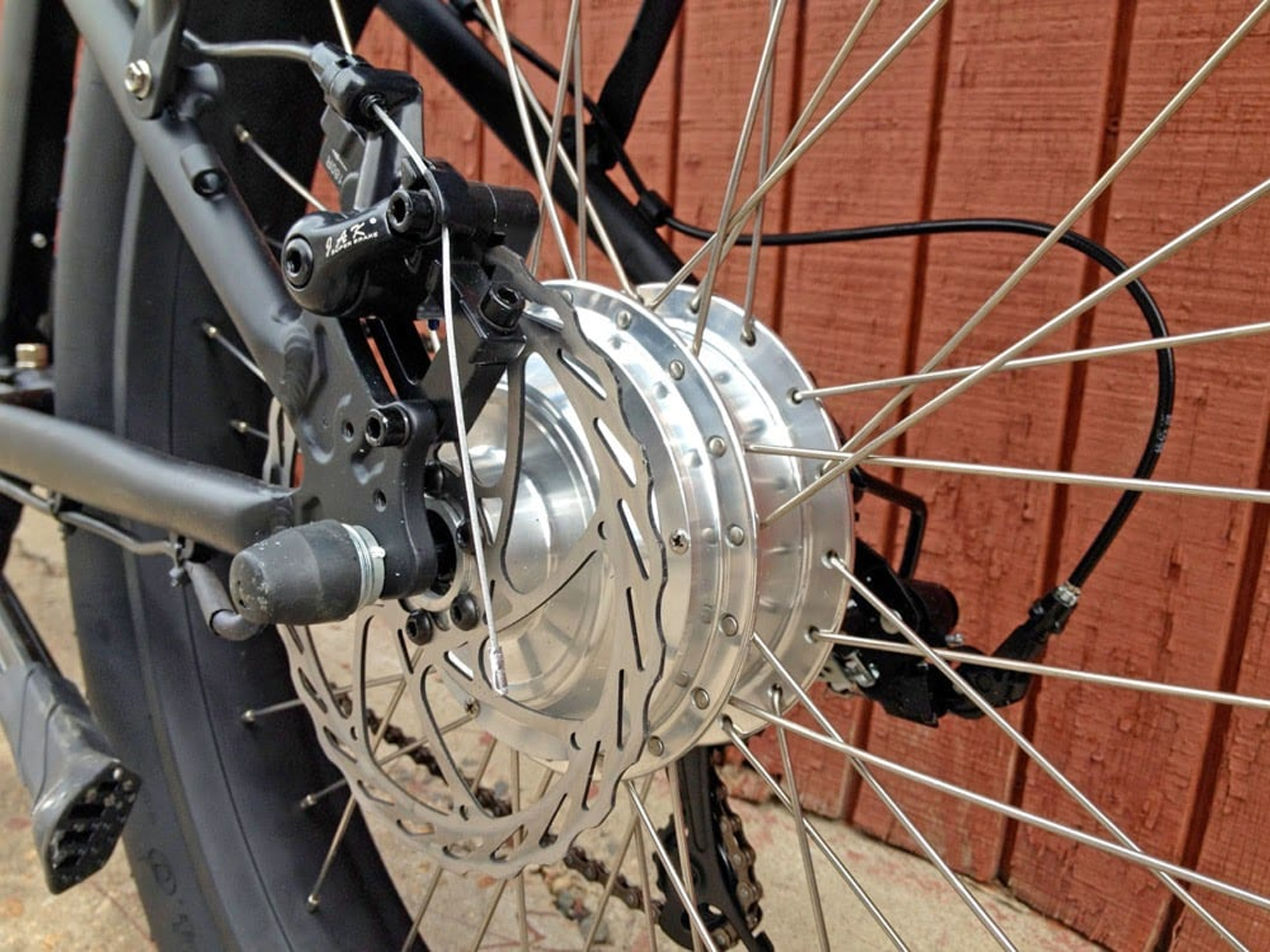

Surface 604 Element Electric 2 0 Jak Superbrake Disc

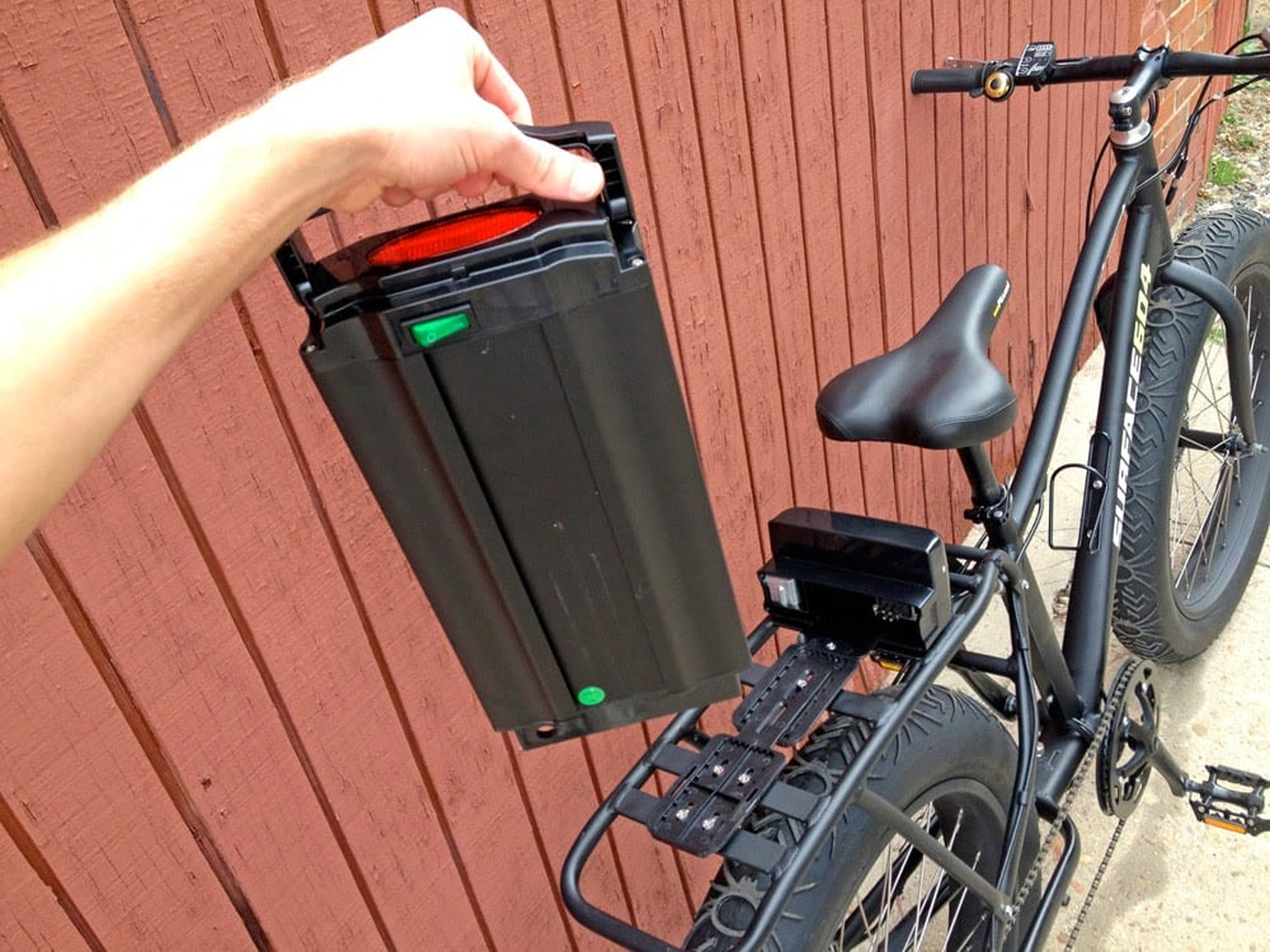

Surface 604 Element Electric 2 0 Battery Pack

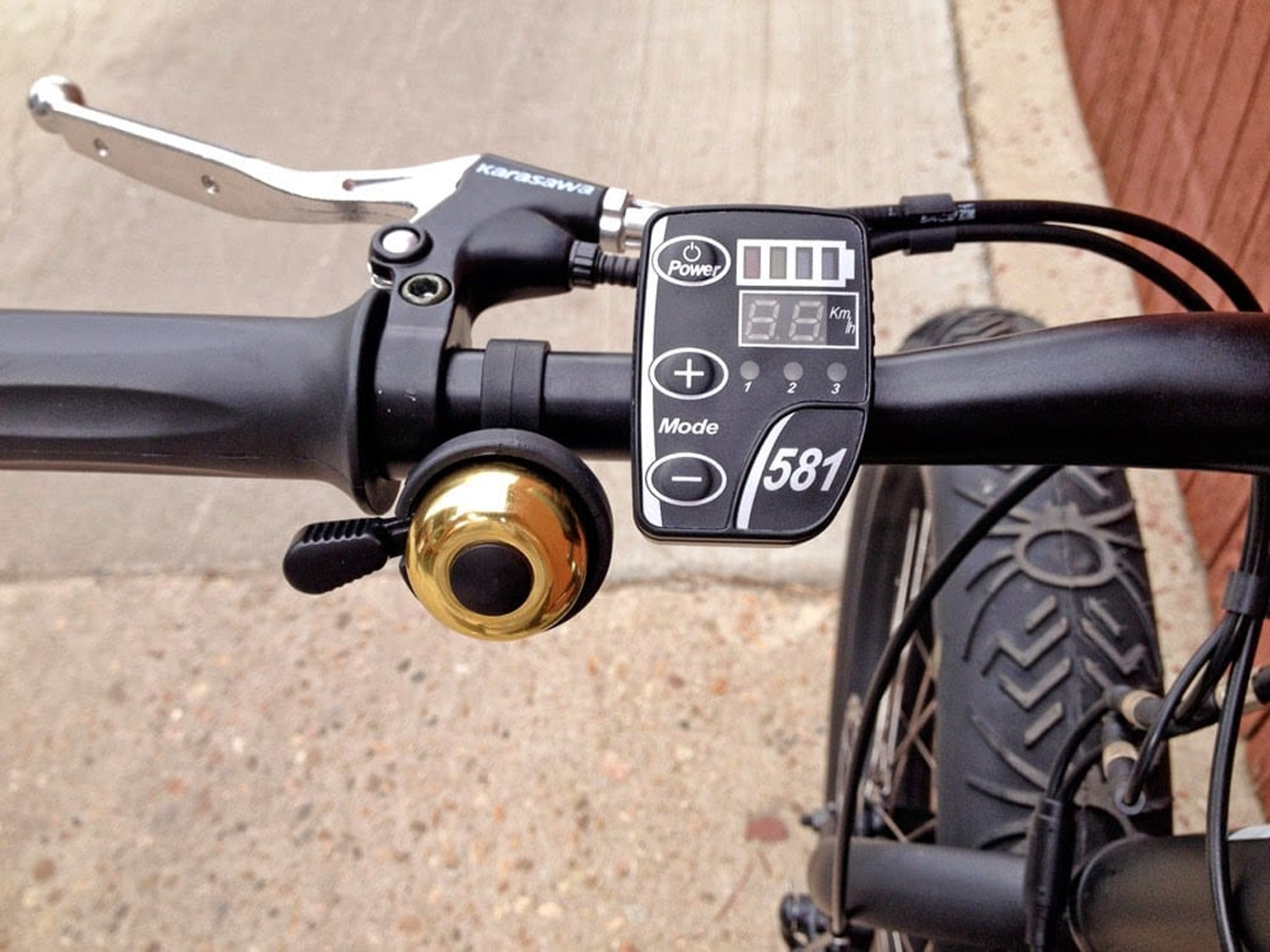

Surface 604 Element Electric 2 0 Control Console Bell
Surface 604 Element Electric 2 0 Bash Guard Pedelec
Surface 604 Element Electric 2 0 Battery On Off Switch

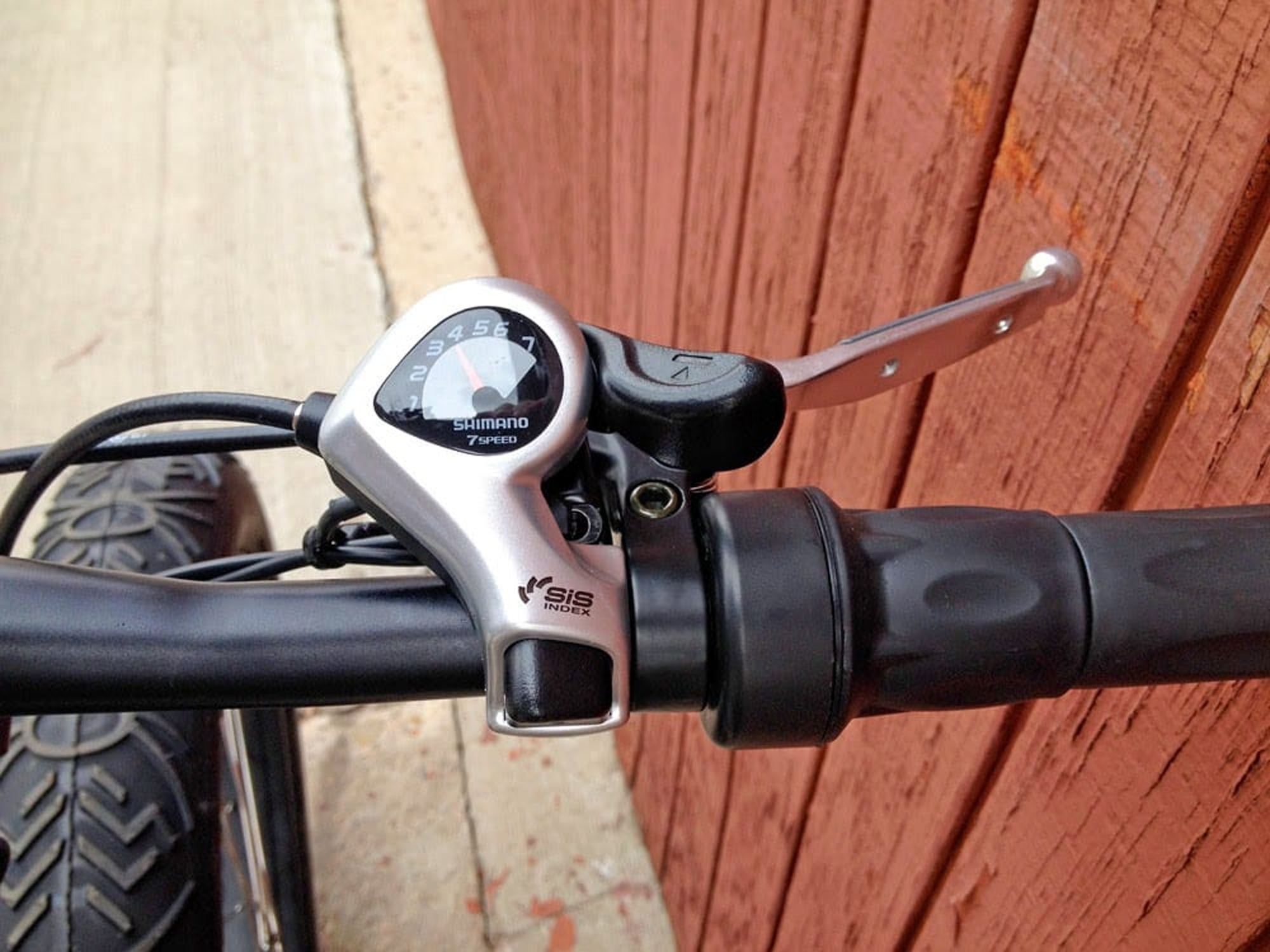

Surface 604 Element Electric 2 0 Thumb Shifter
Surface 604 Element Electric 2 0 Front

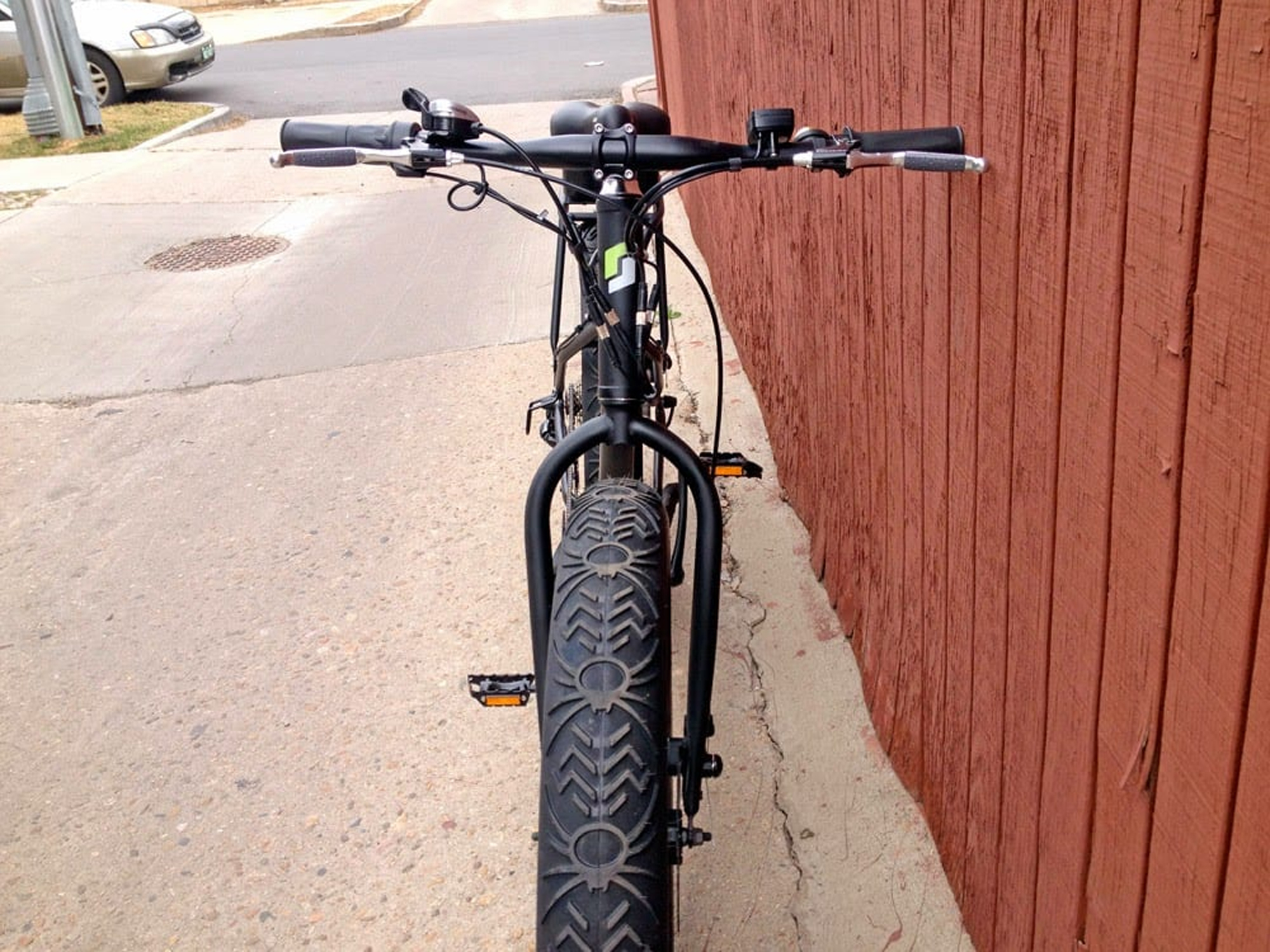

Surface 604 Element Electric 2 0 Innova Spider Tires

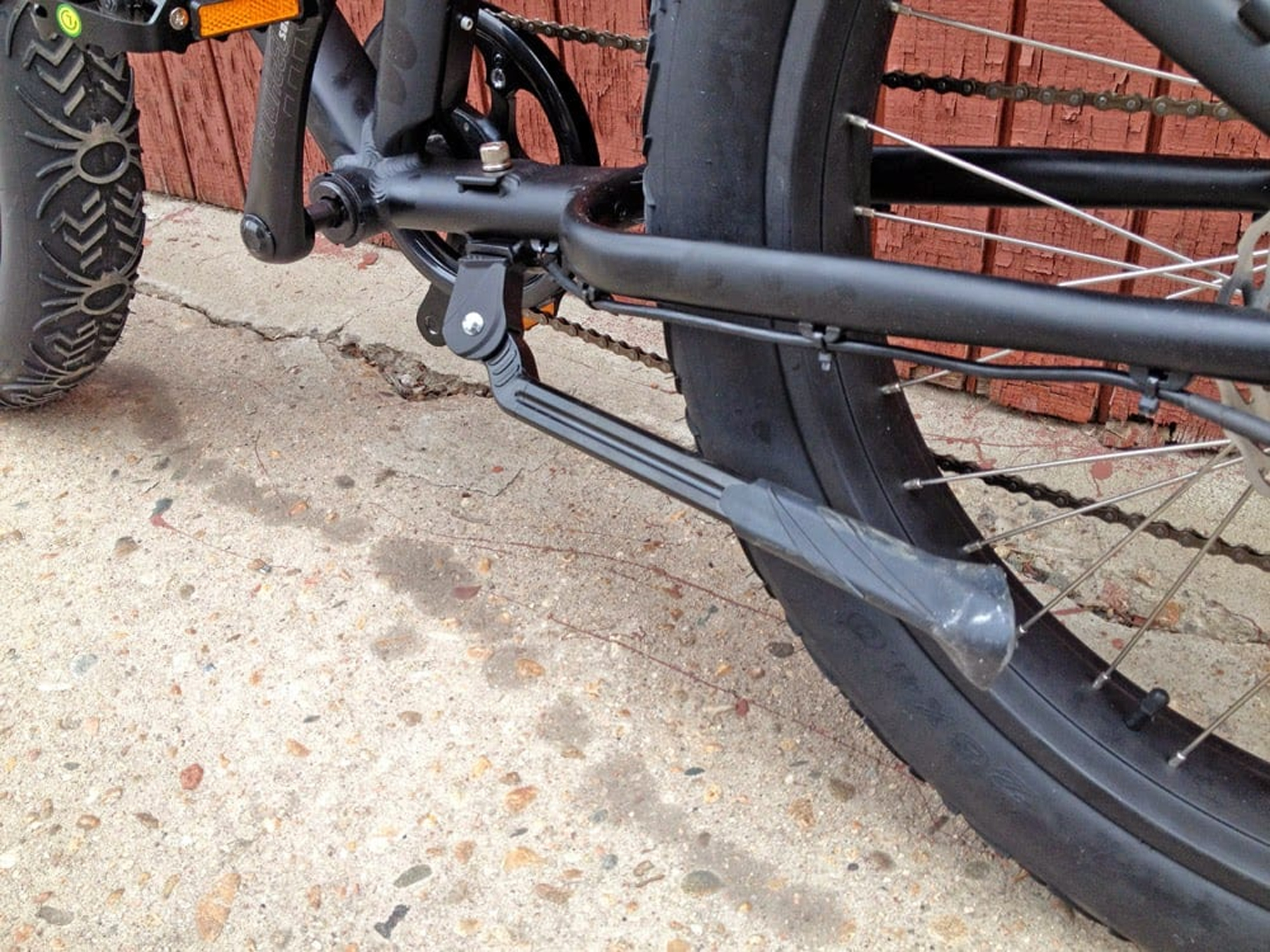

Surface 604 Element Electric 2 0 Kickstand

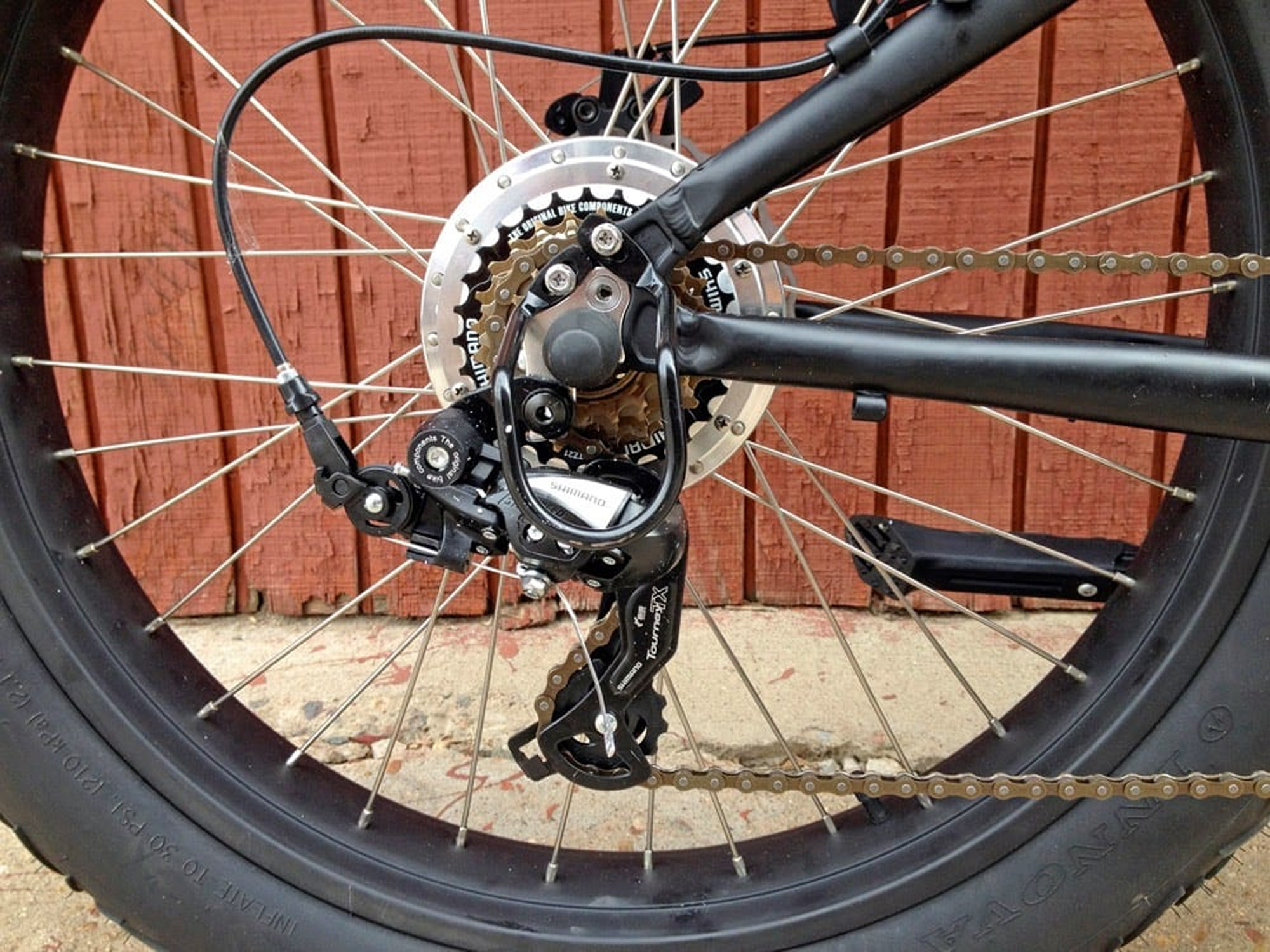

Surface 604 Element Electric 2 0 Shimano Tourney Drive Train

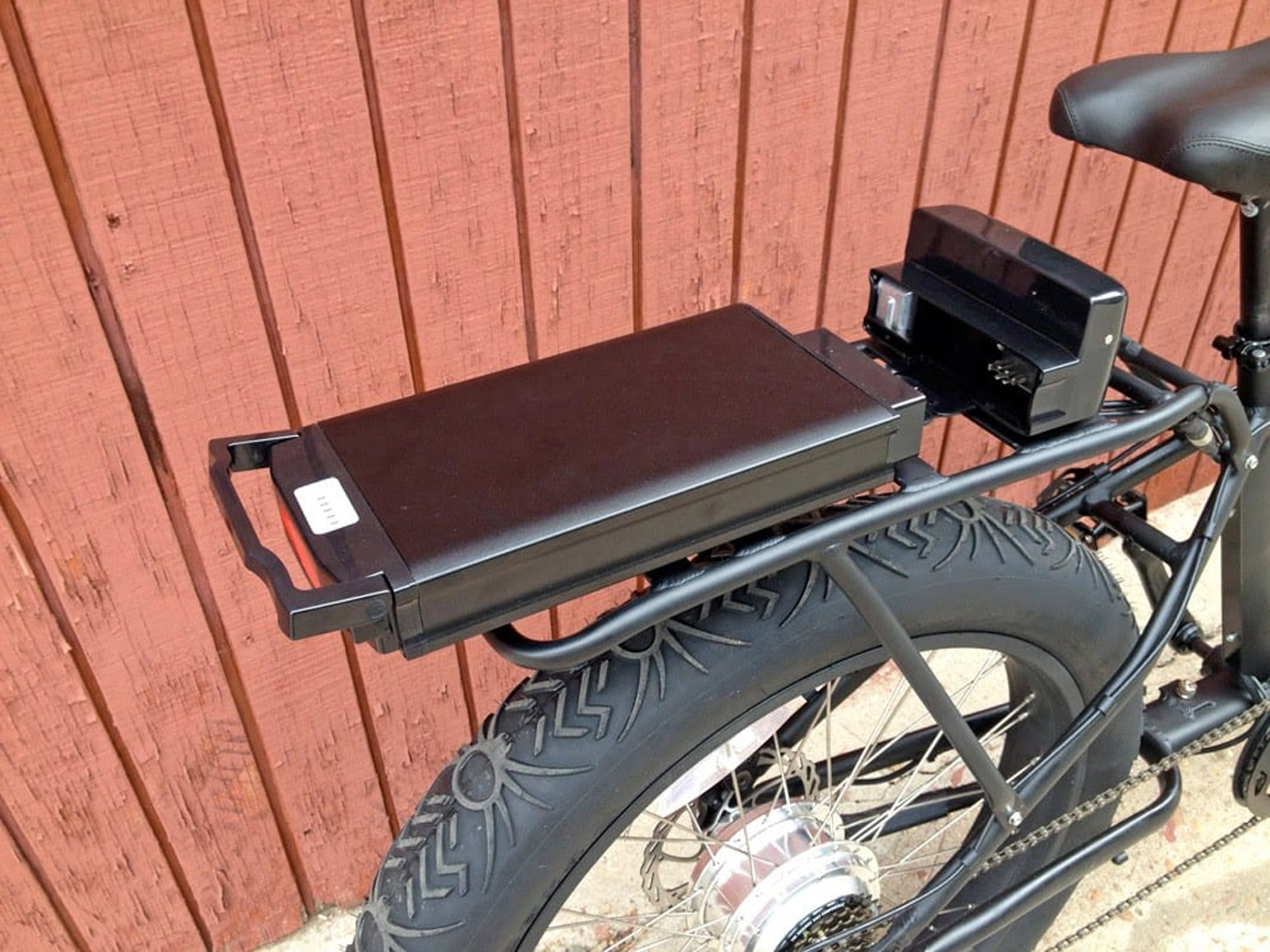

Surface 604 Element Electric 2 0 Slid On Battery
Surface 604 Element Electric 2 0 Packaging
Surface 604 Element Electric 2 0 Electric Bike Review 1
Surface 604 Element Electric 2 0
Surface 604 Element Electric 2 0 Jak Superbrake Disc
Surface 604 Element Electric 2 0 Battery Pack
Surface 604 Element Electric 2 0 Control Console Bell
Surface 604 Element Electric 2 0 Bash Guard Pedelec
Surface 604 Element Electric 2 0 Battery On Off Switch
Surface 604 Element Electric 2 0 Thumb Shifter
Surface 604 Element Electric 2 0 Front
Surface 604 Element Electric 2 0 Innova Spider Tires
Surface 604 Element Electric 2 0 Kickstand
Surface 604 Element Electric 2 0 Shimano Tourney Drive Train
Surface 604 Element Electric 2 0 Slid On Battery
Surface 604 Element Electric 2 0 Packaging

Summary

  • Well-rounded "fat style" electric bike with three levels of pedal assist, a twist throttle and seven gears for going off road
  • Oversized tires provide cushion on bumps and won't sink in sand or snow, solid derailleur guard protects the drivetrain
  • Rear heavy design, battery is removable for charging, excellent one year warranty on frame, drive system and battery

Video Review

Introduction

Make:

Surface 604

Model:

Element Electric Fat Bike

Price:

$1,999 USD

Body Position:

Forward

Suggested Use:

Sand and Snow, Trail

Electric Bike Class:

Throttle on Demand (Class 2)
Learn more about Ebike classes

Warranty:

1 Year Comprehensive

Availability:

United States, Canada

Model Year:

2014

Bicycle Details

Total Weight:

60 lbs (27.21 kg)

Battery Weight:

8.1 lbs (3.67 kg)

Motor Weight:

8 lbs (3.62 kg)

Frame Material:

6061 Aluminum Alloy

Frame Sizes:

18.5 in (46.99 cm)

Frame Types:

High-Step

Frame Colors:

Matte Black, Matte Blue, Matte Orange

Frame Fork Details:

Aluminum Alloy, 131 mm Wide

Attachment Points:

Welded Rear Rack (Limited Storage Due to Battery Placement)

Gearing Details:

7 Speed 1x7 Tourney RD-TXX

Shifter Details:

Shimano Tourney TX50 Thumb Shifter Plus on Right Handle Bar

Cranks:

ProWheel SOLID 248T-F Aluminum Alloy-6061 48T, 170 mm

Pedals:

Wellgo Aluminum Alloy Platform with Reflectors

Headset:

1-1/8" Threadless Chrome Steel

Stem:

Forged Alloy Stem 3 Bolt Clamp 90 mm

Handlebar:

6061 Aluminum Alloy, 630 mm

Brake Details:

JAK SuperBrake Mechanical Disc with 177.8 mm (7") Rotor, KARASAWA Levers

Grips:

Rubber

Saddle:

Vélo Plush Padded Spring Seat

Seat Post:

6061 Aluminum Alloy

Seat Post Length:

325 mm

Seat Post Diameter:

27.2 mm

Rims:

22 inch Alloy (558.8 mm)

Spokes:

36

Tire Brand:

Innova Spider, 26" x 4"

Wheel Sizes:

26 in (66.04cm)

Tire Details:

Extra Wide Rubber

Accessories:

Metal Rear Derailleur Guard, 8" Metal Chain Guard, Bell, Kickstand, Metal Bottle Cage

Other:

Outer Guard and Chain Guide on Front Chain Ring, Length 1828.8 mm (72") Width 635 mm (25") Height Including Handles 1117.6 mm (44"), 9.2 mm Axle on Front Wheel, Recommended Rider Height Between 4'8" and 6'4", Maximum Recommended Weight 350 lbs,

Electronic Details

Motor Type:

Rear-Mounted Geared Hub
Learn more about Ebike motors

Motor Nominal Output:

350 watts

Motor Peak Output:

750 watts

Battery Voltage:

36 volts

Battery Amp Hours:

10 ah

Battery Watt Hours:

360 wh

Battery Chemistry:

Lithium-ion

Charge Time:

4.5 hours (2 Hours for ~75%)

Estimated Min Range:

20 miles (32 km)

Estimated Max Range:

30 miles (48 km)

Display Type:

Fixed LED Display

Readouts:

Speed, Distance, Battery Level, Power Mode (Three Levels of Pedal Assist)

Drive Mode:

Cadence Sensing Pedal Assist, Twist Throttle (12 Magnet Cadence Sensor, Half Twist Throttle on Right Bar)

Top Speed:

20 mph (32 kph)


Written Review

The Element Electric fat tire ebike from Surface 604 is one of the most complete and well priced electric bikes I’ve tested. Fat tires aside… this thing rides well, offers a clean and quiet drive system with enough power and gears to overcome off-road obstacles and hills. Whether you’re just interested in riding it like a scooter (using the twist throttle exclusively) or pedaling along for extended range, powering through sandy bluffs or wading through snow, this bike has got you covered. Surface 604 is a Canadian company (so they know a thing or two about snow) and the customer service I’ve seen along with their one year warranty instills confidence.

The motor driving this bike offers 350 watts of nominal output with 750 at peak. It rides quiet and smooth but packs a punch when climbing. I had no trouble ascending the small hills around the neighborhood where I was testing the bike and it even worked well through some soft pebble sized gravel I found. It’s a geared design meant to offer more torque and as such, it’s a bit smaller and lighter weight than a direct drive motor would be. There’s enough room in the rear hub to also fit a seven speed cassette with an enlarged low gear for heavy climbing applications or pedaling home if the battery runs out.

The battery pack in use here is completely removable and includes a built in LED rear light for improved safety. It’s compact, sleek and relatively light weight at 8.1 pounds. There’s a handle on one end for sliding it off and carrying it around and the walls are made from aluminum instead of plastic. It attaches securely along the top of the rear rack and plugs in to a water-tight connection at one end where the controller unit is housed. The control unit itself is a bit unique as it bumps up higher than the battery pack (let’s call it a signature design) but this keeps the whole thing looking compact and sleek vs. a separate housing attached independently.

The chemistry of the battery pack is Lithium Manganese Oxide with 18650 cells that put out 36 volts of power offering 12 amp hours of capacity. That’s a bit above average in terms of capacity which means you’ll get extra distance when riding. They say it will go 30 miles and I estimate something between 20 to 30 depending on whether you use help out in pedal assist mode or completely rely on the throttle… along with terrain conditions, wind, hills and your weight, cargo etc.

Connecting you with the bike’s electric drive systems is a simplified digital control panel that’s easy to operate and relatively convenient to reach when riding. It’s not removable but it does appear to be sealed from the elements quite well. To get the bike going you first have to activate the battery pack (green button on the lower rear portion) and then press the power button on the console. It lights up with LED indicators showing battery level and starts in assist level one. You get to choose between 1, 2 or 3 and with each level you get more power but drain the battery faster. At any time (in any of the assist modes) you can activate the motor with the twist throttle but it only offers as much power as the mode you’re in… I wish the system would let you completely turn off pedal assist as there are moments when it’s nice be able to reposition your feet without worrying about how the motor will respond. Since this ebike uses a cadence sensor versus a torque sensor, any forward movement will activate the motor. That said, it uses a fancier 12 magnet cadence sensor that’s less jerky than the older 6 magnet designs on some other electric bikes.

I think there are a few areas where this bike could be improved including the addition of quick release wheels and a disconnect point for the rear motor. That would make it easier to service and transport. Also, the battery design is great but could be cleaned up a bit (to smooth out the control box) and perhaps the entire battery system could be migrated to the downtube keeping weight lower and more centered. Also, this would free up the rear rack for storage. I’d also like a miles per hour setting on the digital console vs. just kilometers per hour… Oh, Canada ;)

These improvement suggestions are just that, suggestions for ways to improve upon an already great electric bike. As more sophisticated speed sensors get combined with torque and cadence sensors all ebikes with get smoother and I’m guessing more and more will integrate batteries directly into the frame to improve balance but Element Electric isn’t bad for what it is. This bike won me over with its low price, varied drive modes and quality components. I love having seven gears to choose from and the little things like the bell, bash guards, rear light, bottle cage and kickstand really stand out. Here’s to hoping that Surface 604 can get its bikes into more stores across America and anywhere riders are traversing beaches, snow packed roads and other softer surfaces. Maybe what’s what the 604 in the company name stands for?

Pros:

  • Solid build including a derailleur guard and front chain ring bash guard made from aluminum alloy
  • Decent control panel with battery level, speed and assist indicator; not as precise or feature rich as an LCD unit but very functional and durable looking
  • Having both throttle mode and three levels of pedal assist to choose from is great! This extends the range of the bike and makes it much more versatile
  • Smoother pedal assist engagement with a 12 sensor pedelec plate vs. older 6 sensor versions
  • Excellent metal pedals (extra wide for stability, ridged for traction)
  • It’s nice that the bike has a water bottle cage, I also like that the rear rack sort of acts like a fender and the battery has a built in LED light for safety
  • Mechanical disc brakes work well and the oversized 177.8mm (7″) rotors provide great stopping power
  • The motor is smooth and quit but fairly powerful, geared design with 750 watt peak output is great
  • Excellent kickstand, it’s also nice that they threw in a bell and don’t require you to leave the key in the battery when riding

Cons:

  • Bolt-on style rear rack may become loose over time, might not be as sturdy as a welded rack
  • No way to shut off pedal assist, would nice to have a throttle only mode so pedaling wouldn’t activate the motor… I guess you can always just shut the system off to pedal normally
  • Rear heavy design, hub motor and battery are at the back; battery is mounted high up as well
  • Speed is shown in kilometers per hour, no way to switch to miles per hour for us US folk ;)
  • The rear rack doesn’t seem very functional for mounting panniers or a bag, tube gauge is wider than standard racks
  • No quick release skewers on wheels and no quick disconnect at rear motor for maintenance or replacement
