Total Weight:
46.5 lbs (21.09 kg)

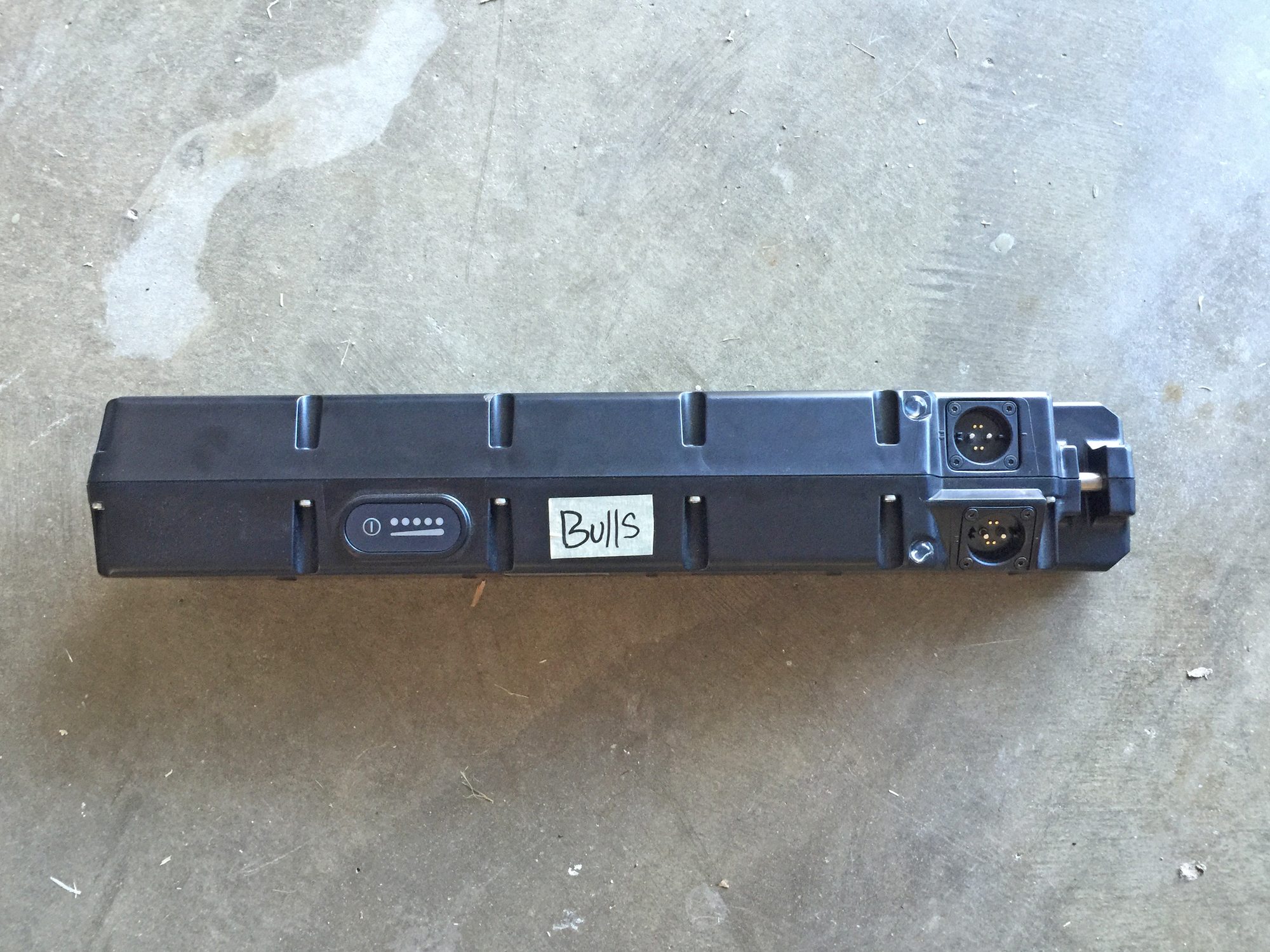

Battery Weight:
7 lbs (3.17 kg)

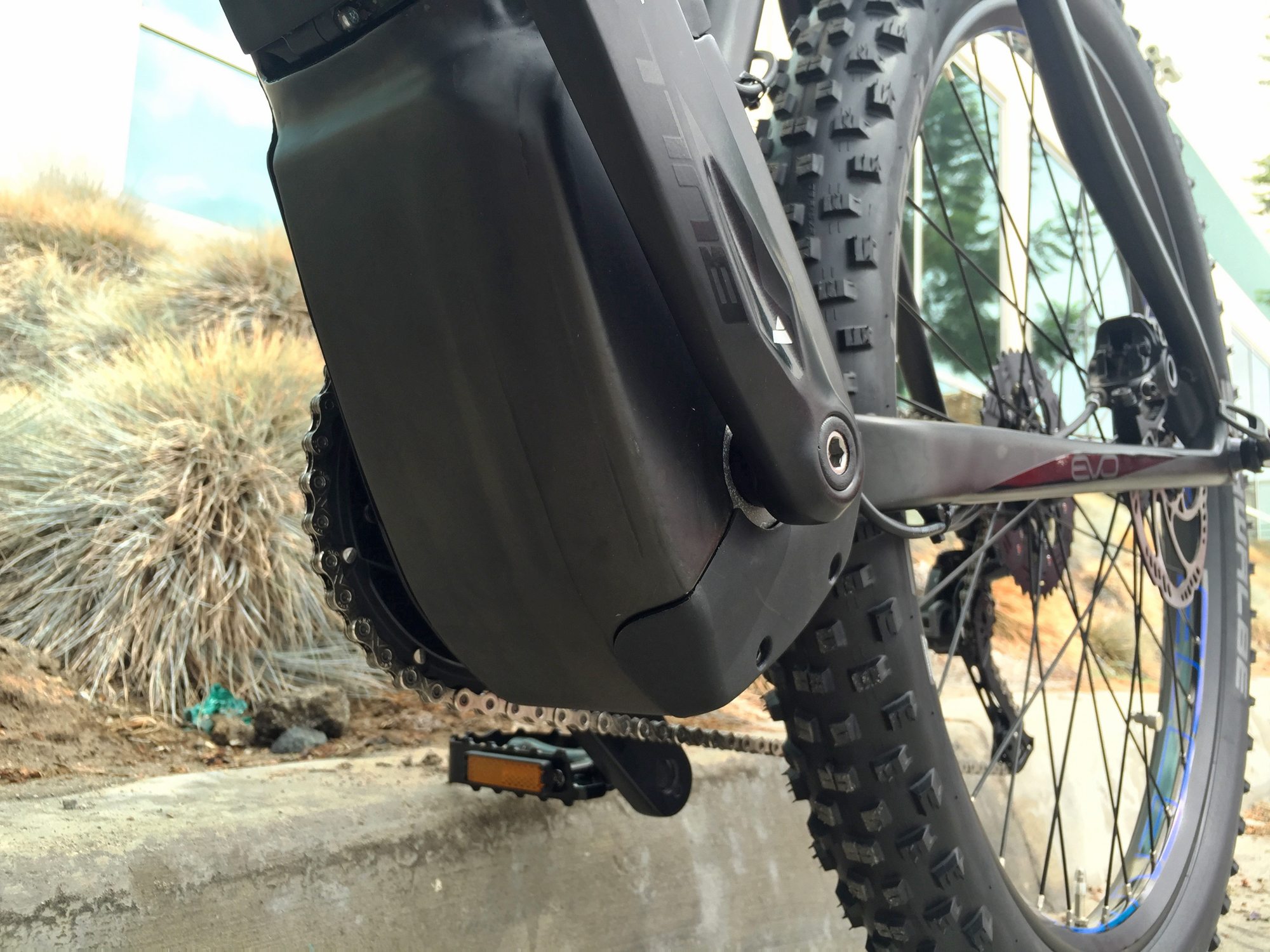

Motor Weight:
6.61 lbs (2.99 kg)
Frame Material:
Carbon Fiber
Frame Sizes:
18.11 in (45.99 cm)20.08 in (51 cm)Geometry Measurements:
32" Stand Over Height
Frame Types:
High-Step
Frame Colors:
Matte Black with Gloss Black and Metallic Blue Accents

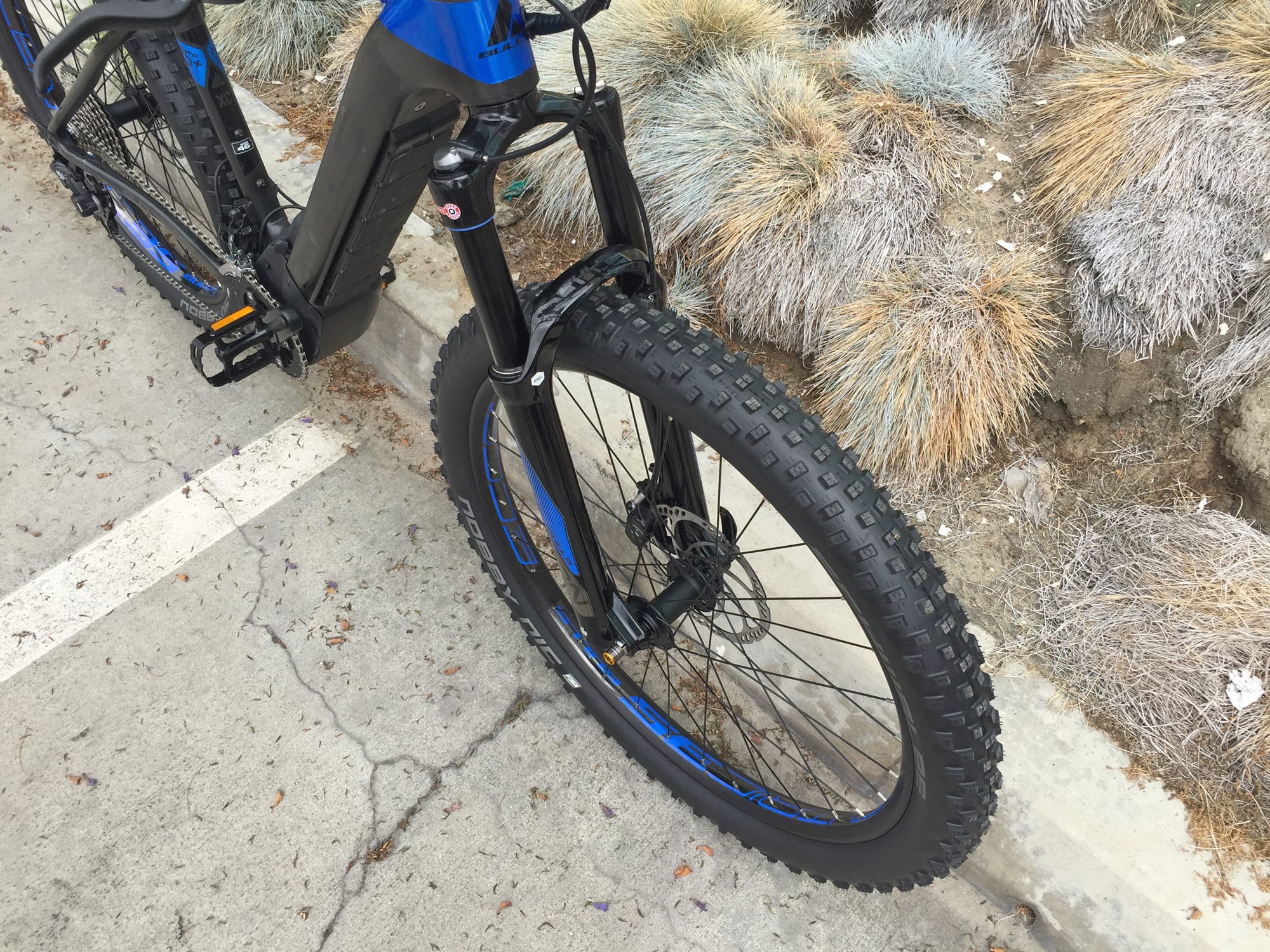

Frame Fork Details:
SR Suntour AION-35 RL-R with 120 mm Travel, Rebound Adjust, Remote Lockout, 15 mm Thru-Axle with Quick Release
Frame Rear Details:
12 mm Thru Axle with QR

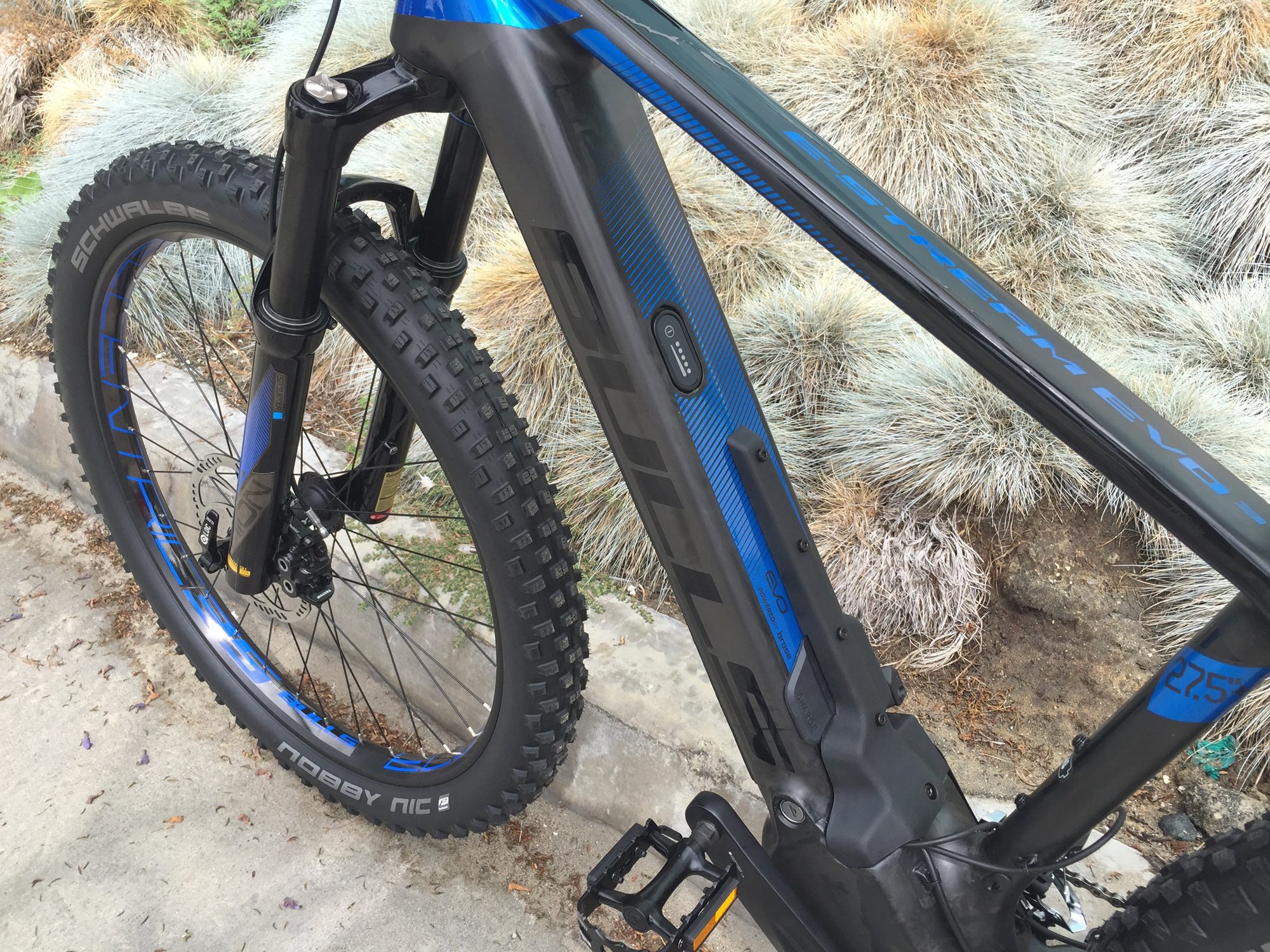

Attachment Points:
Bottle Cage Bosses

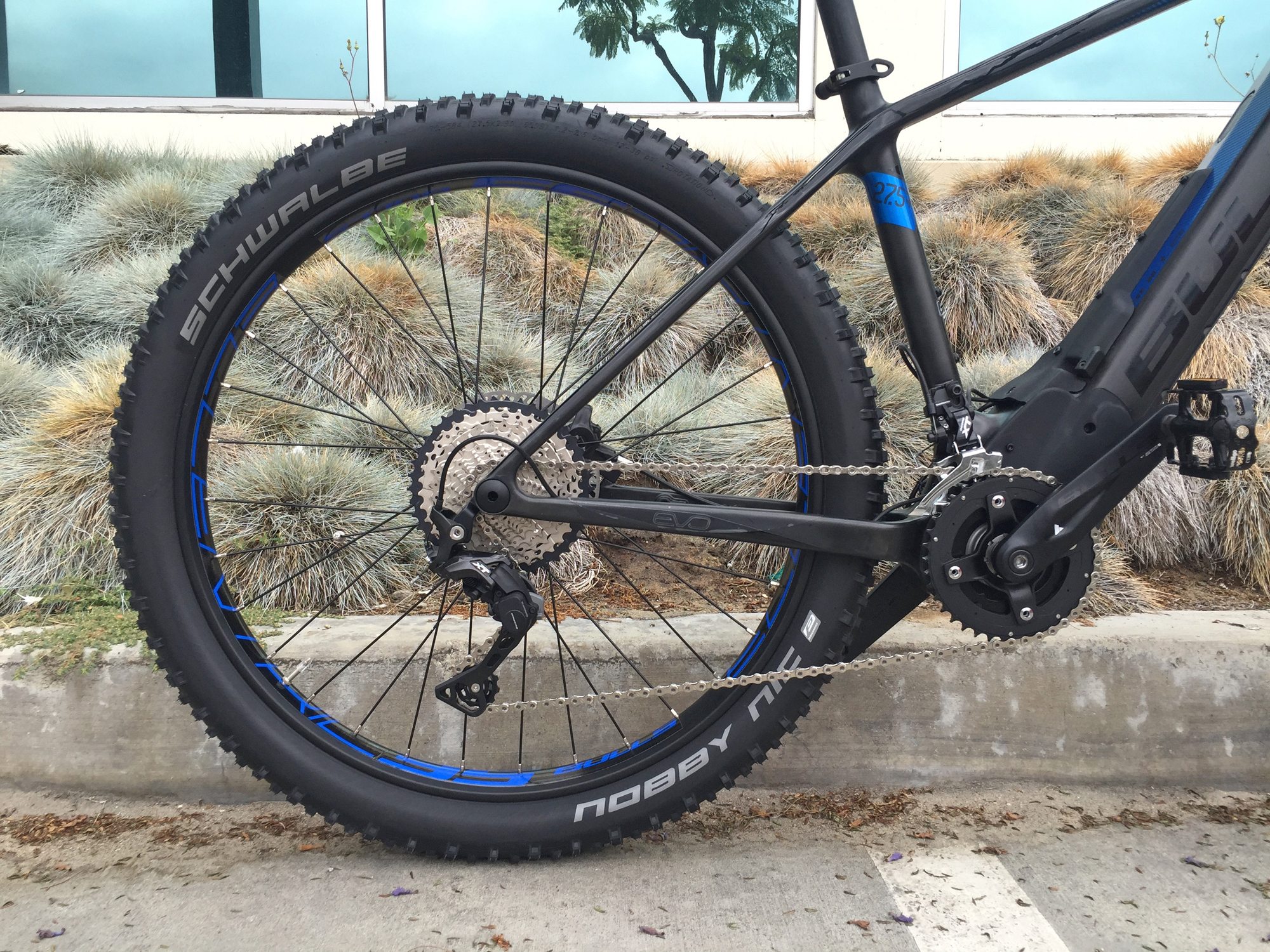

Gearing Details:
22

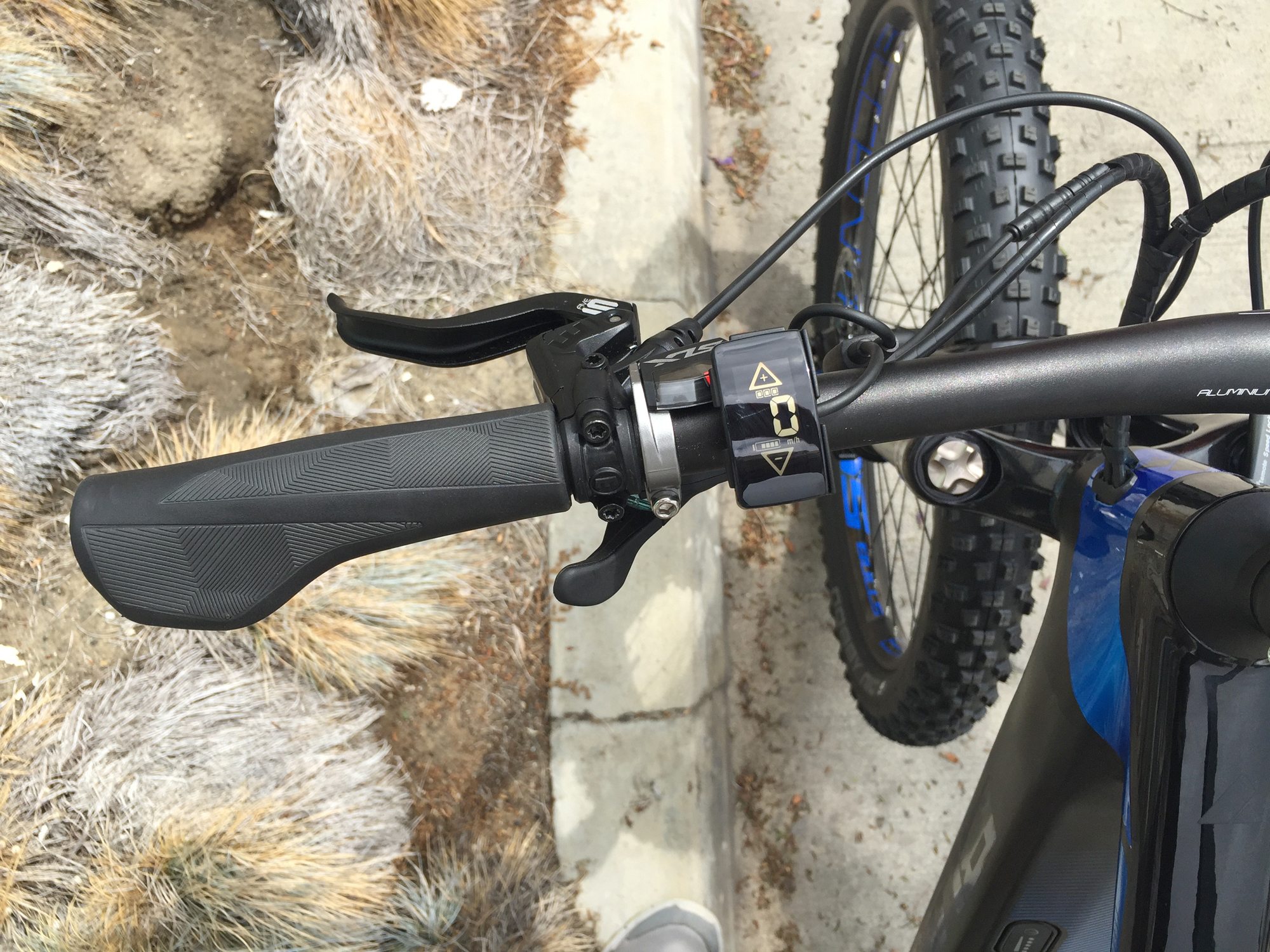

Speed 2x11 Shimano Deore XT Shadow Plus, 11-42TShifter Details:
Shimano SLX Triggers on Left and Right

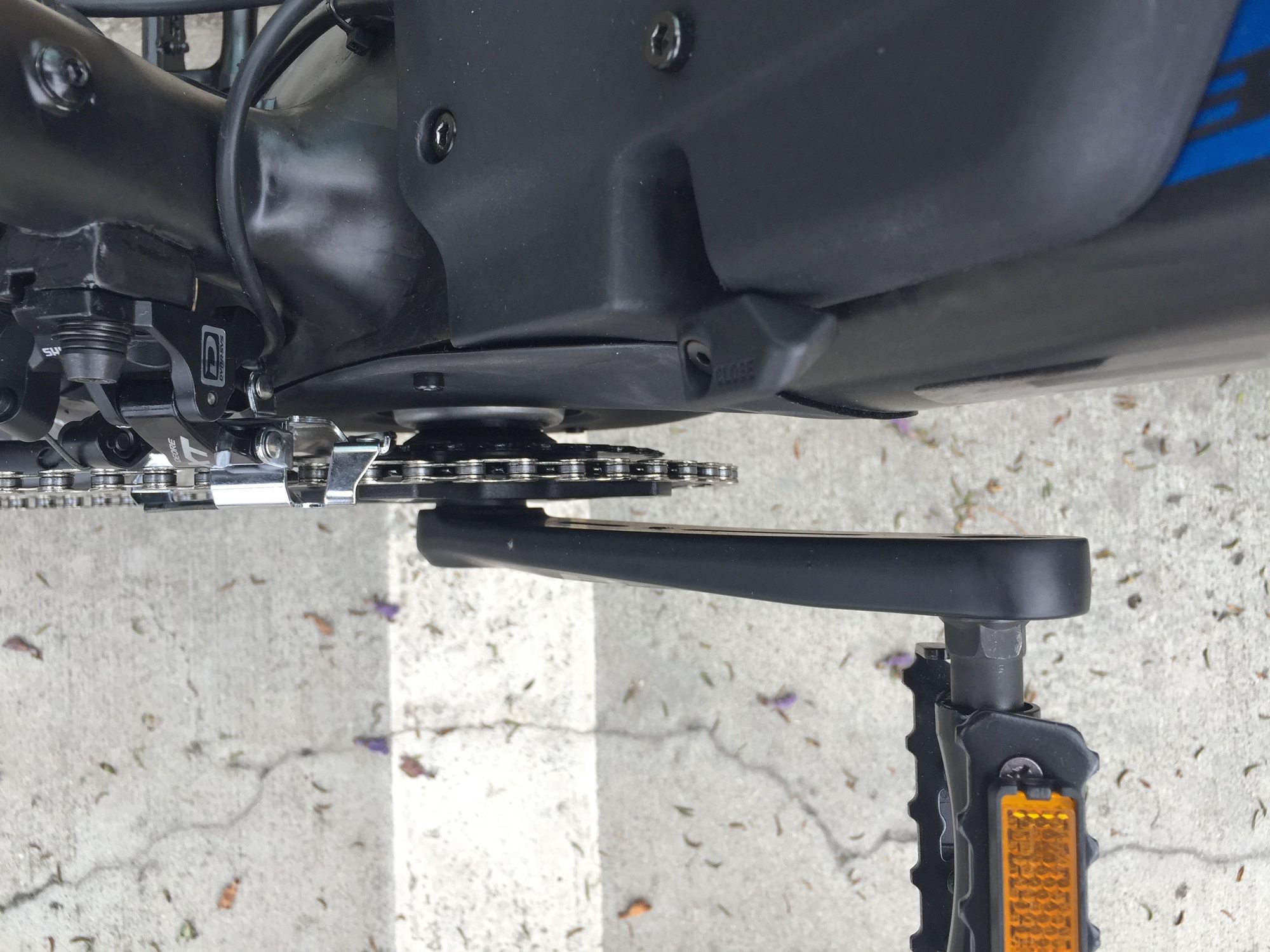

Cranks:
SR Suntour CRG513B/CRG37 Cranks, 38T / 28T
Pedals:
Wellgo C-128DU Alloy Platform, Cage Style
Headset:
STYX Chin Hau Tapered 1-1/2 to 1-1/8"
Stem:
STYX Alloy, 7° Angle, (80 mm, 90 mm)

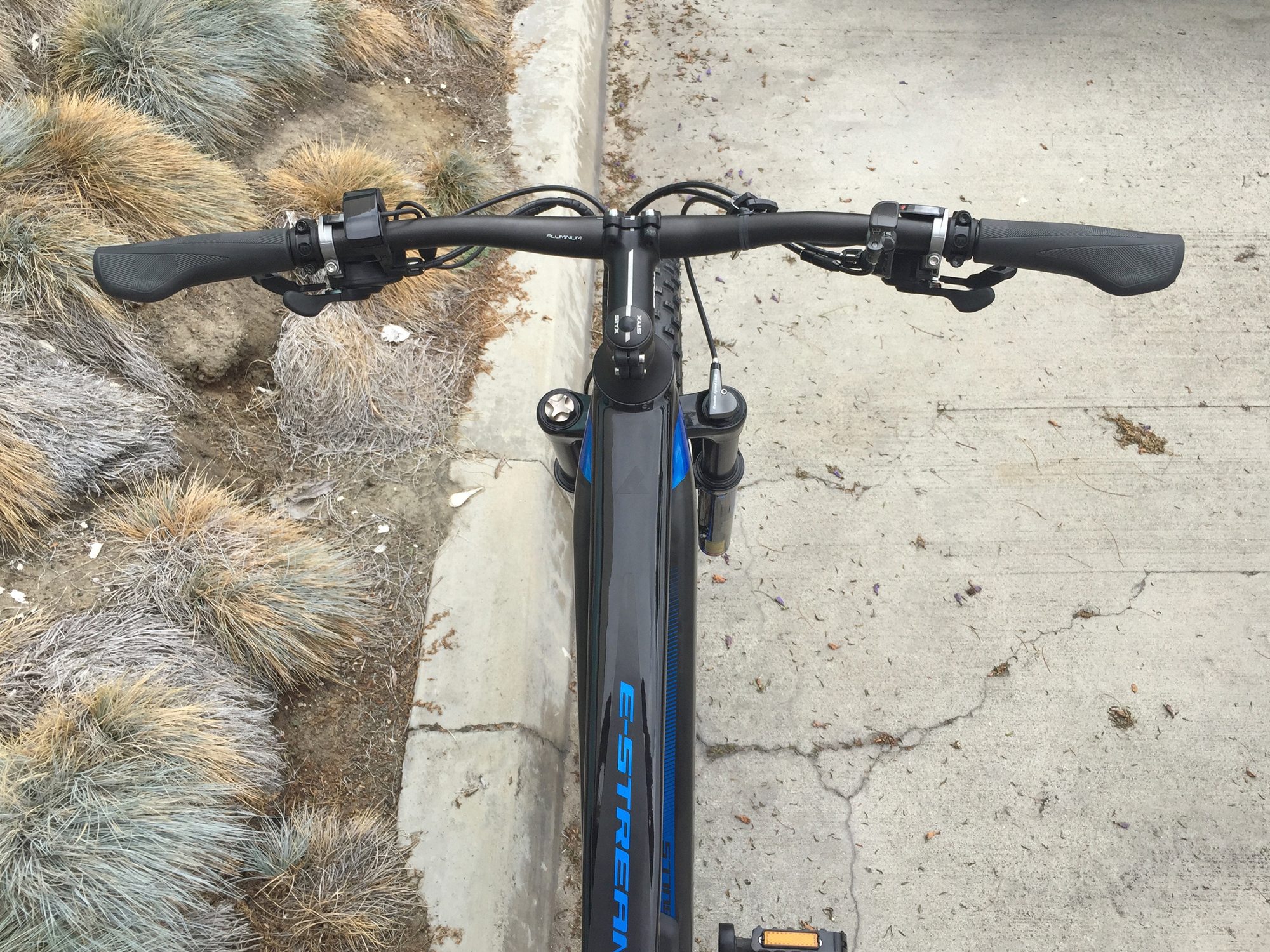

Handlebar:
Low Rise, 740 mm Length, 25 mm Rise, 9° Bend, 31.8 mm Diameter

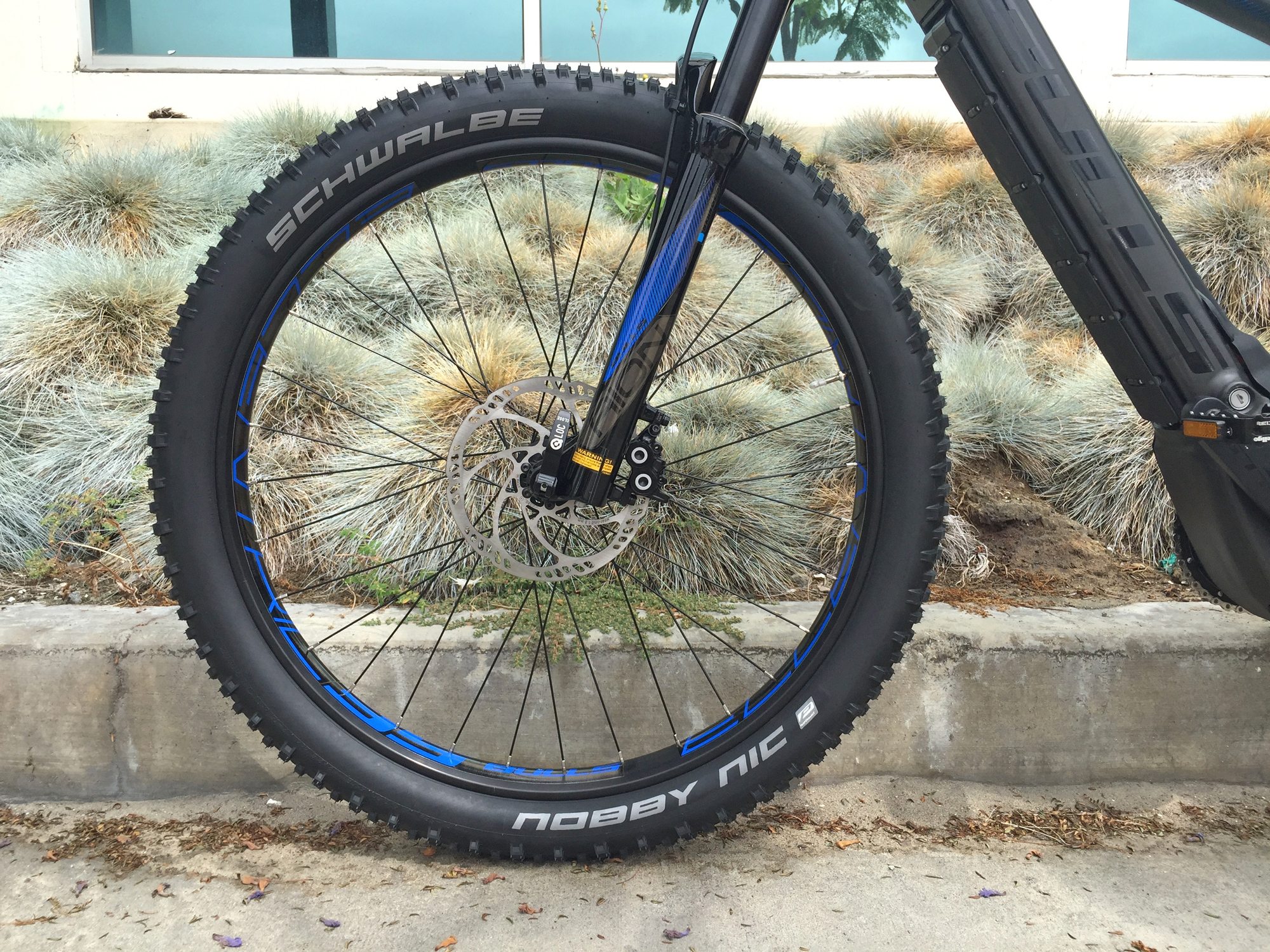

Brake Details:
Magura Hydraulic Disc with 180 mm Rotors, MT-5 4 Piston Front and MT-4 2 Piston Rear, Magura MT Levers
Grips:
Ergon VLG-16828D3 Locking, Flat
Saddle:
Selle Royal Seta M1
Seat Post:
STYX Aluminum Alloy
Seat Post Length:
350 mm
Seat Post Diameter:
30.9 mm
Rims:
Bulls Eccentric 35 Alloy, 32 Hole
Spokes:
Stainless Steel, 14 Gauge Front 13 Gauge Rear, Black

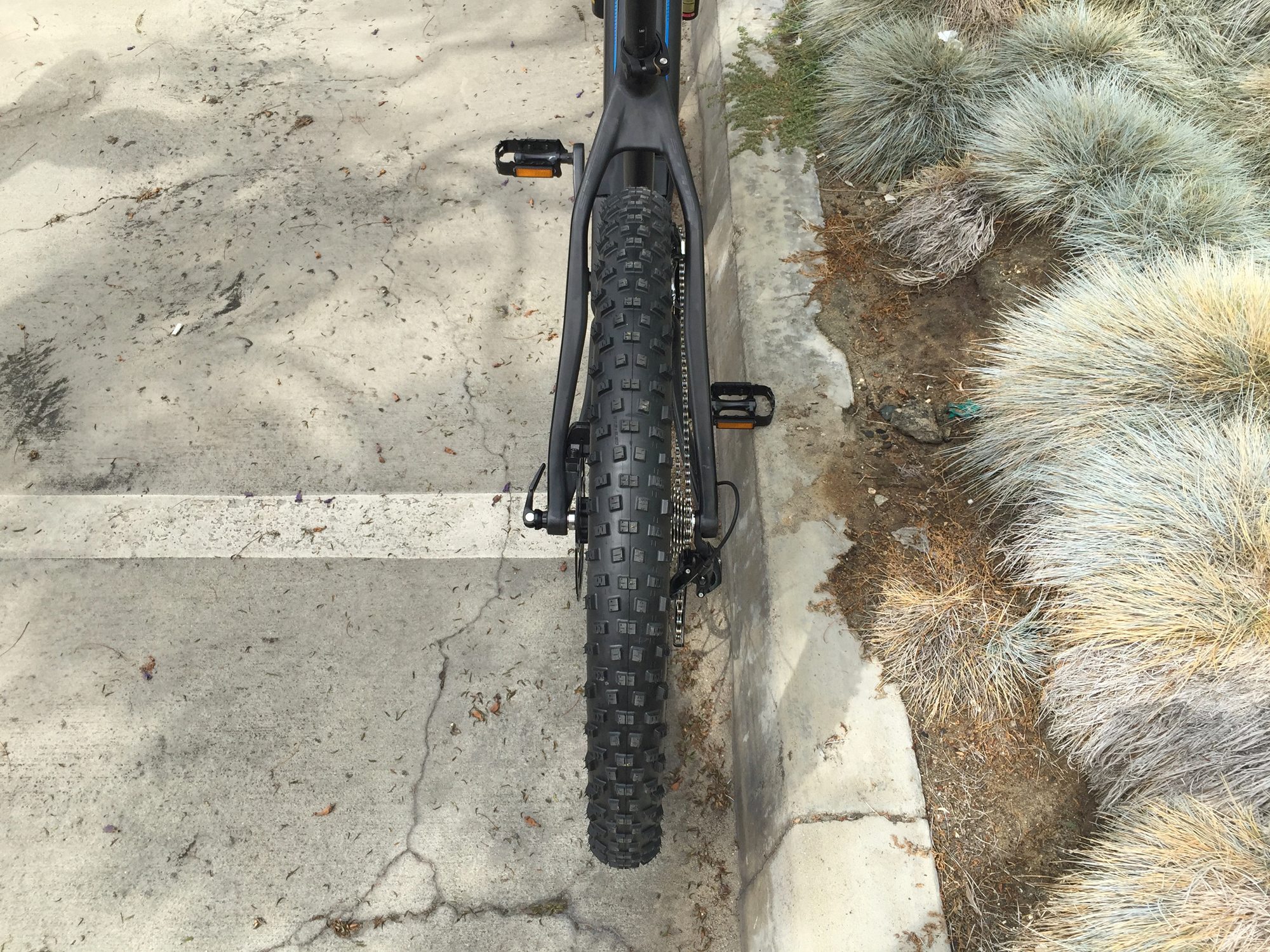

Tire Brand:
Schwalbe Nobby Nic, 27.5" x 2.8"
Wheel Sizes:
27.5 in (69.85cm)Tire Details:
Performance Folding
Tube Details:
Presta Valve
Accessories:
Velo Battery Protector Pad
Other:
IP56 Ingress Rating, 2.5 lb 5 Amp BMZ Charger, Boost Adds 10 mm to Hub Length in Font and 6 mm in the Rear, KMC X11E Chain, Formula Hubs
Nirmala
8 years agoHi Court, thanks for sharing about that Thule rack. It seems like it could be a good solution for most bikes without rack mounting points, but I would be very leery about using it on a carbon frame. There are many who say that you should never mount anything onto a carbon frame as they are not designed to take any kind of compression from bolt on accessories. You even need to be careful about overtightening the seat post bolt. It would be a shame to have a catastrophic frame failure on such a nice bike.
Here is an article about the care and feeding of carbon frames, if someone really wants to use one. And for another perspective, here is a bike shop that flat out refuses to work on carbon frame bikes, because they can be damaged without any visible signs showing the damage.
In general, I think that the weight savings from carbon frames is not worth it with ebikes. The added power from the motor more than cancels out any extra weight inherent in a steel or aluminum frame. And it would seem that weight savings if desired could be found in other places……including sometimes your own body fat…..without taking on the risks inherent in a carbon frame.
ReplyCourt Rye
8 years agoGreat points Nirmala, I think that’s why some brands haven’t introduced them yet (like Specialized). You don’t save much weight and the power of the motor and battery more than make up for the little weight you do end up with on Aluminum or even Steel. Something to think about… but there is a nicer feel on some Carbon bike frame and I’m guessing Bulls has done their research. Your point about the rack is a good one, just being careful and maybe even asking the manufacturer about it. Perhaps this is a big reason they didn’t include rack bosses to begin with?
