Total Weight:
102 lbs (46.26 kg)
105 with Tall Seat AccessoryBattery Weight:
11.9 lbs (5.39 kg)
(Optional 16aH Battery is 10.4lbs)Motor Weight:
12 lbs (5.44 kg)
(estimated)Frame Material:
6061 Aluminum Alloy
Frame Sizes:
21 in (53.34 cm)23.6 in (59.94 cm)Geometry Measurements:
(With Tall Seat Accessory) 59.9cm Virtual Seat Tube, 52cm to 75cm Virtual Reach, 39cm Stand Over Height, 87cm Minimum Saddle Height, 73cm Width, 173cm Length, 114cm Wheelbase

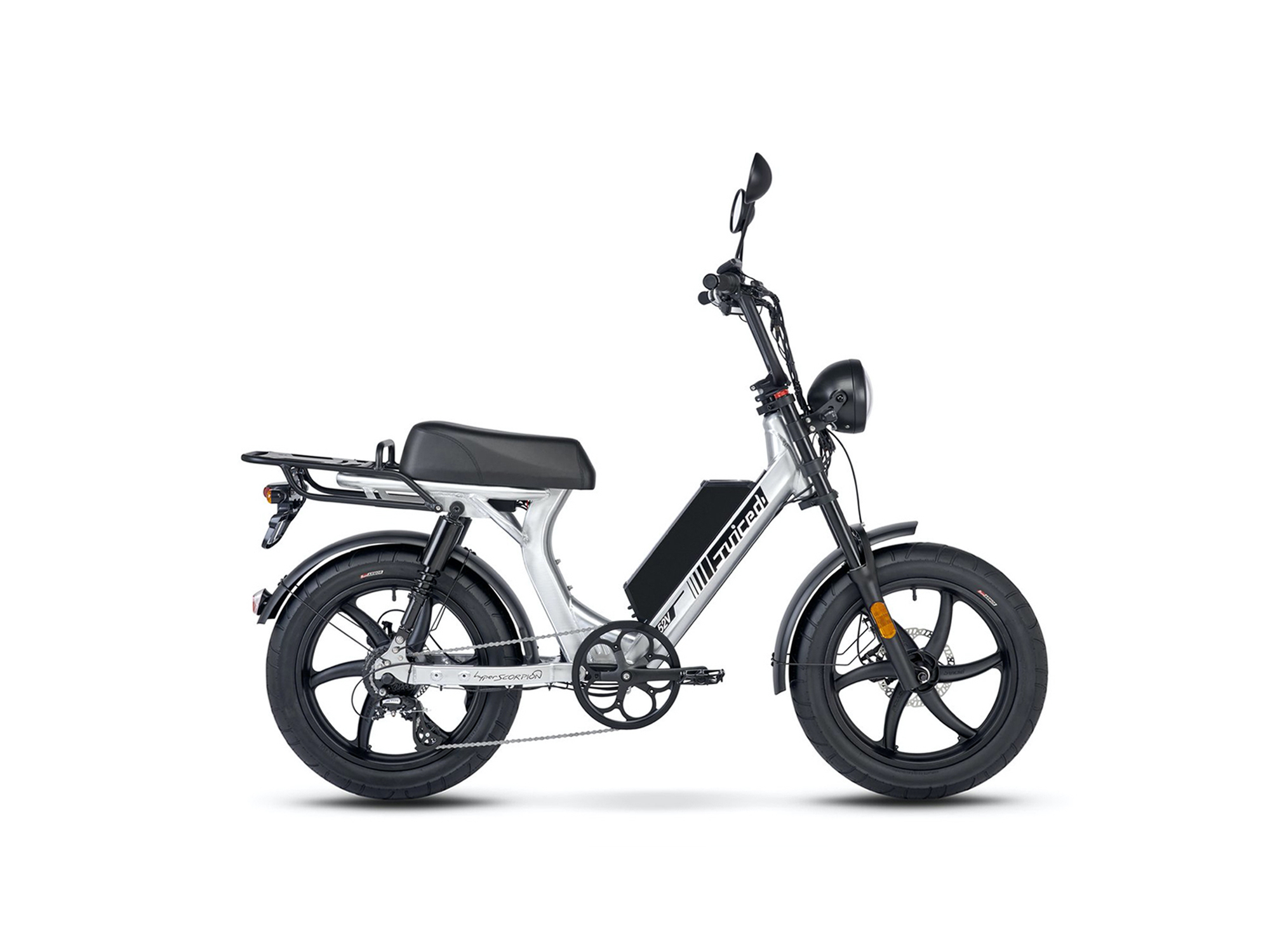

Frame Types:
Step-Thru, Compact
Frame Colors:

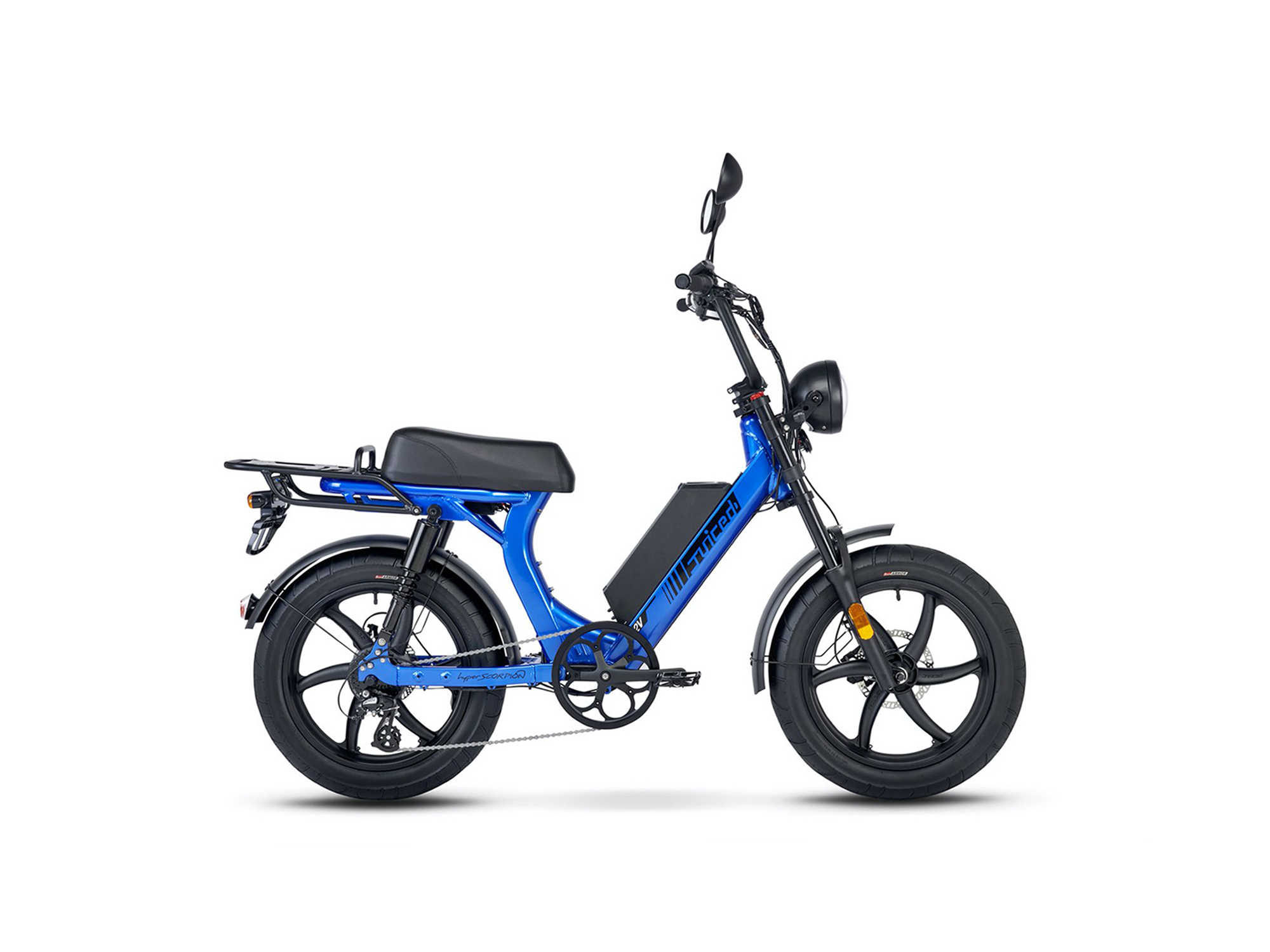

Brushed Aluminum, Black, Electric Blue
Frame Fork Details:

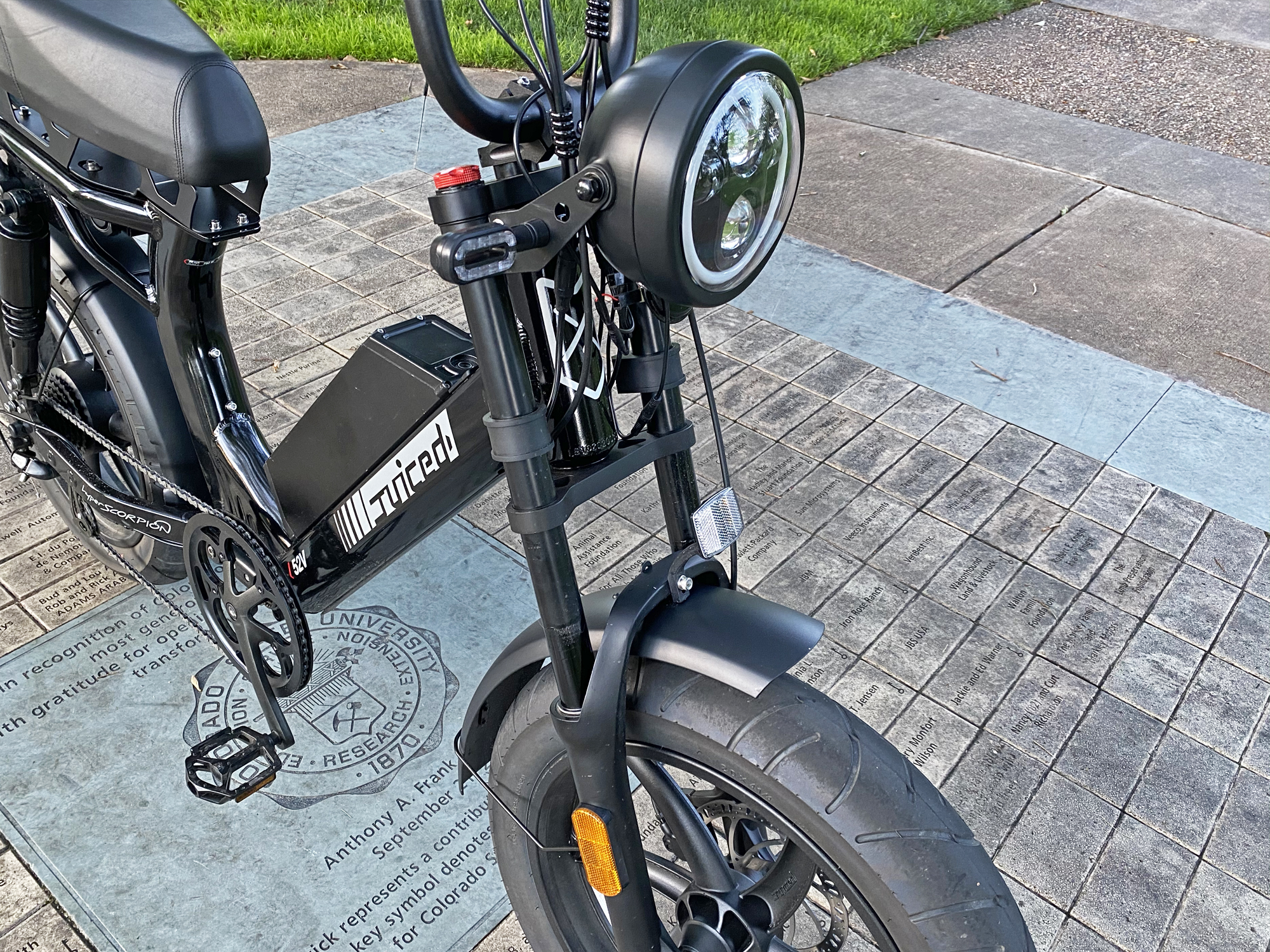

Triple Clamp, Coil Suspension, 100mm Travel, Hydraulic Lockout, Preload Adjust, 34mm Steel Stanchions, 135mm Hub Spacing, 12mm Threaded Axle with 15mm Nuts
Frame Rear Details:

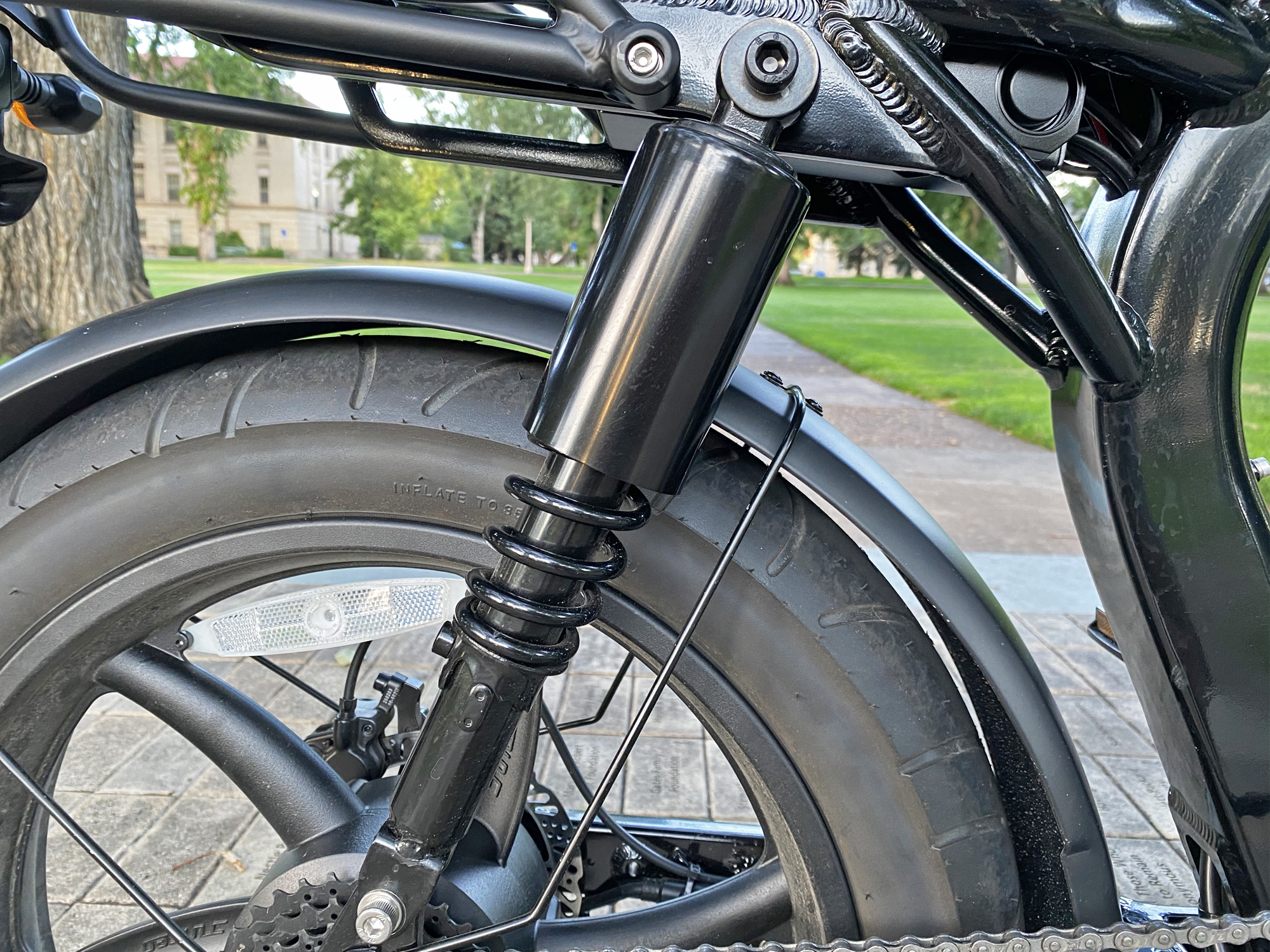

Coil Swingarm Suspension, 40mm Travel, Preload Adjust, 175mm Hub Spacing, 12mm Threaded Keyed Axle, 18mm Nuts
Attachment Points:

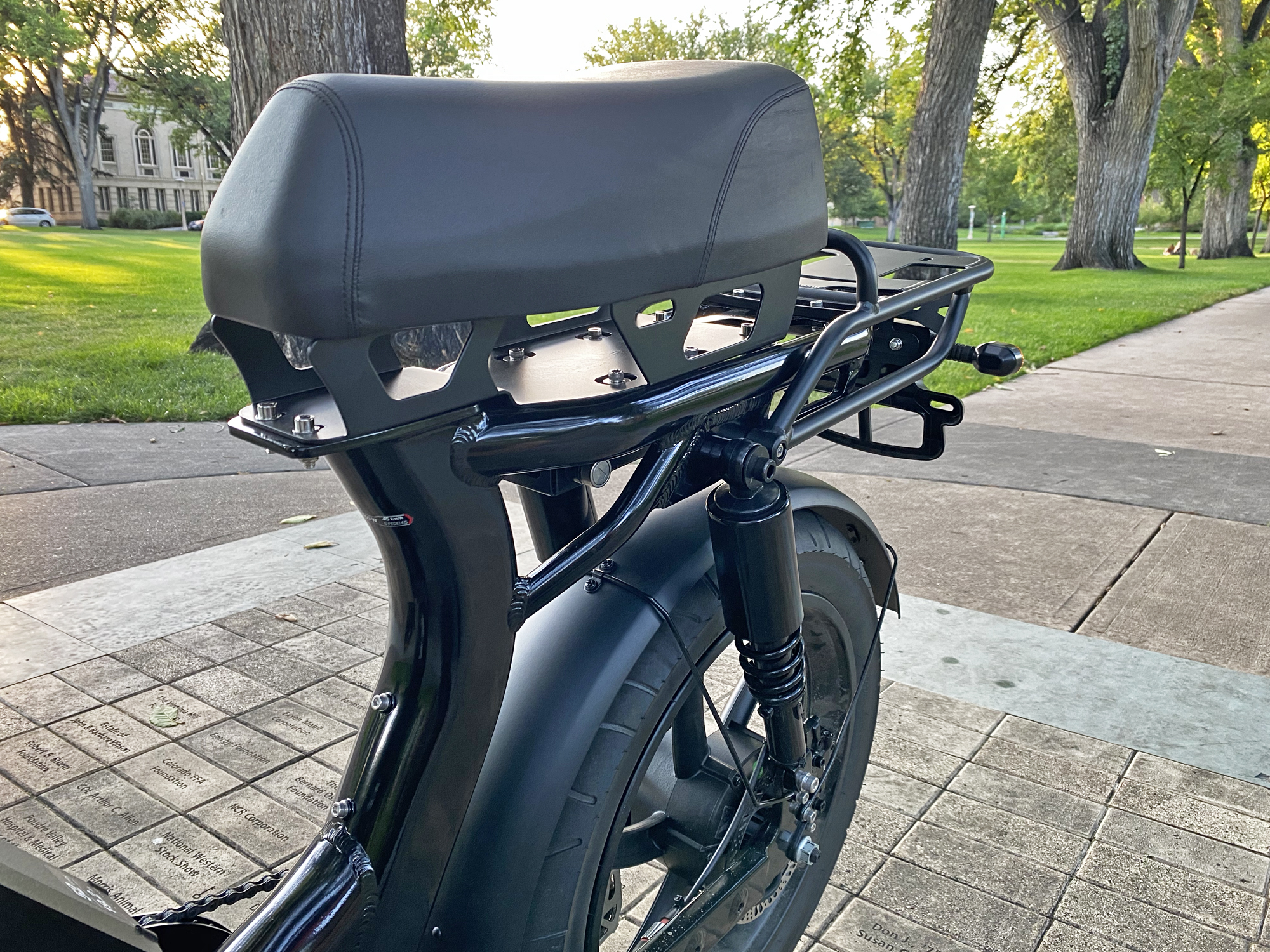

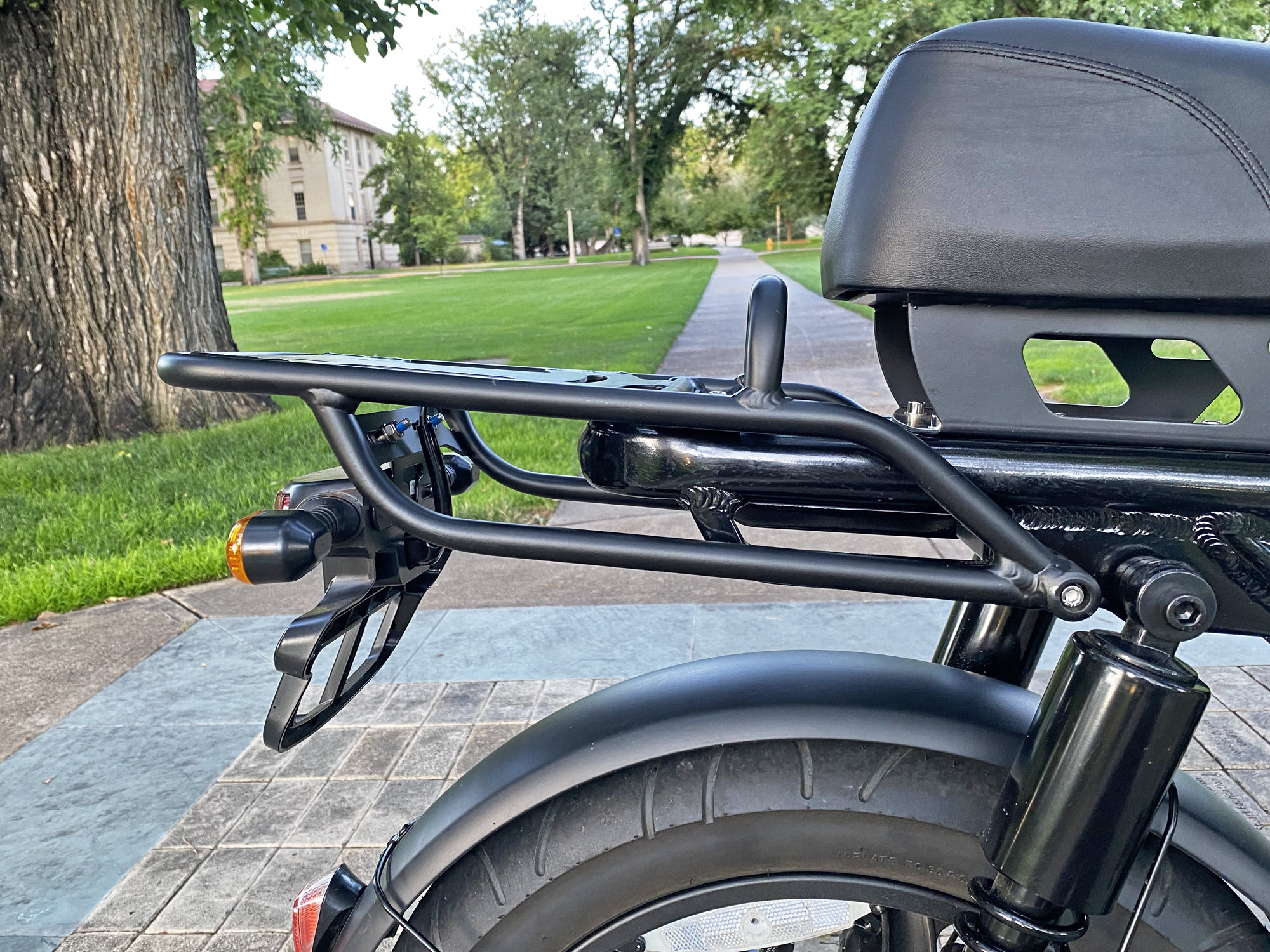

Fender Bosses, Rear Rack Bosses, Bottle Cage Bosses
Gearing Details:
8

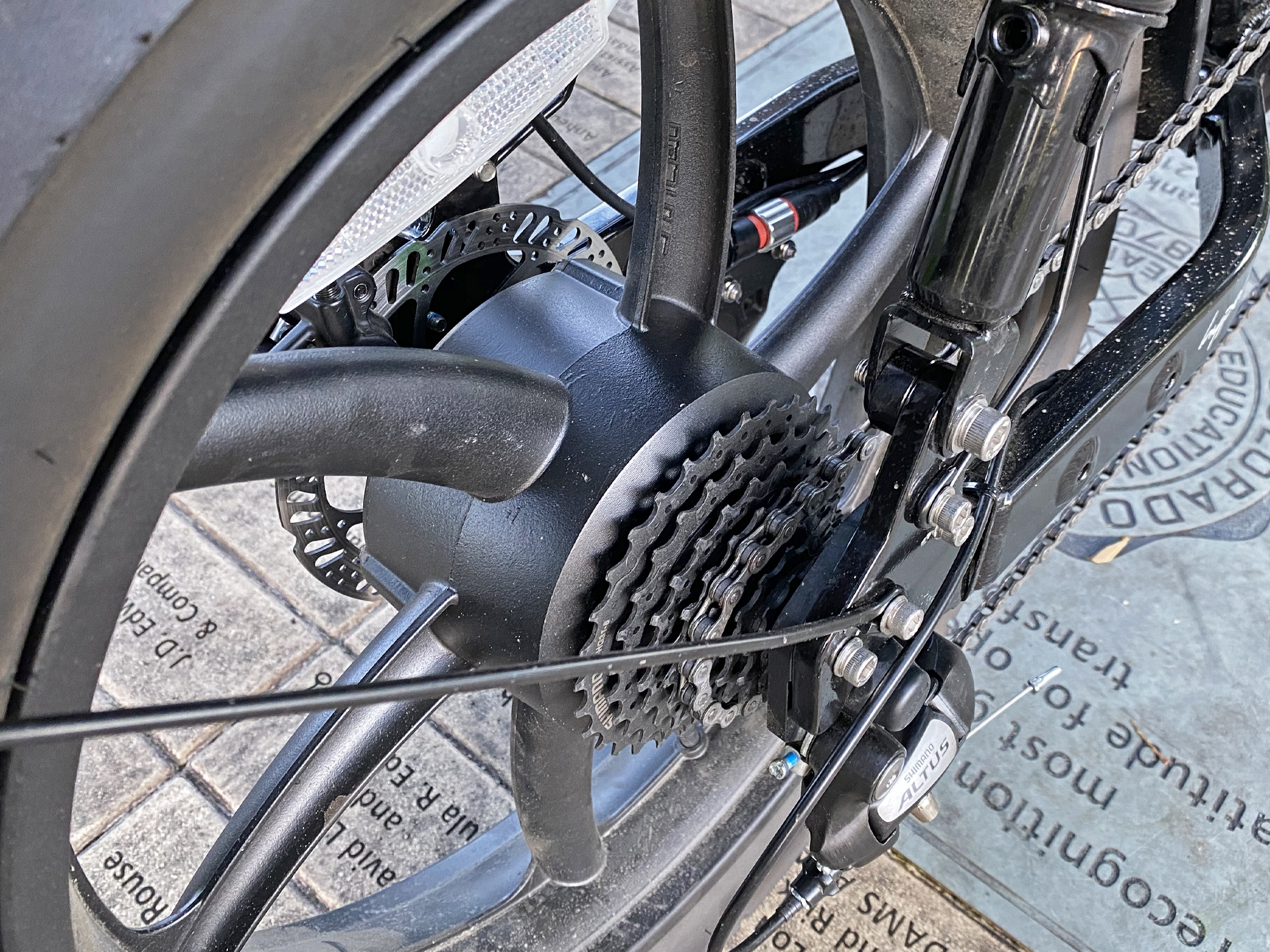

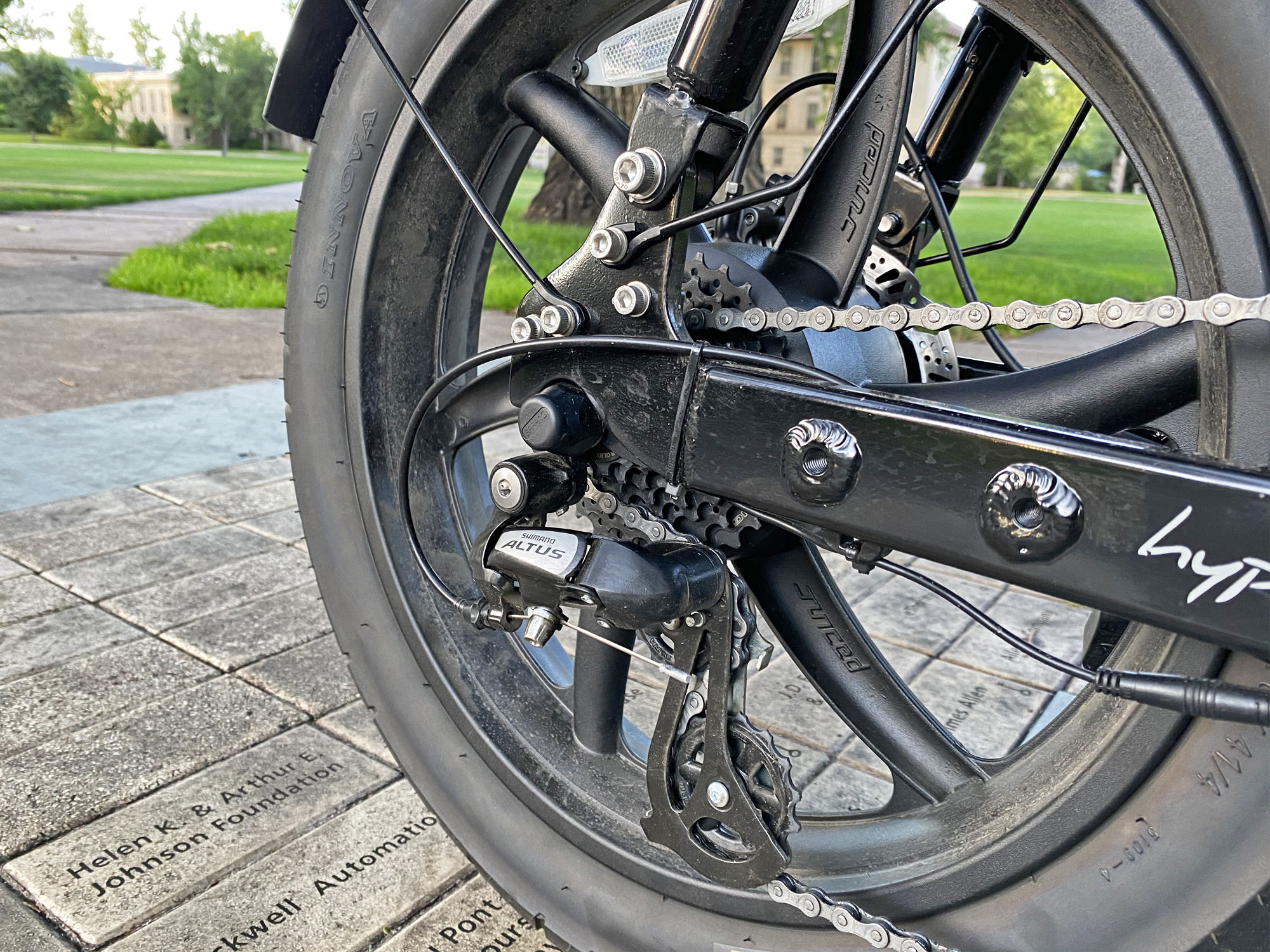

Speed 1x8 Shimano Altus Derailleur, Shimano Hyperglide HG CS-HG31-8 11-32 Tooth CassetteShifter Details:
Shimano RevoShift Half-Grip Twist Shifter on Left
Cranks:

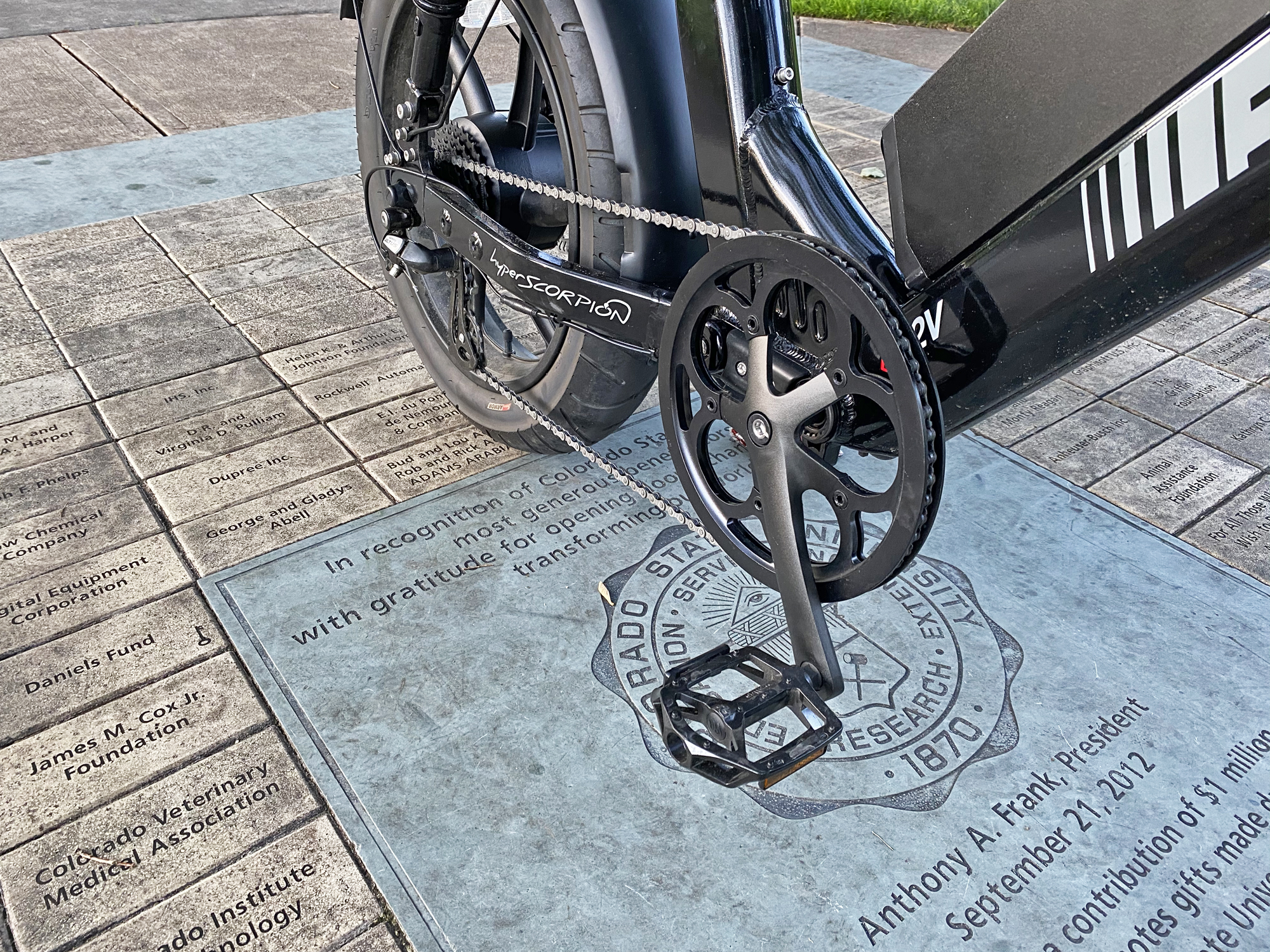

Forged Aluminum Alloy, 170mm Length, 56 Tooth Steel Chainring with Double-Sided Alloy Bash Guard
Pedals:
Wellgo Aluminum Alloy Platform with Reflectors, Black
Headset:
Semi-Integrated, Neco Threadless, 1-1/8" Straight
Stem:
Aluminum Alloy, 44mm Length, 31.8mm Clamp, One Tapered 6mm Base Spacer, 18mm Triple Clamp, One 10mm Spacer

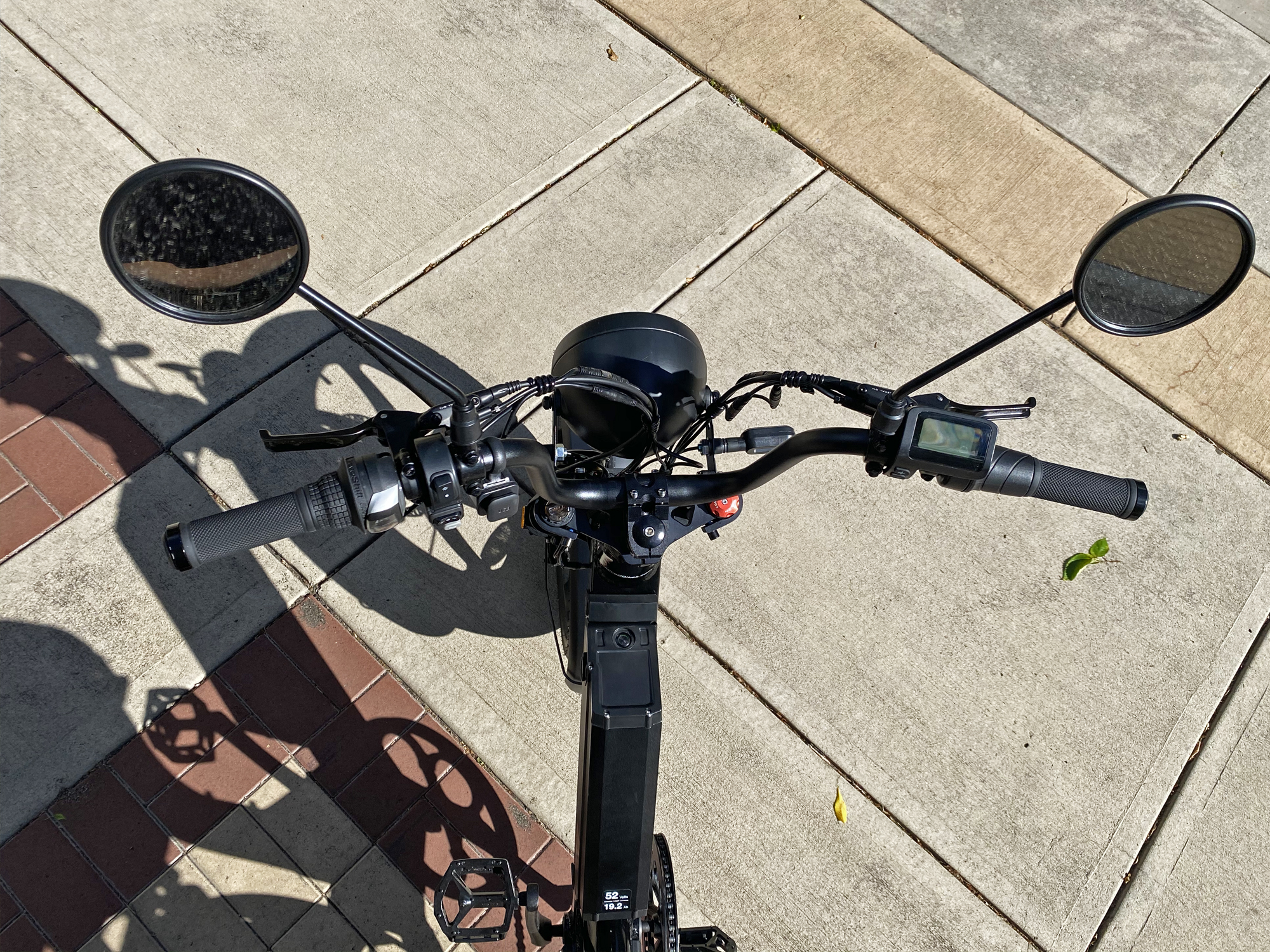

Handlebar:
High Rise, Aluminum Alloy, 220mm Rise, 730mm Length
Brake Details:

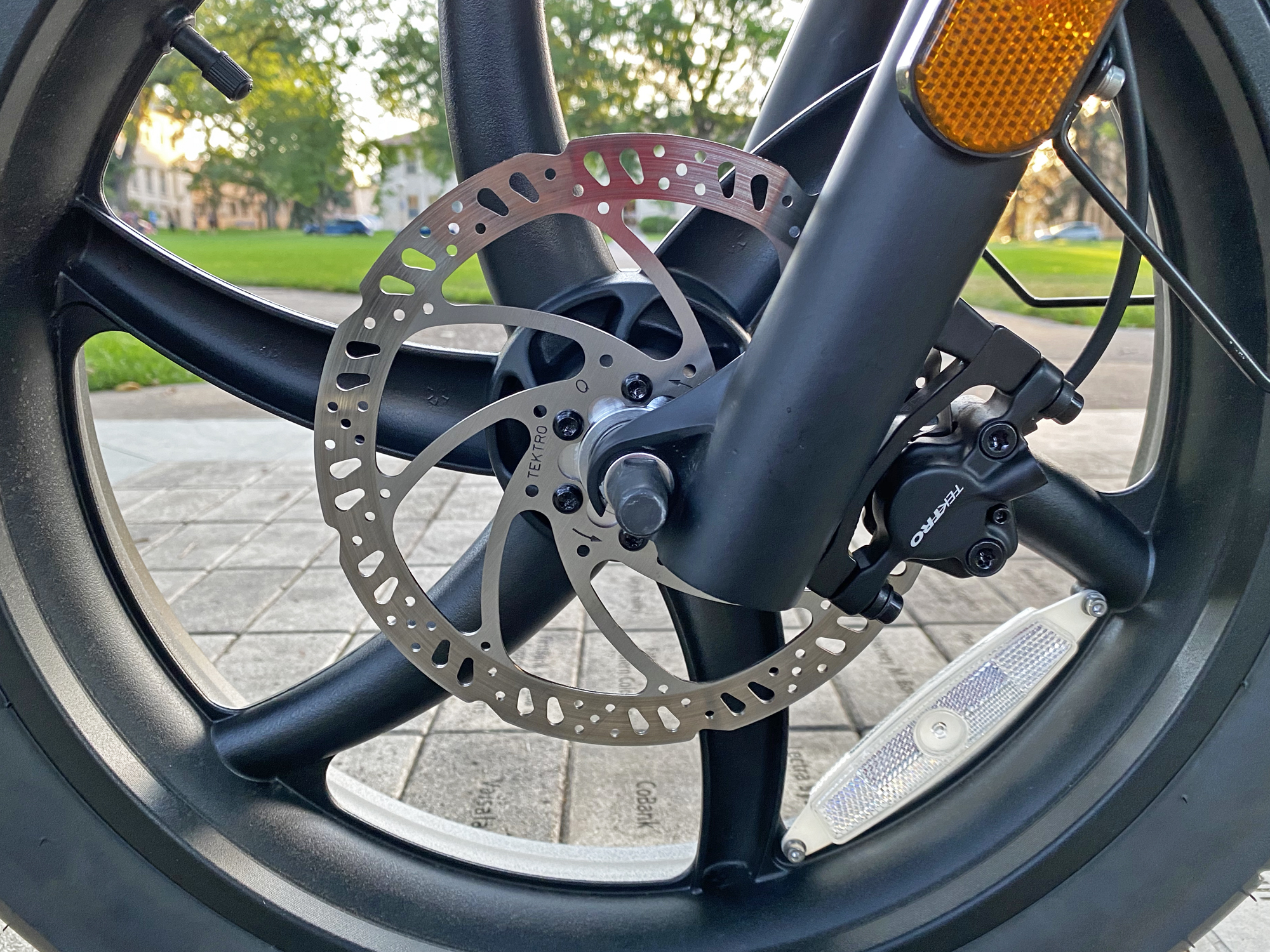

Tektro HD-E350 Hydraulic Disc with 180mm Front Rotor and 160mm Rear Rotor, Three-Finger Tektro Levers with Motor Inhibitors and Adjustable Reach
Grips:
Rubberized, Locking, Black
Saddle:

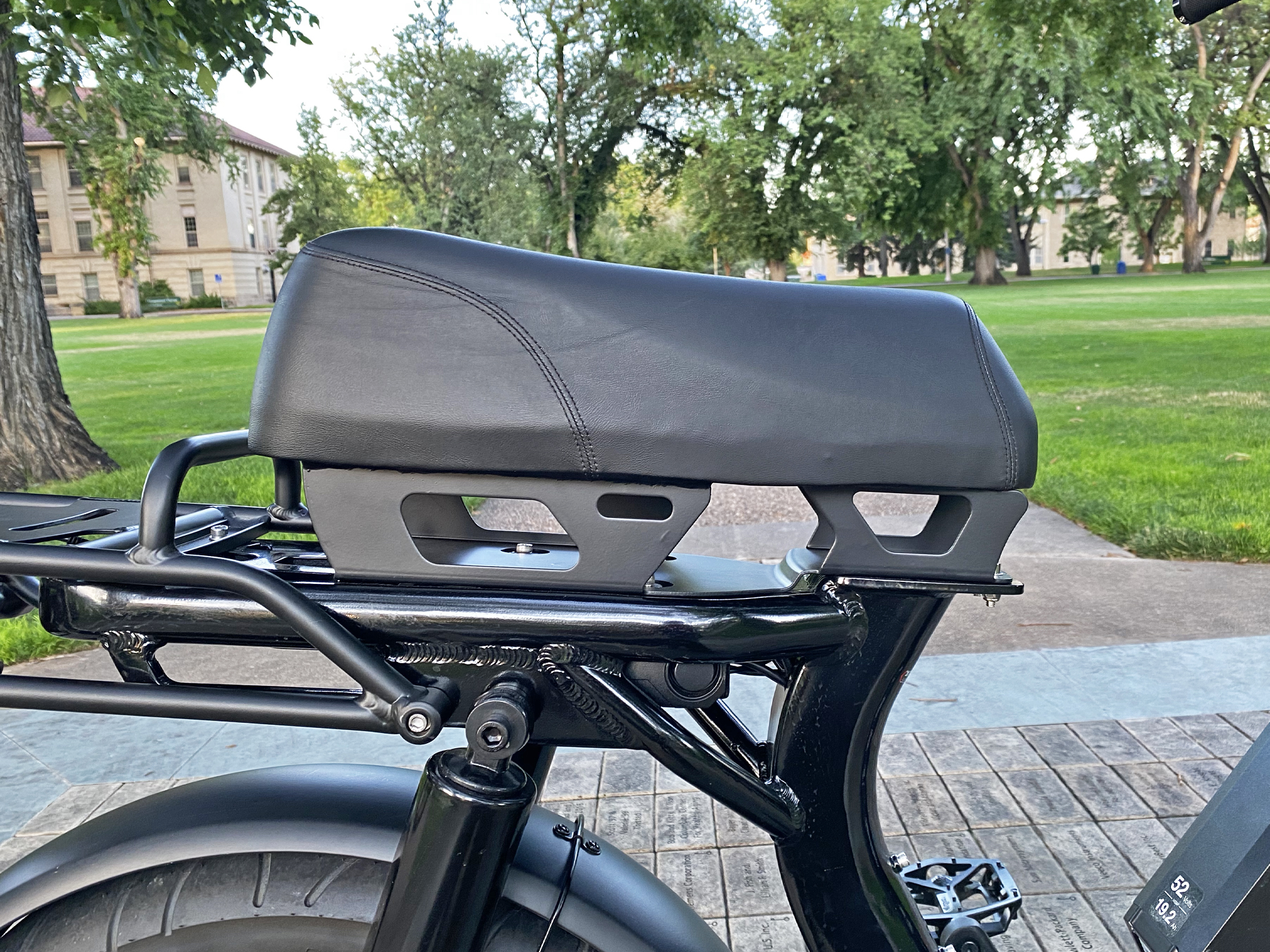

Padded Banana Seat, 430cm Length, 370cm Seating Area Length, 115cm Thick, 175cm Width
Rims:
Aluminum Alloy, Double Wall, 90mm Outer Width
Spokes:

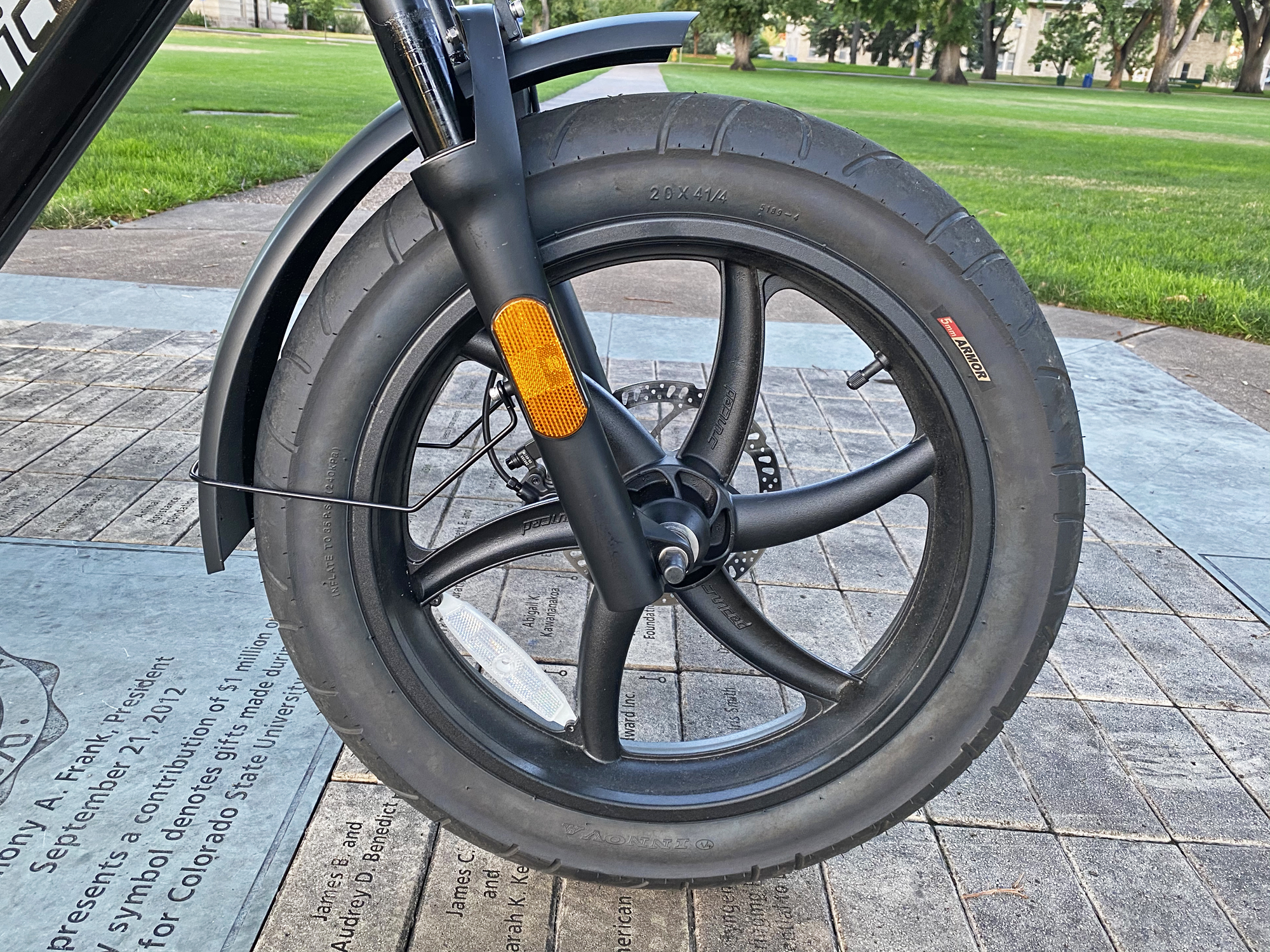

Cast Alloy, Six Arms, Single Reflector
Tire Brand:
Innova, 20" x 4.25" (406)
Wheel Sizes:
20 in (50.8cm)Tire Details:
5 to 35 PSI, 0.4 to 2.4 BAR, 30 TPI, 5mm ARMOR Puncture Protection
Tube Details:
Schrader Valve
Accessories:

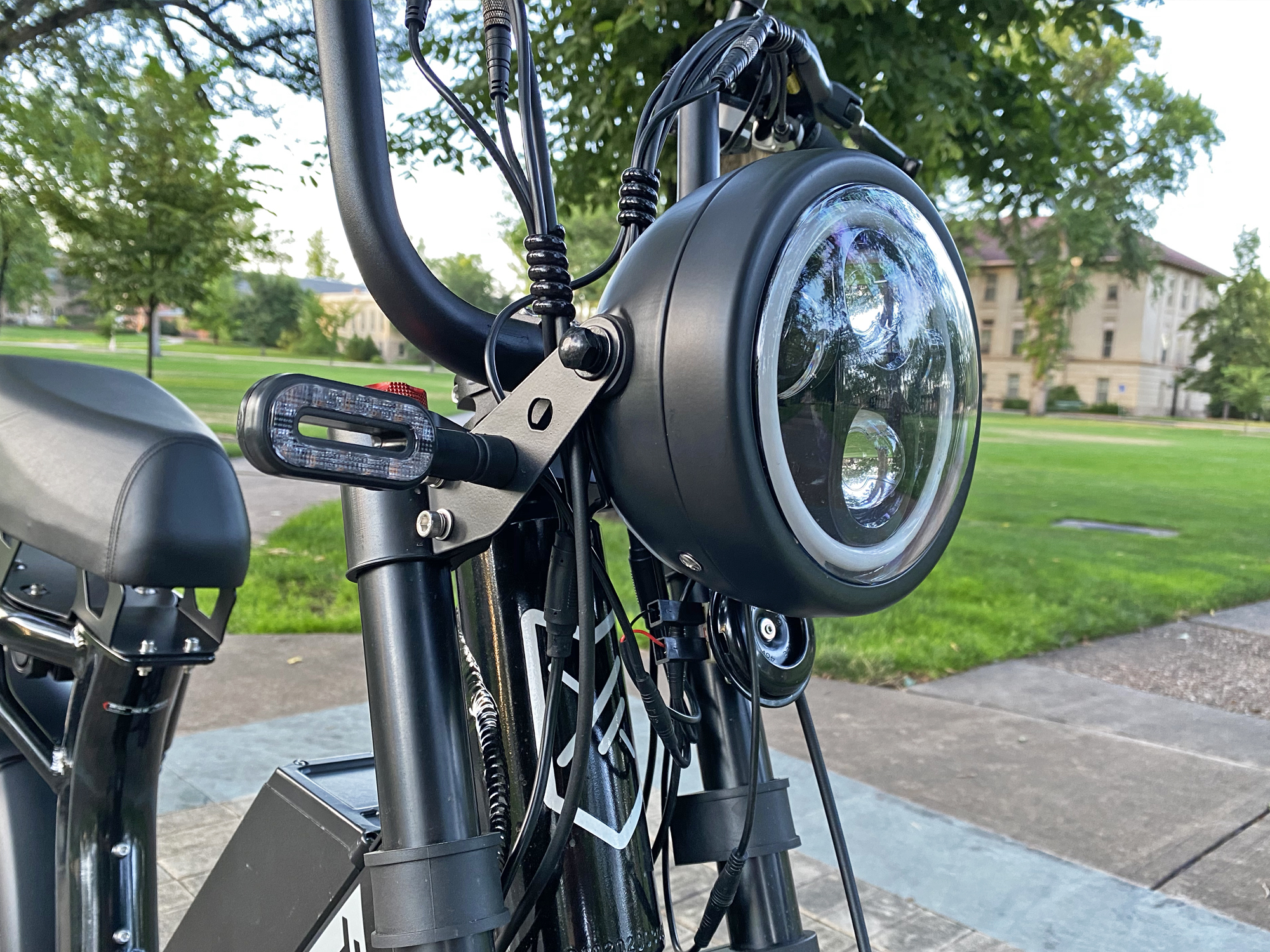

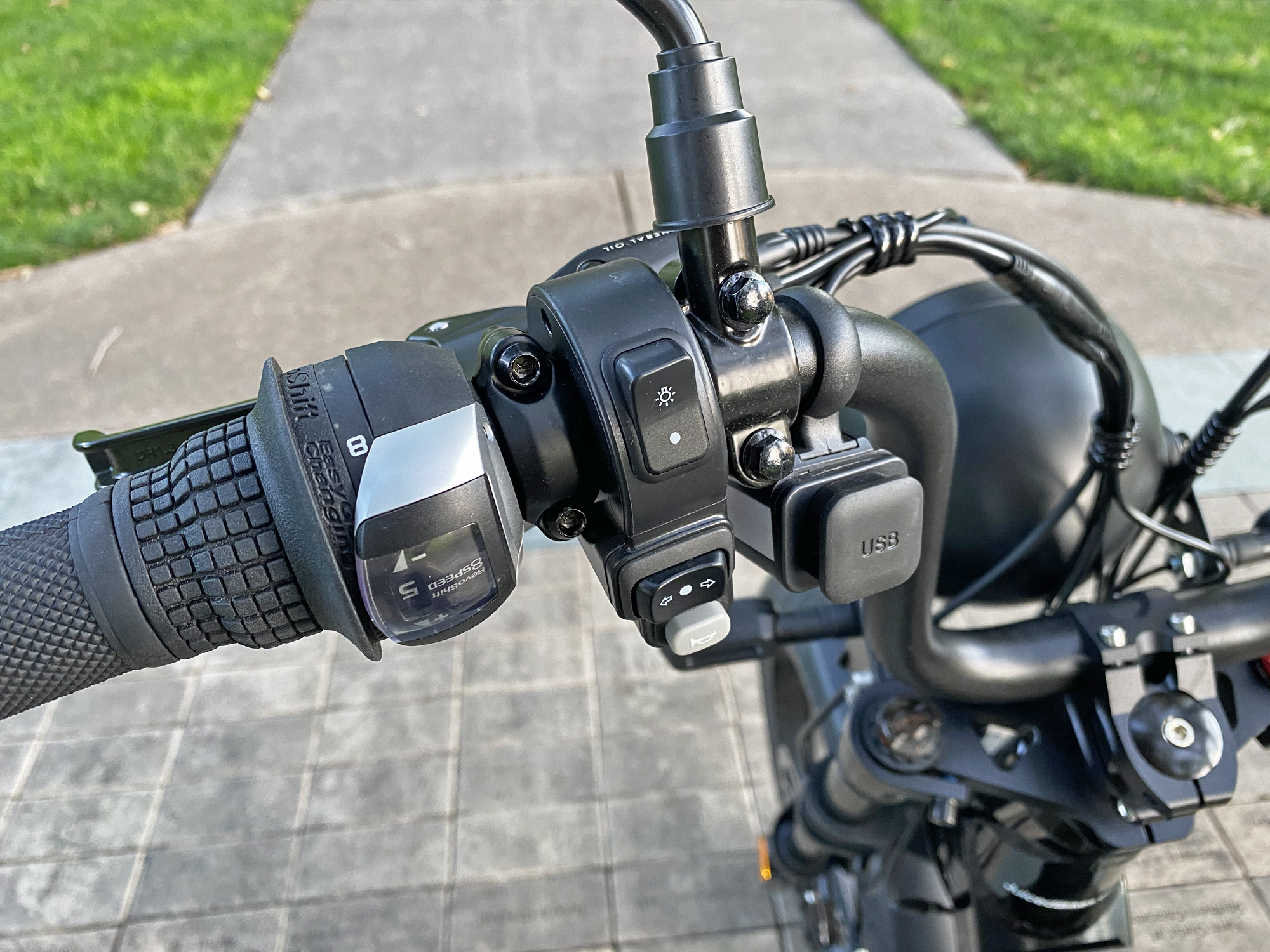

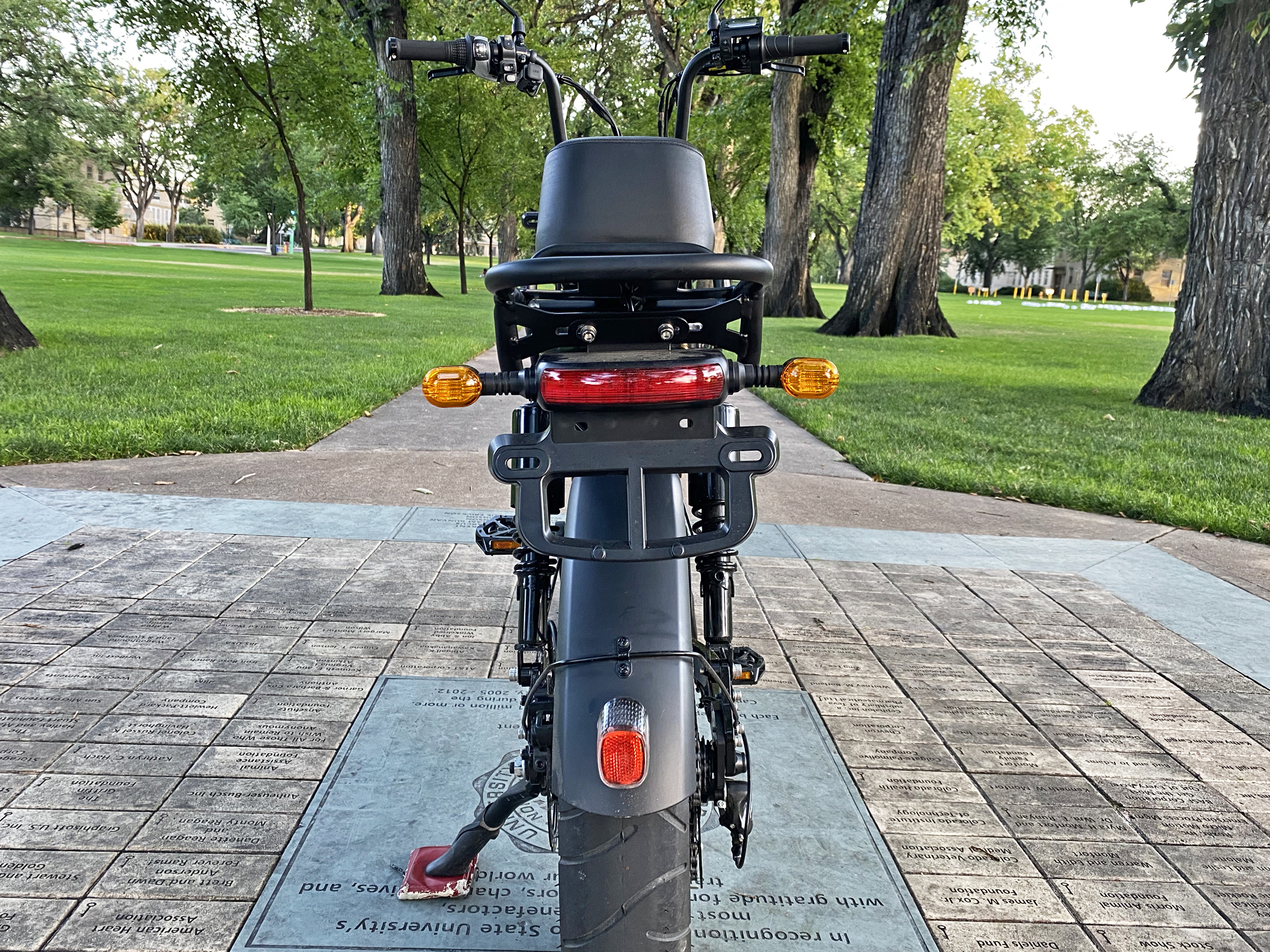

Rear-Mount Adjustable Kickstand, Integrated LED Headlight Ring, 2000 Lumen High Beam, Integrated LED Taillight with Brake Activation, Assembly Toolkit, Integrated Horn, Aluminum Alloy Fenders (110mm Width), Integrated Turn Signals, Adjustable Mirrors (Handlebar-Mounted, 16cm Height), Lights and Horn Control Pad on Left, USB Type A Charge Port on Left Grip, Remote Activated Alarm System, Tall Seat Riser (2.6" Seat Height Increase)
Other:

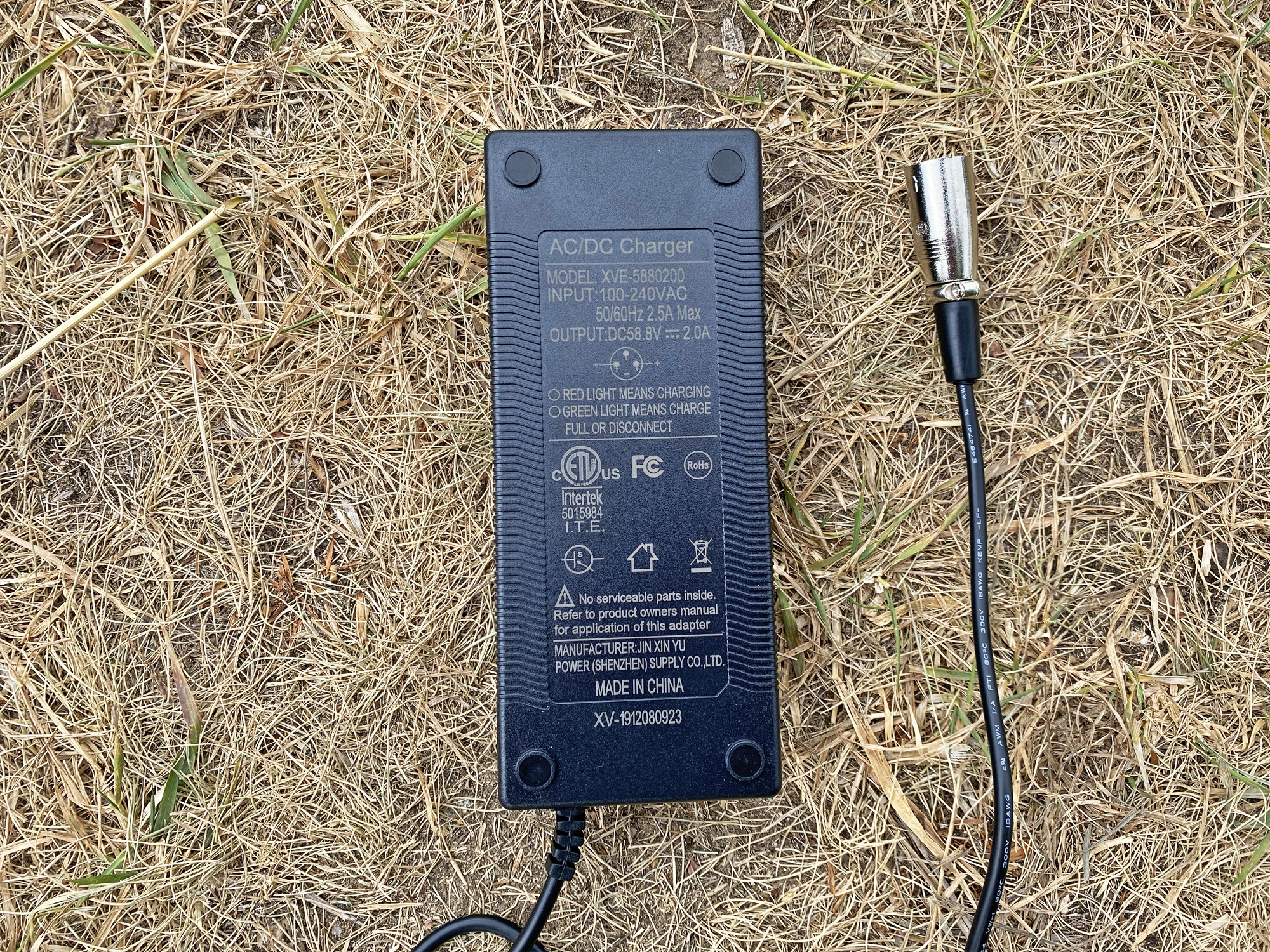

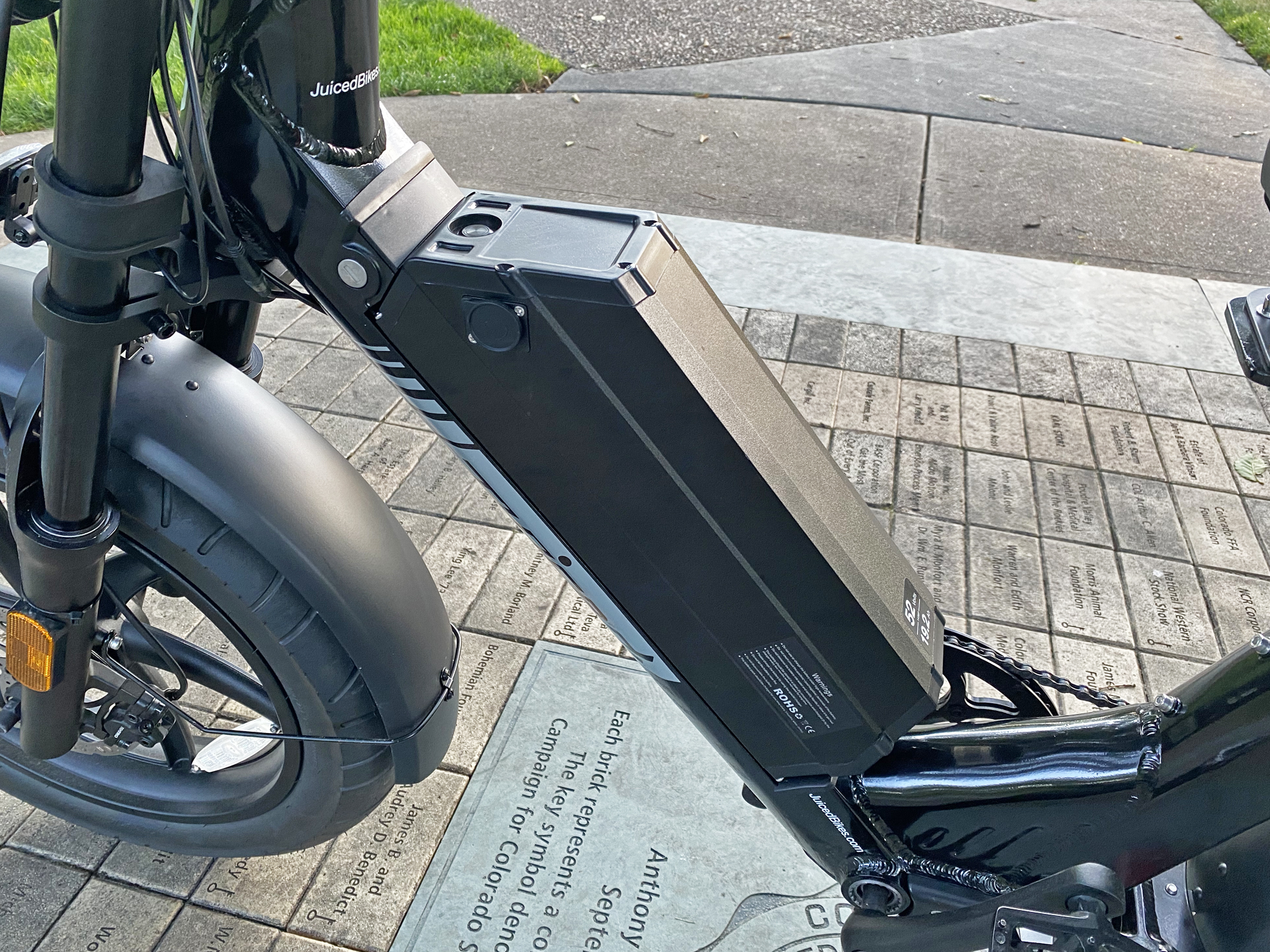

Locking Removable Downtube-Mounted Battery Pack, 1.4lb 2 Amp Charger, 25 Amp Controller, 275lb Maximum Weight Rating
Eoban
4 years agoSo, do these have VIN plates and a manufacturer’s certificate of origin? If so, I’m sure it would be no problem to register it as a moped. But if it doesn’t have that, I don’t see how you could get it registered since it wouldn’t be a motor vehicle.
ReplyTyson Roehrkasse
4 years agoHey EOBAN, thanks for your comment! You are correct… without VIN or MCO, it’s not possible to register it as a moped. I went back and forth with the Colorado DMV and they said the same thing. This is interesting to me… it leaves the HyperScorpion in the same category as some of the other high-power ebikes out there, such as some of Luna Cycles models. Too fast and powerful to fit into the Class 1/2/3 system for ebikes, yet you can’t register it as a scooter. Ebike regulations have always been woefully behind-the-times compared to the technology and products available, I think the HyperScorpion really highlights the problem.
ReplyWheeledLife
3 years agoMy Hyper has a yellow sticker applied by the Juiced Bikes that reads… “This is a Class-2 Electric Bike. Top speed: 20mph 750W.” That’s the way it was set up when I got it, and the Race Mode was not enabled. Shouldn’t that be enough support for any regulatory challenge in any state or municipality? Yes I did enable the Race Mode but my manufacturer’s label doesn’t show that.
Scott
2 years agoHey Tyson, did you ever get that registration issue sorted out with your HyperScorpion in Colorado? I’m also in Colorado and have a HyperScorpion on order… I’m pretty sure it will come setup as a class 2 from the factory but it’s a 1000w bike so not really sure. Any info is appreciated, thanks!
Mark R Dennes
3 years agoI’ve gone through 5 Scorpion X controllers! They burn out after 10 miles and I was wondering if anybody knew of a compatible Controller manufactured by a reliable company? Thanks PS. Love the frame and full suspension and the way the bike worked for a short period of time.
ReplyCourt
3 years agoOh man, that’s a lot! Maybe someone will chime in with some alternative or tips to help the controller last. Also, here’s the Juiced Bikes ebike forum where you could create a thread about this to get some more input ;)
ReplyKarl Asford
3 years agoDon’t believe the reviews on Juiced website. On facebook user groups, owners are reports lots of problems, particularly battery contacts burning out in normal use, an apparent design defect. I posted a review on the Juiced site and they refused to publish it, so it is obvious that only positive reviews are posted.
ReplyCourt
3 years agoThanks Karl, I’ve noticed that many brands sanitize their comments and reviews. My goal with EBR is to keep things open and transparent as long as they are communicated respectfully and tactfully. Feel free to comment here and in the Juiced Bikes Forums.
