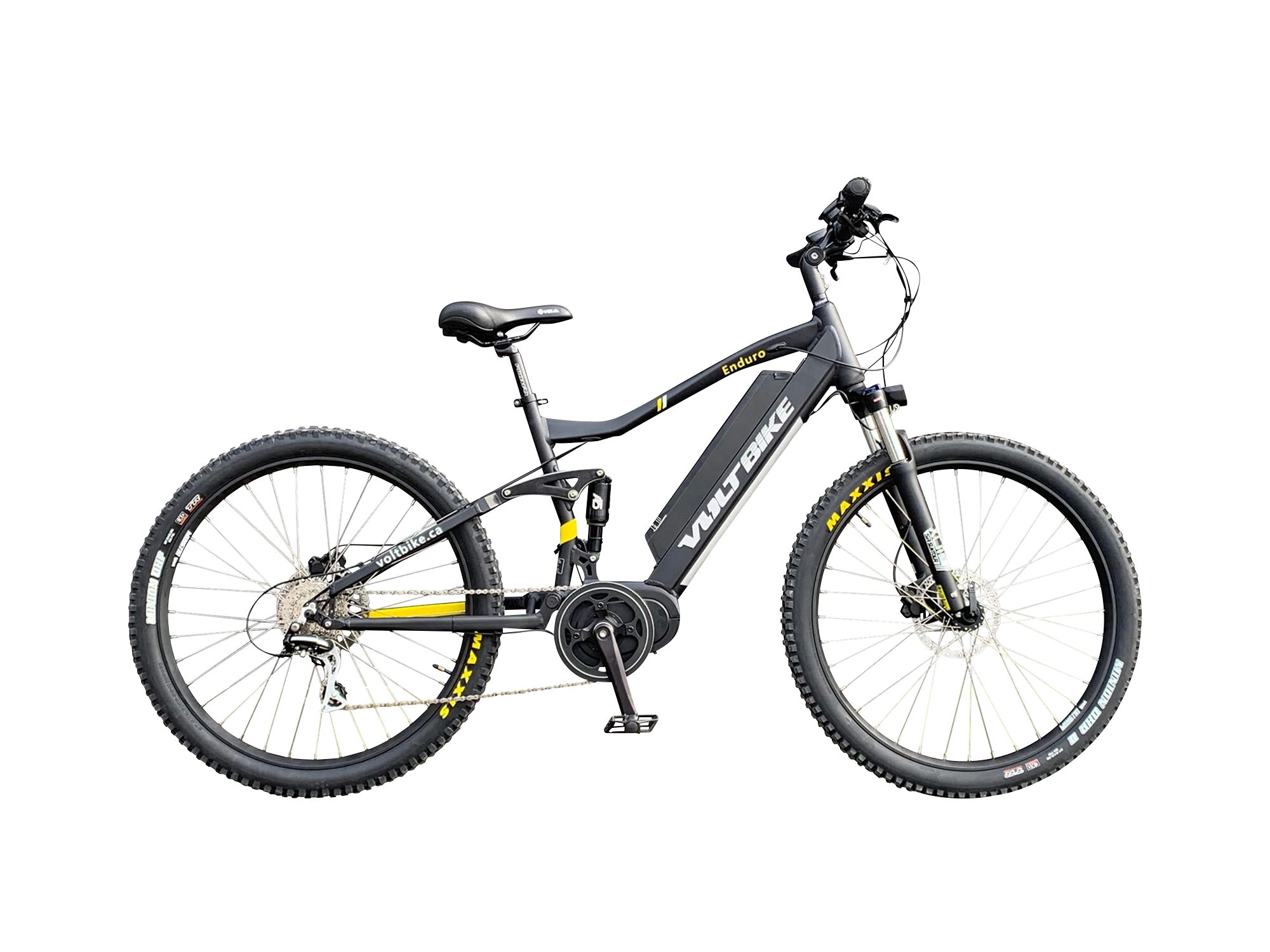

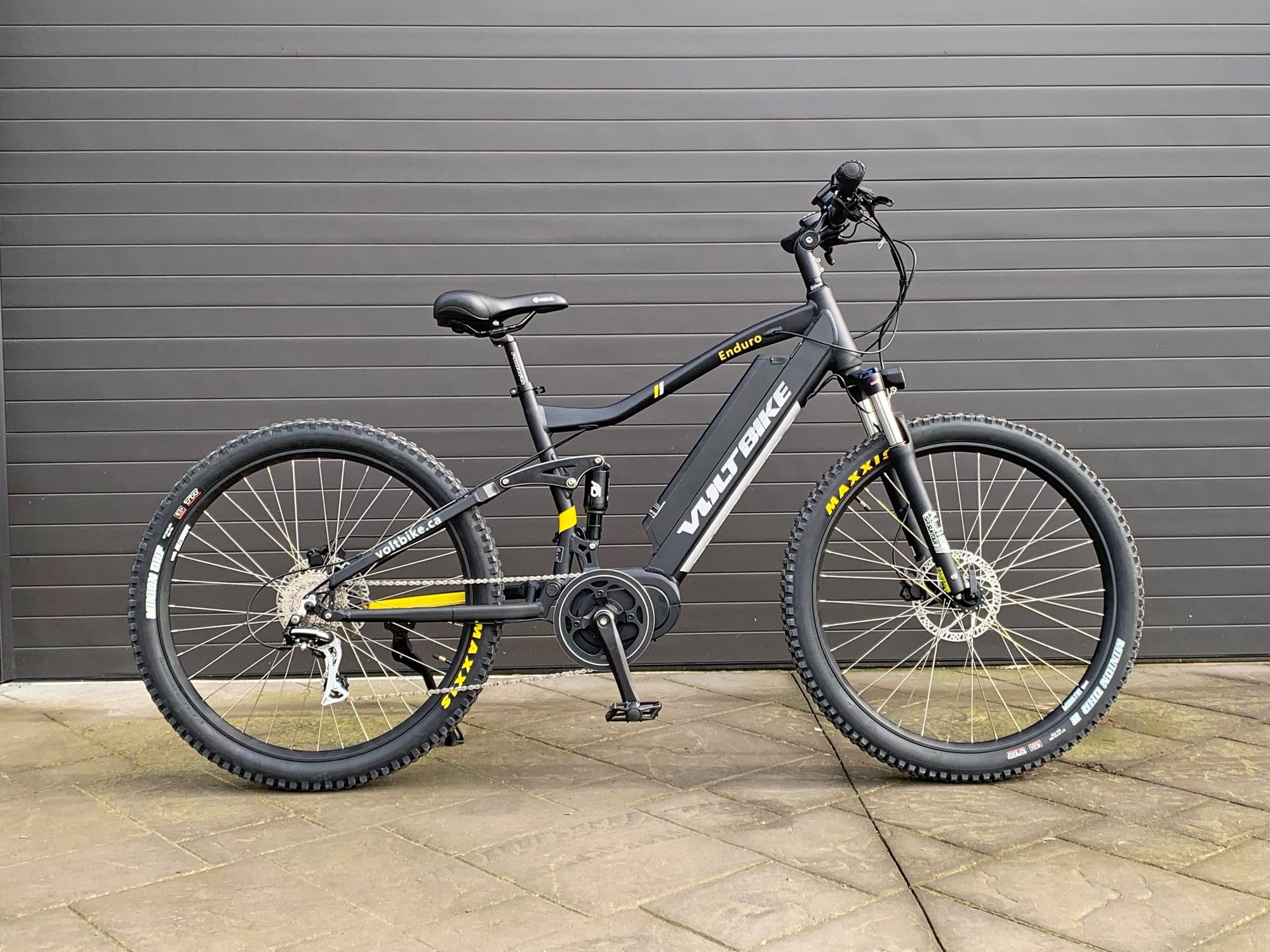

Voltbike Enduro Electric Bike Review
Voltbike Enduro

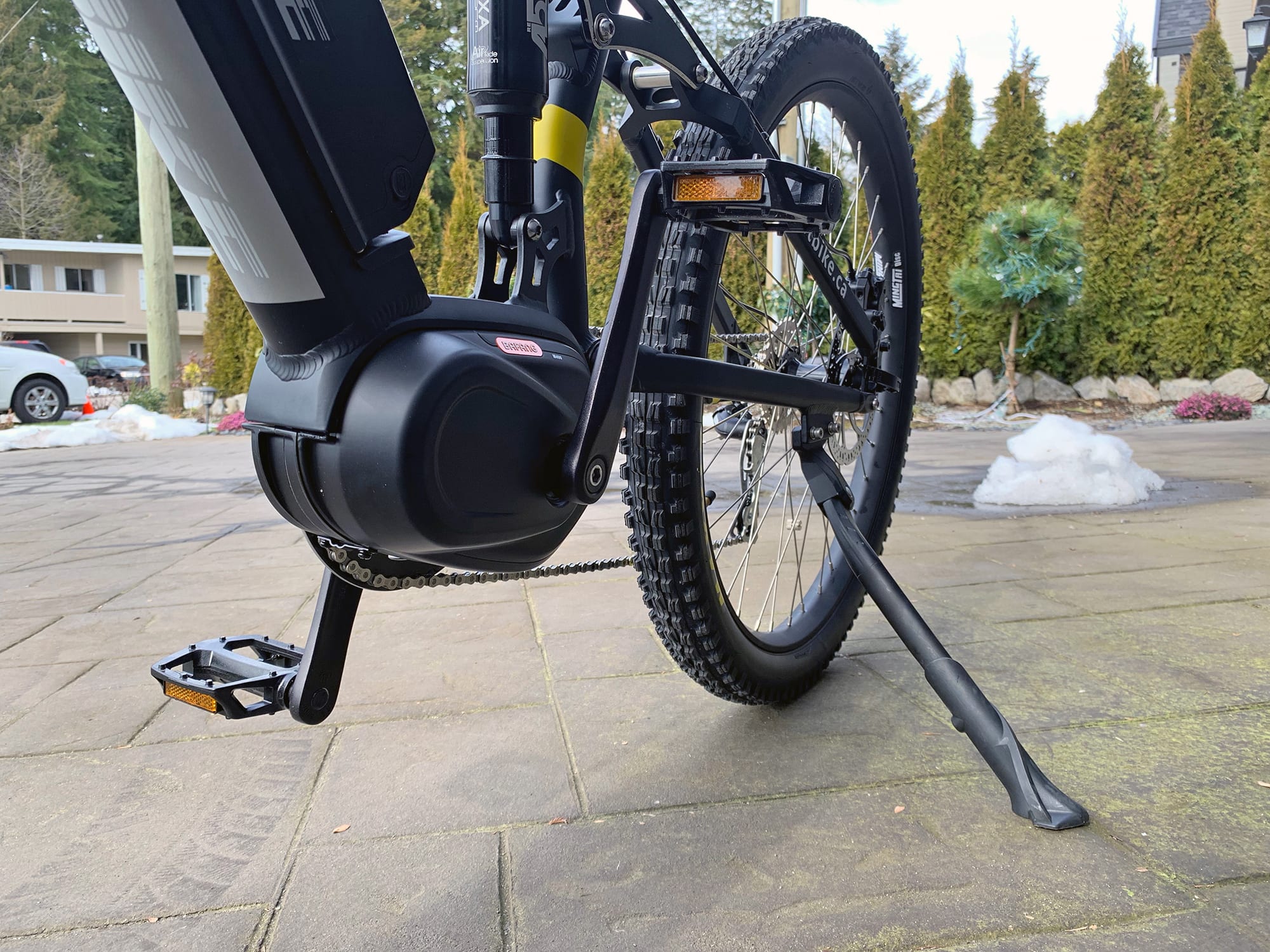

Voltbike Enduro Bafang Max Drive Mid Motor 350 Watts
Voltbike Enduro Sanyo Battery Pack 48 Volt 10 4
Voltbike Enduro Selle Royal Ergonomic Grips Bell Shifters

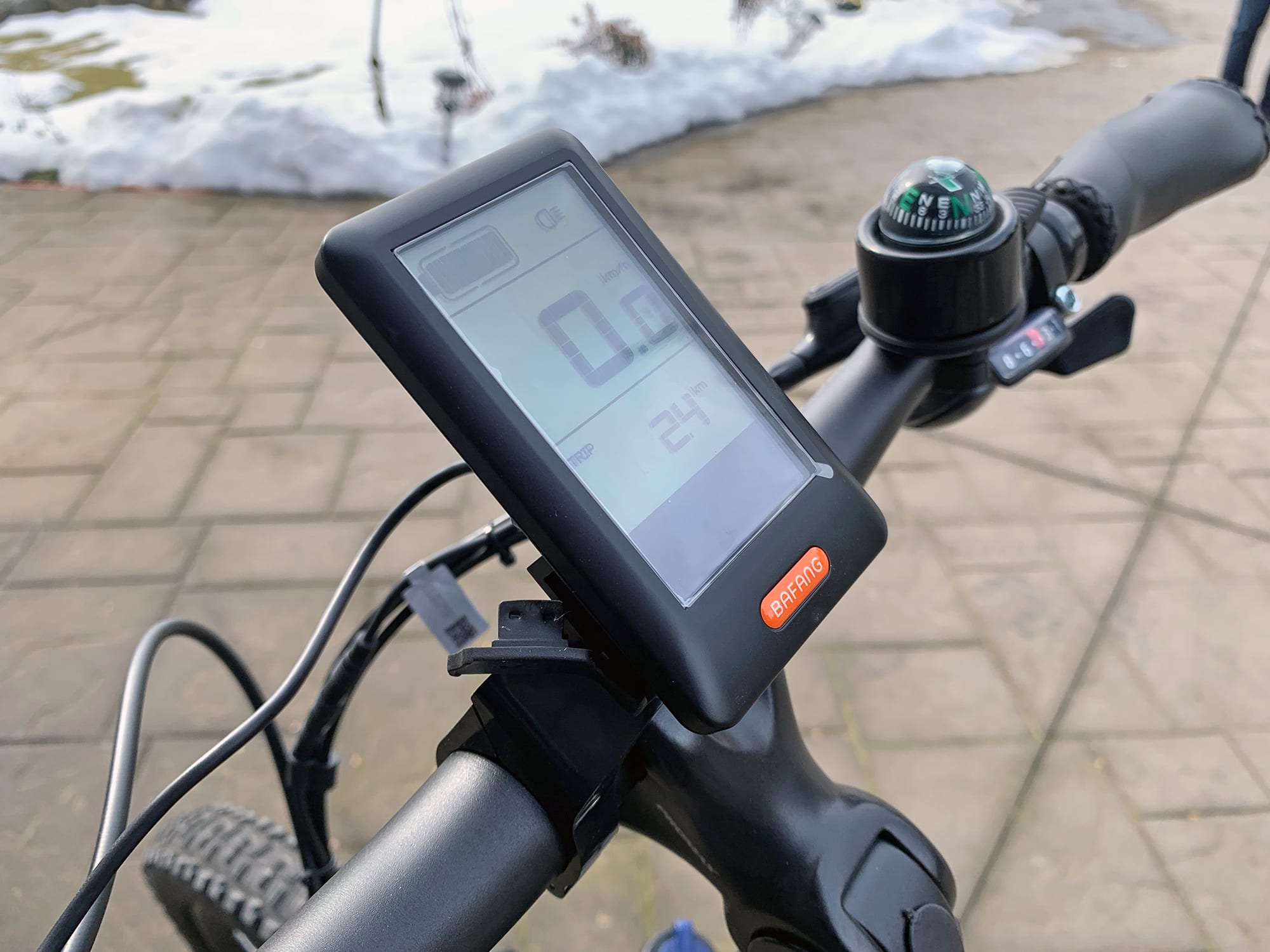

Voltbike Enduro Bafang Hmi Dpc10 Display Panel
Voltbike Enduro Sr Suntour Xct Coil Spring Suspension
Voltbike Enduro Selle Royal Freccia Saddle
Voltbike Enduro Adjustable Length Kickstand

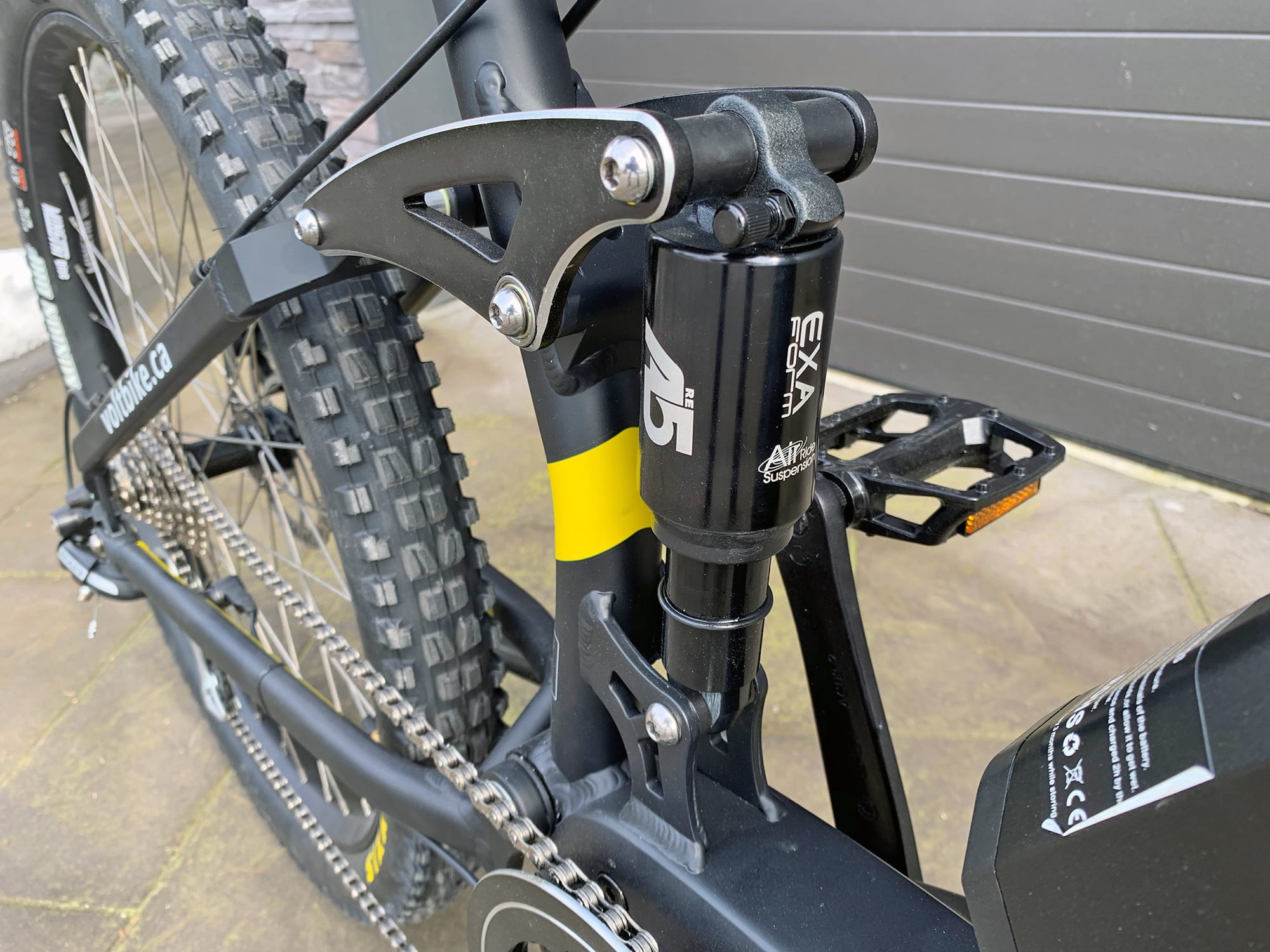

Voltbike Enduro Exa Form Air Suspension Rear Swing Arm
Voltbike Enduro 8 Speed Shimano Acera Drivetrain
Voltbike Enduro Voltbike Enduro Vs Specialized Stumpjumper
Voltbike Enduro Shipping Bubble Wrap
Voltbike Enduro Styrofoam Box Great Packing
Voltbike Enduro 2 Amp 1 Lb Charger
Voltbike Enduro Electric Bike Review
Voltbike Enduro
Voltbike Enduro Bafang Max Drive Mid Motor 350 Watts

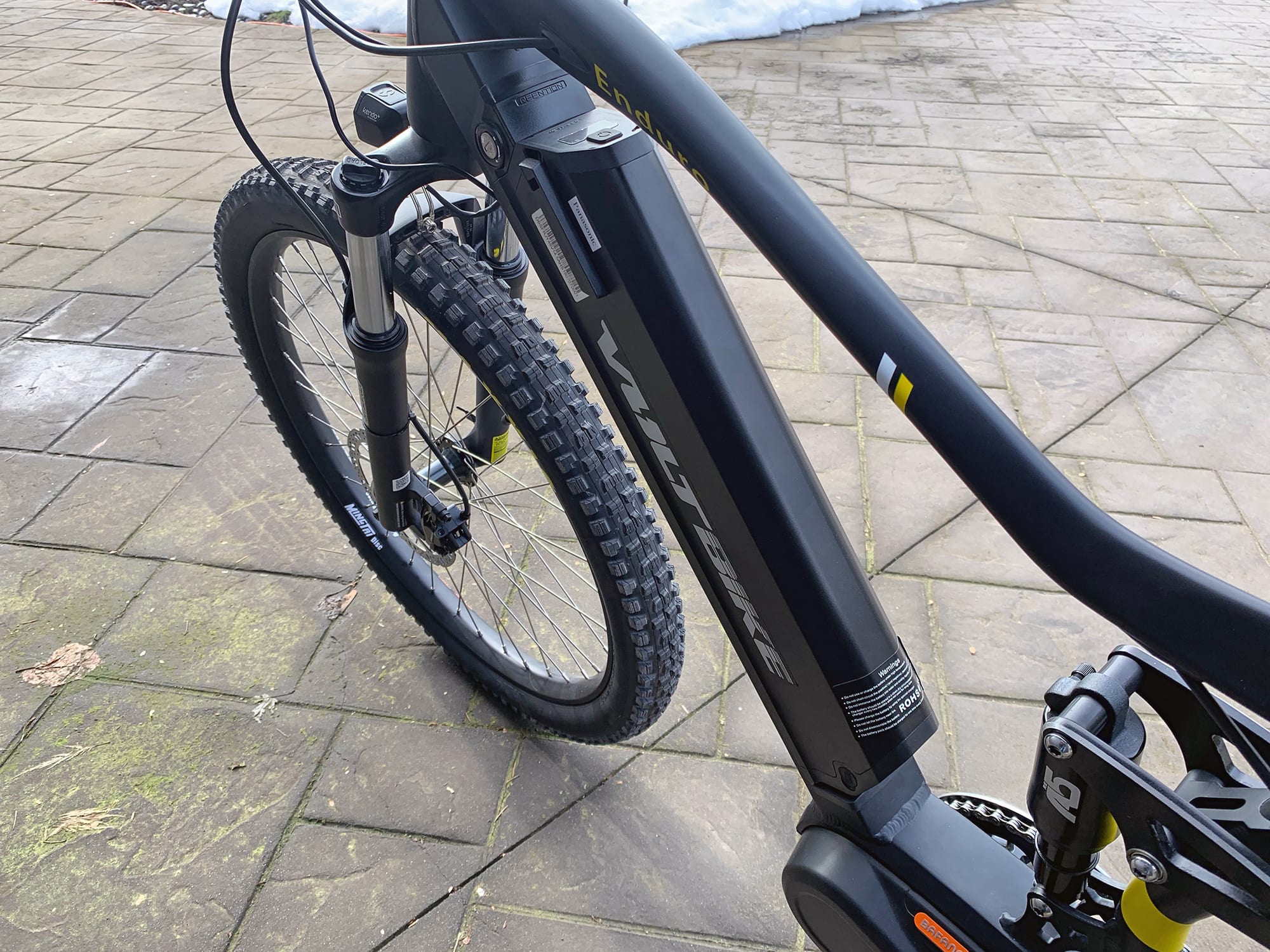

Voltbike Enduro Sanyo Battery Pack 48 Volt 10 4

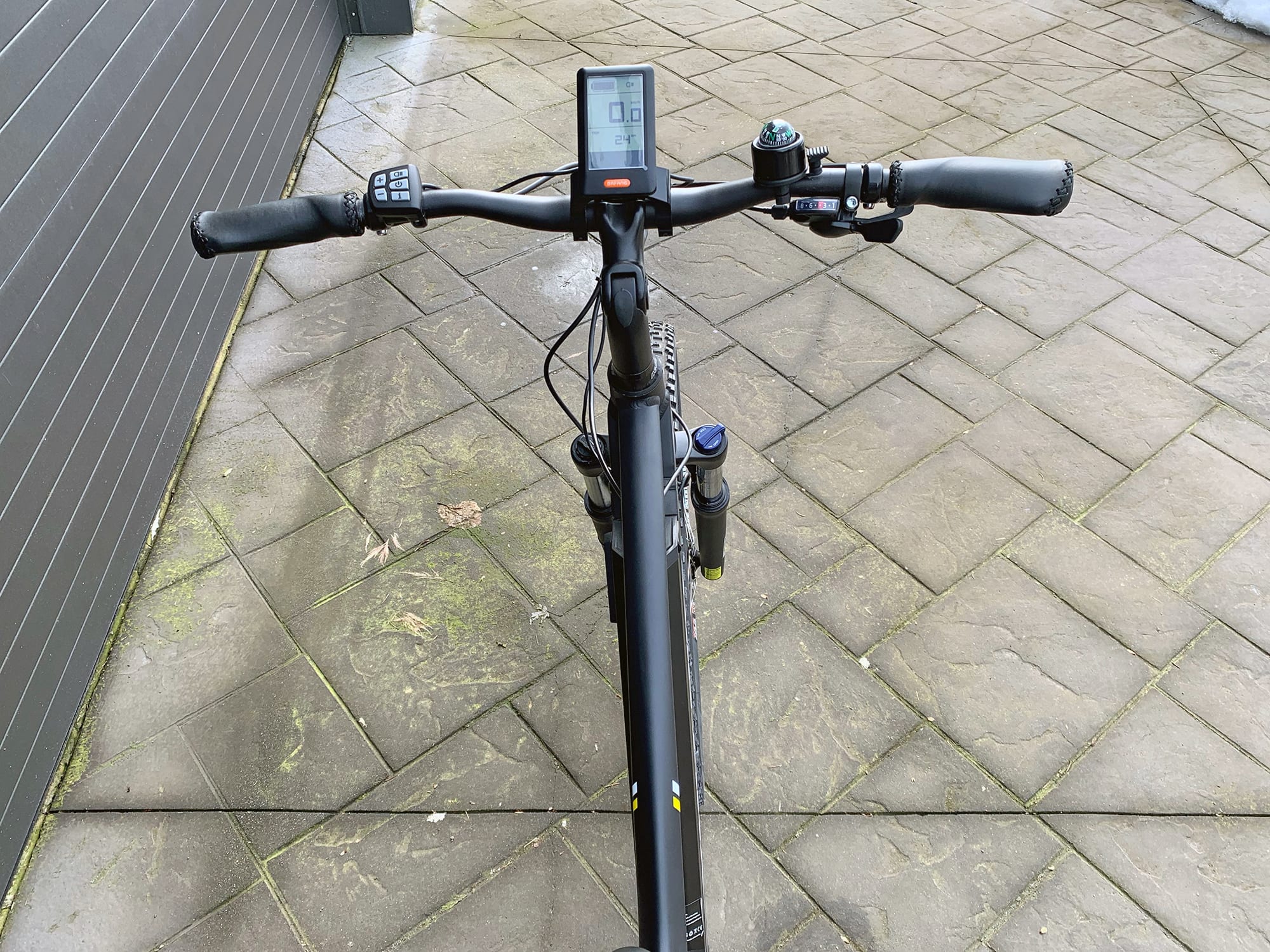

Voltbike Enduro Selle Royal Ergonomic Grips Bell Shifters

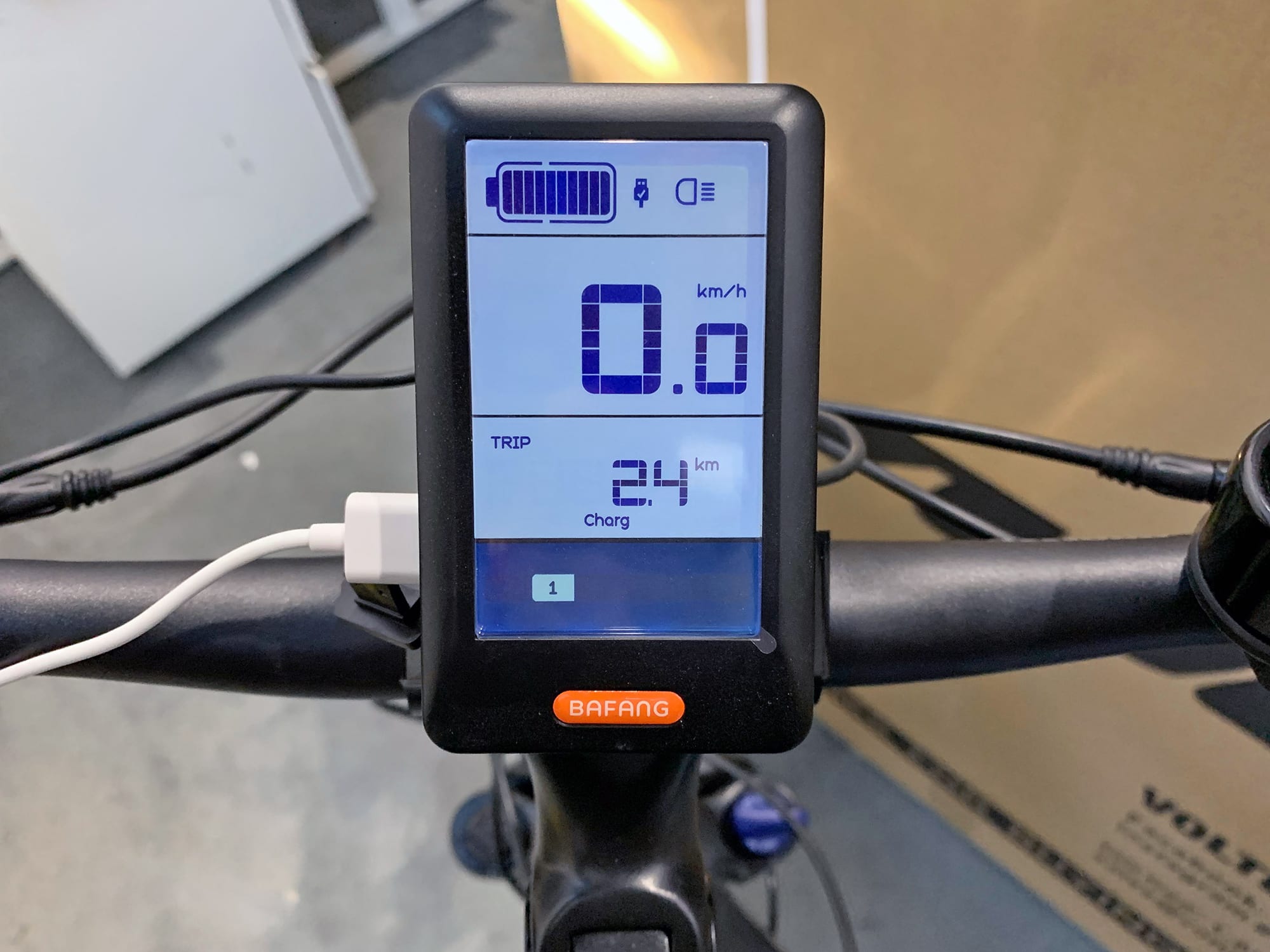

Voltbike Enduro Bafang Hmi Dpc10 Display Panel
Voltbike Enduro Sr Suntour Xct Coil Spring Suspension
Voltbike Enduro Selle Royal Freccia Saddle

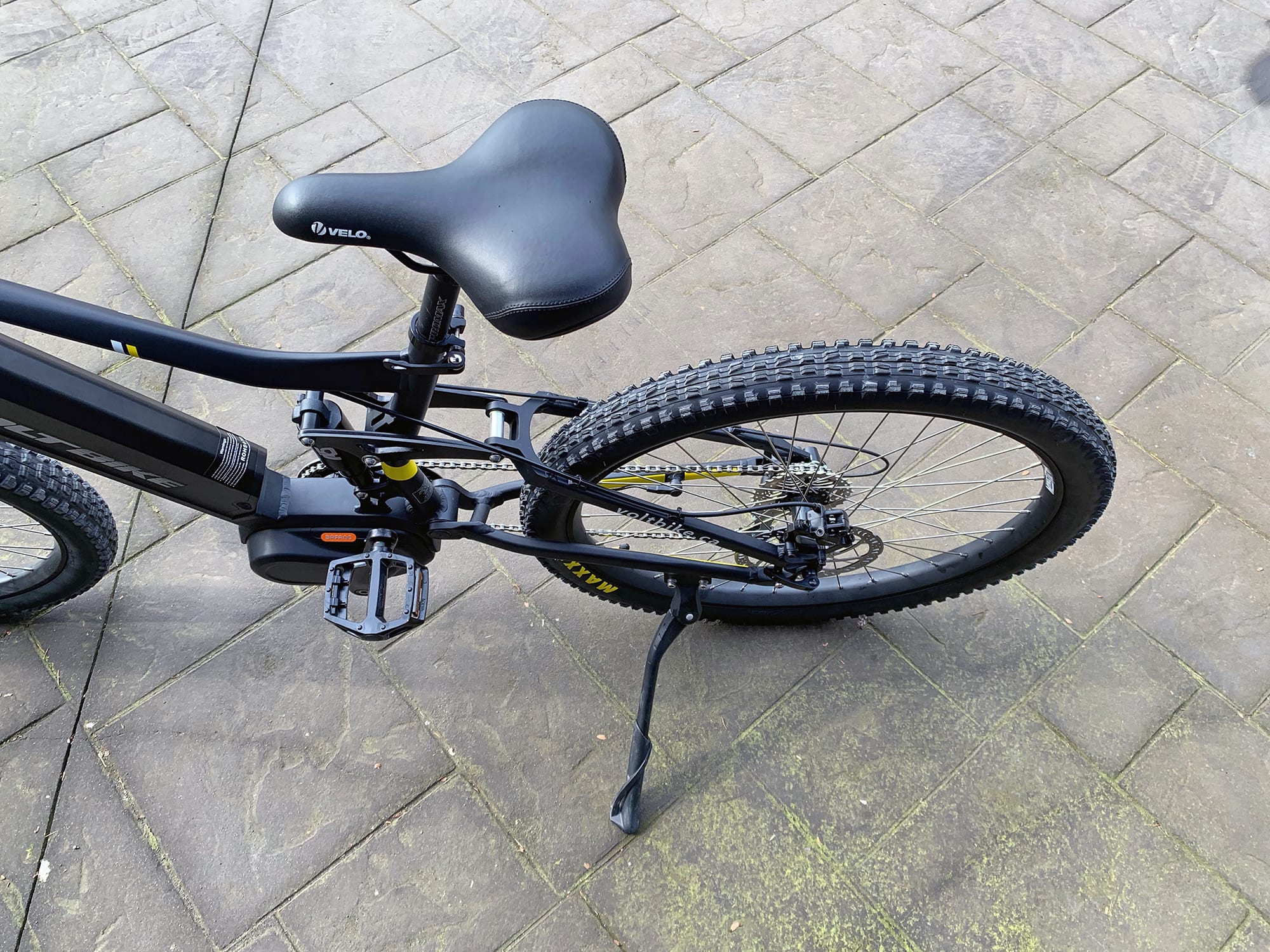

Voltbike Enduro Adjustable Length Kickstand
Voltbike Enduro Exa Form Air Suspension Rear Swing Arm

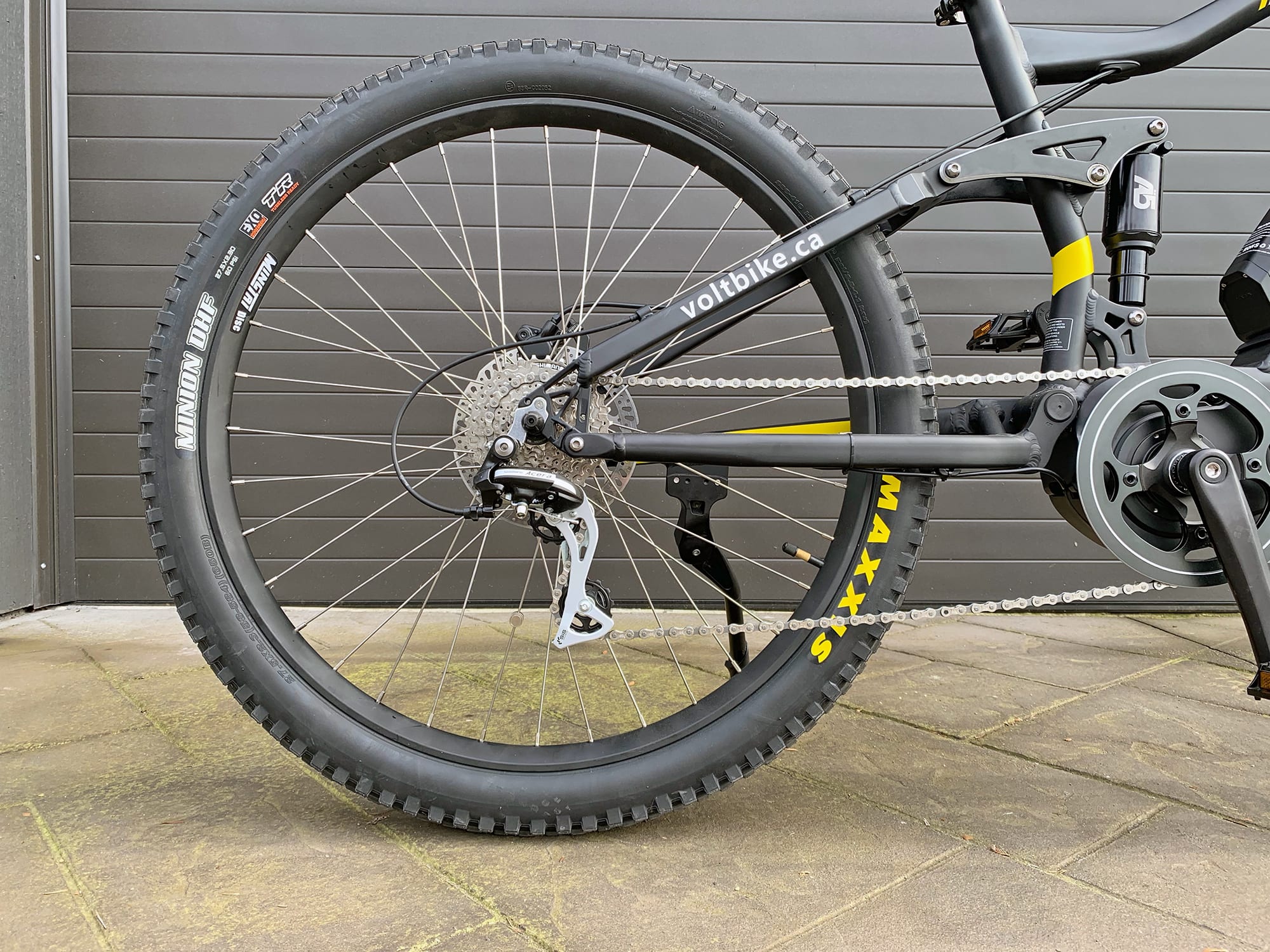

Voltbike Enduro 8 Speed Shimano Acera Drivetrain
Voltbike Enduro Voltbike Enduro Vs Specialized Stumpjumper
Voltbike Enduro Shipping Bubble Wrap
Voltbike Enduro Styrofoam Box Great Packing

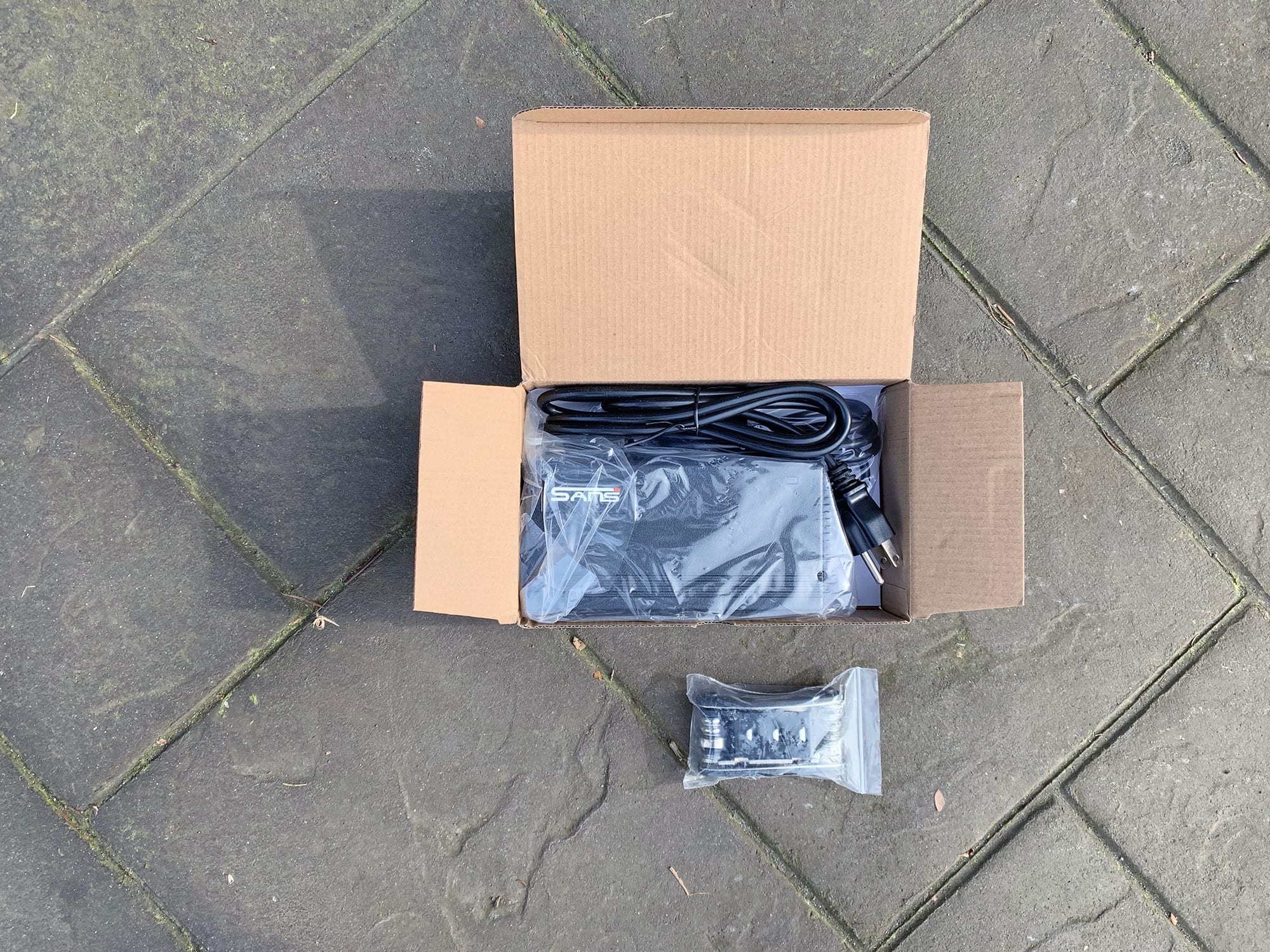

Voltbike Enduro 2 Amp 1 Lb Charger

Summary

  • An affordable full suspension trail bike with quiet, but powerful, mid-drive motor and integrated downtube battery pack, full-sized USB charging port on battery, adjustable top speed

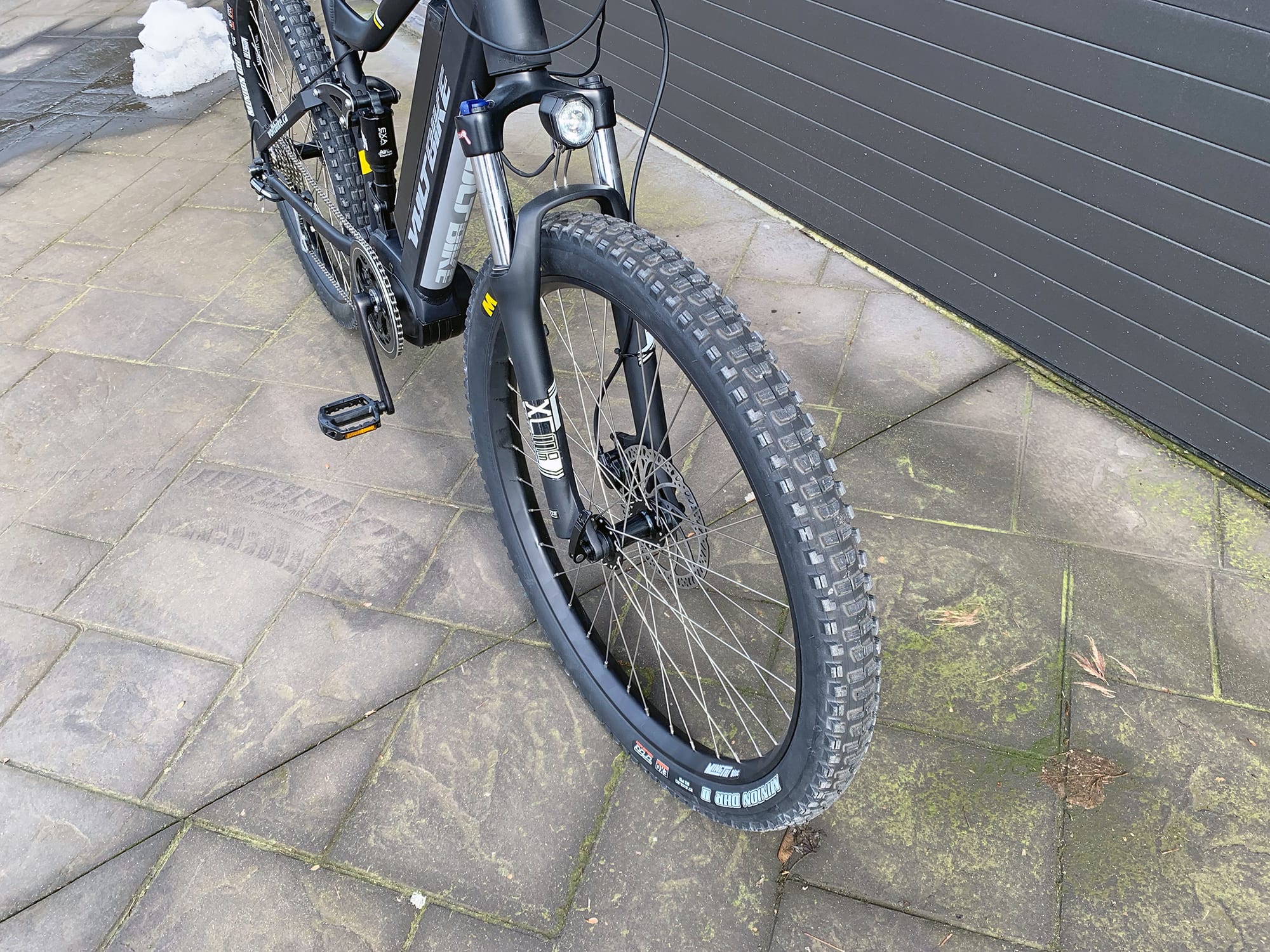

  • Integrated LED headlight, backlit LCD display panel, and standard reflectors for urban riding, high-pressure tires with low-profile knobs work well on pavement or packed Earth

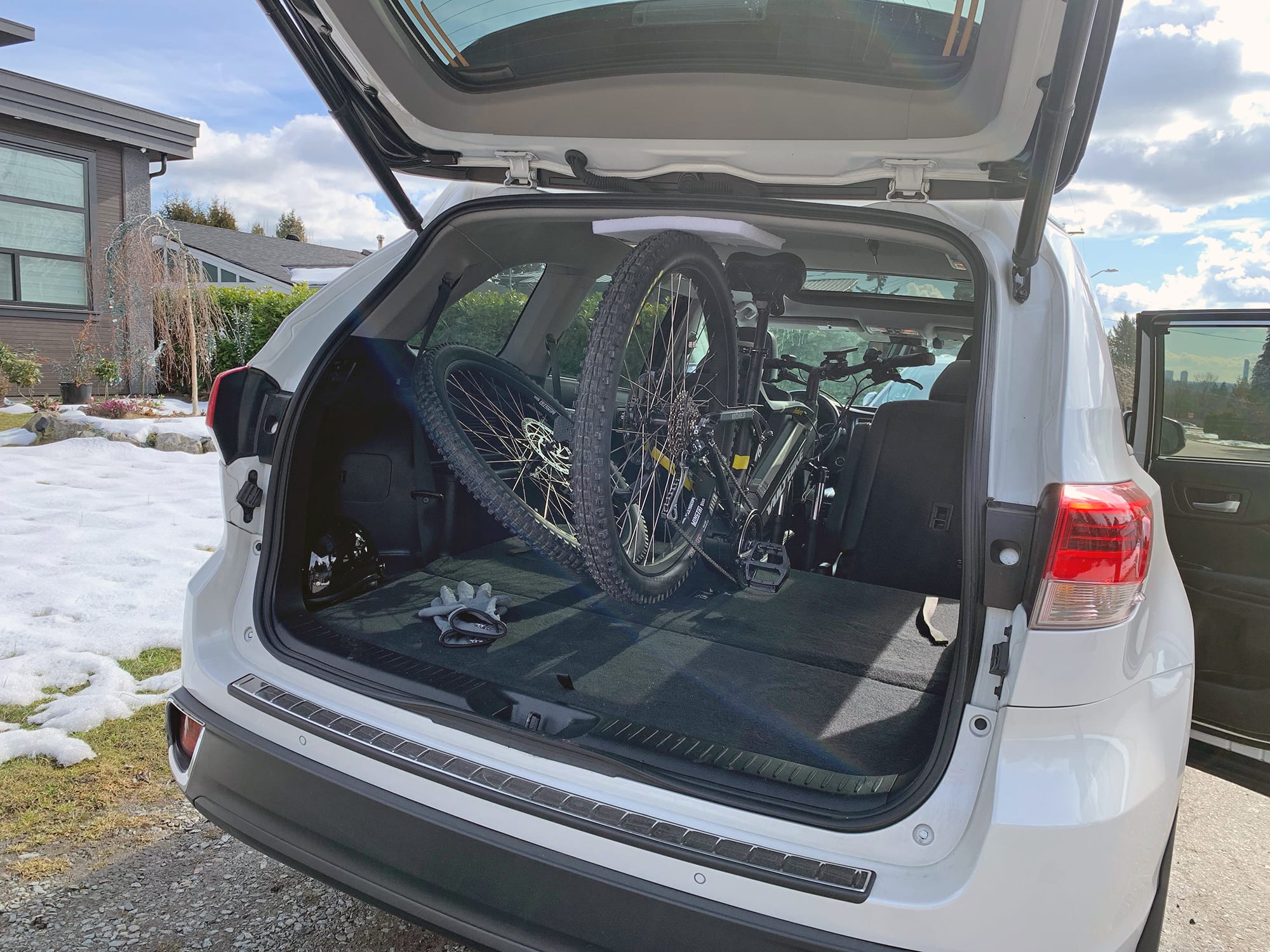

  • Well-placed kickstand, quick release wheels offer easy transport and serviceability, excellent weight distribution, reasonable 55.7 lb curb weight, affordable shipping with one year warranty
  • Only available in one frame size and color scheme, the seat post is too short, the stem is a bit long, 160 mm mechanical disc brakes are good enough for light light trails but not fully mountain worthy in my opinion

Search EBR

Video Review

Trusted Advertisers

Introduction

Make:

VoltBike

Model:

Enduro

Price:

$1,799 ($70 Flat Rate Shipping)

Body Position:

Forward

Suggested Use:

Urban, Trail

Electric Bike Class:

Pedal Assist (Class 1), Speed Pedalec (Class 3)
Learn more about Ebike classes

Warranty:

1 Year Comprehensive

Availability:

United States, Canada

Model Year:

2017

Bicycle Details

Total Weight:

55.7 lbs (25.26 kg)

Battery Weight:

7 lbs (3.17 kg)

Motor Weight:

8.6 lbs (3.9 kg)

Frame Material:

Aluminum

Frame Sizes:

19 in (48.26 cm)

Geometry Measurements:

19" Seat Tube, 23.5" Reach, 29" Stand Over Height, 74" Length

Frame Types:

High-Step

Frame Colors:

Matte Black with Yellow Accents

Frame Fork Details:

SR Suntour XCT Coil Spring Suspension, 100 mm Travel, Lockout and Preload Adjust, 100/9 mm Quick Release Skewer

Frame Rear Details:

EXA Form Air Suspension, 135/9 mm Quick Release Skewer

Gearing Details:

8 Speed 1x8 Shimano Acera, CS-HG31-8 Cassette, 11-32T

Shifter Details:

Shiman Triggers on Right

Cranks:

8Fun AC08-2 Alloy Crank Arms, 170 mm Length, 38T Chainring with Alloy Bash Guard

Pedals:

Wellgo M248DU Alloy Cage Style Platform

Headset:

1-1/8" Sealed Cartridge

Stem:

Promax Alloy, 90 mm Length, ~8° Rise

Handlebar:

Promax Alloy, Low-Rise, 27.5" Length

Brake Details:

Tektro Novela CS Mechanical Disc with 160 mm Rotors, 5 Star Levers with Motor Inhibitors and Rubberized Edge

Grips:

Selle Royal XH-G03, Ergonomic Rubber

Saddle:

Selle Royal Freccia

Seat Post:

Promax, Aluminum Alloy

Seat Post Length:

200 mm

Seat Post Diameter:

30.4 mm

Rims:

Samson Double Walled, 6061 T6 Alloy, 36 Hole

Spokes:

13 Gauge, Stainless Steel, Silver with Nipples

Tire Brand:

Kenda Small Block Eight, 27.5" x 2.1" (52-584) (650x52B)

Wheel Sizes:

27.5 in (69.85cm)

Tire Details:

30TPI Casing, Wire Bead, 40 to 65 PSI

Tube Details:

Schrader Valve

Accessories:

Integrated Spanninga Micro LED Headlight with Reflector, Flick Bell, Adjustable Length Kickstand, Free DOT Approved Helmet

Other:

Locking Removable Battery Pack with LED Charge Indicator, 5 Volt Full Sized USB Charging Port on Right Side of Battery, 1.1 lb 2 Amp Charger, KMC Rust Resistant Z Chain, Motor and Display Rated IP65 Against Water and Dust Ingress

Electronic Details

Motor Brand:

Bafang, Max Drive

Motor Type:

Mid-Mounted Geared Motor
Learn more about Ebike motors

Motor Nominal Output:

350 watts

Motor Torque:

80 Newton meters

Battery Brand:

Sanyo UR18650ZY

Battery Voltage:

48 volts

Battery Amp Hours:

10.4 ah

Battery Watt Hours:

499.2 wh

Battery Chemistry:

Lithium-ion

Charge Time:

4 hours

Estimated Min Range:

25 miles (40 km)

Estimated Max Range:

60 miles (97 km)

Display Type:

Bafang HMI DPC10, Backlit LCD, Fixed, Grayscale

Readouts:

Battery Level (10 Bars), Speed, Trip Distance, Odometer, Max Speed, Avg. Speed, Assist Level (0-5)

Display Accessories:

Independent Button Pad (+, -, Lights, Power, i), Double Press i for Settings Menu (Trip Clearance, Units, Backlight Sensor, Backlight Brightness, Screen Auto Off Time, Maintenance Reminder, Password 0512, Wheel Diameter, Speed Limit)

Drive Mode:

Advanced Pedal Assist (Measures Pedal Torque, Cadence and Wheel Speed)

Top Speed:

20 mph (32 kph)

Trusted Advertisers



Written Review

VoltBike is an online-only electric bike company based out of Burnaby Canada. They recently expanded to a shipping depot in Northern Washington to serve both markets more effectively, and to me, that’s a sign that the business is going well. I’ve reviewed a handful of their products over the years and the speed and quality of shipping have always impressed me. Not just because the bikes arrived in Texas, Colorado, and even Cabo San Lucas Mexico unscathed… but because they only charge a flat rate $70 for the US and $50 for Canada. Sometimes, it can feel like you’re getting a sweet deal on a product based on the sticker price and then you get hit with a bunch of additional fees during checkout… that’s not the case here. The Enduro expands on VoltBike’s off-road line of models which includes a fat tire ebike, a folding fat tire model, and a hardtail trail bike. It’s their first e-bike with full suspension and a mid-drive motor. This is a great combination because suspended wheels can move quicker and respond more effectively to bumpy terrain if they weigh less. They call this “unsprung weight” and it’s an important factor in the design of race cars. While the Enduro is more of a sporty looking product than a premium precision-build, it performed quite well during my off-road mountain test. I climbed, descended quickly over large rocks, hopped the bike off a few bumps, and did an on-road speed test. It’s only available in one frame size with matte-black paint for now, but the black motor, battery, and wires blend in nicely. For me, as a 5’9″ tall guy, the stem was a bit long and the seat post was too short. I adjusted the brake lever position on both sides, raised the seat post to its maximum recommended height, and slid the saddle forward to shorten reach before going out. Compared to many other order-by-mail electric bicycles, this one was easy to setup. The wheels are both attached and only the handlebar needs to be added using four bolts. VoltBike sends a small tool pouch but I only used two of the five Allen key hex wrenches, and one began to strip before everything was done. I switched to my higher-quality tools and used a bit of grease and chain lube to finish the job. The only thing you absolutely need to get this bike going is a Schrader compatible bicycle pump. It ships with lower-end Kenda Small Block Eight tires rated for 40 to 65 PSI, which is higher than most of the mountain tires I see. Higher pressure will reduce drag while sacrificing traction and smoothness. I filled them to 40 PSI because I’m not especially heavy at ~135 lbs and wanted the best traction possible for the mountain trail test. Other areas that seem a little less mountain oriented include the integrated headlight, kickstand, and ergonomic grips. I appreciate each of these features… they chose the parts well, but I think they’re most useful in an urban setting. Given the lack of bottle cage bosses, rear rack attachment, and even fender mounts, this is a bike that feels great riding around town but lacks utility. I’m trying to show the trade-offs you get with this product but honestly, it would be my first choice in the VoltBike lineup right now because I value comfort over utility, don’t mind wearing a small backpack to carry gear to work, and appreciate the efficiency and durability of the Bafang Max Drive motor vs. a hub motor.

Driving the bike is a 350 watt nominally rated mid-drive with peak torque output of 80 Newton-meters. The numbers put it in the same performance range as Bosch, Brose, Yamaha and Impulse which cost much more. It’s fairly compact, but not as good looking as the new Bosch tilted designs, and it’s one of the quietest offerings around. The areas it doesn’t stand out so much are zippiness and RPM output. Basically, you need to switch gears more actively while pedaling to accelerate quickly and ultimately reach higher top speeds. In these ways, it reminds me of the base level Yamaha mid-drive. For the price, it’s a big jump up from geared hub motors (used on all of the other VoltBikes at the time of this review) and it got me up 12% grades on a rocky dirt trail in Colorado without any issues. Of course, my speed hovered around 8 mph during these stretches… but that’s because I remained seated and focused on balance and handling vs. speed. Interestingly, the Volt Bike Enduro arrived with a maximum speed setting of 25 km/h which is roughly 15.5 mph. This is below the legal limit in the United States and Canada so I unlocked the display panel by pressing the i button twice quickly then used the password 0, 5, 1, 2 to raise the limit to 32 km/h. This made it a Class 1 trail-legal electric bike… but later on, I raised it further to 60 km/h (which it doesn’t actually hit) to get an effective speed of ~28 mph. Basically, this can be a Class 1 or Class 3 speed pedelec which makes it a contender for urban commuting if you ride on street bike lanes.

In order to climb with a 55.7 lb ebike like this, go fast, and go far, you need a good sized battery pack. The Enduro comes with a 48 volt 10.4 amp hour battery that uses Sanyo lithium-ion cells. Apparently, Panasonic purchased Sanyo in recent years and VoltBike stresses this in their marketing collateral. Panasonic is known as the top-level battery producer in the ebike space and commands a premium. I can’t say much about longevity because I only tested the bike for a few days… but Lithium-ion cells tend to hold up well over time and VoltBike offers a comprehensive one year warranty. For the price of the bike, this battery pack seems like a great deal and I love that they mounted it tighter than the older Yukon models which seemed to rattle a bit. The pack can be charged on or off the bike for convenience, I tend to remove the pack for safe storage in a cool dry location vs. leaving it on the bike at all times and it’s easy to lift because it has a little flip-out handle on the side. Plugging the pack in is easy, it uses the same port whether it’s on or off the frame and the charger is compact and very lightweight at just 1.1 lbs. My only complaint here is that the rubber cover that protects the female plug on the left side of the battery can be difficult to push in. For this reason, I regularly see people riding with the rubber cover left dangling off and this could lead to dust and water damage over time. On the opposite side, the top right corner of the pack, there’s a second rubber cover protecting a standard sized 5 Volt 2 Amp USB port. You could use this to charge a phone, music player, or additional lights but do be careful when pedaling… consider a right-angle adapter to reduce exposure to kicks and snags. Final thoughts on the battery after riding down the mountain at higher speed is that it still wobbles a bit (though the chain bounces a whole lot… so good thing it has a thick slap guard), the weight is positioned well and it wasn’t as flashy as some other packs that aren’t so integrated.

The display panel used to gauge performance and change electric assist handling is from Bafang and I believe it’s the DPC10 or some variation. I found a great resource for Bafang / 8Fun displays here and learned how to adjust settings and clear the trip meter. I like that the display feels solidly mounted but still swivels to reduce glare. It comes with one of the larger button pads with a key for lights and information as well as power, plus and minus. Compared to the Bosch button pad, this one isn’t as physically intuitive and might require a glance down. On two occasions, I pressed the information key and had it stick down because it sort of angled sideways. While it is easy to reach, fairly compact, and appears to be water resistant, it just feels a little bit cheaper and the wire running back to the display seemed short. It kept bumping into the bell and muting it. When it arrived, this cable was actually zip tied to the left brake lever motor inhibitor which allowed the bell to work perfectly, but as I adjusted the brake levers it became too tight. I’d rather have a comfortable hand position than a functional bell but maybe future versions will ship with a slightly longer cable and this won’t be an issue? One other cable seemed too short and that was a pretty important one… the shifter cable leading back to the eight-speed Shimano Acera derailleur. When I shifted to the lowest gear (the largest sprocket) the cable seemed very tight. I didn’t have a problem, but this is another area to be careful with and possibly adjust if there’s extra length up front. VoltBike has been very proactive and responsive based on my past reviews and while I believe all of their bikes are produced overseas, they seem to be doing well enough to make incremental improvements and provide feedback that isn’t just ignored by the factory. The truth is, you’re getting a lot of value here for $1,800 and a little bit of attention during assembly can go a long way. I highly recommend having a shop give it a full tuneup for ~$80 if you can. This will make it ride better and last longer because the wheels will be trued, the derailleur will shift properly and they may add grease to the pedals as I did, to reduce creaking.

I got a little off track there talking about assembly and maintenance so let’s jump back into the display. This thing has a light sensor, adjustable backlighting, a 10-bar battery infographic for precise feedback on range (though no range estimation feature). You can change the units from kilometers to miles by doing the double tap i-i trick mentioned earlier and this works without the password. I’m not sure if VoltBike intended this but the handlebar is a low-rise with enough bend to help protect the display in the event of a crash. And while it’s not removable, you can park the bike with your helmet covering the display as a way to decrease attention, reduce sun exposure, and protect from water without causing condensation. This ebike, as with most, should be highly water resistant… but don’t submerge it. Perhaps the biggest difference between the Enduro and other VoltBike models is the lack of a throttle. You have to pedal in order to get the motor going but it uses a combination cadence-torque sensor which is very responsive and fluid. You will definitely get increased range from a system like this and it’s permissible on more trails than throttle-operated products. I think instant-power can be harmful to some mid-drive systems and really stress the chain, sprockets, and derailleur if used improperly. This motor controller does not have a shift sensor and thus, you can grind the gears and cause mashing to occur if you shift hard. I tend to ease off when pedaling for a moment and then shift. When climbing, this means that I build up some speed and momentum before shifting and try to plan ahead. Worst case, it’s better to stop and push the bike than wreck the drivetrain. And by wreck, I mean break the chain or bend the teeth on the cassette sprockets. You get a lower-end eight-speed Shimano Acera with the Enduro that probably doesn’t belong on a true mountain bike. I found that the range was large enough to climb and top 20 mph comfortably but it’s just not as tight or durable as the Deore, SLX, and Deore XT Shadow Plus that I see on higher-end products. The chainring has a nice bash guard/guide metal plate that should reduce snags, impacts and chain drops. Some ebikes have a true guide with two metal plates but I didn’t experience a chain drop while riding so perhaps this is good enough.

I had a blast assembling, testing, and optimizing the VoltBike Enduro electric bike. It’s a product I wish had existed when I purchased my first ebike many years ago. Instead, I ended up with the Evelo Aries, a cool looking full suspension product that’s exciting on paper and in photos but actually has a flexy frame, very limited motor operation, a stiff non-adjustable rear suspension, and difficult battery position. It produced a lot of noise and weighed ten pounds more than the Enduro and the purchase felt like a total waste. I felt terrible at the time but appreciated how responsive and supportive the company was. That bike is a big part of why I created this website. Not everyone can afford or wants a high-end electric bicycle… but there are many trade-offs to consider at the mid and lower levels. While the VoltBike Endure may not be a perfect fit for trails or the city, it looks cool, improves comfort over hardtail models, performs quite well and blends in. Note that you may need a special pump to adjust the rear air suspension properly and that it doesn’t have markings to help you adjust it by weight… but I pumped it up to ~140 PSI and saw it perform adequately on the trail. Big thanks to VoltBike for partnering with me on this post. I did receive a service fee for the processing and editing work performed (as I do with many reviews these days) but did not get a free bike or receive a larger sum than I do from other brands. I made a longer video because I was truly interested in seeing how the bike would perform and perhaps because I wanted to help my former self. The guy who was commuting to work by bike in Austin, Texas and just wanted something a little more fun than a city style ebike :)

Pros:

  • The price is pretty incredible… despite some lower end components like the eight-speed Acera drivetrain (two steps up from the base Tourney) and mechanical 160 mm disc brakes vs.
    hydraulic, it handled the trail
  • Even though most electric mountain bikes don’t have integrated lights, I appreciate that this one does because I’d probably use it for a mix of urban and trail riding, the light is compact and didn’t rattle on the trail, it also shines from the sides a bit to increase your profile
  • Stiff solid frame with good weight distribution, the mid-drive motor and downtube integrated battery pack are positioned very well
  • Removable battery shaves 7 lbs off the weight of the bike, both wheels offer quick release for easy maintenance or compact transport and storage
  • The display is large, easy to read, swivels to reduce glare, and offers a lot of adjustment options like backlight brightness, auto off, and wheel size
  • This is one of the few electric bikes that allows you to adjust the top speed, mine arrived set to 25 km/h which is ~15.5 mph, if you press the i button two times quickly, it enters the menu where you can cycle through to password (use 0, 5, 1, 2) and then change the max speed to 32 km/h for 20 mph or up to 60 km/h for close to 28 mph top assisted speed (of course, you can also go slower than 25 km/h if you’d like)
  • Shipping was very inexpensive at $70 and the bike arrived in great shape, they put styrofoam on both sides of the box as well as the front and back, they also bubble wrap the frame and sensitive hardware like the light, display, and battery
  • For someone who wants a bit of comfort but only plans to ride in the city, the ergonomic grips, larger knobby tires, and basic suspension feels pretty great, it would perform better in snow and going over bumpy roads than a hardtail or city bike
  • The battery locks securely to the frame and felt tighter than some of the older VoltBike models (I’m told they have all been tightened so they won’t rattle), you can click the battery onto the frame without the key
  • It’s nice to have access to USB power to charge your phone, GPS, music player, or additional lights, consider grabbing a right angle USB adapter to keep your plugs out of the way

Cons:

  • The suspension isn’t especially smooth or long travel, you’ll probably need a special shock pump to adjust the pressure on the rear air suspension, I used this Izende mini-pump that works for Schrader and Presta valves, is light, small, and has a pressure gauge built in
  • Disc brakes are perfect for trail and mountain riding but 160 mm is kind of small and mechanical requires more hand strength than hydraulic, they also don’t have adjustable reach levers
  • The stem seems a little long, I felt like I was very stretched out horizontally and a bit squished vertically because of the short 200 mm seat post, consider replacing it with a 30.4 mm diameter 350 mm length post like this, you can always use a hack saw to shorten it if needed but make sure to have enough post in the tube to provide strength
  • There was nowhere to mount a rear rack or bottle cage bosses but that’s not abnormal for low and mid-level full suspension ebikes due to battery placement, you may be able to add fenders… if you need a rack, consider a beam rack like this or the Thule Pack ‘n Pedal
  • The tools they give you are pretty weak, I ended up using my own allen key set and nearly stripped one of the brake lever bolts trying to tighten it with the incorrect size (they didn’t include the exact size 3/16 for this part), on a sidenote, consider using some Polylube 1000 grease for mounting the pedals (just a little stripe on the threads)
  • Very minor gripe, but the display panel connection uses a press fit vs. threaded connector with a rubber washer, these aren’t as reliable or water resistant but apparently the battery, motor and display are all IP65 rated against dust and water which is cool
  • The rear air suspension doesn’t have any labeling for recommended PSI and there aren’t marks on the stanchion to sag it properly… it’s pretty basic

Resources:

Trusted Advertisers

More VoltBike Reviews

VoltBike Elegant Review

  • MSRP: $1,299
  • MODEL YEAR: 2017

An exceptionally affordable, feature rich electric bike, built around an approachable frame that's easier to mount and stand over, offers pedal assist and throttle override operation. The battery pack is protected by the top tube, positioned low and center along the…...

VoltBike Mariner Review

  • MSRP: $1,249
  • MODEL YEAR: 2016, 2017

A miniaturized fat tire electric bike that's sand and snow capable, you get fenders, a rack and integrated lights for utility and safety no matter the terrain. Mid-mount battery design keeps weight low and centered, it's removable for reduced weight (when folding…...

VoltBike Yukon 750 Review

  • MSRP: $1,499
  • MODEL YEAR: 2017

An affordable but surprisingly powerful and quiet electric fat bike, sells online only and ships from Canada with a flat rate $70 fee, comes with a comprehensive 1 year warranty. Upgraded Kenda Juggernaut tires that feel good on pavement, dirt, sand and snow, removable battery…...

VoltBike Urban Review

  • MSRP: $1,049
  • MODEL YEAR: 2016

An ultra-affordable folding electric bike sold online from Canada, offers a full range of accessories including lights, fenders and a rear carry rack. Available in black or white but only one size, you get six gears with a…...

VoltBike Yukon Review

  • MSRP: $1,159
  • MODEL YEAR: 2015, 2016

A value priced electric fat bike with a six speed drivetrain, integrated headlight and optional fender + rack kit. Available in two flavors (350 watt motor or more powerful 500 watt motor), sold online…...

2015 VoltBike Elegant Review

  • MSRP: $1,099
  • MODEL YEAR: 2015, 2016

A very affordable city style electric bike with lots of useful accessories including integrated lights, fenders and rack. Only available in one frame size ~19" but the adjustable stem and seat hight help…...

VoltBike Interceptor Review

  • MSRP: $1,599
  • MODEL YEAR: 2015, 2016

A value oriented electric bike available in one size (19"), one frame style (step-thru) and one color (black). Comes standard with lots of useful accessories including full length plastic fenders, a rear carry…...


Geffin
5 months ago

Hey!

I know they are completely different beasts, but would you say the Voltbike Yukon had better build quality than the Voltbike Enduro? Your review of that one was a bit more favorable. I’d like to get one of them this year as it’s within my price range.

Thanks

Reply
Court Rye
5 months ago

Hi Geffin, I’d say they are very similar. I just didn’t go as in depth with the Yukon… had less time and wasn’t as knowledgeable about mountain bike components until recently. Both models offer good value and should hold up if you take care, perhaps the biggest letdown on the Enduro for me was the seat post length and that’s a ~$10 fix :)

Reply
scott
5 months ago

Is this only a pedalac model or does it allow the ability to just use throttle only and no pedalling ?

Reply
Court Rye
5 months ago

Hi Scott, I asked the founder of VoltBike this same question and he explained that the mid-motor they chose isn’t setup for throttles and they couldn’t add it. That may be a bummer for some people but you could still get their hub motor hardtail Yukon 750 which does have a throttle if you want :)

Reply
Fredrick Edelkamp
4 months ago

Court, Love the HUD (Heads Up Display) on the video review! First time I’ve seen it on your videos (and I watched a lot of them) how did you do it?

Reply
Court Rye
4 months ago

Hi Frederick! I use a Garmin Edge 1000 device and then export the data file to overlay on video using the Garmin VIRB Edit software… then I take that overlayed footage and import it into iMovie before doing the rest of my normal video editing :D

Reply
Eric Larson
3 months ago

Hi Court,

Thanks for the fantastic reviews and video’s, what a wealth of information! I am trying to decide between the RAD City E-Bike and the Volt Enduro. I will be using the bike to ride trails and street’s in Seattle. Both companies are a stones throw away so I am torn down the middle on what to go with. What are the pro’s and Con’s to having a throttle? Thanks, -E

Reply
Court Rye
3 months ago

Hi Eric! I’d go with the Enduro myself because I love suspension and have a sensitive back and neck… I don’t miss the throttle that much because I like pedaling and have found that the Bafang Max Drive is very fluid and responsive. It’s one of my favorite ebike systems right now actually. Rad Power Bikes is awesome and the City model is great but unless you need the rack for carrying cargo, the Enduro is just more fun and comfortable :) but in Seattle you might get more wet without fenders :P

Reply
