Total Weight:
50.5 lbs (22.9 kg)

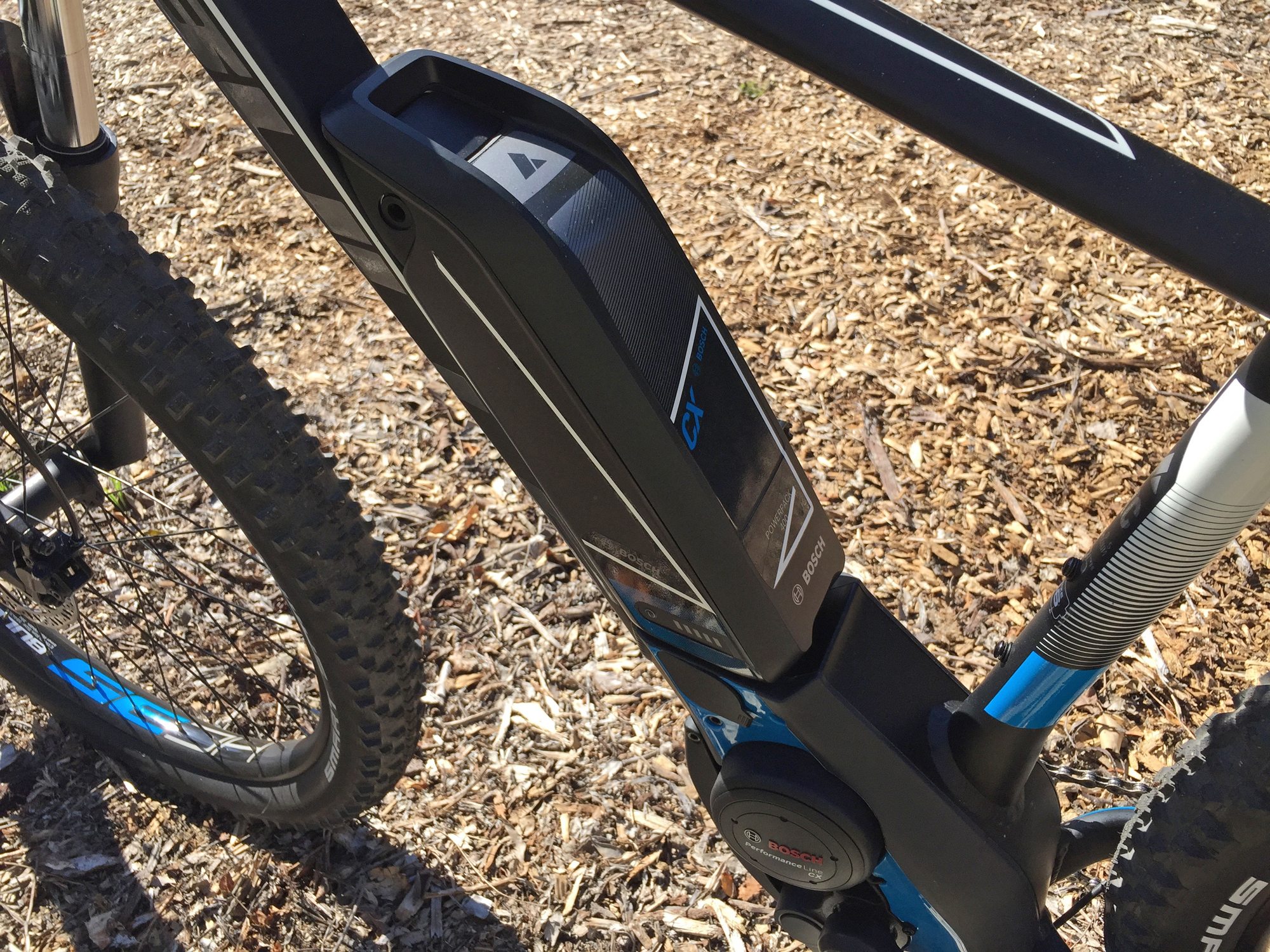

Battery Weight:
5.8 lbs (2.63 kg)
Motor Weight:
8.8 lbs (3.99 kg)
Frame Material:
7005 Aluminium Alloy
Frame Sizes:
16.1 in (40.89 cm)18.1 in (45.97 cm)20.0 in (50.8 cm)22.0 in (55.88 cm)Geometry Measurements:
30.5" Stand Over Height
Frame Types:
High-Step
Frame Colors:
Matte Black with Gloss White and Blue Accents

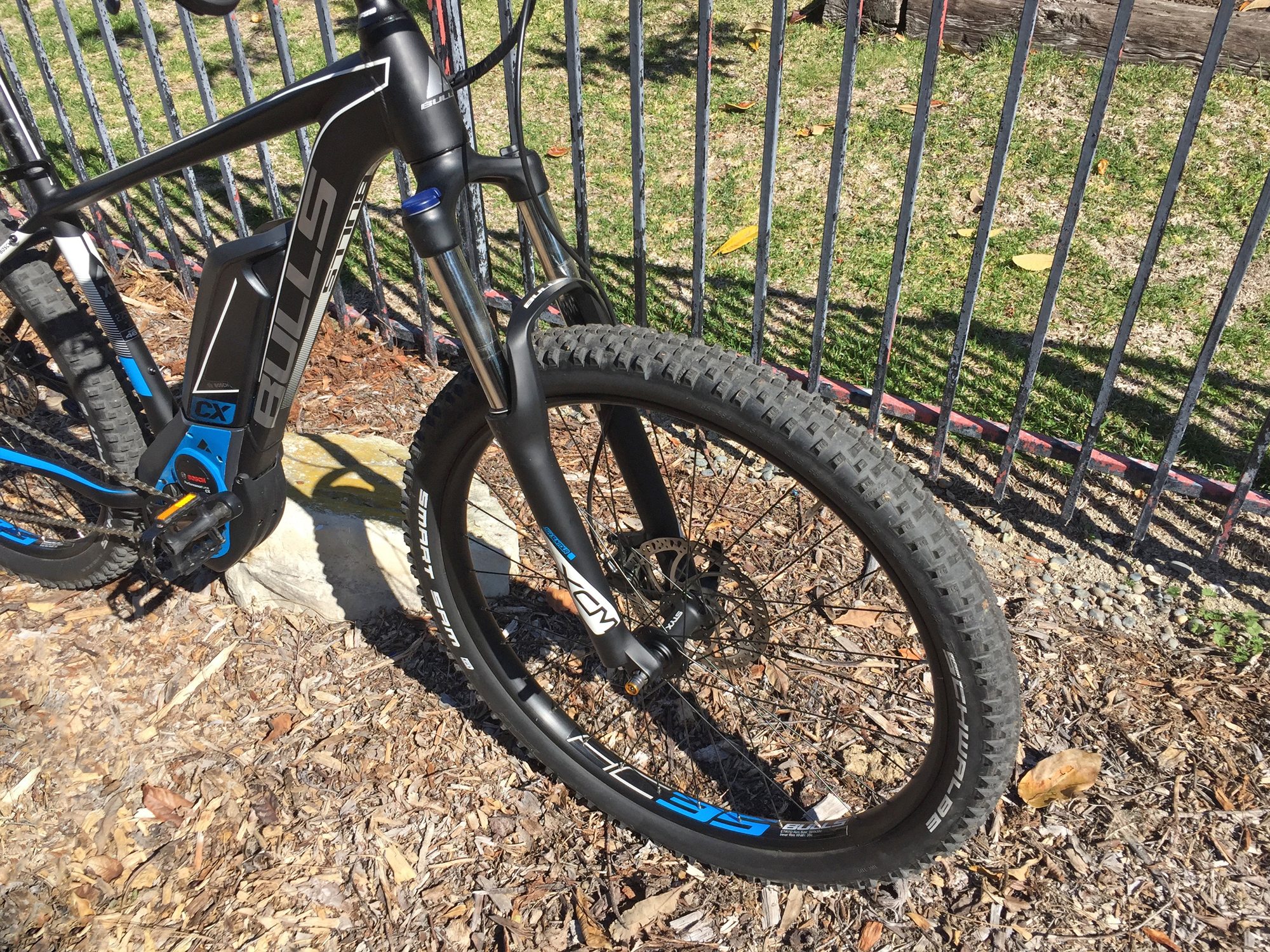

Frame Fork Details:
SR Suntour XCN-32 Spring Suspension, 120 mm Travel, Preload Adjust, Lockout, Boost 110 mm / 15 mm Thru-Axle with Quick Release
Frame Rear Details:
Boost 142 mm / 12 mm Thru Axle with Quick Release

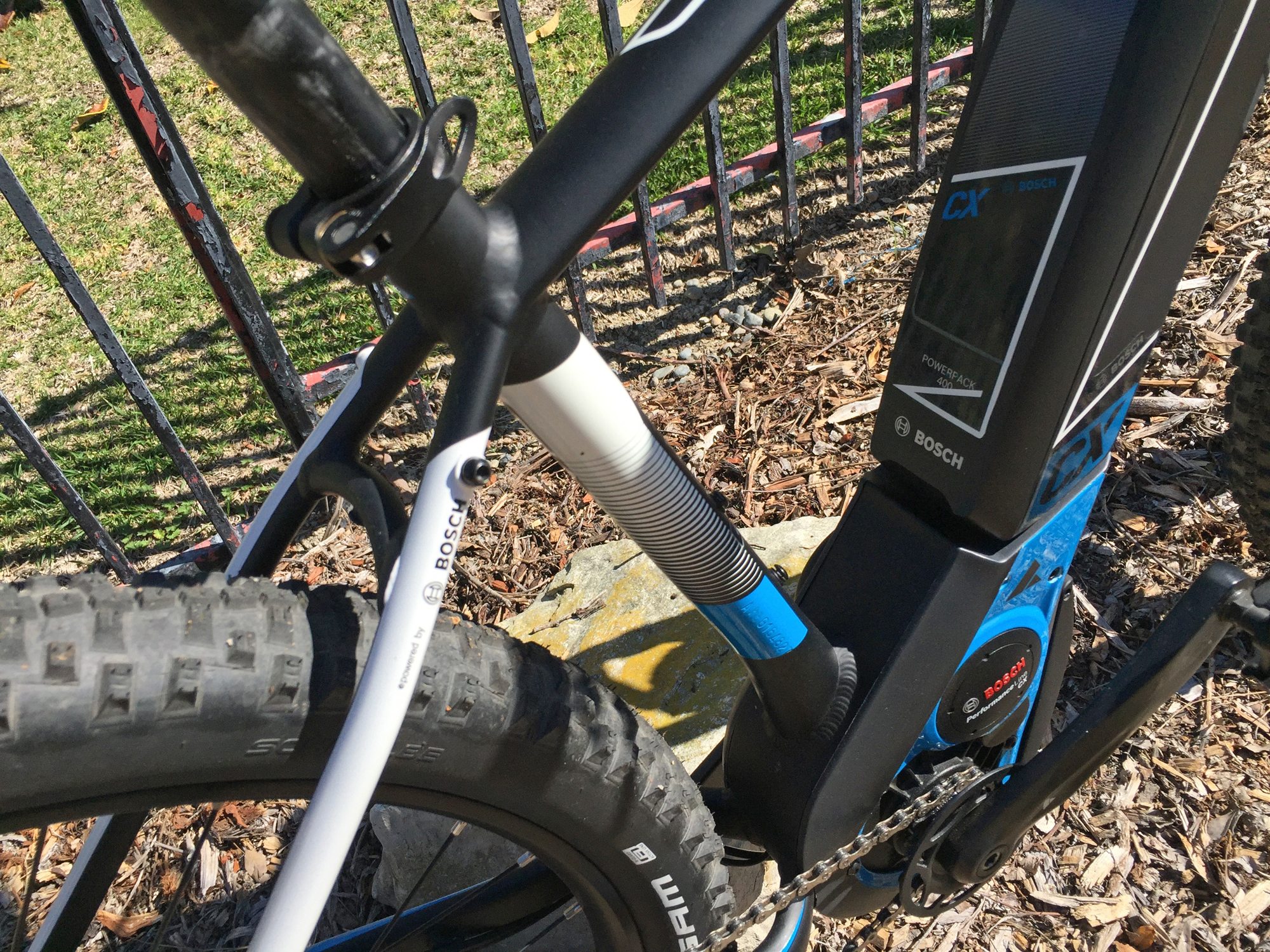

Attachment Points:
Rear Rack Bosses, Fender Bosses, Bottle Cage Bosses

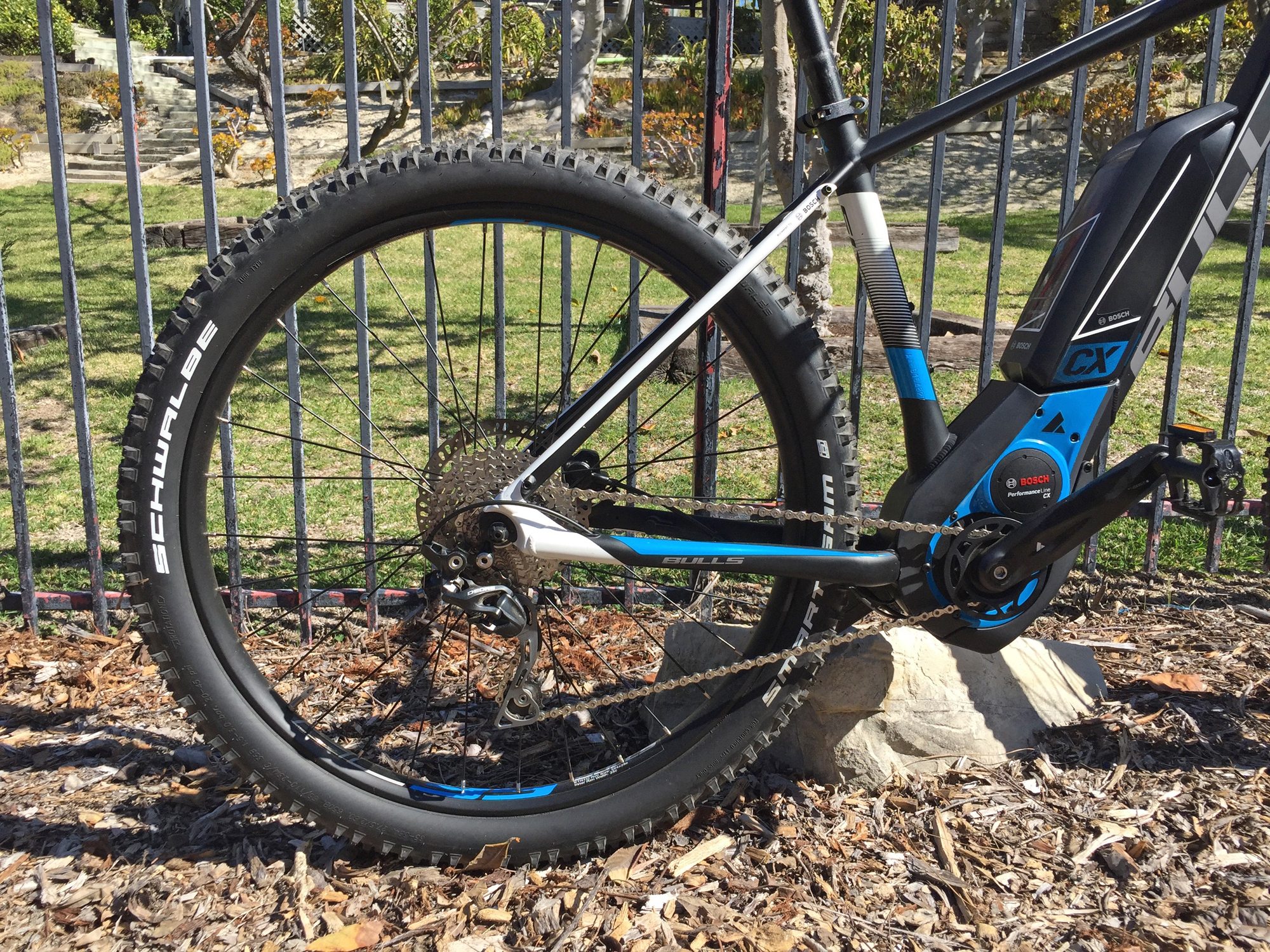

Gearing Details:
10
Speed 1x10 Shimano Deore, 11-36Shifter Details:
Shimano Deore Triggers on Right

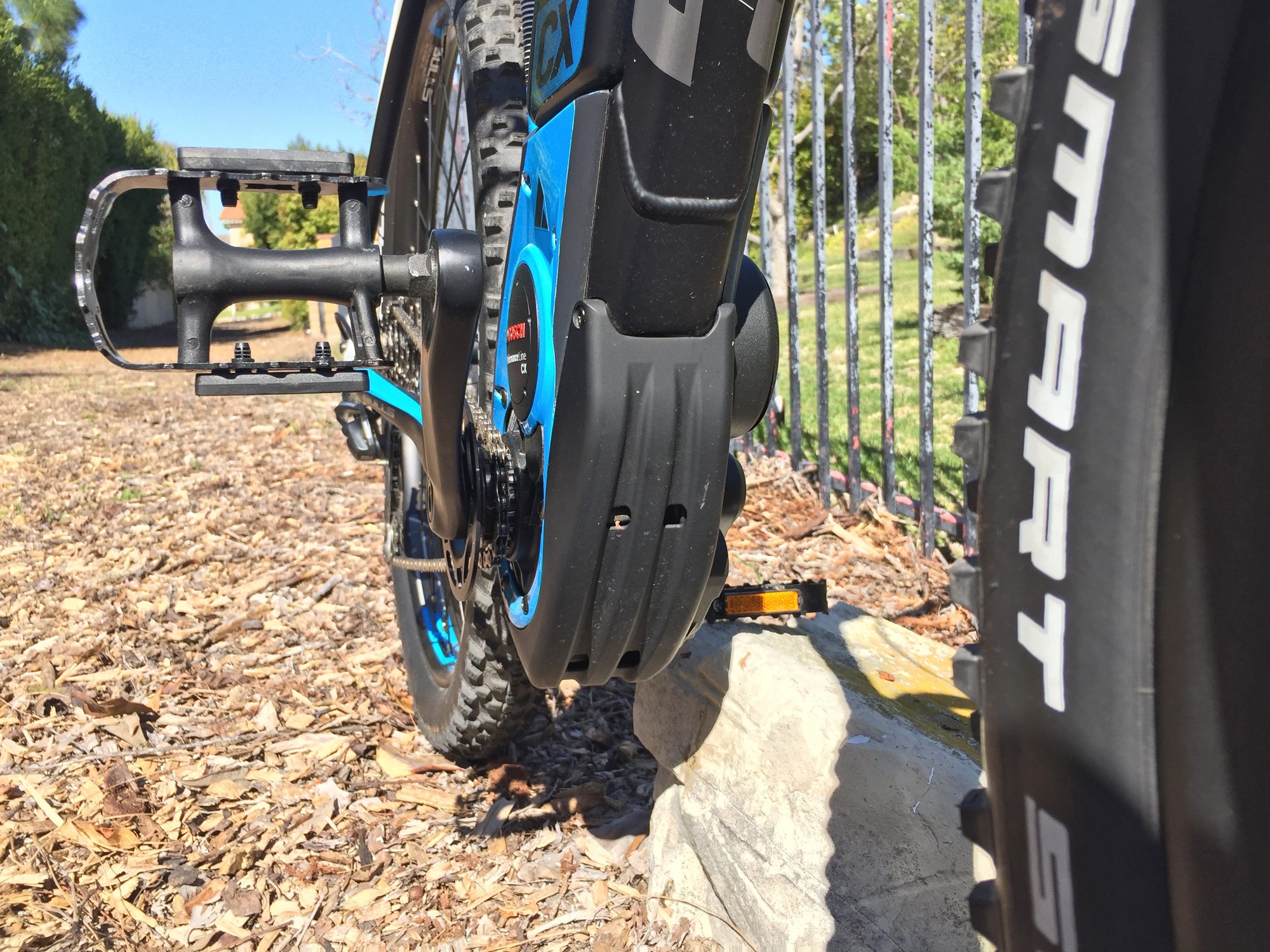

Cranks:
SR Suntour Cranks, 175 mm Length, 15T Chainring with Alloy Bash Guard
Pedals:
Wellgo Alloy Platform, Cage Style
Headset:
Tapered 1-1/8" to 1-1/2"
Stem:
STYX Alloy, 7° Rise, 31.8 mm Bore, Lengths: (70 mm, 80 mm, 90 mm)

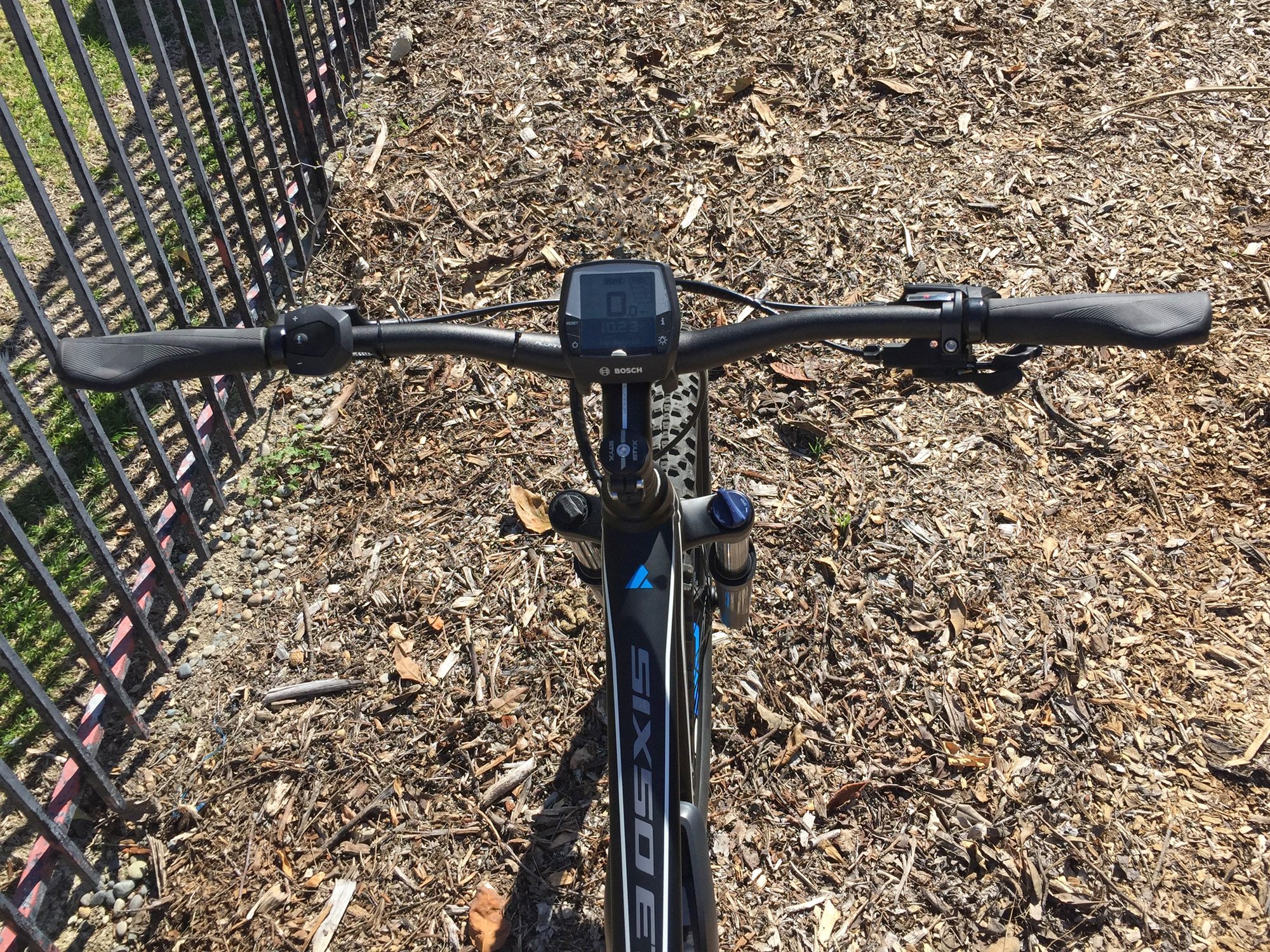

Handlebar:
STYX Alloy Low Rise, 740 mm Width, 25 mm Rise, 9° Bend, 31.8 mm Bore

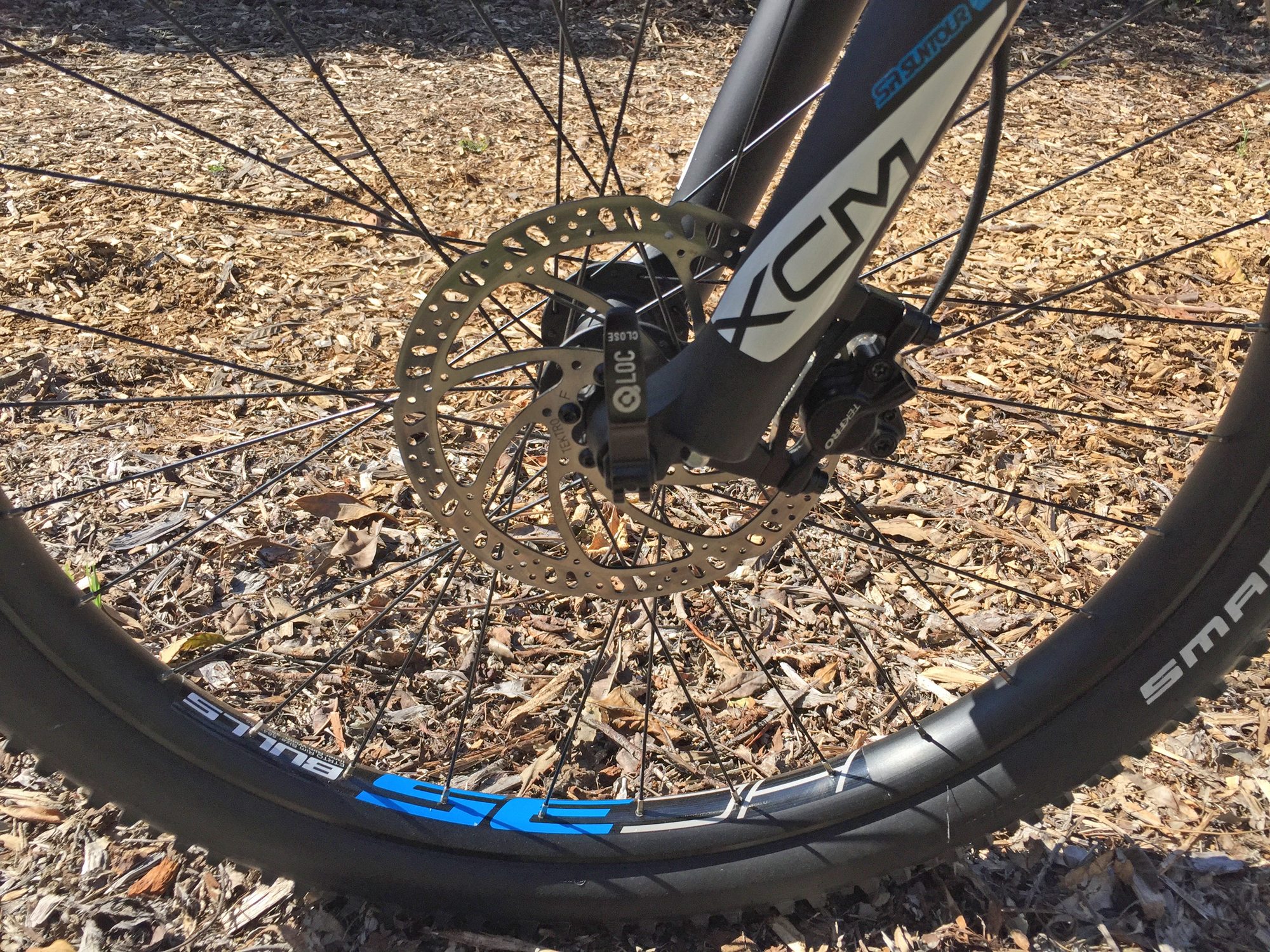

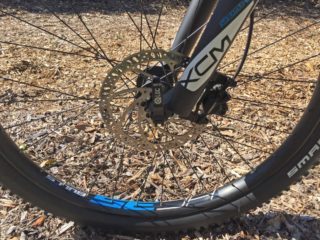

Brake Details:
Tektro HD-M285 Hydraulic Disc with 180 mm Rotors, Tektro Levers with Adjustable Reach
Grips:
Velo Rubber Ergonomic, Locking
Saddle:
Selle Royale, Active
Seat Post:
STYX Aluminum Alloy
Seat Post Length:
350 mm
Seat Post Diameter:
30.9 mm
Rims:
Bulls, Alloy, Double Wall, 35 mm Width, 32 Hole
Spokes:
Stainless Steel, 14 Gauge Front, 13 Gauge Rear, Black with Nipples
Tire Brand:
Schwalbe Smart Sam, 27.5" x 2.6"
Wheel Sizes:
27.5 in (69.85cm)Tire Details:
20 to 45 PSI, K-Guard Active Line Puncture Protection
Tube Details:
Presta Valve
Other:

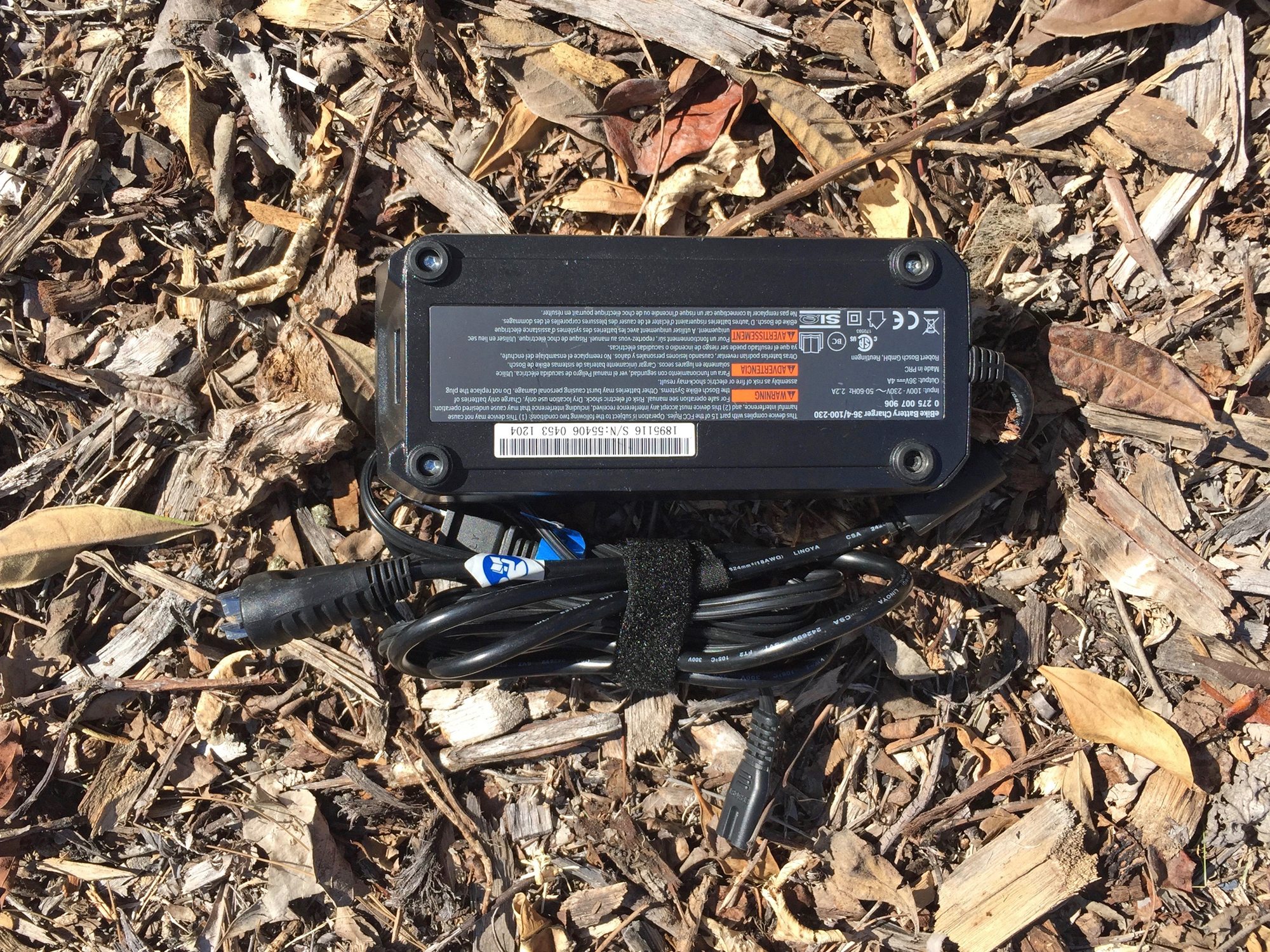

Locking Removable Battery Pack, 1.6 lb 4 Amp Charger
