Total Weight:
47.8 lbs (21.68 kg)

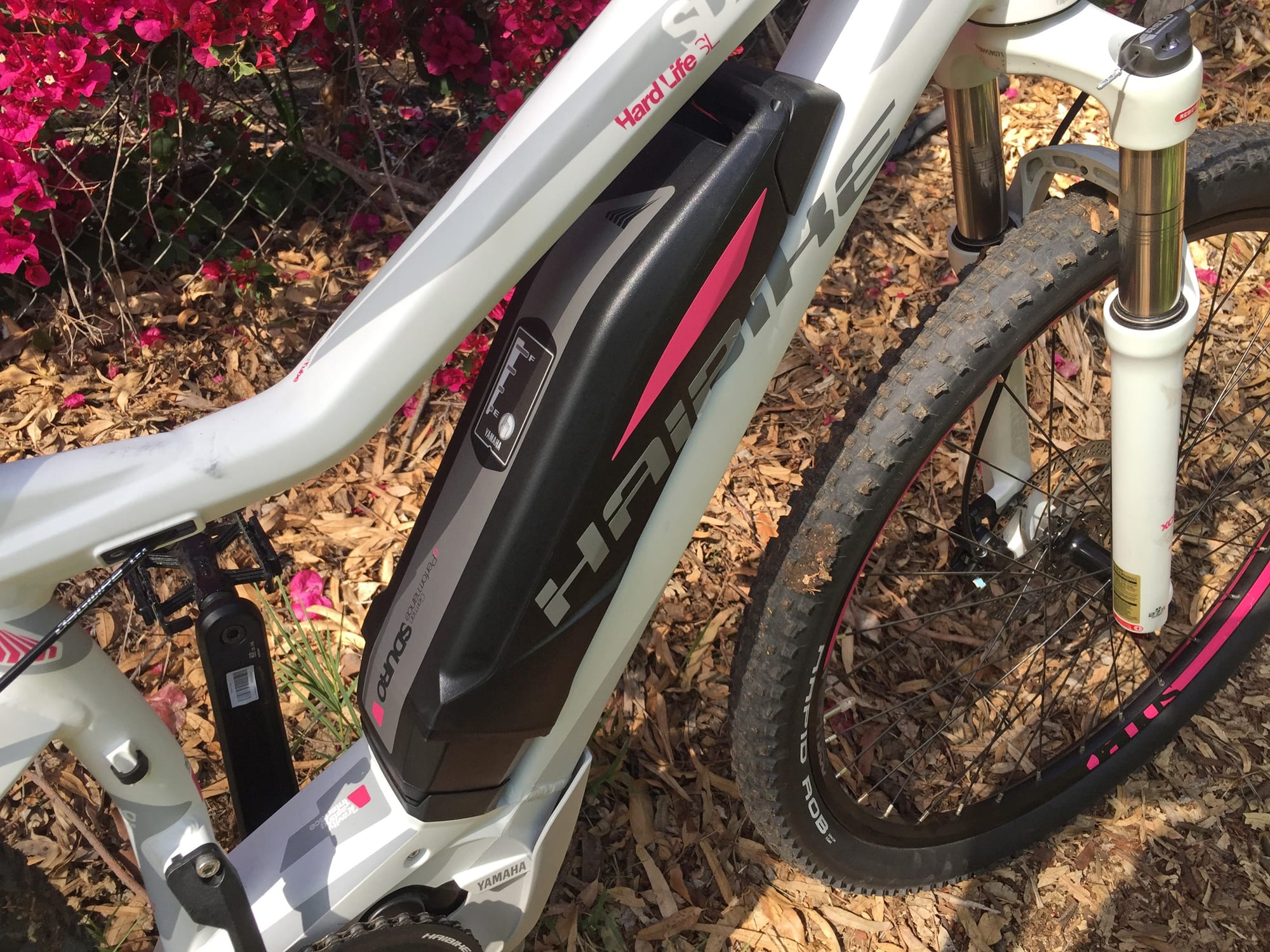

Battery Weight:
6.5 lbs (2.94 kg)
Frame Material:
Hydroformed Aluminum Alloy 6061
Frame Sizes:
13.5 in (34.29 cm)15.5 in (39.37 cm)17.5 in (44.45 cm)19.5 in (49.53 cm)Geometry Measurements:
Small 35 cm (350 mm Seattube Length, 1084 mm Wheelbase, 352 mm Reach), Medium 40 cm (400 mm Seattube Length, 1099 mm Wheelbase, 367 mm Reach, 710 mm Standover Height), Large 45 cm (450 mm Seattube Length, 1114 mm Wheelbase, 382 mm Reach), Extra Large 50 cm (500 mm Seattube Length, 1129 mm Wheelbase, 397 mm Reach)
Frame Types:
Mid-Step
Frame Colors:
Matte White with Gray and Fluorescent Pink Accents
Frame Fork Details:
SR Suntour XCR Air with Rebound Adjust, Remote Lockout and 100 mm Travel
Attachment Points:
Fender Bosses, Rear Rack Bosses

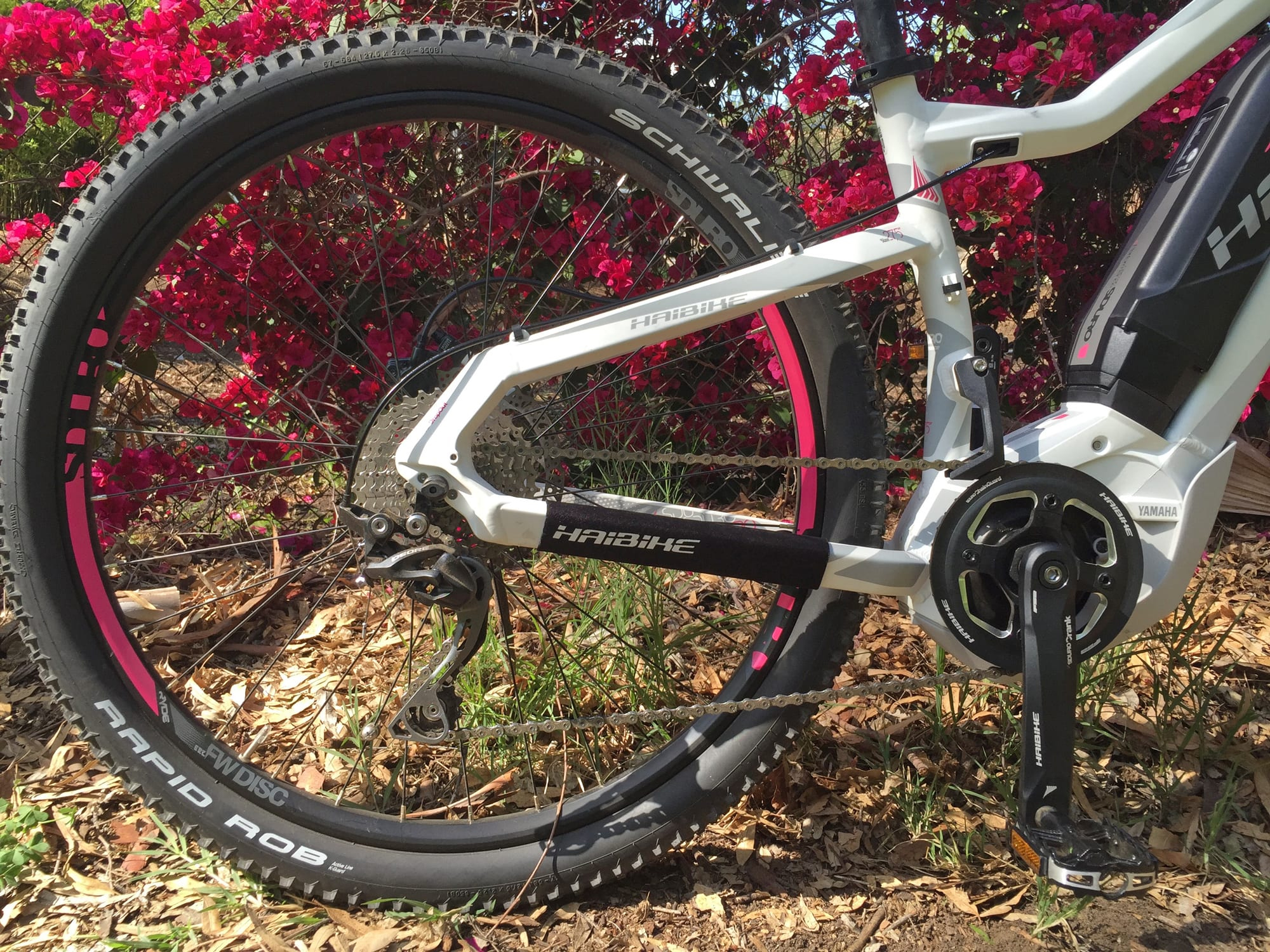

Gearing Details:
10
Speed 1x10 Shimano Deore, Direct Mount , 11-36TShifter Details:
Shimano Deore Dynasys Triggers
Cranks:
FSA CK-745 Aluminum, 38T
Pedals:
Wellgo Aluminum Alloy Platform, Track Style
Headset:
630 mm Stack, 150 mm Headtube Length, 68º Headtube Angle
Stem:
70 mm
Handlebar:
Low-Rise Aluminum 29.25" Length

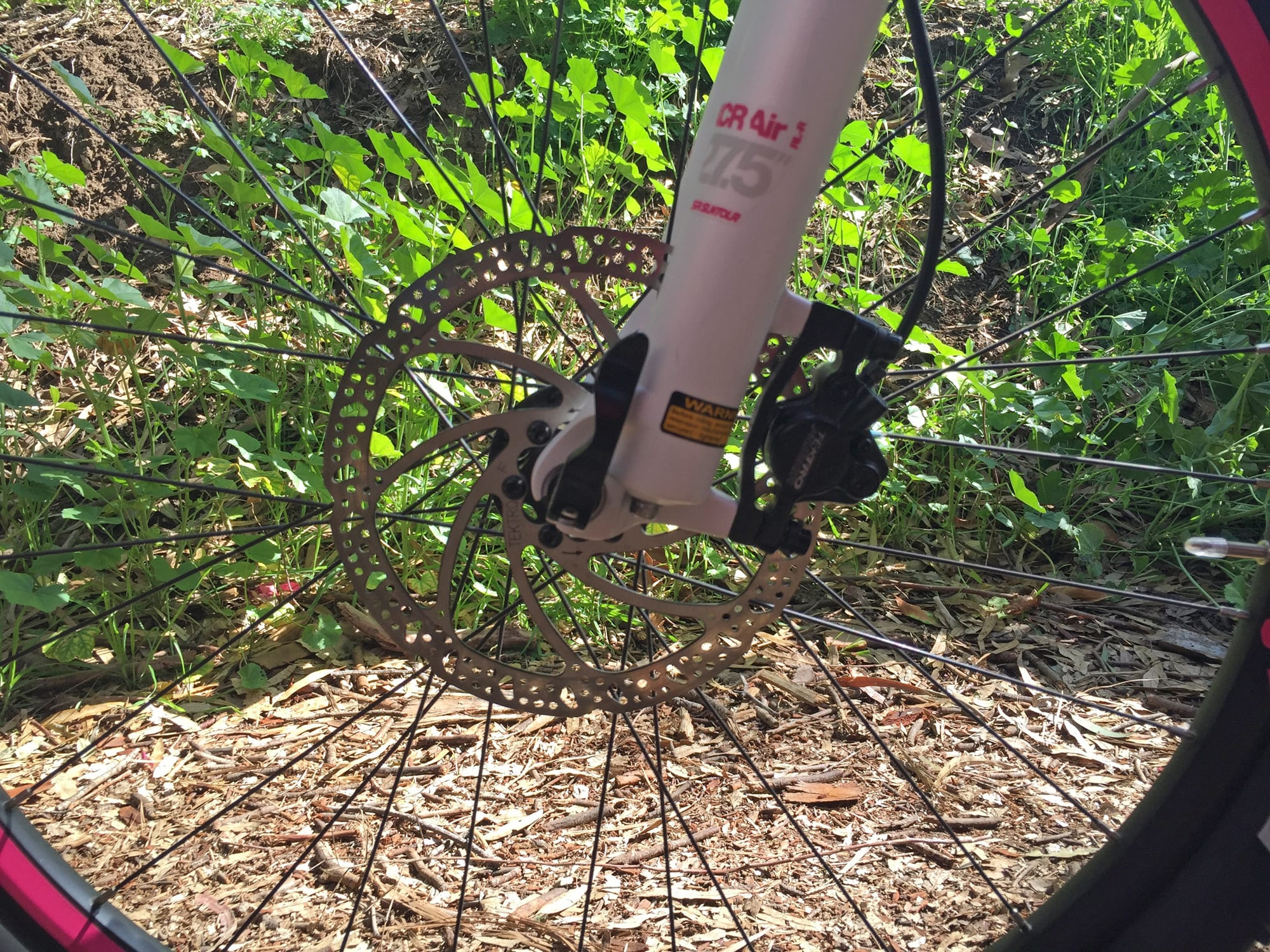

Brake Details:
Tektro Auriga Hydraulic Disc with 180 mm Rotors
Grips:
XLC Flat Rubber with Lockers

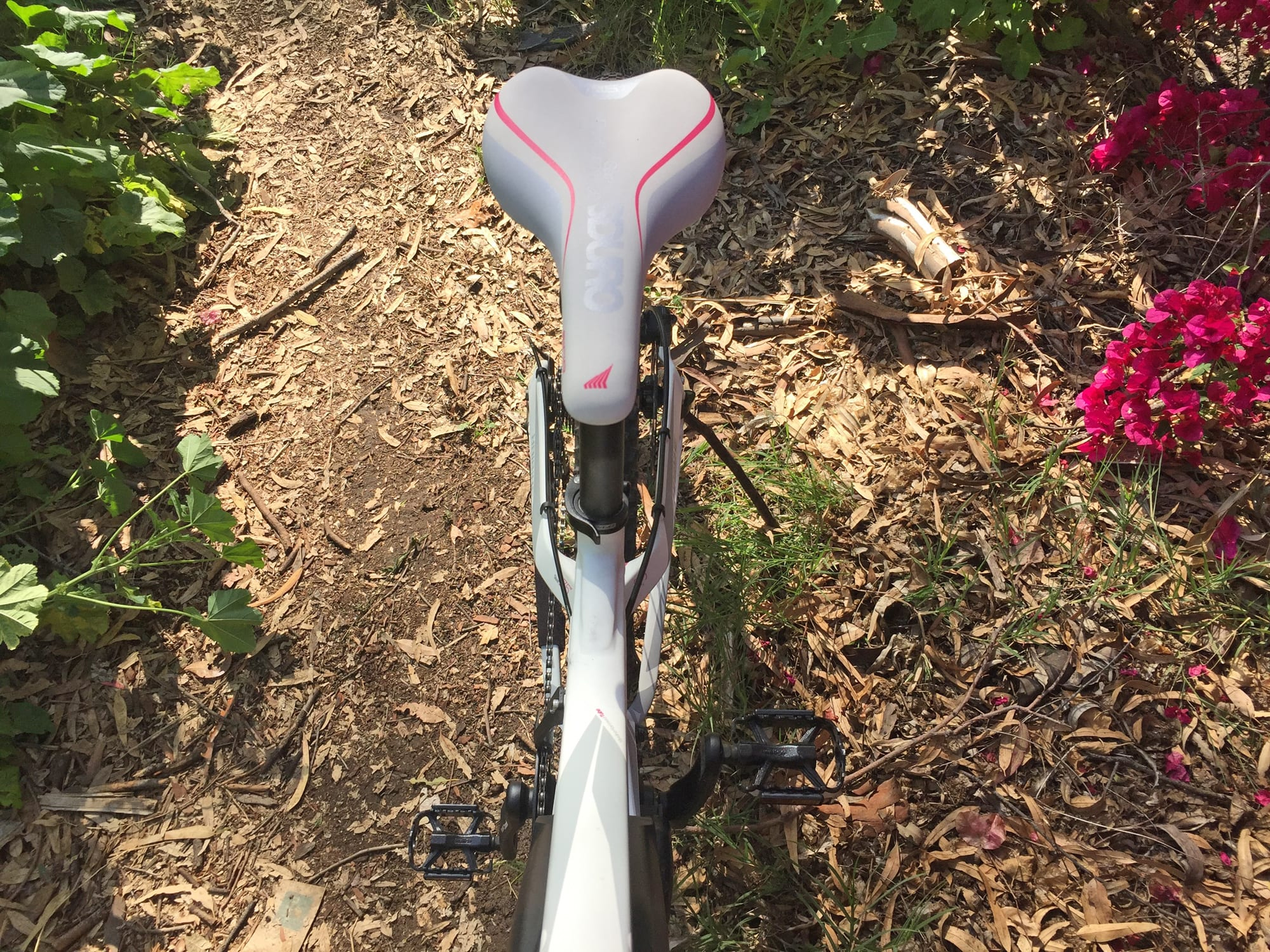

Saddle:
Selle Royal Serio, Active
Seat Post:
Aluminum Alloy
Seat Post Length:
270 mm
Seat Post Diameter:
31.6 mm
Rims:
Alloy 5061, 584 x 21c
Spokes:
Stainless Steel 14G, Black
Tire Brand:
Schwalbe Rapid Rob, 27.5" x 2.25"
Wheel Sizes:
27.5 in (69.85cm)Tire Details:
Active Line K-Guard
Tube Details:
Presta Valve
Accessories:
Selle Royal Saddle Clip for Light or Saddle Bag
Other:

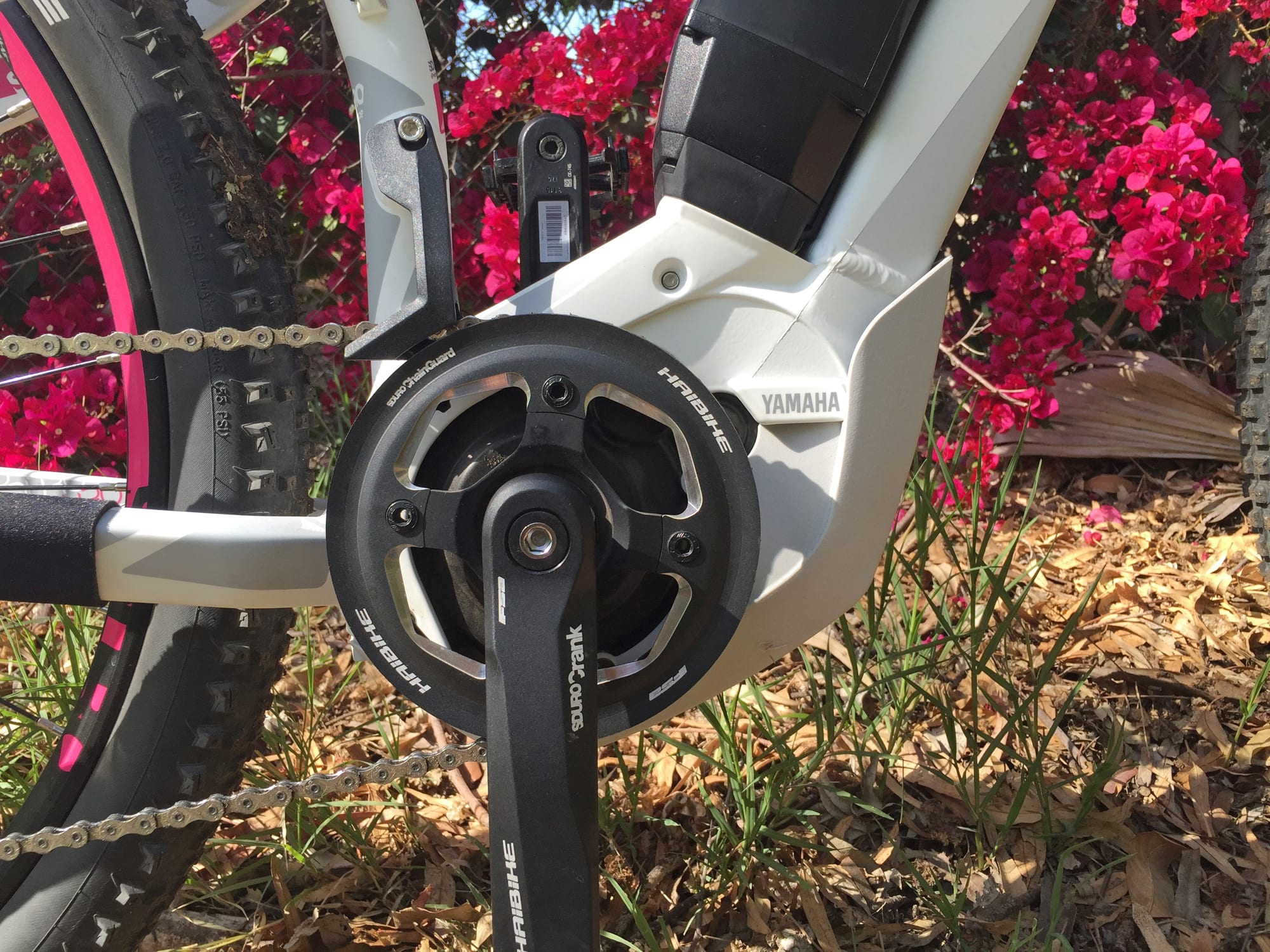

Locking Removable Battery Pack, Quick Release Wheels and Seat Tube, Cable Inlets, Replaceable Plastic Skid Plate, Gravity Casting Motor Mount Interface with CNC Milled Connection and Bearing Seat Points, Zero Cadence Assist
Jack Tyler
9 years agoFascinating discussion about speed range, Court. Thank you for demo’ing that. To me it seems like that eliminates part of the reason for having an ebike in the first place, at least for those of us who aren’t living in geographically flat areas.
Did I miss a comment about the bike’s brakes not having motor inhibitors? I’m assuming they are not needed because it’s a class 1 and simply stopping the pedals does the same thing? Perhaps you could confirm that. And about the Zero Cadence feature: I gather the claim is that the motor begins sooner than e.g. Bosch (responding to torque sensing alone?) altho’ in practice you haven’t found much difference between Bosch and Yahama mid-drives in that regard. For those of us shopping mid-drives, it seems like there remains a practical performance ‘cost’ when paying less for the Yamaha system. Fair conclusion?
ReplyCourt Rye
9 years agoHi Jack, you’re correct that the brake levers do not have motor inhibitors (along with most of the newer advanced-cadence sensing Class 1 pedal assist models I’m been seeing). The motor cuts in and out quickly enough and relies almost solely on torque sensing so I suppose motor inhibitors aren’t as necessary.
You’re right on with the Zero Cadence comment, I think it’s mostly a marketing thing to make the system appear responsive and more powerful than competing technology when in reality (at least to me) it performs similarly from start but less well from pedal-discontinuation. My personal favorite mid-drive units are Impulse 2.0 and the Bosch Performance Speed. I think the smaller sprocket technology from Bosch is genius but it does cost more, has more moving parts inside to create the 2 to 1 conversion in speed vs. a standard sprocket and this creates some additional noise. For the price, Yamaha on a Haibike is still amazing and I liked it better than Shimano and TranzX.
ReplyJack Tyler
9 years agoThanks, Court. Your review – and following up with Q’s like mine right here – are just so damn helpful. I’m sure these nuances would be missed by folks like me, who are new to the ebike world, without you providing these reviews. Thanks, again.
ReplyCourt Rye
9 years agoThanks Jack! I’m doing my best and it’s great to feel appreciated. Even with all of the study, test riding and video editing + writing that I do there are little things that get missed or realized too late. Comments are a great way to tease out the details and I appreciate your interest and time here ;)
ReplyConsuelo de Araujo Carvalho
9 years agoA minha preferencia da cor é que seja branca com detalhes em cinza ou outro que não seja rosa . Obrigada .
ReplyCourt Rye
9 years agoExiste um modelo muito semelhante chamado HardSeven que é cinza com acentos brancos que você pode ver aqui … obter a melhor exibição, drivetrain e garfo comprar o SL contra o modelo SM
ReplyConsuelo de Araujo Carvalho
9 years agoBom dia . Pelo meu celular V.Sra. enviou a oferta de uma bike cinza . Infelizmente eu não gosto de bicicletas cinza . Quais as outras opções de cores disponíveis na mesma faixa de preço ? Minha estatura é 1,50 m e meu peso é 65 kg . Preciso que a bike tenha farol e buzina . Sua empresa possui ? Obrigada , Consuelo
ReplyCourt Rye
9 years agoOi Consuelo , existem muitas bicicletas eléctricas para explorar aqui no site , mas eu não vender nenhum deles (apenas revê-los para ajudar as pessoas a aprender ) . Eu recomendo olhar através da seção de mountain bike elétrica aqui.
Reply
