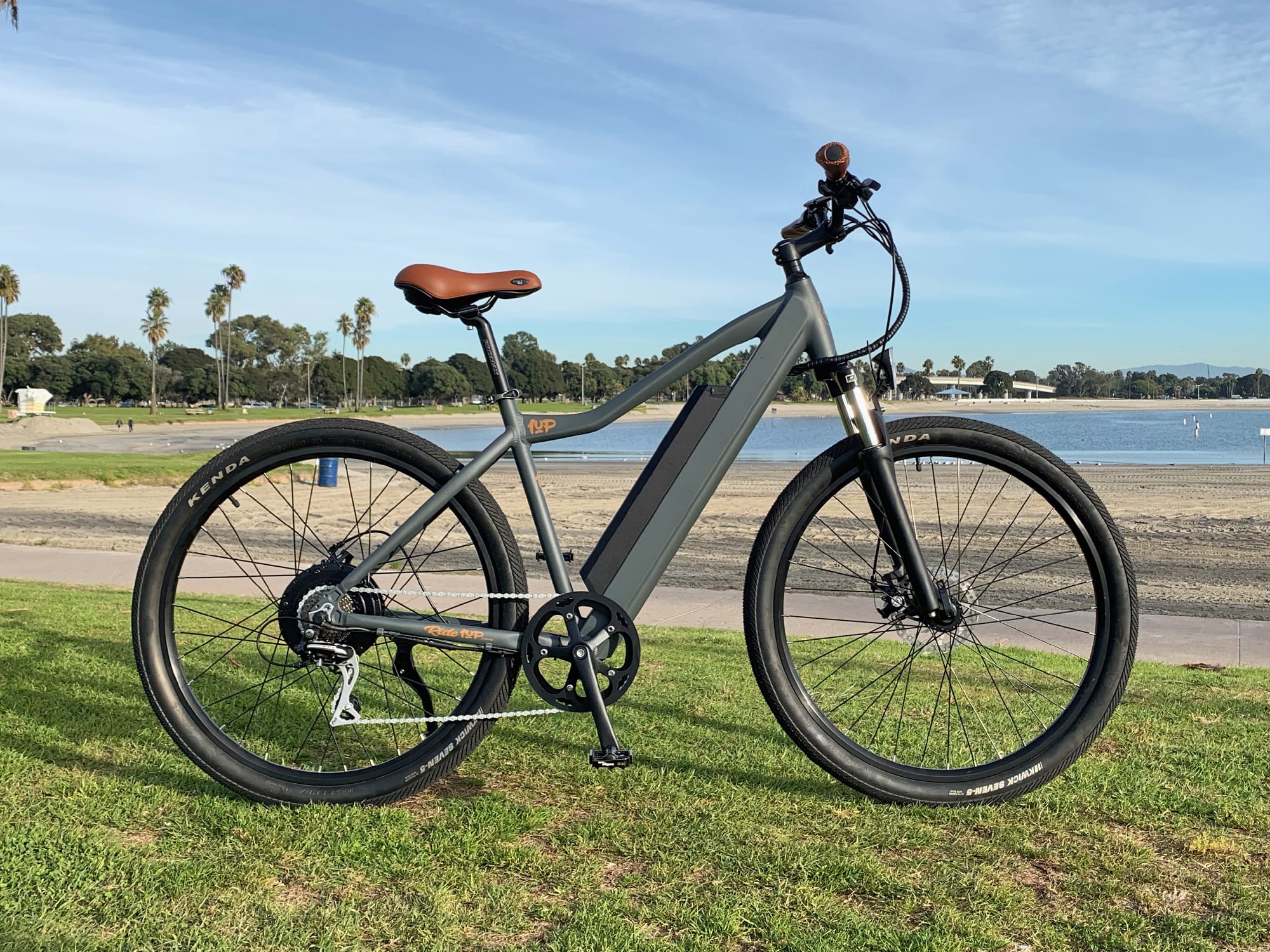

Ride1up 500 Series

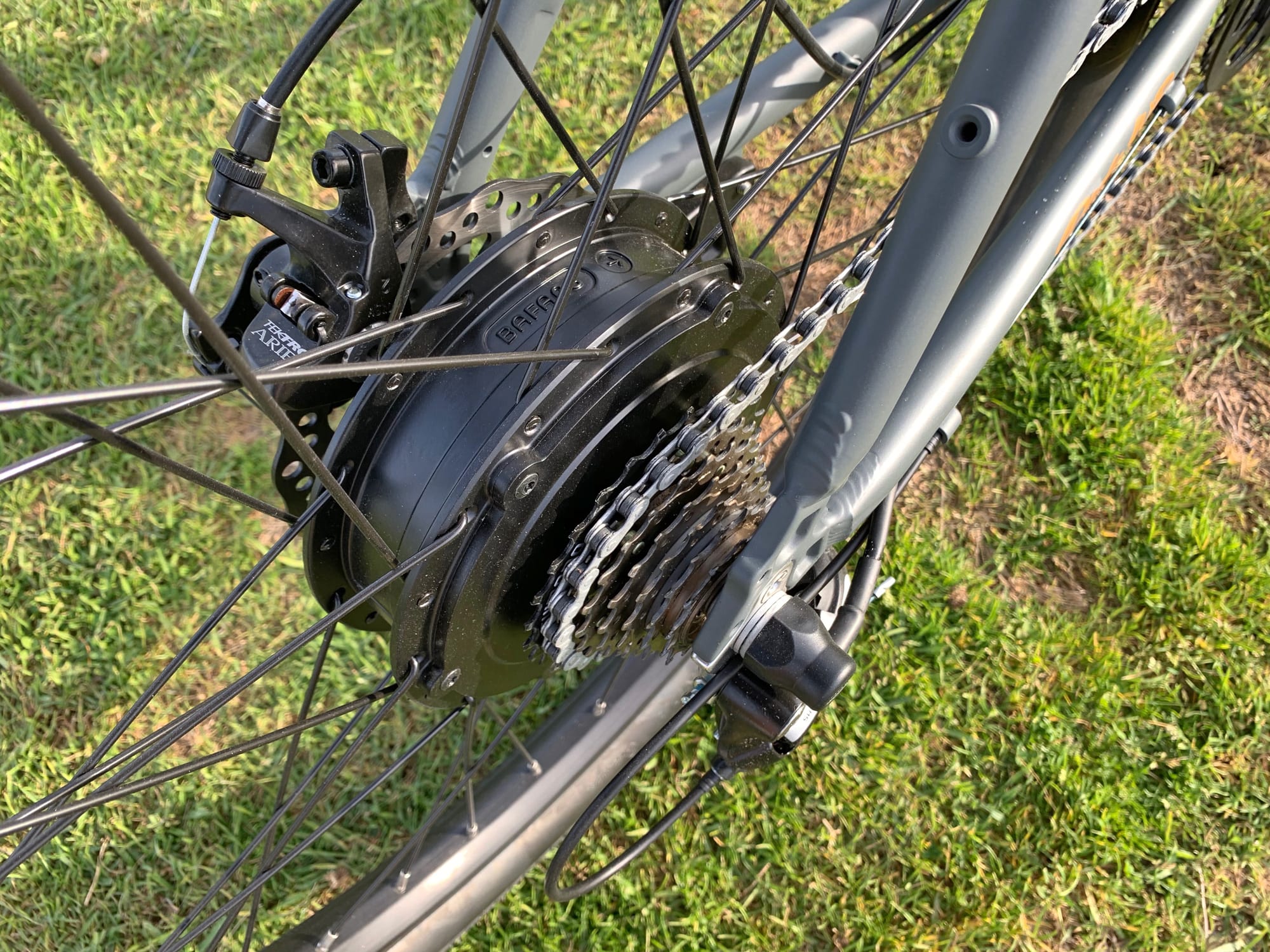

Ride1up 500 Series Bafang H630 Planetary Geared Ebike Motor

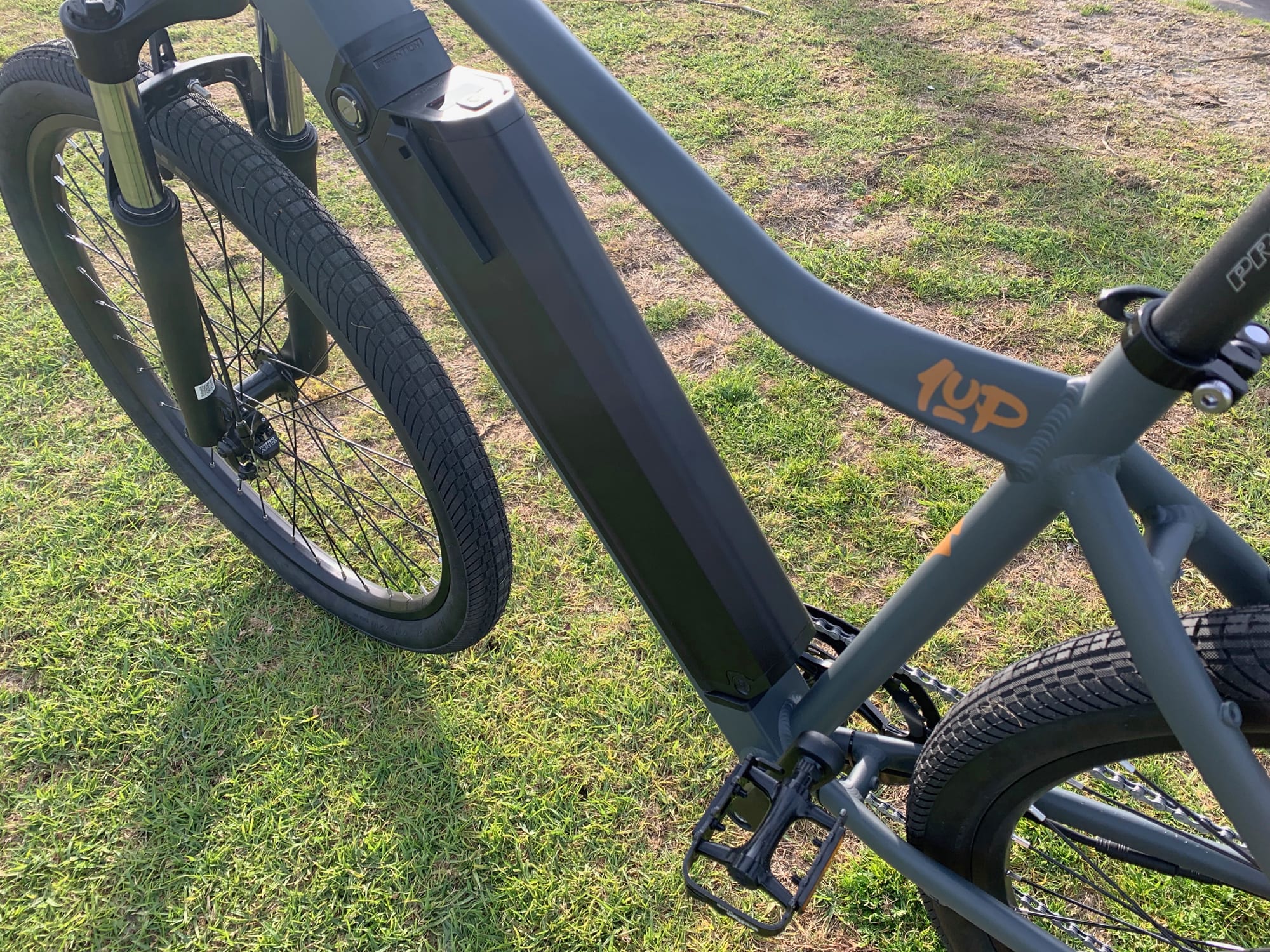

Ride1up 500 Series Reention Dorado Ebike Battery Pack 500wh

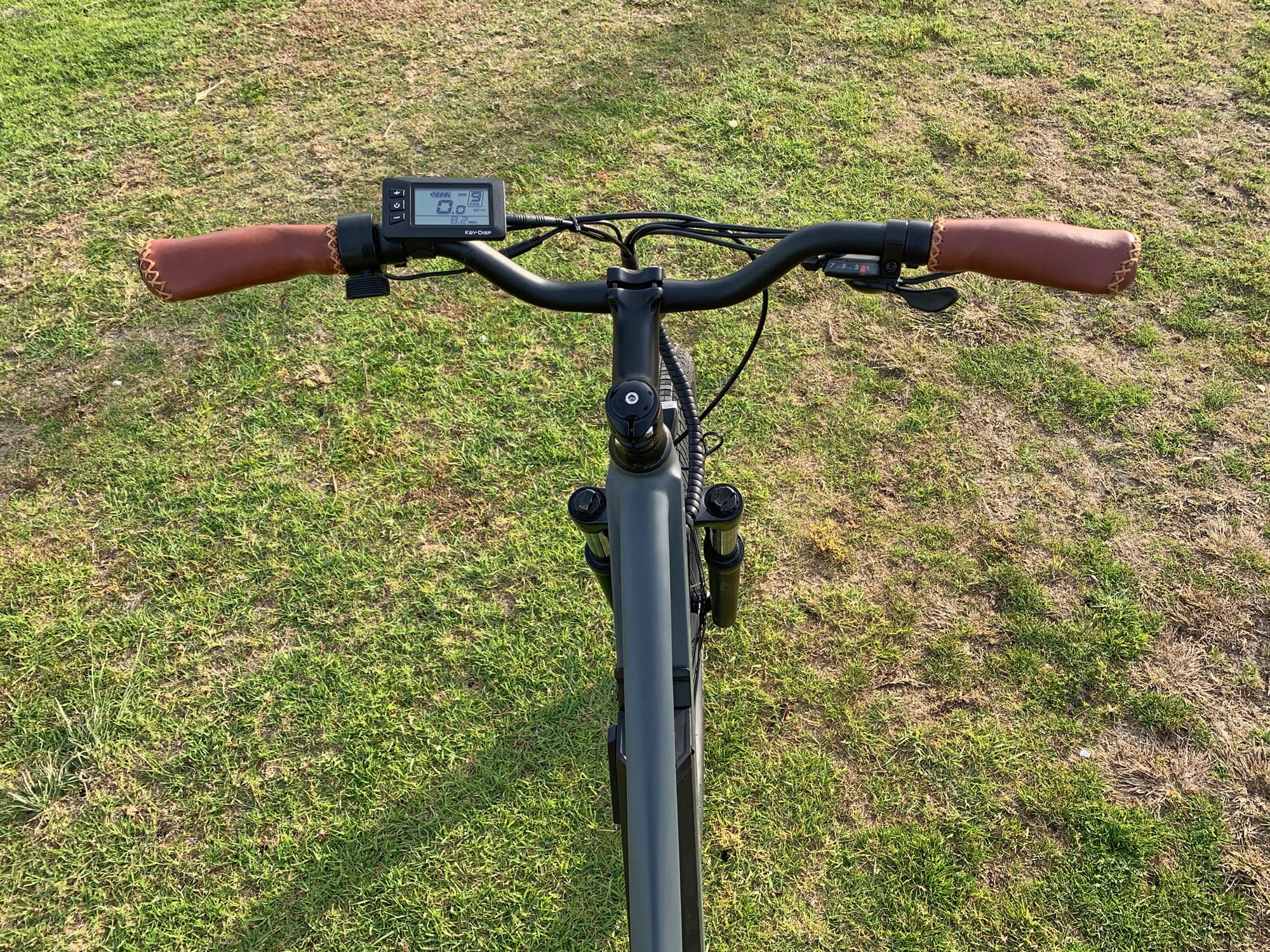

Ride1up 500 Series Stitched Ergo Grips Trigger Throttle
Ride1up 500 Series Key Disp Kd21c Lcd

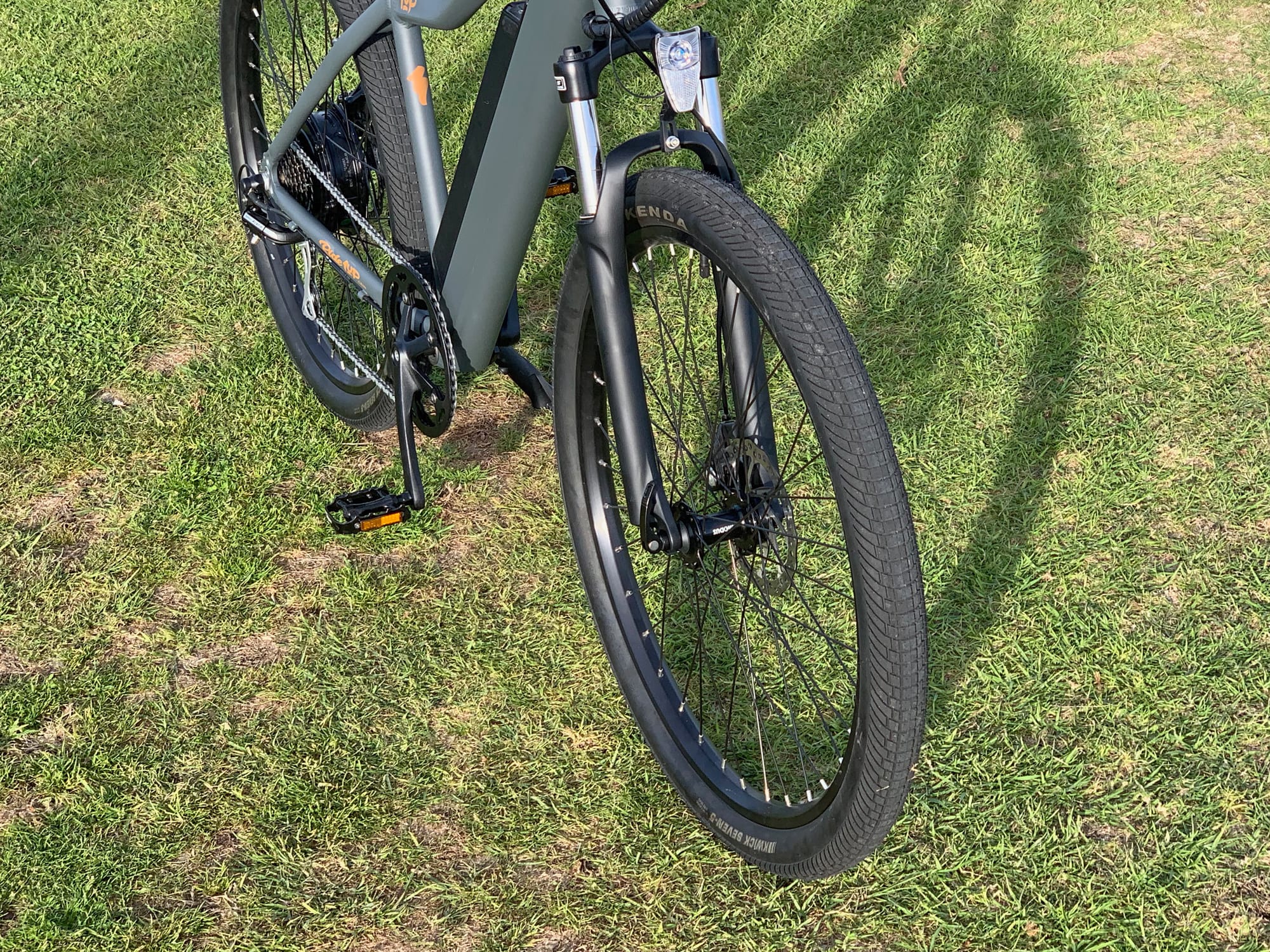

Ride1up 500 Series Sr Suntour Xct Spring Suspension Fork

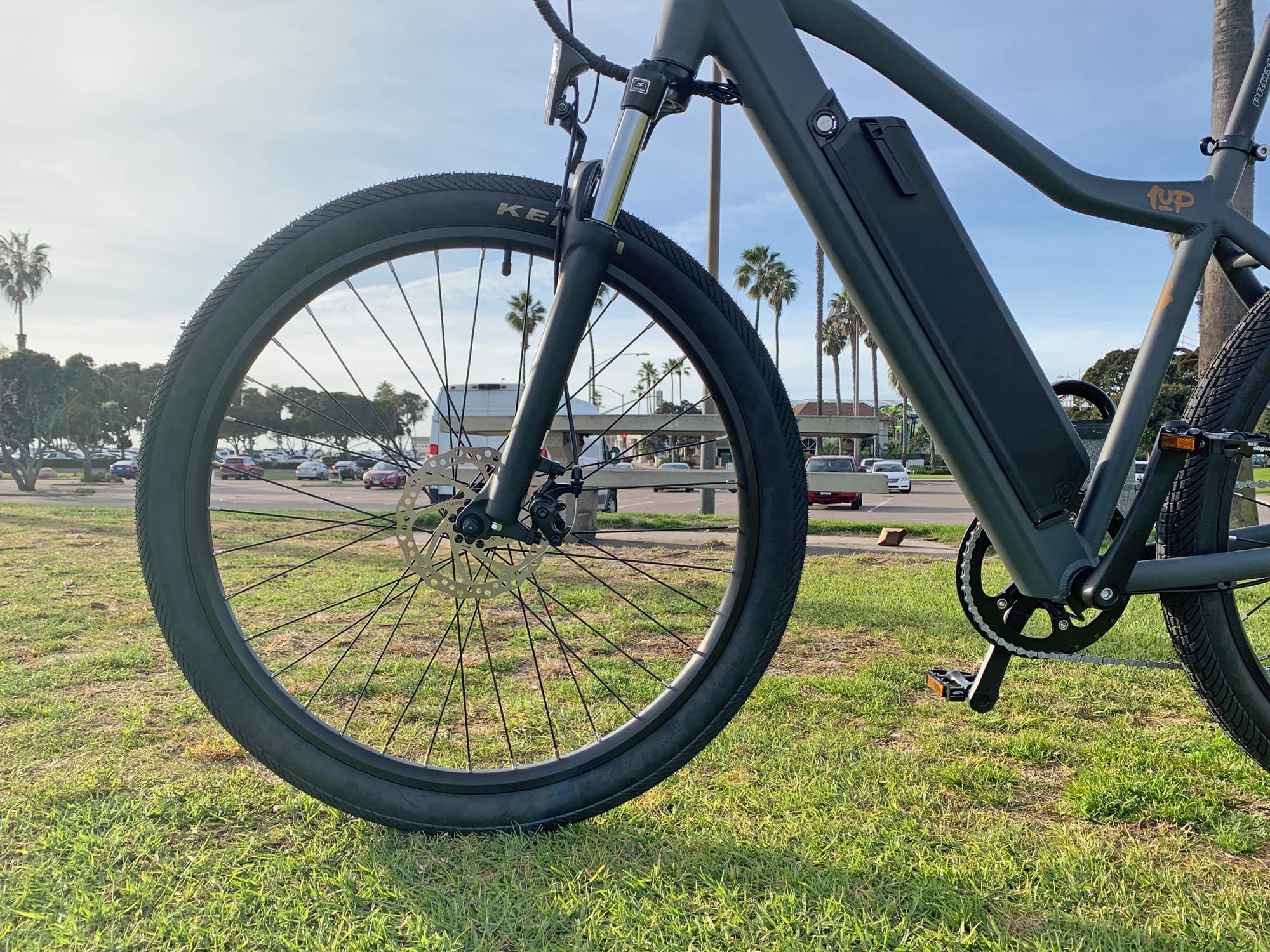

Ride1up 500 Series 160mm Tektro Aries Disc Brakes
Ride1up 500 Series Front Blaze Lite Headlight
Ride1up 500 Series 48 Tooth Steel Chainring With Alloy Guard
Ride1up 500 Series Sealed 12 Magnet Cadence Sensor

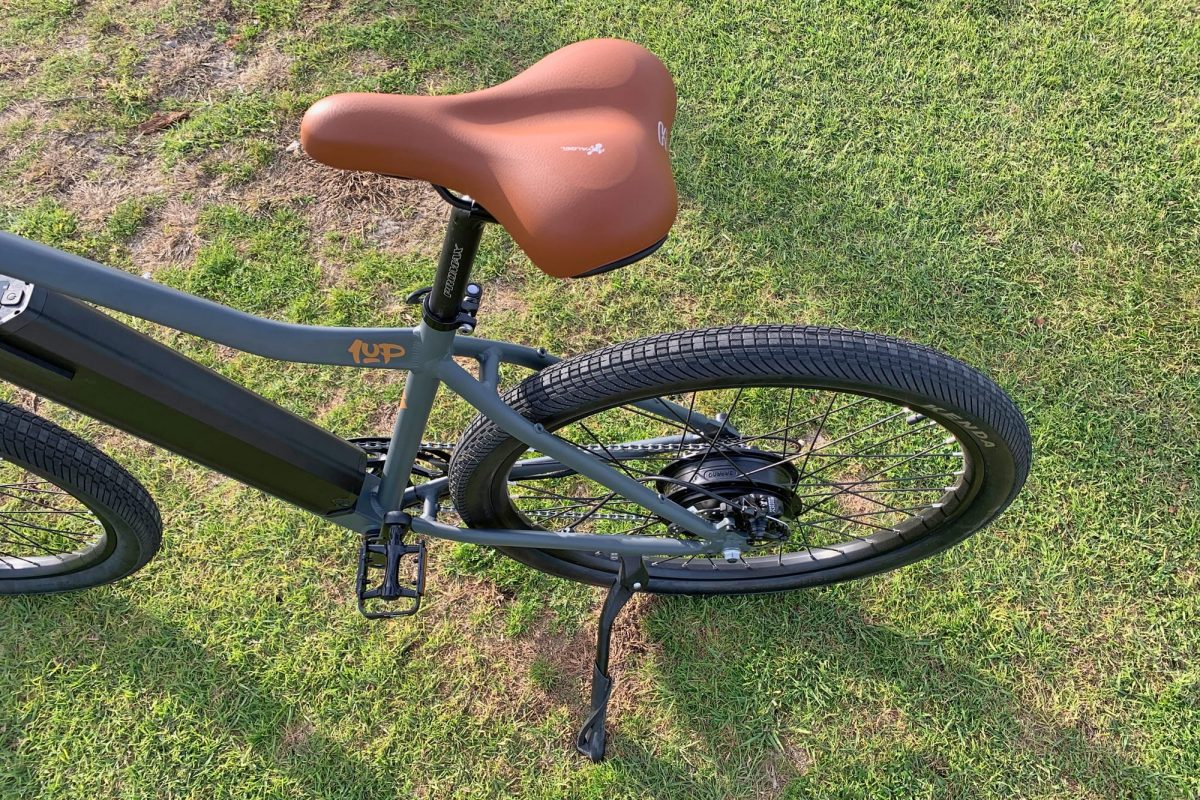

Ride1up 500 Series Selle Royal Freeway Plush Comfort Saddle

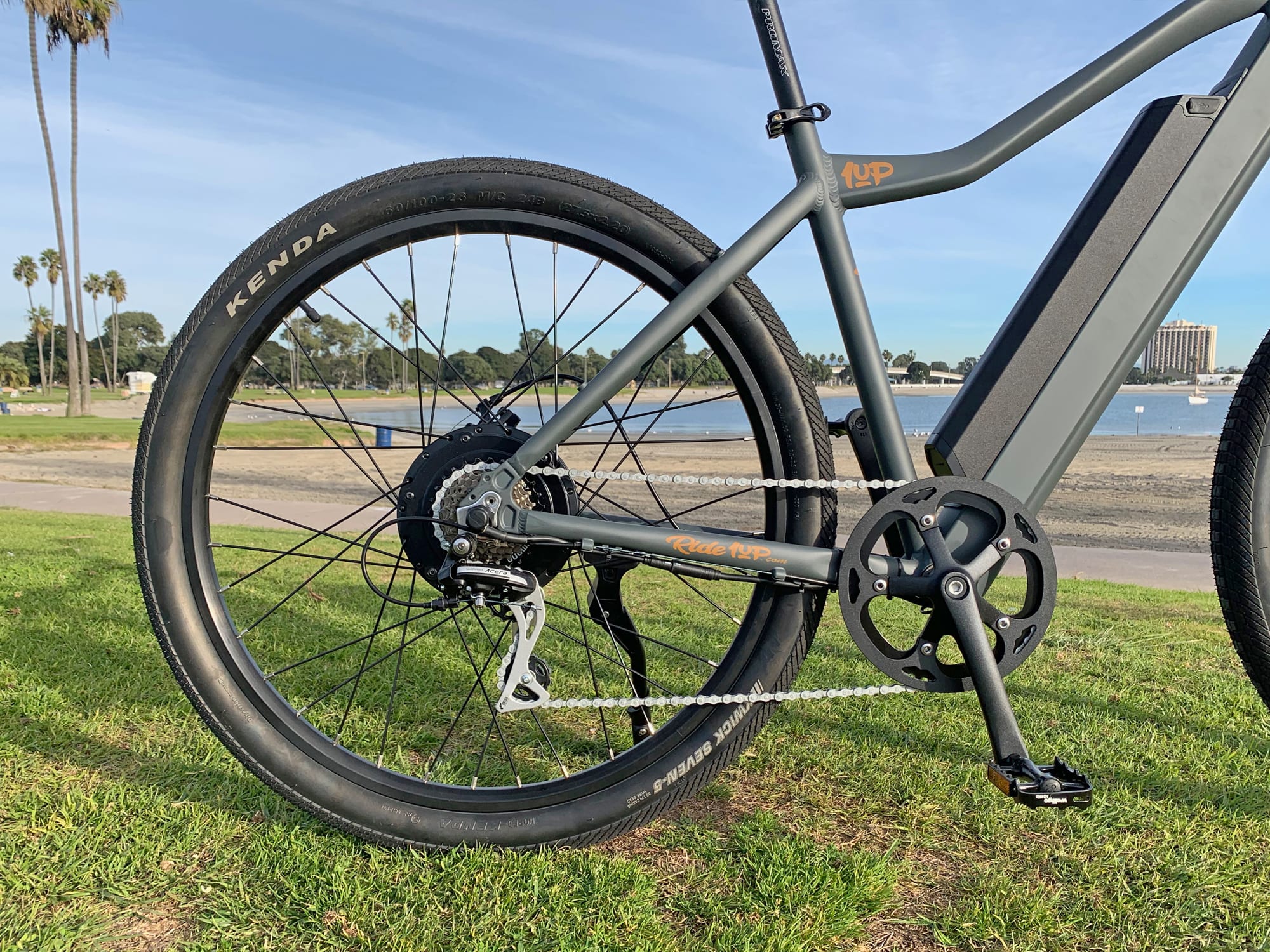

Ride1up 500 Series Shimano Acera Derailleur 14 28 Freewheel
Ride1up 500 Series 2 Amp Sans Ebike Charger
Ride1up 500 Series Optional Gub Handlebar Phone Mount
Ride1up 500 Series Optional Pannier Bags

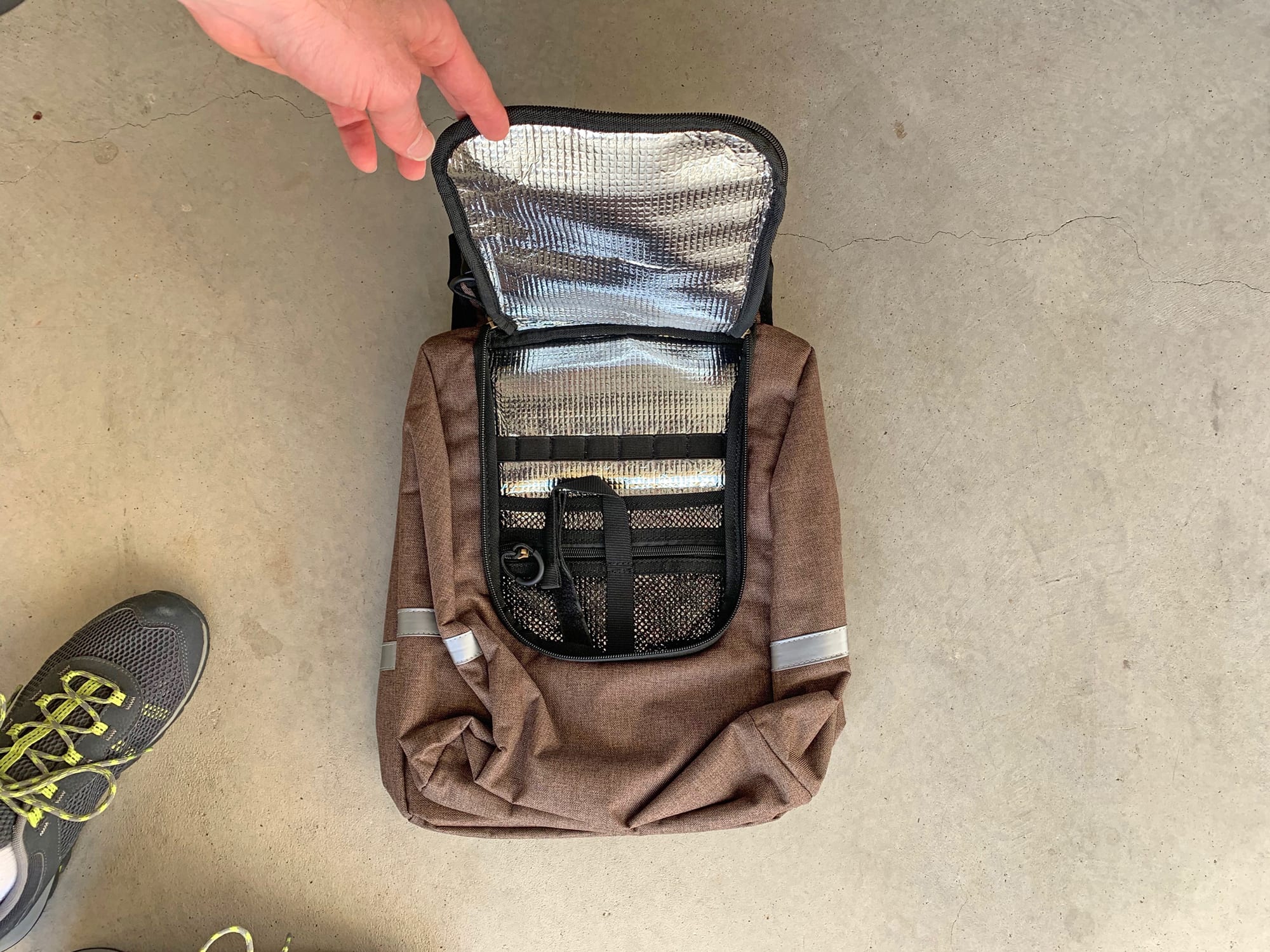

Ride1up 500 Series Optional Insulated Pannier Bags
Ride1up 500 Series Stock High Step Gray

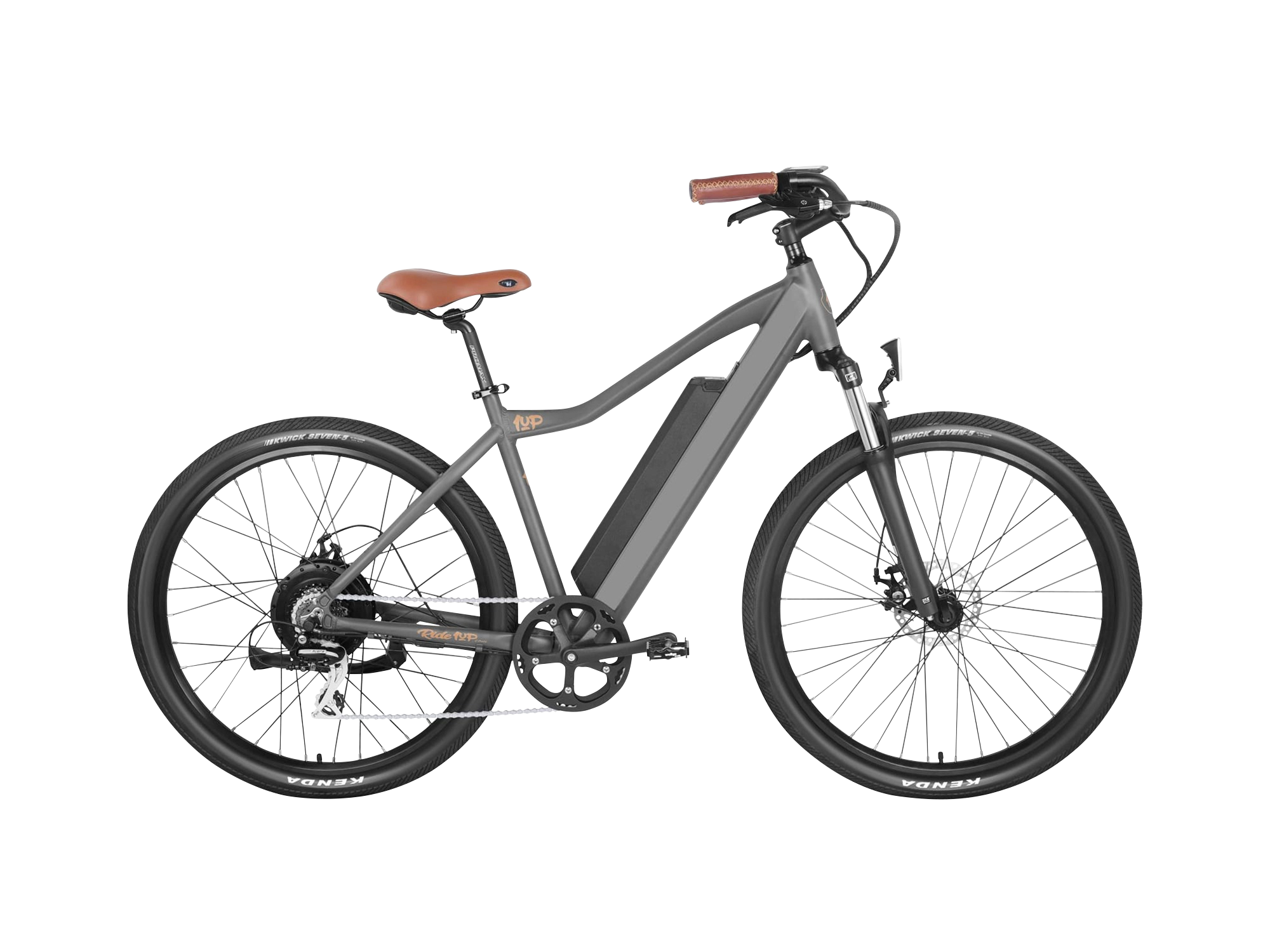

Ride1up 500 Series Electric Bike Review
Ride1up 500 Series
Ride1up 500 Series Bafang H630 Planetary Geared Ebike Motor
Ride1up 500 Series Reention Dorado Ebike Battery Pack 500wh
Ride1up 500 Series Stitched Ergo Grips Trigger Throttle

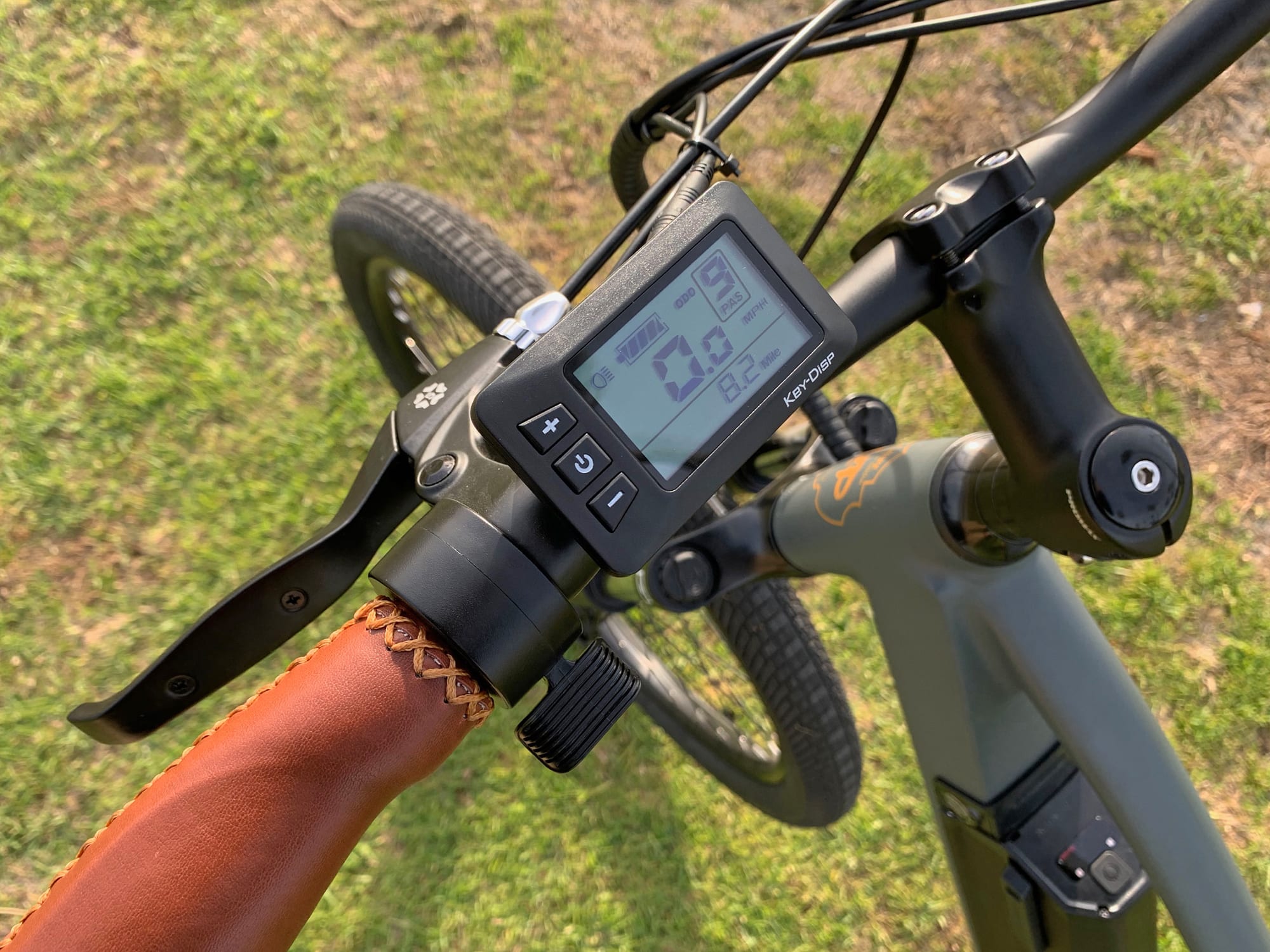

Ride1up 500 Series Key Disp Kd21c Lcd
Ride1up 500 Series Sr Suntour Xct Spring Suspension Fork
Ride1up 500 Series 160mm Tektro Aries Disc Brakes

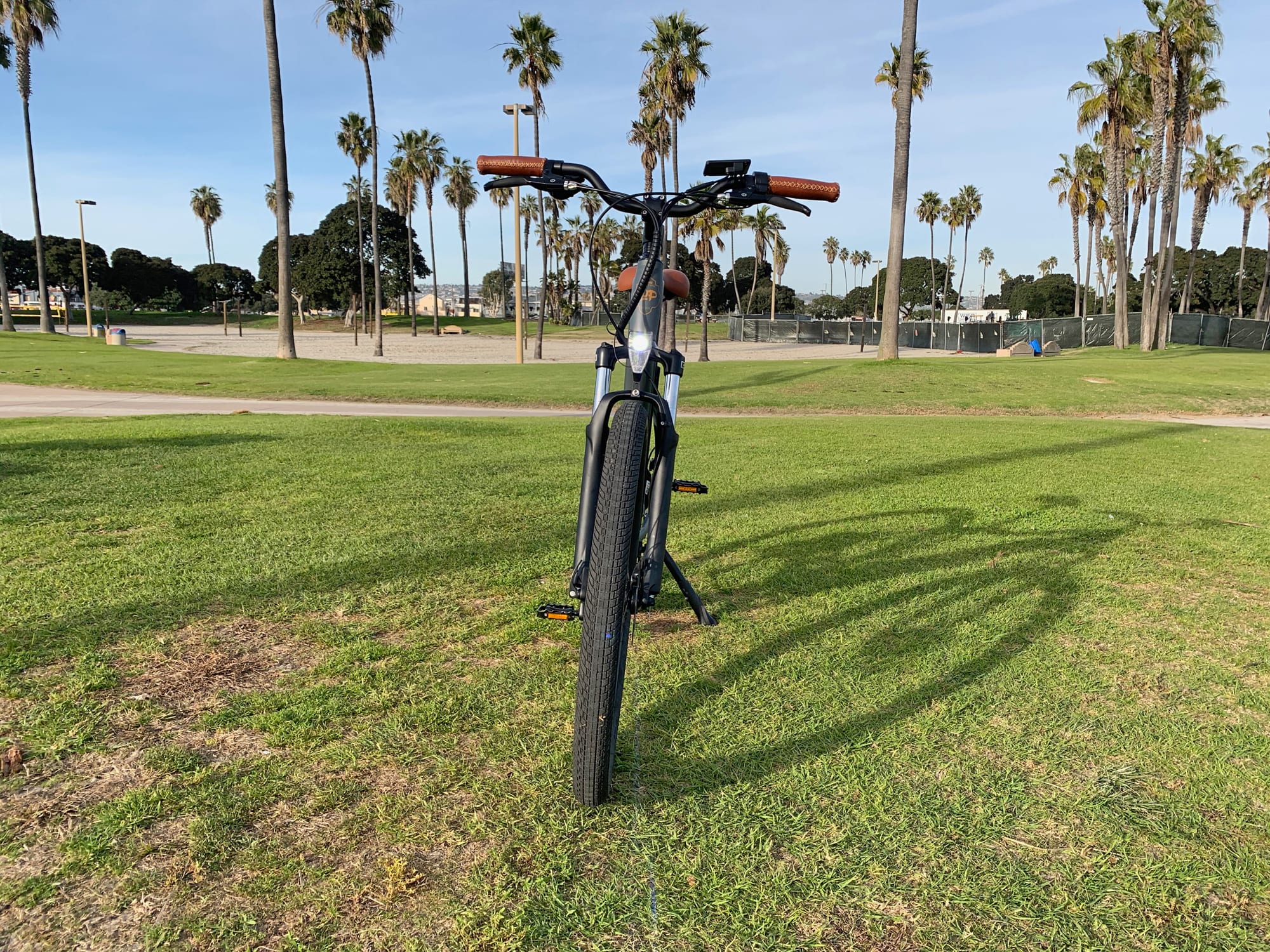

Ride1up 500 Series Front Blaze Lite Headlight

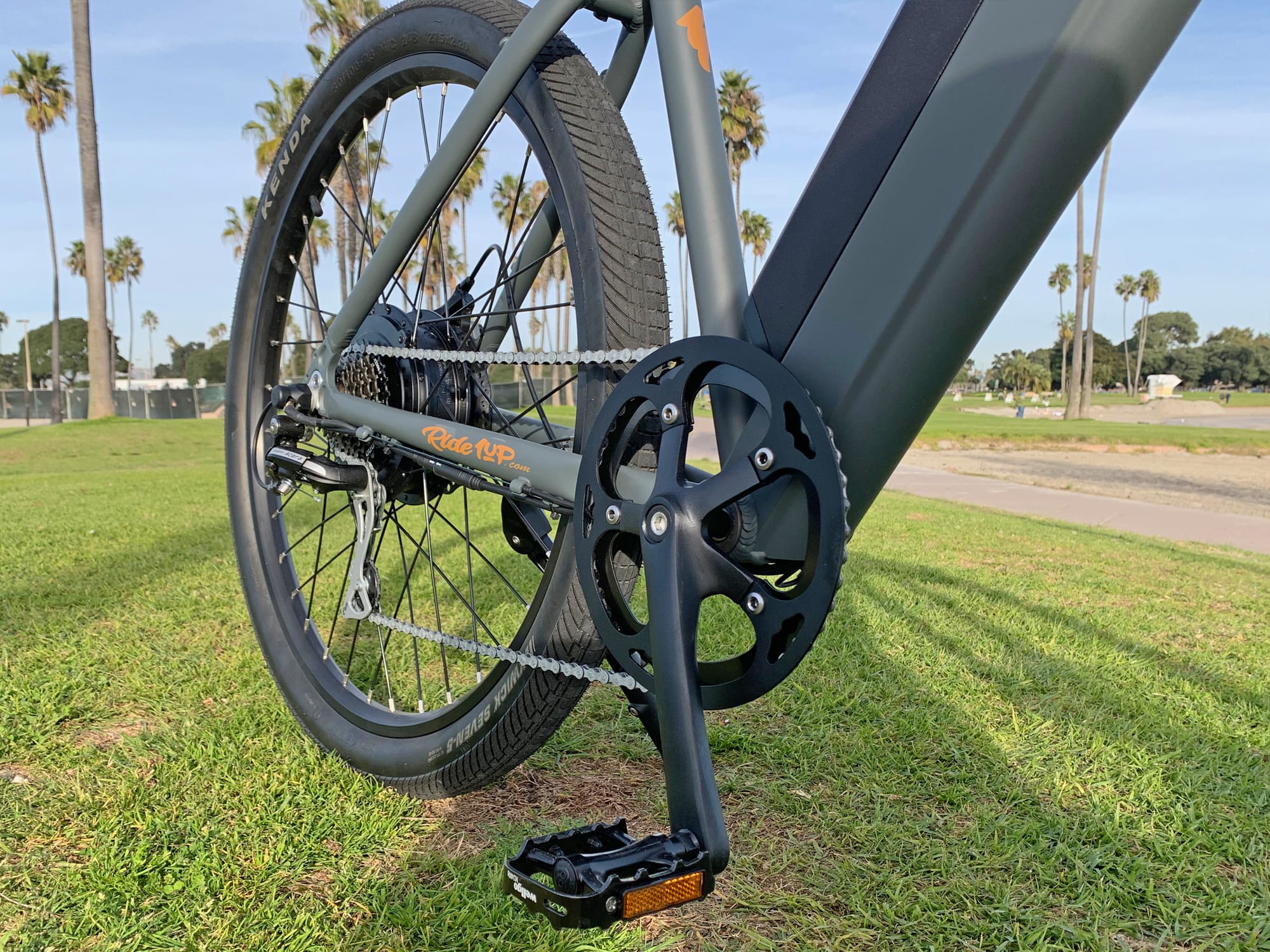

Ride1up 500 Series 48 Tooth Steel Chainring With Alloy Guard

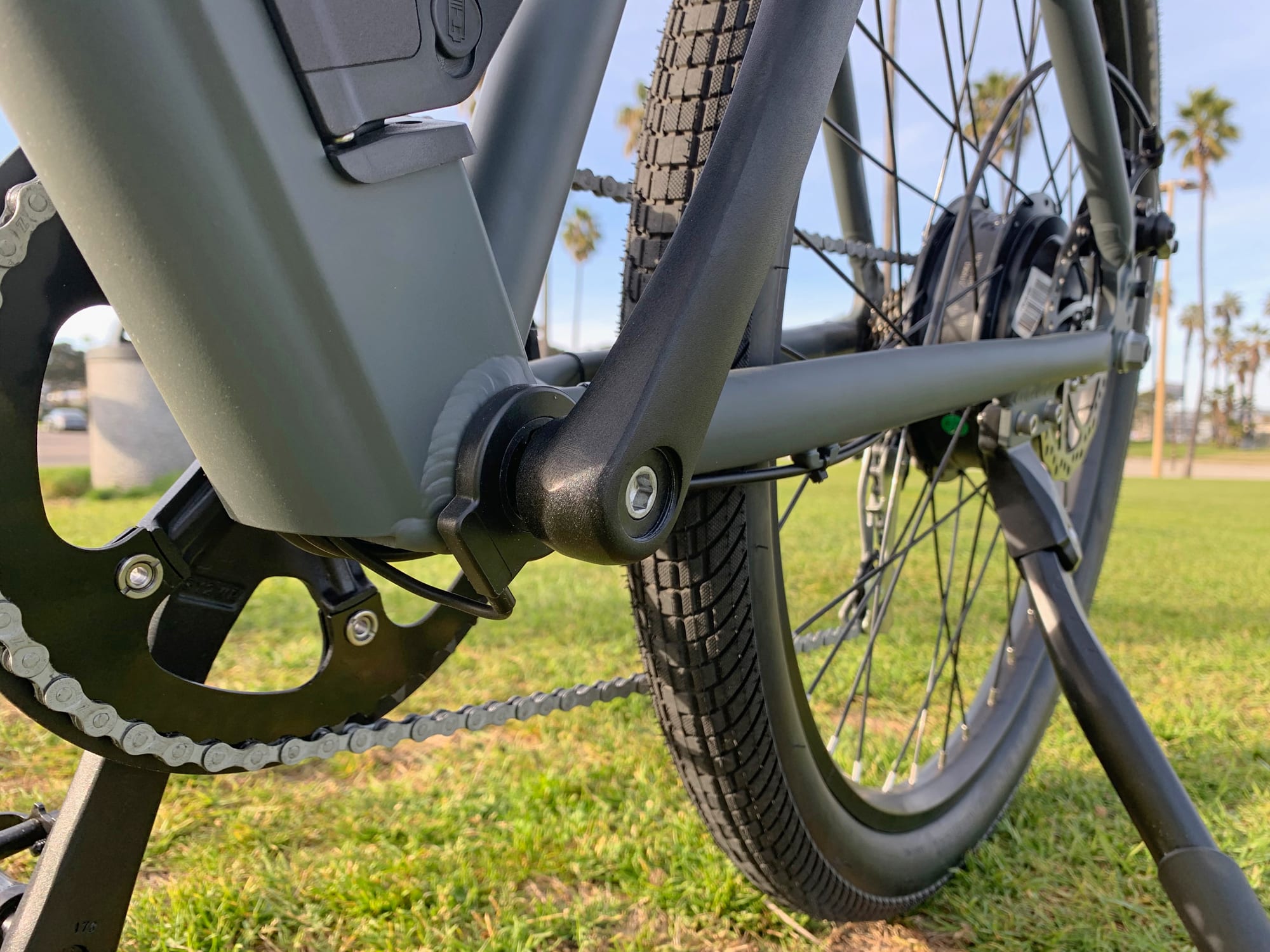

Ride1up 500 Series Sealed 12 Magnet Cadence Sensor
Ride1up 500 Series Selle Royal Freeway Plush Comfort Saddle
Ride1up 500 Series Shimano Acera Derailleur 14 28 Freewheel

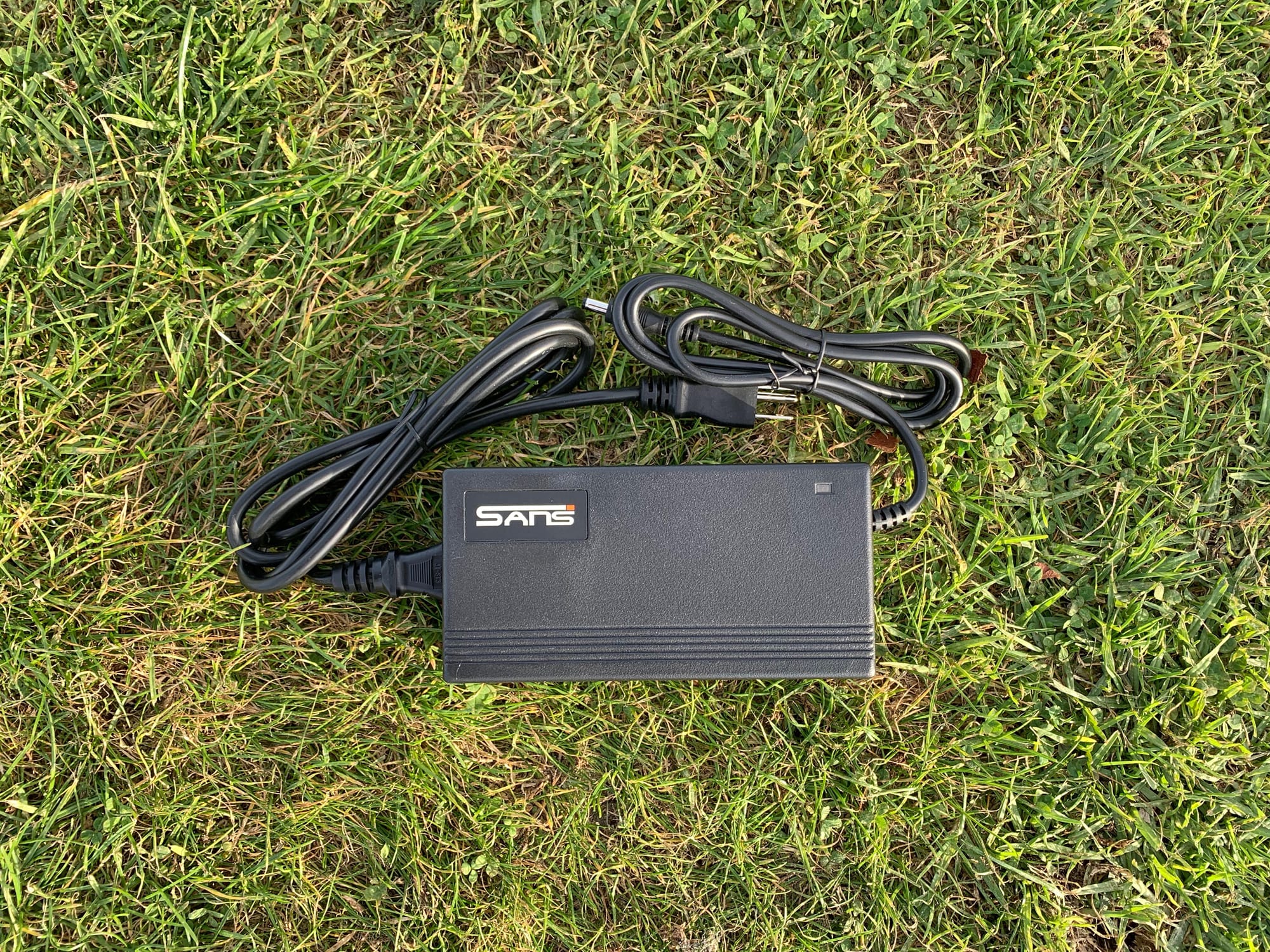

Ride1up 500 Series 2 Amp Sans Ebike Charger

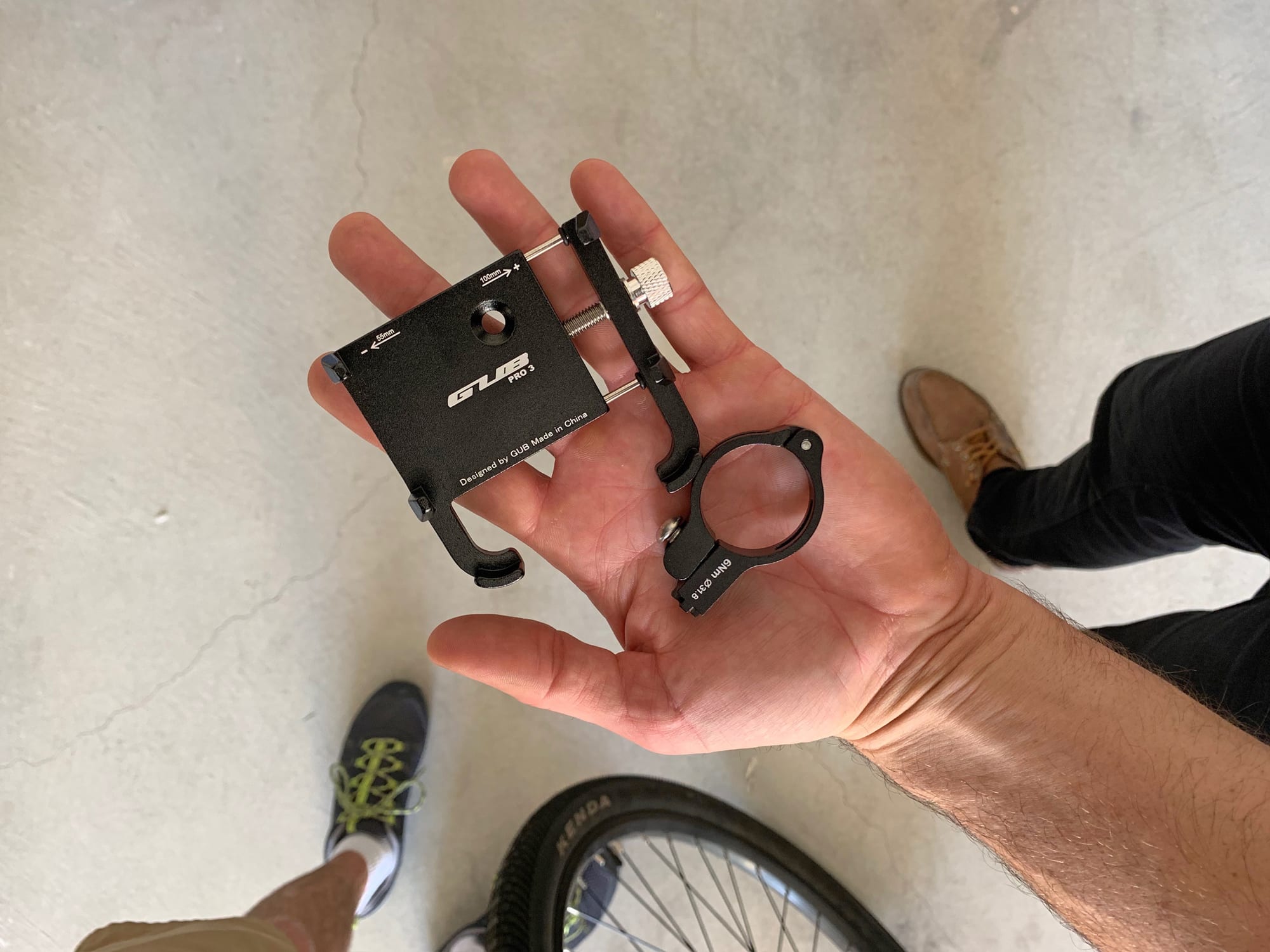

Ride1up 500 Series Optional Gub Handlebar Phone Mount

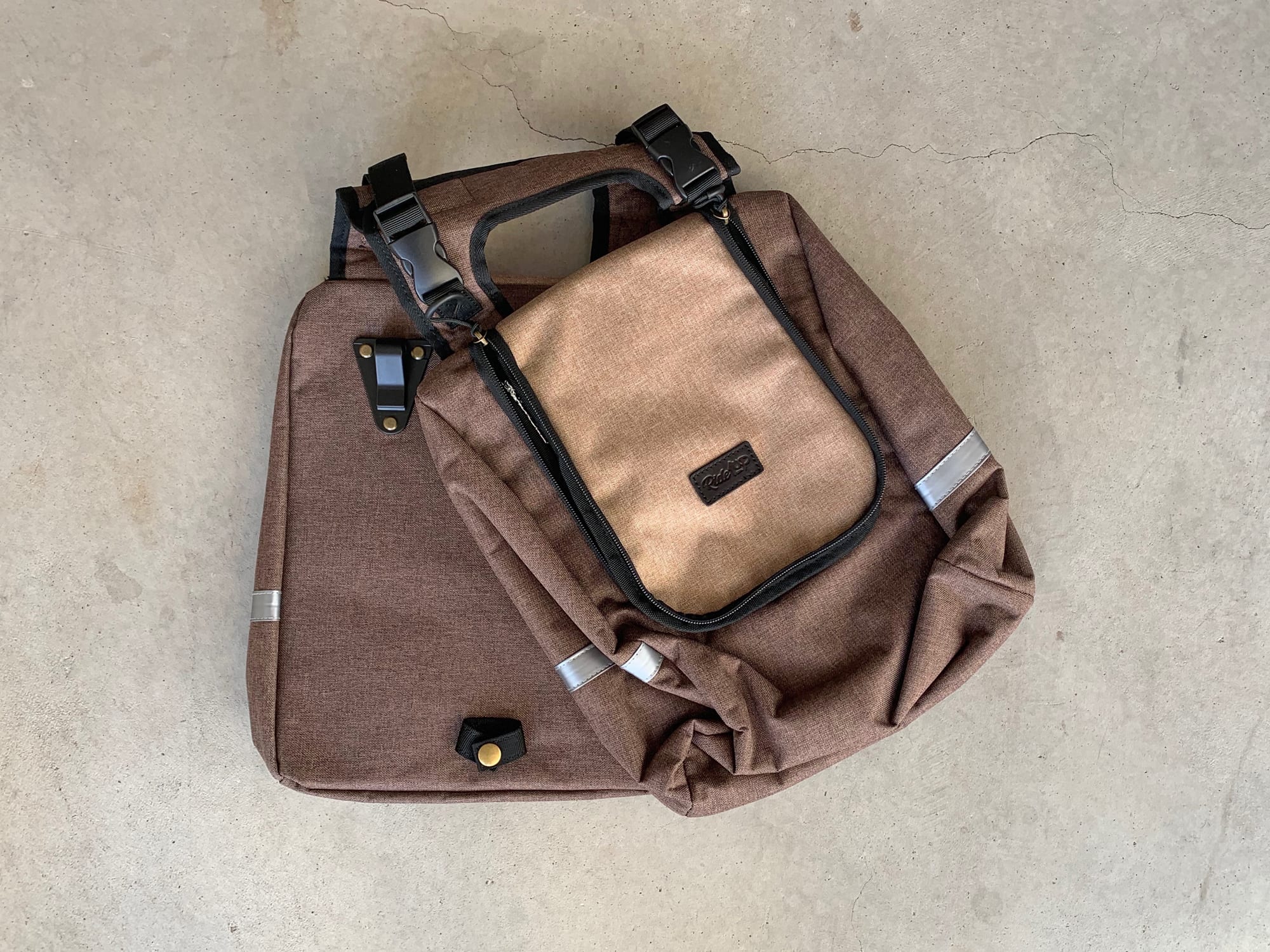

Ride1up 500 Series Optional Pannier Bags
Ride1up 500 Series Optional Insulated Pannier Bags
Ride1up 500 Series Stock High Step Gray

Summary

  • An affordable urban electric bike with slightly higher top speed of 25mph, trigger throttle operates from zero and overrides all nine levels of assist for maximum control, zippy 500 watt Bafang hub motor, basic 160mm mechanical disc brakes
  • Upgraded Shimano Acera derailleur with basic 7-speed 14-28 tooth freewheel, upgraded rims with matching black spokes, thicker spokes in the rear for strength, unlabeled SR Suntour suspension fork with preload adjust adds comfort when paired with the gel saddle and stitched ergonomic grips
  • Sloping top tube makes the bike approachable with a lower standover height, value brake levers have rubberized edge for comfort and motor inhibitors for safety, integrated headlight keeps you visible, compact display is easy to use and offers some settings adjustments
  • Great kickstand placement, excellent sealed 12-magnet cadence sensor, two color options and even a swept-back handlebar option make this bike unique, ships to US, Canada, and Mexico for not much extra, more steps to assemble because the fork and stem are not attached, no bottle cage bosses, no slap guard

Video Review

Introduction

Make:

Ride1Up

Model:

500 Series

Price:

$1,099 (Free Shipping in the Contiguous US, $150 Outlying, $25 to Canada)

Body Position:

Forward, Upright

Suggested Use:

Urban

Electric Bike Class:

Throttle on Demand (Class 2), Speed Pedelec (Class 3)
Learn more about Ebike classes

Warranty:

1 Year Comprehensive

Availability:

United States, Canada, Mexico

Model Year:

20192020

Bicycle Details

Total Weight:

55.7 lbs (25.26 kg)

Battery Weight:

7.3 lbs (3.31 kg)

Motor Weight:

9 lbs (4.08 kg)

Frame Material:

6061 Aluminum Alloy

Frame Sizes:

19 in (48.26 cm)

Geometry Measurements:

19" Seat Tube, 22.75" Reach, 28.25" Stand Over Height, 33.75" Minimum Saddle Height, 26.5" Width, 71" Length

Frame Types:

High-Step

Frame Colors:

Matte Gunmetal Gray with Black Accessories, Matte Taupe Grey with Brown Accessories

Frame Fork Details:

SR Suntour XCT Spring Suspension, 100mm Travel, Preload Adjust, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer

Frame Rear Details:

135mm Hub Spacing, 12mm Threaded Slotted Axle with 19mm Nuts

Attachment Points:

Rear Rack Bosses, Fender Bosses

Gearing Details:

7 Speed 1x7 Shimano Acera Derailleur, Shimano MF-TZ500-7 Freewheel 14-28 Tooth

Shifter Details:

Shimano Acera Rapid-Fire Triggers on Right (One-Way High Lever, Three-Shift Low Lever)

Cranks:

Forged Alloy Arms, 170mm Length, Square Taper Bottom Bracket, 48 Tooth Steel Chainring with Alloy Guard

Pedals:

Wellgo M248DJ Platform, Cage Style

Headset:

Neco, Threadless, Sealed Cartridge, Straight 1-1/8"

Stem:

Promax MA-45, Aluminum Alloy, 90mm Length, 10-Degree Rise, 25.4mm Clamp Diameter, 20mm Cone Spacer, Two 10mm Spacers

Handlebar:

Aluminum Alloy, Mid-Rise, 45mm Rise, 660mm Length, (Optional Dutch Cafe-Style Swept-Back Handlebar)

Brake Details:

Tektro Aries Mechanical Disc with 160mm Rotors, Four-Finger Levers with Rubberized Edge and Motor Inhibitors

Grips:

Padded, Stitched, Faux Leather, Non-Locking

Saddle:

Selle Royal Freeway Plush Comfort

Seat Post:

Promax, Aluminum Alloy, Forged Head Single Bolt

Seat Post Length:

300 mm

Seat Post Diameter:

27.2 mm

Rims:

Aluminum Alloy, Double Walled, 25mm Outer Width, 36 Hole, Black

Spokes:

Stainless Steel, 14 Gauge Front 12 Gauge Rear, Black with Nipples

Tire Brand:

Kenda Kwick Seven-5, 27.5" x 2.2" (60-100-23)

Wheel Sizes:

27.5 in (69.85cm)

Tire Details:

30 to 50 PSI, 2.0 to 3.5 BAR, K-Shield Puncture Protection

Tube Details:

Schrader Valve

Accessories:

Integrated Blaze-Lite Headlight (Single LED, 300 Lumens), Steel Derailleur Guard, Rear-Mount Adjustable Kickstand, Optional Custom Rear Rack and Fenders ($100), Optional Insulated Water Resistant Reflective Panniers ($65)

Other:

Locking Removable Semi-Integrated Downtube Battery Pack (Reention Cylinder and Key), 9 Mosfet 18 Amp Current Controller, Sans 1.5 lb 2 Amp Charger, Basic Assembly Toolkit, Max Weight 275lbs

Electronic Details

Motor Brand:

Bafang H630

Motor Type:

Rear-Mounted Geared Hub
Learn more about Ebike motors

Motor Nominal Output:

500 watts

Motor Peak Output:

750 watts

Motor Torque:

50 Newton meters

Battery Brand:

(Reention Dorado) LG, 52 4P13S 18650 Cells 2600 mAh

Battery Voltage:

48 volts

Battery Amp Hours:

10.4 ah

Battery Watt Hours:

499.2 wh

Battery Chemistry:

Lithium-ion

Charge Time:

4.5 hours

Estimated Min Range:

25 miles (40 km)

Estimated Max Range:

50 miles (80 km)

Display Type:

Key-Disp KD21C, Fixed, Backlit, 2.25" Monochrome LCD, Buttons: +, Power, -, Lights: Hold +, Walk Mode: Hold -, Settings: Hold + and -, Default Settings: Hold + and Power

Readouts:

Battery Charge Level (5 Bars), Odometer, Trip Meter, Timer, Power (Watts), Assist Level (0-9), Max Speed, Avg Speed

Display Accessories:

Full Size USB Type A Port on Right Side of Battery (5 Volt, 500 mA)

Drive Mode:

Cadence Sensing Pedal Assist, Trigger Throttle (Sealed 12-Magnet Sensor)

Top Speed:

25 mph (40 kph)(20 MPH Throttle, Adjustable)


Written Review

To run the forums, host the website, and travel, I charge a universal service fee for my reviews. This in-depth review was sponsored by Ride1Up electric bikes. My goal is to be transparent and unbiased with you, this video and writeup are not meant to be an endorsement of Ride1Up products. I welcome your corrections, additions, and feedback in the comments below and the Ride1Up electric bike forums.

Observations:

  • This is the first product that Ride1Up launched when they opened in September 2018, it’s their most popular model because it offers good quality at a relatively low price
  • The 500 Series comes in two frame colors with matching accents (either brown or black saddle and grips), you can choose a mid-rise handlebar or swept-back Dutch style handlebar which is unique for an affordable product
  • Ride1Up is based in San Diego, California but has a warehouse in Sparks, Nevada where products are shipped from. The bikes fit into a smaller box and require more assembly than a lot of the other models I’ve tested… you need to put the fork onto the frame, assemble the headset and mount the stem, mount the front wheel, and add the seat post and saddle. It would help to have a bike stand, but they do include a basic toolkit and have good tutorial videos here (under the instructional guides tab)

Pros:

  • Lots of great accessories at impressively low prices, the fenders and rack for just $100 is amazing! I liked the double-pannier accessory with reflective fabric and insulation is great, the phone mount is fairly high quality
  • Low price is one of the big draws for Ride1Up and I feel that their $1,099 price point is a great value considering the two color options, matching accessories, and handlebar choices… they even offer a $40-off coupon for people who pledge to reduce their drive commute by two trips per month, how cool is that?!
  • Good choice on the cadence sensor here, the sealed 12-magnet design is responsive and durable, it performed well with the 9-settings of pedal assist… the lower levels didn’t feel too abrupt or overpowering
  • I appreciate that they mounted the kickstand at the rear of the frame so it won’t cause pedal lock, it didn’t collide with the disc brake rotor and didn’t cause heal-strike when I was riding, good job!
  • Proven Reention battery pack design with quality LG cells, trusted Bafang hub motor should last and perform well (though it does produce more zip sound than some competing models), solid one year warranty with good customer support
  • Suspension fork reduces wrist, arm, and shoulder fatigue when paired with the comfort saddle, grips, and slightly larger tires here… I was told that the Kenda tires have a puncture protection layer to reduce flats
  • Rust resistant chain and sturdy alloy chainring guard should hold up well over time and in varied conditions, I’d love to see a full chainring guide, but didn’t have issues dropping the chain during my test rides
  • Black spokes look great, notice the thicker 12 gauge rear spokes to support the motor and added weight of the optional rack, I like that the suspension fork is just matte black with no logos… the bike looks great for not costing a lot… good cable wrapping and internal routing
  • Both brake levers have motor inhibitor cutoff switches for safety and I like the rubberized edge, even though they are a very affordable “Wuxing 5 Star” make/model, I also like the compact display because it provides plenty of readouts and lets you adjust settings
  • It’s nice that the battery pack is removable and has a USB port built into the side so you can use it for backup power, it would also be nice to have a USB port up on the display so you could use it more easily while riding
  • I was amazed that they offer free shipping in the contiguous USA and only charge $25 for Canada. They also shop to Hawaii and Alaska for just $125 extra and even Mexico… that’s kind of rare for electric bike companies because it requires more effort
  • The throttle works at full power (up to 20mph / 32km/h) in assist level zero as well as all nine of the pedal assist modes… this is great for people who want help starting off and zipping up to speed regardless of their assist setting, it requires fewer button presses and feels empowering to me, it’s my favorite setup!
  • One the one hand, having nine levels of assist requires extra button presses… but I like that the lower levels of assist feel more gentle and natural, and I think you can update the number of assist levels in the settings men, so you an take it to just 3 or 5 if you prefer that

Cons:

  • As with many direct-online electric bikes, there is some assembly required here… you’ll need to mount the fork, add the spacers and stem, get the handlebar setup and then mount the front wheel, finishing with the seat post, saddle, and pedals… it would help to have a bike stand, some chain lubricant, some poly grease, and I’d expect it to take from one to three hours depending on your physical flexibility, strength, tools, and the setting. What you save on money here, you may spend in time and effort compared to some ready-to-ride models or shop ebikes
  • Very basic freeewheel here with limited 14 to 28 tooth sprocket range, this limits your pedal cadence options and requires more effort to start in the lowest gear and faster pedaling to keep up in the highest (considering this is a speed pedelec). I was told that they are considering an 11-30 tooth cassette in the future
  • While the bike is classified as “Class 3” speed pedelec, my experience was that it really topped out closer to 25mph unless you really pedal hard. That’s just fine for me, but don’t expect 28mph here or you’ll be disappointed
  • One of the trade-offs with this, and many affordable ebikes, is the mechanical disc brakes with smaller 160mm rotors. They require more hand effort (especially the rear brake), and the cables can stretch and get gunked up over time compared to hydraulic disc brakes
  • It’s hard to complain too much about this, but there isn’t a rear light… only a headlight. I love that the headlight is wired-in to run off of the main battery pack, it’s more of a “be seen” light, but isn’t all that bad
  • My experience removing and then re-installing the battery pack was that I had to use the key to open the lock mechanism vs. just clicking it back in key-free… this required a bit more hand dexterity and coordination
  • The right chainstay didn’t have a slap guard, so I noticed some nicks in the paint from the chain bouncing up and down while riding on bumpy sections at higher speeds (usually when the chain is on the smallest sprocket, closest to the chainstay)
  • No bottle cage bosses on this frame, some competing bikes with similar frames have added them on top of the top tube but that can look a bit cluttered and if you actually use those bosses, the folding lock, bottle cage, or other accessory is in a vulnerable spot, raising the standover height and potentially racking you if you have to hop forward and off unexpectedly
