Total Weight:
60.9 lbs (27.62 kg)
Battery Weight:
9.4 lbs (4.26 kg)
(Battery Shield Weighs 0.4lbs)Motor Weight:
6.39 lbs (2.89 kg)
Frame Material:
6061 Aluminium Alloy
Frame Sizes:
16.14 in (40.99 cm)17.32 in (43.99 cm)18.89 in (47.98 cm)21.25 in (53.97 cm)Geometry Measurements:
Medium 44cm: 17.5" Seat Tube, 23.25" Top Tube, 17.5" Reach, 30.25" Stand Over Height, 34.5" Minimum Saddle Height, 30.25" Width, 49.5" Wheelbase, 78.5" Length
Frame Types:
High-Step
Frame Colors:
Metallic Orange with Black Accents
Frame Fork Details:

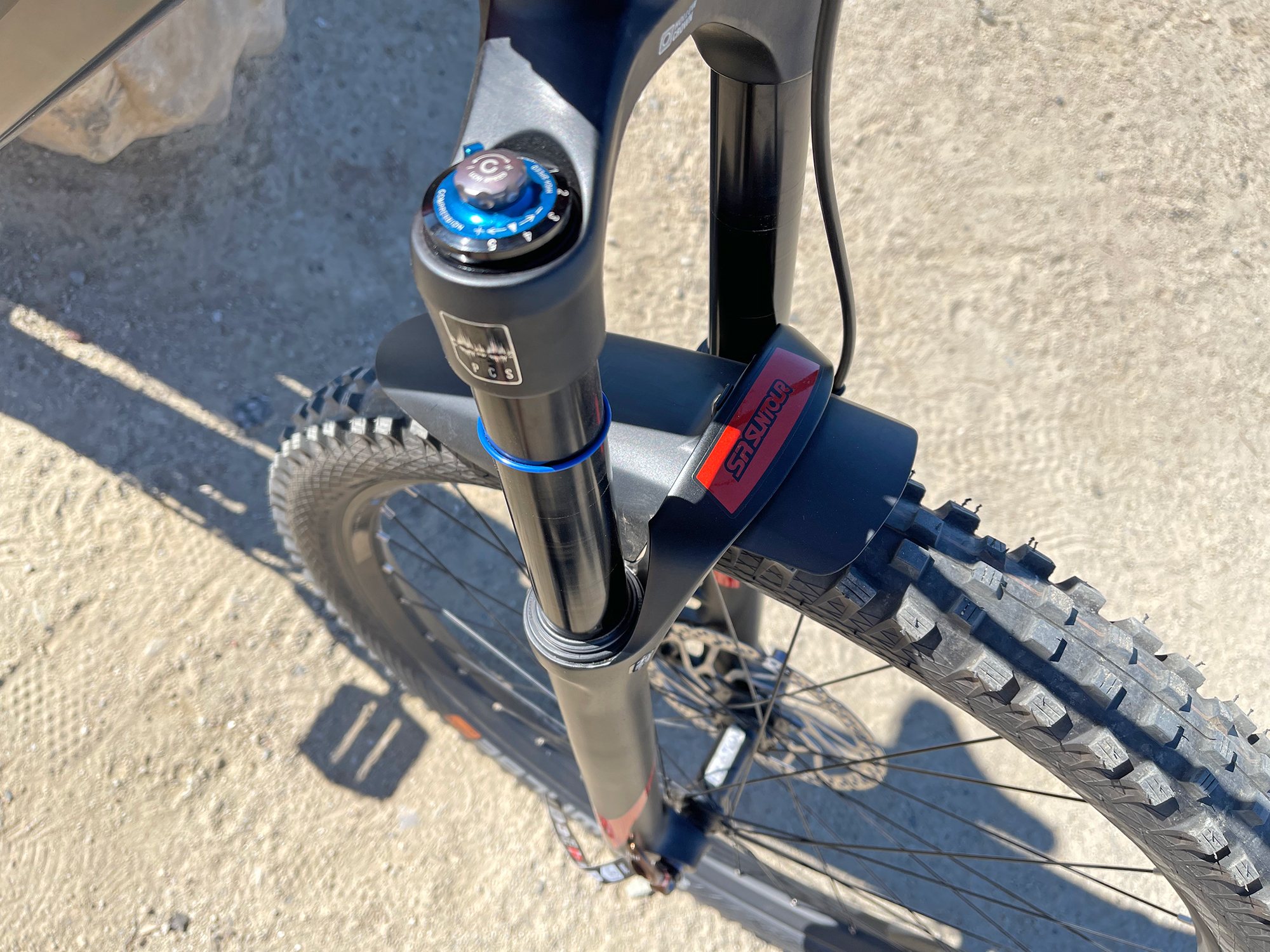

SR Suntour Duralux 36 RC2 Air Suspension, 150mm Travel, Compression Clicker, Rebound Adjust, 36mm Black Anodized Stanchions, Boost 110mm Hub Spacing, 15mm Thru-Axle with Quick Release
Frame Rear Details:

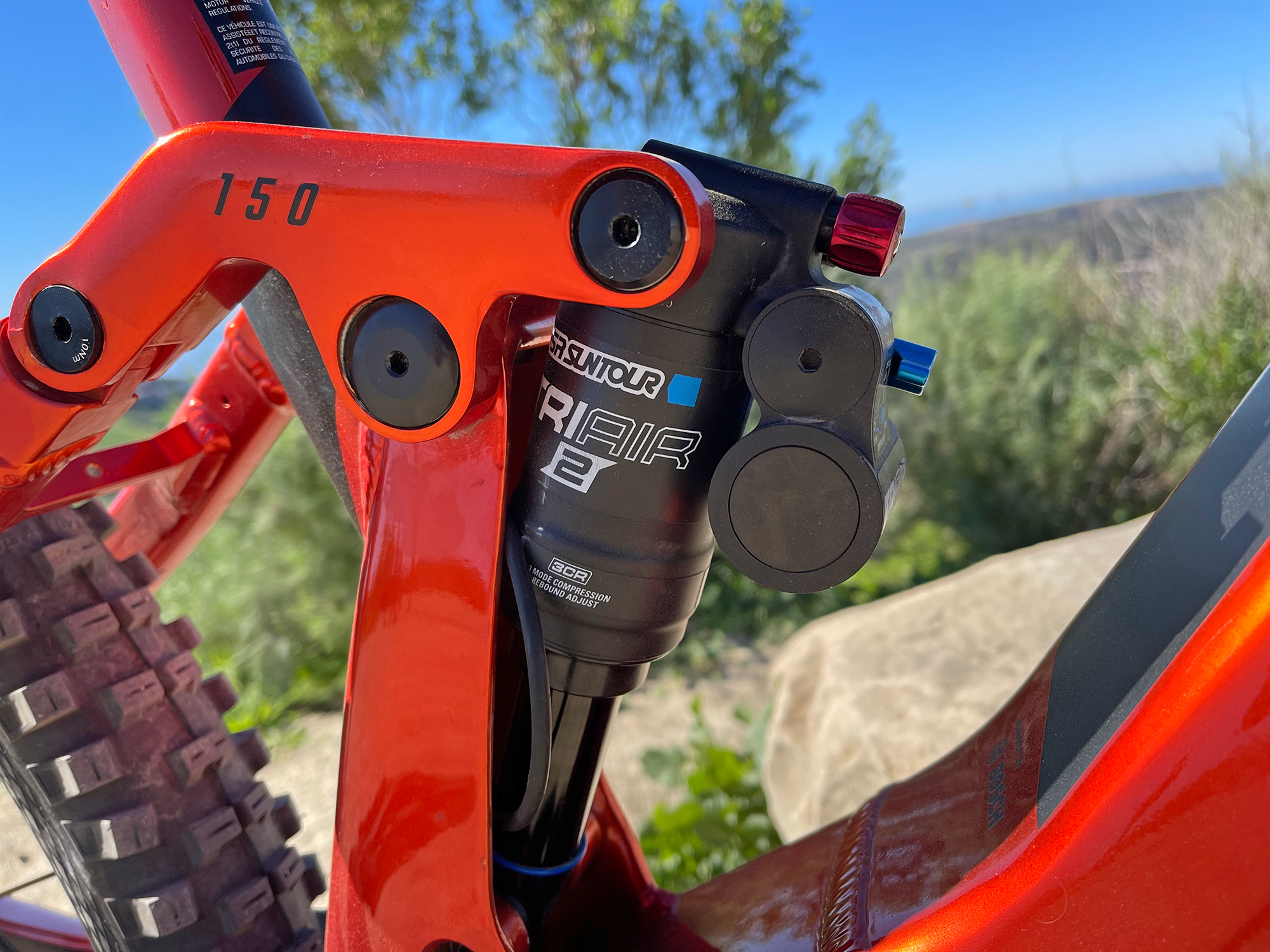

SR Suntour TRIAir 3CR Air Suspension, 150mm Travel, 80% Lockout Lever, Rebound Clicker, Black Anodized Stanchion, Boost 148mm Hub Spacing, 12mm Thru-Axle with 6mm Hex Bolt
Attachment Points:
Bottle Cage Mount on Downtube, MonkeyLink Bracket on Stem and Seat Collar for Lights or Fender
Gearing Details:
12

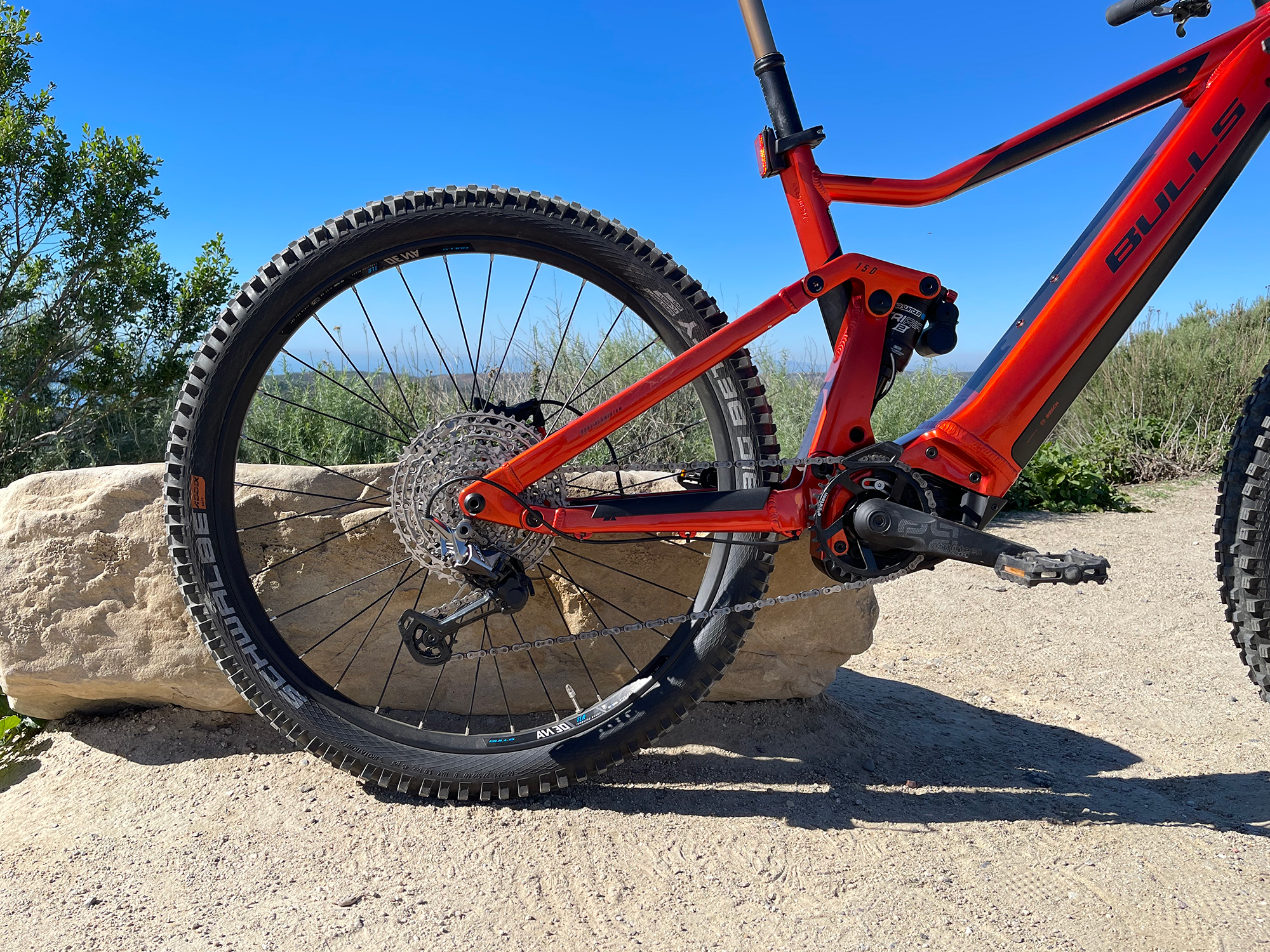

Speed 1x12 Shimano XTR RD-M9100-SGS Derailleur with Clutch, Shimano CS-M6100 10-51 Tooth CassetteShifter Details:

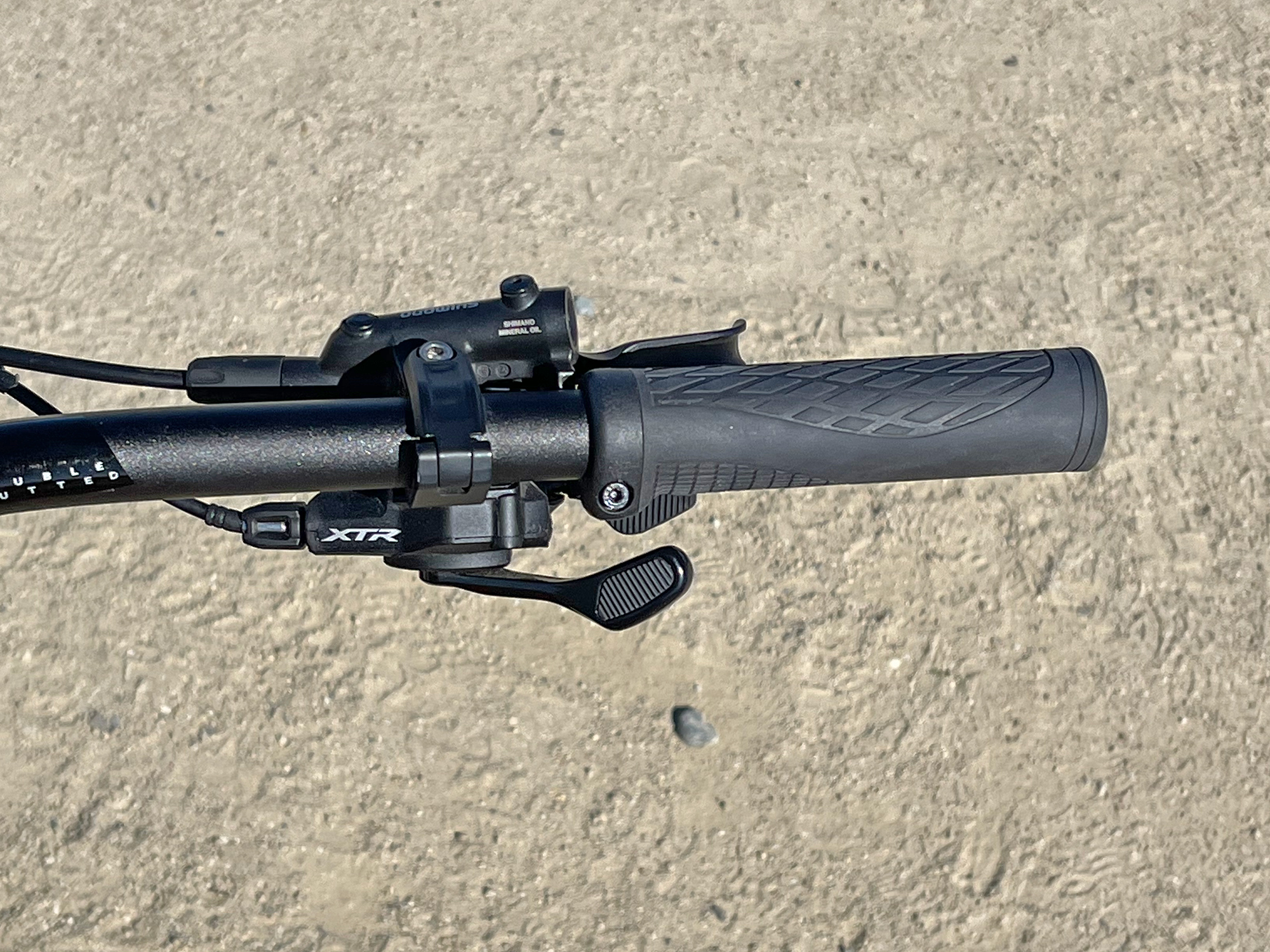

Shimano XTR SL-M9100 Triggers on Right (Two-Way High, Three-Shift Low)
Cranks:

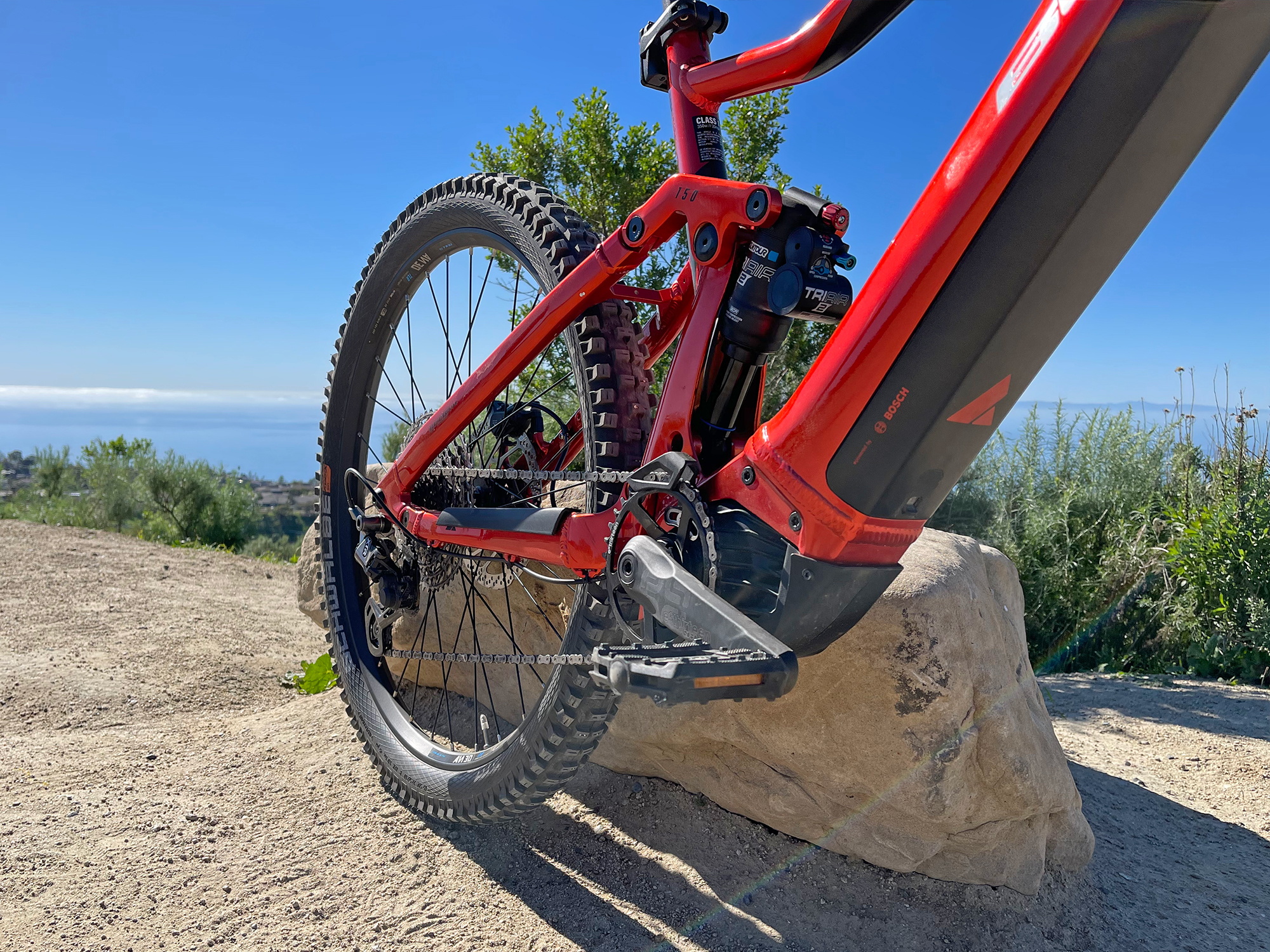

E-Thirteen CR4USM-100, Aluminum Alloy Crank Arms, 165mm Length, FSA Eco Steel Chainring, 34 Tooth Narrow-Wide Chainring with Mr. Control Plastic Guide
Pedals:
BULLS Branded Wellgo ZZE-01M, Plastic MTB Platform
Headset:
Internal, Sealed Cartridge, Tapered 1-1/8" to 1-1/2"
Stem:

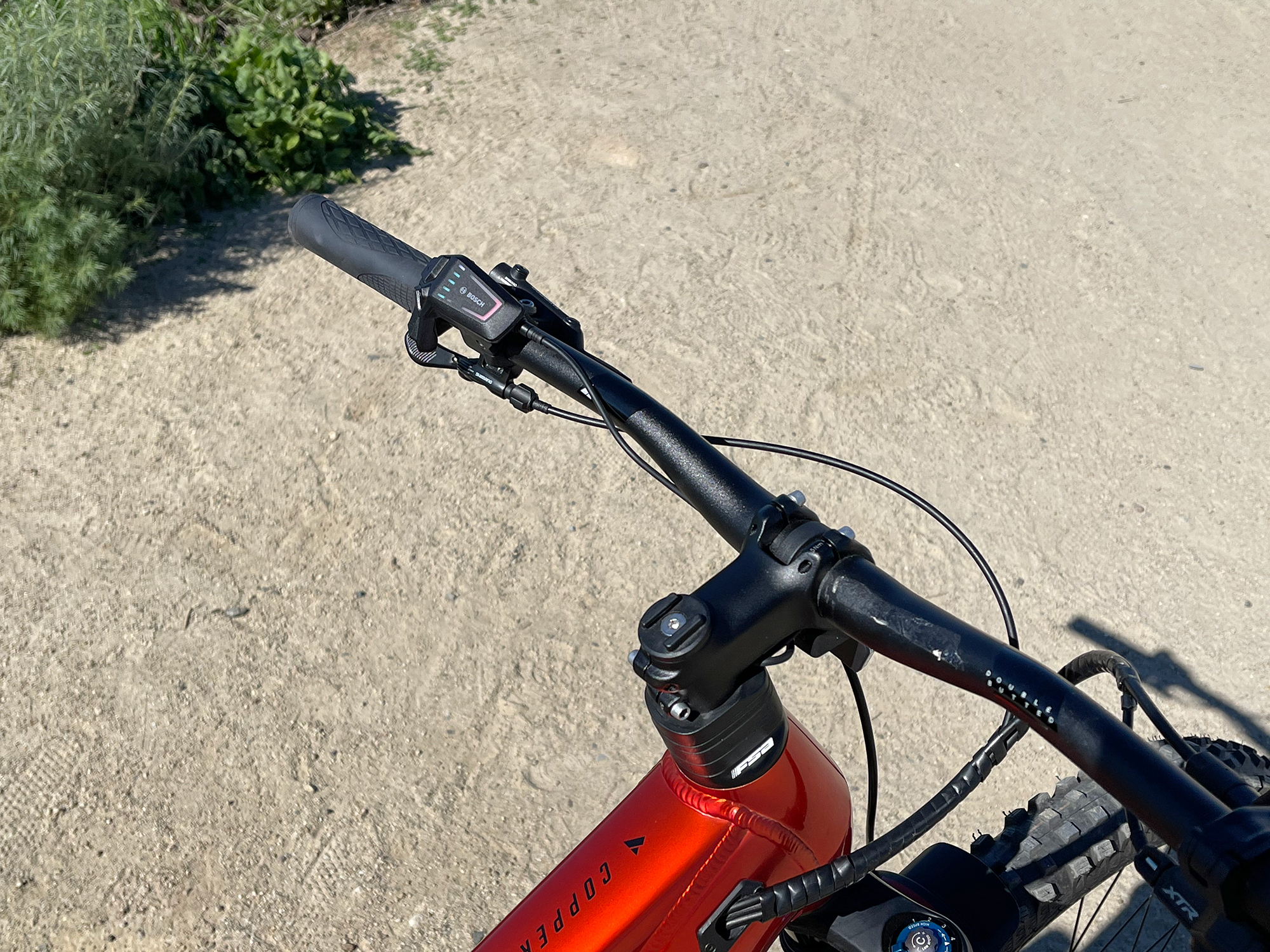

Aluminum Alloy, 50mm or 70mm Length, 7-Degree Rise, MonkeyLink Magnetic Interface, 31.8mm Clamp Diameter, Two 10mm Spacers
Handlebar:

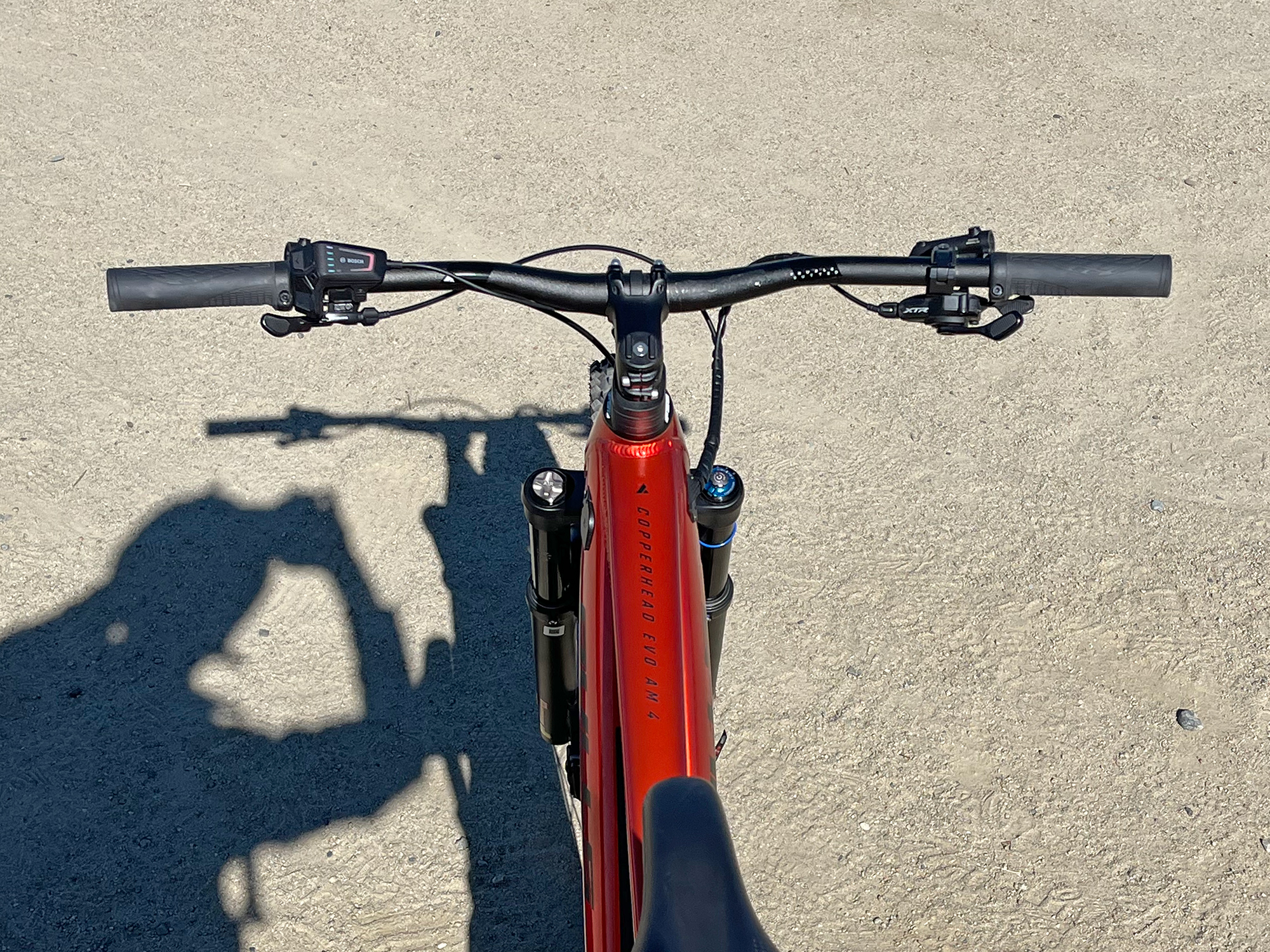

BULLS Branded MTB, Aluminum Alloy, Double Butted, Low-Rise, 760mm Length, 25mm Rise, 9° Back Sweep
Brake Details:

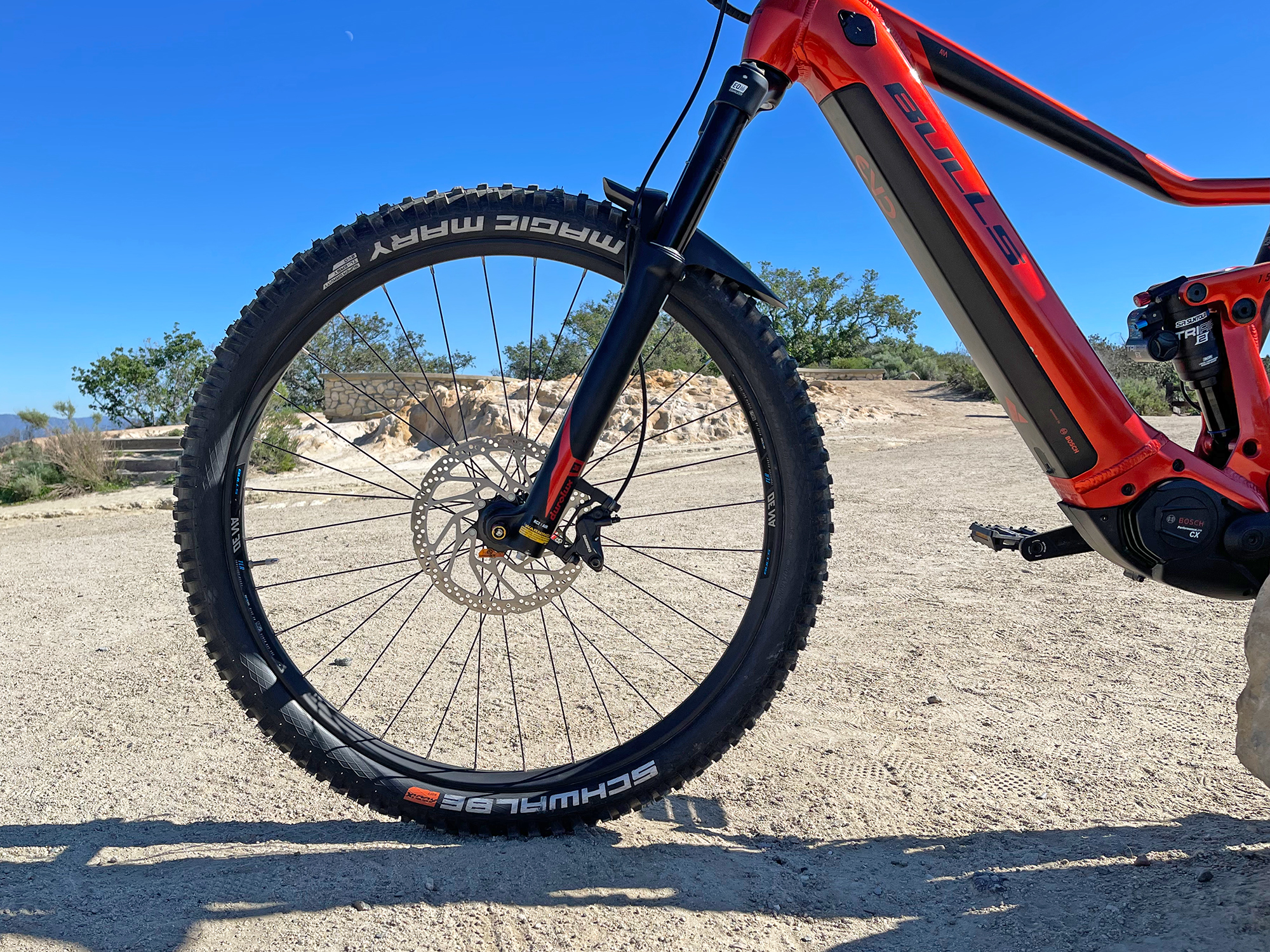

Shimano BRM6120 Front and M6100 Rear Hydraulic Disc with 203mm Rotors, Quad Piston Front Caliper Dual Piston Rear Caliper, Two-Finger Levers with Adjustable Reach
Grips:
Bulls Branded Velo, Flat Rubber, Inner Lock Ring
Saddle:
BULLS Branded Selle Royal
Seat Post:

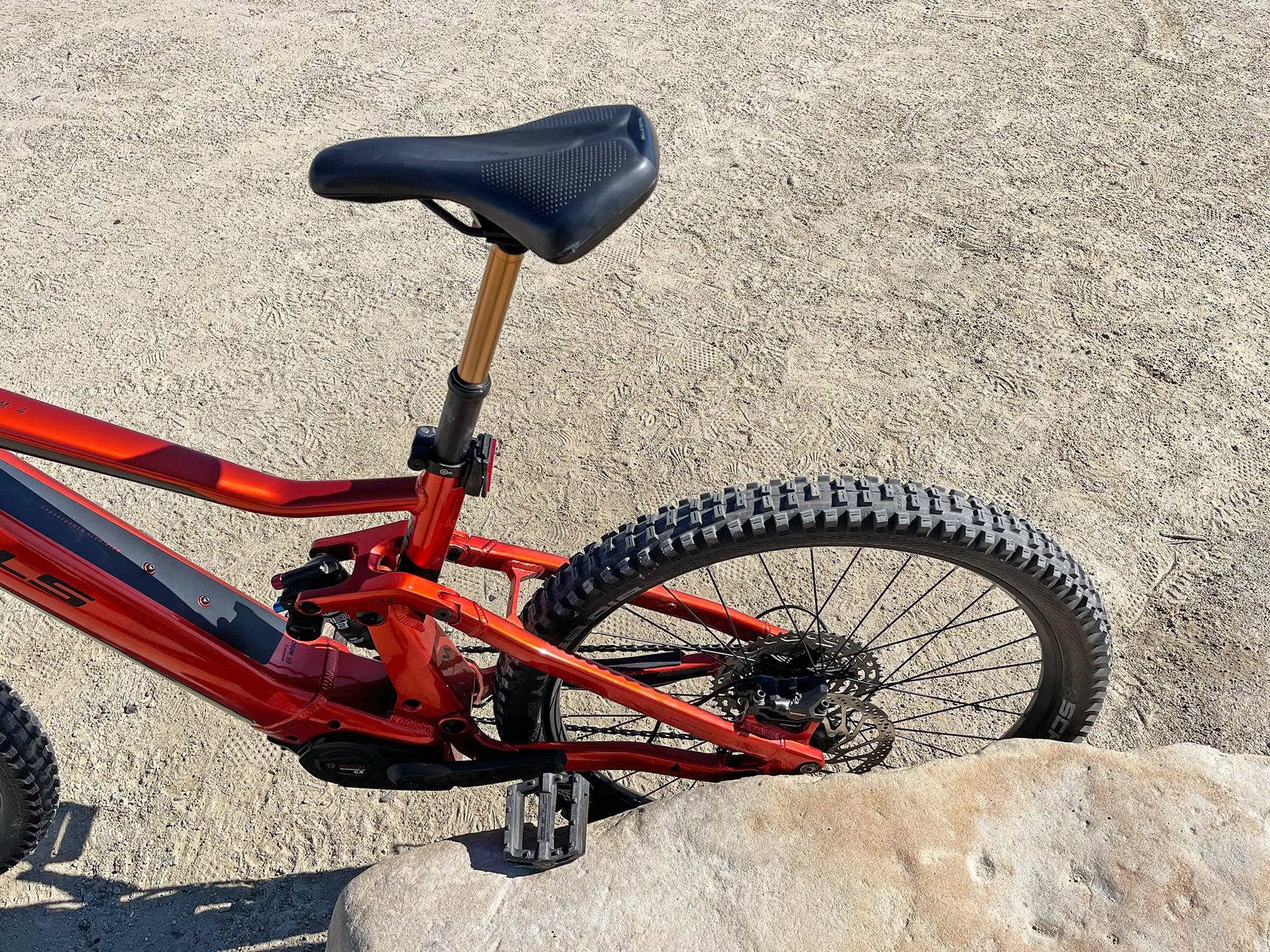

Limotech Alpha 1 Dropper (100mm or 125mm or 150mm Travel)
Seat Post Length:
350 mm
Seat Post Diameter:
30.9 mm
Rims:
Ryde Disc 30, Double Wall, Aluminum Alloy, ETRTO 622x30c Front 584x30c Rear, 30mm Outer Width, 32 Hole, Tubeless Ready
Spokes:
Stainless Steel, 14 Gauge Front, 13 Gauge Rear, Black with Silver Nipples
Tire Brand:

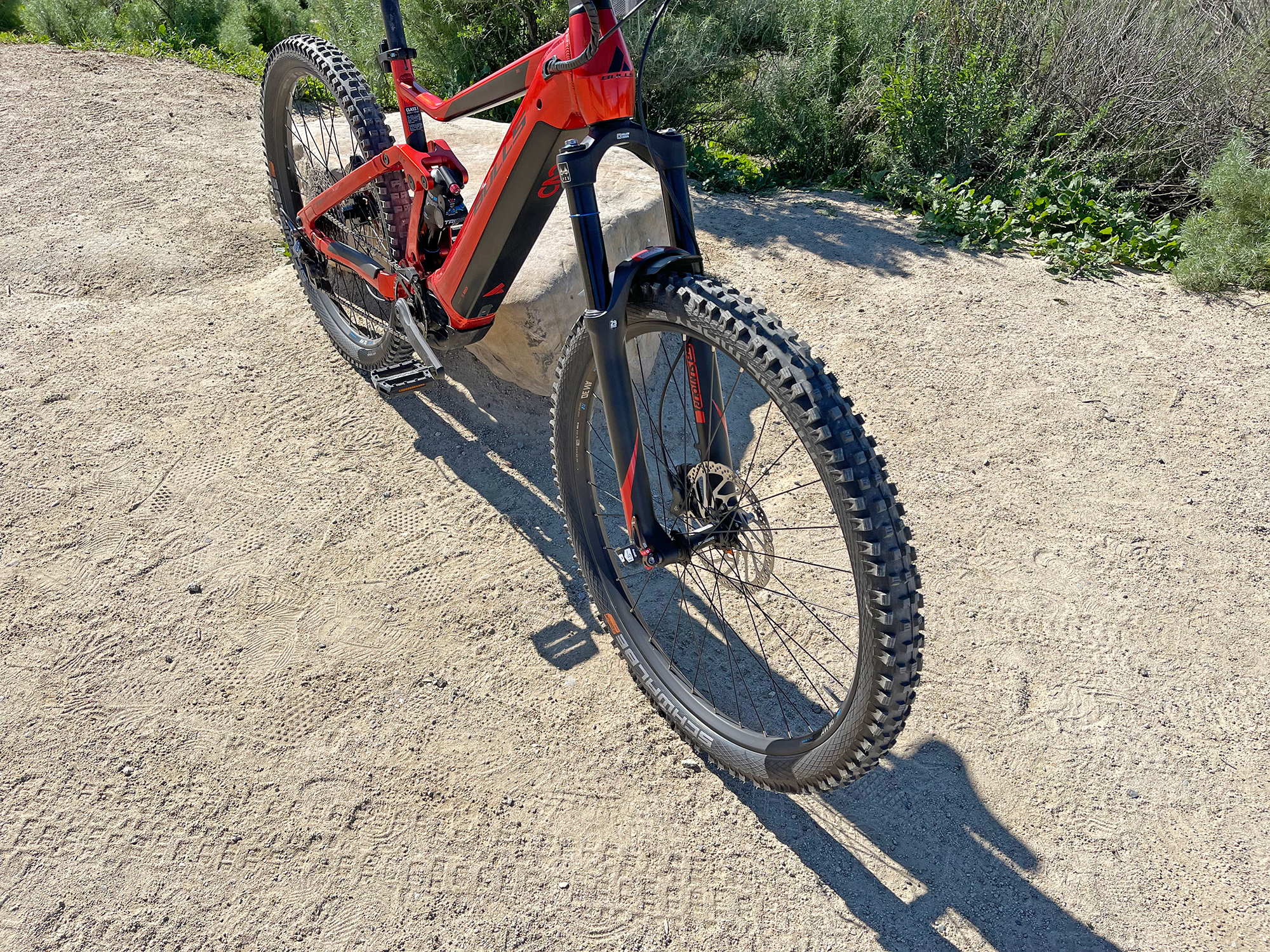

Front: Schwalbe Magic Mary Evo Super Gravity, 29" x 2.6" (66-622), Back: Schwalbe Big Betty Evo, 27.5" x 2.6" (66-584)
Wheel Sizes:
29 in (73.66cm)27.5 in (69.85cm)Tire Details:
Front: 17 to 38 PSI, 1.2 to 2.6 BAR ADDIX Soft, TL-Easy, EVO Super Gravity, Back: 45 PSI, 3.0 BAR, ADDIX Soft, TL-Easy, EVO, Tubeless Ready
Tube Details:
Presta Valve
Accessories:

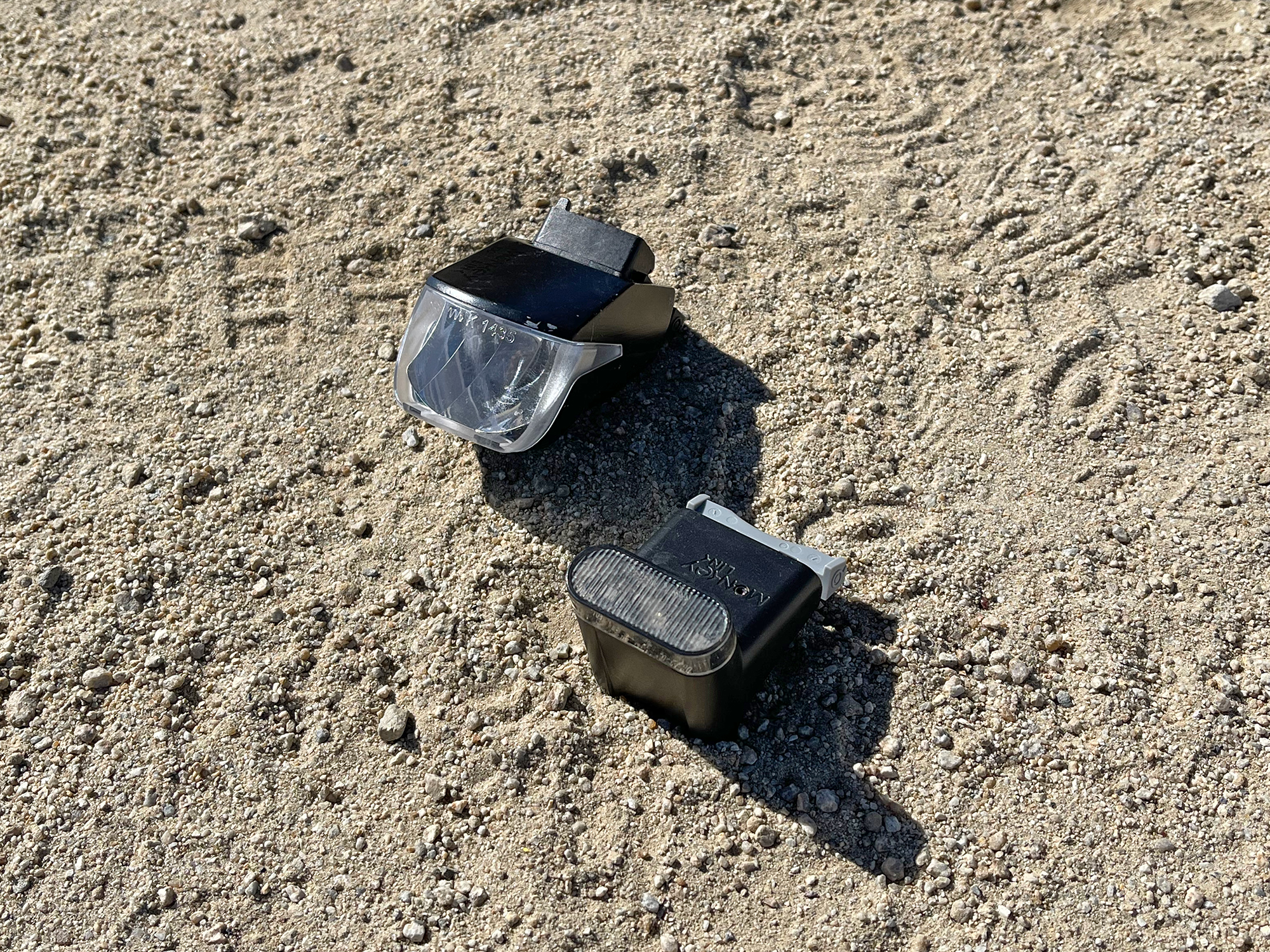

Plastic Slap Guard, SP Connect Stem Cap Phone Mount, MonkeyLink Magnetic Reflectors, Plastic Mudguard on Fork Arch, Optional MonkeyLink Front and Rear Lights and Fender (Magnetic Connection, Lights Powered by Ebike Battery), Optional Bosch Kiox 300 Color LCD Display Panel
Other:

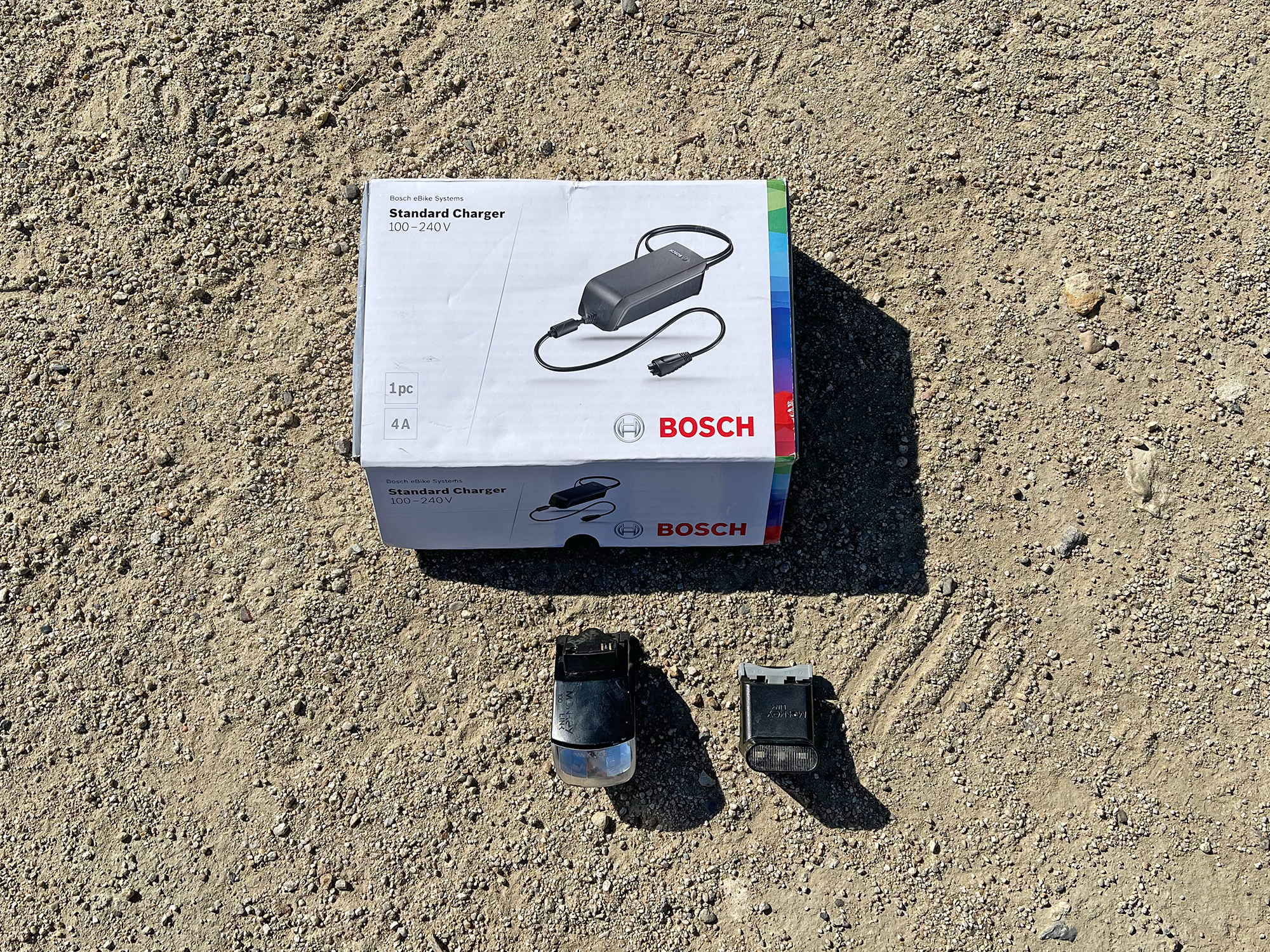

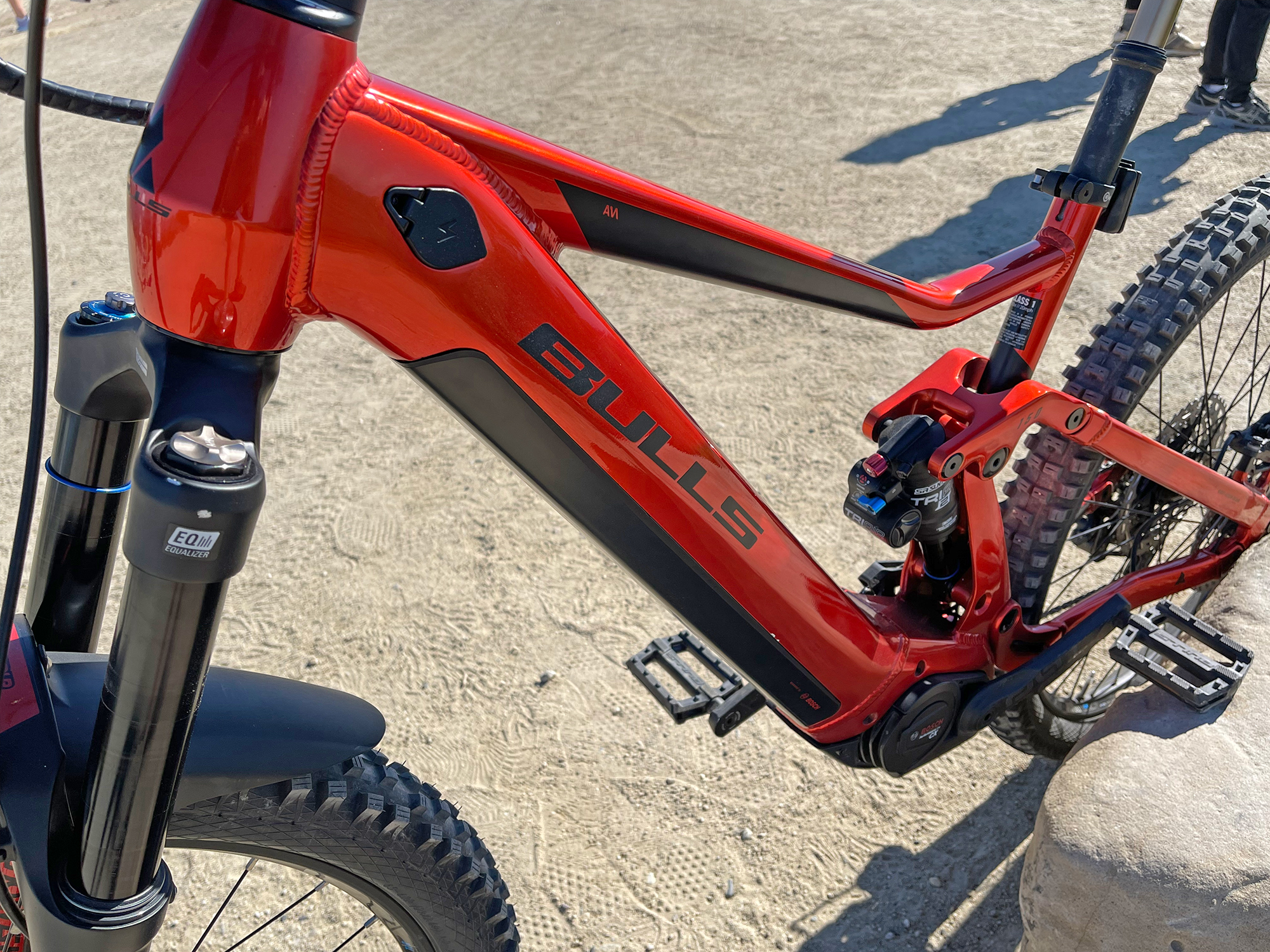

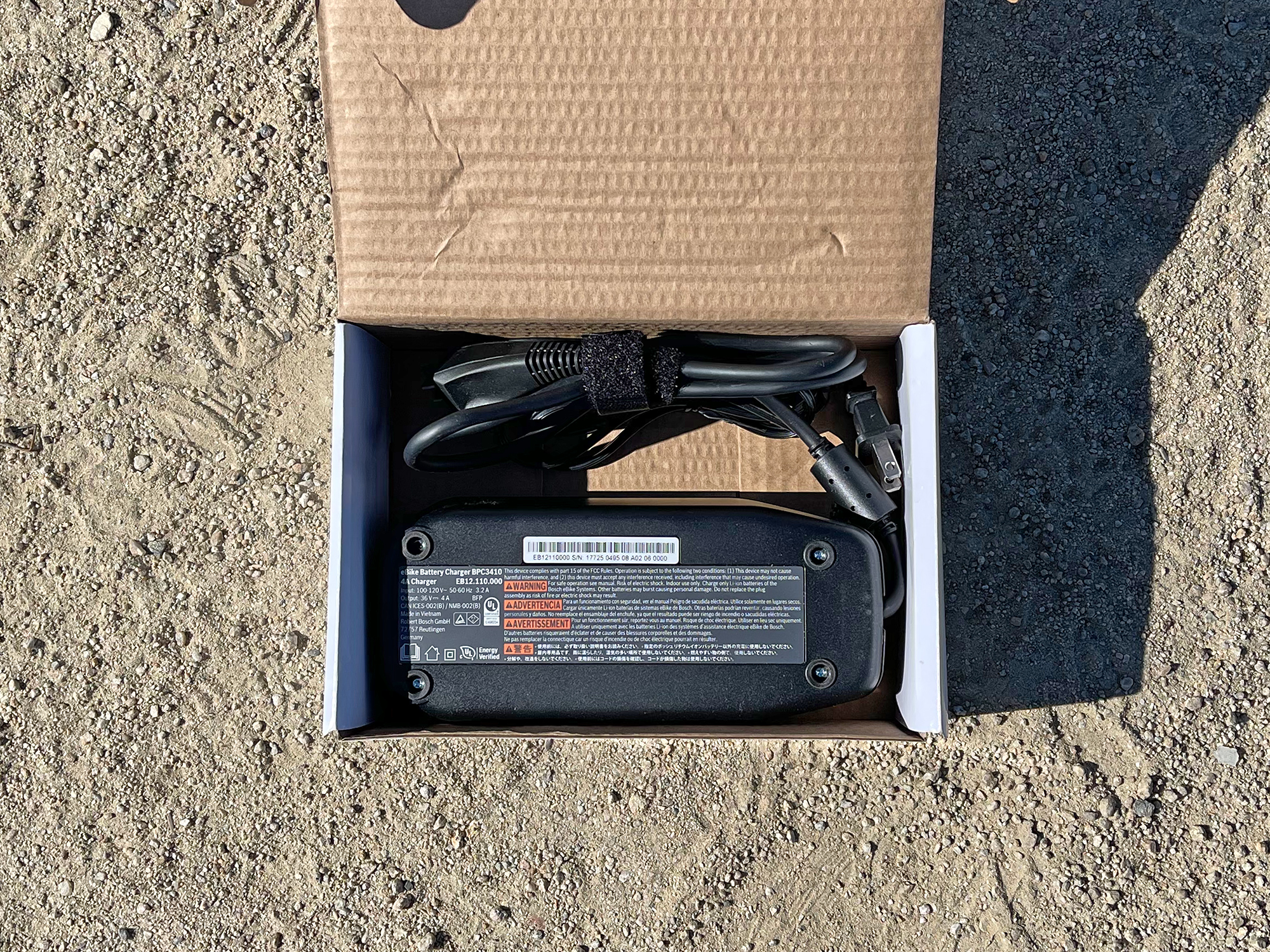

Locking Removable Downtube-Integrated Battery Pack with LED Charge Level Indicator, Bosch BPC3410 1.6lb 36 Volt 4 Amp Charger Smart System, ABUS Plus Code Keys, Maximum Cadence > 120 RPM Motor Support, Shimano CNM6100 Chain, The Tires Come with Tubes
