Summary

  • Easy to use fat style electric bike with a basic twist throttle mode that goes up to 20 mph, great for use in snow, sand, grass and other off-road environments
  • Battery is mounted low and center on the bike for balance, suspension seat post adds comfort
  • Entry level components, very basic electronic systems, limited number of gears, high price point

Video Review

Introduction

Make:

Motiv

Model:

Stout

Price:

$2,599 USD

Body Position:

Forward

Suggested Use:

Sand and Snow, Trail

Electric Bike Class:

Throttle on Demand (Class 2)
Learn more about Ebike classes

Warranty:

Lifetime Frame, 2 Year Electronics and Battery

Availability:

United States

Model Year:

2015

Bicycle Details

Total Weight:

55 lbs (24.94 kg)

Motor Weight:

9 lbs (4.08 kg)

Frame Material:

6061 Hydroformed Aluminum

Frame Sizes:

17 in (43.18 cm)

Geometry Measurements:

(Wheelbase 2032 mm, Stand Over Height 710 mm)

Frame Types:

High-Step

Frame Colors:

Matte Black, Matte Gray

Frame Fork Details:

Rigid

Attachment Points:

Rear Rack Bosses

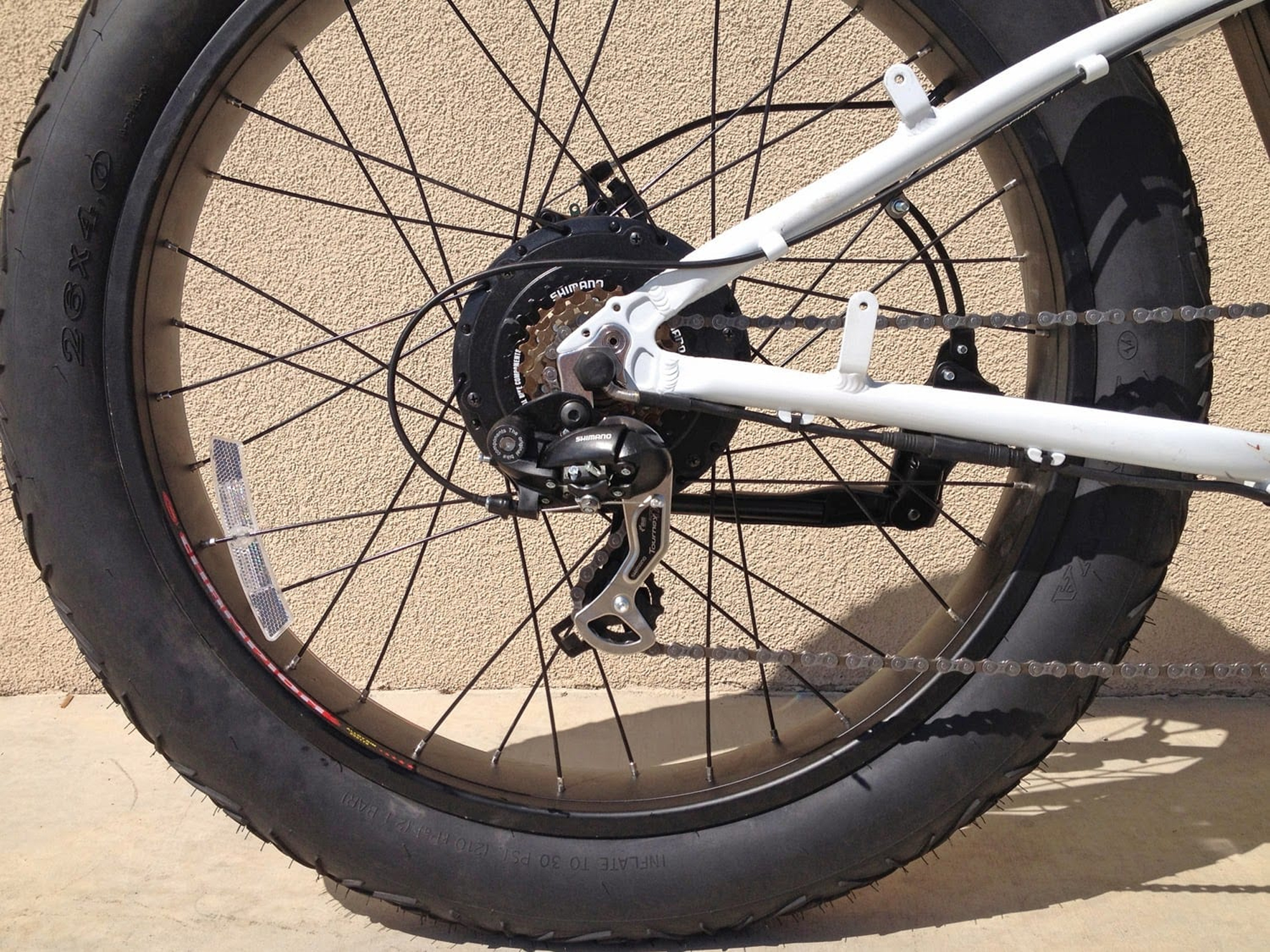

Gearing Details:

6 Speed 1x6 Shimano Tourney TX

Shifter Details:

Shimano SIS Index Thumb Shifter on Right Handle Bar

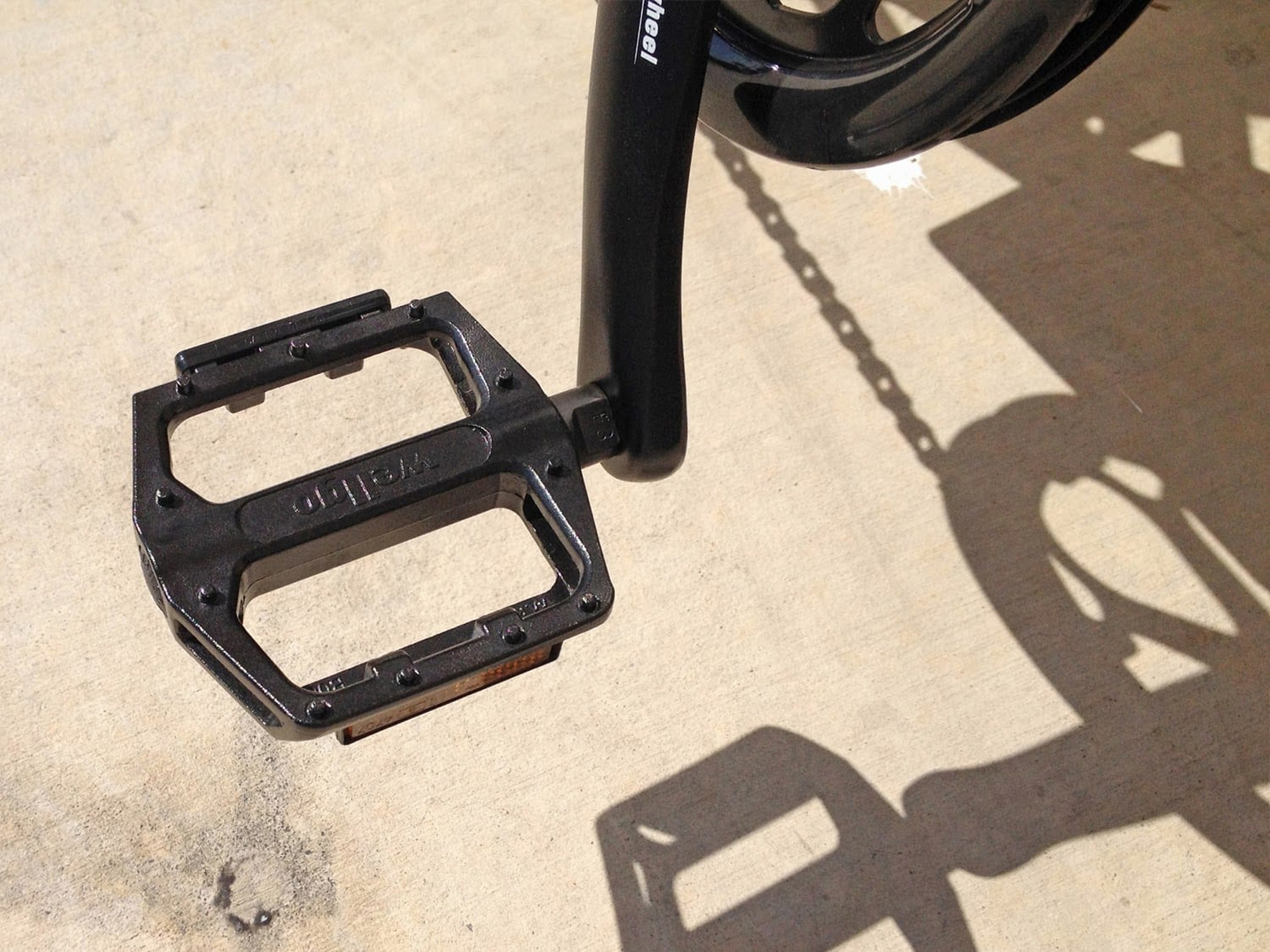

Pedals:

Wellgo Aluminum Alloy Platform

Stem:

Truvativ by SRAM

Handlebar:

Truvativ Riser

Brake Details:

Tektro Novela Mechanical Disc Brakes with 180 mm Rotors and Electronic Motor Cutoff

Grips:

Rubber

Saddle:

Oversized Comfort

Seat Post:

Suspension Shock

Seat Post Length:

254 mm

Seat Post Diameter:

27.2 mm

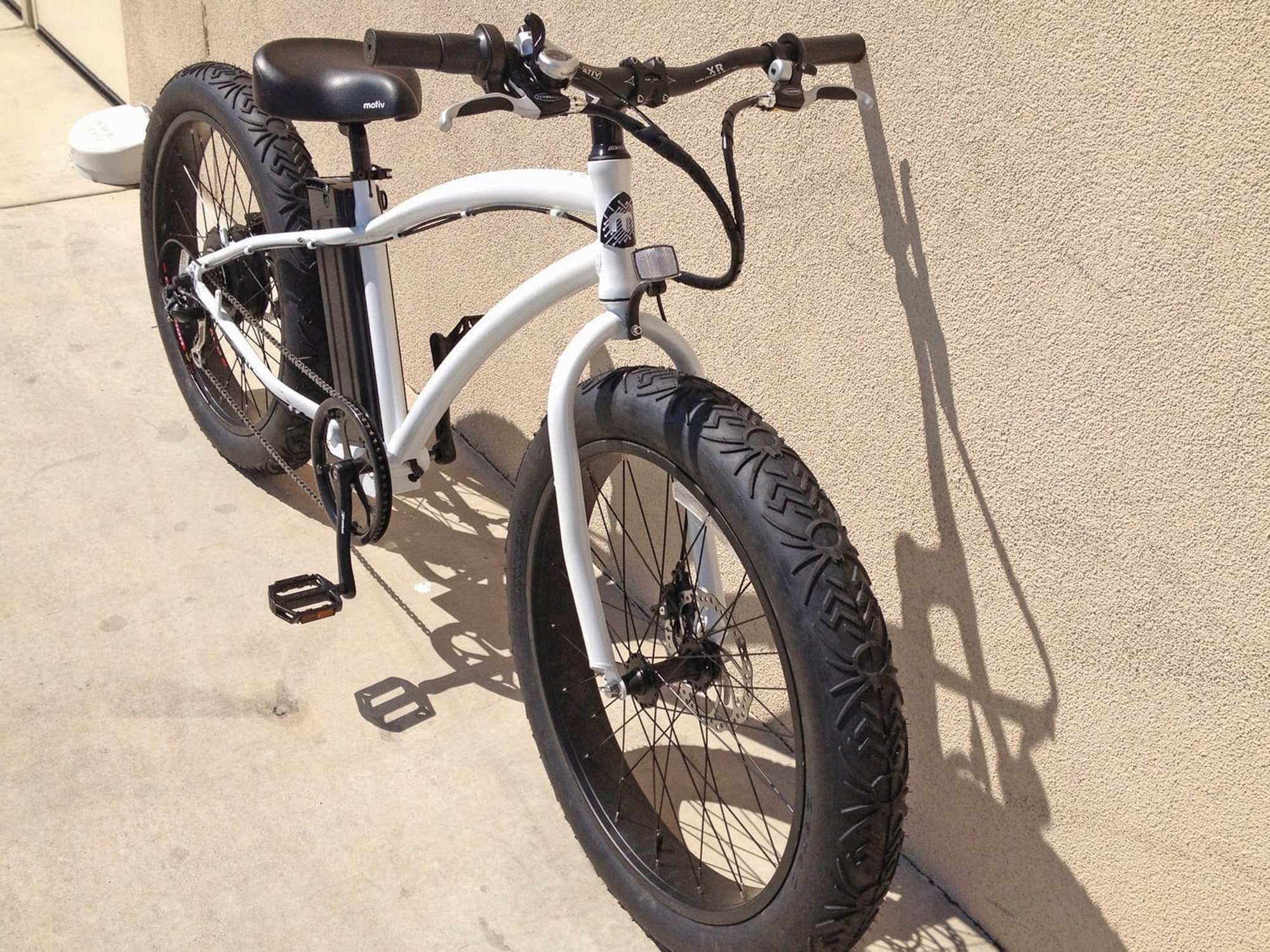

Tire Brand:

Innova Spider, 26" x 4"

Wheel Sizes:

26 in (66.04cm)

Accessories:

Adjustable Length Kickstand, Plastic Chain Guide, Integrated Bell on Left Brake Lever

Electronic Details

Motor Type:

Rear-Mounted Geared Hub
Learn more about Ebike motors

Motor Nominal Output:

500 watts

Battery Voltage:

48 volts

Battery Amp Hours:

10 ah

Battery Watt Hours:

480 wh

Battery Chemistry:

Lithium-ion

Charge Time:

6 hours

Estimated Min Range:

15 miles (24 km)

Estimated Max Range:

20 miles (32 km)

Display Type:

Three LED (Red, Yellow, Green)

Readouts:

Voltage Level

Drive Mode:

Twist Throttle (Half Twist on Right Bar)

Top Speed:

20 mph (32 kph)


Written Review

The Motiv Stout is a fat-tire electric bike that’s very simple and easy to ride. That’s because it only has six gears, a basic twist throttle to activate the motor and a balanced frame with the battery positioned low and center on the frame. There are several little things I appreciate with this bike including the adjustable kickstand, removable battery and rack bosses (for adding a storage rack at the back) but the true purpose isn’t about commuting or transporting stuff… this bike is about having fun in snow, sand, grass or light trail environments.

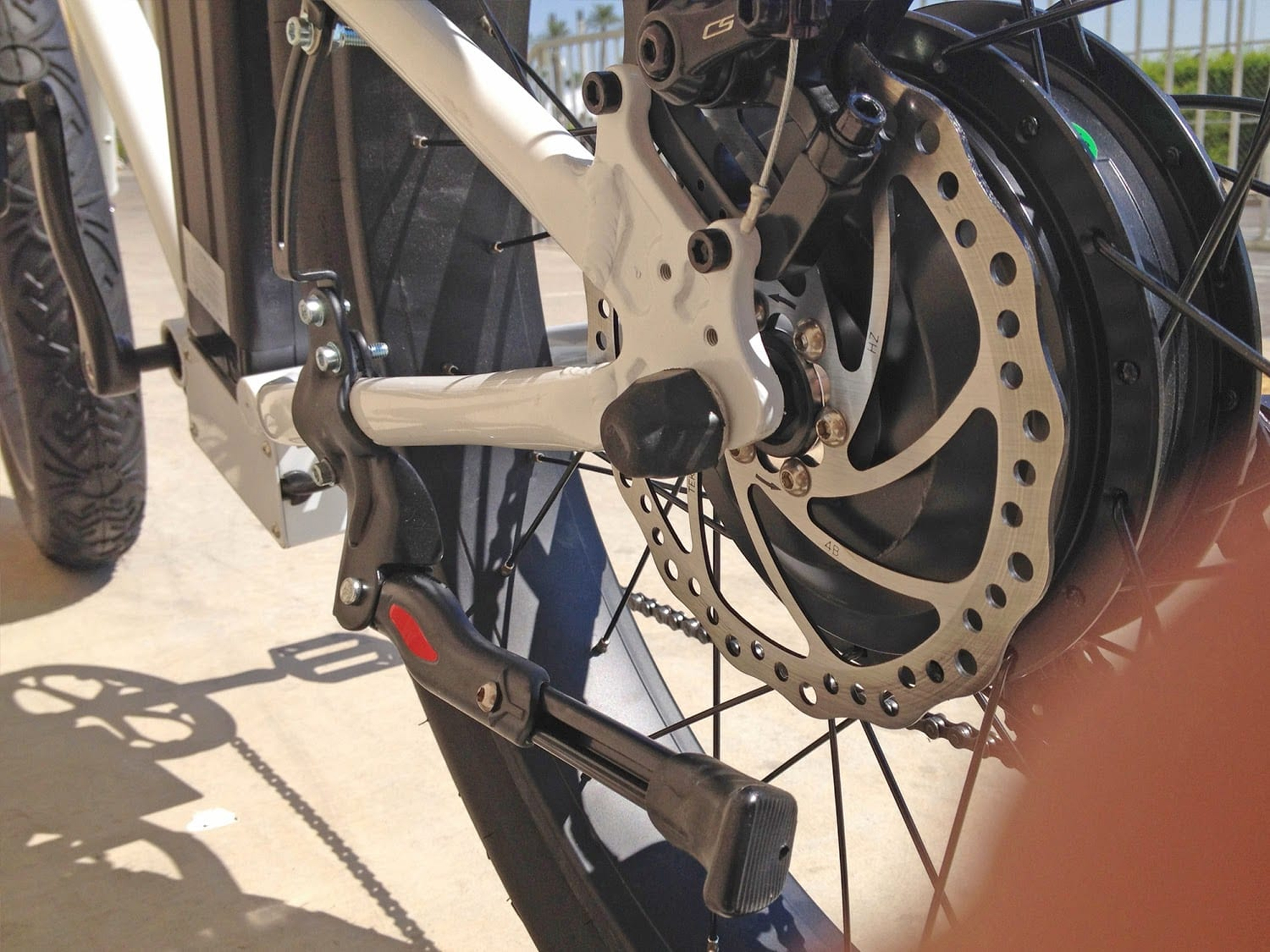

The 500 watt geared motor is powerful enough to move the bike through softer surfaces thanks to the extra wide 4″ tires. And with a maximum weight limit of 350 pounds, this bike is quite capable. The geared design keeps the motor weight and size down so it actually blends in really well on the rear wheel. It operates with a bit of a whir which you can hear in the video review above but it’s not super loud. Frankly, when paired with the twist throttle used for this bike, the motor really shines.

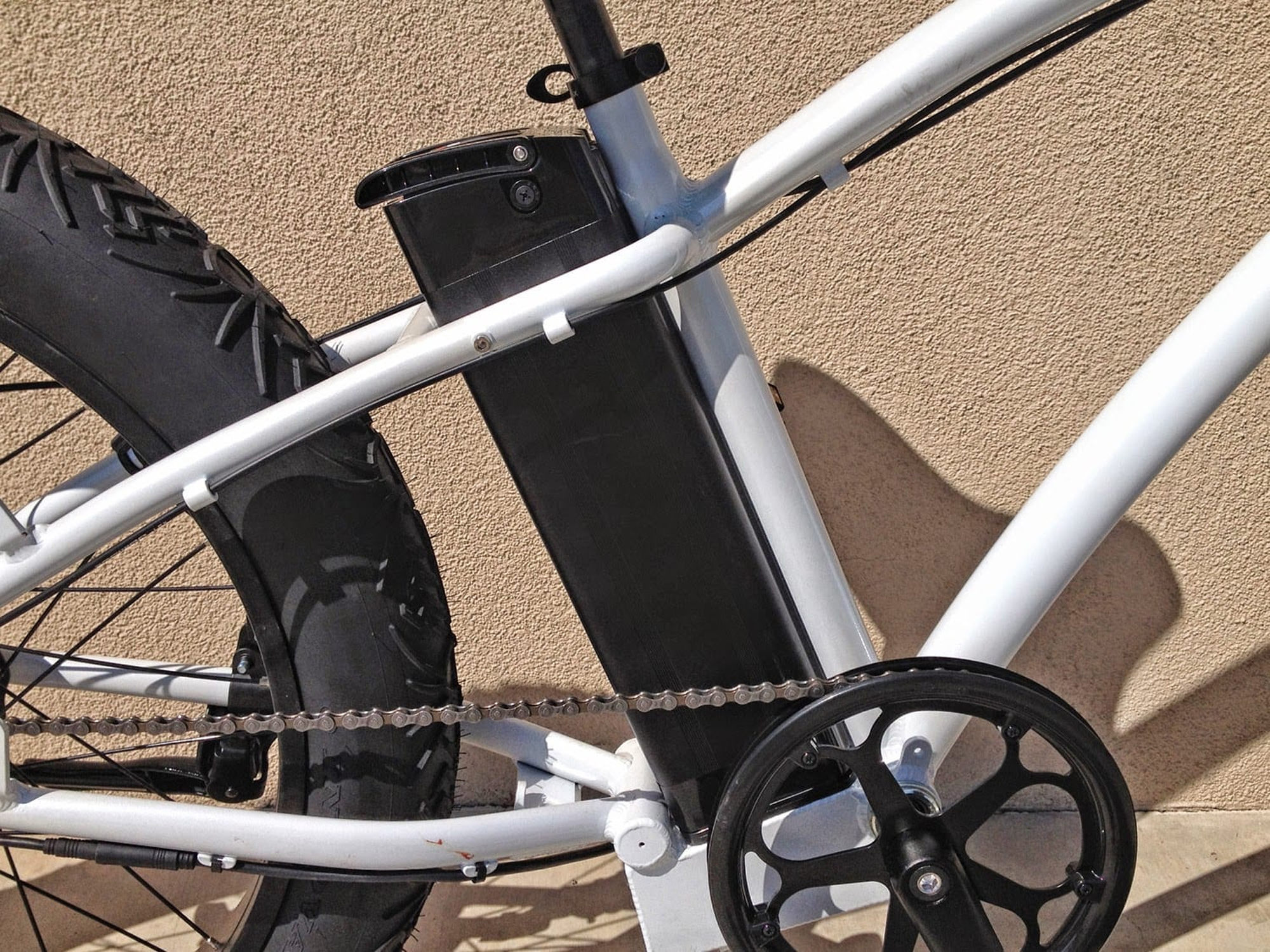

Powering the motor is a strong 48 volt 10 amp hour Lithium-ion battery pack that’s mounted right behind the seat tube. In terms of power, it’s above average and that supports the higher motor wattage. The pack can be charged on or off the frame which is very convenient given the size and weight of the bike with its huge tires. In terms of transporting the bike… it’s nice that you can remove the battery but the wheels aren’t as easy, they require standard wrenches to remove vs. quick release and there are more wires in the rear given the hub motor design.

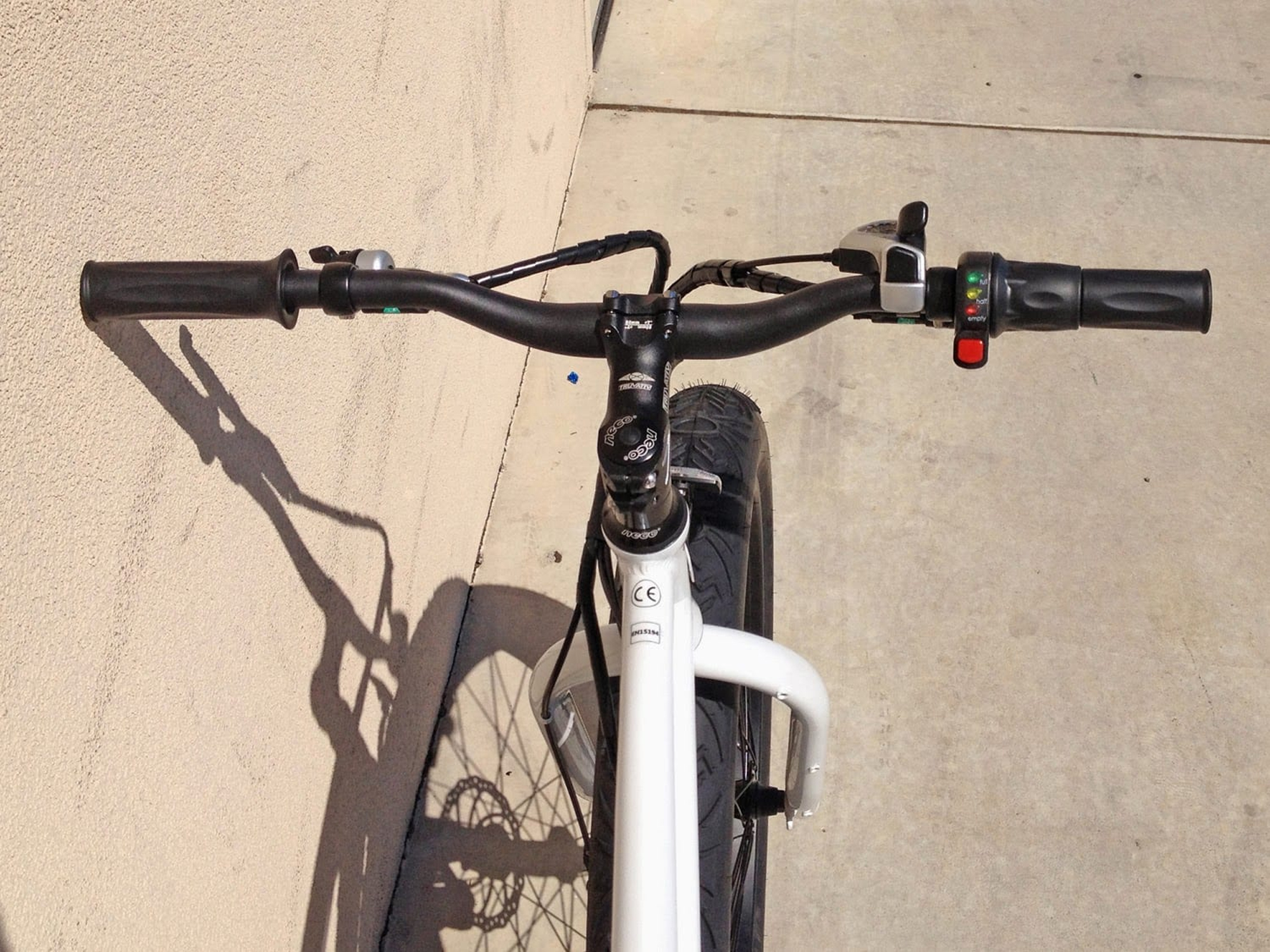

Operating the Stout is about as simple as it gets for electric bikes. Just power up the battery pack then press the red button on the power meter (located on the right bar) then you’ll see three LED’s light up designating your current battery voltage. From here, you just twist the throttle and the bike takes off. There’s not pedal assist mode on this bike and that means you’re less incentivized to pedal along (which helps to extend the battery). You also don’t get a fancy LCD display with a more precise battery readout, speed, distance traveled etc. but that helps to keep the price of this bike down and might make it more durable if left outside.

Overall this is a really simple bike but six speeds is enough to let you pedal along at most speeds up to 20 miles per hour (the max powered speed) and the lowest gear is extra large to make climbing easier. The throttle is very satisfying to use and makes this feel more like a moped than a bicycle which might appeal to some riders. It’s a lot less expensive than the other mid-battery fat bikes I’ve reviewed like the Felt LEBOWSKe but more expensive than the Surface 604 Element which also has 7 speeds and a pedal assist but a weaker motor and battery. The mechanical disc brakes are great for stopping in dirty environments like snow and mud and the suspension seat post paired with the large saddle and oversized tires feels great.

Pros:

  • Powerful 500 watt geared hub motor climbs well and powers through soft terrain like snow, sand and grass but doesn’t look large and doesn’t weigh as much as a gearless alternative
  • Strong 48 volt battery adds torque, improves climbing ability and supports larger riders
  • It’s nice that this fat ebike comes with an adjustable kickstand, some other off-road models don’t include it
  • Available in white or black color schemes with minimal patterns and logos, classic look and feel
  • Extra large padded saddle is comfortable and the suspension seat post really smooths out the ride over bumpy terrain
  • Easy to operate for nearly anyone with the simple twist throttle but this may run the battery down more quickly than if it had pedal assist
  • Great customer support from Motiv, their headquarters is in Southern California right near a beach so they probably have a lot of fun with this model and have gotten all of the kinks worked out
  • Overall good balance for a fat style electric bike, there aren’t many available right now with a mid-mounted battery pack besides the Felt LEBOWSKe and it’s quite a bit more expensive

Cons:

  • No pedal assist, only twist throttle here and there’s no LCD display to provide a precise battery capacity, speed, distance or other information
  • A bit expensive considering the drivetrain is entry level (6 Speed Shimano Tourney TX) and there aren’t any extras like fenders, lights etc.
  • Only one frame size here and it’s high step so that may not fit some shorter riders
  • Wires for shifting, braking and powering the motor aren’t integrated into the frame, they look alright but aren’t as seamless
  • The rear rack bosses are nice but will require a wider rack and there are no bottle cage bosses on this bike (consider a seat post adapter like this)
