Total Weight:
62.5 lbs (28.34 kg)
Battery Weight:
7.7 lbs (3.49 kg)
Motor Weight:
9.6 lbs (4.35 kg)
Frame Material:
6061 Aluminum Alloy
Frame Sizes:
14.25 in (36.19 cm)Geometry Measurements:

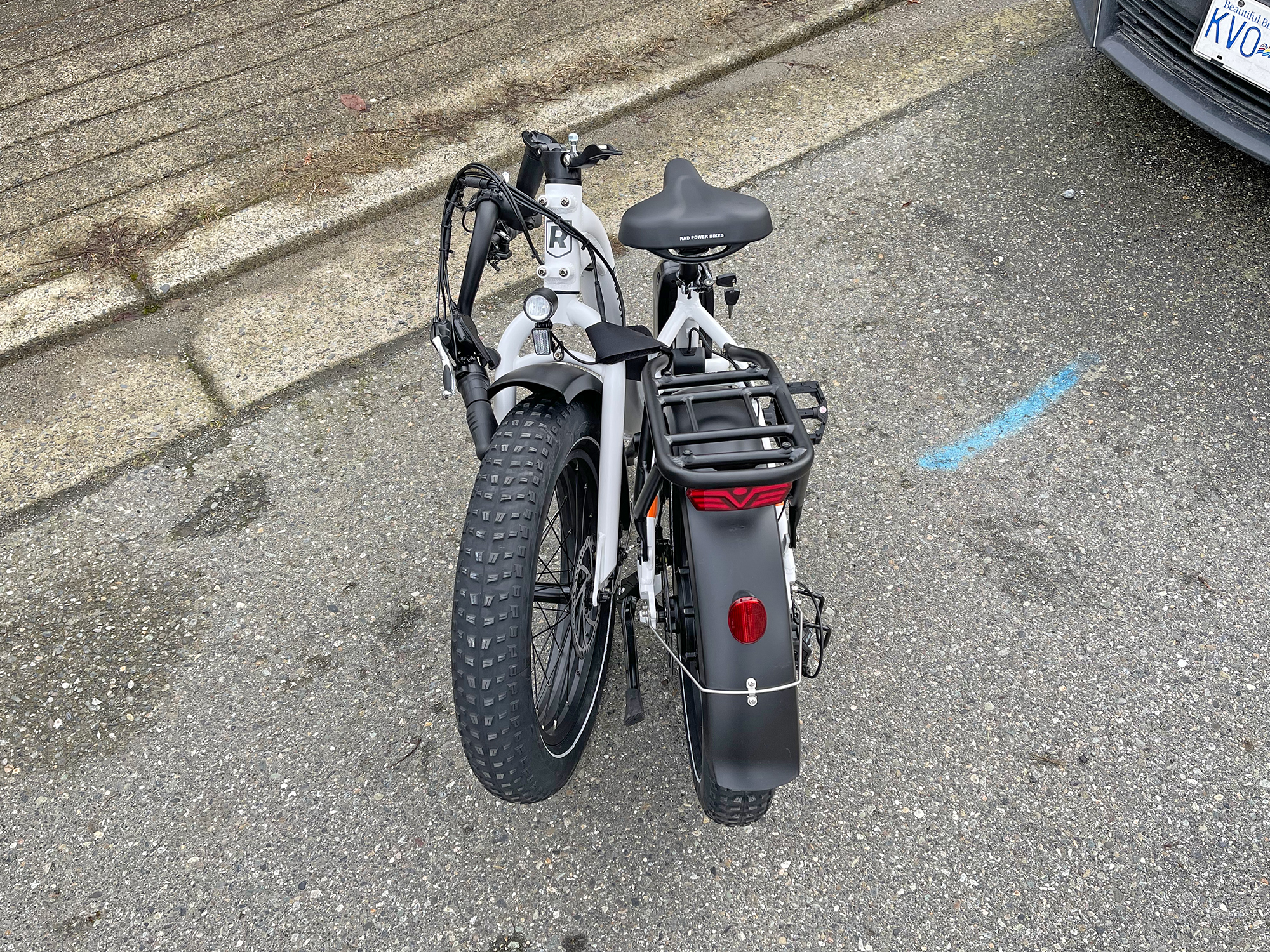

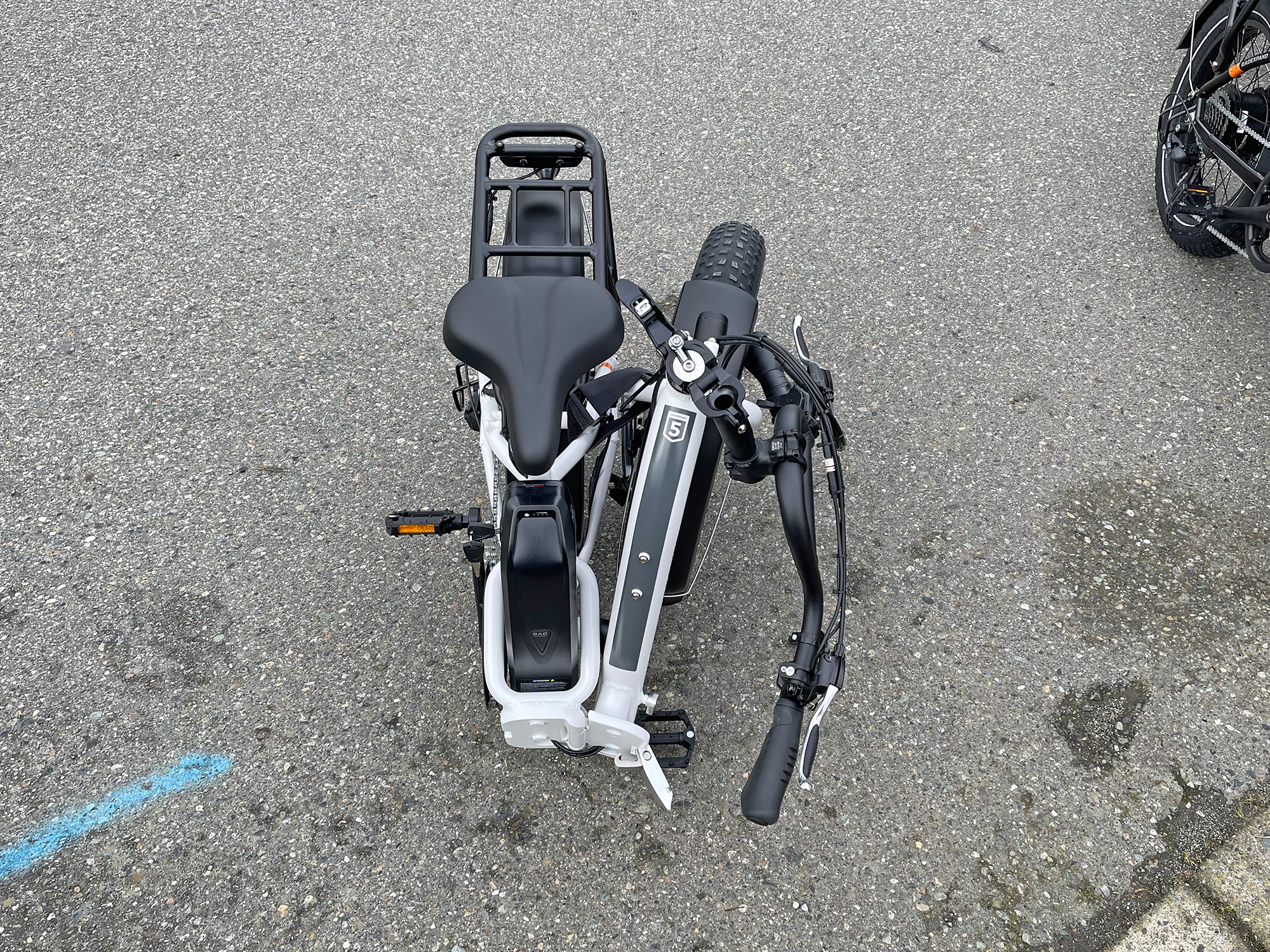

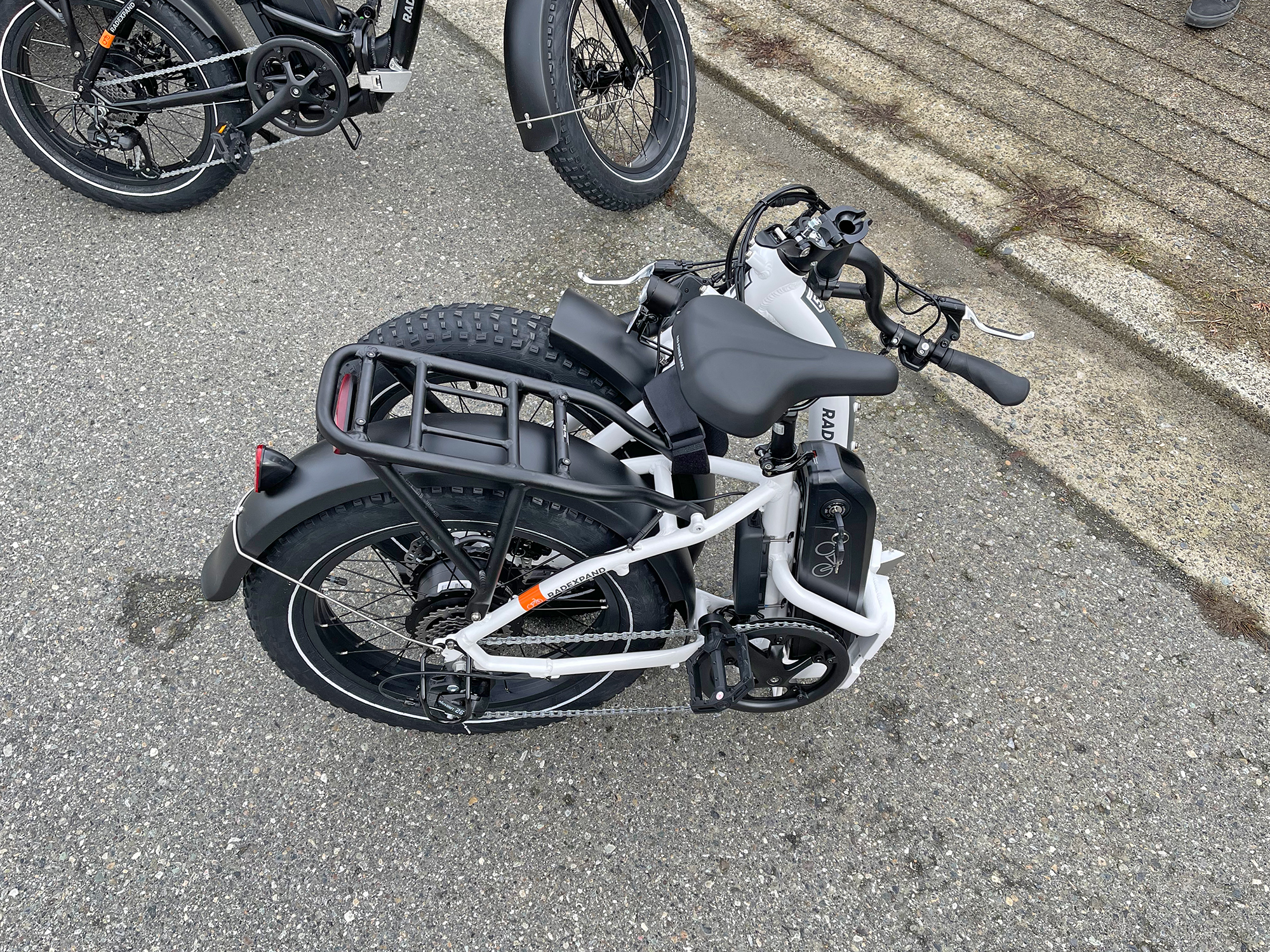

14.25" Seat Tube Length, 22.5" Simulated Top Tube Length, 18" Reach, 16" Stand Over Height, 29" Minimum Saddle Height, 36" Maximum Saddle Height, 27.5" Width, 69.5" Length, 44.5" Wheelbase, Folded: 28" x 22" x 41"
Frame Types:
Step-Thru, Folding
Frame Colors:
Satin Black with Gray and Orange Accents, Satin White with Gray and Orange Accents

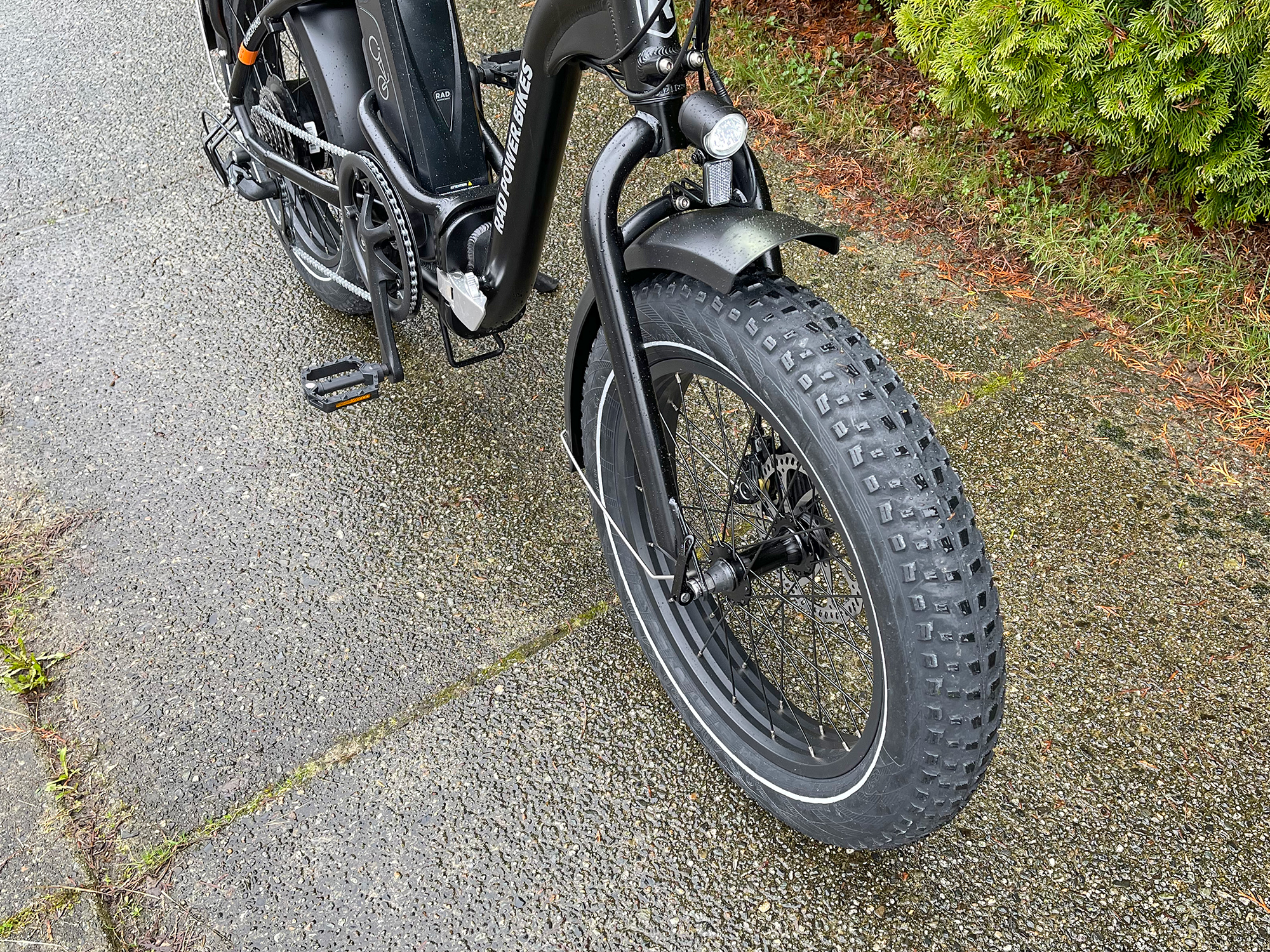

Frame Fork Details:
Rad Power Bikes Custom Rigid Steel, 135mm Hub Spacing, 9mm Axle with Release Skewer Skewer
Frame Rear Details:

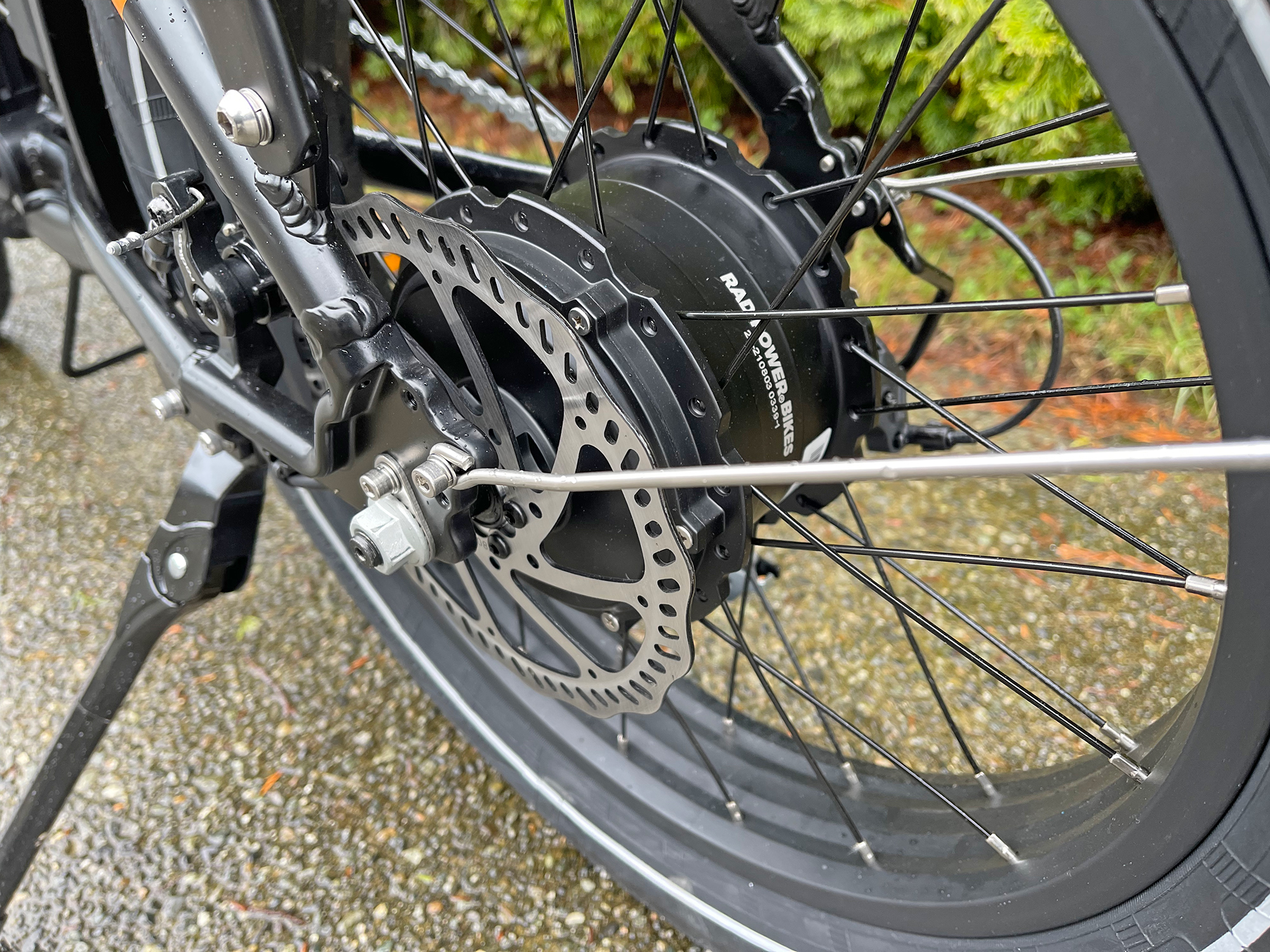

175mm Hub Spacing, 12mm Threaded Slotted Axle with 10mm Flats and 1.25mm Thread Pitch, Steel Torque Arm, 18mm Nuts
Attachment Points:
Fender Mounts, Front Rack Mounts, Rear Rack Mounts, Bottle Mount
Gearing Details:
7

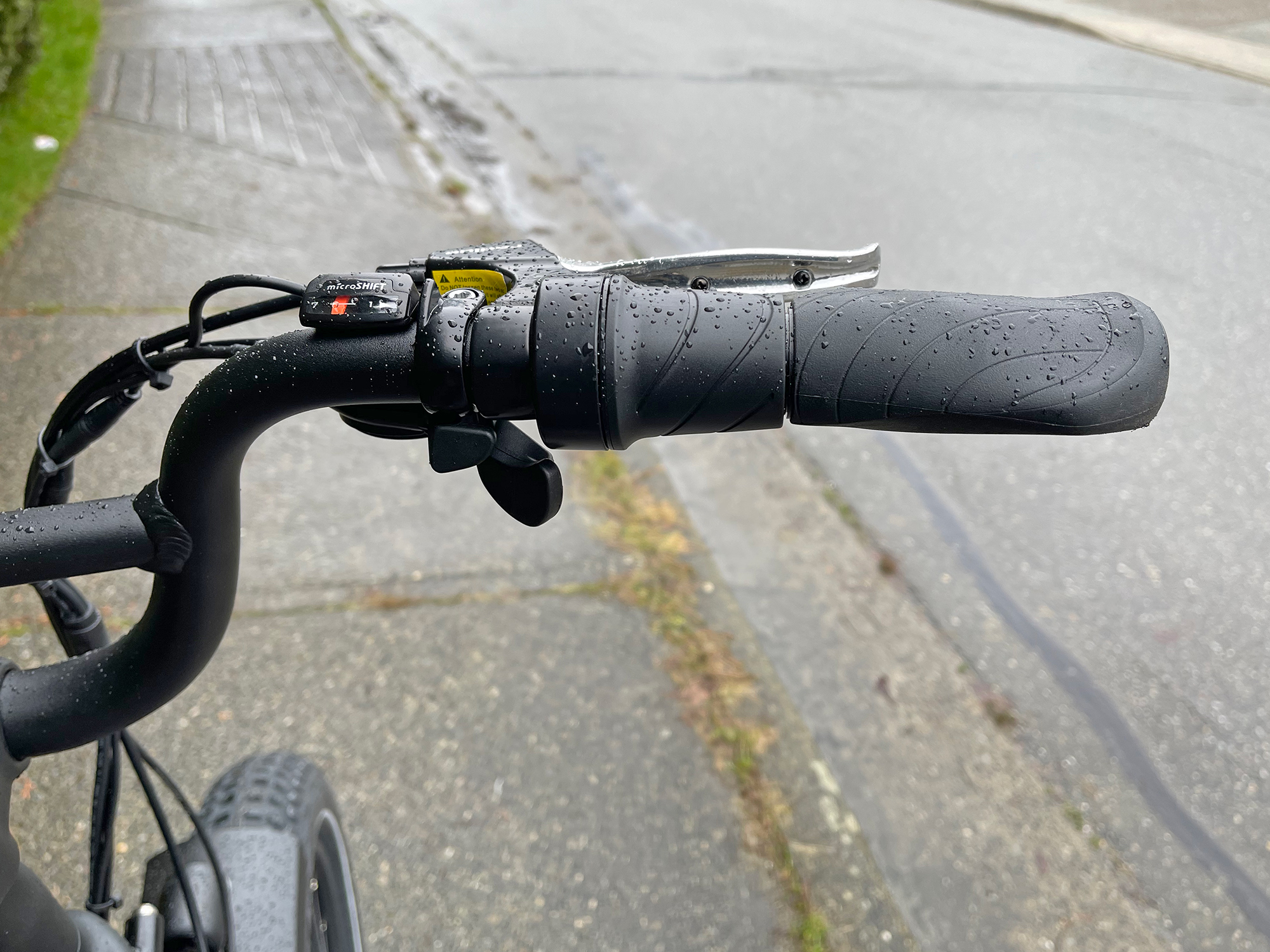

Speed 1x7 microSHIFT RD-M26 Derailleur, 14-32 Tooth FreewheelShifter Details:
microSHIFT TS71-7R Triggers on Right (One-Way High Lever, Four Shift Low Lever)
Cranks:

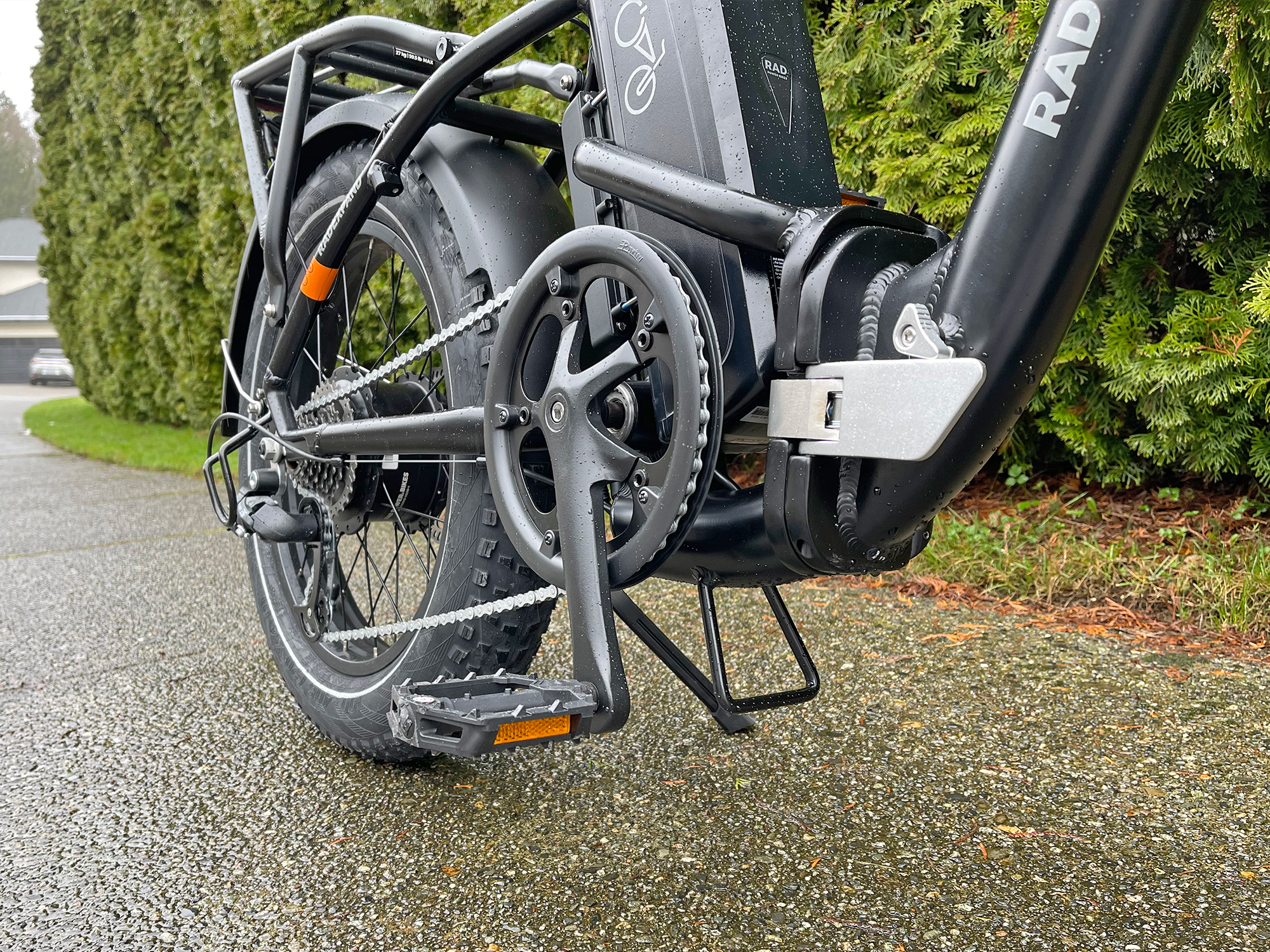

164mm Square Taper Spindle, Prowheel Forged Aluminum Alloy Crank Arms, 165mm Length, 48 Tooth Chainring with Prowheel Plastic Guide, 5 Bolt 104mm BCD
Pedals:
Wellgo Plastic Platform with Reflectors, CrMo Axle, Standard 9/16 x 20 TPI
Headset:
Semi-Integrated, Sealed Cartridge, 1-1/8" Straight
Stem:
Aluminum Alloy, Folding Steer Post, 170mm Base Height with 7mm Spacer, 45mm Stem Length, 3º Rise, 31.8mm Clamp

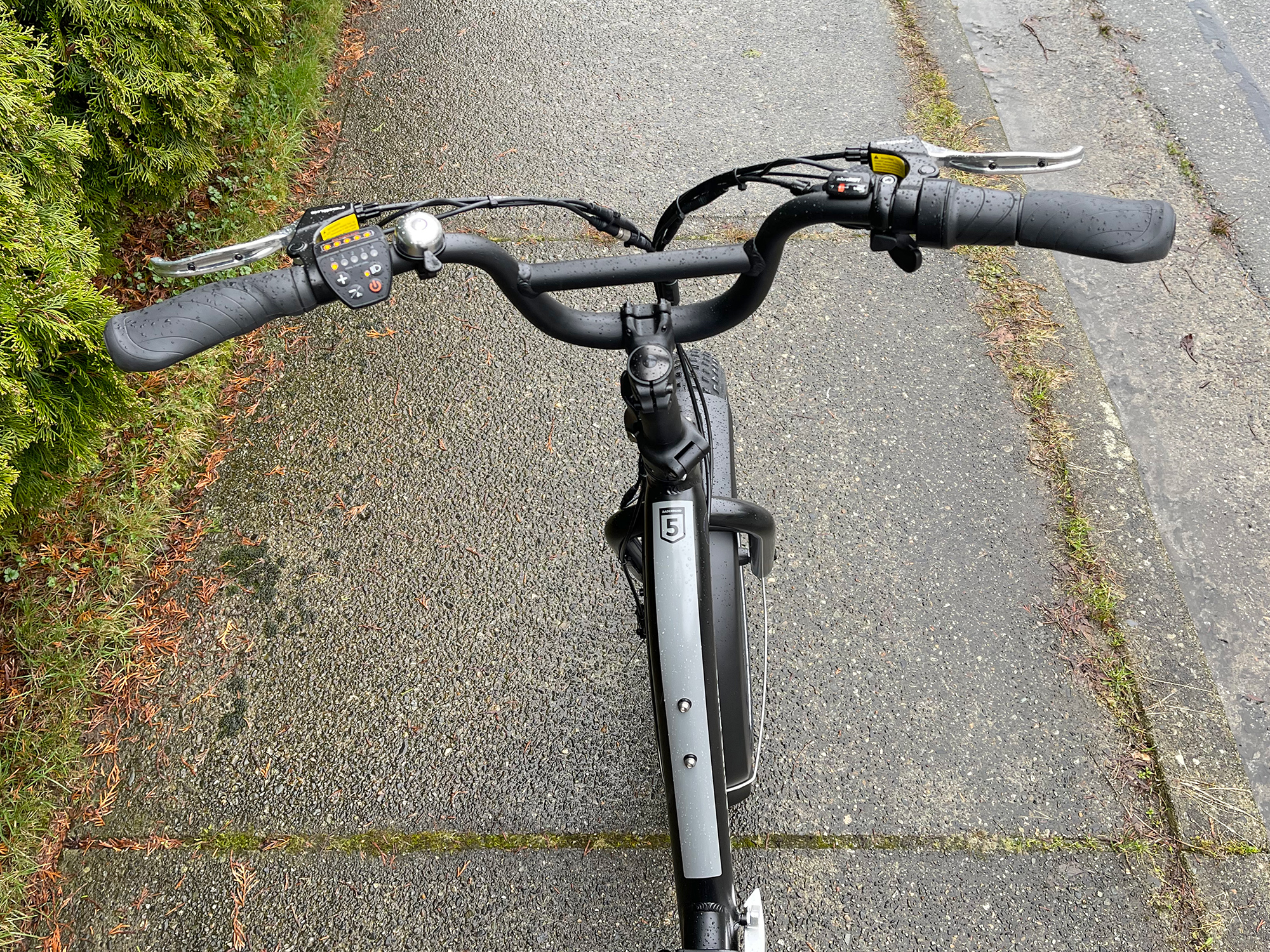

Handlebar:
Aluminum Alloy, High-Rise, 176mm Rise, 690mm Length, 20º Backsweep
Brake Details:

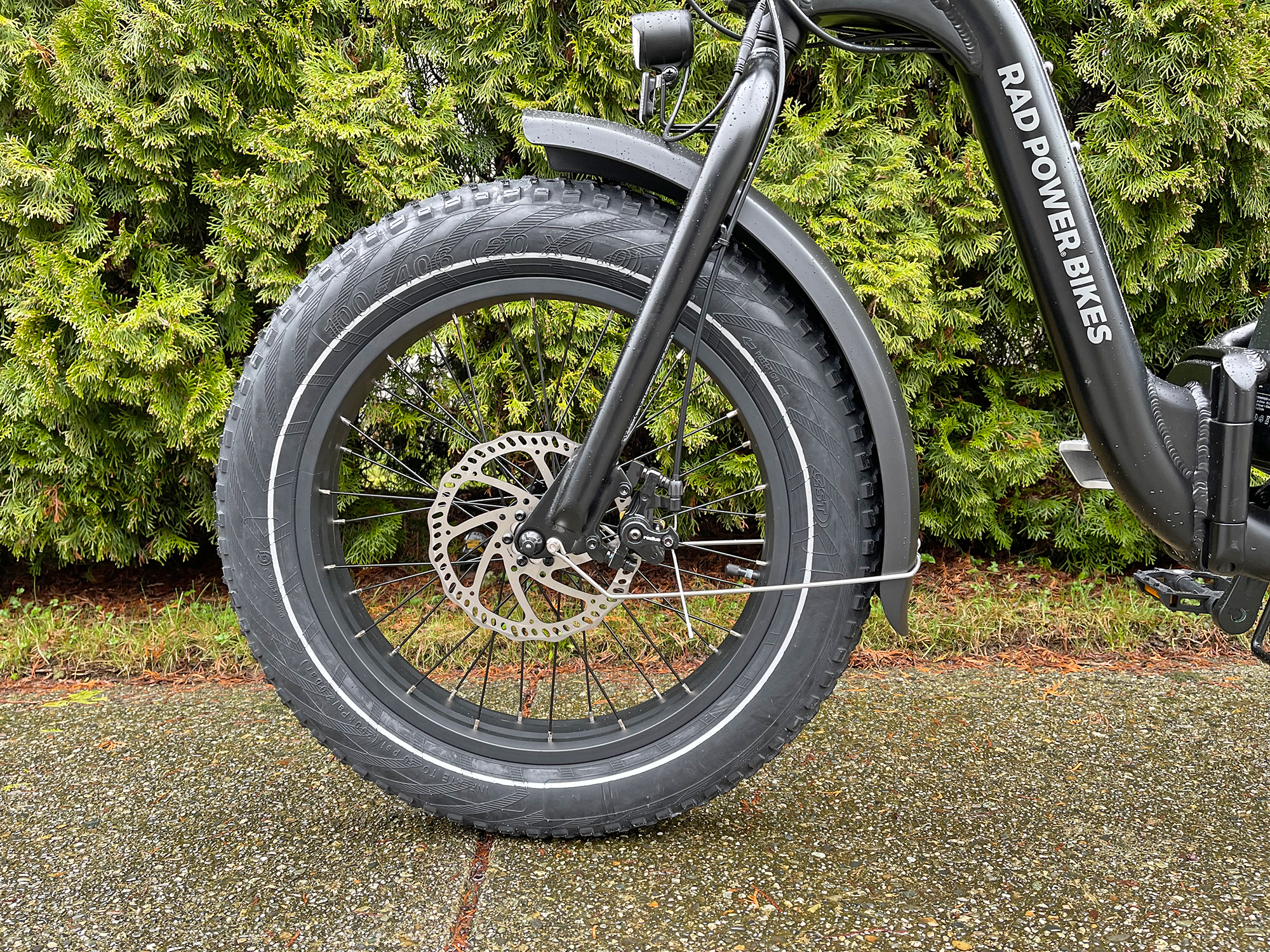

Radius Brand Mechanical Disc with 180mm Rotors, Four-Finger Levers with Rubberized Edges and Motor Inhibitors with Brake Light Activation
Grips:
Ergonomic, Rubber, Non-Locking

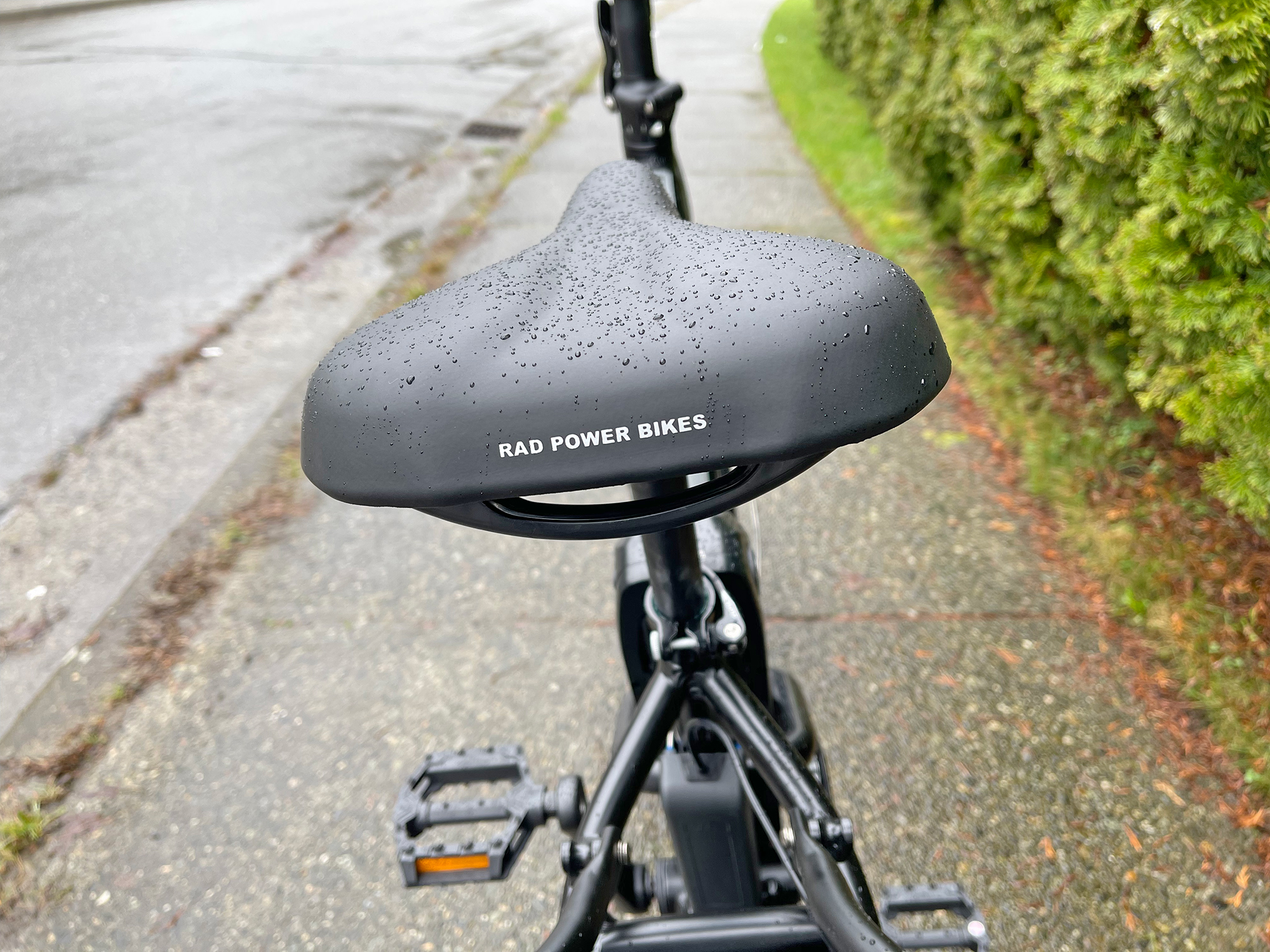

Saddle:
Rad Power Bikes Branded with Lifting Handle, Brown
Seat Post:
HL, Aluminum Alloy, Single Bolt Clamp
Seat Post Length:
390 mm
Seat Post Diameter:
27.2 mm
Rims:
Aluminum Alloy, Double Wall, 60mm Inner Width, 36 Hole
Spokes:
Stainless Steel, 13 Gauge, Black with Nipples
Tire Brand:
CST BFT, 20" x 4.0" (100-406)
Wheel Sizes:
20 in (50.8cm)Tire Details:
15 to 30 PSI, 1.0 to 2.1 BAR, e-Bike Rated, Aramid Puncture Resistant Liner, Reflective Sidewall Stripe
Tube Details:
Schrader Valve
Accessories:

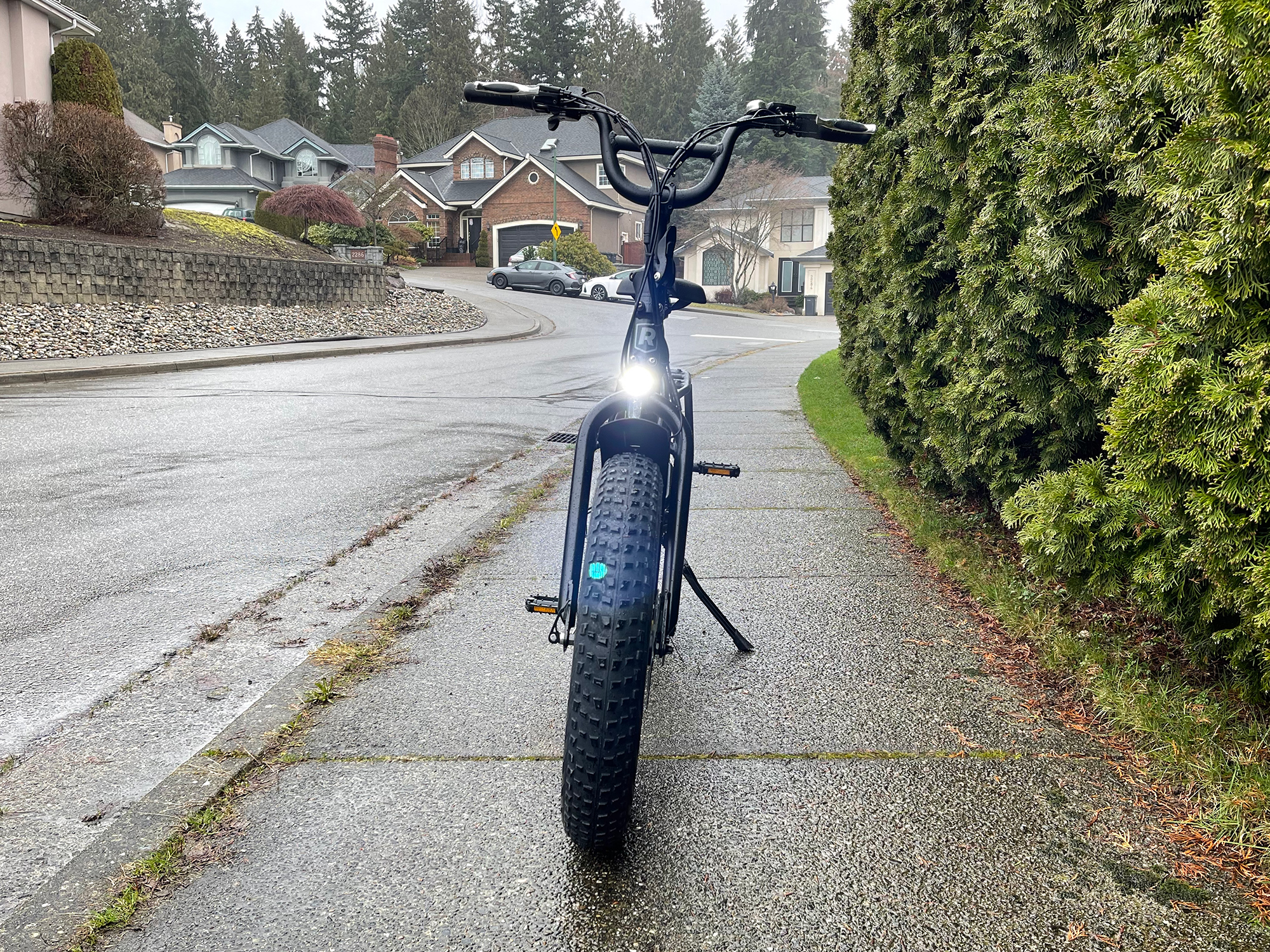

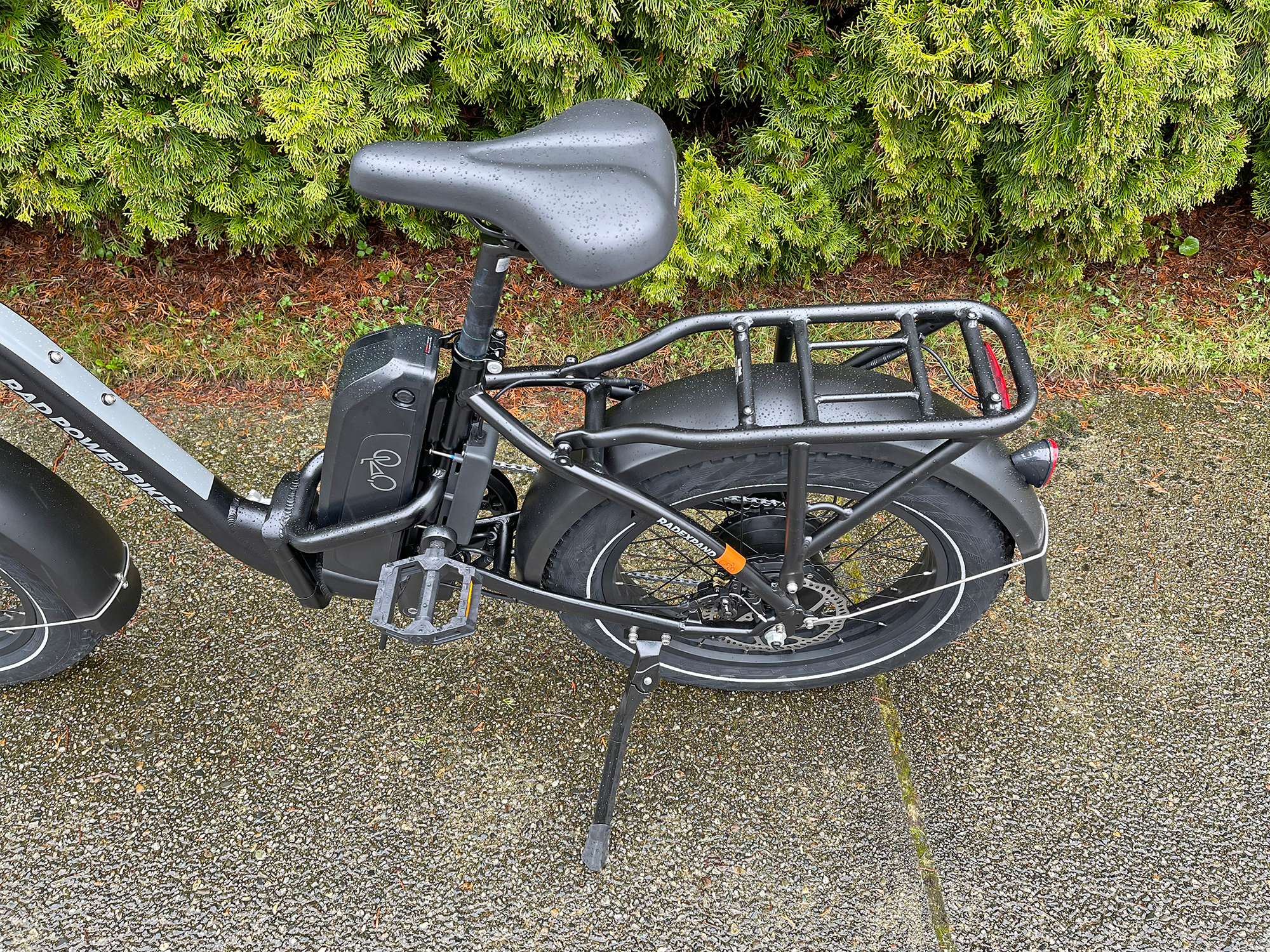

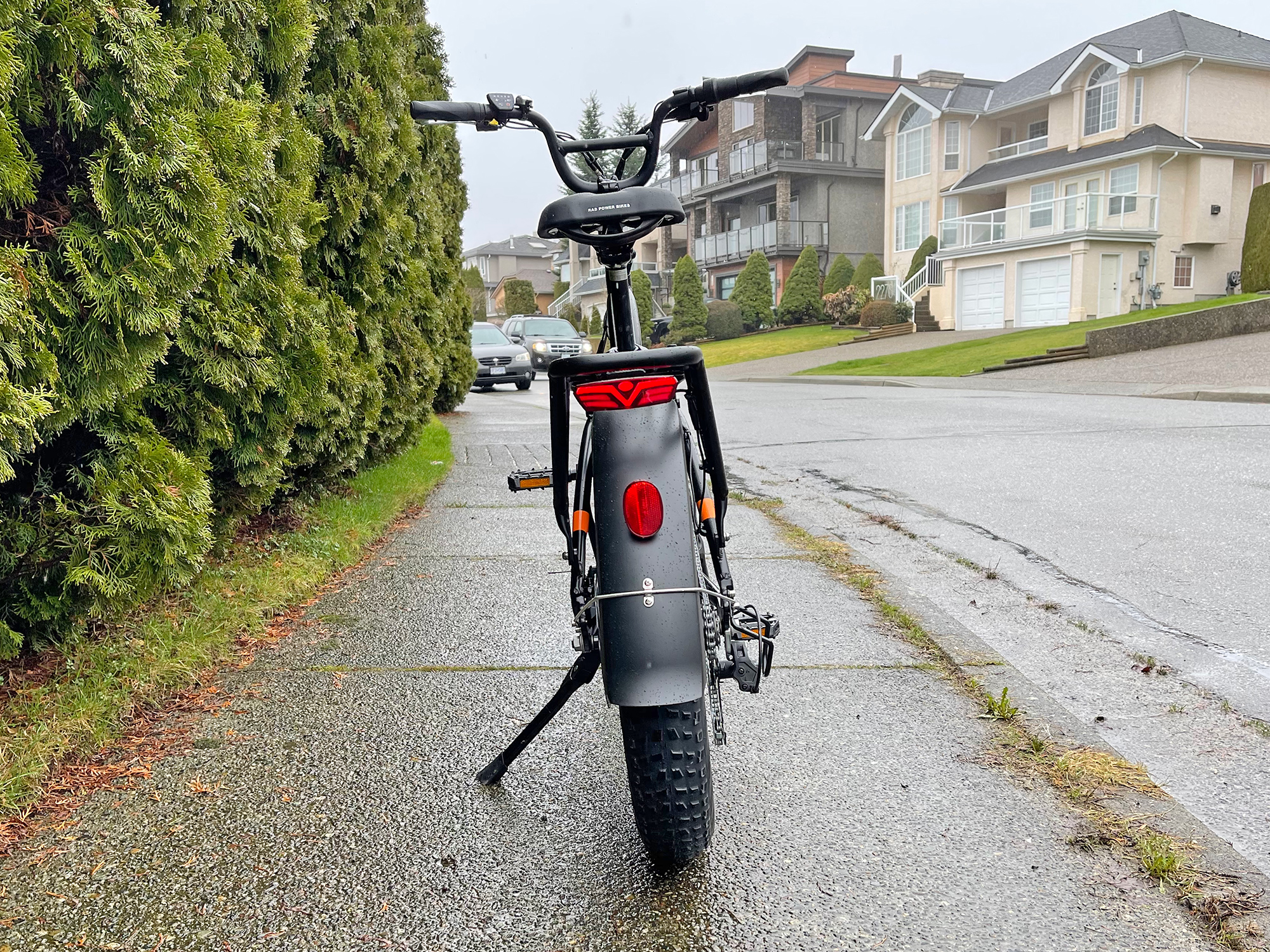

Rear-Mount Kickstand, Steel Derailleur Guard, Rad Power Bikes Integrated LED Headlight (50 LUX, Focused Beam), Integrated LED Rear Light (Solid, Bright Brake Activation), Clear Plastic Sticker Slap Guard, Plastic Fenders (110mm Width), Bolt-On Rear Rack (27kg 59.5lb Max Load, 19mm Tubing Diameter, Bungee Loops, Yepp! Child Seat Window), Velcro Cinch Strap to Secure When Folded, Optional Front Rack, Optional Small Basket, Optional Large Basket, Optional Platform, Optional Small Pannier, Optional SR Suntour NCX Suspension Seat Post, Optional Phone Mount, Optional Small Basket Bag, Optional Large Basket Bag, Optional Small Insulated Delivery Bag, Optional Large Insulated Delivery Bag, Optional Yepp! Maxi Child Seat, Optional ABUS Folding Lock, Optional Wellgo Colored Pedals, Optional LCD Display Panel with USB Port
Other:

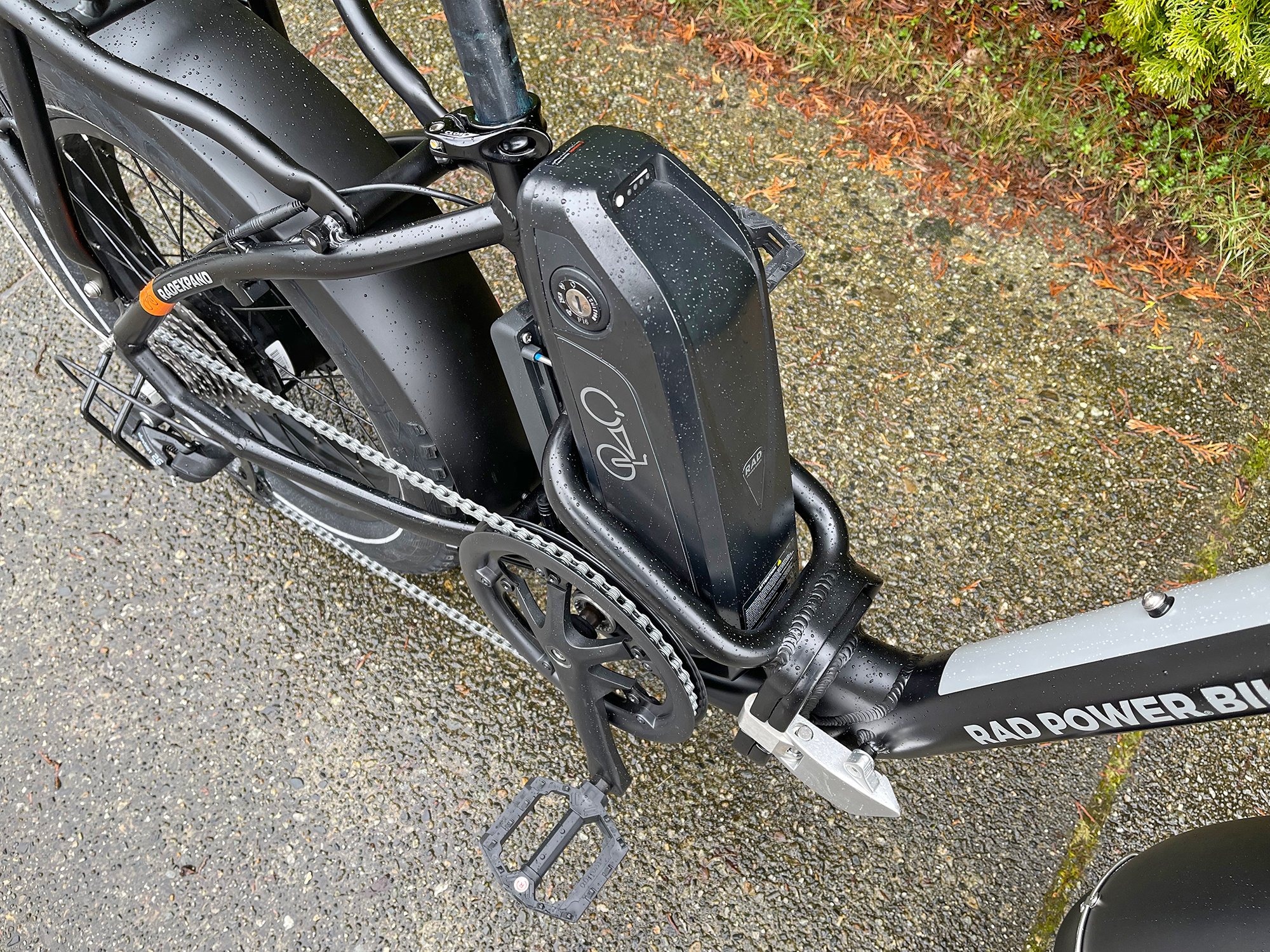

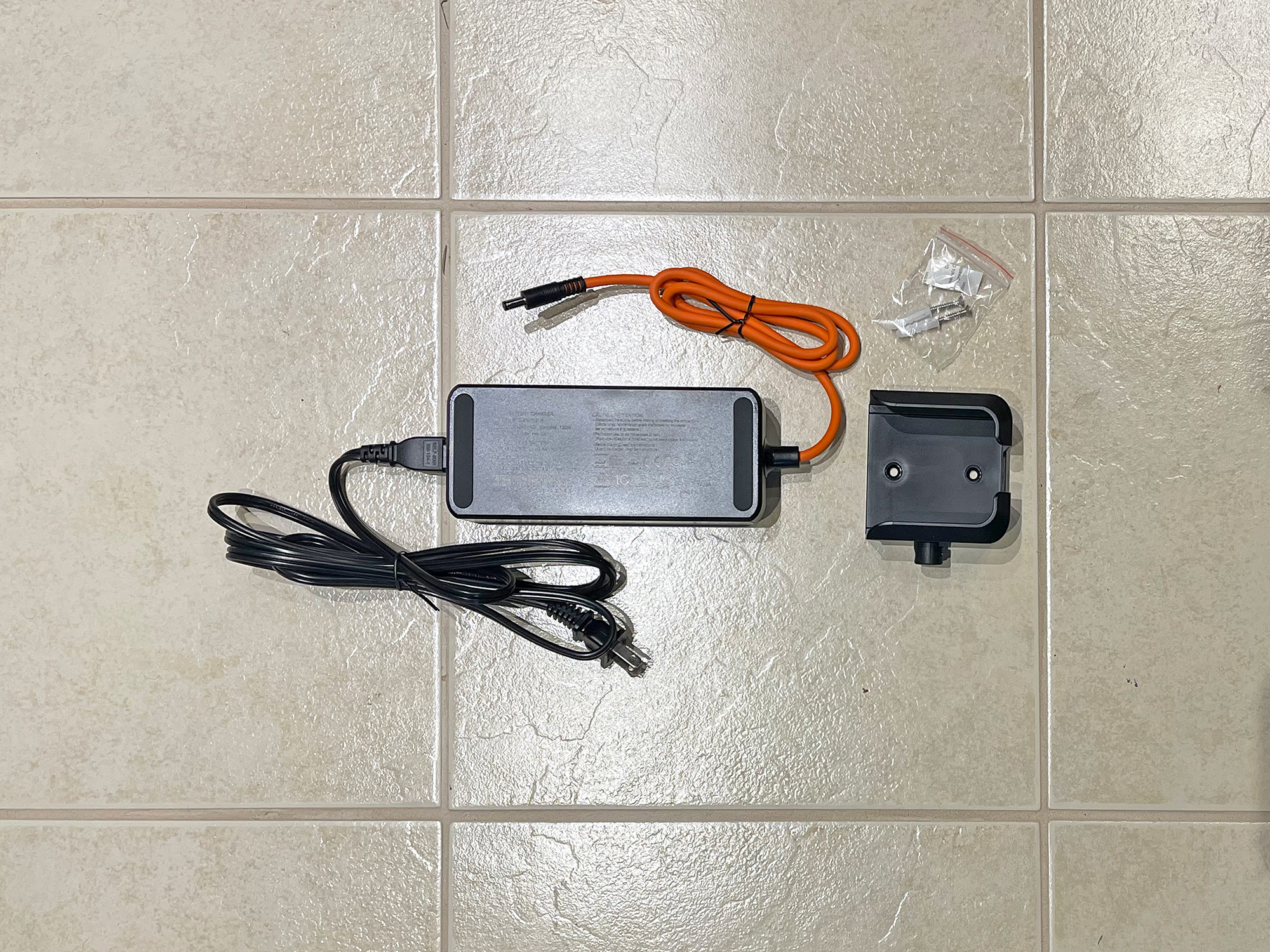

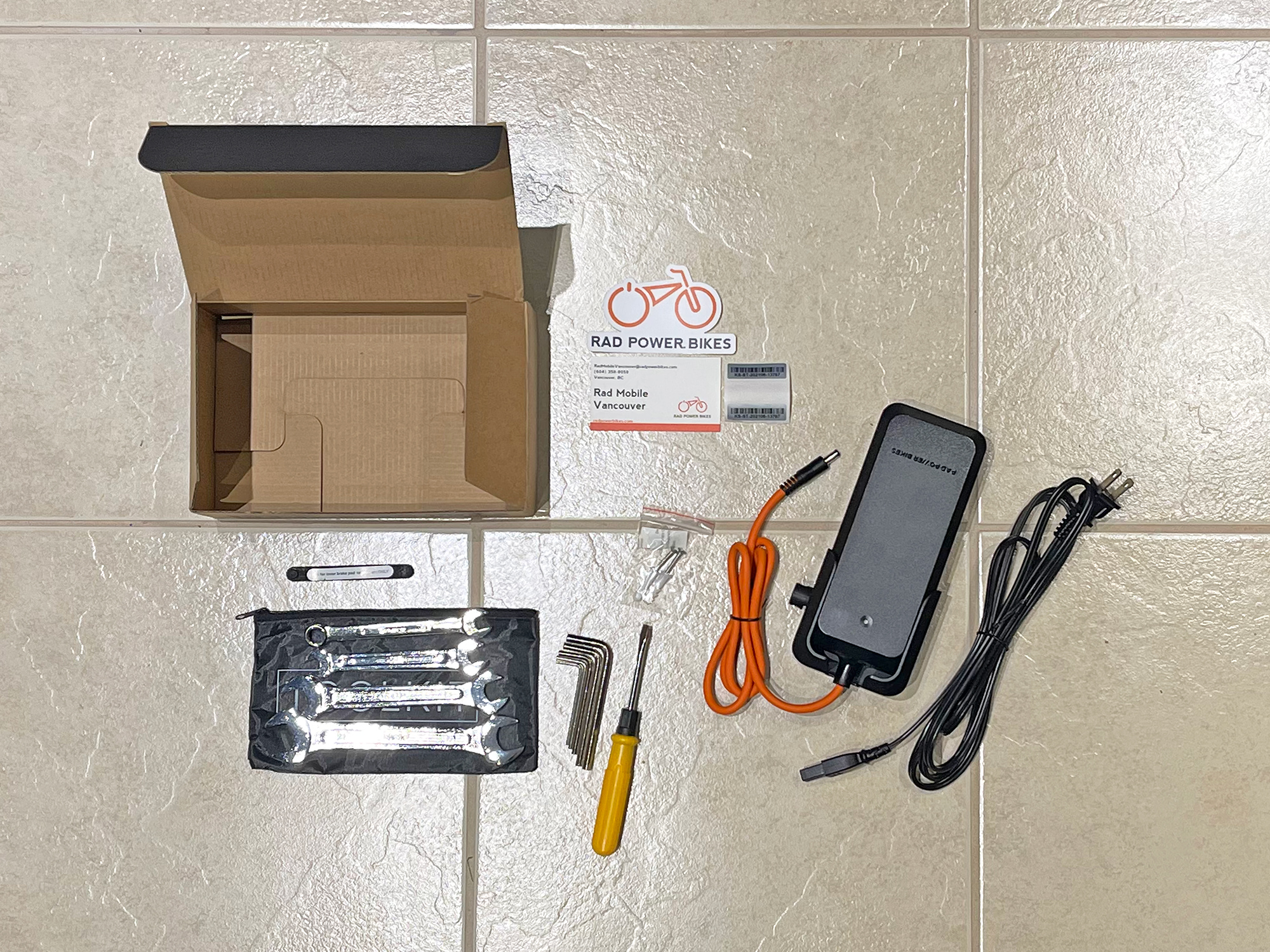

Locking Removable Seat Tube-Mounted Battery Pack, 1.1lb 2 Amp Charger, Stainless Steel Torque Arm, 275lb Maximum Weight Rating, KMC Z7 Chain with 124 Links
Bryant
3 months agoIsn’t the price $1299? (Not $1499).
ReplyCourt
3 months agoYeah, thanks for the heads up Bryant! I made a mistake there. The price has been updated to $1,299 as you suggested :)
ReplyTimdeck
2 months agoWhat are the dimensions of the rear rack on the Expand 5? thanks
ReplyCourt
2 months agoHi Timdeck! I didn’t measure it… but perhaps someone in the forums could help? Rad also does a great job with support if you contact them through their website :)
ReplyCecile
2 months agoJe suis intéressée par un vélo électrique, je veux 500 w et qui est fait pour une femme qui mesure 5 pieds.
ReplyCourt
2 months agoCela pourrait vous convenir, la version canadienne utilise un moteur de 500 watts, le cadre est très accessible avec une faible hauteur de support et les pneus larges offrent une stabilité et un confort accrus.
Replyjay
2 months agoIs there different motors from Canada to US versions? 750 vs 500? Or is the Canadian version dummied down to 500 using the controller? If so I am wondering if it could be unlocked, for off-road use.
ReplyCourt
2 months agoHi Jay! Good question, and I’m not sure on the answer. My guess is that it could be controller based, but the Rad displays have become more locked down in recent years. I think at a minimum you would need the LCD display panel to unlock anything. Perhaps you could ask around in the Rad Ebike Forums.
ReplyJonathan Lang
2 months agoThanks for the great review on the expand five. Do you think its big enough for 6’2″ rider? I have a rover now but want the flexibility to put into the back of my suv.
ReplyCourt
2 months agoHi Jonathan! I think that most of the folding bikes are going to offer a similar experience since they’re mostly one-size-fits-all. The good news is that the fat tire designs tend to be a bit larger overall, and higher off of the ground. What I like about the RadExpand is the sturdy folding joint, heavy duty buckle system, the rigid steer post and stem vs. telescoping. It seemed very solid to me, and with the seat raised up, I think it works well even for taller people. Given the cadence sensor pedal assist and throttle, you might not need to get the full leg extension like a road bike. I think the stock seat post would get close for you, but that’s an affordable and easy part to swap out if you need an extra long one. You might be able to ask Rad Power Bikes support about your height and weight to get a more official answer, but these are my thoughts :)
ReplyKarin
1 month agoI am 5’4. Will I be able to get a proper extension of my knees? I have had knee replacements on both sides, and am used to being able to straighten my legs while riding road bikes. I should also mention that I am in my 70es!.
I noticed in the videos that neither you or the Rad technician had straight legs while riding the Rad expand 5.
ReplyCourt
1 month agoHi Karin! Good for you, staying fit and riding bikes is a wonderful thing to do at any age. Yes, I do believe that you’ll be able to get full leg extension on this electric bike. I did not raise the seat post as high as I could have because I like how it looks better when I take photos if the seat is a bit lower. I am also someone who likes to get nearly straight when I pedal through a downstroke. I’m 5’9″ and have pretty long legs with a 31″ inseam, so I am pretty confident that you’ll be able to achieve it too. Great observation skills, and I hope this feedback helps you!!
ReplyKathy
2 weeks agoGreat review, thanks. I’m 5’2″ and looking for an ebike for forest dirt/gravel roads in Oregon. I wonder if the bike will work well in these conditions. Is the steep head tube/handlebar angle an issue? I do a little technical MTB type riding but primarily enjoy cruising forest roads.
ReplyCourt
2 weeks agoHi Kathy, I think the RadExpand 5 would offer plenty of stability and traction for gravel roads. Given your height, the lower frame and approachable step-thru design might be a great benefit since this and most ebikes weigh more than regular bikes. There’s no suspension fork, so going fast on very bumpy and technical sections could be jarring. The larger tires will offer some comfort if you don’t over-inflate them. Long story short, you could go for this or the RadRover Step-Thru which doesn’t fold and is much larger. Otherwise, you could spend more for a product that uses higher end components like air suspension.
