Total Weight:
56.5 lbs (25.62 kg)
Battery Weight:
8.2 lbs (3.71 kg)
Motor Weight:
6.39 lbs (2.89 kg)
Frame Material:
6061 Aluminium Alloy
Frame Sizes:
16.14 in (40.99 cm)17.32 in (43.99 cm)19.29 in (48.99 cm)21.25 in (53.97 cm)Geometry Measurements:
Medium 44cm: 17.5" Seat Tube, 22" Reach, 29" Stand Over Height, 35" Minimum Saddle Height, 30.25" Width, 76.25" Length, Medium 49cm: 19.25" Seat Tube, 23.25" Reach, 30.25" Stand Over Height, 37" Minimum Saddle Height, 30.25" Width, 76.5" Length
Frame Types:

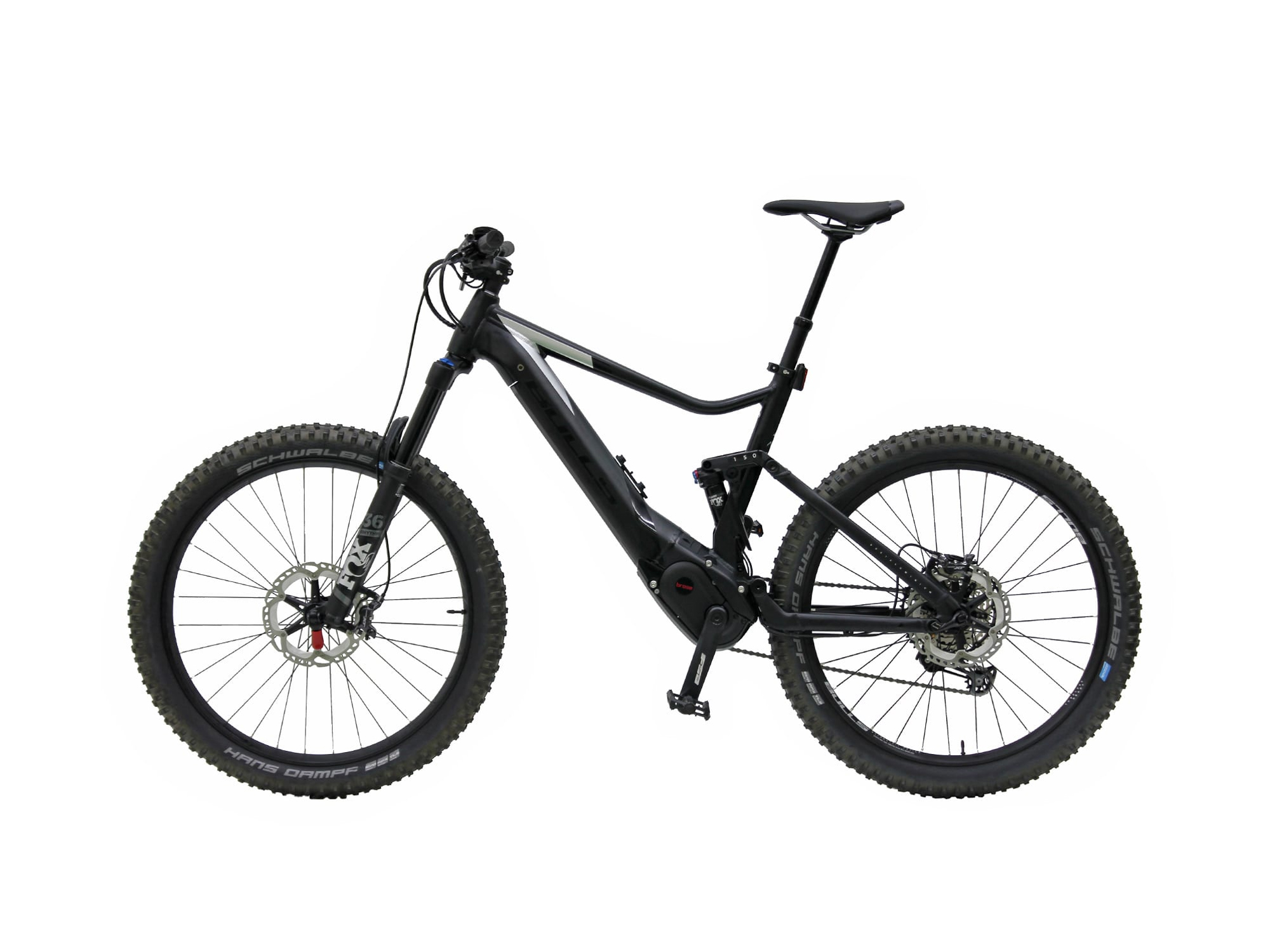

High-Step
Frame Colors:
Matt Black with Gloss Black and Silver Accents
Frame Fork Details:

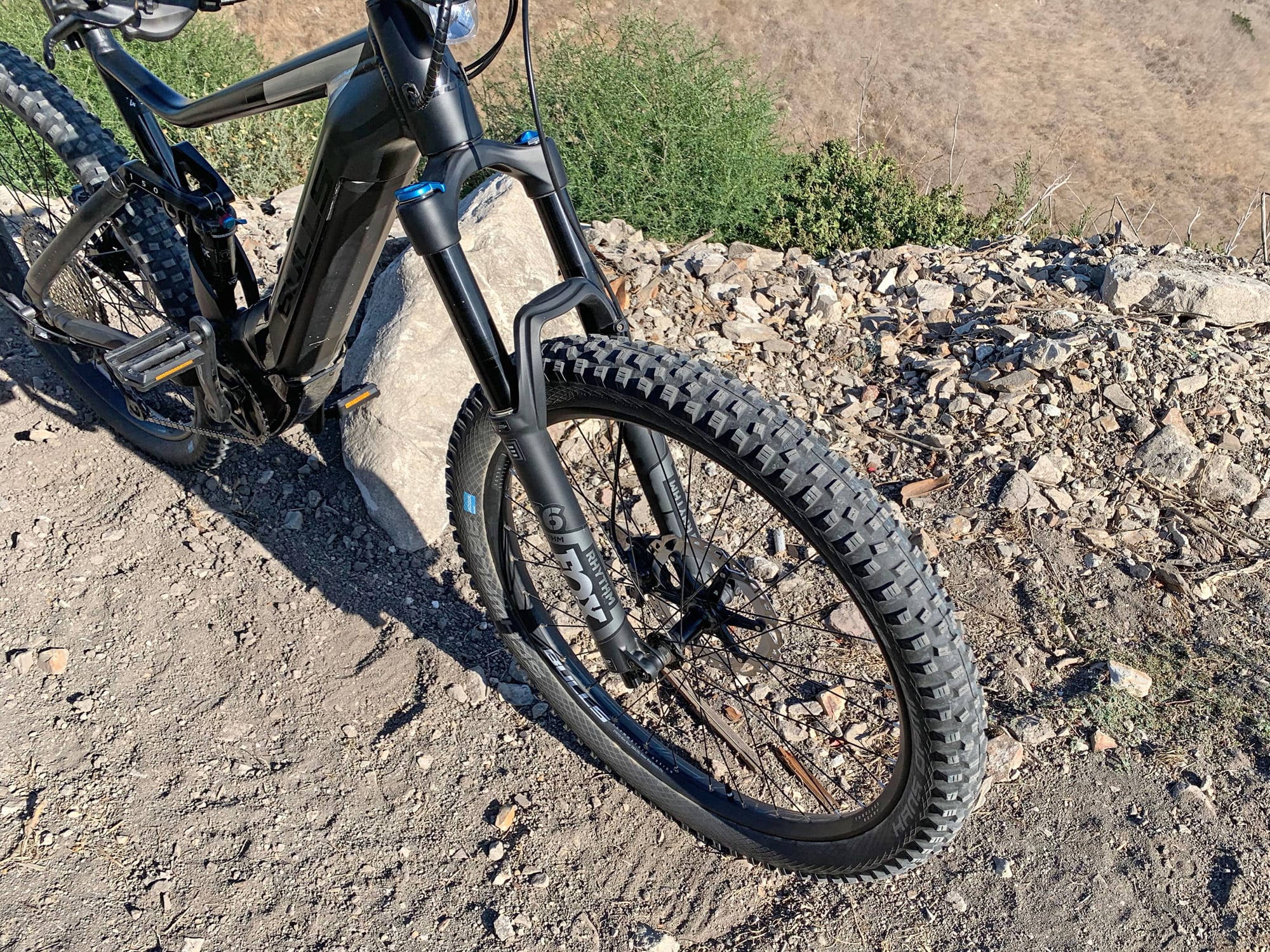

Fox Rhythm 36 Air Suspension, 150mm Travel, Compression Adjust with Lockout, Rebound Adjust, 36mm Stanchions, 51mm Rake, Boost 110mm Hub Spacing, 15mm Thru-Axle with Quick Release
Frame Rear Details:

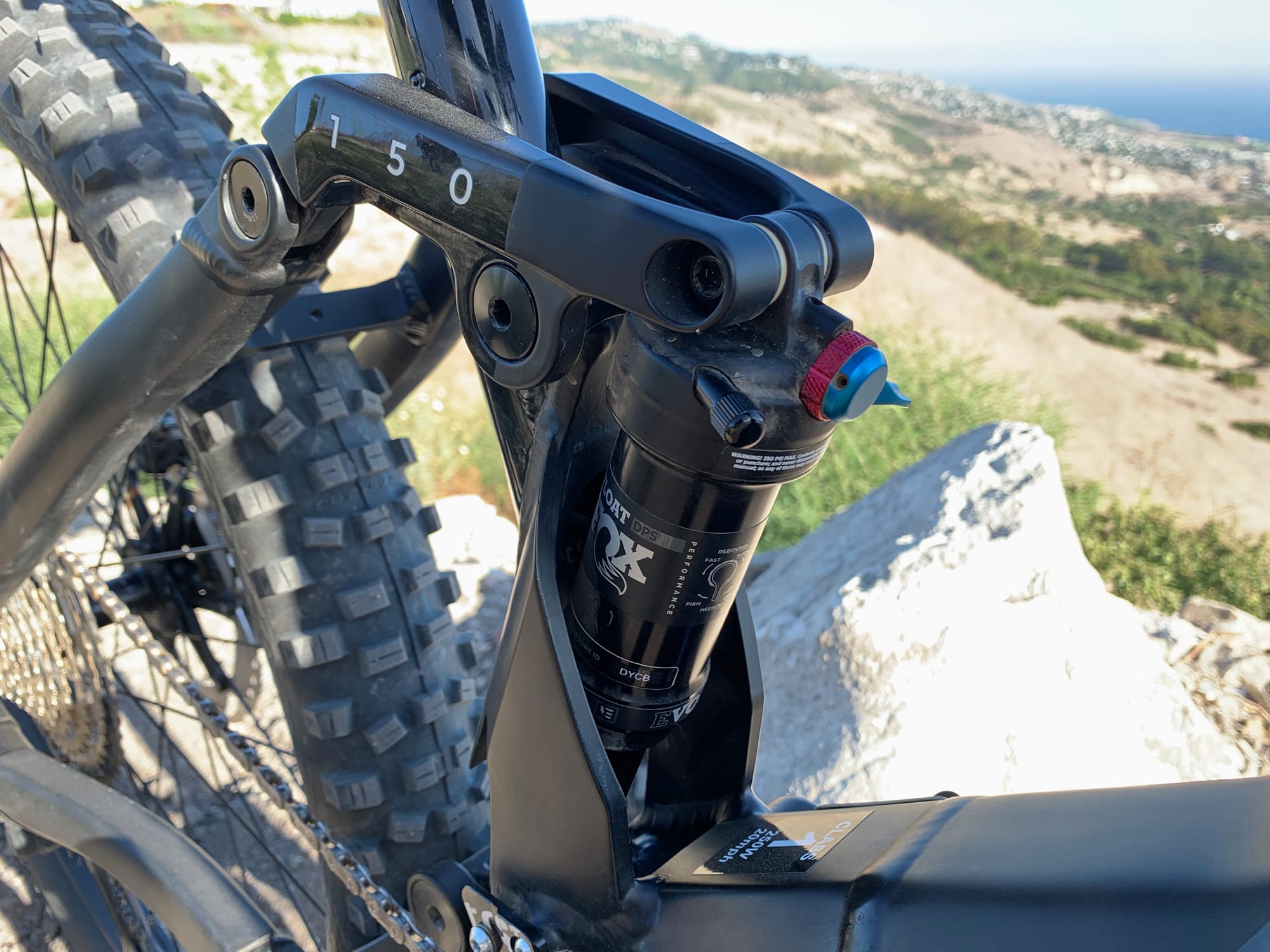

Fox Float DPS Air Suspension, 150mm Travel, Compression Adjust (3 Position), Rebound Adjust, Boost 148mm Hub Spacing, 12mm Thru-Axle with Quick Release
Attachment Points:
Bottle Cage Bosses, MonkeyLink Lights, MonkeyLink Bottle Adapter
Gearing Details:
12

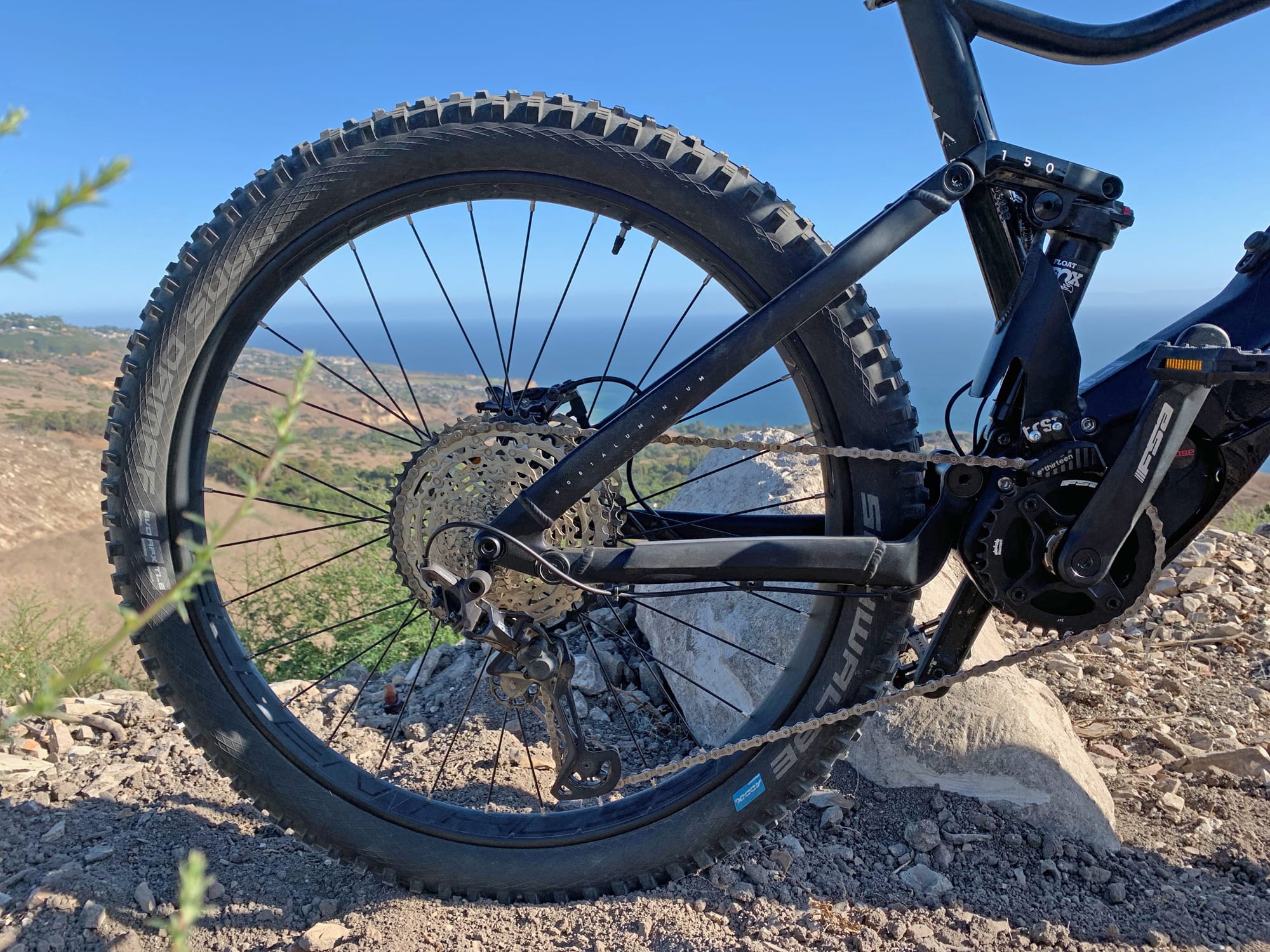

Speed 1x12 Shimano RD-M8100-SGS Deore XT Derailleur with Clutch, Shimano CS-M7100-12 10-51 Tooth Cassette Micro SplineShifter Details:
Shimano SL-M8100-1 Deore XT Triggers on Right (Two-Way High Lever, Three-Shift Low Lever)
Cranks:

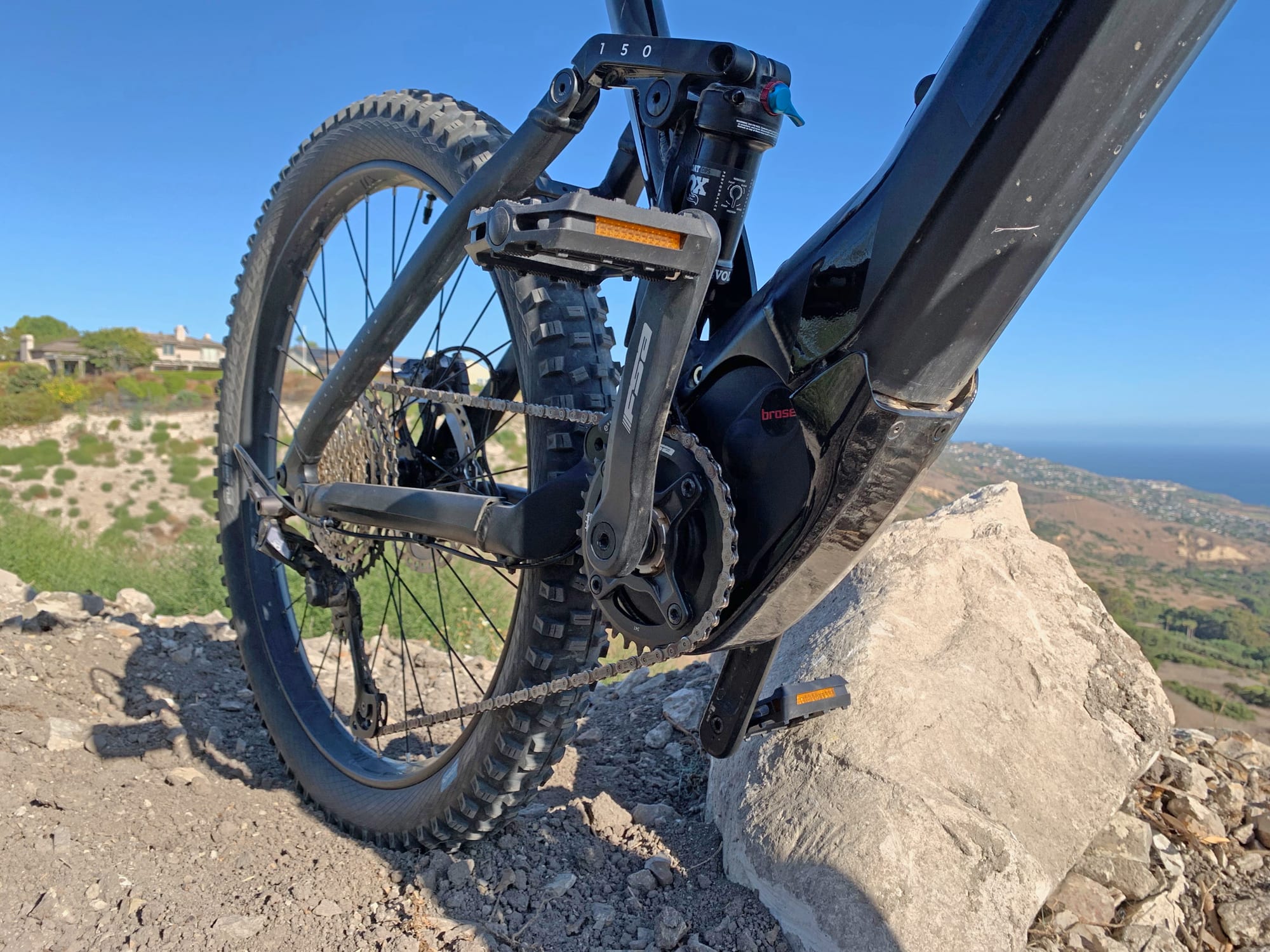

FSA, Aluminum Alloy, 165mm Length, 34 Tooth Megatooth Narrow-Wide Chainring with E-Thirteen TRS+ Plastic Guide
Pedals:
Wellgo ZZE-01M Alloy Platform, Cage Style
Headset:
FSA Orbit 1.5 ZS (No. 57), Threadless, Internal Cups, Sealed Cartridge, Tapered 1-1/8" to 1-1/2"
Stem:
Monkey Link Branded, Aluminum Alloy, 55mm to 80mm Length Depending on Frame Size, 0° or 7° Rise, 31.8mm Clamp Diameter, Two 10mm Spacers, One 5mm Spacer
Handlebar:

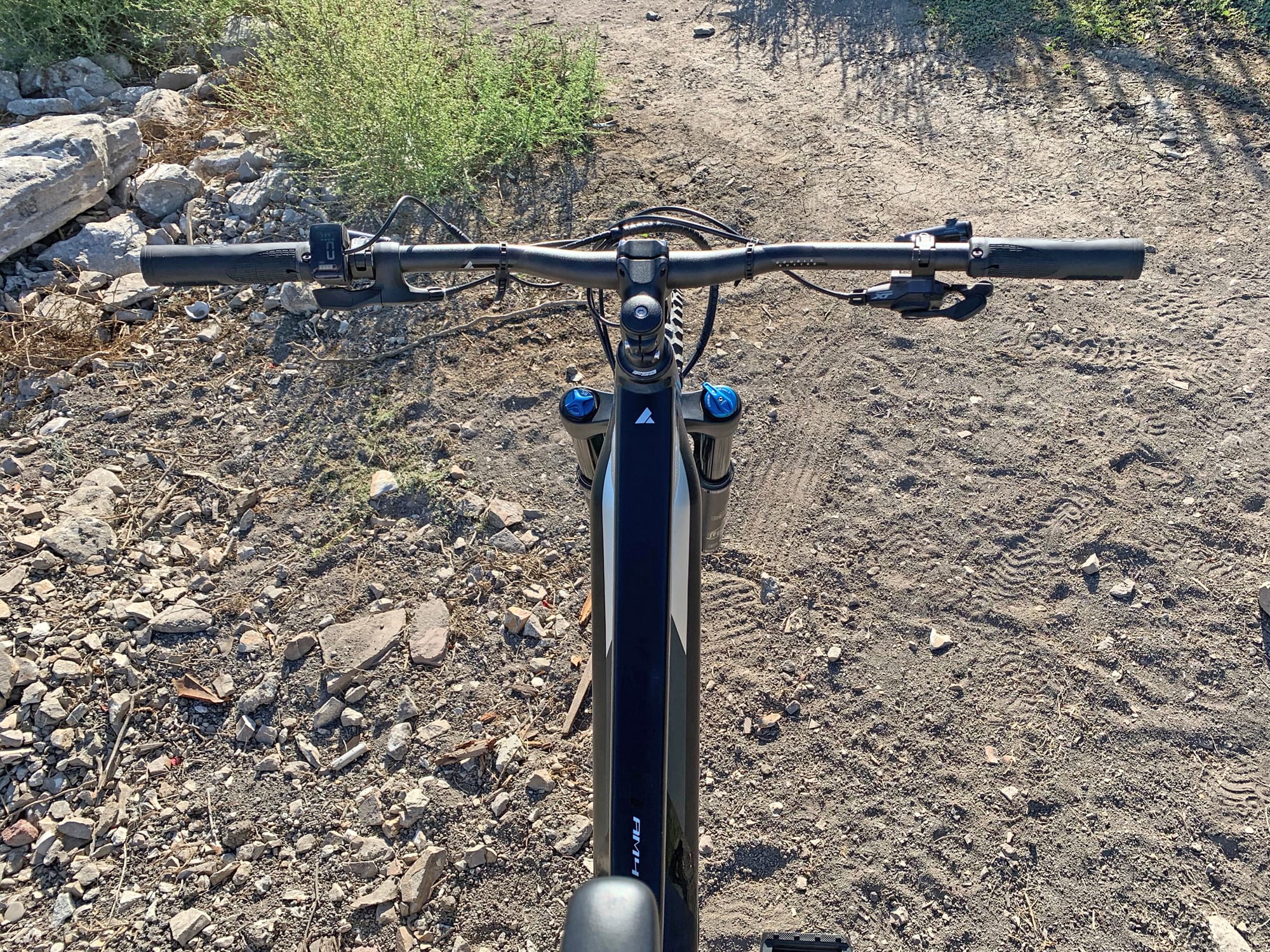

Bulls Branded, Aluminum Alloy, Low-Rise, 760mm Length, 15mm Rise, 9° Bend, 31.8mm Bore
Brake Details:

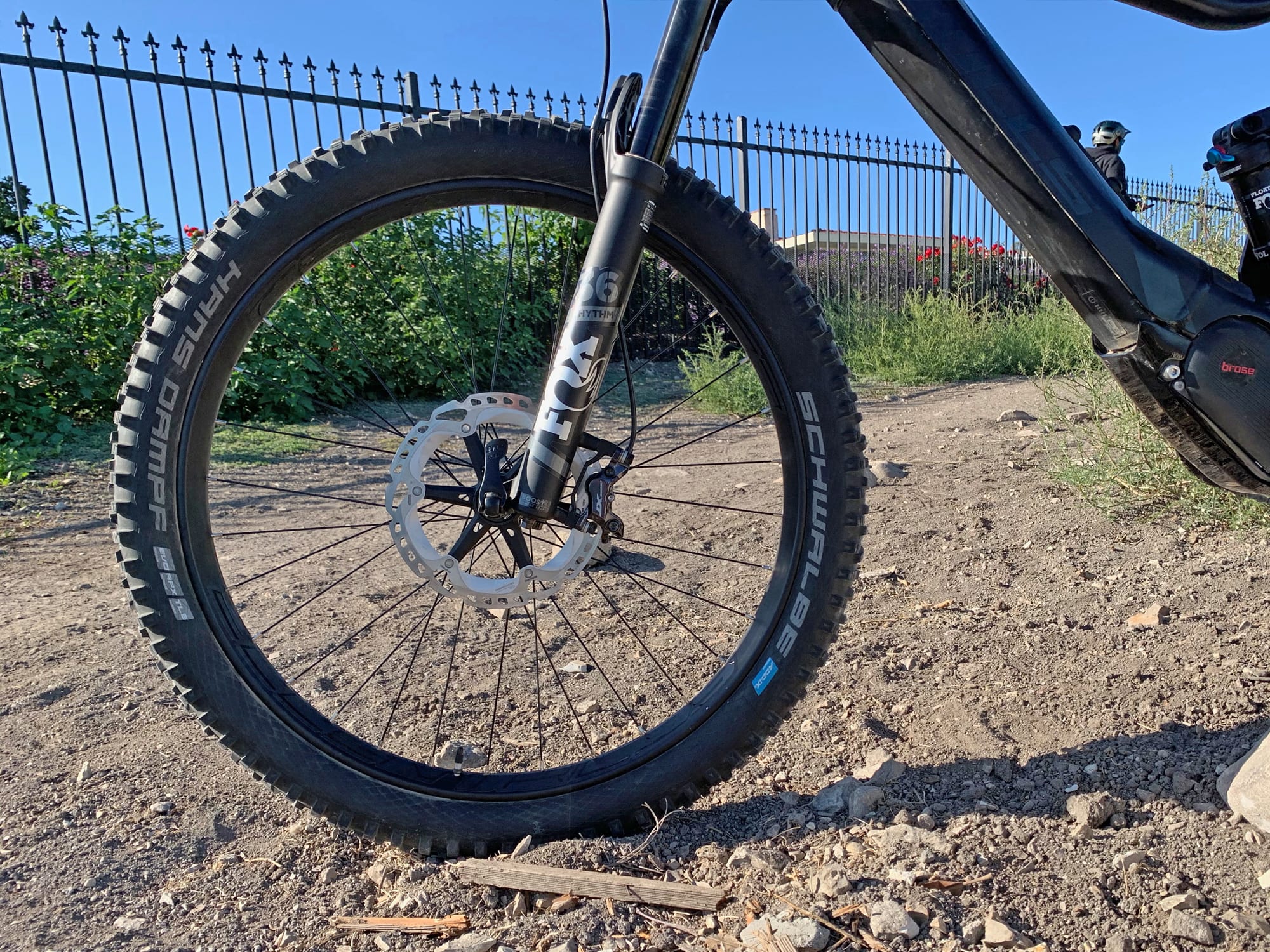

Shimano BR-M8120 Hydraulic Disc with 203mm Rotors, Quad-Piston Calipers, Shimano BL-M8100 Two-Finger Levers with Adjustable Reach
Grips:
BULLS Branded Velo, Flat, Rubber, Locking
Saddle:
Selle Royale Vevo
Seat Post:

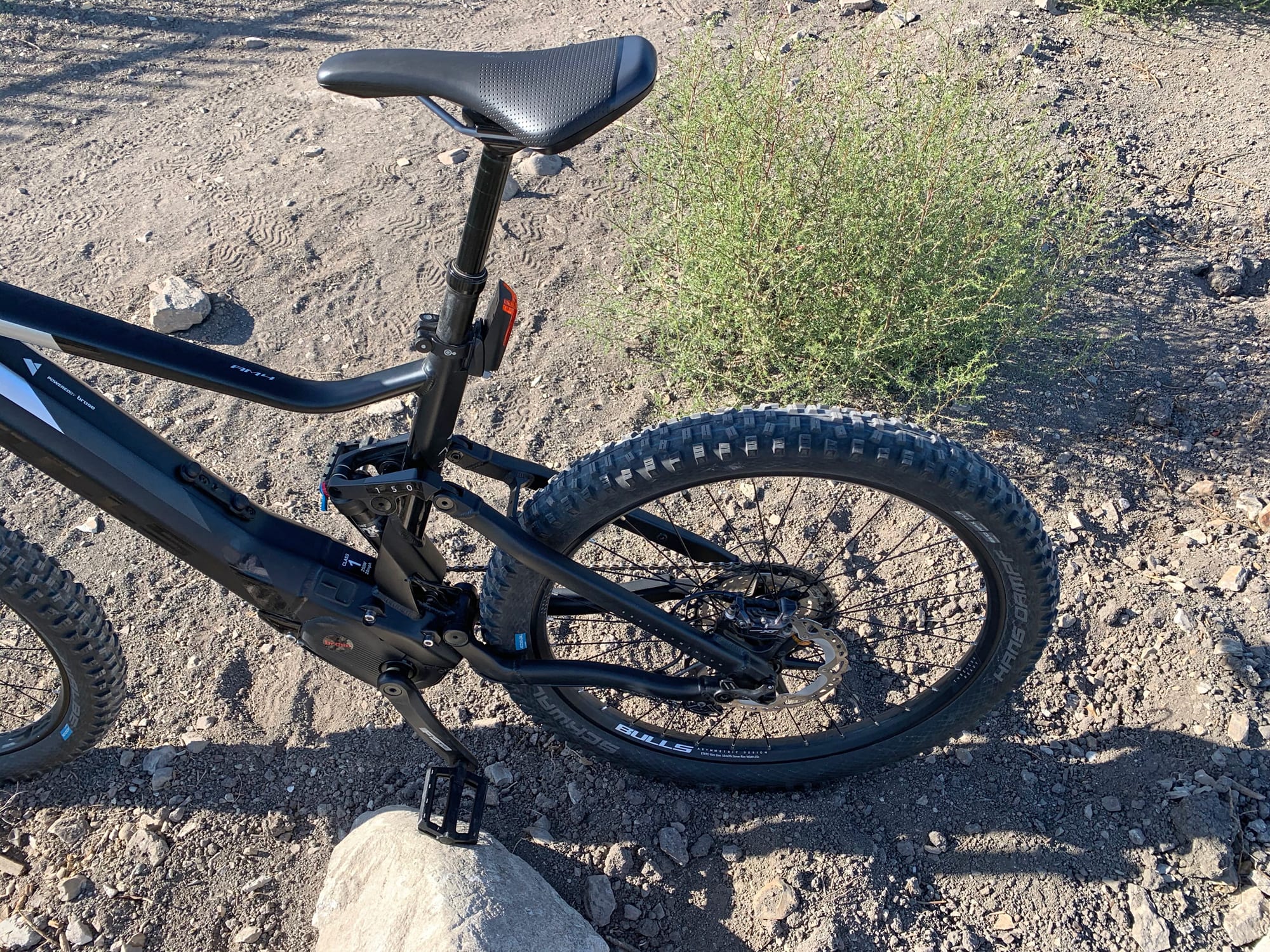

Limotech Jovial Dropper (75mm 100mm 125mm or 150mm Travel)
Seat Post Length:
300 mm
Seat Post Diameter:
30.9 mm
Rims:
BULLS Branded Eccentric, Aluminum Alloy, Double Wall, 584x35c, 32 Hole, Asymmetric Design, Tubeless Ready
Spokes:
Stainless Steel, 14 Gauge Front and 13 Gauge Rear, Black with Nipples
Tire Brand:

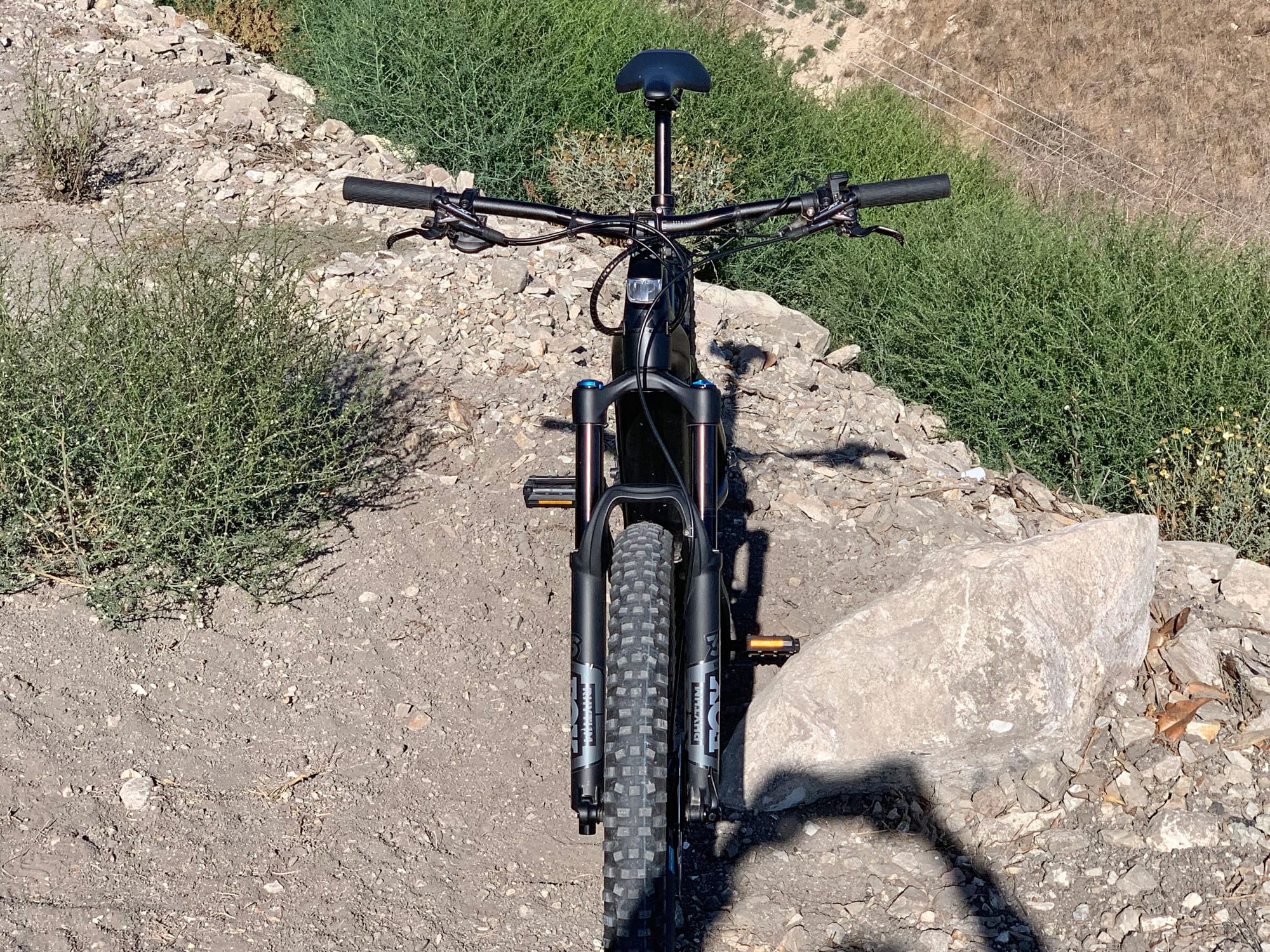

Schwalbe Hans Danpf, 27.5" x 2.8" (70-584)
Wheel Sizes:
27.5 in (69.85cm)Tire Details:
17 to 38 PSI, 1.2 to 2.6 BAR, ADDIX Speedgrip Rubber Compound, EVO Evolution, APX Reinforced, TLE Snakeskin
Tube Details:
Presta Valve
Accessories:

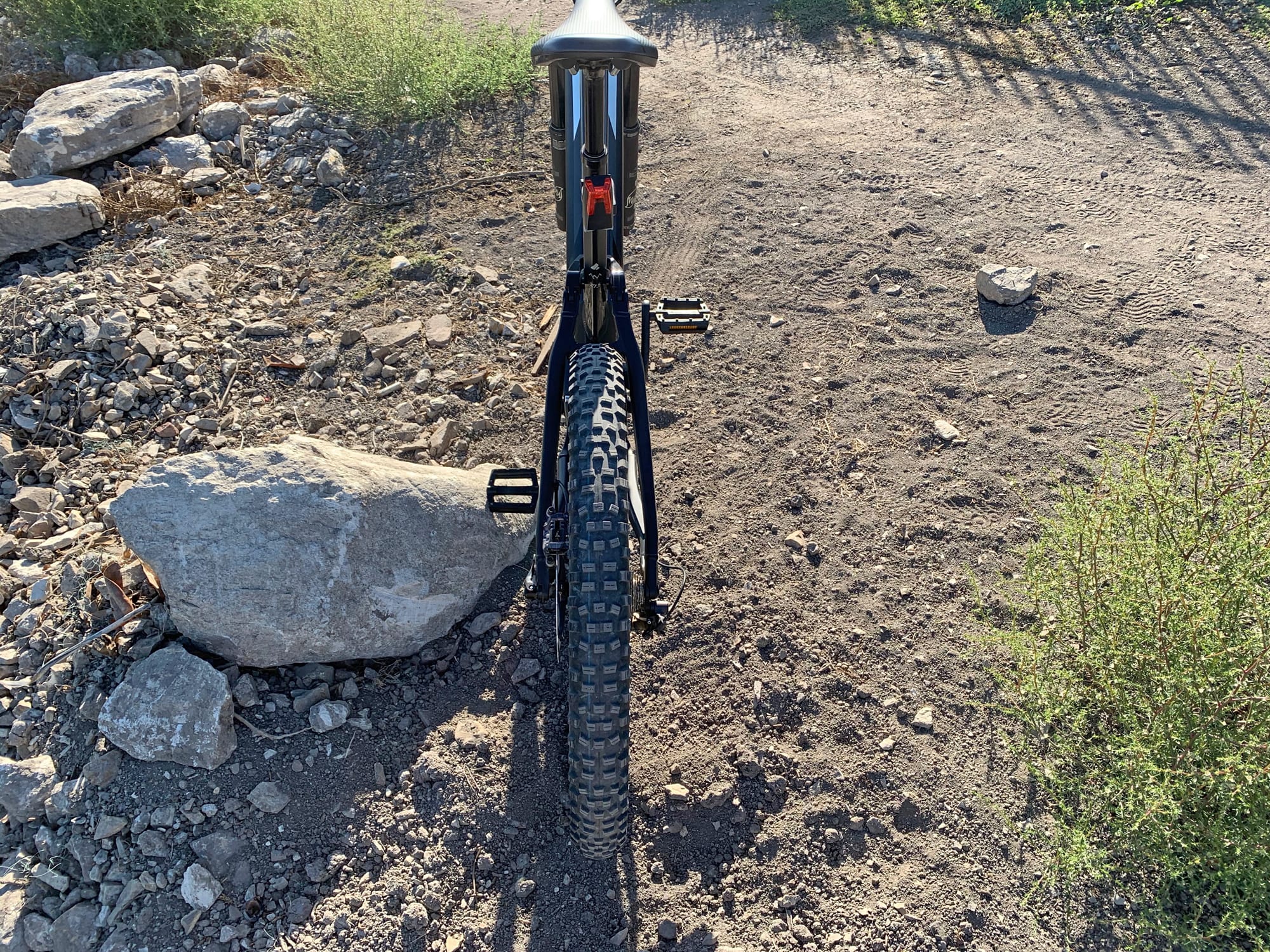

Velo Plastic Chainstay Protector, MonkeyLink Magnetic Interface for Front and Rear Lights, Tubeless Conversion Kit Included (Valve Stems, WTB Rim Tape), Optional Monkey Link Lights Combo Pack (100 Lux, $170), Optional Monkey Link Water Bottle ($46)
Other:

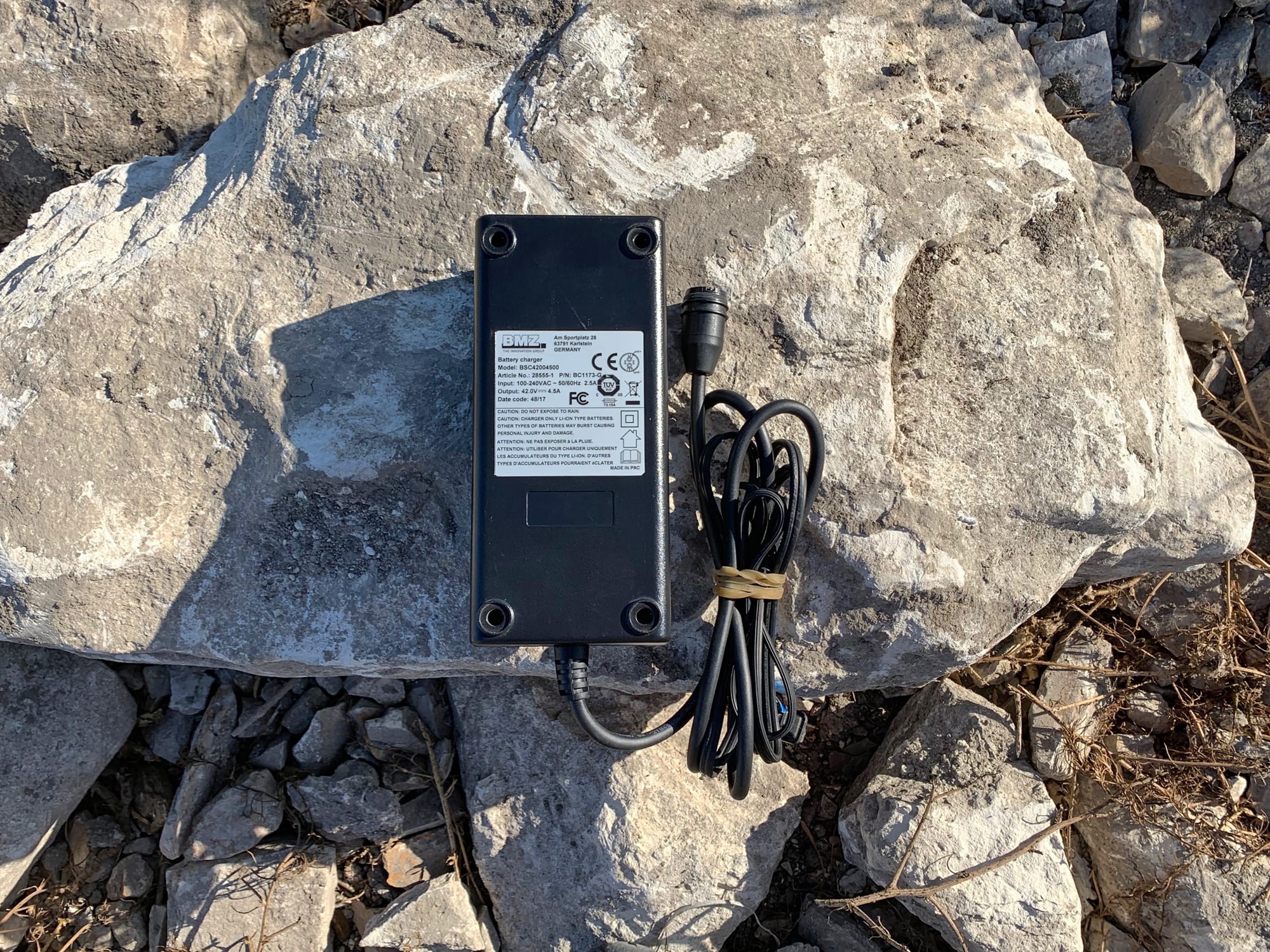

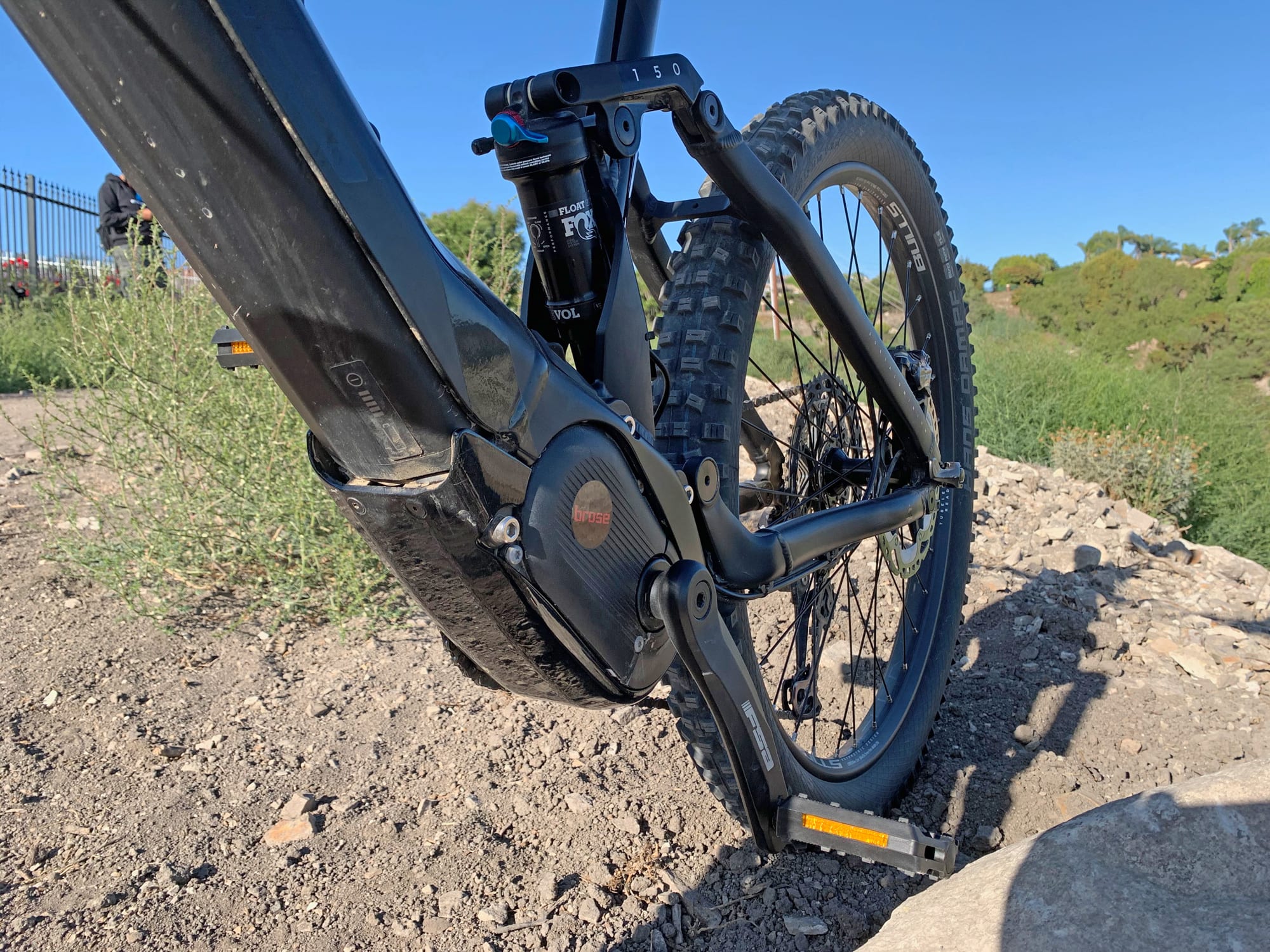

Locking Removable Downtube-Integrated Battery Pack, ABUS Plus Keys and Cylinder, 1.9lb 4.5 Amp BMZ Charger, Maximum 120 RPM Motor Support, IP56 Rated (Drive Unit and Display)
Tomasz
5 years agoYeah :)
Bulls has a great reliable bikes, enjoy a lot :)
Replyandre
5 years agoI am new to ebikes and I realise that some come with only one level of sprocket instead of a three level. Why is that, and if it’s a fixie, won’t that be hard to pedal on a slight incline on a regular bicycle?
ReplyCourt
5 years agoHi Andre. Most electric bikes are using a 1x (one-by) drivetrain because they feel that the additional support of a motor makes up for fewer gears. One-by setups are lighter, less expensive, tend to be more reliable, and don’t drop the chain as frequently or easily. This is especially the case with mid-drive motors. Only a couple of manufacturers even support multi-chainring setups. Most electric bicycles DO have multiple sprockets in the rear, in a freewheel or cassette. The most common setups I see from cheap ebikes are 1×7 but the higher-end ones have 1×10. You can tell how wide the gearing range is by looking at the “Gearing Details” specs section for each bike here where I list something like 1×12 and 10-51 Tooth Cassette (as is the case for this very nice BULLS E-STREAM EVO AM 4. That’s a huge gear offering, and it works very well with the powerful Brose Drive S Mag motor. There are some single-speed ebikes out there, mostly affordable/lightweight city models like the Propella… which also comes in an optional 1×7 setup for those who do want gears ;)
Replybrandon Dixon
5 years agoThis is not available in north america. This is the EU spec
