Total Weight:
49.7 lbs (22.54 kg)
Battery Weight:
5.9 lbs (2.67 kg)

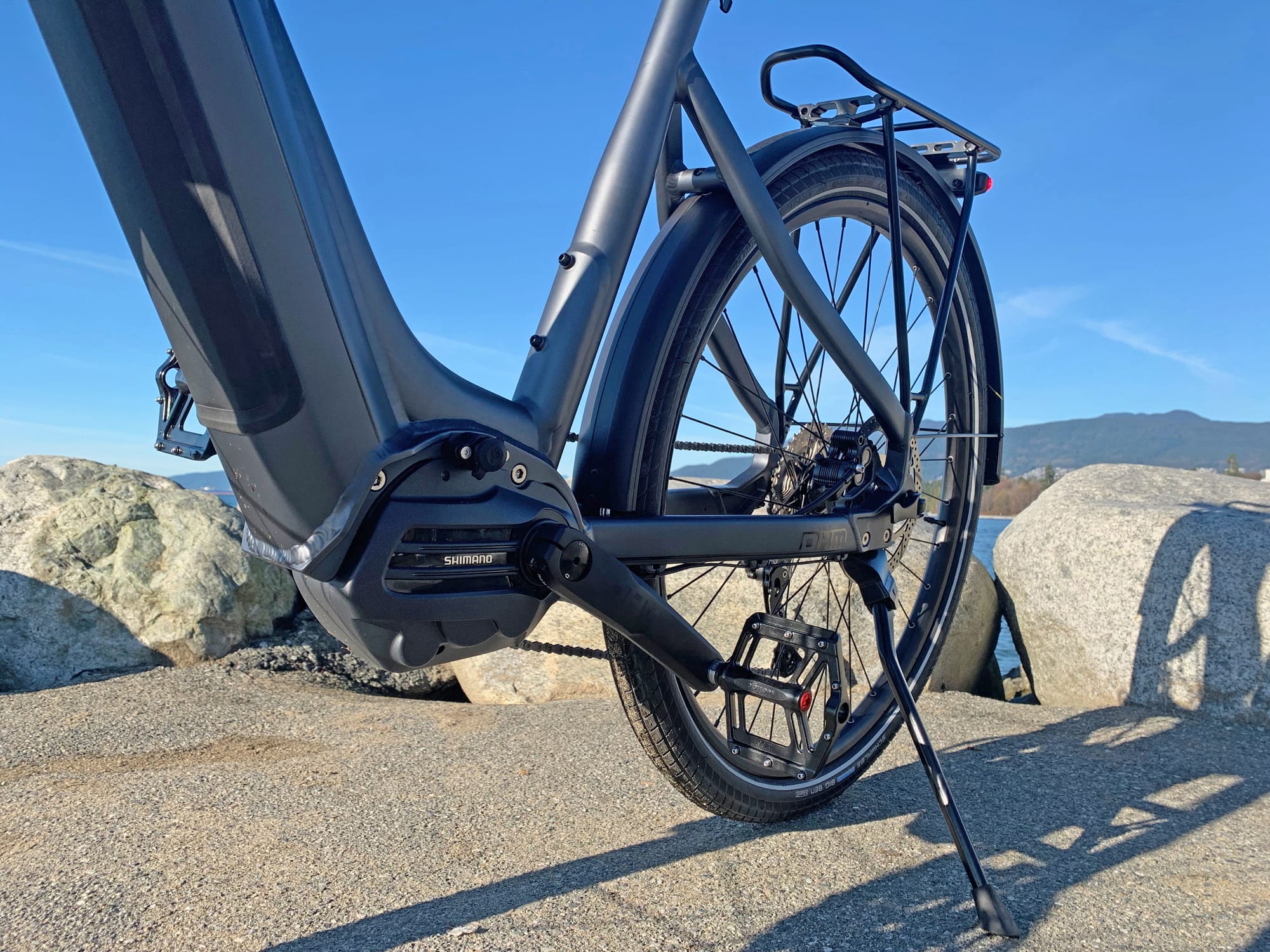

Motor Weight:
6.17 lbs (2.79 kg)
Frame Material:
ADVANCE™ Hydroformed Aluminum Alloy
Frame Sizes:
15 in (38.1 cm)16.5 in (41.91 cm)18.5 in (46.99 cm)20.5 in (52.07 cm)Geometry Measurements:
Medium 18.5" Measurements: 18.5" Seat Tube Length, 21.5" Reach, 16" Stand Over Height, 33.25" Minimum Saddle Height, 26.25" Width, 71.25" Length
Frame Types:
High-Step
Frame Colors:
Metallic Graphite Gray, Metallic Burgundy
Frame Fork Details:
Rigid Bladed Hydroformed Aluminum Alloy, 100mm Hub Spacing, 15mm Thru-Axle with Quick Release
Frame Rear Details:
142mm Hub Spacing, 12mm Thru-Axle with Quick Release
Attachment Points:
Rear Rack, Fenders, 2 Bottle Cage Bosses
Gearing Details:
10

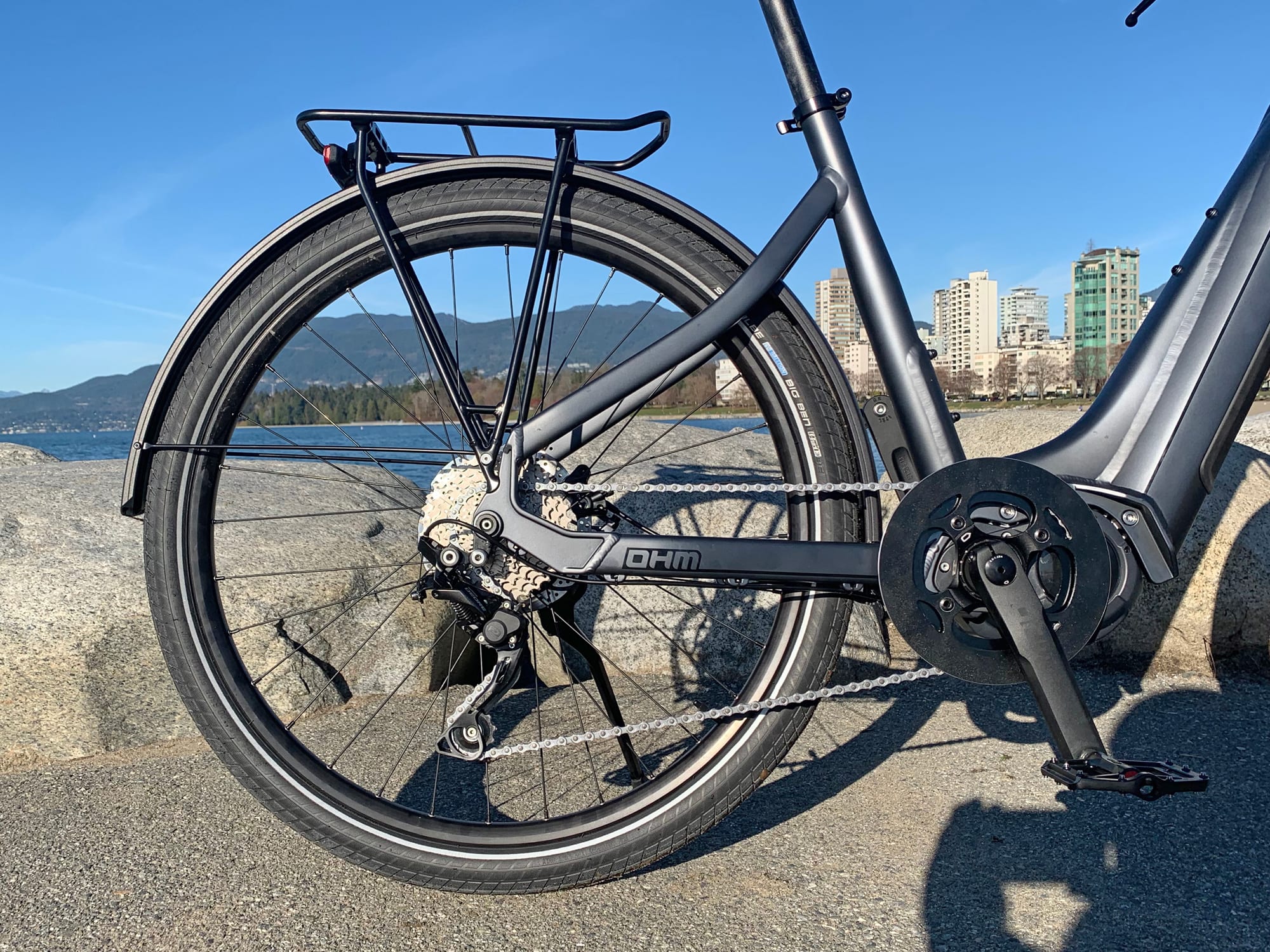

Speed 1x10 Shimano Deore with One-Way Clutch, 11-36 Tooth CassetteShifter Details:
Shimano Deore Triggers on Right (Two-Way High Lever, Three-Shift Low Lever)

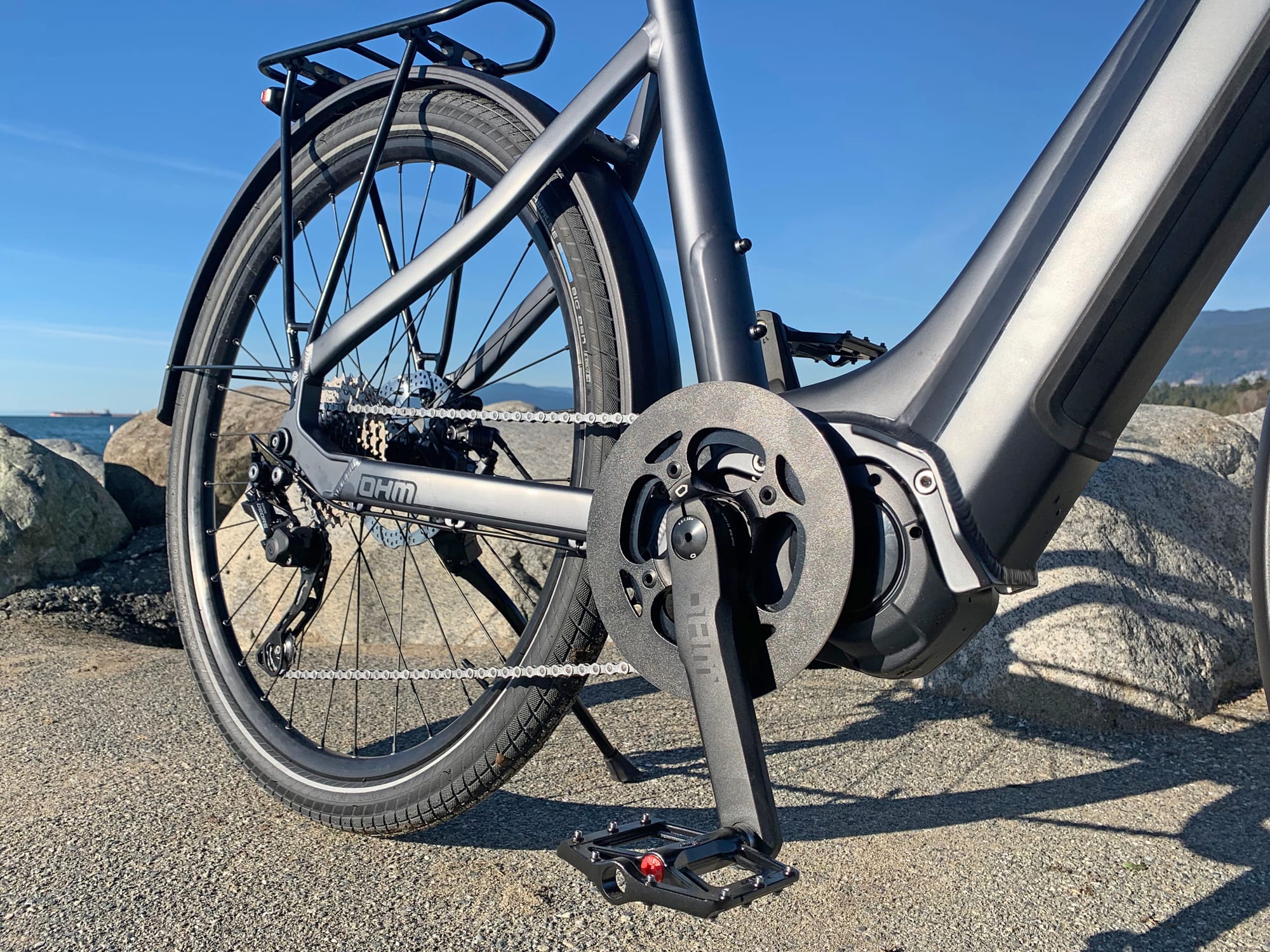

Cranks:
OHM Branded Chainway Custom Specced Crank Arms, Aluminum Alloy, 170mm / 175mm Length, 42 Narrow-Wide Tooth Chainring with Alloy Chain Guard, Shimano Hollowtech II Bottom Bracket, Hollow Spindle
Pedals:
Wellgo MG6 Magnesium Platform with Adjustable Pins
Headset:
FSA No.55, Sealed, Tapered 1-1/8"- 1-1/2"
Stem:
Promax DA230 Aluminum Alloy, 70mm / 80mm / 90 mm / 100mm Length, 17° Rise, 31.8mm Clamp Diameter with Custom Light Mount, Four 10mm Spacers, One 5mm Spacer

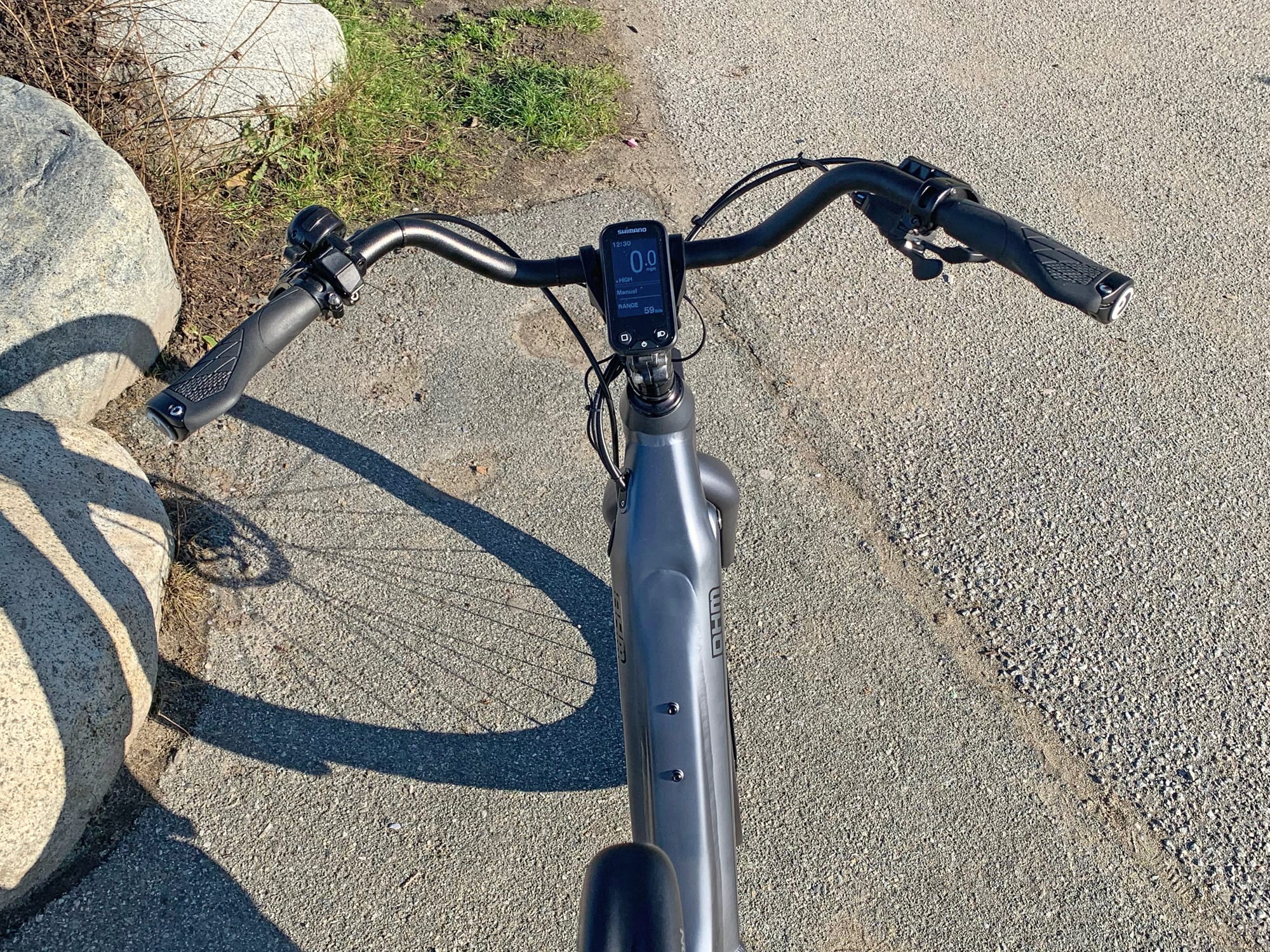

Handlebar:
MJ, Aluminum Alloy, Mid-Rise, 660mm Length, 40mm Rise, 35° Backsweep
Brake Details:

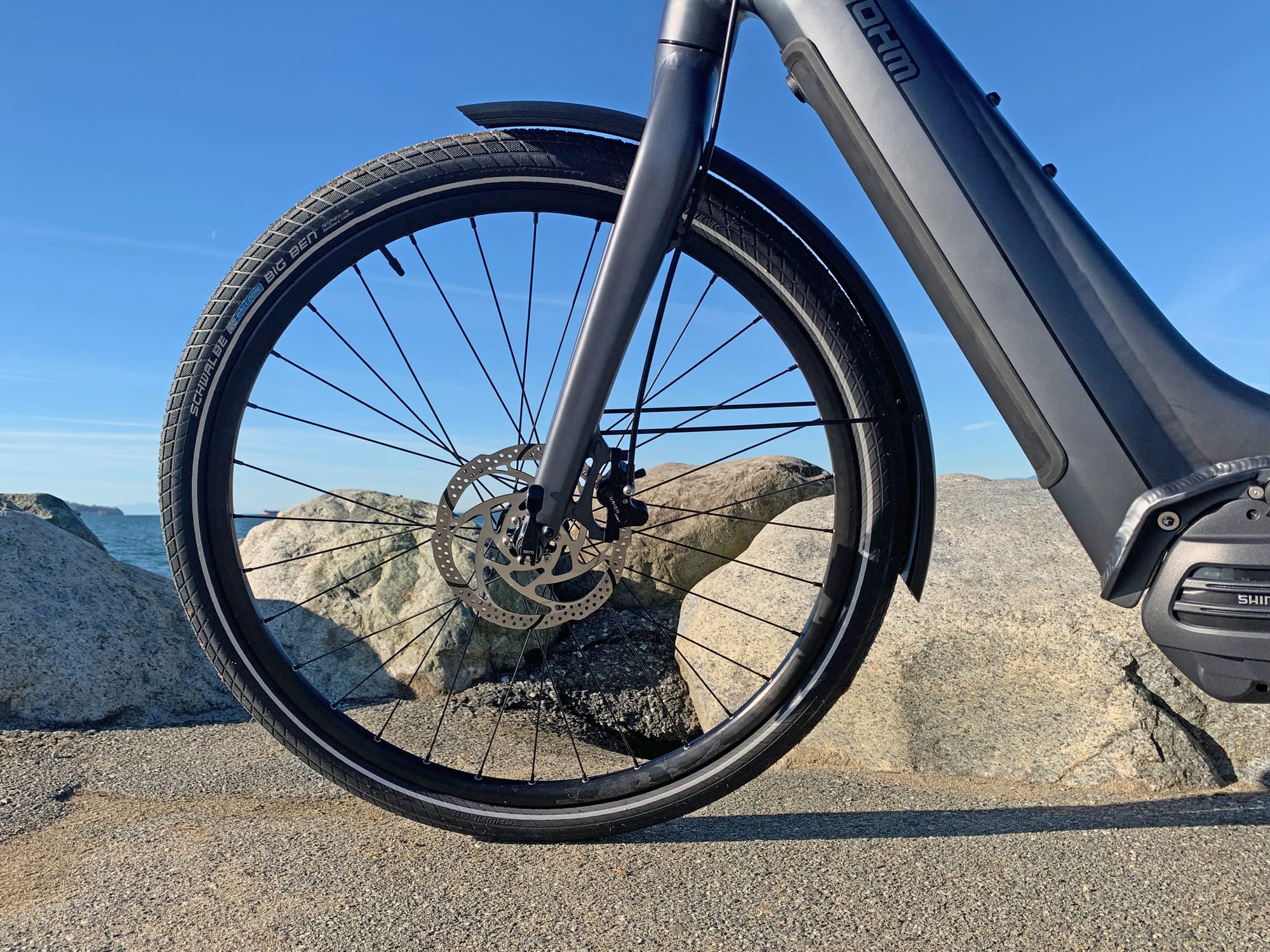

TRP Zurich Hydraulic Disc with 180mm Rotors, Quad Piston Calipers, TRP Three-Finger Levers with Tool-Free Adjust Reach

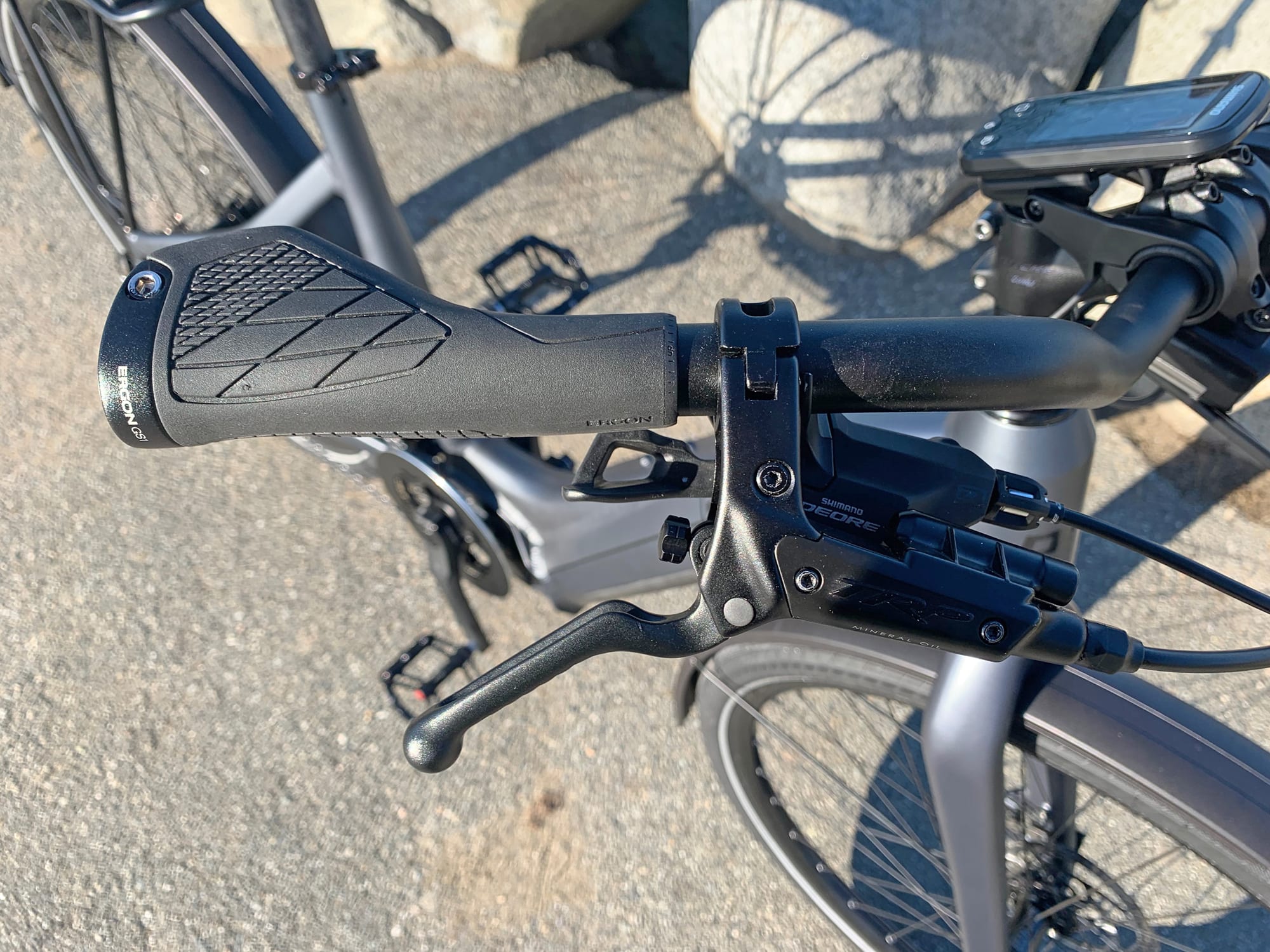

Grips:
Ergon GC10, Ergonomic Rubber, Single-Density, Locking

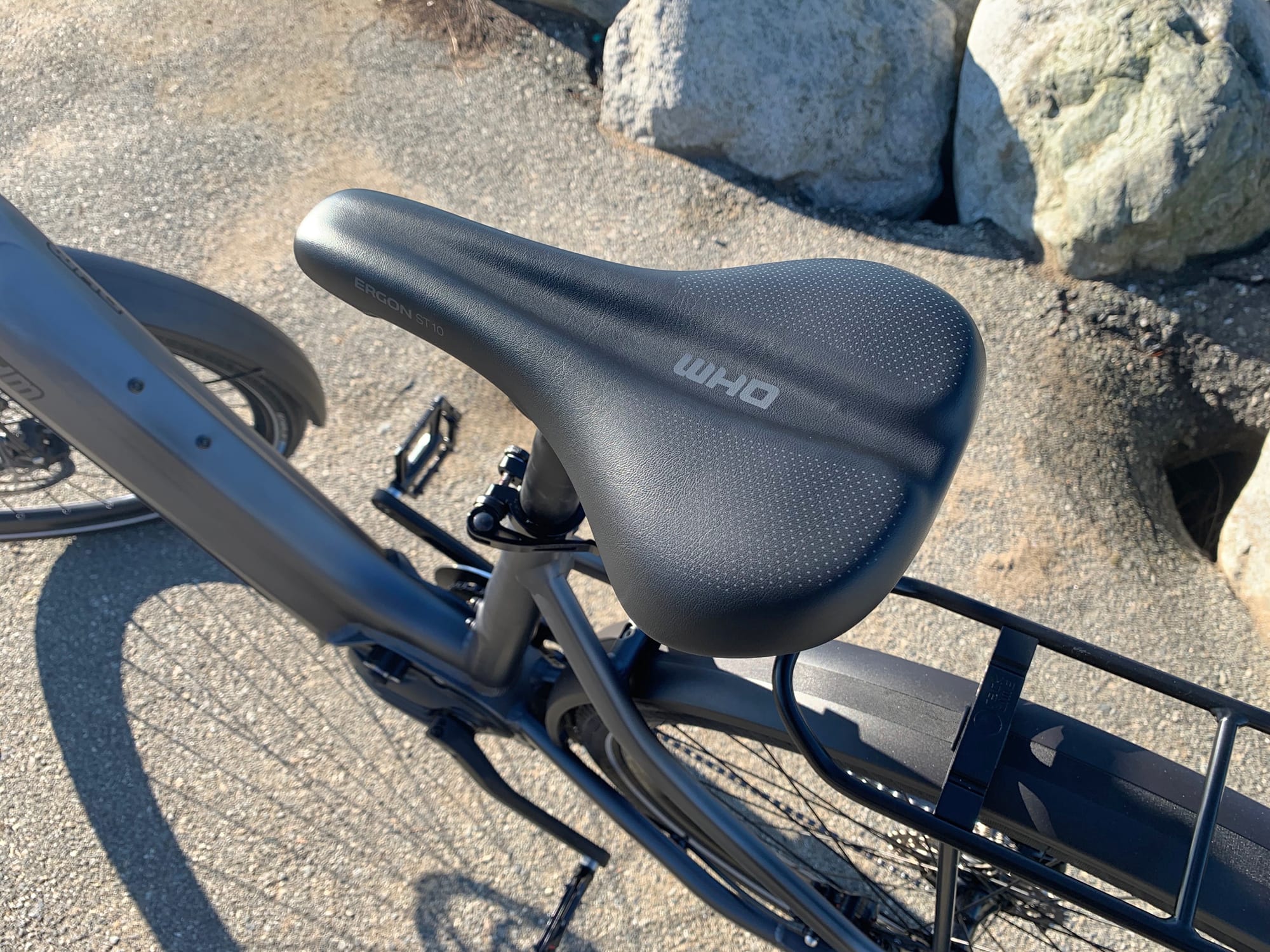

Saddle:
OHM Branded Ergon ST10 Gel, Chromoly Rails
Seat Post:
MJ, Aluminum Alloy, 25mm Offset, Single Bolt Clamp
Seat Post Length:
350 mm
Seat Post Diameter:
30.9 mm
Rims:
Alexrims FR30, Aluminum Alloy, Double Wall, 32 Hole, 25mm Width, Aluminum Eyelets
Spokes:
Sha-Dar, Stainless Steel, 14 Gauge, Black with Brass Nipples
Tire Brand:

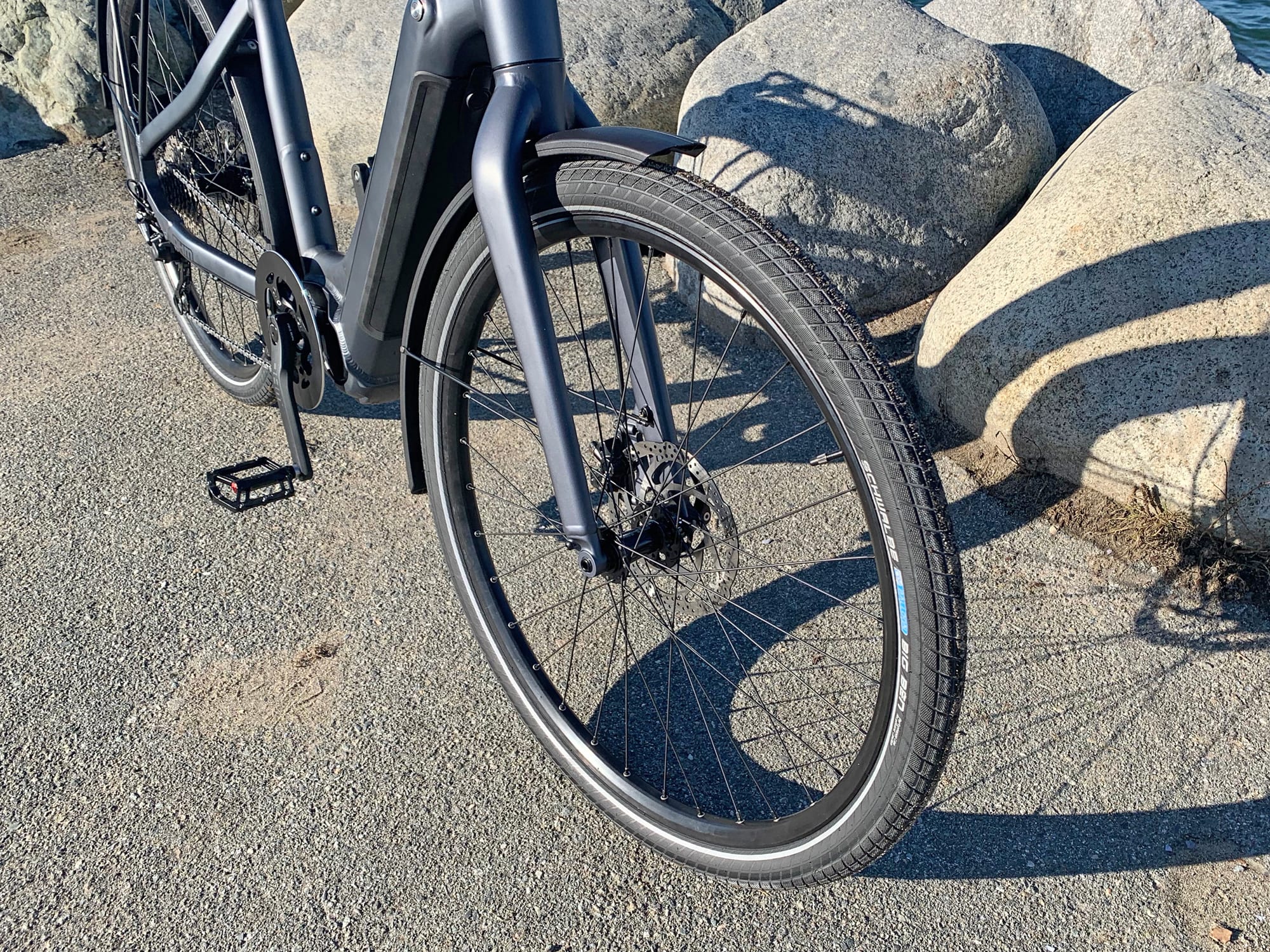

Schwalbe Big Ben, 27.5" x 2.0" (50-584)
Wheel Sizes:
27.5 in (69.85cm)Tire Details:
35 to 70 PSI, 2.5 to 5.0 BAR, K-Guard 3, Reflective Sidewall Stripe
Tube Details:
Schrader Valve
Accessories:

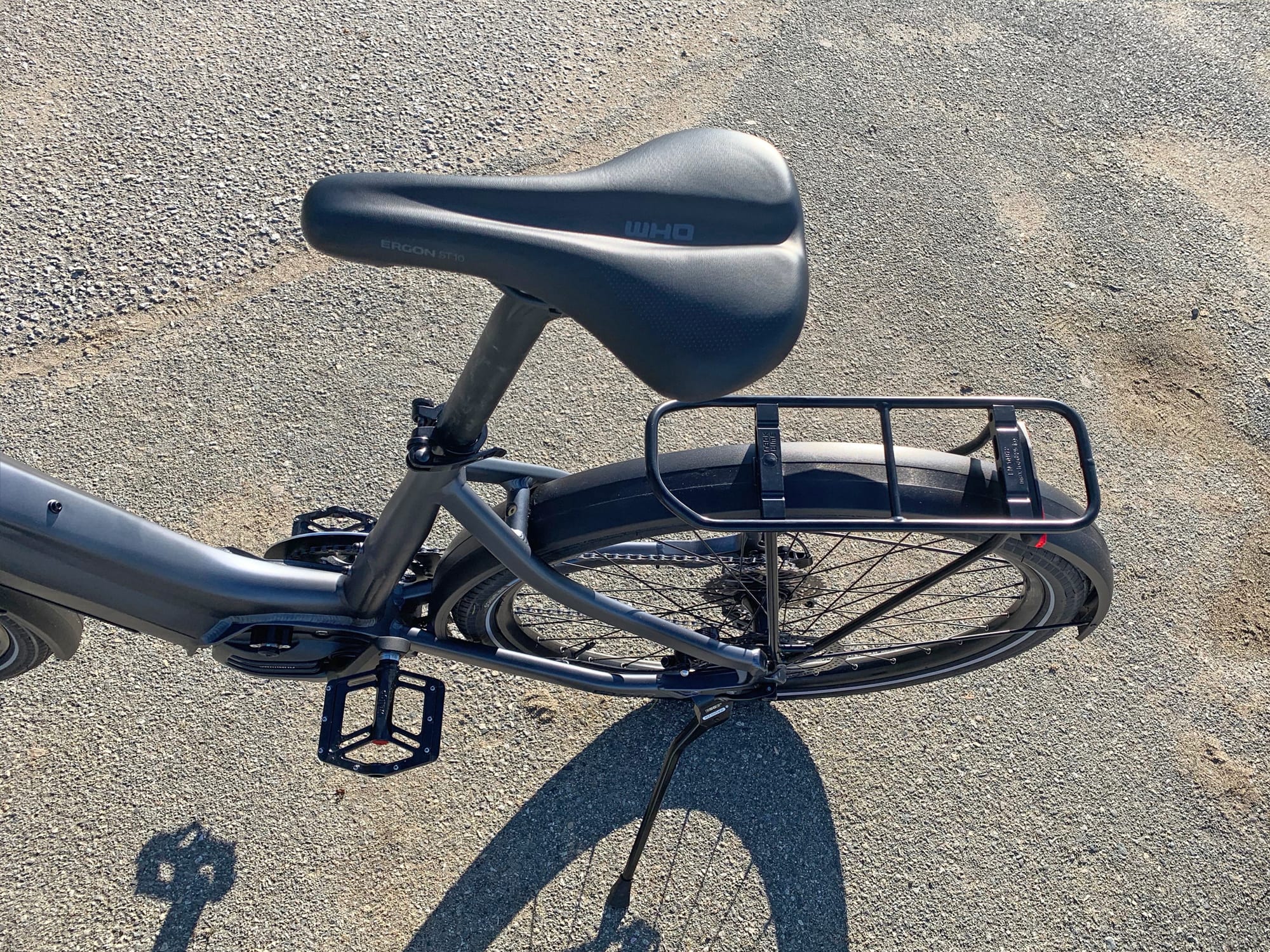

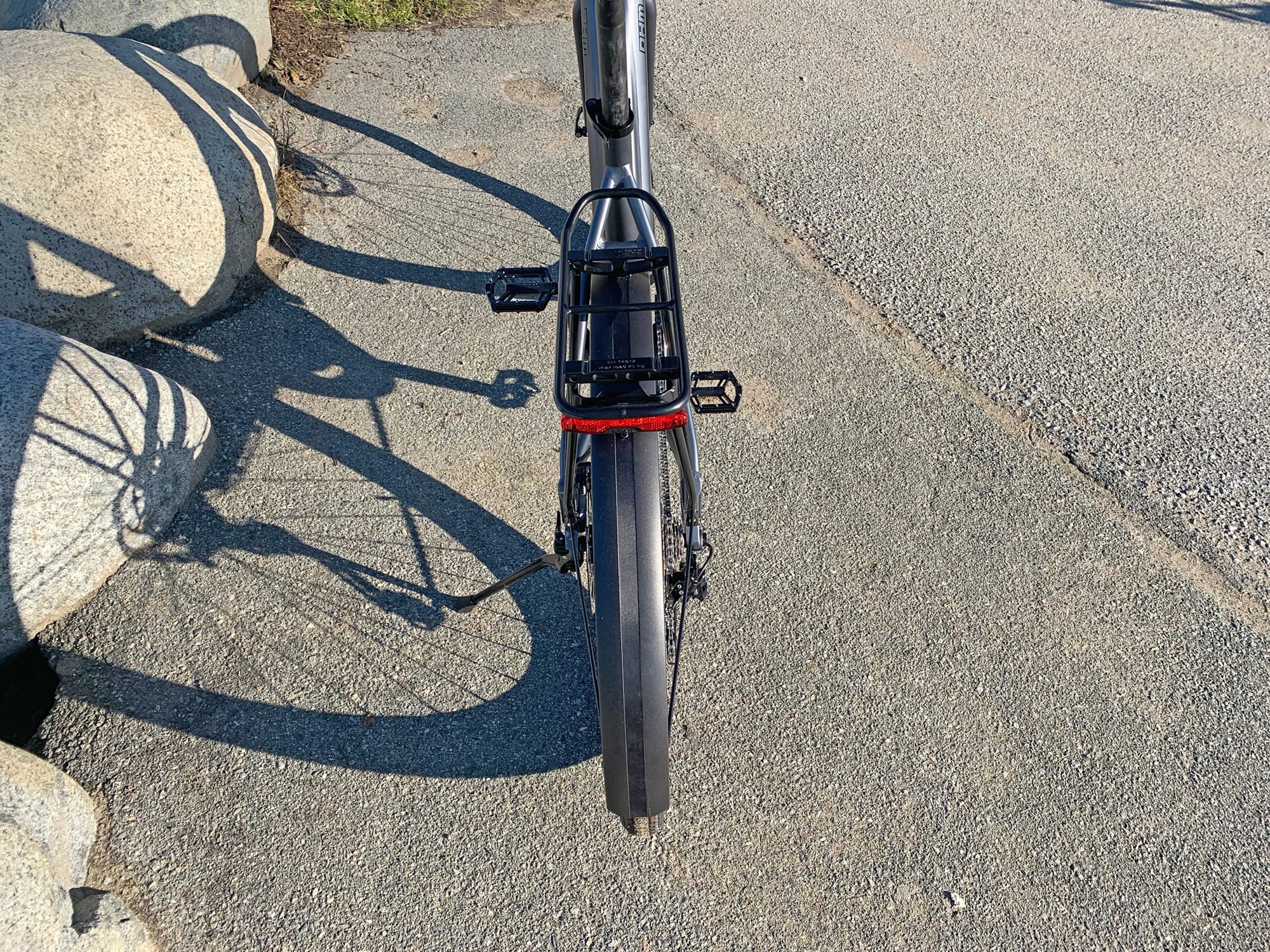

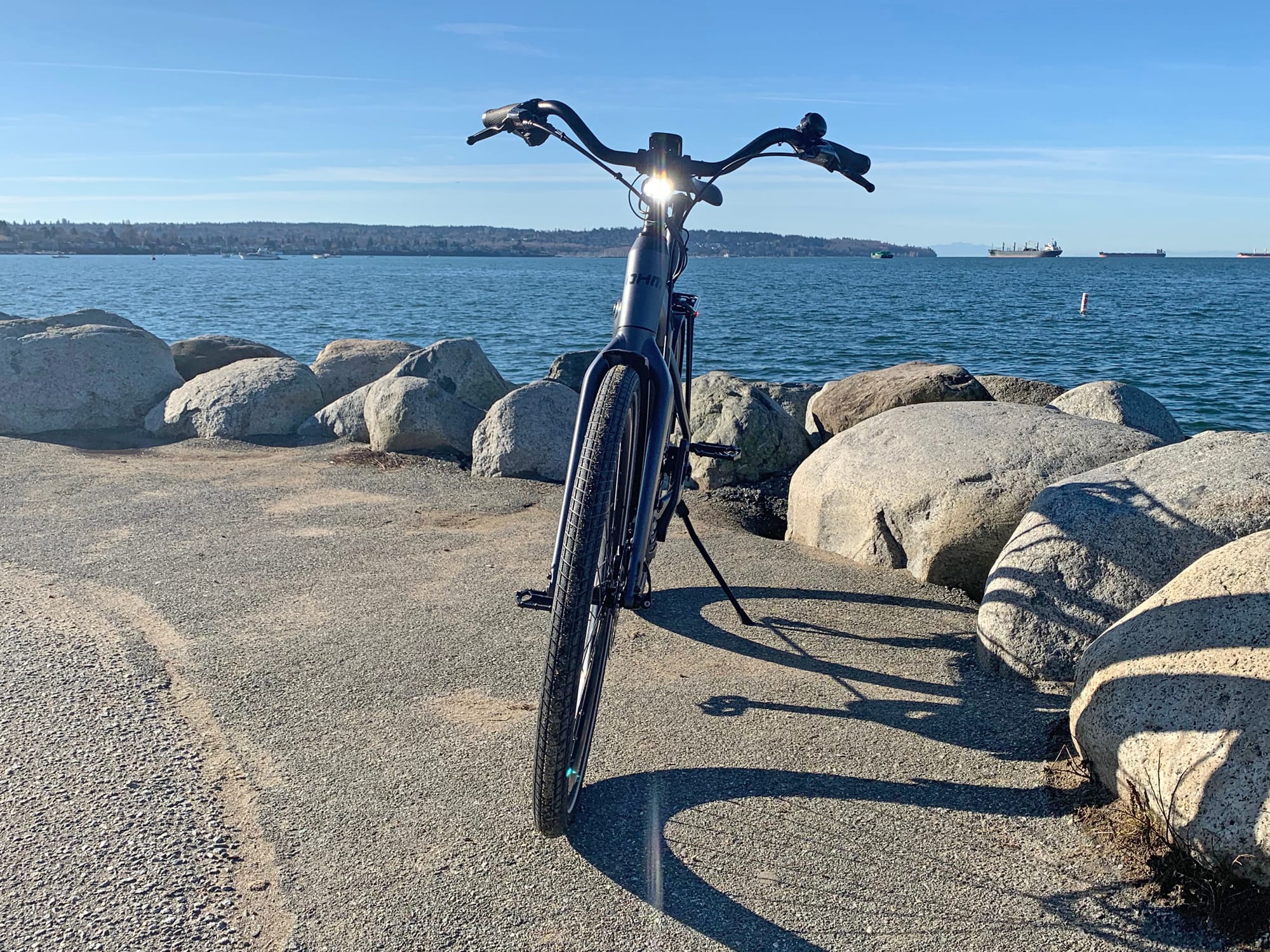

Pletscher ESGE Comp 40 Rear-Mount Kickstand, Nuvo Rotary Bell on Left, Racktime Alloy Rear Rack (25kg 55lb Max Weight, EN14872 Rated), Racktime Aluminum Alloy Double-Wall Fenders (60mm Width), Lezyne EBIKE MINI STVZO E65 Headlight (210 lumens, 65 Lux), Lezyne EBIKE SUPER BRIGHT STVZO E12 Rear Light (12 lumens), Optional BodyFloat Suspension Seatpost ($249), Optional ABUS Bordo Combo Lock 6150 ($129), Additional Battery Pack ($879)
Other:

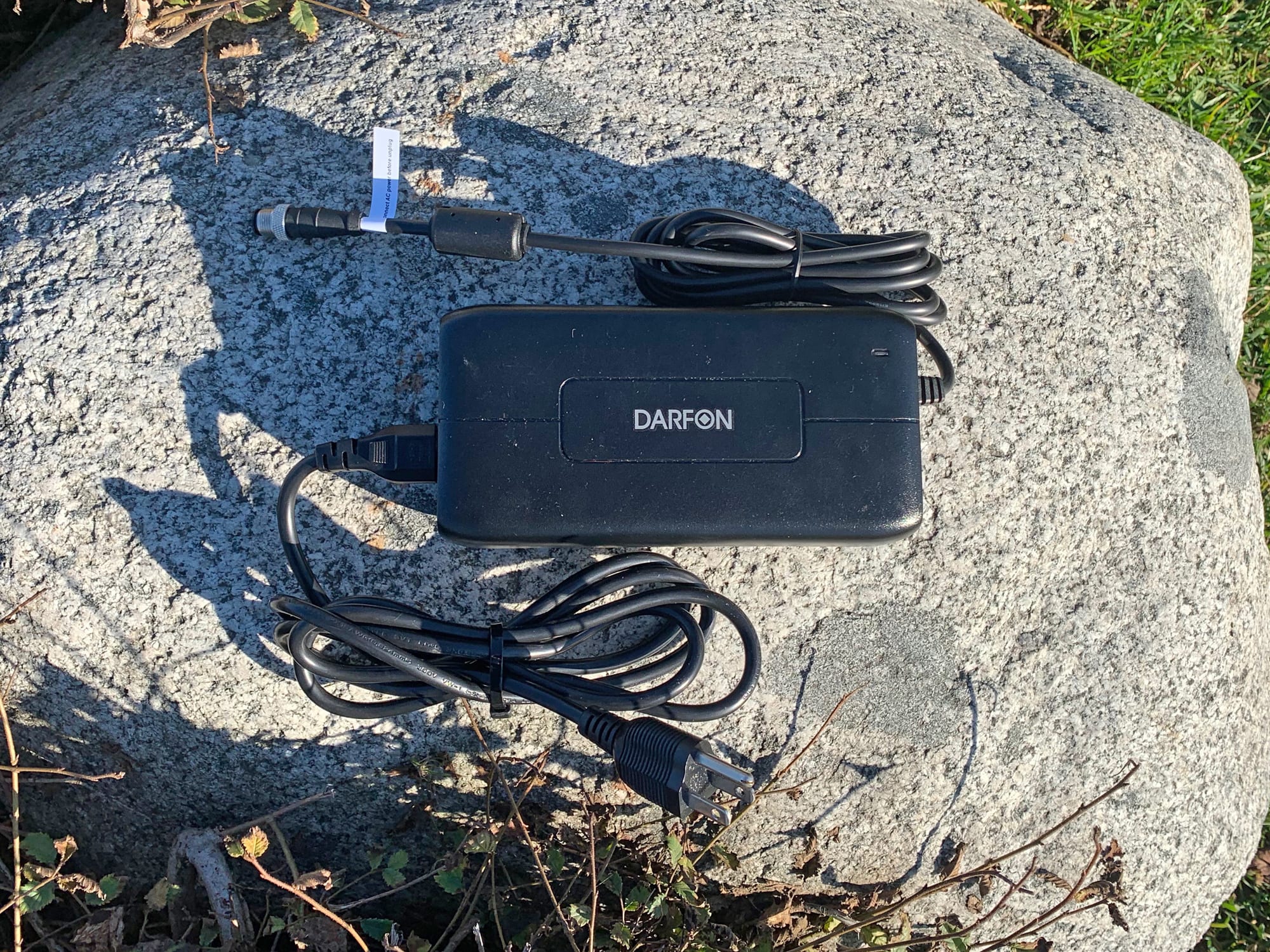

Locking Removable Downtube-Integrated Battery Pack, 2.1lb 4 Amp DARFON Charger, KMC X10 EPT MTB Chain, ABUS Locking Core and Key, 168mm Q-Factor
