Total Weight:
49 lbs (22.22 kg)
Battery Weight:
6.7 lbs (3.03 kg)
Motor Weight:
6.61 lbs (2.99 kg)
Frame Material:
Specialized M5 Aluminum Alloy, Forged and Braced Motor Mount
Frame Sizes:
15.5 in (39.37 cm)17.5 in (44.45 cm)19 in (48.26 cm)21.5 in (54.61 cm)Frame Types:
High-Step
Frame Colors:
Satin Gloss Black

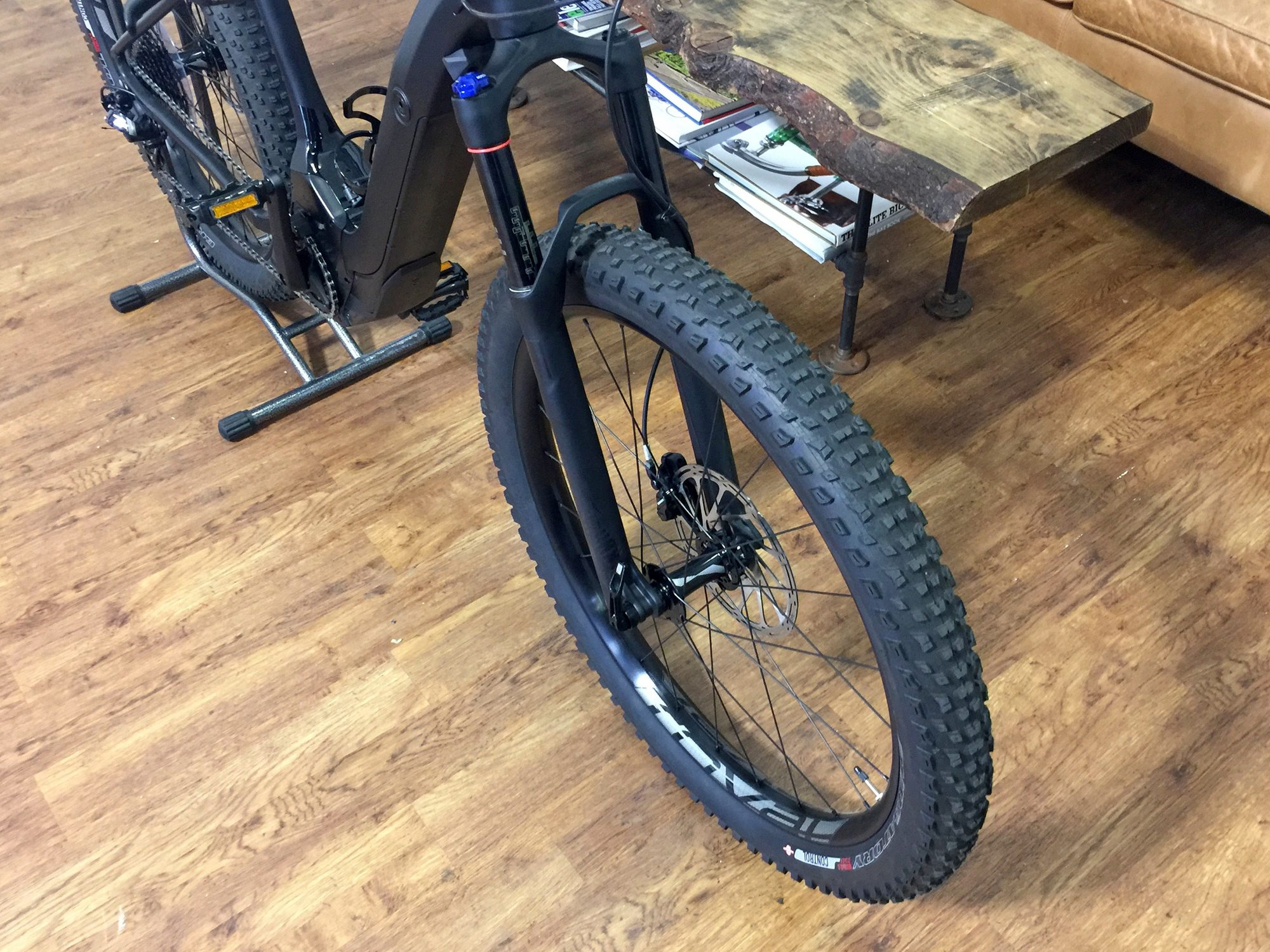

Frame Fork Details:
RockShox Reba RL 29/27.5+, Fast Black Uppers, Solo Air, 15 mm x 110 mm Thru-Axle, 100/120 mm Travel (Frame Size Specific), Quick Release
Frame Rear Details:
12 mm x 148 mm Thru-Axle, 28h
Attachment Points:
Bottle Cage Bosses

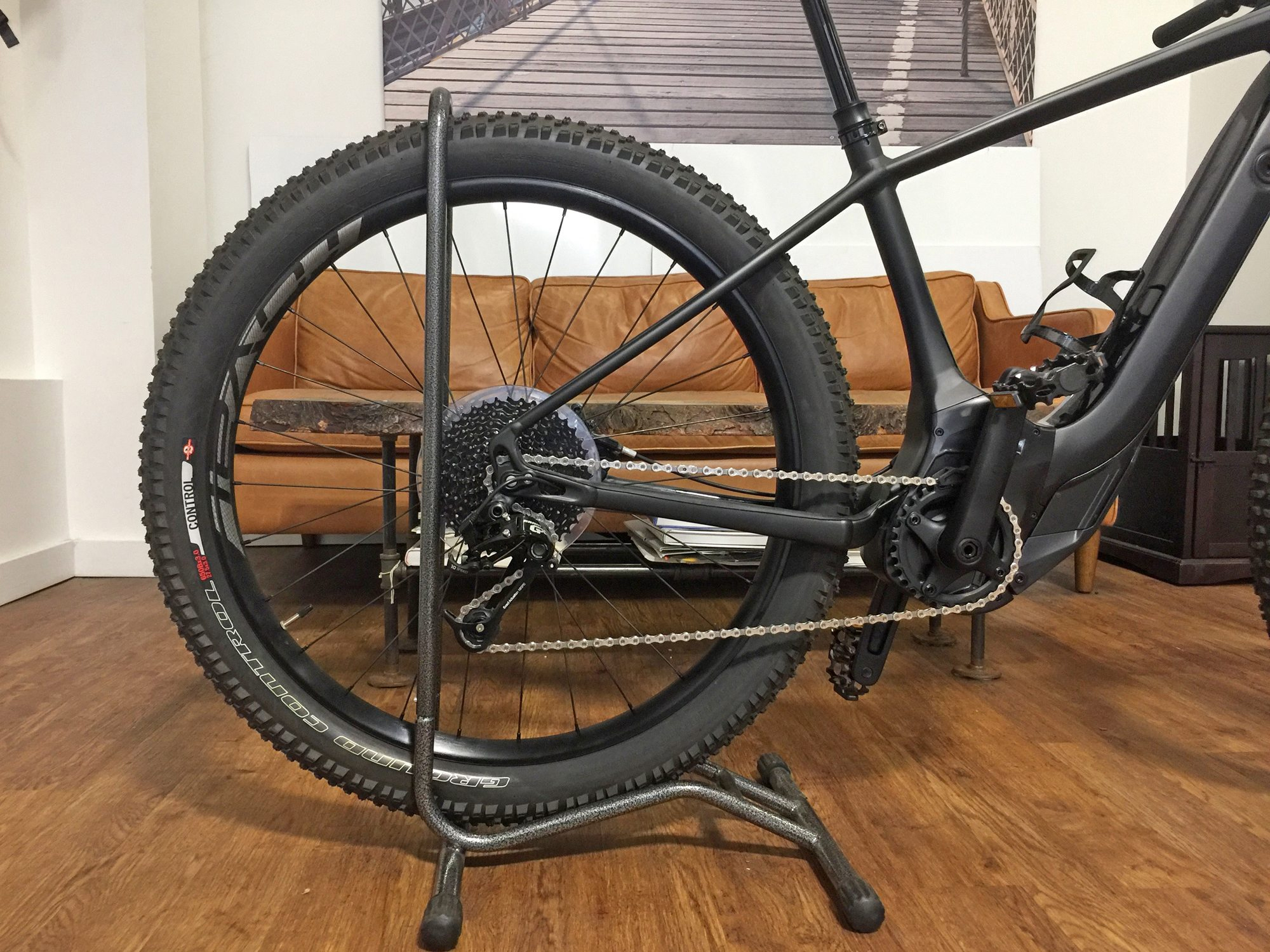

Gearing Details:
10
Speed 1x11 SRAM GX, 11-40 Tooth, SRAM GX Type 2.1 Long Cage DerailleurShifter Details:
SRAM GX Triggers on Right
Cranks:
Custom Alloy Arms, 32 Tooth Chainring
Pedals:
Alloy Platform
Headset:
1-1/ 8" and 1-1/ 2" Threadless, Campy Style Upper with 1-1/ 2" Lower, Cartridge Bearings
Stem:
Specialized 3D Forged Alloy, 4-Bolt, 6-Degree Rise, 31.8 mm Clamp

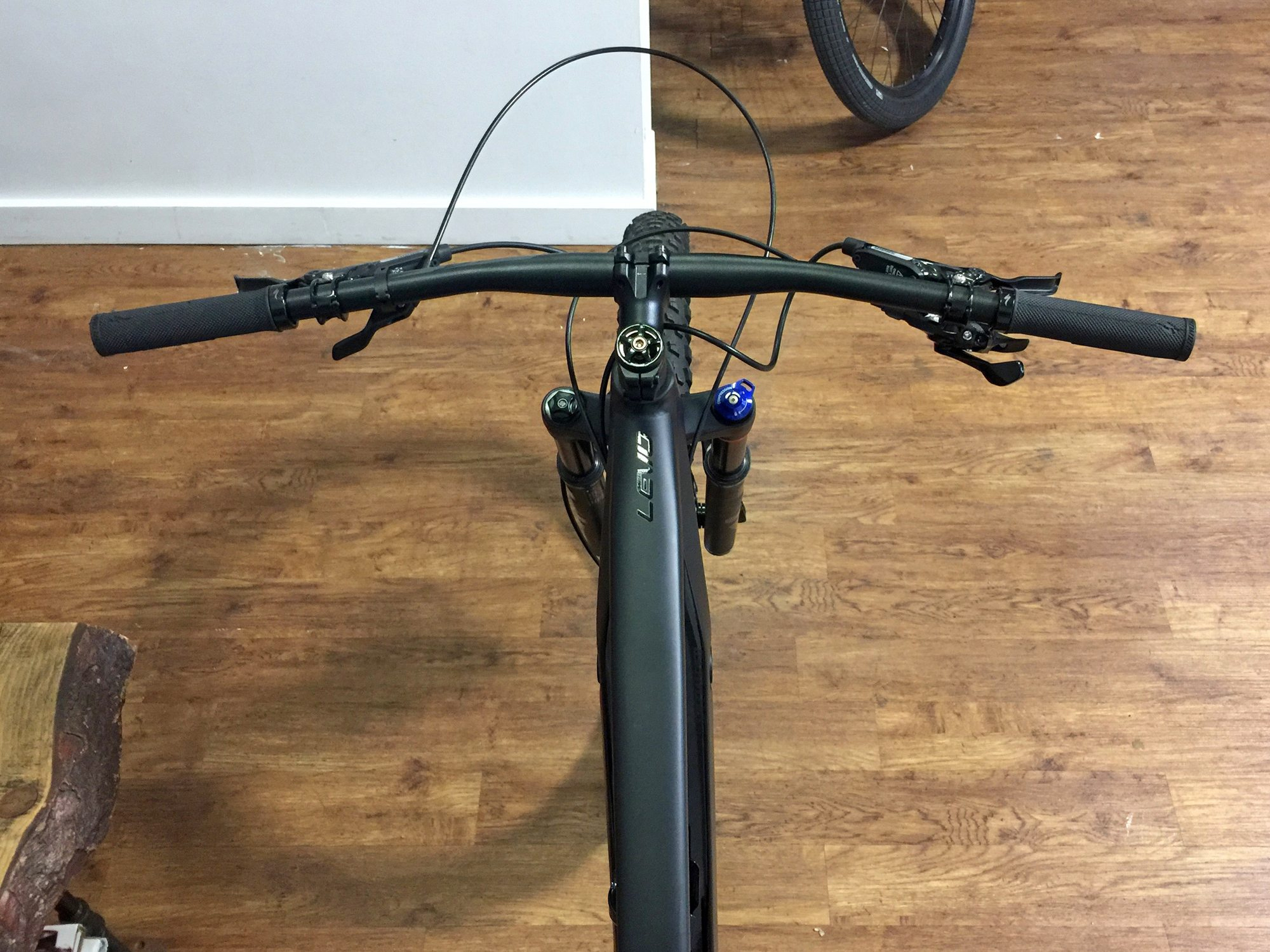

Handlebar:
Specialized, 6061 Alloy, 6-Degree Upsweep, 8-Degree Backsweep, 27 mm Rise, 750 mm Width
Brake Details:
SRAM DB5 Hydraulic Disc with Semi-Organic Pads , 200 mm Rotors, 4 Piston Front Caliper 2 Piston Rear Caliper, SRAM DB5 Levers with Adjustable Reach
Grips:
Specialized Sip Grip, Light Lock-On, Half-Waffle, S/M: Regular Thickness, L/XL: XL Thickness
Saddle:
Body Geometry Henge Sport, Steel Rails, 143 mm
Seat Post:
TranzX Dropper, Internal Cable Routing, Remote Lever, 30.9 mm, S/M: 100 mm, L/XL: 120 mm Travel
Seat Post Diameter:
30.9 mm
Rims:
Roval Traverse 650b, Hookless Alloy, 38 mm Inner Width, 24/28h
Spokes:
DT Swiss Industry, Stainless Steel
Tire Brand:
Specialized 6Fattie Purgatory Control Front, Specialized 6Fattie Ground Control Rear, 27.5" x 3"
Wheel Sizes:
27.5 in (69.85cm)Tire Details:
60 TPI, 2Bliss Ready, Aramid Folding Bead
Tube Details:
Presta Valve
Accessories:

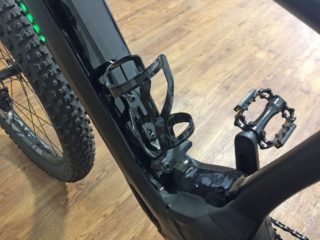

Plastic Chain Guide, Zee Cage II Right Bottle Holder, Optional Replacement Battery Pack $800, Optional 1.3 lb Portable 1.6 Amp Charger, Integrated Rubberized Slap Guard
Other:

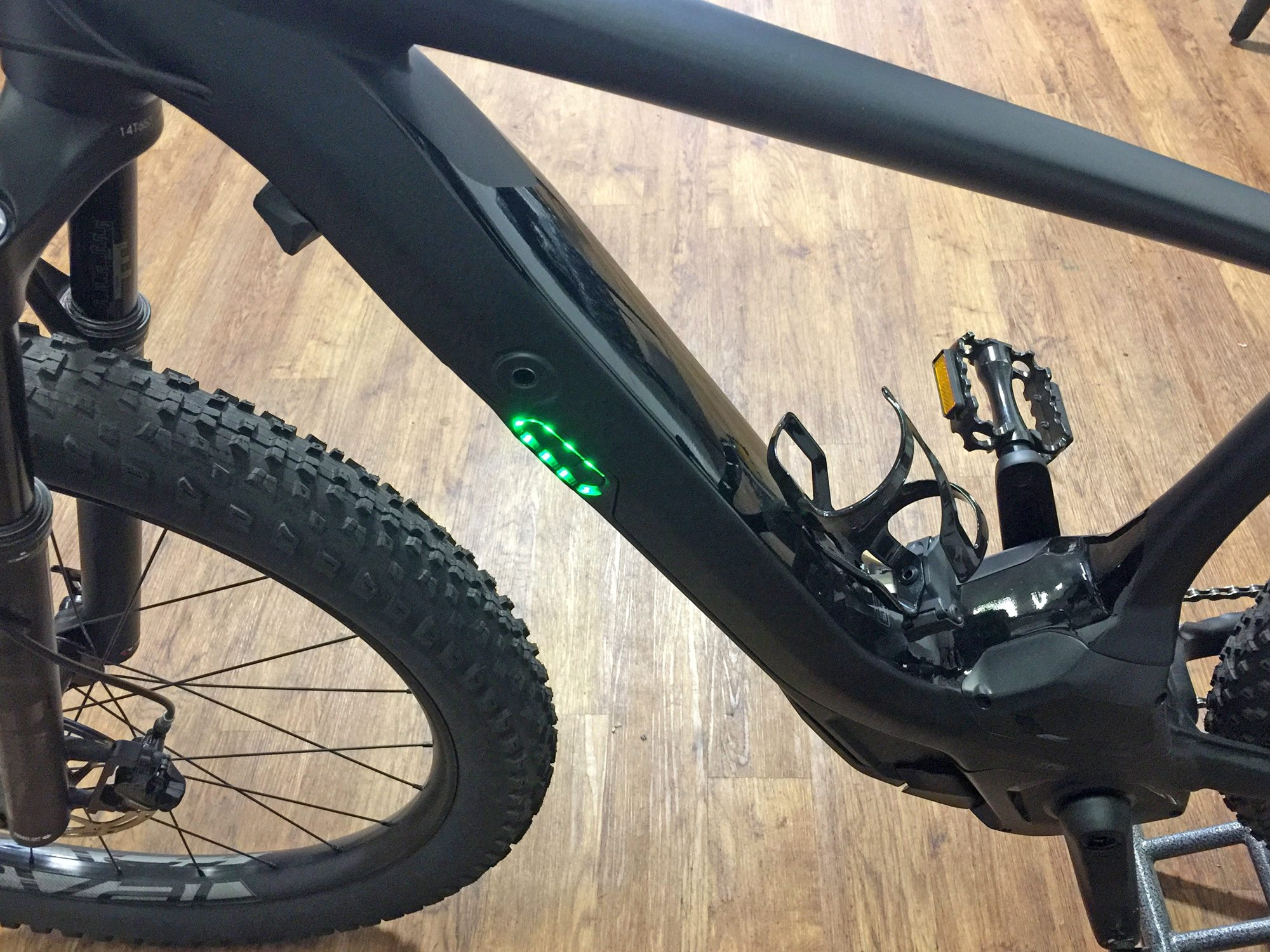

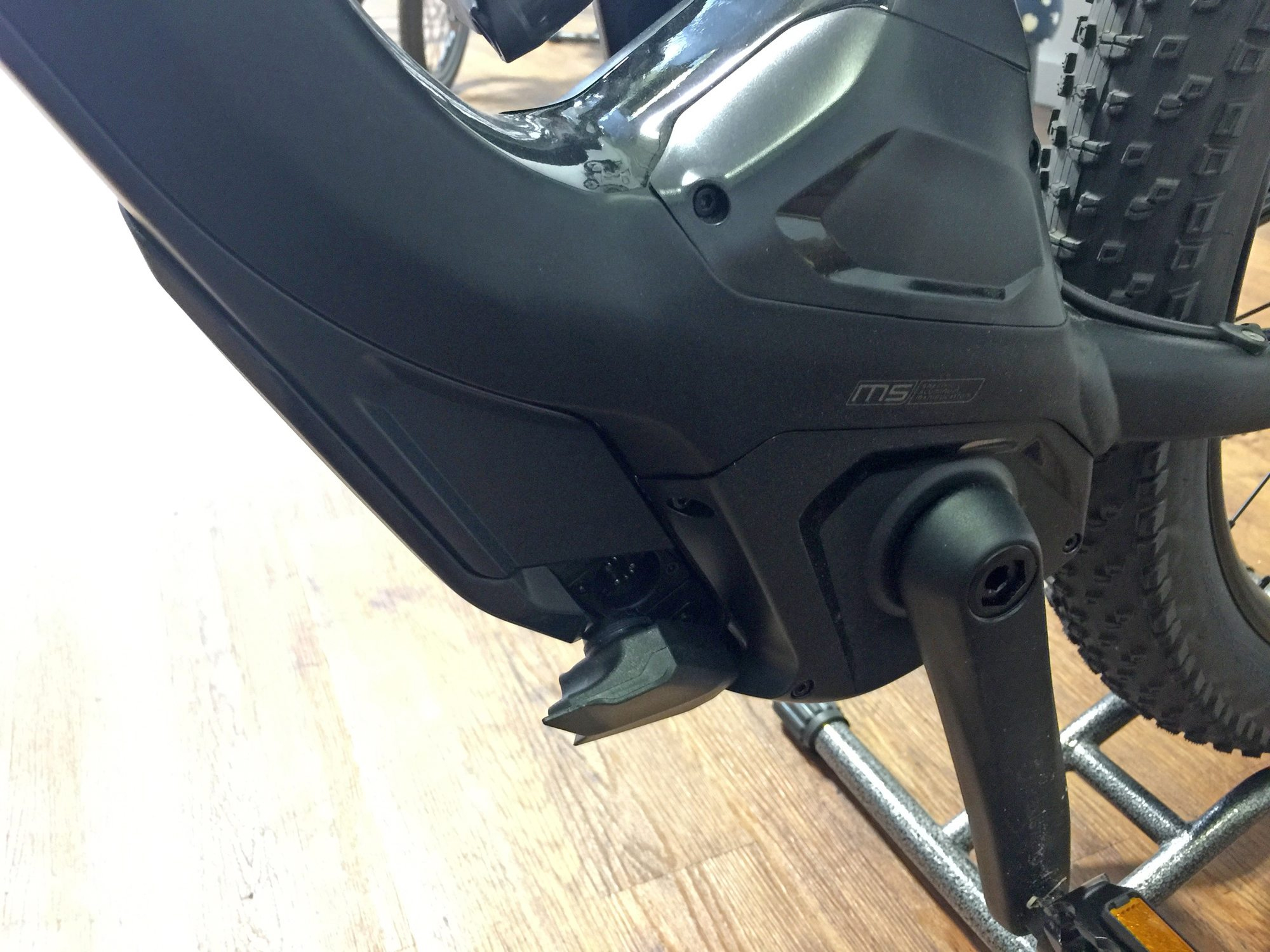

Locking Removable Battery Pack, Battery Stops with 4% at Top and Bottom to Avoid Straining Cells, 42 Volt 4 Amp Charger with Rosenberger Plug (Magnetic EnergyBus Standard), IP67 Water and Dust Protection Rating on Battery Pack, Fully Sealed Cartridge Bearings
Vincenzo
8 years agoHi! Thanks for all your reviews that help me and others to get what is most suitable for us. In fact, I ride an “unlocked” Bosch engined bike by BMW. It is an older version, 2015, so Active Line with low torque. Specialised and Brose convince me to get this bike but you pointed out an important issue: the battery locking system. Since you have seen it in person, can you tell if this Hexlox locking system could work out for securing the battery?
ReplyCourt Rye
8 years agoHi Vincenzo! The skewer is like a 15 mm thru-axle with the threading on the left side of the downtube. If you could find a bolt with a proprietary locking pattern vs. the standard hex that was the same length and diameter then yeah, I think it could work! I don’t have access to the bike at this moment so cannot say the exact length but I think you’re onto something with this idea. Also, I was trained by a Specialized rep on how to lock the bike with a u-lock in a way that it keeps the battery from being removed. Here’s a short video on that.
ReplyJesus Ochoa
7 years agoHad this for about 2 weeks now. The thing is awesome getting to work and back. It makes the commute to work seem like a trail ride sometimes. I go about 22 miles round trip in trail mode and still have around 20-30 percent when I get home. The no display is really awesome and if you do want that option, just download the mission control app and it will give you the map, speed, battery, and motor out-put. Lots of other options as well. The dropper post is amazing when stopping at intersections. Over all, I am super happy with this bike. It has me looking at the clock at work because I can’t wait to ride it home! Choose this because my commute is not the best bike friendly route and this thing has no problem going into grass/dirt.
ReplyCourt Rye
7 years agoNice! I’m so glad the bike is performing for you Jesus, I love this thing too… Sounds like it gets the job done and adds a splash of fun and interest to the day. That’s a big part of why I love bicycles, awesome!
ReplyJohan Bezuidenhout
7 years agoi am intrested buying a Levo 2016 model as model above 4000 dollars .Please contac me
ReplyCourt Rye
7 years agoHi Johan, perhaps you could find someone who is trying to sell their used electric bike in the EBR Forums in the for sale section here.
ReplyFlavia
7 years agoI test rode the women’s version of this bike at Cynergy Cycles in Santa Monica. I loved the color: glittery black with a splash of white! What a beauty. I took the bike out to test responsiveness, battery range and performance. It is a truly amazing piece of engineering and I enjoyed every minute of my ride. The Mission Control app from Specialized is really useful to adjust acceleration from start and other parameters at the beginning. However I would expect not to use it again after the first few adjustments. The biggest drawback of this bike for me is the lack of an integrated assist control on the handlebar. The garmin button has limitations in that it would not show me the current level of assist. On the other hand for those who want to conceal the motor there is nothing better than the Specialized Turbo Levo. Cynergy Cycles in Santa Monica has a great service shop, accessories and I highly recommend it.
ReplyCourt Rye
7 years agoThanks for the feedback Flavia! Glad to hear you enjoyed the bike and also got a chance to experiment with the Mission Control smartphone application. It’s funny that you mention the lack of reachable buttons, to control assist. For me, after riding so many other ebikes, I did miss that… I feel that they could have done a tiny display and buttons to be “minimalist” but instead, you have to reach way down. Great points all around, thanks for sharing your insights :D
ReplyBryan C
6 years agoThank you for the excellent review! I’m thinking of purchasing a 2018 model that is being cleared out right now but the store only has a M and XL left. I am just under 5 feet 10 inches so I was thinking large would be my appropriate size, however there are none left in stock. I see you rode a medium size LEVO COMP here. Do you think medium would be appropriate for people up to 5″10? Thanks!
Reply
