Summary

  • Capable and sturdy eMountain bike with great frame balance, motor and battery (mounted low and center)
  • Available in four frame sizes for good fit, large 29" wheels provide improved traction, momentum and angle of attack
  • No bottle cage braze ons, motor design is less stealth than a geared hub and produces more noise

Search EBR

Video Review

Trusted Advertisers

Introduction

Make:

Haibike

Model:

Xduro RX 29"

Price:

$4,000

Body Position:

Forward

Suggested Use:

Urban, Trail, Mountain

Electric Bike Class:

Pedal Assist (Class 1)
Learn more about Ebike classes

Warranty:

5 Year Frame, 2 Year Motor and Battery

Availability:

United States, Europe

Model Year:

2014

Bicycle Details

Total Weight:

45 lbs (20.41 kg)

Battery Weight:

5.5 lbs (2.49 kg)

Motor Weight:

8.8 lbs (3.99 kg)

Frame Material:

Aluminum 6061, Hydroformed Tubes, Gravity Casting Interface

Frame Sizes:

15.74 in (39.97 cm)17.71 in (44.98 cm)19.68 in (49.98 cm)21.65 in (54.99 cm)

Frame Types:

Mid-Step

Frame Colors:

Grey with Black and Neon Green Accents, Grey with White and Neon Blue Accents

Frame Fork Details:

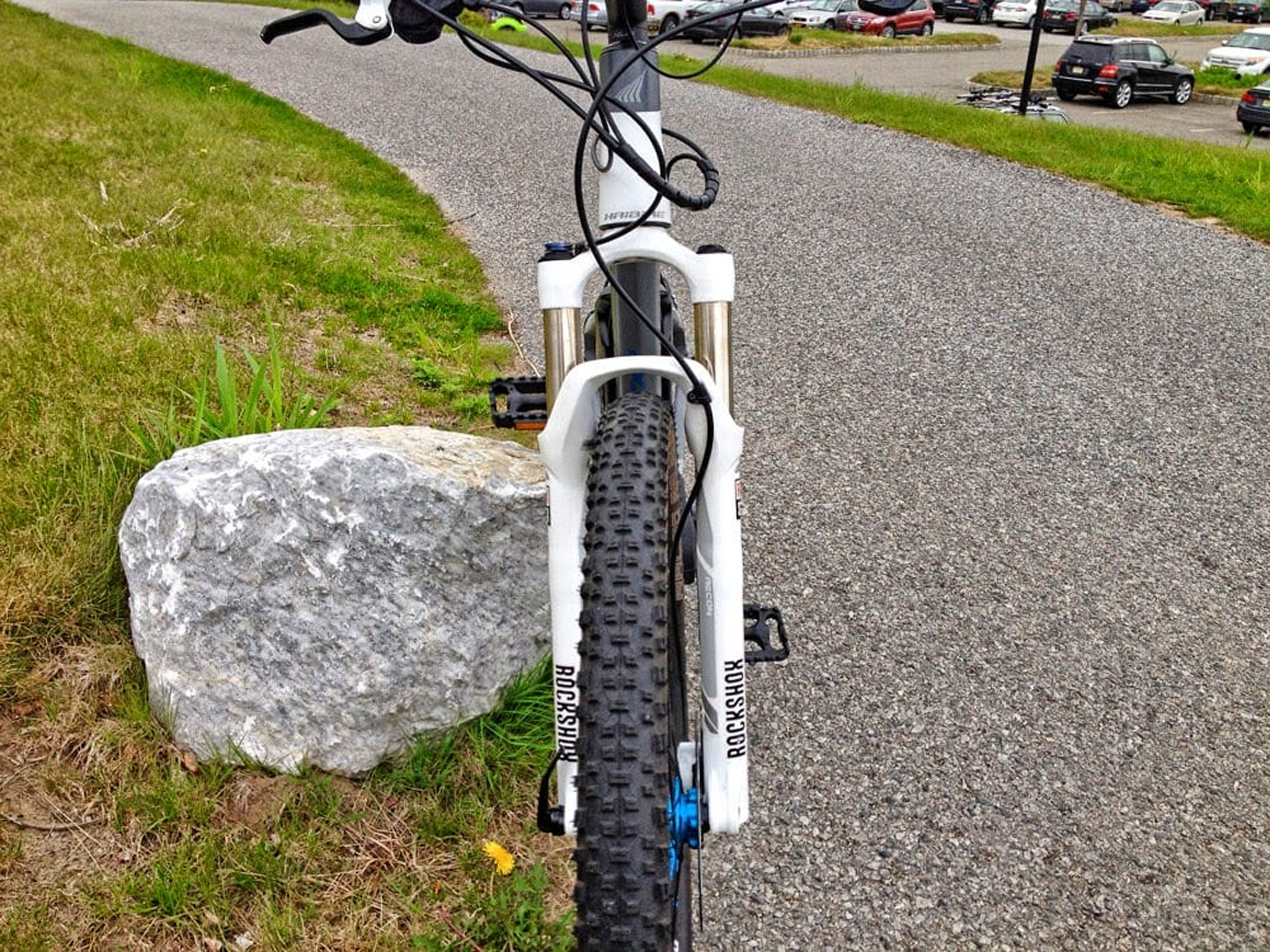

Rock Shox Recon Silver Air, PopLoc, Air Suspension with Damping, 100 mm Travel, 15 mm Thru Axle

Frame Rear Details:

142/12 mm OLN (Over Lock Nuts)

Gearing Details:

10 Speed 1×10 SRAM PG 1030, 11-36T

Shifter Details:

Shimano Deore, SL-M 610, Rapidfire on Right Bar

Cranks:

Xduro Aluminum

Pedals:

XLC MTB Platform

Headset:

FSA No. 57, Semi-Integrated, Tapered

Stem:

Xduro Aluminum, A-Head

Handlebar:

Xduro Lowriser Aluminum

Brake Details:

Tektro Gemini, Hydraulic Disc, 180 mm Rotors, Reach Adjust on Levers

Grips:

XLC Sport with Locking Rings

Saddle:

Xduro Light MTB

Seat Post:

Xduro Aluminum

Rims:

DT Swiss 466d Disc, Double Wall

Spokes:

DT Swiss Industry 2.0 mm

Tire Brand:

Schwalbe Racing Ralph Evolution, 29" x 2.25"

Wheel Sizes:

29 in (73.66cm)

Tire Details:

Foldable

Electronic Details

Motor Brand:

Bosch Gen 2 with Shift Detection

Motor Type:

Mid-Mounted Geared Motor
Learn more about Ebike motors

Motor Nominal Output:

350 watts

Motor Peak Output:

550 watts

Motor Torque:

60 Newton meters

Battery Brand:

Samsung

Battery Voltage:

36 volts

Battery Amp Hours:

11 ah

Battery Watt Hours:

396 wh

Battery Chemistry:

Lithium-ion

Charge Time:

3.5 hours

Estimated Min Range:

35 miles (56 km)

Estimated Max Range:

65 miles (105 km)

Display Type:

Bosch Intuvia, Removable Backlit Grayscale LCD

Readouts:

Speed, 4 Assist Levels, Battery Voltage, Odometer, Estimated Range, Clock, Max Speed, Average Speed, Trip Time

Display Accessories:

Independent Button Pad with Tactile Button Feedback

Drive Mode:

Advanced Pedal Assist (Combined Torque, Cadence and Speed Measured 1,000 Times Per Second), (Eco 50%, Tour 120%, Sport 190%, Turbo 275%)

Top Speed:

20 mph (32 kph)

Trusted Advertisers



Written Review

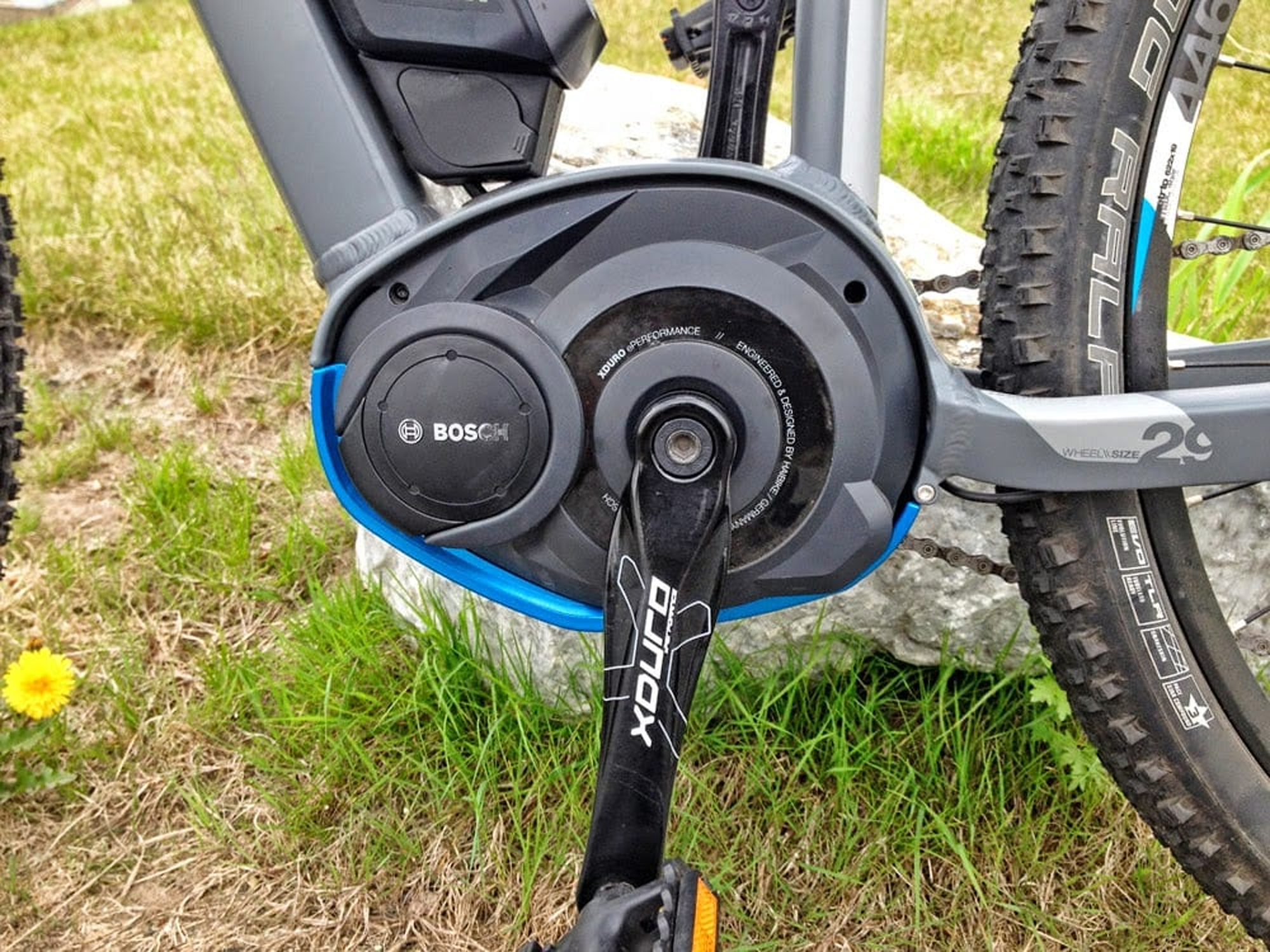

I’m a fan of the Bosch centerdrive system given how responsive it is for mountain bike applications. It starts and stops almost immediately (as shown in the video review). The Gen2 design brings increased power at 350 watts for improved starting and climbing which is perfect for this 29er hardtail from Haibike. This is one of my favorite ebikes in their lineup because it’s the most affordable but still awesome looking with higher end components (including 180mm hydraulic disc brakes, RockShox Recon Air with 100mm of travel and 15mm thru-axle). The entire bike weighs just 45 pounds but is still rugged and truly trail ready. With four frame sizes (and two colors) to choose from you can match the bike to your body and enjoy riding as you would with a traditional mountain bike.

This bike can easily reach 20 miles per hour and freewheels efficiently beyond when dropping hills. The 350 watt motor sits at the intersection of the downtube and seat tube doubling as the bottom bracket. It’s got a protective plastic cover along its base (to defer damage from any rocks or stumps you might encounter). It keeps motor weight low and center on the bike frame (right where you want it for balance) and leverages the 10 speed SRAM cassette in the rear. One of the neat things about this and other mid-drive ebikes is that maintenance and service on the wheels is handle just like a regular bike. While it’s true that more force is put onto the chain and cassette with mid-drive, this motor is smart enough to sense when you’re switching gears and will automatically cut out to avoid mashing. The motor is a bit louder than some gearless hub designs (producing a soft high pitched whine shown in the video review) but it’s not as loud as some and when you’re on a dirt path the sound of your tread will pretty much cover it up.

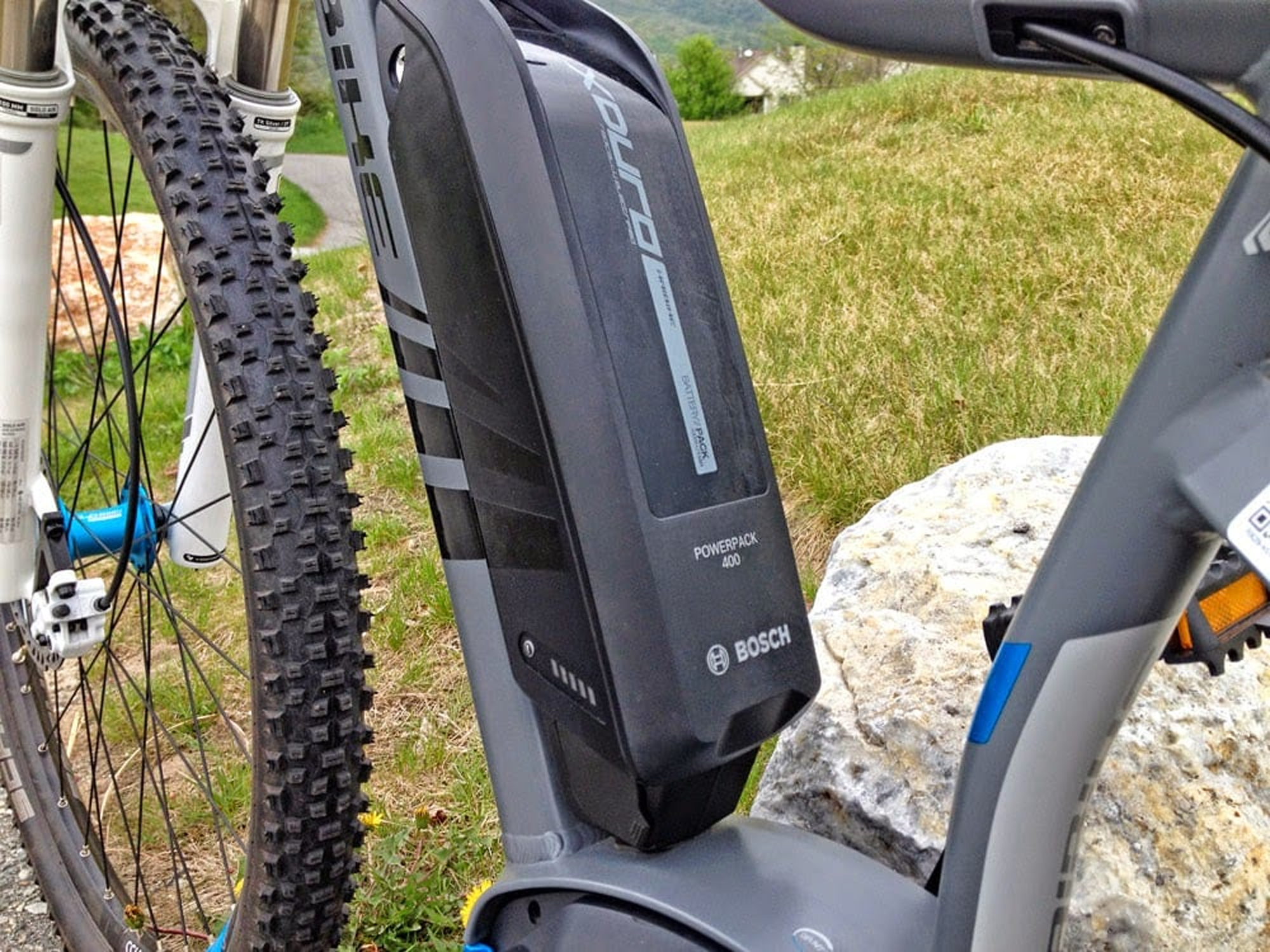

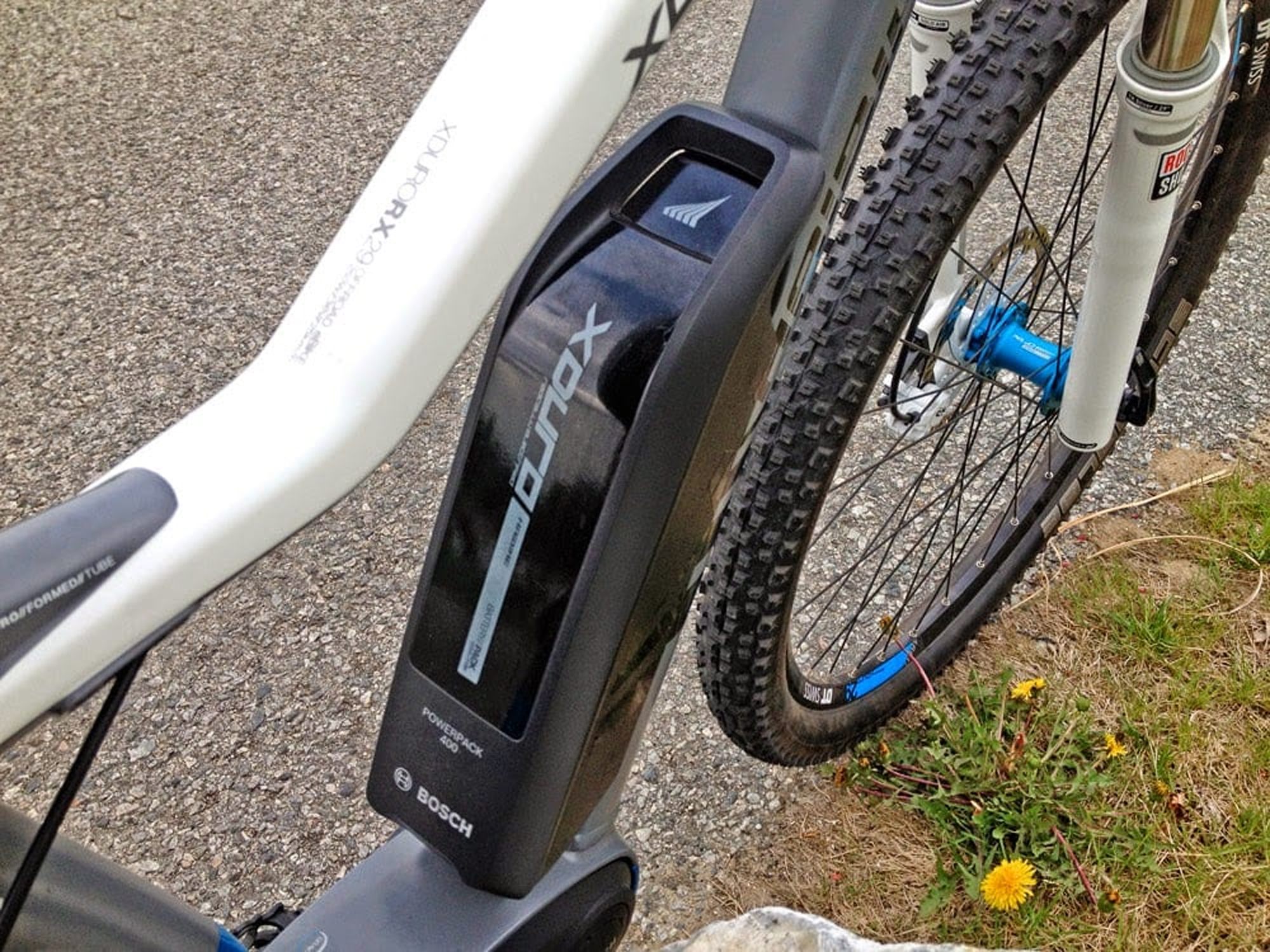

The battery pack used with this system is a 36 volt 11 amp hour Lithium-ion configuration that’s light weight and long lasting. It’s removable for easy charging or multi-pack use on those long distance rides. Even though the official specs say 25 to 35 miles my experience is that it can go much further (depending on the terrain and level of assist). By leveraging the gears on this bike and always using pedal assist (there’s no throttle mode) you get excellent range. The battery has a nice LED indicator on the side that displays its charge even without turning the bike on (or even having it on the bike) which is nice. The pack mounts low and center, just like the motor, but does take up the space where a bottle cage might have otherwise mounted. I feel like they could have added bosses to the seat tube for a cage mount but it’s not the end of the world. You can always get CamelBak…

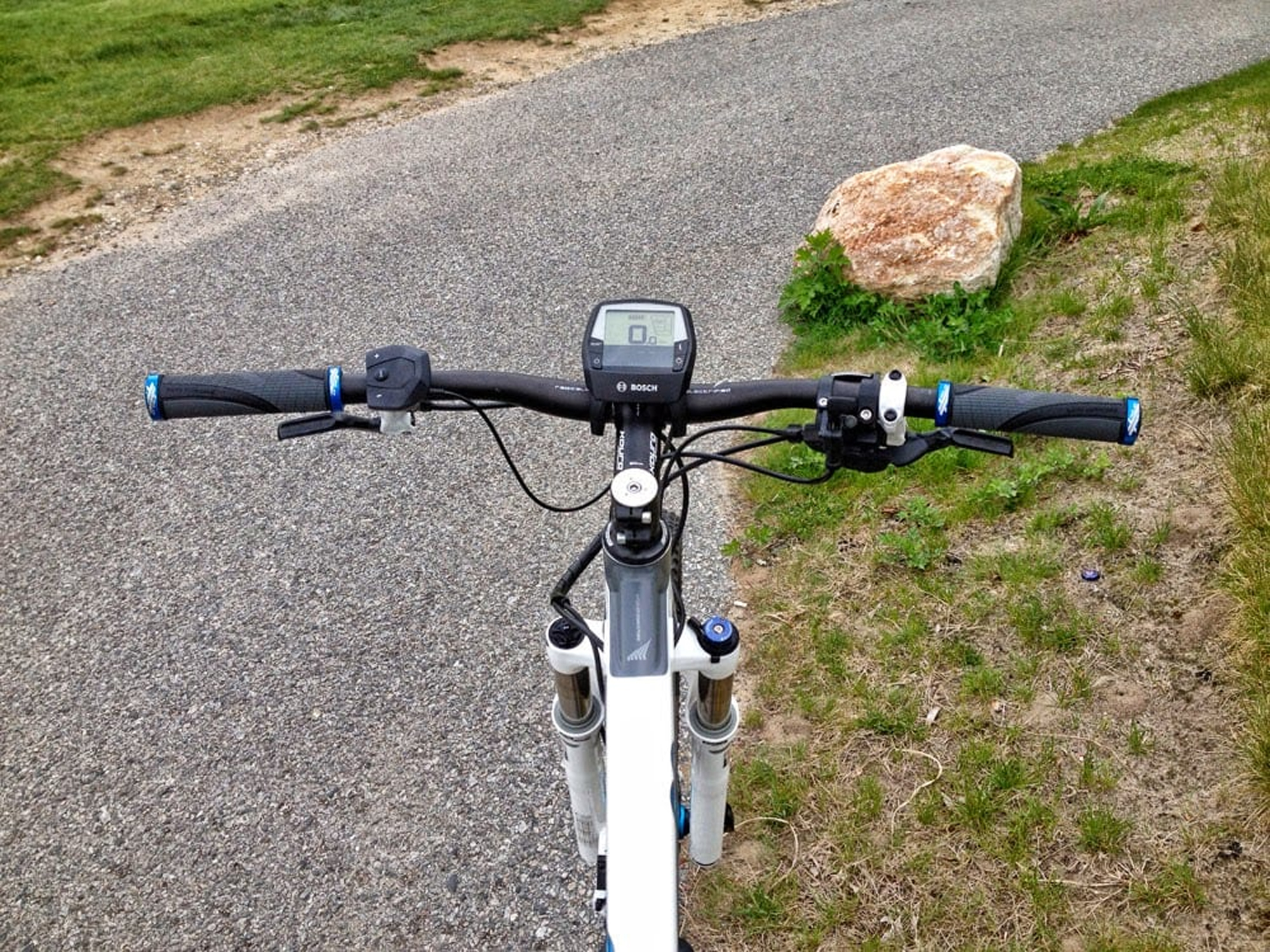

The display unit on the XDURO RX 29er is large and easy to use. The screen is backlit and shows speed, distance and assist and you can interact with it using a break-out console. This means you can keep your hands on the grips at all times (critical for trail riding on bumpy, dangerous terrain). While some electric mountain bikes rely on throttle only operation if I had to choose one I’d go with pedal assist. There’s no chance of accidental acceleration based on squeezing the grips harder for stability and the centerdrive is so responsive (using torque, cadence and wheel speed) that it cuts out as soon as you stop pedaling. One of the neat things about the Bosch display is that you can either lock it to the mount with a set screw or remove the screw and take the panel with you (to prevent tampering and vandalism). It’s nice that they give you the choice here though I’ve heard that removing screens too often can allow the contacts to get dirty and weaken if not cleaned.

The Haibike XDURO RX 29″ is my favorite in large part because I can actually afford it. Sure, $4K isn’t cheap but this is top of the line stuff and I prefer the soft feel of off-road tires and air suspension to commuter style bikes. This thing works great on roads, trails or true mountain settings and gets excellent range thanks to the mid-drive which leverages the 10 gears in the rear. It’s easy to maintain, has a solid warranty and just looks cool. Haibike was one of the first brands to produce a true eMountain bike in Europe and now it’s finally coming to the US with Currie (Makers of IZIP and eFlow) providing distribution and support. I’ve only had limited time riding this bike but had the chance to jump it, do stoppies (thanks to the hydraulic disc brakes) and power up large hills. This thing actually feels like a bike but took the edge off for my knees and weekend warrior lungs.

Pros:

  • Super light weight frame and components (at just 45lbs), well balanced drive system with motor and battery low and center
  • Unique rear portion of frame brings seat stays and chain stays closer together for improved ride quality and flex
  • Bosch drive system is efficient, smooth and powerful with removable battery for convenient charging
  • Stiff cranks, decent pedals, rigid frame for good power transfer when riding
  • Solid 10 speed cassette for climbing and bombing applications, good pedaling range
  • Great customer support and warranty from Currie Technologies in the US (part of Accell Group which owns Haibike)
  • Four frame sizes so the bike will fit and feel great over long distances (40cm, 45cm, 50cm, 55cm), two color options is kind of nice
  • Centerdrive design makes wheel repairs on the trail much easier than hub motors which have extra cables and add weight to the wheel
  • By placing the motor on the frame unsprung weight is reduced and frame geometry can focus on ride quality vs. strength

Cons:

  • The battery pack takes up the space where a water bottle cage might otherwise mount
  • Externalized battery and larger bottom bracket make it obvious that this is an electric bike “less stealth”
  • No throttle mode, this bike only uses pedal assist (like all Bosch powered systems)
  • Only available in a high-step configuration but the top tube does curve down a bit for easier standing or bails (avoid racking yourself)
