Total Weight:
45.3 lbs (20.54 kg)
Battery Weight:
5.7 lbs (2.58 kg)
Motor Weight:
7.05 lbs (3.19 kg)
Frame Material:
7005 Aluminium Alloy
Frame Sizes:
12.6 in (32 cm)Geometry Measurements:
32 cm Measurements: 13" Seat Tube, 19.75" Reach, 24" Stand Over Height, 23" Width, 64.5" Length
Frame Types:
High-Step
Frame Colors:
Matte Black with Green and Blue Accents
Frame Fork Details:

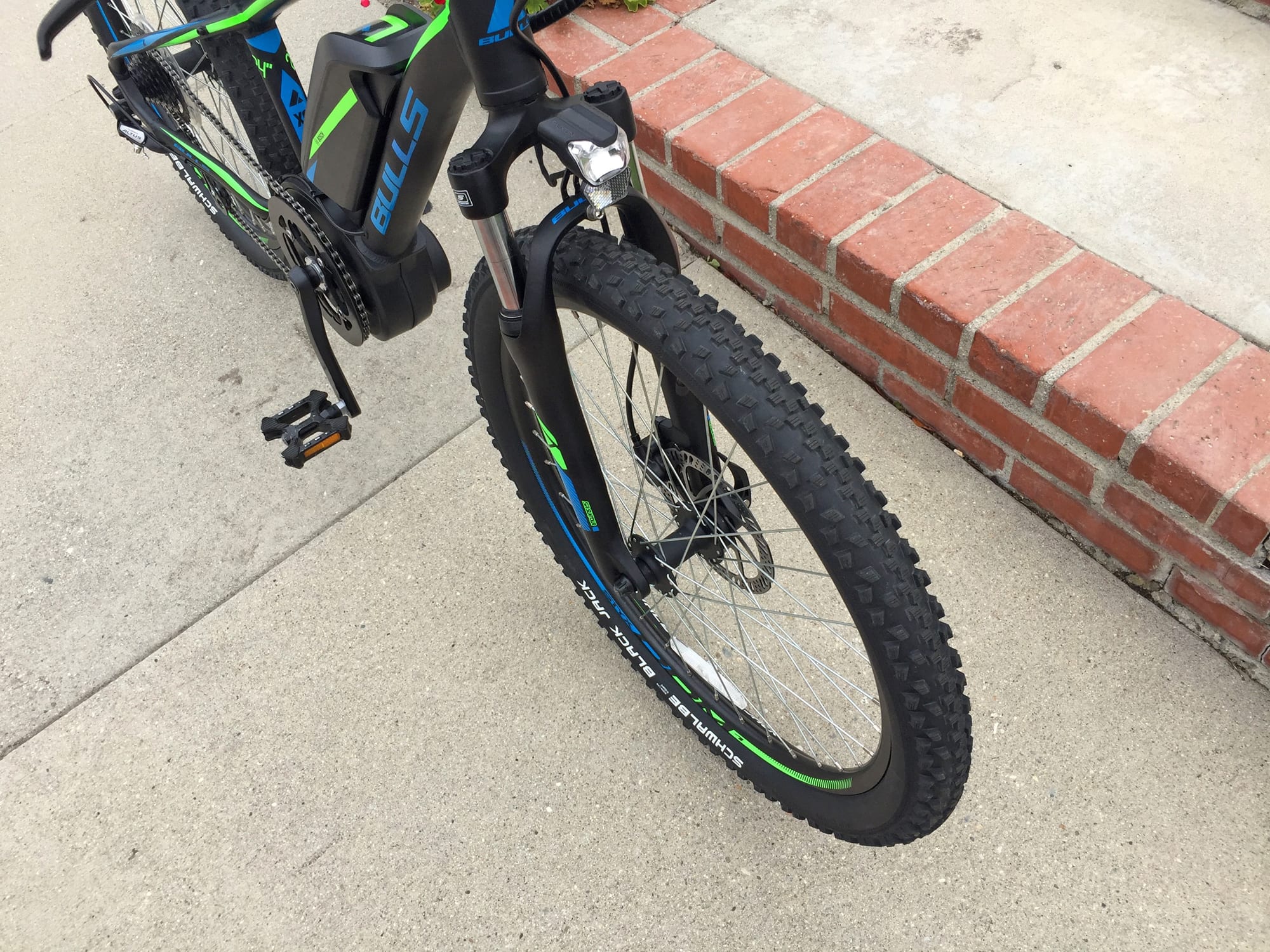

SR Suntour XCT-Junior L 24" Spring Suspension, 80 mm Travel, Preload Adjust, 100 mm Hub Spacing, 9 mm Skewer with Quick Release
Frame Rear Details:
135 mm Hub Spacing, 9 mm Skewer with Quick Release
Attachment Points:
Rear Rack Bosses, Fender Bosses

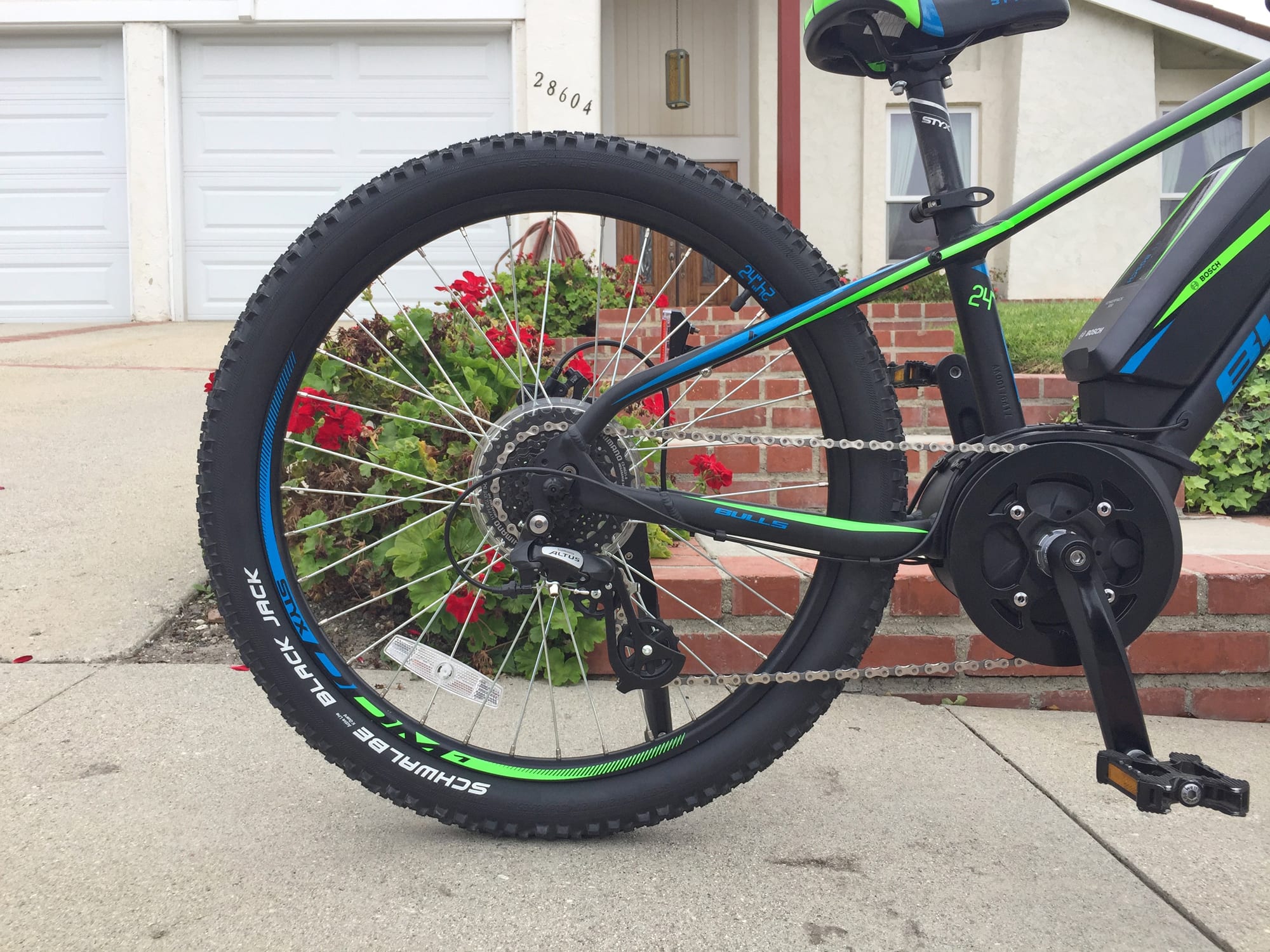

Gearing Details:
8
Speed 1x8 Shimano Altus Derailleur, CS-HG31-8 11-34T CassetteShifter Details:
Shimano Triggers on Right
Cranks:

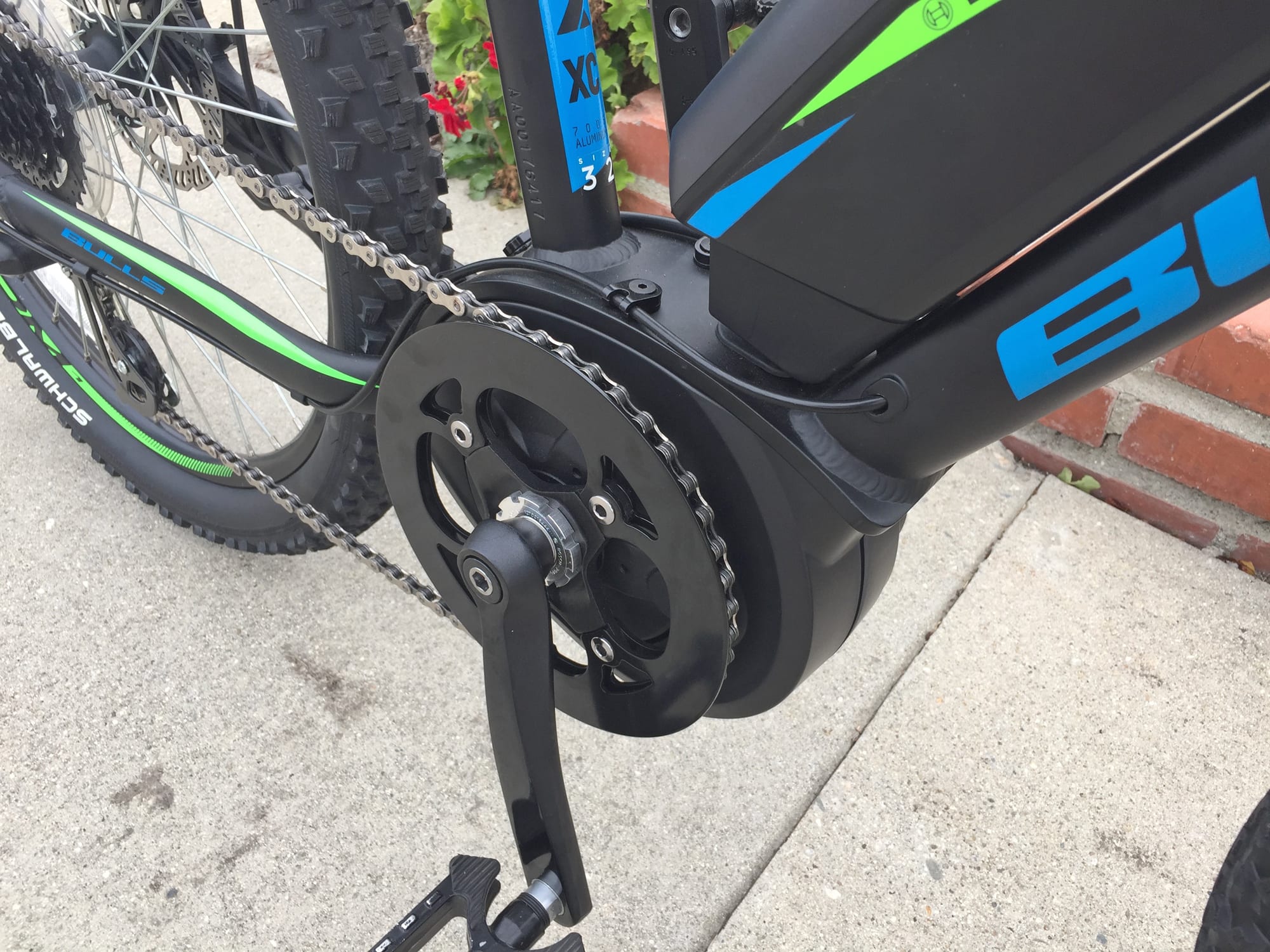

Miranda, Aluminum Alloy, 165 mm Length, 44 Tooth Chainring with Alloy Guard
Pedals:
VP-9926, Plastic and Steel Platform, Cage Style
Headset:
Chin Heur 9280BW, Threadless, Internal Cups, 1-1/8" Straight
Stem:
STYX, Alloy, 60 mm Length, 30-Degree Rise, 31.8 mm Clamp Diameter, Two 10 mm Spacers, One 5 mm Spacer

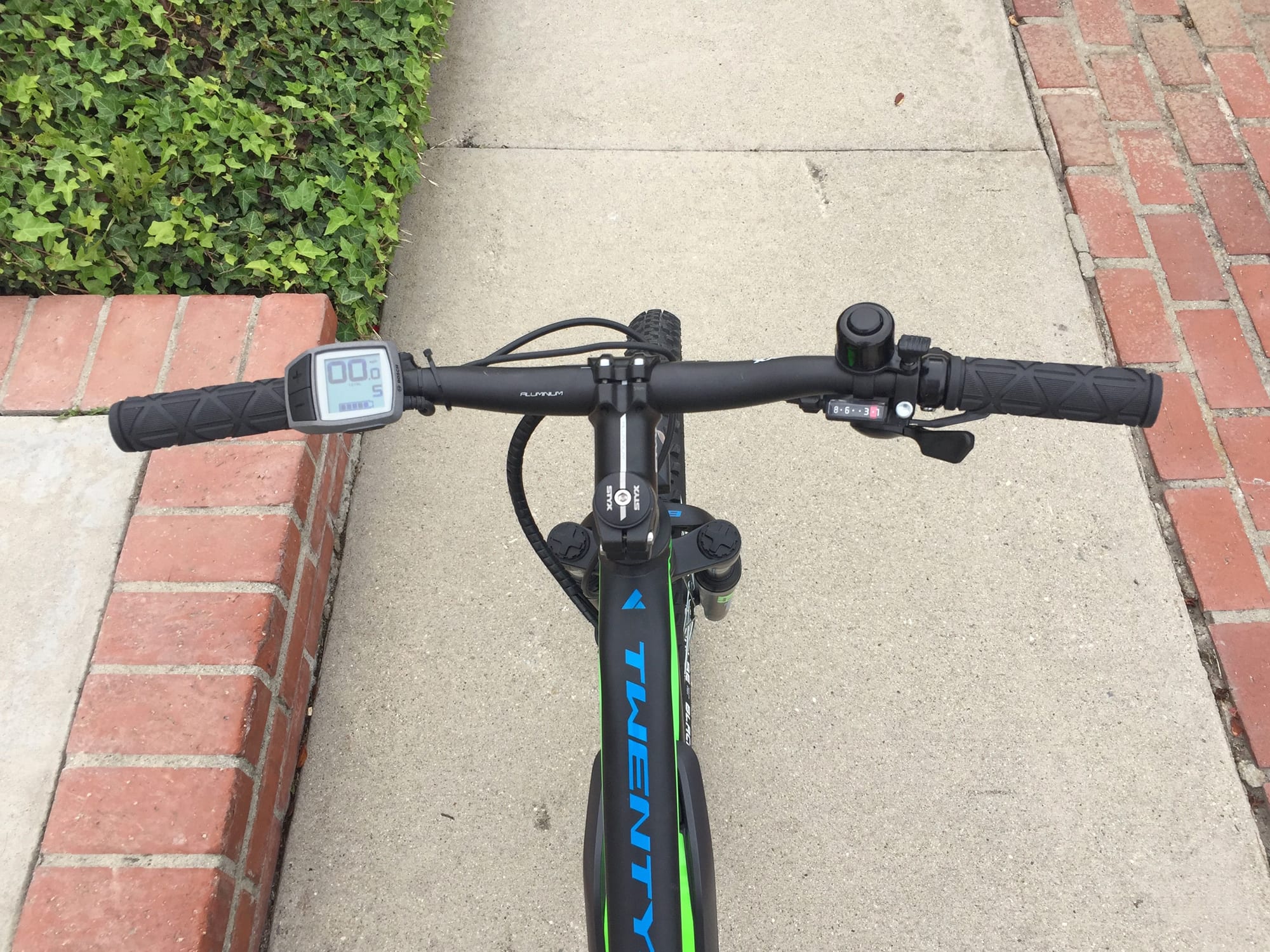

Handlebar:
STYX, Alloy, Low-Rise, 560 mm Length, 25 mm Rise, 9-Degree Bend
Brake Details:
Tektro HD-M286 Hydraulic Disc with 160 mm Rotors, Dual-Piston Calipers, Two-Finger Levers with Adjustable Reach
Grips:
Velo, Flat Rubber, Kraton Black
Saddle:
STYX Child Sized
Seat Post:
Aluminum Alloy
Seat Post Length:
250 mm
Seat Post Diameter:
30.9 mm
Rims:
STYX DDM1, Double Wall, Alloy, 36 Hole
Spokes:
Stainless Steel, 14G Front 13G Rear, Silver with Nipples
Tire Brand:

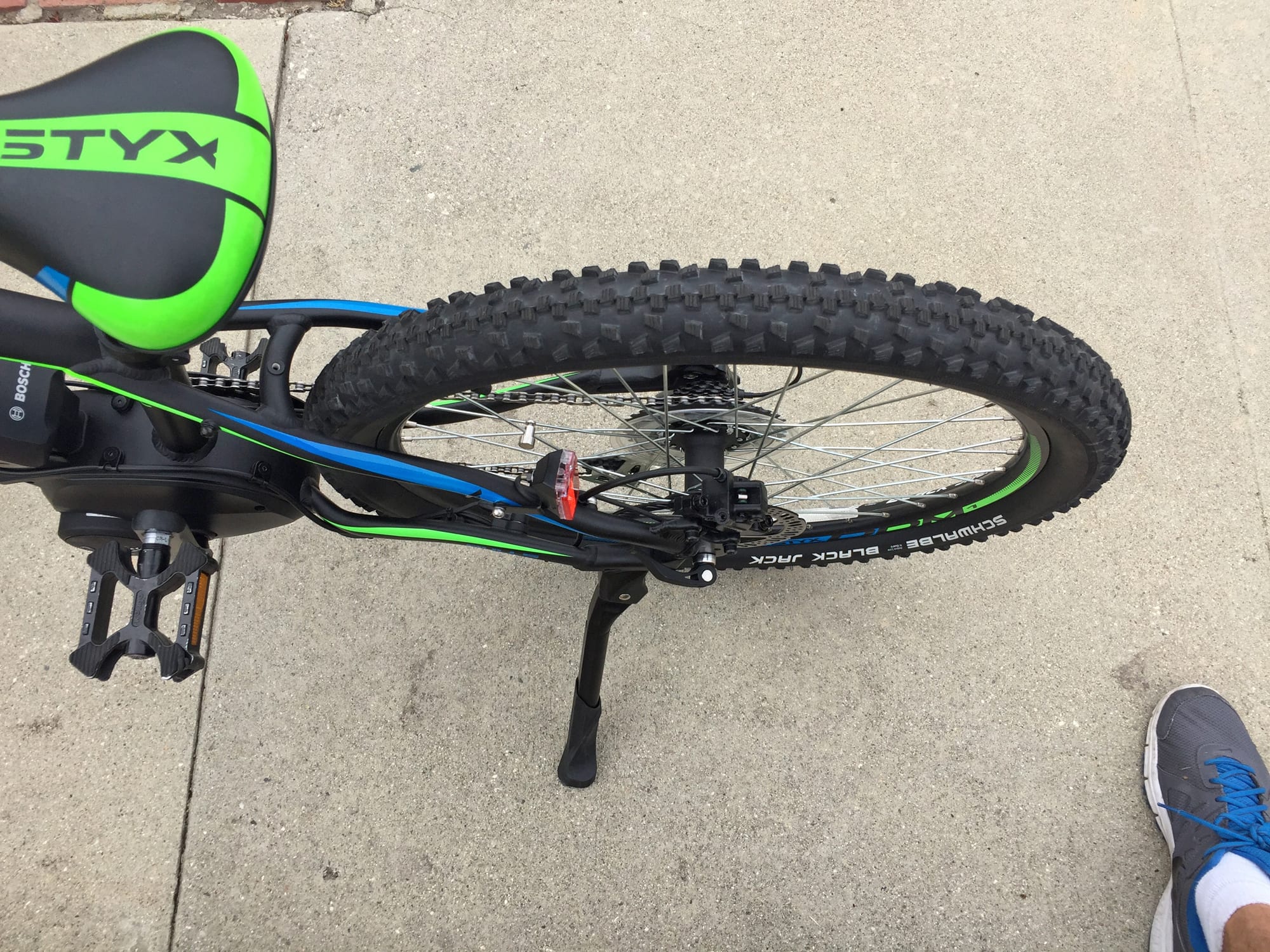

Schwalbe Black Jack, 24" x 2.1" (54-507)
Wheel Sizes:
24 in (60.96cm)Tire Details:
30 to 65 PSI, 2.0 to 4.5 BAR, Active Line K-Guard
Tube Details:
Schrader Valve
Accessories:
Velo Clear Plastic Sticker Slap Guard, Flick Bell on Right, Standwell Adjustable Kickstand at Rear, Fuxon DHL-F15 Pro Integrated Headlight, FUXON Comus ML-009EB Integrated Backlight
Other:

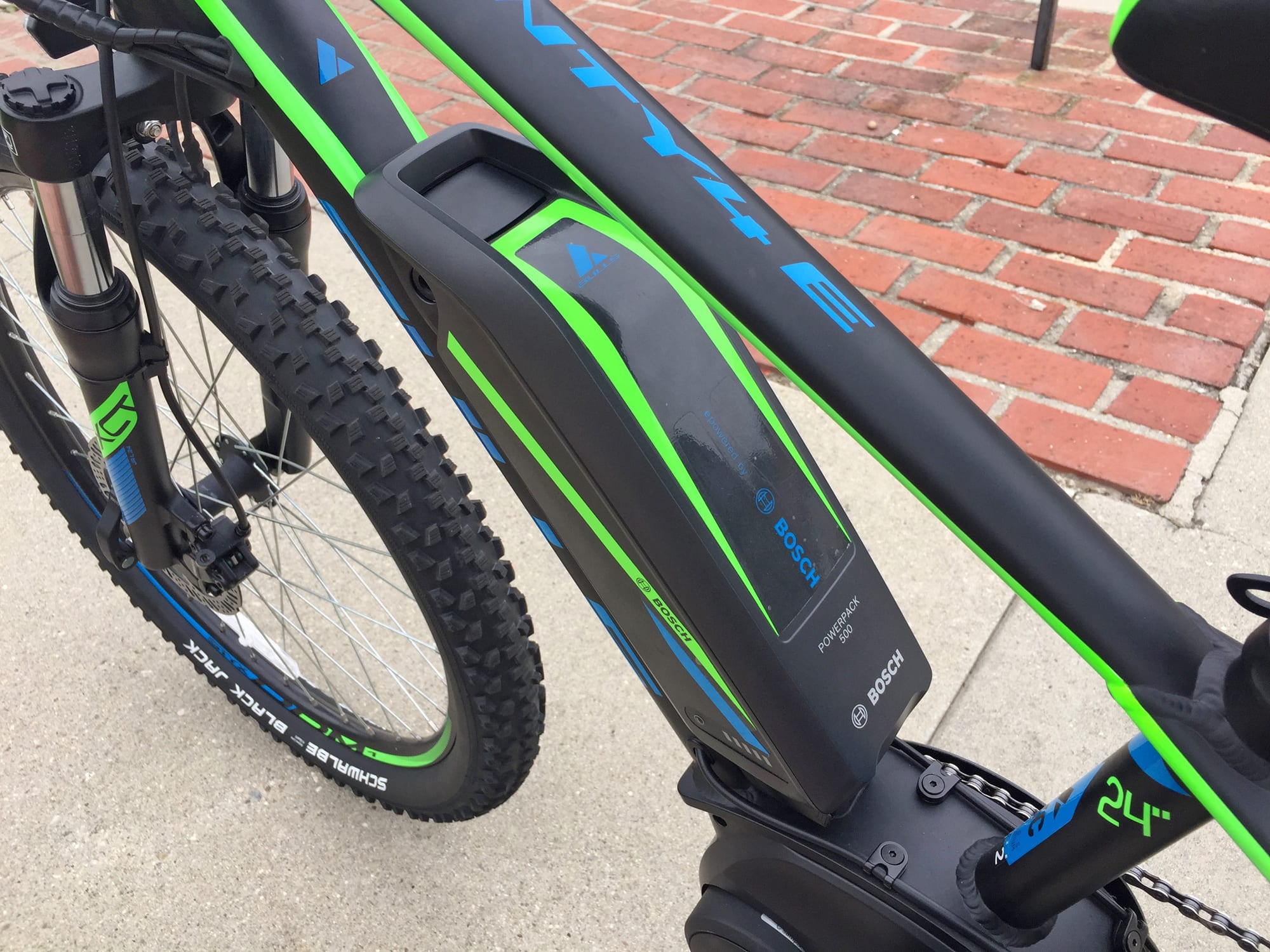

Locking Removable Mid-Mounted Battery Pack, 1.7b lb 4 Amp Charger, Maximum 105 RPM Motor Support, ABUS Locking Core
